3-70 — BRAKE PIPING; AIR,AIR MASTER (#32215) — 124 parça

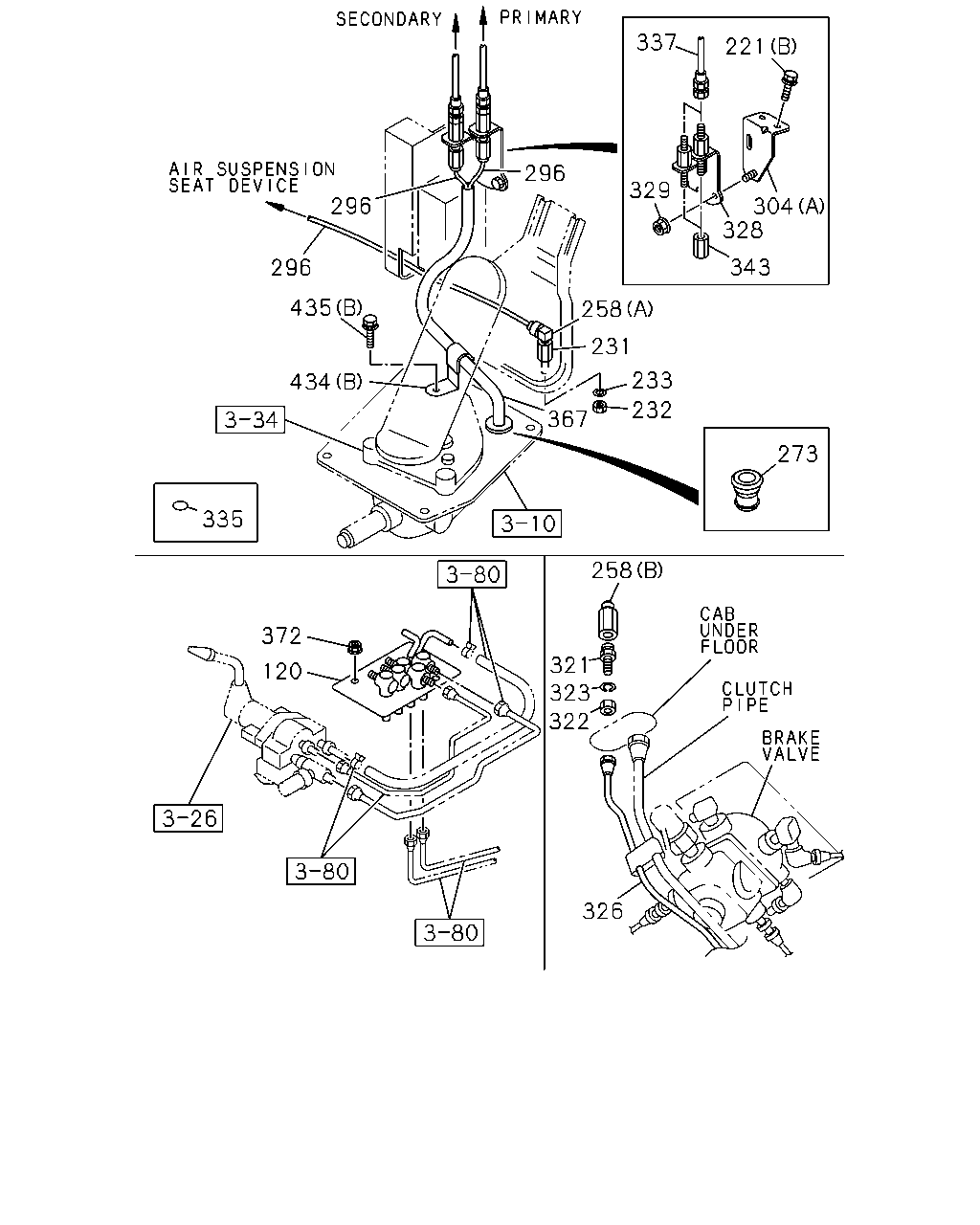

çizim 89334
337 221 296 329 296 304 328 343 296 435 258 231 233 434 232 367 273 335 258 372 321 323 120 322 326
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-677-0 01 1 0603-
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0603-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0603-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0603-
231 UNION; AIR PIPE
DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG),DRIVER ISRINGHAUSEN SEAT(SJA) 		1-09656-713-2 01 1 0603-
232 NUT; UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG),DRIVER ISRINGHAUSEN SEAT(SJA) M10 H=8 		1-09400-029-0 01 1 0603-
233 WASHER; LK,UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG),DRIVER ISRINGHAUSEN SEAT(SJA) ID=10.2 		9-09150-510-0 01 1 0603-0603
233 WASHER; LK,UNION,AIR PIPE
DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG),DRIVER ISRINGHAUSEN SEAT(SJA) ID=10.2 		0-91510-510-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG),DRIVER ISRINGHAUSEN SEAT(SJA) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0603-
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG),DRIVER ISRINGHAUSEN SEAT(SJA) (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0603-
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0603-
273 GROMMET 1-09332-135-0 01 1 0603-
296 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG),DRIVER ISRINGHAUSEN SEAT(SJA) L=1200 OD=6 		1-09366-256-1 01 1 0603-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0603-
304 BRACKET; UNION
(C) 		1-47475-874-0 01 1 0603-
304 BRACKET; UNION
(B) 		1-47476-556-0 01 1 0603-
304 BRACKET; UNION
(A) 		1-71117-211-0 01 1 0603-
321 JOINT; FLEX HOSE
DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG),DRIVER ISRINGHAUSEN SEAT(SJA) 		1-09656-738-0 01 1 0603-
322 NUT; JOINT,FLEX HOSE
DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG),DRIVER ISRINGHAUSEN SEAT(SJA) M10 H=8 		1-09400-029-0 01 1 0603-
323 WASHER; LK,JOINT
DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG),DRIVER ISRINGHAUSEN SEAT(SJA) ID=10.2 		9-09150-510-0 01 1 0603-0603
323 WASHER; LK,JOINT
DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG),DRIVER ISRINGHAUSEN SEAT(SJA) ID=10.2 		0-91510-510-0 01 1 0604-
326 PIPE; AIR,FLEX HOSE
DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG),DRIVER ISRINGHAUSEN SEAT(SJA) L=529 		1-47494-216-3 01 1 0603-
328 UNION; AIR PIPE 1-47470-442-0 01 1 0603-
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91150-106-0 01 1 0603-0603
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91180-106-0 01 1 0603-
335 SEAL; UNION
EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG), DRIVERISRINGHAUSEN SEAT(SJA) OD=30 BLACK 		1-76798-035-0 01 1 0603-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-07210-520-0 02 1 0603-0605
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-57210-520-0 02 1 0606-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 0603-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0603-
372 NUT
M8 FLANGE 		0-91150-108-0 02 1 0603-0603
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
434 CLIP
(A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0603-
434 CLIP
(B) ID=17 		8-94449-734-1 01 1 0603-
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0603-
435 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0603-0904
435 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-

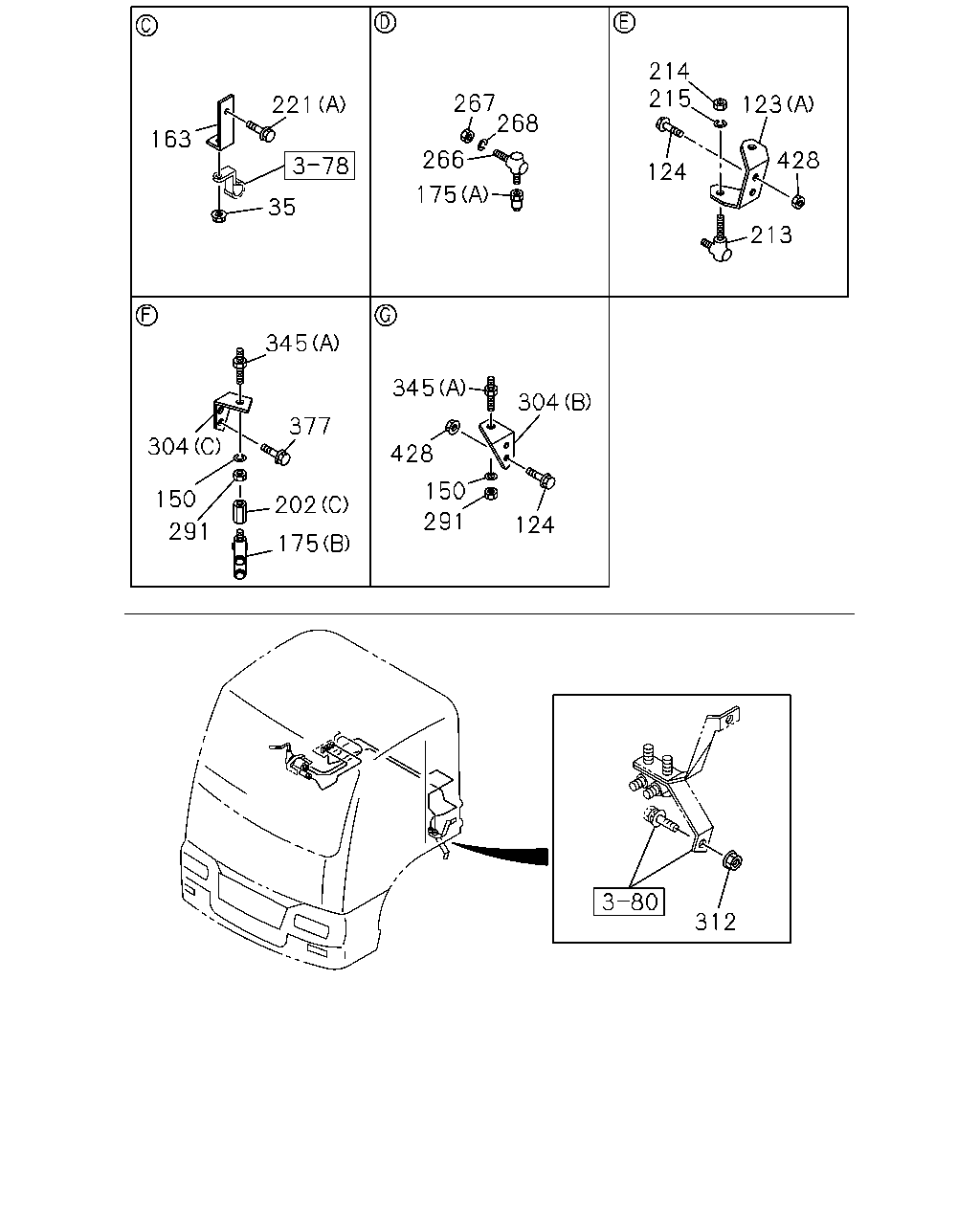

çizim 89583
214 215 267 268 123 221 163 266 428 124 175 35 213 345 345 304 377 304 428 150 150 202 291 124 291 175 312
BalonParca AdiParca NoAdetTipApplied Date
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0603-0603
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0603-
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-741-2 01 1 0603-
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0603-
124 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0603-
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0603-0603
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0604-
163 BRACKET; AIR PIPE 1-34656-009-0 01 1 0603-
175 CONNECTOR; AIR PIPE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0603-
175 CONNECTOR; AIR PIPE
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0603-
202 ADAPTER
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0603-
202 ADAPTER
(C) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 0603-
202 ADAPTER
EXC. FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0603-
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) M12 3WAY 		9-09228-906-1 01 1 0603-0607
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) M12 3WAY 		0-92138-906-0 01 1 0608-
213 UNION; AIR PIPE
EXC. FULL FLOATING CAB(W16) M12 2WAY 		1-09654-059-2 01 1 0603-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0603-
214 NUT; UNION,AIR PIPE
EXC. FULL FLOATING CAB(W16) M12 2WAY 		1-09654-059-2 01 1 0603-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 0603-0603
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0604-
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0603-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0603-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0603-
266 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0603-0607
266 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0608-
267 NUT; UNION
M12 		9-09840-280-0 01 1 0603-
268 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0603-0603
268 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0604-
291 NUT; UNION
M12 		9-09840-280-0 02 1 0603-
304 BRACKET; UNION
(C) 		1-47475-874-0 01 1 0603-
304 BRACKET; UNION
(B) 		1-47476-556-0 01 1 0603-
304 BRACKET; UNION
(A) 		1-71117-211-0 01 1 0603-
312 NUT; UNION
M8 		0-91110-508-0 01 1 0603-
345 UNION; AIR PIPE
(B) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0603-
345 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 02 1 0603-0607
345 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 02 1 0608-
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 02 1 0603-
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0603-0603
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0603-0603
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-

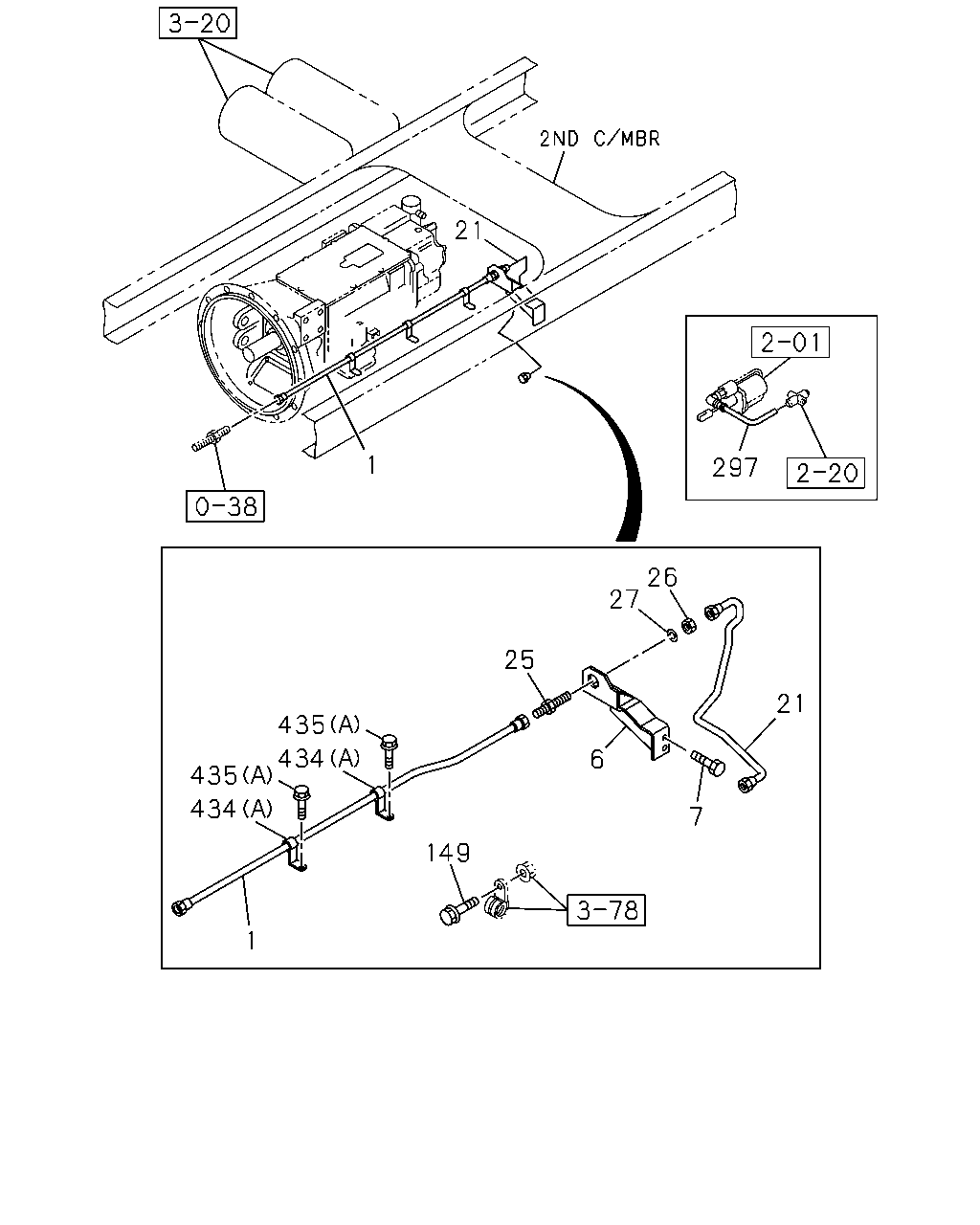

çizim 89584
21 1 297 26 27 25 21 435 434 6 435 434 7 149 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1050 		1-09363-789-0 01 1 0603-
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-719-1 01 1 0603-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0603-
21 PIPE; AIR,UNION TO AIR DRYER 1-49124-042-0 01 1 0603-
25 VALVE; CHECK 1-48320-057-0 01 1 0603-
26 NUT; CHECK VLV
M20 		0-91111-520-0 01 1 0603-
27 WASHER; LK,CHECK VLV
ID=20.2 		9-09150-520-0 01 1 0603-0603
27 WASHER; LK,CHECK VLV
ID=20.2 		0-91510-520-0 01 1 0604-
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0603-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0603-
434 CLIP
(A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0603-
434 CLIP
(B) ID=17 		8-94449-734-1 01 1 0603-
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0603-
435 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0603-0904
435 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-

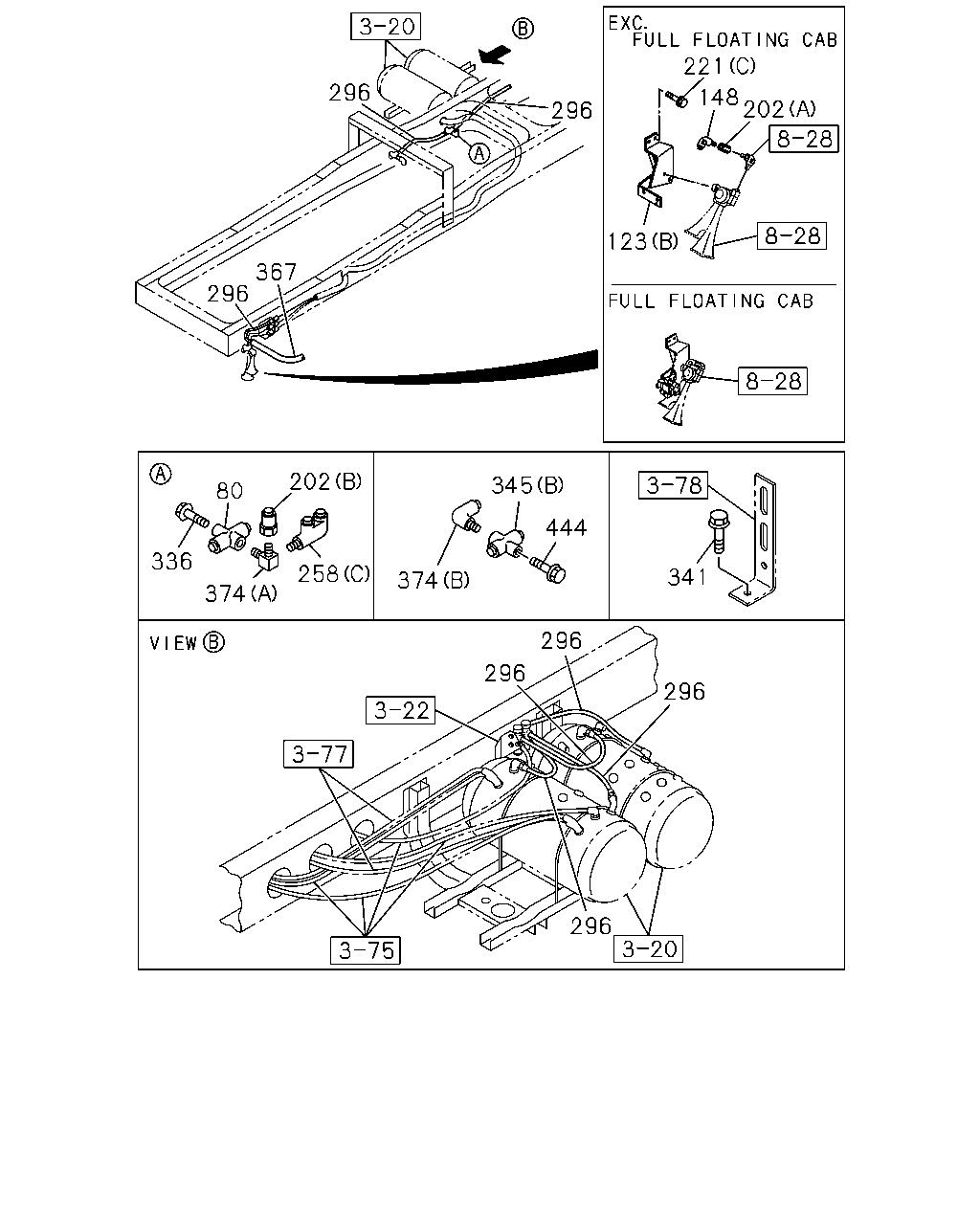

çizim 89766
221 296 148 202 296 123 367 296 202 345 80 444 336 258 341 374 374 296 296 296 296
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0603-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0603-
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-741-2 01 1 0603-
148 CONNECTOR; UNION
EXC. FULL FLOATING CAB(W16) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0603-
202 ADAPTER
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0603-
202 ADAPTER
(C) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 0603-
202 ADAPTER
EXC. FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0603-
221 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 01 1 0603-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0603-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0603-
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG),DRIVER ISRINGHAUSEN SEAT(SJA) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0603-
258 CONNECTOR; NYLON TUBE
DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG),DRIVER ISRINGHAUSEN SEAT(SJA) (B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0603-
258 CONNECTOR; NYLON TUBE
(C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0603-
296 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG),DRIVER ISRINGHAUSEN SEAT(SJA) L=1200 OD=6 		1-09366-256-1 01 1 0603-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0603-
336 BOLT; PIPE UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0603-
341 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0603-
345 UNION; AIR PIPE
(B) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0603-
345 UNION; AIR PIPE
(A) M12 L=66.5 		9-09223-306-1 02 1 0603-0607
345 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 02 1 0608-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0603-
374 CONNECTOR
(A) M16 PT3/8X2 3WAY 		1-09656-556-1 01 1 0603-
374 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0603-
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0603-

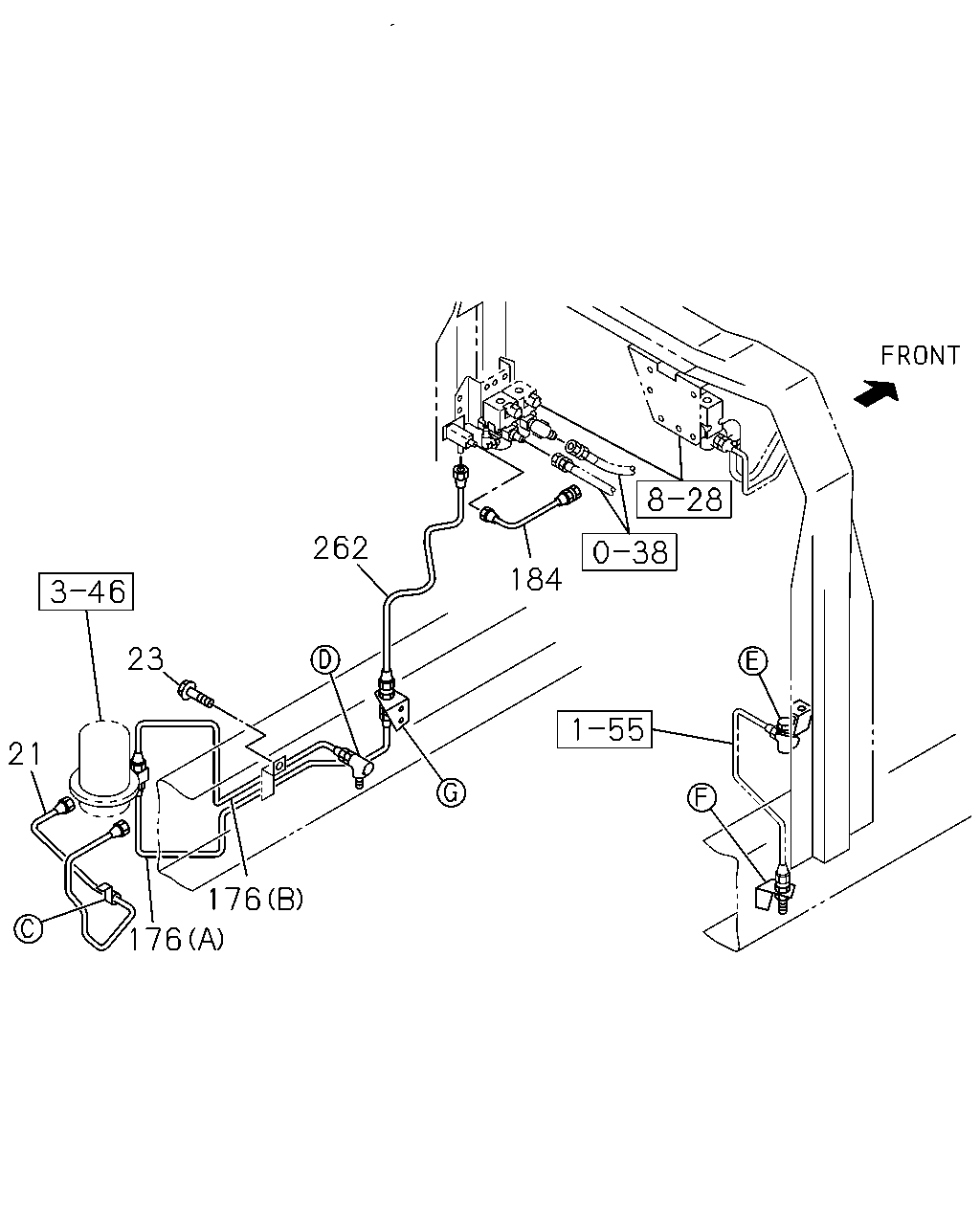

çizim 106457
262 184 23 21 176 176
BalonParca AdiParca NoAdetTipApplied Date
21 PIPE; AIR,UNION TO AIR DRYER 1-49124-042-0 01 1 0603-
23 BOLT; BRKT,AIR PIPE
M8X35 FLANGE 		0-28650-835-0 01 1 0603-
176 PIPE; AIR,AIR DRYER TO UNION
(B) 		1-49123-083-0 01 1 0603-
176 PIPE; AIR,AIR DRYER TO UNION
(A) 		1-49123-084-0 01 1 0603-
184 HOSE; FLEX,AIR GOV
L=390 		1-09363-616-0 01 1 0603-
262 PIPE; AIR,UNION TO FLEX 1-49123-639-0 01 1 0603-
