Isuzu WW
▶
TRUCKS
▶
CXY
▶
11021 - CXY AUSTRALIA
▶
3 - Brakes, Brake System
▶
3-45 - LOAD SENSING PROPORTIONING VALVE
▶
3-45 — LOAD SENSING PROPORTIONING VALVE
(#32211) — 25 parça
◀
[345A] COMPONENT (17 parça)
[345A] FIXING (7 parça)
[345A] REPAIR KIT (1 parça)
▶

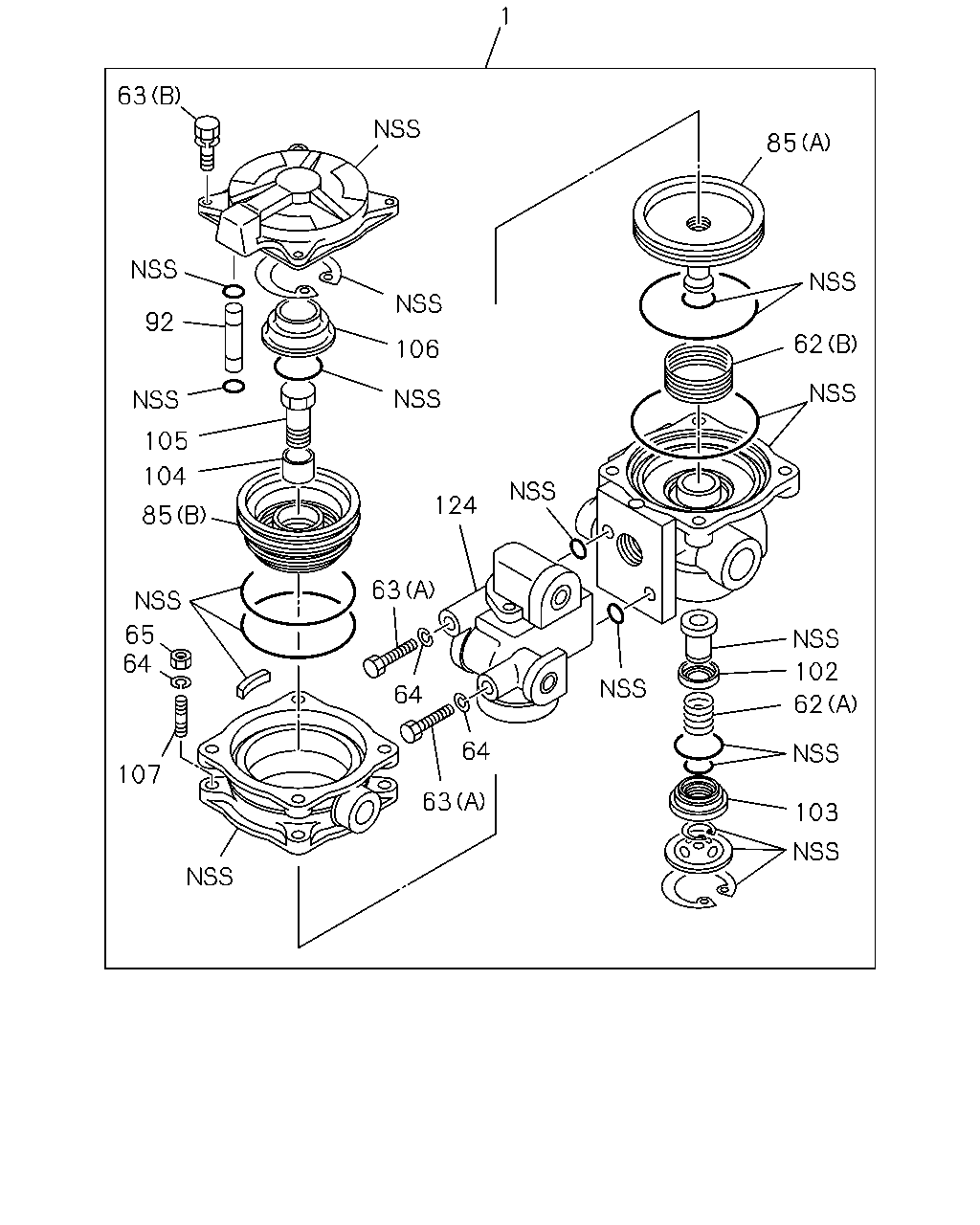

1
63
85
92
62
106
105
104
124
85
63
65
64
102
64
62
64
107
63
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; LOAD SENSING PROPORTIONING
1-47720-090-0
01
1
0603-
62
SPRING; LSPV
(A)
1-47819-089-0
01
1
0603-
62
SPRING; LSPV
(B)
1-47819-090-0
01
1
0603-
63
BOLT; LSPV
(A)
1-47769-160-0
02
1
0603-
63
BOLT; LSPV
(B)
1-48219-039-0
04
1
0603-
64
WASHER; LSPV
ID=8.2
9-09150-508-0
06
1
0603-
65
NUT; LSPV
9-83315-085-0
04
1
0603-
85
PISTON; LSPV
(A)
1-47769-058-0
01
1
0603-
85
PISTON; LSPV
(B)
1-47769-059-0
01
1
0603-
92
PIPE; LSPV
1-47769-159-0
01
1
0603-
102
RETAINER; VALVE
1-48213-002-0
01
1
0603-
103
GUIDE; VALVE
1-48129-014-0
01
1
0603-
104
COLLAR; LSPV
1-47769-061-0
01
1
0603-
105
BOLT; PISTON
1-47769-062-0
01
1
0603-
106
COVER; PISTON
1-47769-063-0
01
1
0603-
107
STUD; LSPV
1-47769-064-0
04
1
0603-
124
VALVE; EMERGENCY
1-47769-161-0
01
1
0603-

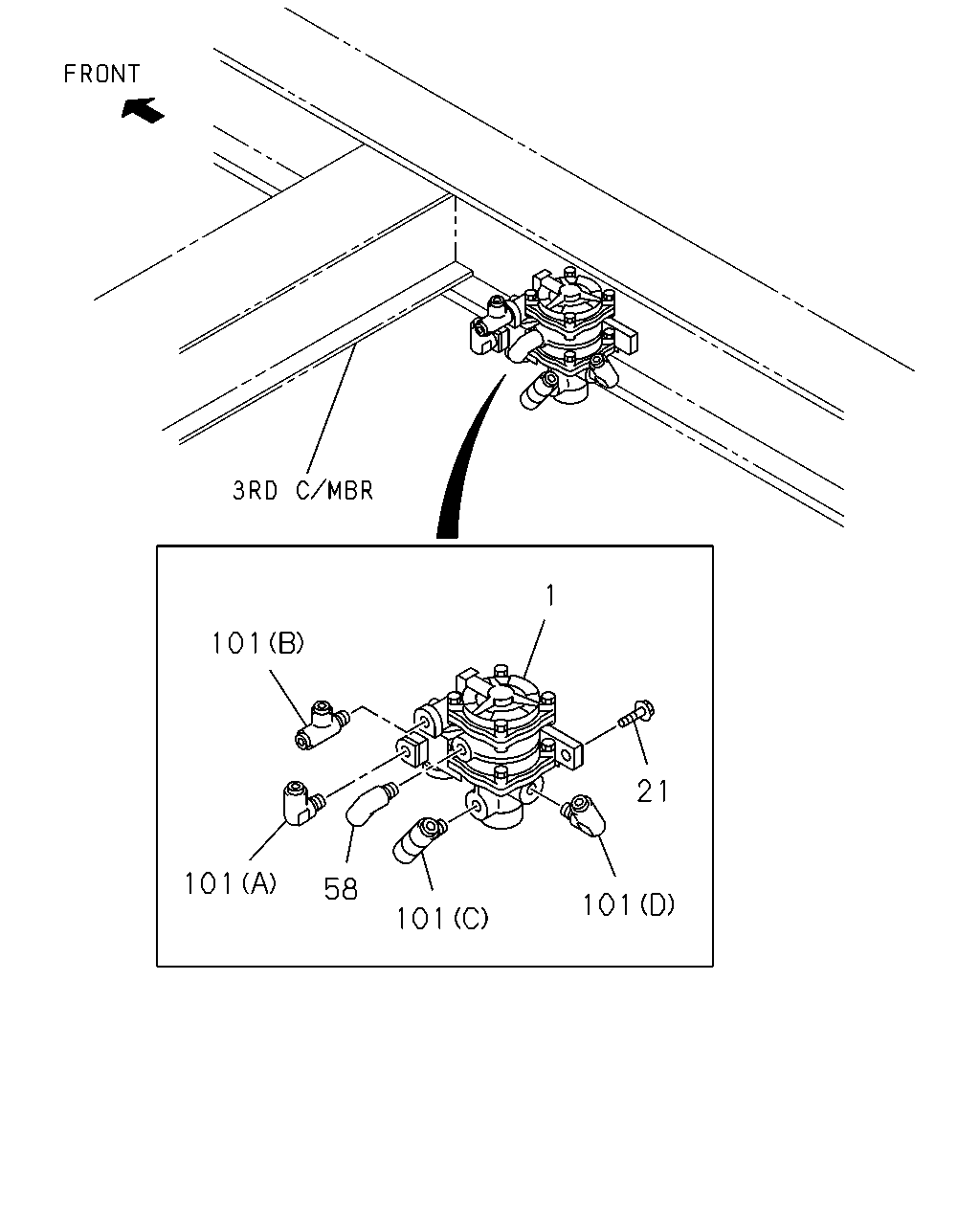

1
101
21
101
58
101
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; LOAD SENSING PROPORTIONING
1-47720-090-0
01
1
0603-
21
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
03
1
0603-
58
CONNECTOR; LSPV
DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0603-
101
CONNECTOR; LSPV
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0603-
101
CONNECTOR; LSPV
(B) DIN8X2 & R3/8 3WAY
1-09660-997-0
01
1
0603-
101
CONNECTOR; LSPV
(C) DIN12X2 & R1/2 3WAY
1-09661-020-0
01
1
0603-
101
CONNECTOR; LSPV
(D)
1-09661-125-0
01
1
0603-

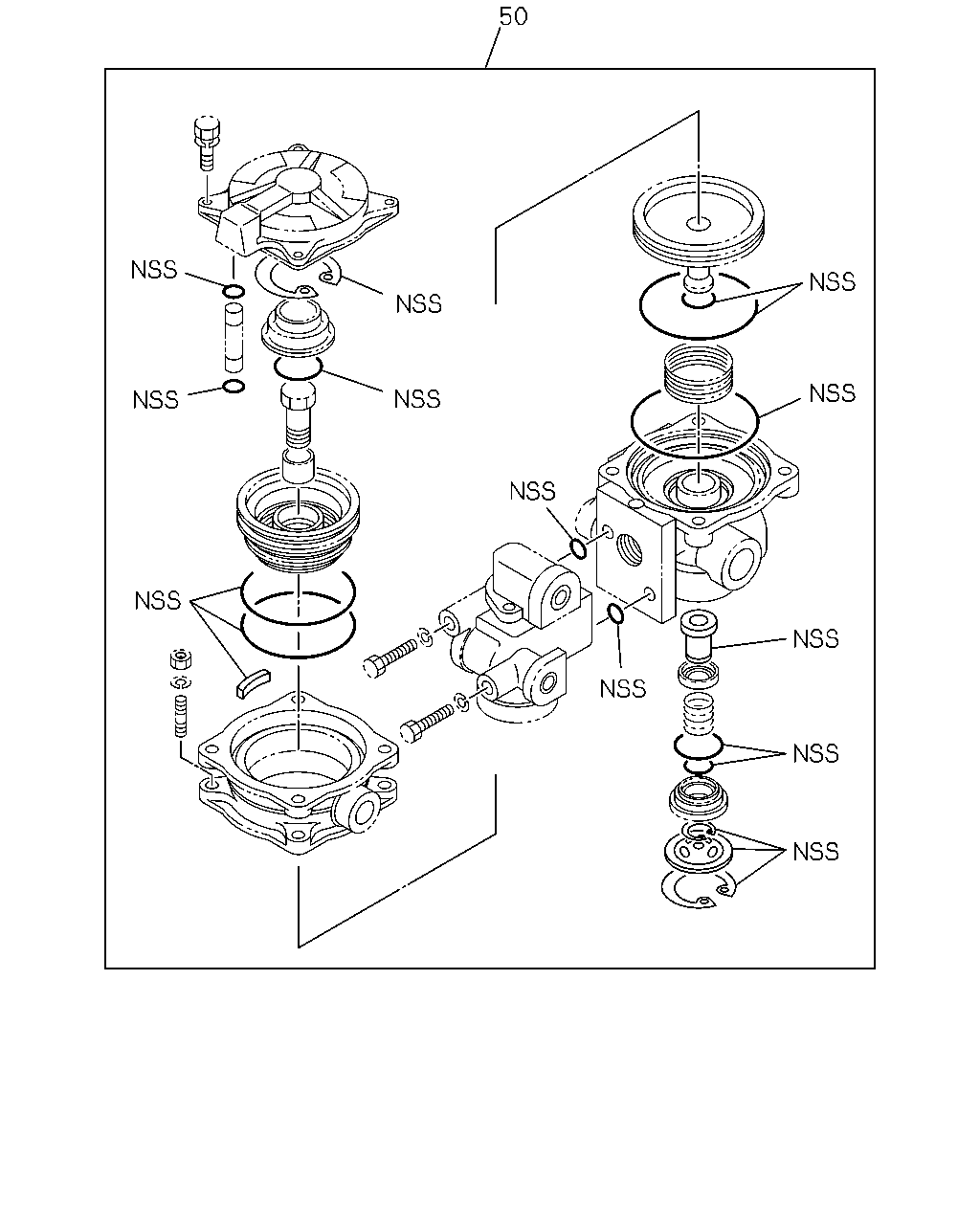

50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
REPAIR KIT; LSPV
1-85576-206-0
01
1
0603-
