Isuzu WW
▶
TRUCKS
▶
CXY
▶
11021 - CXY AUSTRALIA
▶
3 - Brakes, Brake System
▶
3-20 - AIR TANK
▶
3-20 — AIR TANK
(#32205) — 70 parça
◀
[320A] SUB AIR TANK (21 parça)
[320A] DOUBLE CHECK VALVE (7 parça)
[320A] FIXING PARTS;TRAILER CONTROL (1 parça)

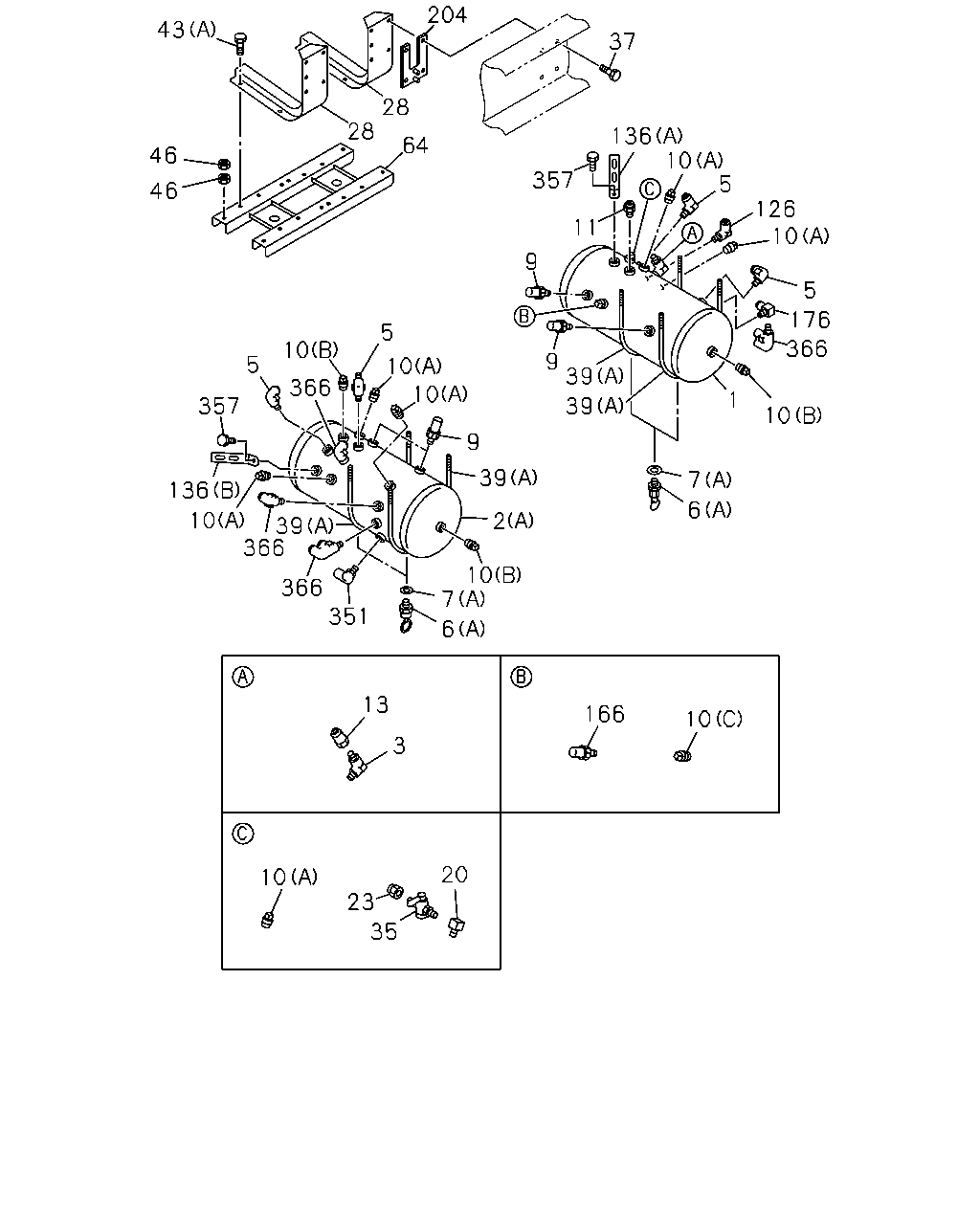

[320A] MAIN AIR TANK (41 parça)
▶
39
26
27
26
31
32
67
39
30
7
82
6
30
2
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
TANK; AIR
(A)
1-48370-884-0
01
1
0603-
2
TANK; AIR
(B)
1-48371-146-0
01
1
0603-
6
COCK; DRAIN,AIR TANK
(A)
1-48312-015-0
01
1
0603-
6
COCK; DRAIN,AIR TANK
(B)
1-48312-015-0
02
1
0603-
6
COCK; DRAIN,AIR TANK
(A)
1-48312-015-0
03
1
0603-
7
GASKET; DRAIN COCK
(A) ID=14
1-09630-145-0
01
1
0603-
7
GASKET; DRAIN COCK
(B) ID=14
1-09630-145-0
02
1
0603-
7
GASKET; DRAIN COCK
(A) ID=14
1-09630-145-0
03
1
0603-
26
PLUG; SUB AIR TANK
PT3/8
9-09204-517-0
04
1
0603-
27
UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
0603-
30
BRACKET; AIR TANK,SUB
1-48316-083-0
02
1
0603-
31
BOLT; BRKT TO FRAME
M12X40 FLANGE
0-28651-240-0
04
1
0603-
32
NUT; BRKT TO FRAME
M12 FLANGE
0-91150-212-0
02
1
0603-0603
32
NUT; BRKT TO FRAME
M12 FLANGE
0-91180-212-0
02
1
0603-
39
U-BOLT; AIR TANK
(B)
1-48317-675-0
02
1
0603-
39
U-BOLT; AIR TANK
(A)
1-48317-675-0
04
1
0603-
43
BOLT; STAY,AIR TANK,MAIN
(B) M8X20 FLANGE
0-28650-820-0
02
1
0603-
43
BOLT; STAY,AIR TANK,MAIN
(A) M12X30 FLANGE
0-28651-230-0
08
1
0603-
67
STAY; SUB TANK
1-48317-911-0
01
1
0603-
82
NUT; STAY,AIR MASTER BRKT
M8 FLANGE
0-91150-108-0
02
1
0603-0603
82
NUT; STAY,AIR MASTER BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
121
95
104
111
111
111
103
104
103
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
95
VALVE; DOUBLE CHECK
1-48410-531-1
01
1
0603-
103
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
08
1
0603-
104
NUT; BRKT
M8 FLANGE
0-91150-108-0
08
1
0603-0603
104
NUT; BRKT
M8 FLANGE
0-91180-108-0
08
1
0603-
111
CONNECTOR; CHECK VLV
(A) DIN8 & R3/8 STRAIGHT
1-09660-964-0
02
1
0603-
111
CONNECTOR; CHECK VLV
(B) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
0603-
121
BOLT; DOUBLE CHECK VLV
M8X16 FLANGE
0-28050-816-0
02
1
0603-
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER
0-50640-830-0
01
1
0603-
204
43
37
28
28
136
10
64
46
5
357
46
126
10
11
9
5
176
5
366
10
9
39
5
10
10
366
1
357
39
10
9
39
7
136
6
10
39
366
2
10
7
366
351
6
13
166
10
3
20
10
23
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
1-48370-885-0
01
1
0603-
2
TANK; AIR
(A)
1-48370-884-0
01
1
0603-
2
TANK; AIR
(B)
1-48371-146-0
01
1
0603-
3
VALVE; CHECK,AIR TANK
M20 & PT3/4 ELBOW
1-48410-412-0
01
1
0603-
5
UNION; AIR TANK
DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
0603-
6
COCK; DRAIN,AIR TANK
(A)
1-48312-015-0
01
1
0603-
6
COCK; DRAIN,AIR TANK
(B)
1-48312-015-0
02
1
0603-
6
COCK; DRAIN,AIR TANK
(A)
1-48312-015-0
03
1
0603-
7
GASKET; DRAIN COCK
(A) ID=14
1-09630-145-0
01
1
0603-
7
GASKET; DRAIN COCK
(B) ID=14
1-09630-145-0
02
1
0603-
7
GASKET; DRAIN COCK
(A) ID=14
1-09630-145-0
03
1
0603-
9
SWITCH; LOW PRESSURE GAGE,AIR TANK
530KPA
1-48340-054-1
04
1
0603-
10
PLUG; AIR TANK
(A) PT3/8
9-09204-517-0
05
1
0603-
10
PLUG; AIR TANK
(B) PT3/4
9-09204-526-0
01
1
0603-
10
PLUG; AIR TANK
EXC. FULL FLOATING CAB(W16) (C) PT1/4
9-99204-513-0
01
1
0603-
10
PLUG; AIR TANK
EXC. TIRE INFLATOR DEVICE<W47> (A) PT3/8
9-09204-517-0
01
1
0603-
11
VALVE; SAFETY,AIR TANK
1-48320-012-2
01
1
0603-
13
ADAPTER; NYLON TUBE
DIN12 & M20 STRAIGHT
1-09660-877-0
01
1
0603-
20
NIPPLE; AIR TANK
TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
0603-
23
CAP; COCK,AIR TANK
TIRE INFLATOR DEVICE<W47>
9-48319-102-0
01
1
0603-
28
BRACKET; AIR TANK
1-48317-826-5
02
1
0603-
35
COCK; AIR,AIR TANK
TIRE INFLATOR DEVICE<W47>
1-09680-099-0
01
1
0603-
37
BOLT; AIR TANK
M12X50 FLANGE
0-28051-250-0
04
1
0603-0703
37
BOLT; AIR TANK
M12X50 FLANGE
0-28051-250-0
08
1
0704-
37
BOLT; AIR TANK
M12X40 FLANGE
0-28651-240-0
04
1
0603-0703
39
U-BOLT; AIR TANK
(B)
1-48317-675-0
02
1
0603-
39
U-BOLT; AIR TANK
(A)
1-48317-675-0
04
1
0603-
43
BOLT; STAY,AIR TANK,MAIN
(B) M8X20 FLANGE
0-28650-820-0
02
1
0603-
43
BOLT; STAY,AIR TANK,MAIN
(A) M12X30 FLANGE
0-28651-230-0
08
1
0603-
46
NUT; U-BOLT
M8
0-91110-508-0
08
1
0603-
46
NUT; U-BOLT
M8
0-91110-508-0
16
1
0603-
64
STAY; AIR TANK,MAIN
1-48317-801-1
01
1
0603-
126
CONNECTOR; ELBOW
DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0603-
136
BRACKET; CLIP
(A) L=150 H=30
1-47477-629-2
01
1
0603-
136
BRACKET; CLIP
(B) L=100 H=30
1-47477-645-2
01
1
0603-
166
SWITCH ASM; LOW PRESSURE,MAIN TANK
FULL FLOATING CAB(W16) 650KPA
1-48340-059-1
01
1
0603-
176
ADAPTER
PT3/8 ELBOW
1-09660-696-0
01
1
0603-
204
SPACER; STAY,AIR TANK
8-98080-338-0
01
1
0704-
351
CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR
1-47459-013-1
02
1
0603-
357
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0603-
366
CONNECTOR; NYLON TUBE
DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
04
1
0603-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
