Isuzu WW
▶
TRUCKS
▶
CXY
▶
11021 - CXY AUSTRALIA
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

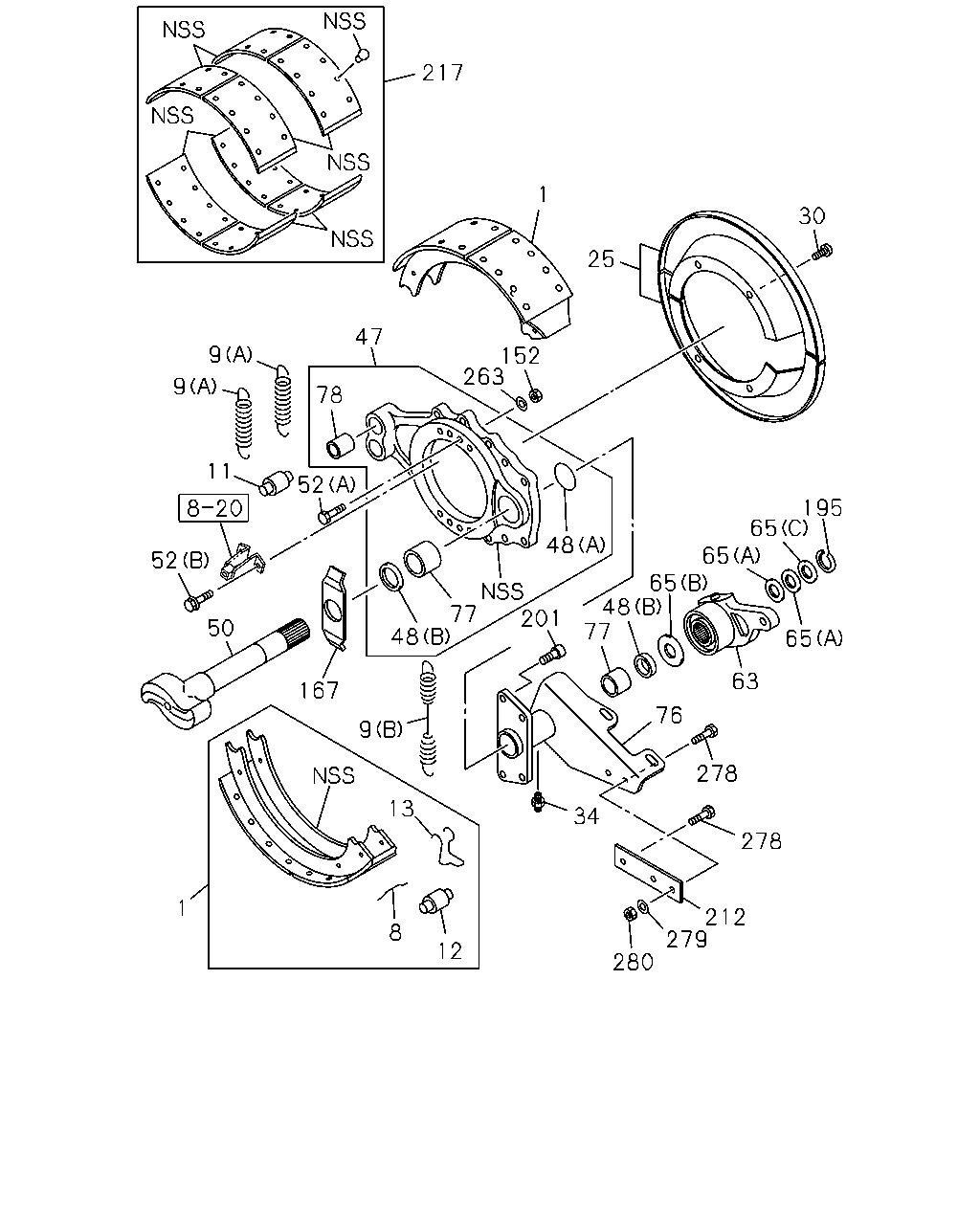

3-05 — REAR WHEEL BRAKE
(#32202) — 38 parça
217
1
30
25
47
9
152
263
9
78
11
52
195
65
48
65
65
48
77
52
77
201
48
50
65
63
167
76
9
278
13
34
278
1
212
279
8
12
280
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
1-47120-734-0
08
1
0603-
8
PIN; RETURN SPRING,RR BRK SHOE
1-47119-116-0
08
1
0603-
9
SPRING; RETURN,BRK SHOE
(A)
1-47119-114-0
08
1
0603-
9
SPRING; RETURN,BRK SHOE
(B)
1-47119-115-0
04
1
0603-
11
PIN; ANCHOR,RR WHEEL BRK
1-47131-040-0
04
1
0603-
12
ROLLER; CAM,BRK SHOE
1-47119-117-0
08
1
0603-
13
CLIP; ROLLER PIN,BRK SHOE
1-47119-118-0
08
1
0603-
25
COVER SET; RR BRK DRUM
1-47151-774-0
04
1
0603-
30
BOLT; DRUM COVER
1-47159-176-0
24
1
0603-
34
NIPPLE; GREASE,CHAMBER BRKT
1-48259-253-0
08
1
0603-
47
BRACKET; ANCHOR PIN,RR WHEEL BRK
1-47137-374-0
04
1
0603-
48
SEAL; OIL,CM/SHF,RR BRK
(A)
1-47149-056-0
04
1
0603-
48
SEAL; OIL,CM/SHF,RR BRK
(B)
1-47149-057-0
08
1
0603-
50
CAMSHAFT; BRK,RR BRK
1-47141-124-0
02
1
0603-
50
CAMSHAFT; BRK,RR BRK
1-47141-125-0
02
1
0603-
52
BOLT; ANCHOR BRKT
(A)
1-47139-122-0
28
1
0603-
52
BOLT; ANCHOR BRKT
(B)
1-47139-168-0
04
1
0603-
63
ADJUSTER ASM; SLACK,RR BRK
1-48270-101-0
04
1
0603-
65
SPACER; SLACK ADJ,BRK
(A) T=0.06"
1-47139-121-0
04
1
0603-
65
SPACER; SLACK ADJ,BRK
(C)
1-47149-059-0
04
1
0603-
65
SPACER; SLACK ADJ,BRK
(A) T=0.03"
1-47149-060-0
04
1
0603-
65
SPACER; SLACK ADJ,BRK
(B)
1-47149-065-0
04
1
0603-
76
BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD
1-47145-022-0
01
1
0603-
76
BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD
1-47145-023-0
01
1
0603-
76
BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD
1-47145-024-0
01
1
0603-
76
BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD
1-47145-025-0
01
1
0603-
77
BUSHING
1-47146-012-0
08
1
0603-
78
BUSHING; BRKT
1-47139-117-0
08
1
0603-
152
NUT; ANCHOR BRKT
1-41229-143-0
32
1
0603-
167
WASHER; ADJ CAM
1-47149-077-0
04
1
0603-
195
RING; SNAP,CM/SHF
1-87050-005-0
04
1
0603-
201
BOLT; BRKT,POWER CHAMBER
1-47139-160-0
16
1
0603-
212
STAY
1-47149-081-0
04
1
0603-
217
LINING KIT; RR BRK
1-87050-157-0
02
1
0603-
263
WASHER; PL,ANCHOR BRKT
1-41519-038-0
32
1
0603-
278
BOLT; SUPPORT
1-41329-038-0
12
1
0603-
279
WASHER; SUPPORT
1-47149-083-0
04
1
0603-
280
NUT; SUPPORT
1-47149-082-0
12
1
0603-
