◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 11021 - CXY AUSTRALIA ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20 - MANUAL TRANSMISSION ASM AND CASE ▶
2-20 — MANUAL TRANSMISSION ASM AND CASE (#32192) — 39 parça

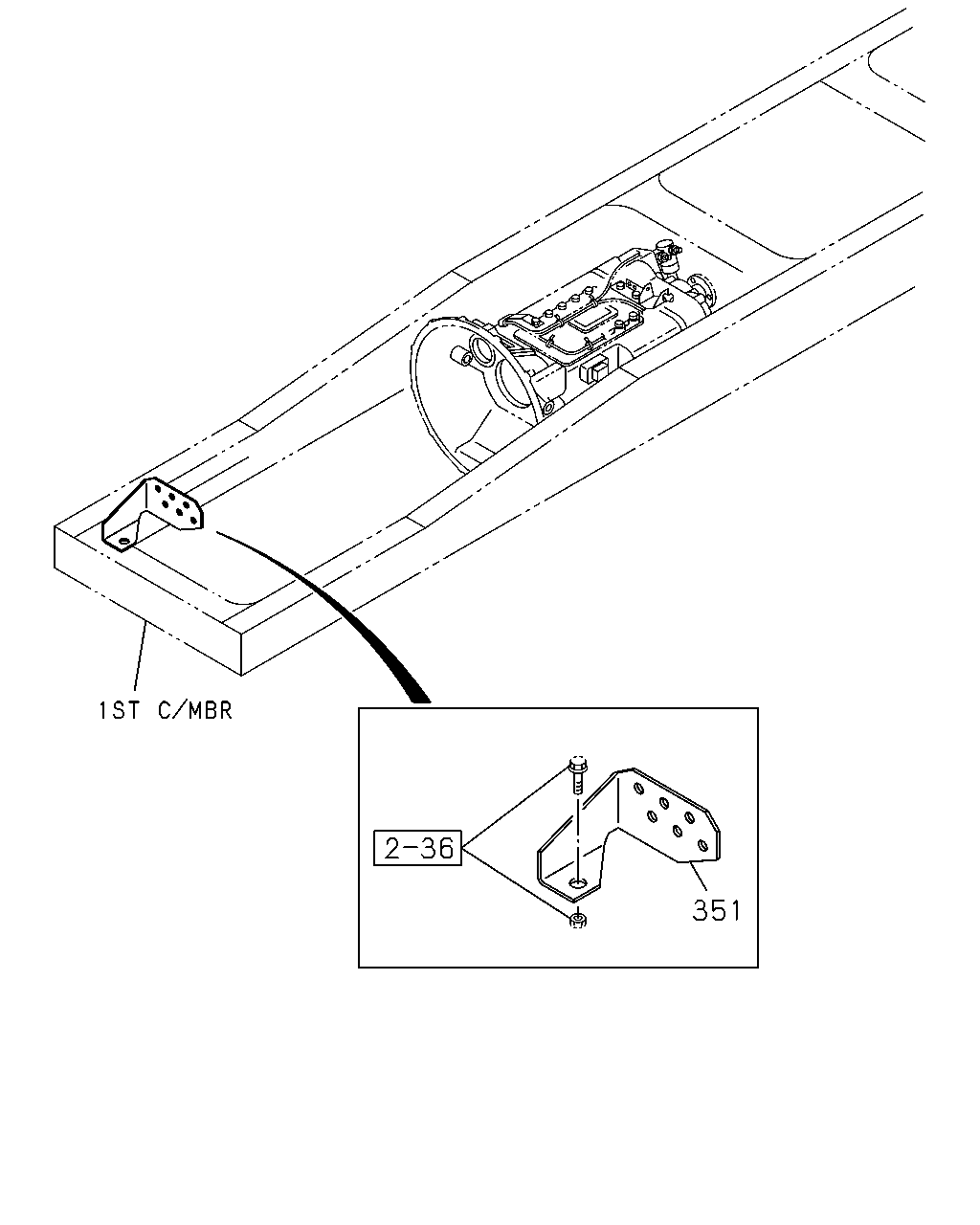

çizim 89980
351
BalonParca AdiParca NoAdetTipApplied Date A B
351 BRACKET; UNION,FLEX HOSE 1-47478-747-0 01 1 0603- ● ●

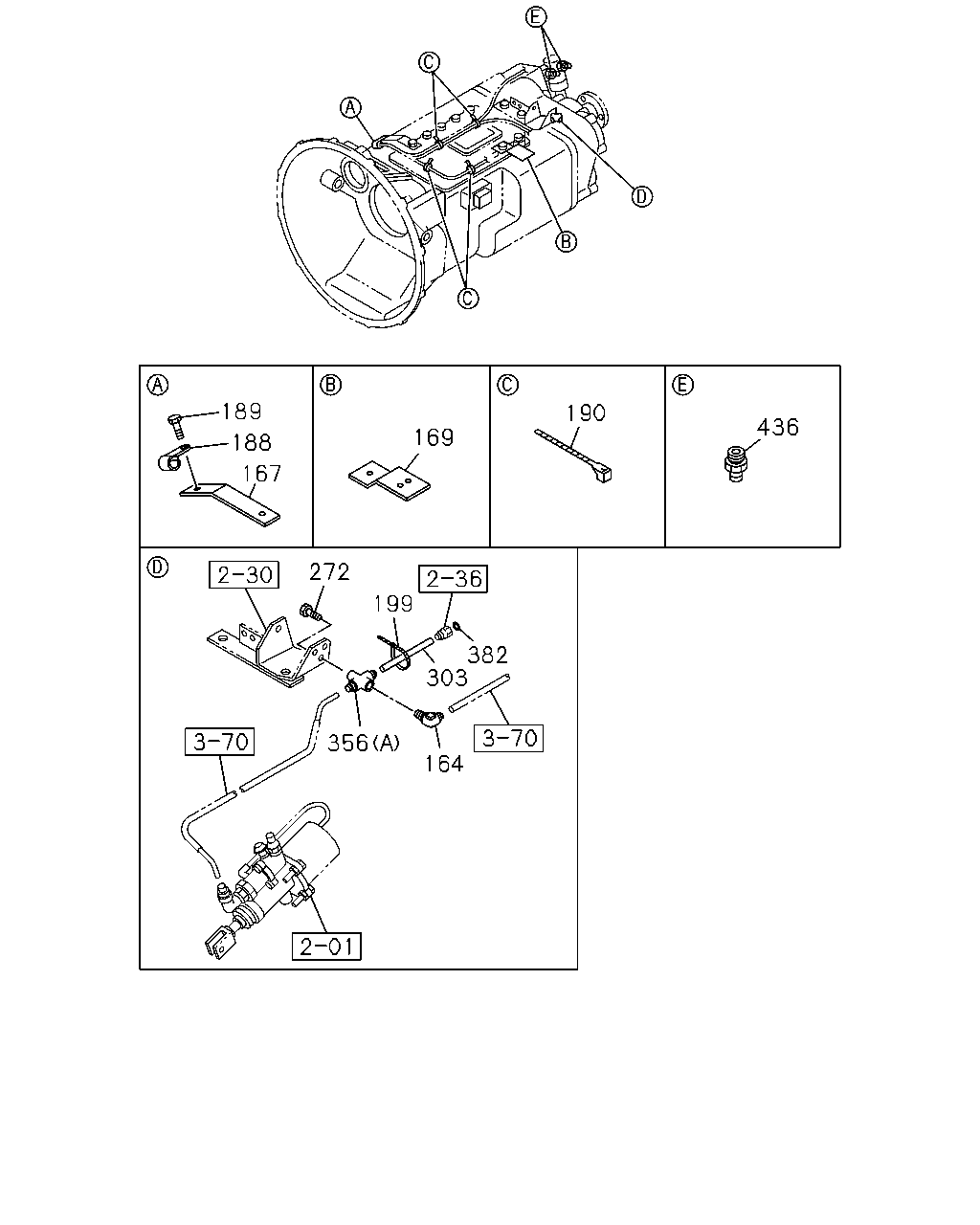

çizim 89985
189 190 436 169 188 167 272 199 382 303 356 164
BalonParca AdiParca NoAdetTipApplied Date A B
164 CONNECTOR; ELBOW
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0603- ● ●
167 BRACKET; CLIP,AIR TUBE 1-82699-123-1 01 1 0603- ● ●
169 BRACKET; CLIP,PIPE HOSE 1-47475-633-0 01 1 0603- ● ●
188 CLIP; PIPE,BRKT
ID=16 L=28 		9-09525-556-0 01 1 0603-0606 ● ●
188 CLIP; PIPE,BRKT
ID=16 L=28 		0-95235-556-0 01 1 0607- ● ●
189 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0603- ● ●
190 CLIP; BAND,CONT TUBE
L=350 		1-09707-183-0 05 1 0603- ● ●
199 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0603- ● ●
272 BOLT
M8X16 FLANGE 		0-28050-816-0 01 1 0603- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0603- ● ●
356 UNION
(A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0603- ● ●
356 UNION
(B) 		1-09664-020-1 02 1 0603- ● ●
382 GASKET; ADAPTER
ID=11 OD=18 		9-09572-510-0 01 1 0603- ● ●
436 CONNECTOR; AIR HOSE,SUPPLY
L=35 		1-09660-039-0 01 1 0603- ● ●

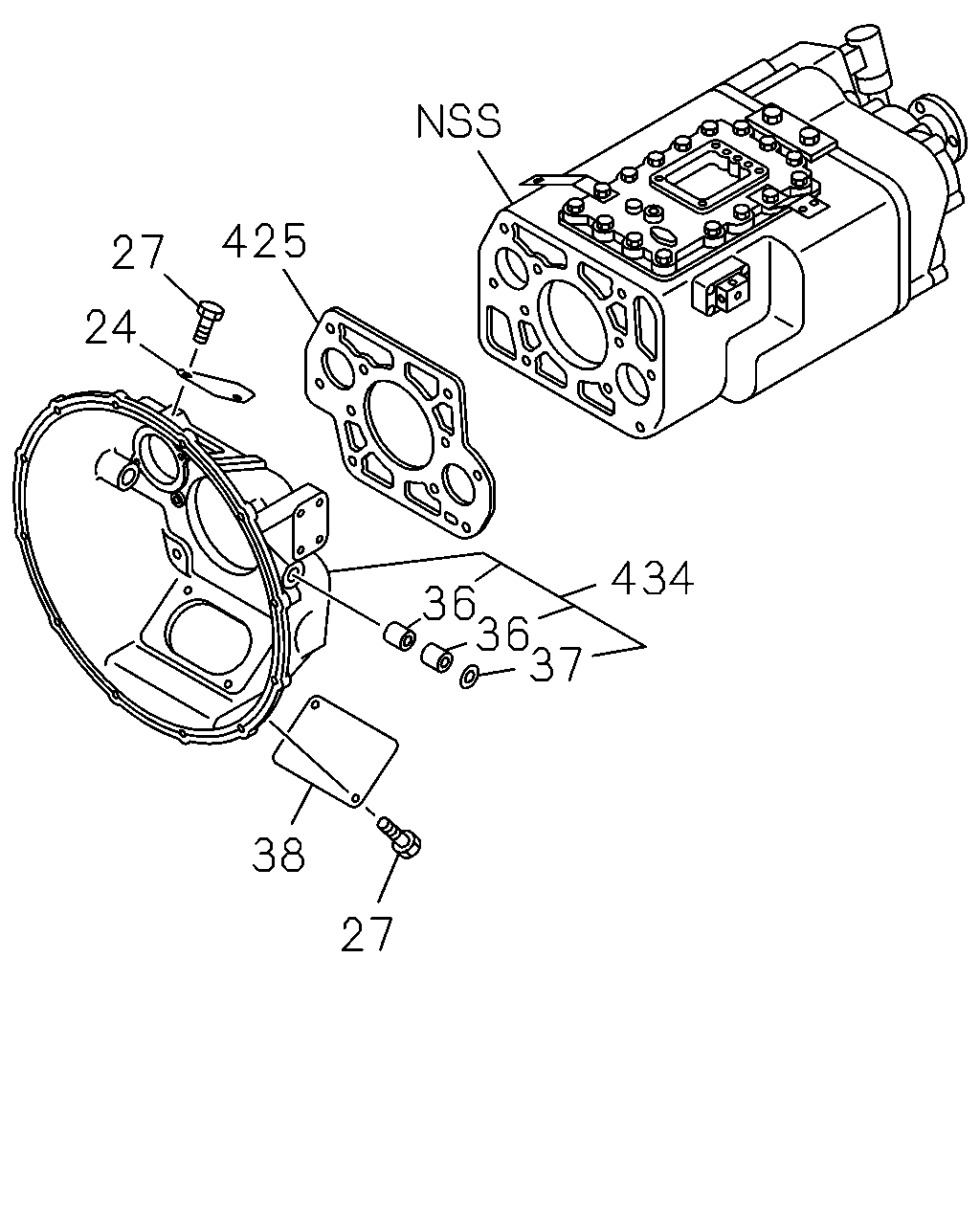

çizim 89986
425 27 24 434 36 36 37 38 27
BalonParca AdiParca NoAdetTipApplied Date A B
24 COVER; CHECK HOLE,DUST 1-31131-003-0 01 1 0603- ● ●
27 BOLT; COVER TO CLU HSG
M8X16 FLANGE 		0-28050-816-0 04 1 0603- ● ●
36 BEARING; NEEDLE,CLU HSG
NTN 		1-09811-181-0 04 1 0603- ● ●
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-215-0 02 1 0603- ● ●
38 COVER; CHECK HOLE,LWR 1-31131-044-1 01 1 0603- ● ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-31121-011-0 01 1 0603-0804 ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-31121-011-0 01 1 0805- ● ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-31121-004-0 01 1 0603-0804 ●
434 HOUSING; CLU 1-31110-220-0 01 1 0603-1104 ● ●
434 HOUSING; CLU 8-98181-241-0 01 1 1105- ● ●

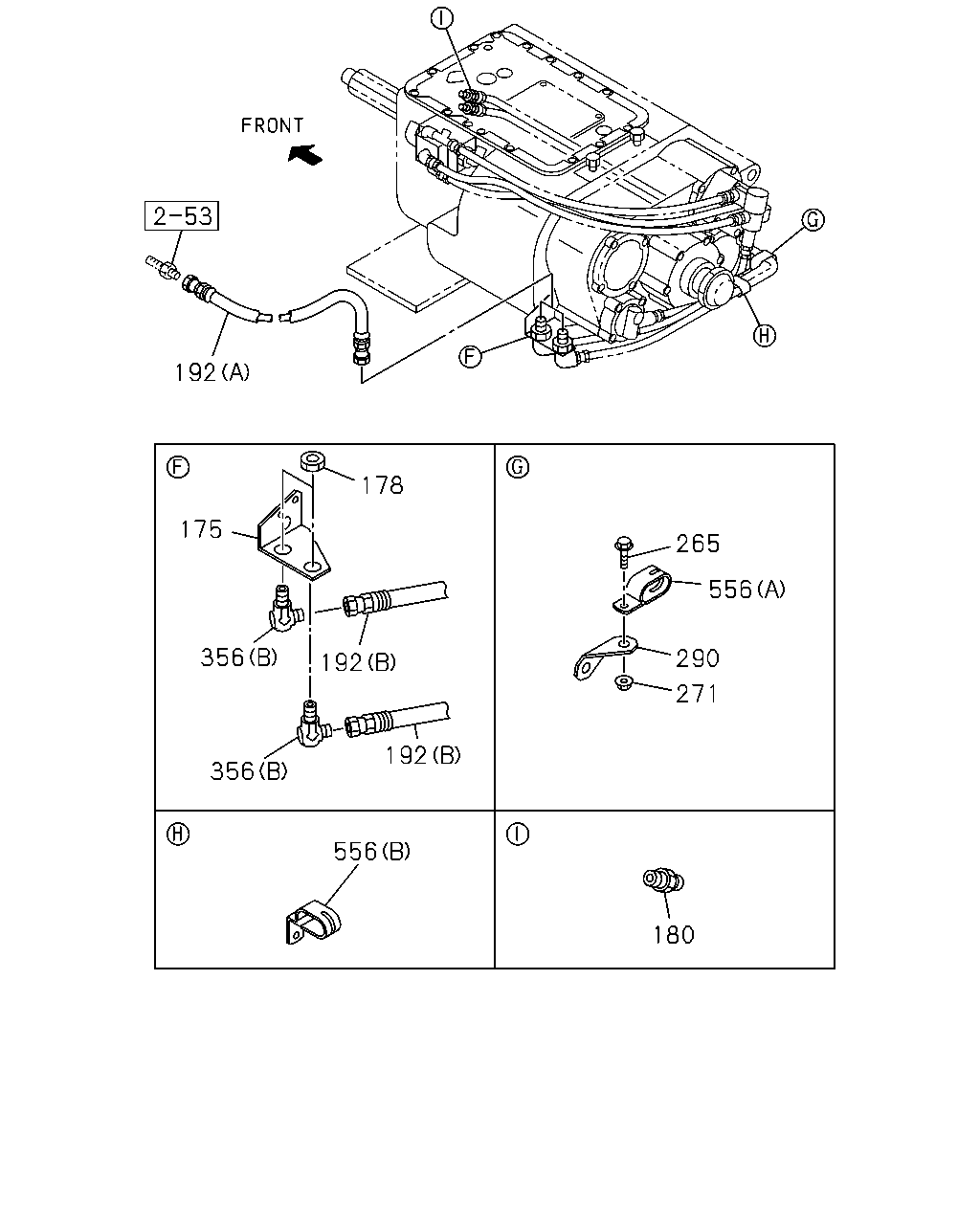

çizim 106067
192 178 175 265 556 356 290 192 271 192 356 556 180
BalonParca AdiParca NoAdetTipApplied Date A B
175 BRACKET; UNION 1-47478-084-0 01 1 0603- ● ●
178 NUT; UNION
M22 		0-91111-522-0 02 1 0603- ● ●
180 CONNECTOR; NYLON TUBE 1-09661-055-0 02 1 0603- ● ●
192 HOSE; FLEX,TRANS
(A) L=460 		1-09365-008-0 01 1 0603- ● ●
192 HOSE; FLEX,TRANS
(A) L=520 		1-09365-009-0 01 1 0603- ● ●
192 HOSE; FLEX,TRANS
(B) L=1120 		1-09365-010-0 02 1 0603- ● ●
265 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0603- ● ●
271 NUT; CLIP
M8 FLANGE 		0-91150-208-0 01 1 0603-0603 ● ●
271 NUT; CLIP
M8 FLANGE 		0-91180-208-0 01 1 0603- ● ●
290 BRACKET; CLIP 1-38329-074-0 01 1 0603- ● ●
356 UNION
(A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0603- ● ●
356 UNION
(B) 		1-09664-020-1 02 1 0603- ● ●
556 CLIP; OIL HOSE
(A) ID=24X2 L=35 		1-09701-121-0 01 1 0603- ● ●
556 CLIP; OIL HOSE
(B) 		8-97019-083-0 01 1 0603- ● ●
