Isuzu WW
▶
BUSES
▶
MT
▶
10662 - MT(THAI)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-40 - INSTRUMENT PANEL AND BOX
▶

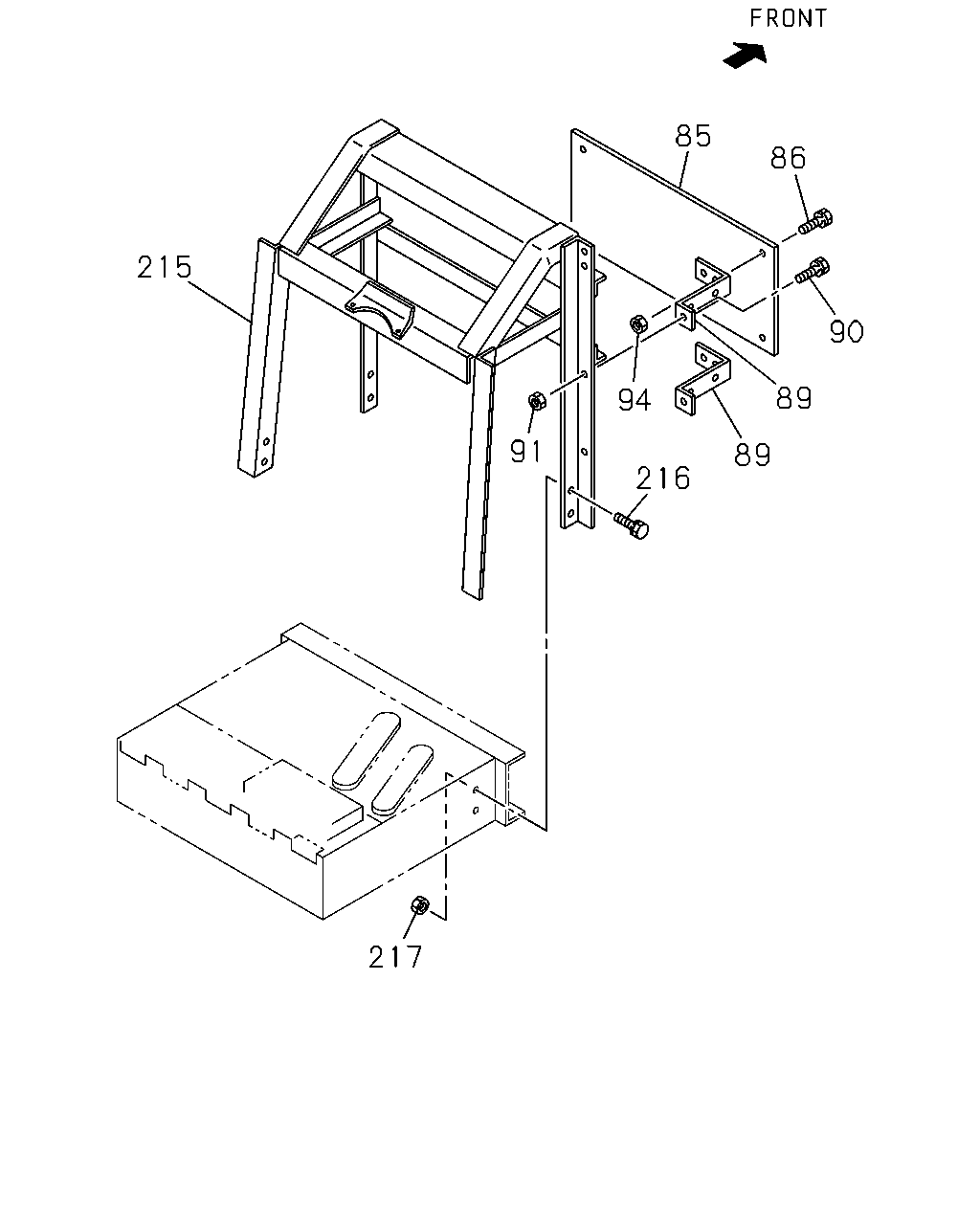

7-40 — INSTRUMENT PANEL AND BOX
(#3219) — 20 parça
85
86
215
90
89
94
91
89
216
217
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
85
PANEL; ELEC
1-65600-348-1
01
1
9104-0107
85
PANEL; ELEC
1-65600-348-1
01
1
0108-
86
BOLT; ELEC PNL
M8X20 W/LK WASHER
9-01900-820-0
04
1
9104-9204
86
BOLT; ELEC PNL
M8X20 W/LK WASHER
0-50040-820-0
04
1
9205-0107
86
BOLT; ELEC PNL
M8X20 W/LK WASHER
0-50040-820-0
04
1
0108-
89
STAY; ELEC PANEL
8-94300-644-3
04
1
9104-0107
89
STAY; ELEC PANEL
8-94300-644-3
04
1
0108-
90
BOLT; STAY,ELEC PANEL
M8X20 W/LK WASHER
9-01900-820-0
04
1
9104-9204
90
BOLT; STAY,ELEC PANEL
M8X20 W/LK WASHER
0-50040-820-0
04
1
9205-0107
90
BOLT; STAY,ELEC PANEL
M8X20 W/LK WASHER
0-50040-820-0
04
1
0108-
91
NUT; STAY,ELEC PANEL
M8
9-09110-408-0
04
1
9104-0107
91
NUT; STAY,ELEC PANEL
M8
9-09110-408-0
04
1
0108-
94
NUT; PANEL BRKT
M8
9-09110-408-0
04
1
9104-0107
94
NUT; PANEL BRKT
M8
9-09110-408-0
04
1
0108-
215
BOARD ASM; DASH
1-65600-347-8
01
1
9104-0107
215
BOARD ASM; DASH
1-65600-347-8
01
1
0108-
216
BOLT; DASH BOARD
M10X25 W/LK WASHER
0-50041-025-0
08
1
9104-0107
216
BOLT; DASH BOARD
M10X25 W/LK WASHER
0-50041-025-0
08
1
0108-
217
NUT; DASH BOARD
M10
9-09110-510-0
08
1
9104-0107
217
NUT; DASH BOARD
M10
9-09110-510-0
08
1
0108-
