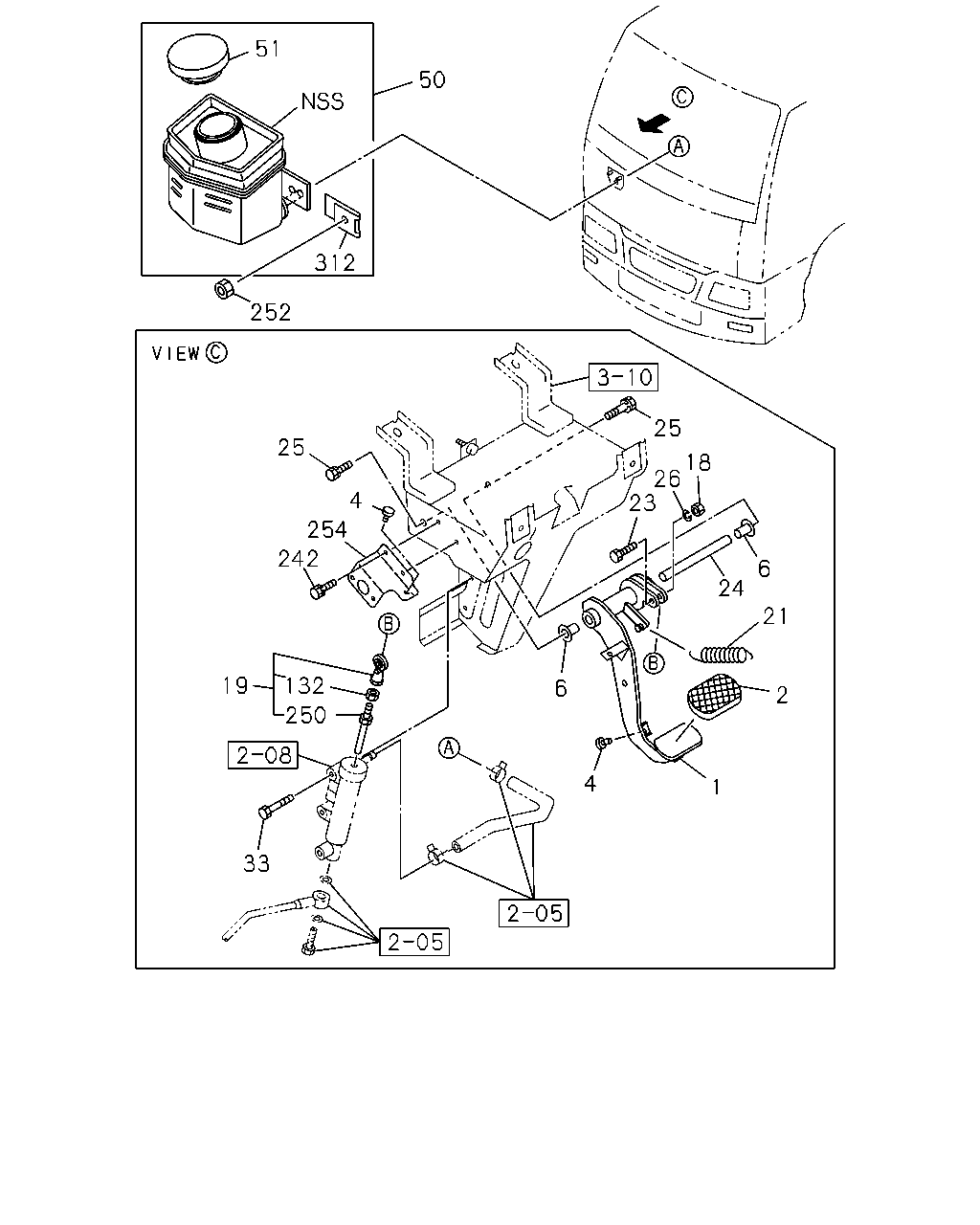

2-03 — CLUTCH PEDAL AND CONTROL
(#32188) — 20 parça
51
50
312
252
25
25
18
26
23
4
254
242
6
24
21
19
132
6
2
250
4
1
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
1-73907-321-4
01
1
0603-
2
COVER; CLU PEDAL
8-97893-618-1
01
1
0603-
4
STOPPER; CLU PEDAL
1-47319-014-1
02
1
0603-
6
BUSHING; CLU PEDAL
1-09330-045-0
02
1
0603-
18
NUT; PUSH ROD
M8
9-09110-508-0
01
1
0603-
19
ROD ASM; PUSH,CLU
1-73907-320-1
01
1
0603-
21
SPRING; RETURN,CLU PEDAL
1-73908-265-0
01
1
0603-
23
BOLT; PUSH ROD
M8X39.7
1-09009-150-0
01
1
0603-
24
SHAFT; CLU PEDAL
1-73998-936-1
01
1
0603-
25
BOLT; PEDAL
M10X25 W/LK WASHER
0-50051-025-0
02
1
0603-
26
WASHER; LK,PUSH ROD
ID=8.2
9-09150-608-0
01
1
0603-
33
BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE
0-28051-060-0
02
1
0603-
50
TANK; OIL,CLU
1-47530-182-0
01
1
0603-
51
CAP; OIL TANK,CLU
8-94136-483-1
01
1
0603-
132
NUT; LK,PUSH ROD
M8
9-09110-408-0
01
1
0603-
242
BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER
0-50040-616-0
02
1
0603-
250
ROD; PUSH,CLU
1-73996-219-0
01
1
0603-
252
NUT; OIL TANK
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0603-
254
BRACKET; CLU SENSOR
1-73998-979-5
01
1
0603-
312
PLATE; OIL TANK,CLU
1-21249-007-1
01
1
0603-
