0-81 — GOVERNOR; INJECTION PUMP (#32172) — 51 parça

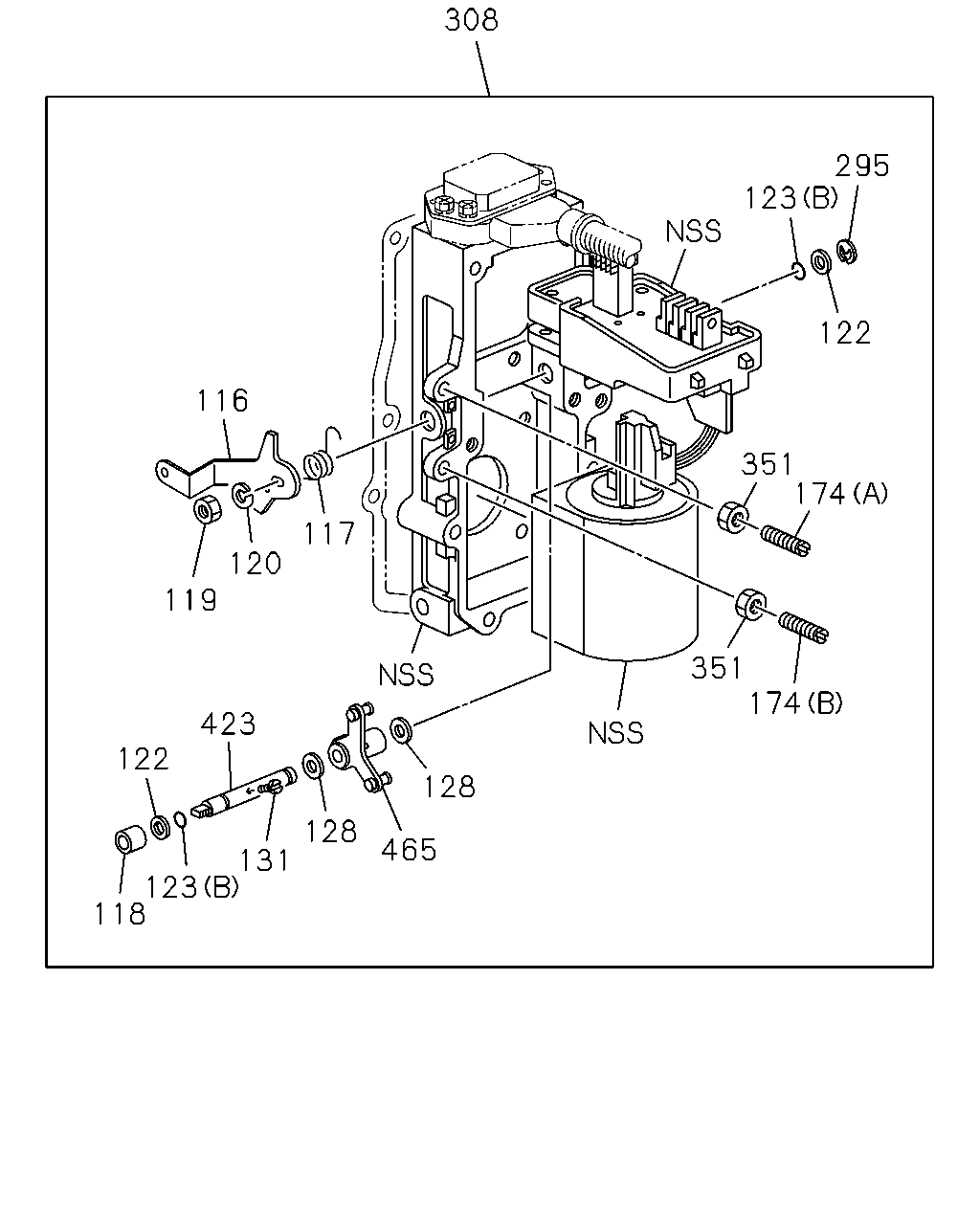

çizim 89880
308 295 123 122 116 351 174 117 120 119 351 174 423 122 128 128 465 131 123 118
BalonParca AdiParca NoAdetTipApplied Date
116 LEVER; ENG STOP,GOV
ASM PART: A = 1-15603-414-3 		1-15725-972-0 01 1 -
117 SPRING; STOP LEVER,GOV
ASM PART: A = 1-15603-414-3 		1-15723-612-0 01 1 -
118 COLLAR; CONT SHAFT,GOV
ASM PART: A = 1-15603-414-3 		1-15779-738-0 01 1 -
119 NUT; ENG STOP LEVER,GOV
ASM PART: A = 1-15603-414-3 		1-15629-117-0 01 1 -
120 WASHER; LK,SPD ADJ LEVER,GOV
ASM PART: A = 1-15603-414-3 		1-83579-492-0 01 1 -
122 WASHER; CONT SHAFT,GOV
ID=10.5 ASM PART: A = 1-15603-414-3 		9-09164-510-0 02 1 -
123 SEAL; OIL,CONT SHAFT,GOV
(A) ASM PART: A = 1-15603-414-3 		1-15639-012-0 01 1 -
123 SEAL; OIL,CONT SHAFT,GOV
(B) ASM PART: A = 1-15603-414-3 		1-15779-731-0 02 1 -
128 SHIM; CONT SHAFT,GOV
ASM PART: A = 1-15603-414-3 		1-15779-730-0 02 1 -
131 SCREW; LEVER TO SHAFT,GOV
ASM PART: A = 1-15603-414-3 		1-15779-739-0 01 1 -
174 SCREW; PLATE
(A) ASM PART: A = 1-15603-414-3 		1-15779-740-0 01 1 -
174 SCREW; PLATE
(B) ASM PART: A = 1-15603-414-3 		1-15779-750-0 01 1 -
295 RING; SNAP
ASM PART: A = 1-15603-414-3 		1-15729-723-0 01 1 -
308 ACTUATOR; GOV,ELEC
ASM PART: A = 1-15603-414-3 		1-15779-635-3 01 1 -
351 NUT; SCREW
ASM PART: A = 1-15603-414-3 		9-81325-081-0 02 1 -
423 SHAFT; CONT,GOV HSG,INJ PUMP
ASM PART: A = 1-15603-414-3 		1-15779-729-0 01 1 -
465 LINK; GOVERNOR
ASM PART: A = 1-15603-414-3 		1-15725-968-0 01 1 -

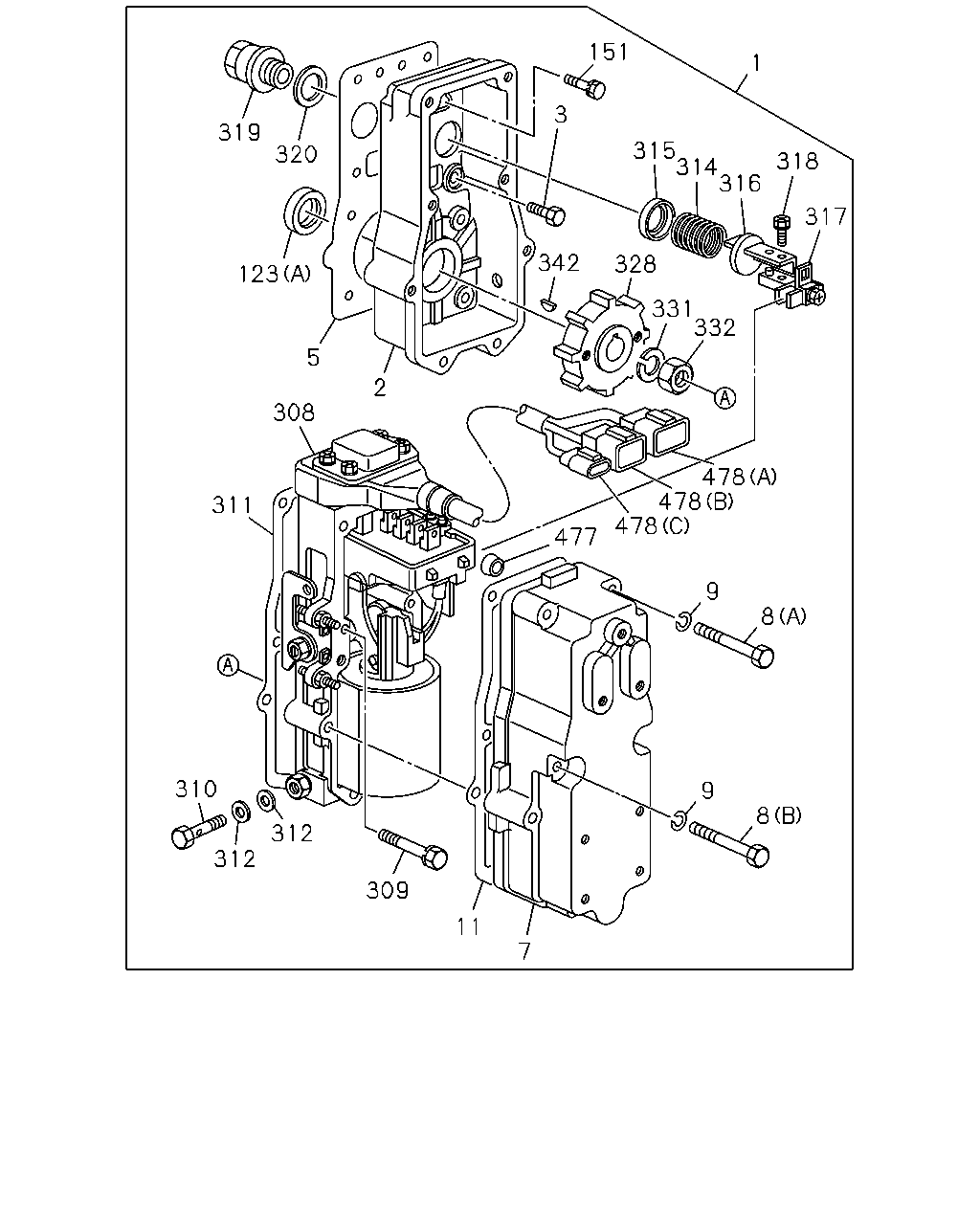

çizim 90792
151 1 3 319 315 314 316 320 318 317 342 328 123 331 332 5 2 308 478 478 478 311 477 9 8 310 9 8 312 312 309 11 7
BalonParca AdiParca NoAdetTipApplied Date
1 GOVERNOR ASM; INJ PUMP
ASM PART: A = 1-15603-414-3 		1-15790-104-2 01 1 -
2 HOUSING; GOV,INJ PUMP
ASM PART: A = 1-15603-414-3 		1-15721-359-0 01 1 -
3 BOLT; GOV HSG,INJ PUMP
ASM PART: A = 1-15603-414-3 		1-15729-846-0 10 1 -
5 GASKET; GOV TO INJ PUMP HSG
ASM PART: A = 1-15603-414-3 		1-15779-636-0 01 1 -
7 COVER; GOV HSG,INJ PUMP
ASM PART: A = 1-15603-414-3 		1-15721-360-0 01 1 -
8 BOLT; GOV COVER,INJ PUMP
(A) ASM PART: A = 1-15603-414-3 		1-15729-251-0 06 1 -
8 BOLT; GOV COVER,INJ PUMP
(B) ASM PART: A = 1-15603-414-3 		1-15729-262-0 02 1 -
9 WASHER; LK,GOV COVER
ID=6.1 ASM PART: A = 1-15603-414-3 		9-09150-506-0 08 1 -
11 GASKET; COVER TO HSG,GOV
ASM PART: A = 1-15603-414-3 		1-15779-637-0 01 1 -
123 SEAL; OIL,CONT SHAFT,GOV
(A) ASM PART: A = 1-15603-414-3 		1-15639-012-0 01 1 -
123 SEAL; OIL,CONT SHAFT,GOV
(B) ASM PART: A = 1-15603-414-3 		1-15779-731-0 02 1 -
151 BOLT; ADAPTER,GOV HSG,INJ PUMP
ASM PART: A = 1-15603-414-3 		1-15779-281-0 01 1 -
308 ACTUATOR; GOV,ELEC
ASM PART: A = 1-15603-414-3 		1-15779-635-3 01 1 -
309 BOLT; ACTUATOR FIX,ELEC GOV
ASM PART: A = 1-15603-414-3 		1-15729-535-0 02 1 -
310 BOLT; EYE,ACTUATOR,ELEC GOV
ASM PART: A = 1-15603-414-3 		1-15729-538-0 01 1 -
311 GASKET; ACTUATOR,ELEC GOV
ASM PART: A = 1-15603-414-3 		1-15779-147-0 01 1 -
312 GASKET; EYE BOLT,ACTUATOR,GOV
ID=14.2 OD=19.2 ASM PART: A = 1-15603-414-3 		1-09630-085-0 02 1 -
314 SPRING; CONT RACK,GOV
ASM PART: A = 1-15603-414-3 		1-15723-575-0 01 1 -
315 SEAT; SPRING,CONT RACK,HSG SIDE
ASM PART: A = 1-15603-414-3 		1-15723-307-0 01 1 -
316 SEAT; SPRING,CONT RACK,CONNECTOR SIDE
ASM PART: A = 1-15603-414-3 		1-15723-576-0 01 1 -
317 CONNECTOR; CONT RACK,GOV,ELEC
OFFSET=3.5 ASM PART: A = 1-15603-414-3 		1-15779-685-1 01 1 -
317 CONNECTOR; CONT RACK,GOV,ELEC
OFFSET=4.0 ASM PART: A = 1-15603-414-3 		1-15779-686-1 01 1 -
317 CONNECTOR; CONT RACK,GOV,ELEC
OFFSET=4.5 ASM PART: A = 1-15603-414-3 		1-15779-687-1 01 1 -
318 BOLT; CONT RACK,GOV,ELEC
ASM PART: A = 1-15603-414-3 		1-83569-079-0 01 1 -
319 CAP; CONT RACK,GOV,ELEC
ASM PART: A = 1-15603-414-3 		1-15779-152-0 01 1 -
320 GASKET; CAP,CONT RACK,GOV
ASM PART: A = 1-15603-414-3 		1-15629-056-0 01 1 -
328 GEAR; HSG TO MAGNET
ASM PART: A = 1-15603-414-3 		1-15779-711-0 01 1 -
331 WASHER; LK,GEAR
ASM PART: A = 1-15603-414-3 		1-15749-007-0 01 1 -
332 NUT; GEAR
ASM PART: A = 1-15603-414-3 		1-15779-012-0 01 1 -
342 KEY; WOODRUFF,SHAFT
13MM ASM PART: A = 1-15603-414-3 		9-81325-030-0 01 1 -
477 BUSHING; GOVERNOR
ASM PART: A = 1-15603-414-3 		1-15779-643-0 02 1 -
478 HOUSING; PLUG,GOVERNOR
(A), L=44.35 B=31.8 ASM PART: A = 1-15603-414-3 		1-15779-640-0 01 1 -
478 HOUSING; PLUG,GOVERNOR
(B), L=44.35 B=25.6 ASM PART: A = 1-15603-414-3 		1-15779-641-0 01 1 -
478 HOUSING; PLUG,GOVERNOR
(C), L=44.35 B=26.7 ASM PART: A = 1-15603-414-3 		1-15779-642-0 01 1 -
