Isuzu WW
▶
TRUCKS
▶
CXZ
▶
11020 - CXZ AUSTRALIA
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#32170) — 30 parça
◀

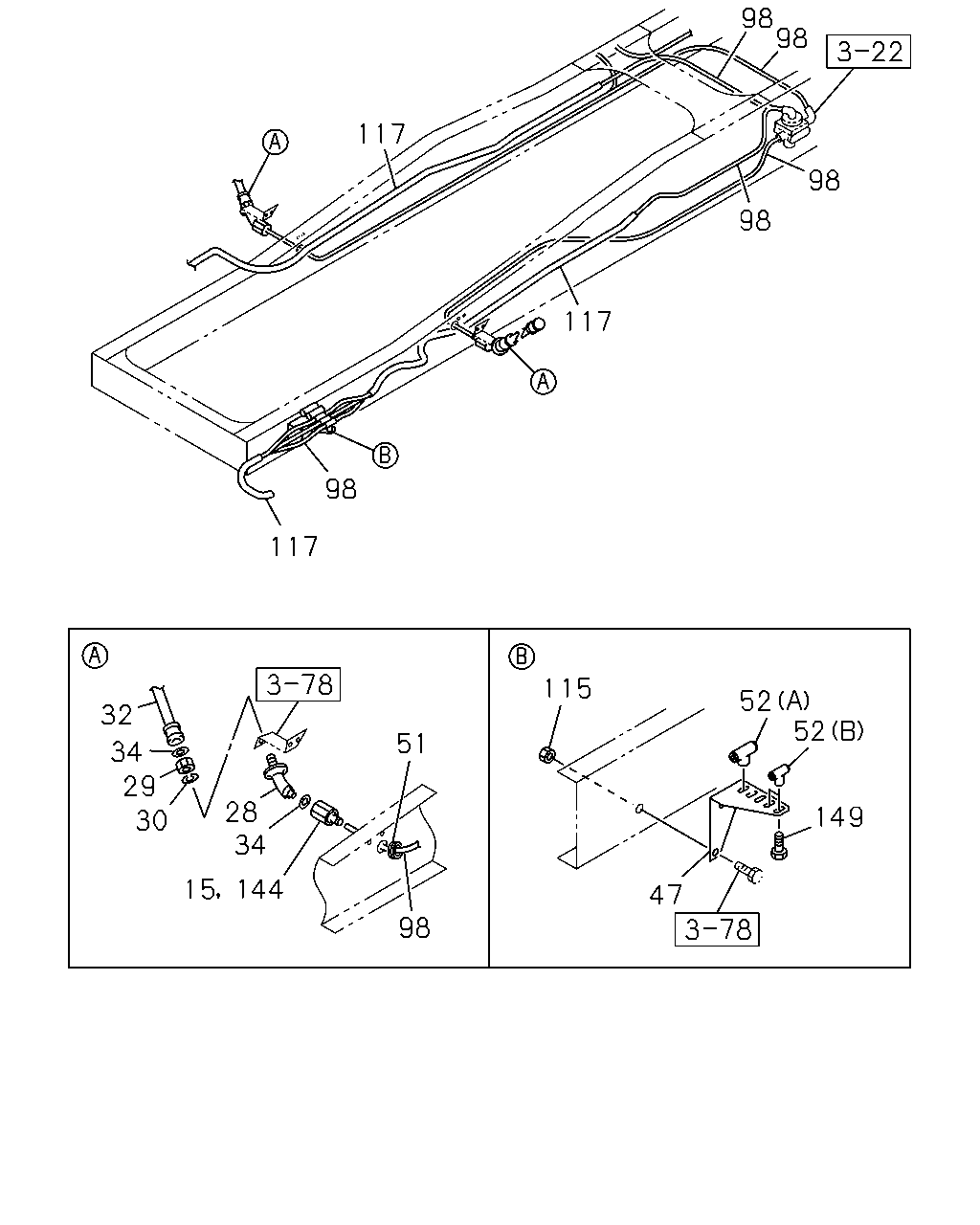

[375A] FRAME SIDE (27 parça)
[375A] FRONT AXLE SIDE (3 parça)
▶
98
98
117
98
98
117
98
117
115
52
52
32
51
34
29
30
28
34
149
15
144
47
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT
1-09660-877-0
01
1
0603-
28
NIPPLE; AIR PIPE
M20
1-09654-199-2
02
1
0603-
29
NUT; NIPPLE
M20
0-91111-520-0
02
1
0603-
30
WASHER; LK,NIPPLE
ID=20.2
9-09150-520-0
02
1
0603-0603
30
WASHER; LK,NIPPLE
ID=20.2
0-91510-520-0
02
1
0604-
32
HOSE; FLEX,FRT
L=500
0-07847-500-1
02
1
0603-0605
32
HOSE; FLEX,FRT
L=500
0-57847-500-1
02
1
0606-
34
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
04
1
0603-
47
BRACKET; PIPE UNION
1-47478-283-0
01
1
0603-
51
GROMMET; NYLON TUBE
ID=28 OD=35 T=25
1-09332-011-1
02
1
0603-
52
CONNECTOR; NYLON TUBE
(A)
1-09661-128-0
01
1
0603-
52
CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY
1-09661-133-0
02
1
0603-
98
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0603-
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0603-
98
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0603-
98
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0603-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0603-
115
NUT; TUBE UNION
M12 FLANGE
0-91150-212-0
02
1
0603-0603
115
NUT; TUBE UNION
M12 FLANGE
0-91180-212-0
02
1
0603-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0603-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0603-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
0603-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0603-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
0603-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87411-035-0
AR
1
0603-
144
ADAPTER
DIN12 & M20 STRAIGHT
1-09660-877-0
01
1
0603-
149
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
03
1
0603-
32
141
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
HOSE; FLEX,FRT
L=500
0-07847-500-1
02
1
0603-0605
32
HOSE; FLEX,FRT
L=500
0-57847-500-1
02
1
0606-
141
CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR
1-47459-013-1
01
1
0603-
