Isuzu WW
▶
BUSES
▶
MT
▶
10662 - MT(THAI)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶

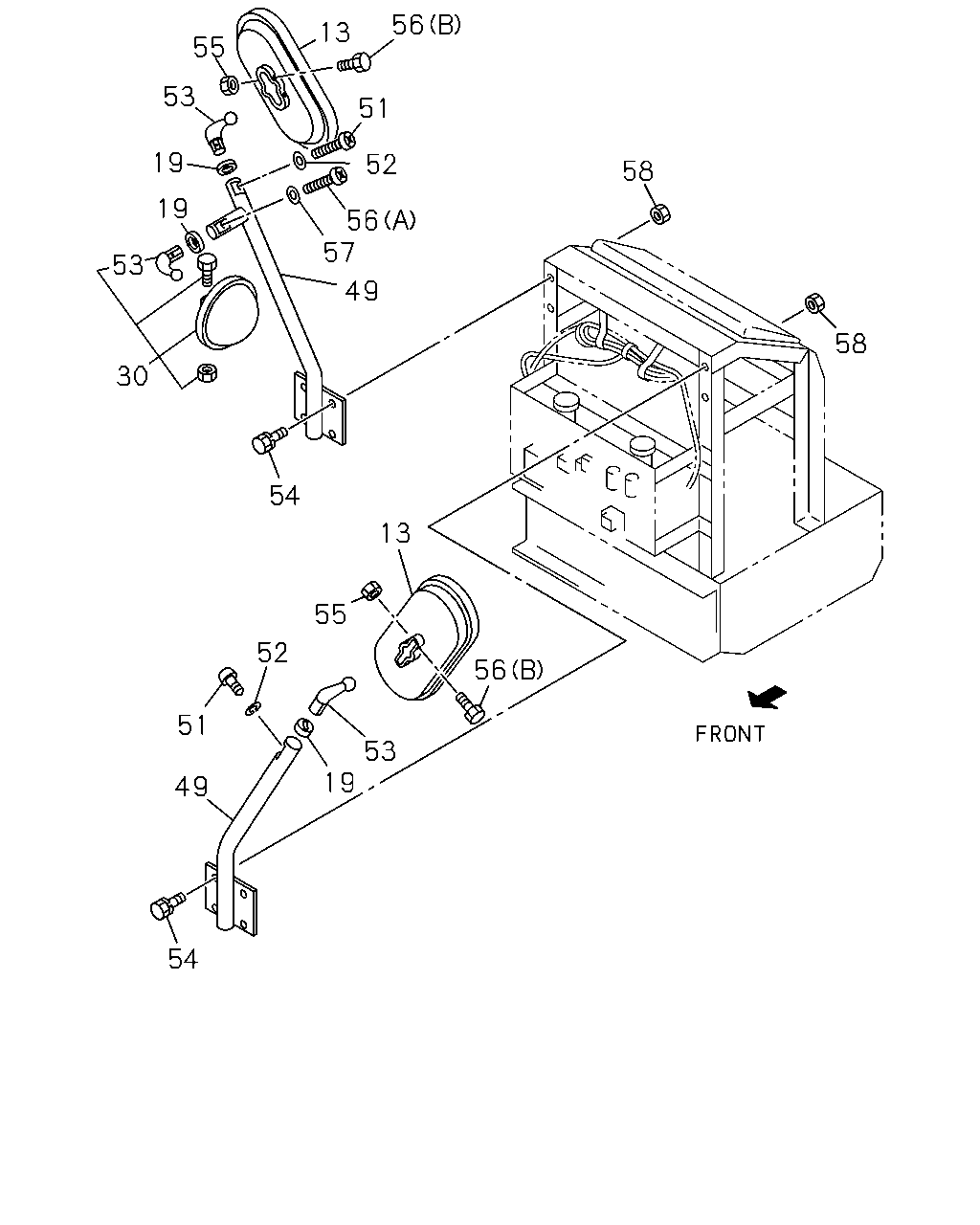

7-20 — MIRROR AND MIRROR STAY
(#3217) — 17 parça
56
13
55
53
51
52
19
58
19
56
57
53
49
58
30
54
13
55
52
56
51
53
19
49
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
MIRROR O/S RR VIEW<D37>
9-61176-764-1
02
1
9104-
19
GASKET; MIRROR
MIRROR O/S RR VIEW<D37>
9-61176-650-0
03
1
9104-
30
MIRROR; UNDER
MIRROR O/S RR VIEW<D37>
9-61176-762-1
01
1
9104-
49
STAY; MIRROR SIDE
MIRROR O/S RR VIEW<D37>
9-68599-122-0
01
1
9104-0107
49
STAY; MIRROR SIDE
MIRROR O/S RR VIEW<D37>
9-68599-122-0
01
1
0108-
49
STAY; MIRROR SIDE
MIRROR O/S RR VIEW<D37>
9-68599-123-0
01
1
9104-0107
49
STAY; MIRROR SIDE
MIRROR O/S RR VIEW<D37>
9-68599-123-0
01
1
0108-
51
SCREW; MIRROR
MIRROR O/S RR VIEW<D37> M6X12
9-03490-612-0
02
1
9104-
52
WASHER; LK,MIRROR
MIRROR O/S RR VIEW<D37> ID=6.1
9-09150-506-0
02
1
9104-
53
PIVOT; SIDE MIRROR
MIRROR O/S RR VIEW<D37>
9-61176-537-0
03
1
9104-0107
53
PIVOT; SIDE MIRROR
MIRROR O/S RR VIEW<D37>
9-61176-537-0
02
1
0108-
54
BOLT; STAY
MIRROR O/S RR VIEW<D37> M10X25 W/LK WASHER
0-50041-025-0
04
1
9104-
55
NUT; SIDE MIRROR
MIRROR O/S RR VIEW<D37> M3
9-99110-403-0
04
1
9104-
56
SCREW; SIDE MIRROR
MIRROR O/S RR VIEW<D37> (A) M6X12
9-03490-612-0
01
1
9104-
56
SCREW; SIDE MIRROR
MIRROR O/S RR VIEW<D37> (B) M3X16
9-93490-316-0
04
1
9104-
57
WASHER; LK,UNDER MIRROR
MIRROR O/S RR VIEW<D37> ID=6.1
9-09150-506-0
01
1
9104-
58
NUT; MIRROR STAY
MIRROR O/S RR VIEW<D37> M10
9-09110-510-0
04
1
9104-
