Isuzu WW
▶
TRUCKS
▶
CXZ
▶
11020 - CXZ AUSTRALIA
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#32166) — 39 parça
◀
[346A] REPAIR KIT AND PISTON KIT (10 parça)

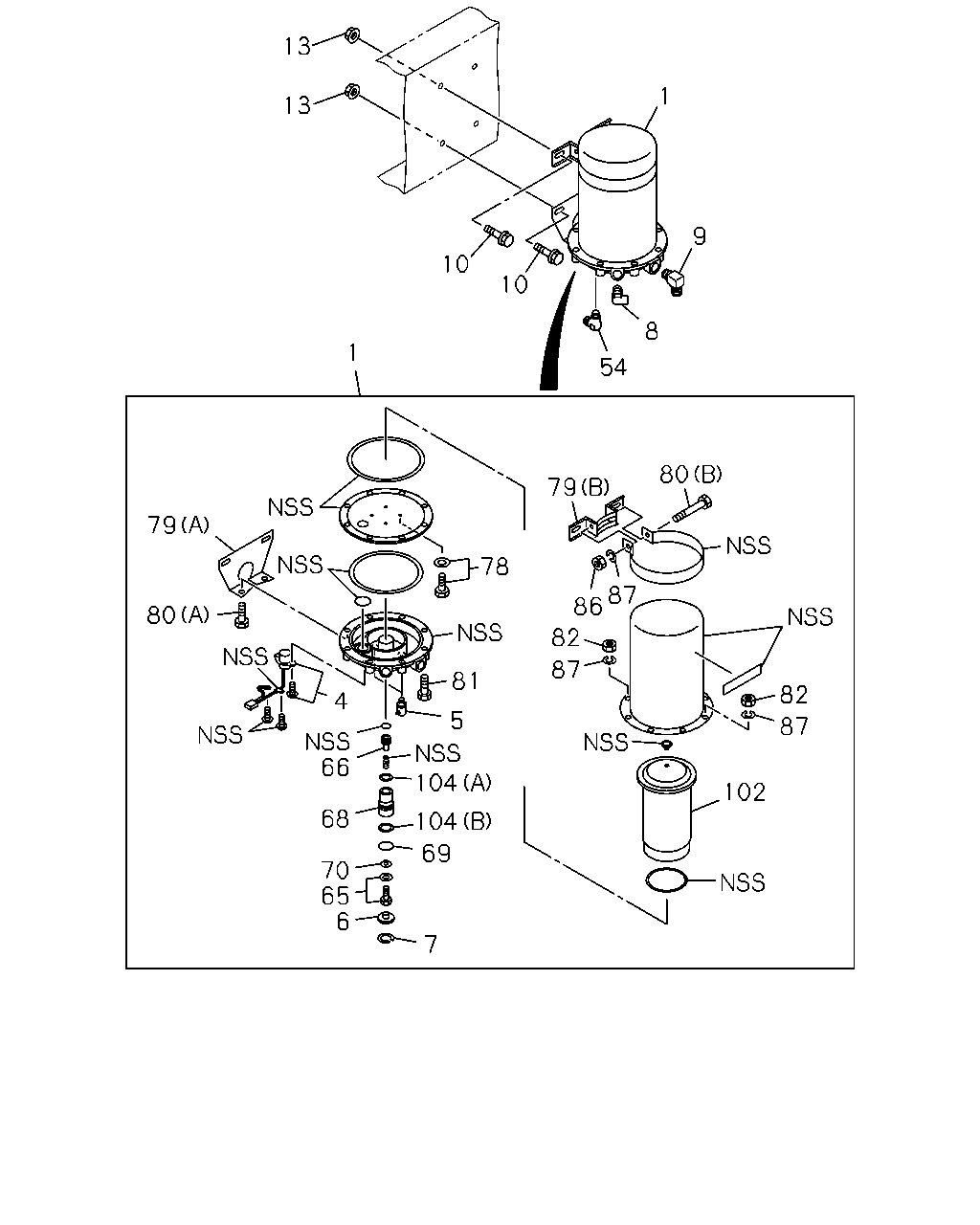

[346A] COMPONENT AND THERMOSTAT KIT (29 parça)
▶
2
104
104
69
70
3
66
68
70
65
6
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-379-0
01
1
0603-
3
PISTON KIT; AIR DRYER
1-85576-139-0
01
1
0603-
6
COVER; EXH,AIR DRYER
1-48199-419-0
01
1
0603-
65
BOLT; PURGE VLV
1-48199-393-0
01
1
0603-
66
PISTON; AIR DRYER
1-48199-198-0
01
1
0603-
68
BODY; VALVE
1-48199-352-0
01
1
0603-
69
GASKET; EXH COVER
1-48199-153-0
01
1
0603-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
0603-
104
GASKET
(A)
1-48199-108-0
01
1
0603-
104
GASKET
(B)
1-48199-109-0
01
1
0603-
13
1
13
9
10
10
8
1
54
80
79
79
78
87
86
80
82
87
81
82
4
5
87
66
104
102
68
104
69
70
65
6
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-324-1
01
1
0603-
4
THERMOSTAT KIT; AIR DRYER
1-85576-216-0
01
1
0603-
5
HEATER ASM; AIR DRYER
1-48199-085-0
02
1
0603-
6
COVER; EXH,AIR DRYER
1-48199-419-0
01
1
0603-
7
RING; SNAP,AIR DRYER
1-48199-154-0
01
1
0603-
8
CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
0603-
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW
1-09650-444-0
01
1
0603-0607
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW
0-92134-315-0
01
1
0608-
10
BOLT; AIR DRYER
M10X35 FLANGE
0-28651-035-0
04
1
0603-
13
NUT; AIR DRYER
M10 FLANGE
0-91150-210-0
04
1
0603-0603
13
NUT; AIR DRYER
M10 FLANGE
0-91180-210-0
04
1
0603-
54
CONNECTOR
M12X2 & PT1/4 3WAY
1-09656-229-1
01
1
0603-
65
BOLT; PURGE VLV
1-48199-393-0
01
1
0603-
66
PISTON; AIR DRYER
1-48199-198-0
01
1
0603-
68
BODY; VALVE
1-48199-352-0
01
1
0603-
69
GASKET; EXH COVER
1-48199-153-0
01
1
0603-
70
VALVE; AIR DRYER
1-48199-105-0
01
1
0603-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-494-0
04
1
0603-
79
BRACKET; AIR DRYER
(B)
1-48199-336-0
01
1
0603-
79
BRACKET; AIR DRYER
(A)
1-48199-354-0
01
1
0603-
80
BOLT; BRKT
(B)
1-48199-335-0
01
1
0603-
80
BOLT; BRKT
(A)
1-48199-338-0
02
1
0603-
81
BOLT; CASE,AIR DRYER
1-48199-341-0
06
1
0603-
82
NUT; CASE,AIR DRYER
1-48199-421-0
08
1
0603-
86
NUT; BRKT
1-48199-333-0
01
1
0603-
87
WASHER; LK,BRKT
1-48199-334-0
09
1
0603-
102
CARTRIDGE; AIR DRYER
1-48199-493-0
01
1
0603-
104
GASKET
(A)
1-48199-108-0
01
1
0603-
104
GASKET
(B)
1-48199-109-0
01
1
0603-
