◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11020 - CXZ AUSTRALIA ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#32165) — 98 parça
çizim 89242
31 31 1 31 31 1
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-176-2 01 1 0603-
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-176-2 01 1 0603-
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-177-2 01 1 0603-
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-177-2 01 1 0603-
31 CONNECTOR
DIN12 & R3/8 ELBOW 		1-09660-653-1 02 1 0603-
31 CONNECTOR
DIN12 & R3/8 ELBOW 		1-09660-653-1 02 1 0603-

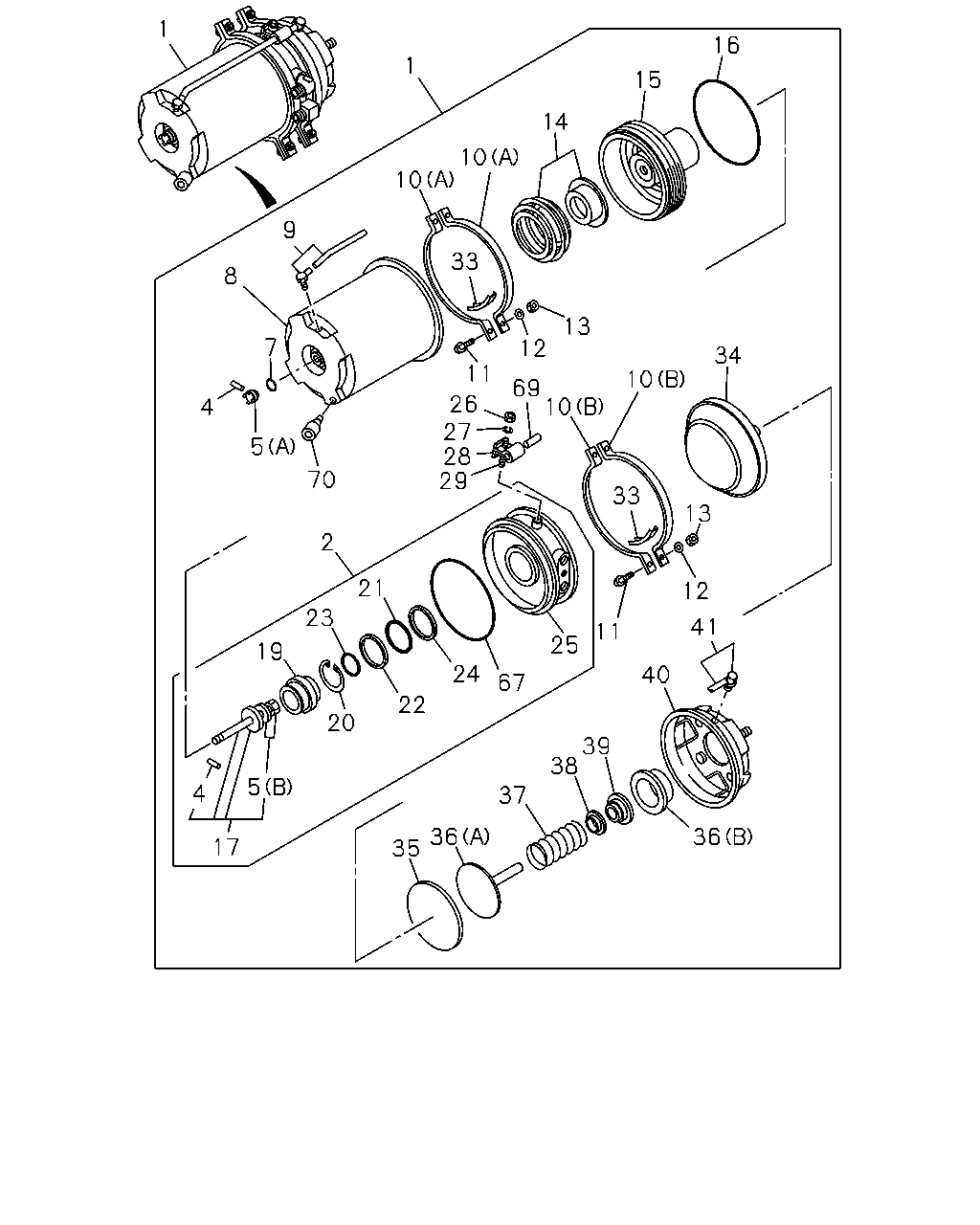

çizim 105207
1 16 1 15 14 10 10 9 33 8 13 7 12 34 11 10 69 10 26 27 28 29 4 5 70 33 13 2 21 12 23 41 11 25 19 24 40 67 22 20 39 38 5 4 37 36 36 17 35
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-176-2 01 1 0603-
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-48250-176-2 01 1 0603-
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-177-2 01 1 0603-
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-48250-177-2 01 1 0603-
2 CHAMBER; EMERGENCY
FORWARD RH,REARWARD LH 		1-48252-020-0 01 1 0603-
2 CHAMBER; EMERGENCY
FORWARD RH,REARWARD LH 		1-48252-020-0 01 1 0603-
2 CHAMBER; EMERGENCY
FORWARD LH,REARWARD RH 		1-48252-021-0 01 1 0603-
2 CHAMBER; EMERGENCY
FORWARD LH,REARWARD RH 		1-48252-021-0 01 1 0603-
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 0603-
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 0603-
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 0603-
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 0603-
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 0603-
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 0603-
7 GASKET 1-48259-055-0 02 1 0603-
7 GASKET 1-48259-055-0 02 1 0603-
8 SHELL; CYL,SPR CHAMBER 1-48259-069-0 01 1 0603-
8 SHELL; CYL,SPR CHAMBER 1-48259-069-0 01 1 0603-
8 SHELL; CYL,SPR CHAMBER 1-48259-070-0 01 1 0603-
8 SHELL; CYL,SPR CHAMBER 1-48259-070-0 01 1 0603-
9 PIPE ASM; SHELL 1-48259-076-0 02 1 0603-
9 PIPE ASM; SHELL 1-48259-076-0 02 1 0603-
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-016-0 04 1 0603-
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-016-0 04 1 0603-
10 RING; CLAMP,SPR CHAMBER
(B) 		1-48259-031-0 04 1 0603-
10 RING; CLAMP,SPR CHAMBER
(B) 		1-48259-031-0 04 1 0603-
11 BOLT; CLAMP RING 1-48259-035-0 08 1 0603-
11 BOLT; CLAMP RING 1-48259-035-0 08 1 0603-
12 WASHER; LK,CLAMP RING 1-48259-046-0 08 1 0603-
12 WASHER; LK,CLAMP RING 1-48259-046-0 08 1 0603-
13 NUT; CLAMP RING
M10 		9-09110-510-0 08 1 0603-
13 NUT; CLAMP RING
M10 		9-09110-510-0 08 1 0603-
14 SPRING & SEAT SET 1-48259-037-1 02 1 0603-
14 SPRING & SEAT SET 1-48259-037-1 02 1 0603-
15 PISTON 1-48262-005-0 02 1 0603-
15 PISTON 1-48262-005-0 02 1 0603-
16 GASKET 1-48259-048-0 02 1 0603-
16 GASKET 1-48259-048-0 02 1 0603-
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 0603-
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 0603-
19 COVER; PISTON 1-48269-011-0 02 1 0603-
19 COVER; PISTON 1-48269-011-0 02 1 0603-
20 RING; RET 1-48259-060-0 02 1 0603-
20 RING; RET 1-48259-060-0 02 1 0603-
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 0603-
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 0603-
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 0603-
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 0603-
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 0603-
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 0603-
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 0603-
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 0603-
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-087-0 01 1 0603-
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-087-0 01 1 0603-
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-088-0 01 1 0603-
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-088-0 01 1 0603-
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 0603-
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 0603-
27 WASHER; PRESSURE PLATE 1-48259-057-0 02 1 0603-
27 WASHER; PRESSURE PLATE 1-48259-057-0 02 1 0603-
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 0603-
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 0603-
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 0603-
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 0603-
33 RETAINER; DIAPH 1-48259-044-0 04 1 0603-
33 RETAINER; DIAPH 1-48259-044-0 04 1 0603-
34 DIAPHRAGM 1-48252-011-0 02 1 0603-
34 DIAPHRAGM 1-48252-011-0 02 1 0603-
35 PLATE; ROD END,SPR CHAMBER 1-48253-011-0 02 1 0603-
35 PLATE; ROD END,SPR CHAMBER 1-48253-011-0 02 1 0603-
36 RETAINER; SPR CHAMBER
(A) 		1-48259-033-0 02 1 0603-
36 RETAINER; SPR CHAMBER
(A) 		1-48259-033-0 02 1 0603-
36 RETAINER; SPR CHAMBER
(B) 		1-48259-043-0 02 1 0603-
36 RETAINER; SPR CHAMBER
(B) 		1-48259-043-0 02 1 0603-
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 0603-
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 0603-
38 COVER; ROD & PLATE 1-48259-066-0 02 1 0603-
38 COVER; ROD & PLATE 1-48259-066-0 02 1 0603-
39 COVER; ROD & PLATE 1-48259-065-0 02 1 0603-
39 COVER; ROD & PLATE 1-48259-065-0 02 1 0603-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-081-1 01 1 0603-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-081-1 01 1 0603-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-082-1 01 1 0603-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-082-1 01 1 0603-
41 PIPE ASM; LWR COVER 1-48259-080-0 02 1 0603-
41 PIPE ASM; LWR COVER 1-48259-080-0 02 1 0603-
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 0603-
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 0603-
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 0603-
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 0603-
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 0603-
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 0603-
