Isuzu WW
▶
TRUCKS
▶
CXZ
▶
11020 - CXZ AUSTRALIA
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

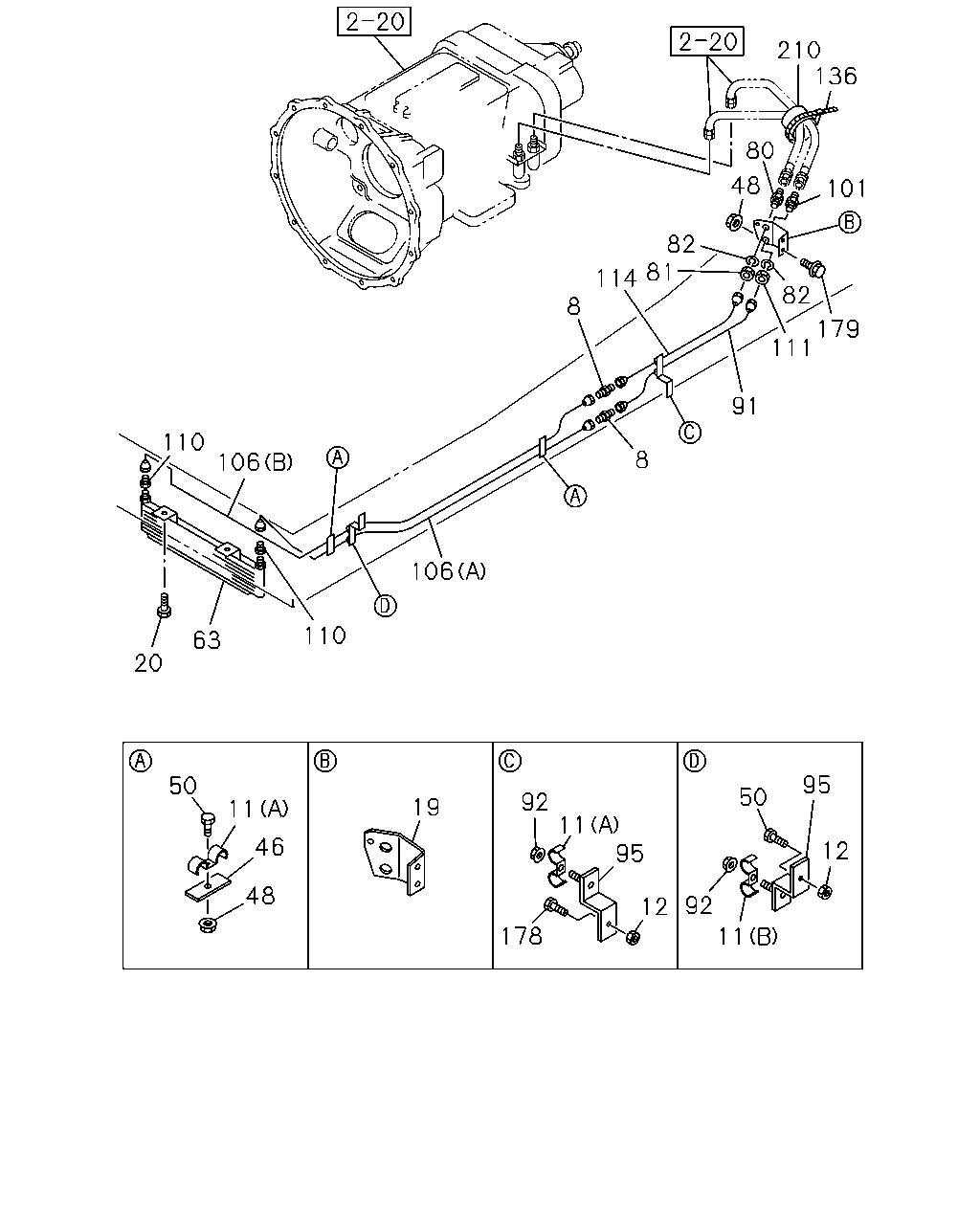

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#32153) — 36 parça
Tümü
A - TRANSMISSION-FULLER RTLO149 13
B - TRANSMISSION-FULLER RTLO169 13
C - TRANSMISSION-FULLER RTLO169 18
D - TRANSMISSION-FULLER RTLO149 18
210
136
80
48
101
82
81
114
82
8
179
111
91
110
8
106
106
110
63
20
95
50
50
92
19
11
11
95
46
12
48
92
12
178
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
8
UNION
M22
9-09233-015-1
02
1
0603-0607
●
●
●
●
8
UNION
M22 L=51
0-92123-015-0
02
1
0608-
●
●
●
●
11
CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
01
1
0603-
●
●
●
●
11
CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5
1-09700-674-0
02
1
0603-
●
●
●
●
11
CLIP; PIPE
(B) ID=16 & 9 L=21 & 18
1-09700-676-0
01
1
0603-
●
●
●
●
12
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
●
●
19
BRACKET; FLEX HOSE
1-47478-566-0
01
1
0603-
●
●
●
●
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28051-020-0
02
1
0603-
●
●
●
●
46
BRACKET; OIL PIPE
L=50
1-47475-299-2
02
1
0603-
●
●
●
●
48
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0603-
●
●
●
●
50
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
02
1
0603-
●
●
●
●
50
BOLT; CLIP
M8X30 FLANGE
0-28650-830-0
01
1
0603-
●
●
●
●
63
COOLER; OIL
1-21700-290-0
01
1
0603-0609
●
●
●
●
63
COOLER; OIL
1-21700-394-0
01
1
0610-1405
●
●
●
●
63
COOLER; OIL
8-98269-766-0
01
1
1406-
●
●
●
●
80
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
0603-
●
●
●
●
81
NUT; UNION
M22
0-91111-522-0
01
1
0603-
●
●
●
●
82
WASHER; LK,UNION
ID=22.5
9-09150-522-0
01
1
0603-0603
●
●
●
●
82
WASHER; LK,UNION
ID=22.5
9-09150-522-0
01
1
0603-0603
●
●
●
●
82
WASHER; LK,UNION
ID=22.5
0-91510-522-0
01
1
0604-
●
●
●
●
82
WASHER; LK,UNION
ID=22.5
0-91510-522-0
01
1
0604-
●
●
●
●
91
PIPE; OIL,FLEX HOSE TO UNION
L=832
1-49166-225-0
01
1
0603-
●
●
●
●
92
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
●
●
92
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
●
●
95
BRACKET; CLIP
1-47477-669-1
01
1
0603-
●
●
●
●
95
BRACKET; CLIP
1-47477-669-1
01
1
0603-
●
●
●
●
101
UNION; FLEX HOSE
M22 & M22 STRAIGHT
1-09654-204-2
01
1
0603-
●
●
●
●
106
PIPE ASM; OIL,COOLER TO UNION
(A) L=1713
1-49167-845-0
01
1
0603-
●
●
●
●
106
PIPE ASM; OIL,COOLER TO UNION
(B) L=2305
1-49166-669-0
01
1
0603-
●
●
●
●
110
UNION; OIL PIPE
1-09654-398-0
02
1
0603-
●
●
●
●
111
NUT; UNION
M22
0-91111-522-0
01
1
0603-
●
●
●
●
114
PIPE; OIL,UNION TO FLEX HOSE
L=998
1-49166-226-0
01
1
0603-
●
●
●
●
136
CLIP; FLEX HOSE
L=350
1-09707-183-0
01
1
0603-
●
●
●
●
178
BOLT; BRKT,CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0603-
●
●
●
●
179
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0603-
●
●
●
●
210
BAND; FLEX HOSE
L=175
1-09707-178-0
01
1
0603-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
