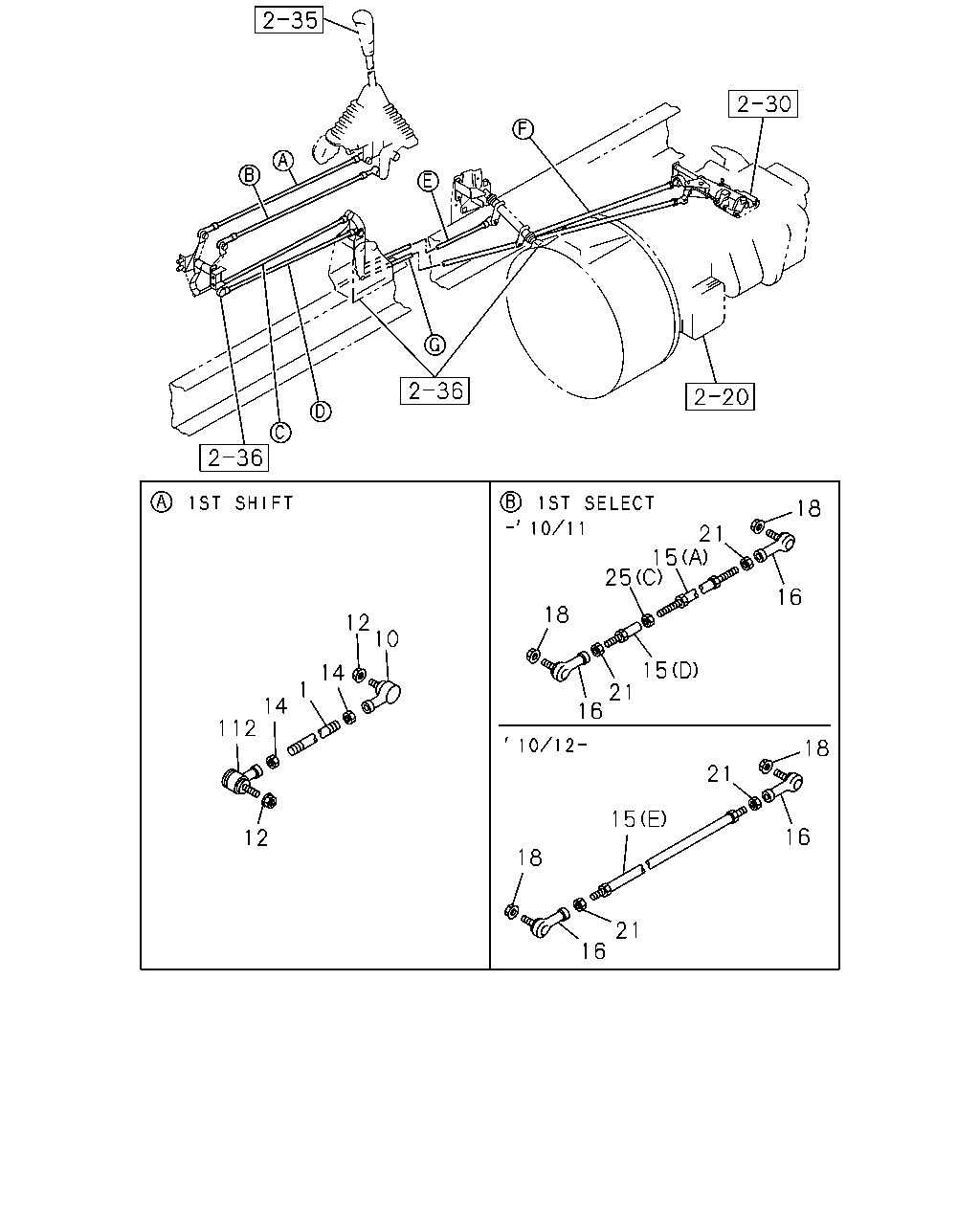

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#32152) — 45 parça
çizim 89118
18 21 15 25 16 18 12 10 15 14 1 21 16 14 112 18 21 15 16 12 18 21 16
BalonParca AdiParca NoAdetTipApplied Date
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 0603-
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 0603-
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 0603-
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 02 1 0603-
15 ROD; LINK 1ST SHIFT
(D) L=88 		1-33652-740-0 01 1 0603-1011
15 ROD; LINK 1ST SHIFT
(E) L=447 		8-98178-126-0 01 1 1012-
15 ROD; LINK 1ST SHIFT
(B) L=474 		1-33652-803-2 01 1 0603-
15 ROD; LINK 1ST SHIFT
(C) L=446 		1-33652-998-2 01 1 0603-
15 ROD; LINK 1ST SHIFT
(A) L=355 		1-33652-999-0 01 1 0603-1011
16 JOINT ASM; BALL,CONT ROD 1-09760-109-0 02 1 0603-1011
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 1012-
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0603-
21 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0603-1011
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		0-91111-508-0 02 1 1012-
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		0-91111-510-0 02 1 0603-
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		0-91111-512-0 02 1 0603-
25 NUT; LK,RIGHT SCREW,LINK ROD
(C) M10 LH THREAD 		9-09840-167-0 01 1 0603-1011
112 JOINT; RUBBER 1-33670-413-1 02 1 0603-
çizim 106132
24 28 15 25 15 112 25 22 25 22 25 22 24 28 30 45 49 35 32 5 35 8 32 30 47 47 49 45 36 44 6 38 38 36 44
BalonParca AdiParca NoAdetTipApplied Date
5 ROD; LINK,3RD SHIFT
L=1120 		1-33652-603-0 01 1 0603-
6 ROD; LINK,3RD SELECT
L=1637 		1-33652-980-1 01 1 0603-
8 ROD; LINK,4TH SHIFT
L=480 		1-33652-730-0 01 1 0603-
15 ROD; LINK 1ST SHIFT
(D) L=88 		1-33652-740-0 01 1 0603-1011
15 ROD; LINK 1ST SHIFT
(E) L=447 		8-98178-126-0 01 1 1012-
15 ROD; LINK 1ST SHIFT
(B) L=474 		1-33652-803-2 01 1 0603-
15 ROD; LINK 1ST SHIFT
(C) L=446 		1-33652-998-2 01 1 0603-
15 ROD; LINK 1ST SHIFT
(A) L=355 		1-33652-999-0 01 1 0603-1011
22 JOINT; BALL,SCREW,LINK ROD
(B) 		1-09760-109-0 02 1 0603-
22 JOINT; BALL,SCREW,LINK ROD
(A) 		1-09760-125-0 01 1 0603-
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 01 1 0603-
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 01 1 0603-
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		0-91111-510-0 02 1 0603-
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		0-91111-512-0 02 1 0603-
25 NUT; LK,RIGHT SCREW,LINK ROD
(C) M10 LH THREAD 		9-09840-167-0 01 1 0603-1011
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 01 1 0603-
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 01 1 0603-
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 0603-
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0603-
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0603-
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 0603-
38 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0603-
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 0603-
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 0603-
47 NUT; 4TH LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0603-
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 02 1 0603-
112 JOINT; RUBBER 1-33670-413-1 02 1 0603-
