2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#32151) — 118 parça

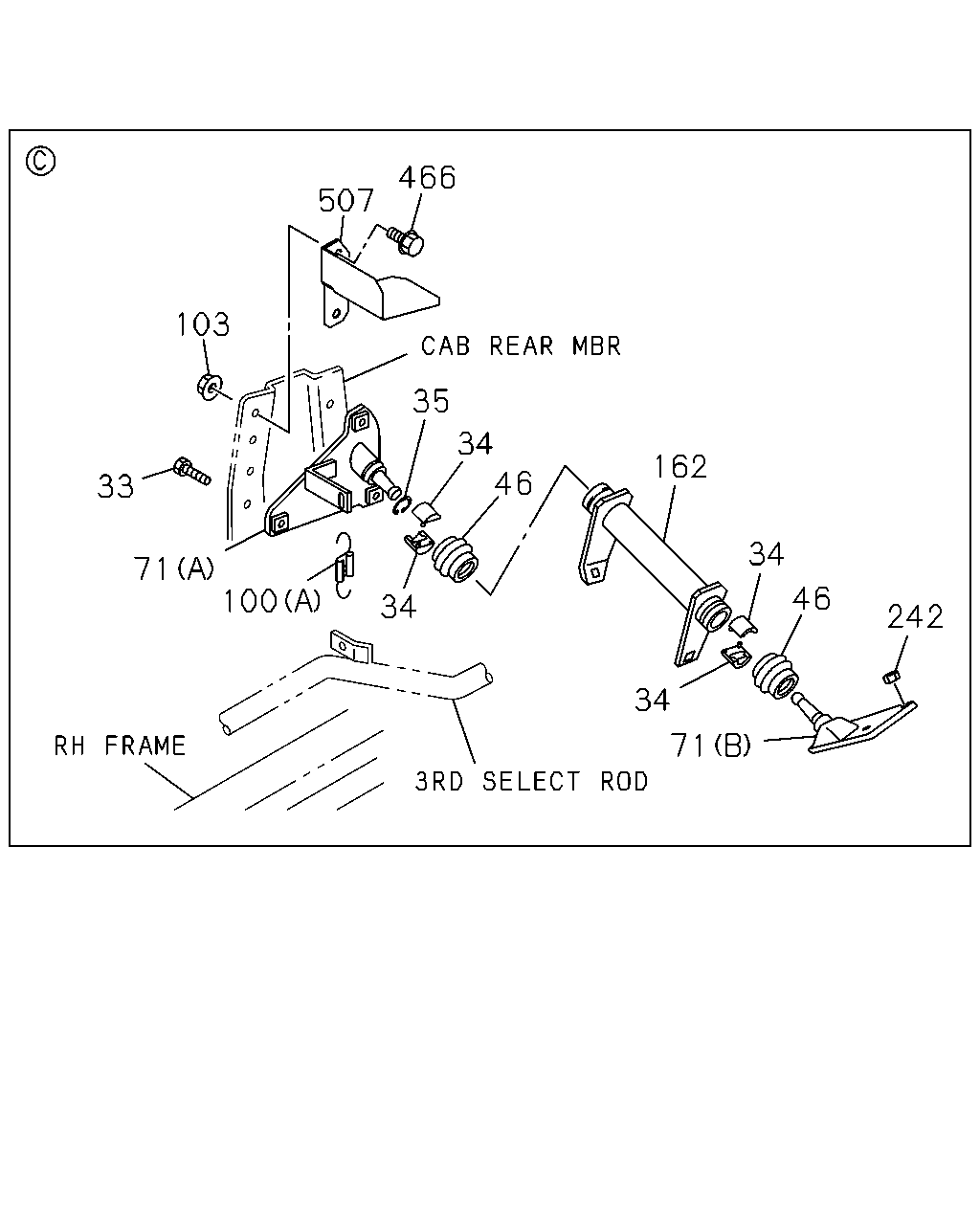

çizim 89119
466 507 103 35 34 162 46 33 34 71 100 46 34 242 34 71
BalonParca AdiParca NoAdetTipApplied Date
33 BOLT; BRKT,3RD RELAY LEVER
M10X30 FLANGE 		0-28651-030-0 03 1 0603-1003
33 BOLT; BRKT,3RD RELAY LEVER
M10X35 FLANGE 		0-28651-035-0 03 1 1004-
34 SEAT; BALL,RELAY LEVER 1-33659-165-0 04 1 0603-
35 RING; SNAP,RELAY LEVER
OD=34.4 		9-09180-132-0 01 1 0603-
46 SEAL; DUST,RELAY LEVER 1-33659-248-0 02 1 0603-
71 BRACKET; 3RD RELAY LEVER,FRAME
(B) 		1-33657-481-0 01 1 0603-
71 BRACKET; 3RD RELAY LEVER,FRAME
(A) 		1-33657-657-1 01 1 0603-
100 SPRING
(B) 		1-09583-319-0 01 1 0603-
100 SPRING
(A) 		1-09583-351-0 01 1 0603-
103 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
162 LEVER; RELAY 1-33651-625-1 01 1 0603-
242 NUT; FLANGE 3RD RELAY LEVER
M12 FLANGE 		0-91180-212-0 03 1 0603-
466 BOLT; FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0603-
507 PROTECTOR; HEAT 1-14181-315-0 01 1 0603-

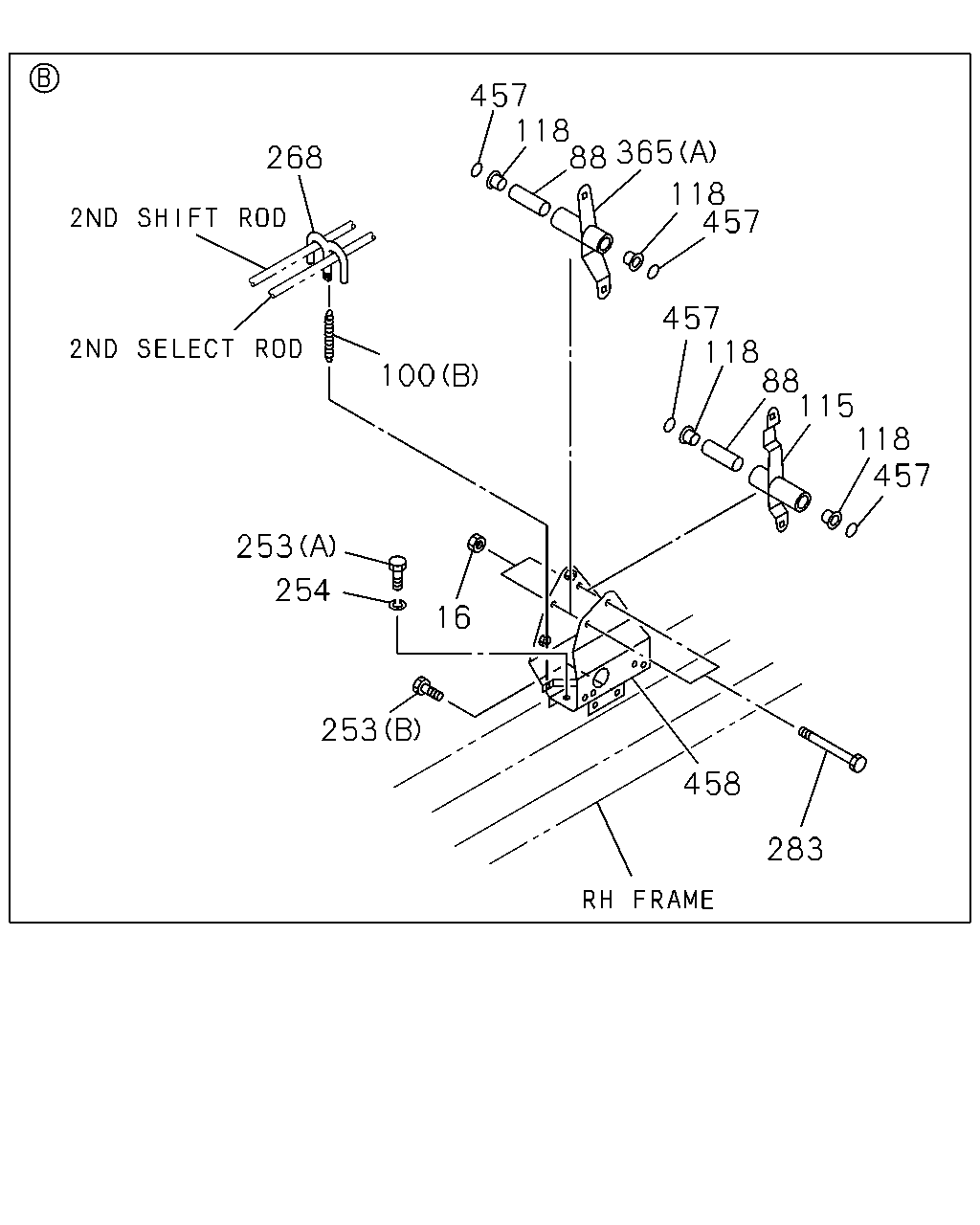

çizim 89147
457 118 88 365 268 118 457 457 118 88 115 118 457 100 253 254 16 253 458 283
BalonParca AdiParca NoAdetTipApplied Date
16 NUT; RELAY LEVER
M10 FLANGE 		0-91180-110-0 02 1 0603-
88 COLLAR; RELAY LEVER 1-33659-191-1 02 1 0603-
100 SPRING
(B) 		1-09583-319-0 01 1 0603-
100 SPRING
(A) 		1-09583-351-0 01 1 0603-
115 LEVER; RELAY,2ND SHIFT 1-33651-769-1 01 1 0603-
118 BUSHING; RELAY LEVER 1-09330-119-0 04 1 0603-
253 BOLT; BRKT,2ND RELAY LEVER
(A) M14X45 		0-20801-445-0 02 1 0603-
253 BOLT; BRKT,2ND RELAY LEVER
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0603-
254 WASHER; LK,RELAY LEVER
ID=14.2 		9-09150-614-0 02 1 0603-0603
254 WASHER; LK,RELAY LEVER
ID=14.2 		0-91510-614-0 02 1 0604-
268 BRACKET; LINK ROD 1-33657-216-0 01 1 0603-
283 BOLT; RELAY LEVER
M10X110 		9-09801-316-1 02 1 0603-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0603-
365 LEVER; RELAY,SELECT
(C) 		1-33651-790-1 01 1 0603-
365 LEVER; RELAY,SELECT
(B) 		1-33651-805-1 01 1 0603-
457 GASKET 1-09623-594-0 04 1 0603-
458 BRACKET; 2ND RELAY LEVER 1-33657-664-1 01 1 0603-

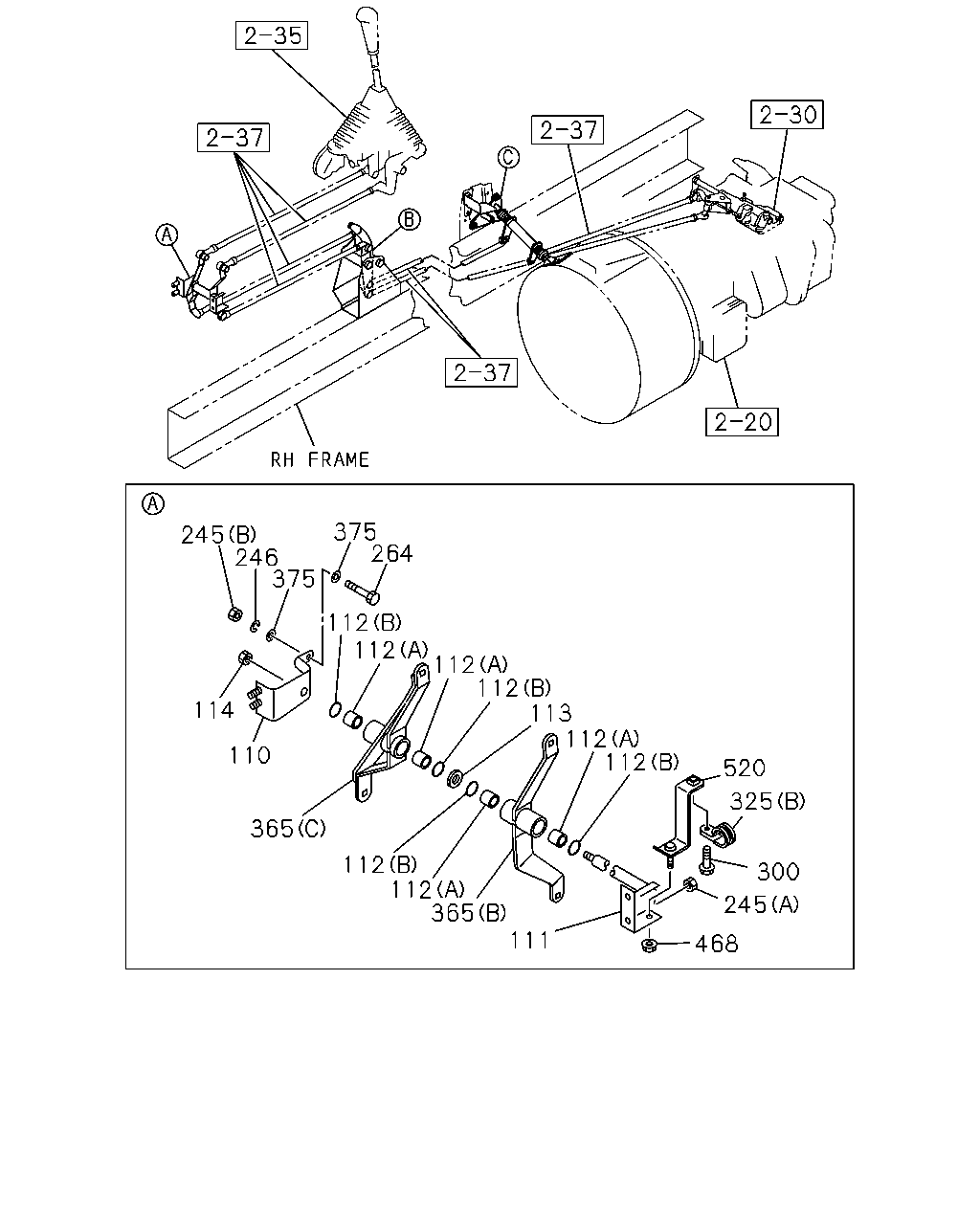

çizim 89175
375 264 245 246 375 112 112 112 112 113 112 112 114 110 520 325 365 112 112 365 111 300 245 468
BalonParca AdiParca NoAdetTipApplied Date
110 BRACKET; RELAY LEVER,1ST 1-33657-598-0 01 1 0603-
111 SHAFT; RELAY LEVER,1ST 1-33619-468-1 01 1 0603-
112 BUSHING; RELAY LEVER
(A) 		1-09330-119-0 04 1 0603-
112 BUSHING; RELAY LEVER
(B) 		1-09623-594-0 04 1 0603-
113 WASHER; RELAY LEVER
ID=17 		9-09160-516-0 01 1 0603-0605
113 WASHER; RELAY LEVER
ID=17 OD=30 		0-91610-516-0 01 1 0606-
114 NUT; RELAY LEVER
M10 FLANGE 		0-91180-110-0 01 1 0603-
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91180-210-0 02 1 0603-1304
245 NUT; BRKT,RELAY LEVER
(A) M10 FLANGE 		0-91180-110-0 02 1 1305-
245 NUT; BRKT,RELAY LEVER
(B) M10 		1-09984-142-0 01 1 0603-
246 WASHER; LK,BRKT,RELAY LEVER
ID=10 		1-09985-185-0 01 1 0603-
264 BOLT; BRKT,RELAY LEVER
M10X105 		1-79198-008-1 01 1 0603-
300 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0603-0904
300 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 04 1 0603-
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		9-09525-856-0 01 1 0603-0606
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		0-95235-856-0 01 1 0607-
365 LEVER; RELAY,SELECT
(A) 		1-33651-771-1 01 1 0603-
365 LEVER; RELAY,SELECT
(C) 		1-33651-790-1 01 1 0603-
365 LEVER; RELAY,SELECT
(B) 		1-33651-805-1 01 1 0603-
375 WASHER; PL,BRKT,RELAY LEVER
ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0603-
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0603-
520 BRACKET; NYLON TUBE 1-79996-628-0 01 1 0603-

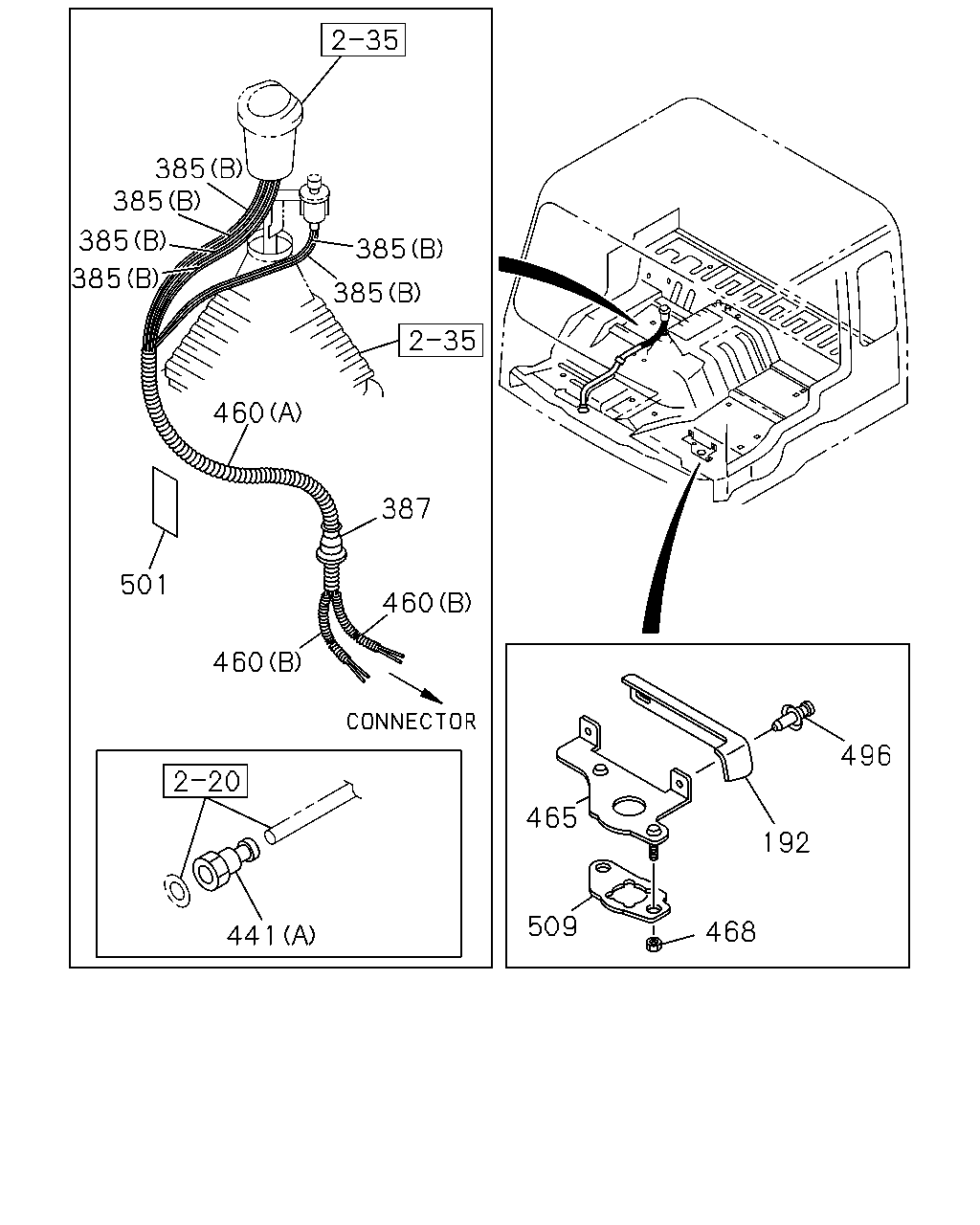

çizim 89343
385 385 385 385 385 385 460 387 501 460 460 496 465 192 509 468 441
BalonParca AdiParca NoAdetTipApplied Date
192 COVER 1-79907-090-0 01 1 0603-
385 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3650 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0603-
385 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3235 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0603-
385 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3130 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0603-
385 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3220 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0603-
385 TUBE; NYLON
(B) L=1820 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0603-
385 TUBE; NYLON
(B) L=1820 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0603-
385 TUBE; NYLON
(B) SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0603-
385 TUBE; NYLON
(B) SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0603-
387 GROMMET; CONT TUBE,FULLER 1-09332-135-0 01 1 0603-
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0603-
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 04 1 0603-0804
441 CONNECTOR; NYLON TUBE
(B) 		8-98120-561-0 04 1 0805-
460 TUBE; CORRUGATE
(D) L=250 ID=10 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0804-
460 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (E) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0603-
460 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (D) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0603-
460 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (C) L=2500 SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0603-
460 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (E) L=800 		1-83129-031-1 01 1 0603-
460 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0603-
460 TUBE; CORRUGATE
(B) L=800 		1-83129-031-1 02 1 0603-0803
460 TUBE; CORRUGATE
(B) L=800 L=250 ID=7 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0804-
465 BRACKET; CONNECTOR 1-47478-772-1 01 1 0603-
468 NUT; BRKT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 03 1 0603-
496 FASTENER
D8X13.5 		1-09987-248-1 02 1 0603-
501 SEAL; HARNESS PROTECTOR
180X40 		1-72498-019-1 04 1 0603-
509 SEAL; BRKT 1-47479-978-0 01 1 0603-

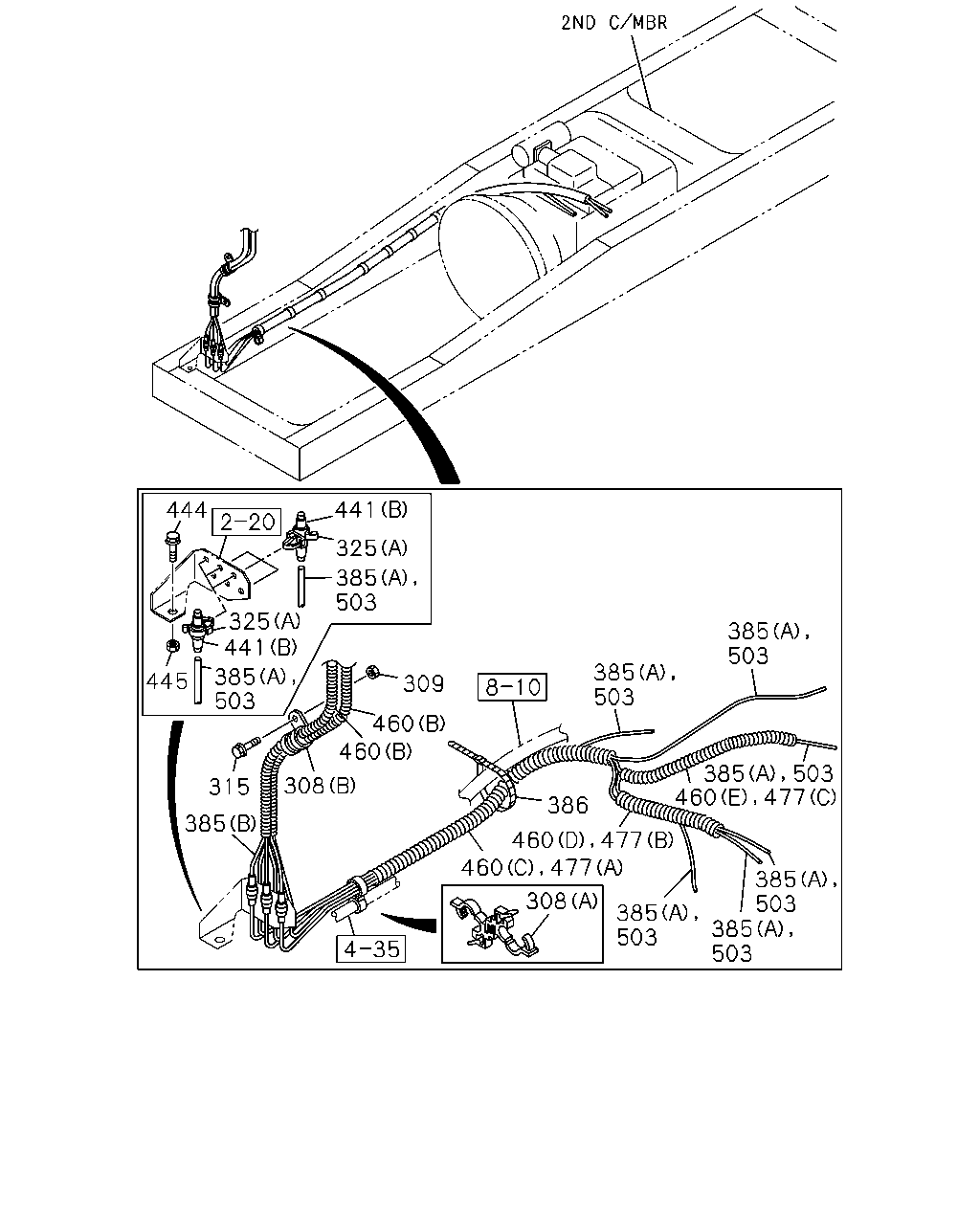

çizim 106207
441 444 325 385 503 325 441 385 503 385 503 385 503 445 309 460 460 308 315 385 386 385 503 385 503 308 385 503 460 460 477 477 460 385 503 477
BalonParca AdiParca NoAdetTipApplied Date
308 CLIP; PIPE
(A) ID=15 & 15 		1-09709-282-1 01 1 0603-
308 CLIP; PIPE
(A) ID=12-16 & 12-16 		1-09709-191-0 01 1 0603-
308 CLIP; PIPE
(B) ID=19 L=28 		9-09525-856-0 01 1 0603-0606
308 CLIP; PIPE
(B) ID=19 L=28 		0-95235-856-0 01 1 0607-
309 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
315 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0603-
325 CLIP; NYLON TUBE
(A) ID=9.5 		5-09709-020-0 04 1 0603-
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		9-09525-856-0 01 1 0603-0606
325 CLIP; NYLON TUBE
(B) ID=19 L=28 		0-95235-856-0 01 1 0607-
385 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3650 SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0603-
385 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3235 SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0603-
385 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3130 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0603-
385 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3220 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0603-
385 TUBE; NYLON
(B) L=1820 SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0603-
385 TUBE; NYLON
(B) L=1820 SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0603-
385 TUBE; NYLON
(B) SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0603-
385 TUBE; NYLON
(B) SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0603-
386 CLIP; CONT CABLE & TUBE
L=350 		1-09707-183-0 08 1 0603-
441 CONNECTOR; NYLON TUBE
(A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 0603-
441 CONNECTOR; NYLON TUBE
(B) 		1-09660-975-0 04 1 0603-0804
441 CONNECTOR; NYLON TUBE
(B) 		8-98120-561-0 04 1 0805-
444 BOLT; BRKT,NIPPLE
M8X25 FLANGE 		0-28650-825-0 01 1 0603-
445 NUT; BRKT,NIPPLE
M8 FLANGE 		0-91180-108-0 01 1 0603-
460 TUBE; CORRUGATE
(D) L=250 ID=10 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0804-
460 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (E) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0603-
460 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (D) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0603-
460 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (C) L=2500 SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0603-
460 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (E) L=800 		1-83129-031-1 01 1 0603-
460 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0603-
460 TUBE; CORRUGATE
(B) L=800 		1-83129-031-1 02 1 0603-0803
460 TUBE; CORRUGATE
(B) L=800 L=250 ID=7 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0804-
477 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (C) SERVICED BY L=800 ID=7 		1-83129-031-1 02 1 0603-
477 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0603-
477 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0603-
503 TUBE; NYLON
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) SERVICED BY L=5800 RED 		1-33619-362-0 01 1 0603-
503 TUBE; NYLON
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) SERVICED BY L=5800 BLACK 		1-33619-371-0 01 1 0603-
503 TUBE; NYLON
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) SERVICED BY L=6350 BLUE 		1-33619-380-0 01 1 0603-
503 TUBE; NYLON
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) SERVICED BY L=5800 GREEN 		1-33619-389-0 01 1 0603-
