2-05 — CLUTCH PIPING (#32143) — 98 parça

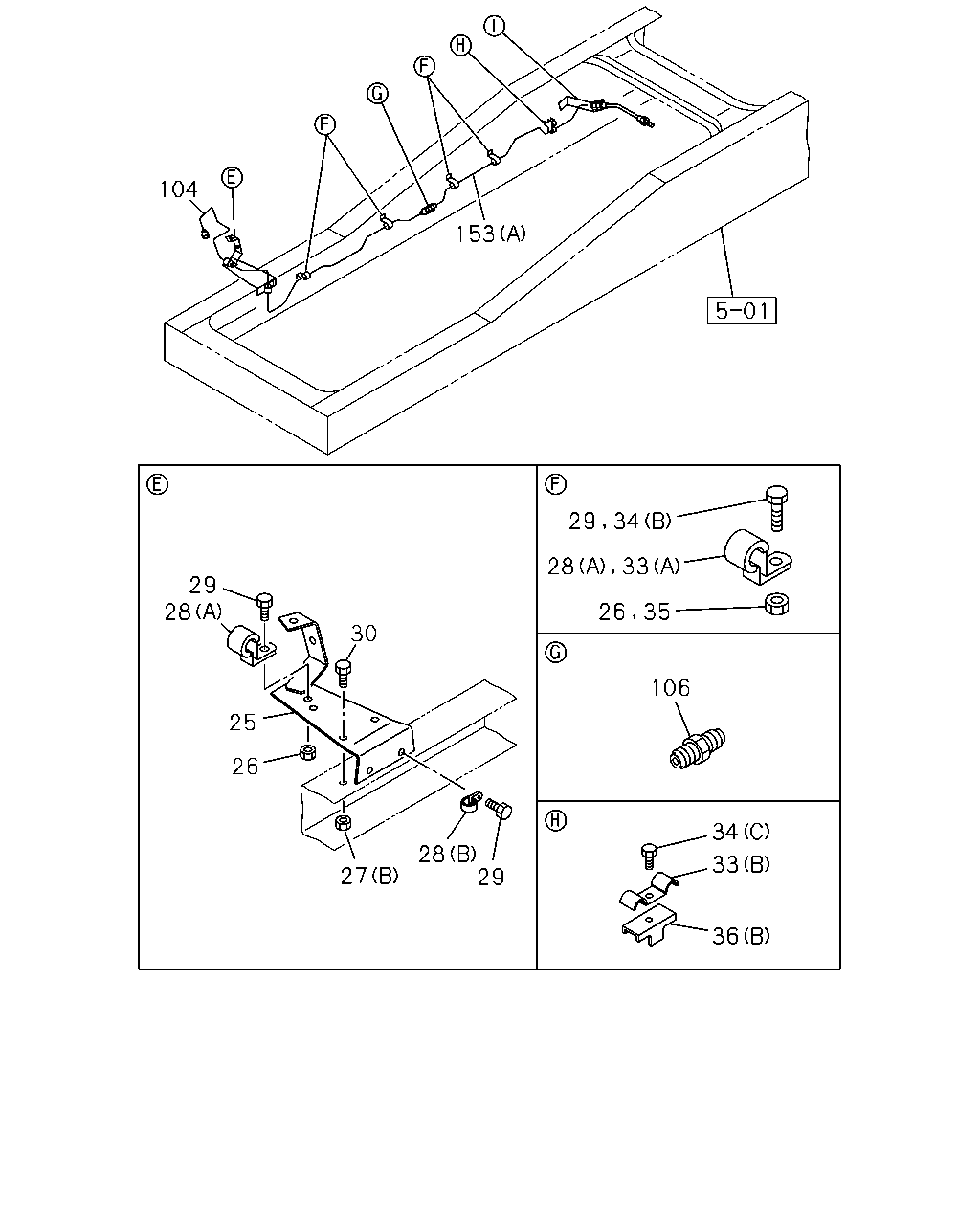

104 153 28 33 29 28 30 106 25 26 34 28 29 33 27 36 29 34 26 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE	1-47479-297-0	01	1	0603-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0603-0603
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0603-0603
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0603-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0603-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0603-0606
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0603-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0603-
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0603-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0603-
33	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0603-
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0603-0606
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28050-820-0	02	1	0607-
34	BOLT; PIPE CLIP (C) M8X45 FLANGE	0-28050-845-0	01	1	0603-
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	0603-
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0603-0603
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
36	BRACKET; CLIP (B)	1-47475-427-1	01	1	0603-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0603-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1628 SERVICED BY L=1700	1-47426-391-0	01	1	0603-
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0603-0607
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0603-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1587 SERVICED BY L=1700	1-47426-391-0	01	1	0603-

24 153 167 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0603-0703
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	0704-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0603-
56	BRACKET; FLEX HOSE	1-47471-200-0	01	1	0603-0609
56	BRACKET; FLEX HOSE	8-98055-226-0	01	1	0610-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1628 SERVICED BY L=1700	1-47426-391-0	01	1	0603-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0603-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1587 SERVICED BY L=1700	1-47426-391-0	01	1	0603-
167	BRACKET; UNION	1-71117-183-3	01	1	0603-

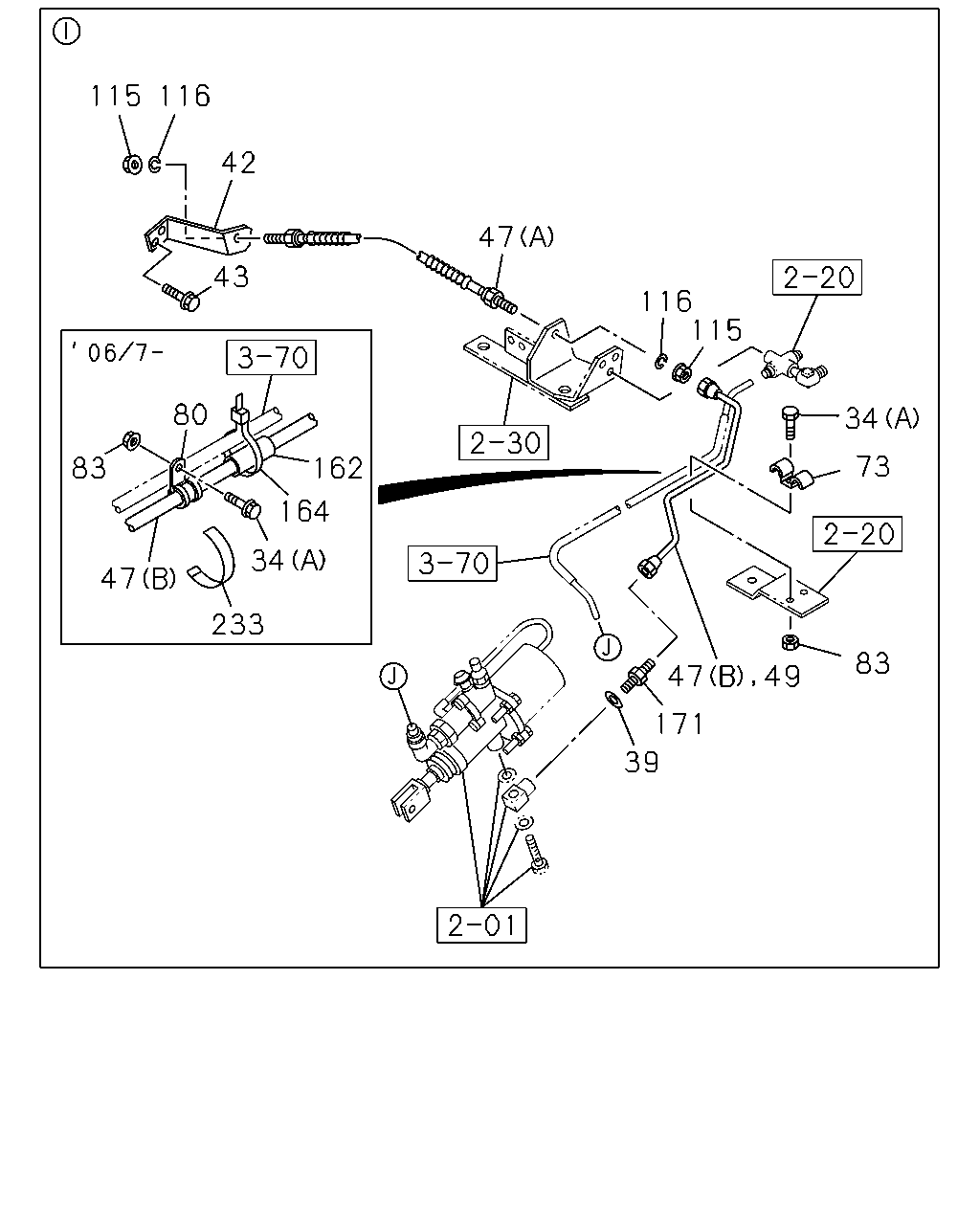

115 116 42 47 43 116 115 80 34 73 83 162 164 34 47 233 83 171 39 47 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0603-0606
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28050-820-0	02	1	0607-
34	BOLT; PIPE CLIP (C) M8X45 FLANGE	0-28050-845-0	01	1	0603-
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	0603-
39	GASKET; CONNECTOR ID=10.2 OD=16.0	9-09571-410-0	01	1	0603-
42	BRACKET; FLEX HOSE,CLU CONT	1-47478-796-0	01	1	0603-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0603-
47	HOSE; FLEX,CLU CONT (B) L=550	1-09365-377-1	01	1	0607-
47	HOSE; FLEX,CLU CONT (A) L=445	1-09364-478-0	01	1	0603-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER	1-49161-120-0	01	1	0603-0606
73	CLIP; OIL PIPE ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0603-
80	CLIP; HOSE ID=16 L=50	1-09701-158-0	01	1	0607-
83	NUT; PIPE CLIP M8	0-91110-508-0	01	1	0603-0606
83	NUT; PIPE CLIP M8	0-91110-508-0	02	1	0607-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	02	1	0603-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	0603-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	02	1	0604-
162	COVER; RUBBER,FLEX HOSE ID=14 OD=18 L=60	1-09337-030-0	01	1	0607-
164	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	01	1	0607-
171	CONNECTOR; CLU BOOSTER	1-09650-256-2	01	1	0603-
233	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0607-

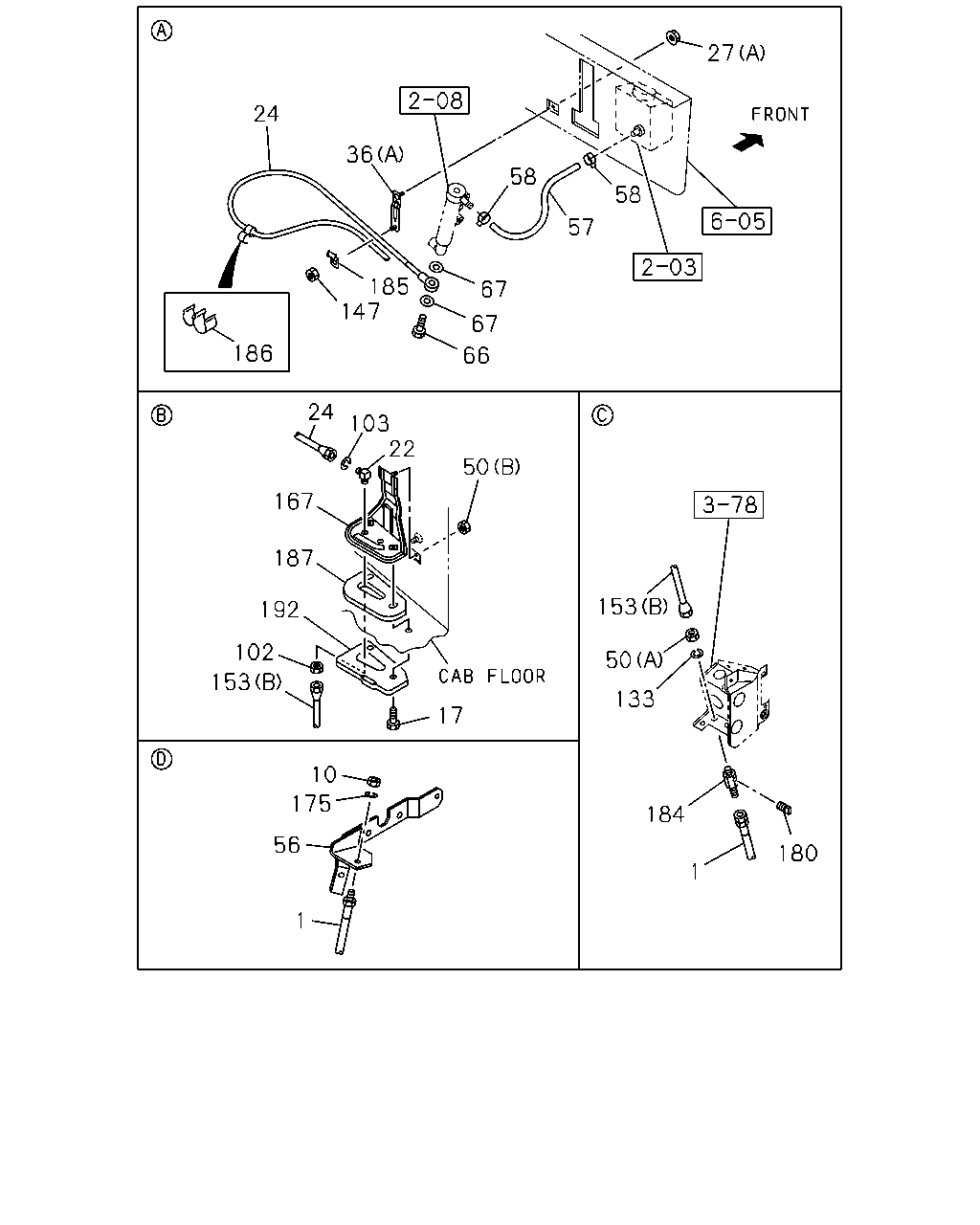

27 24 36 58 58 57 185 147 67 67 186 66 24 103 22 50 167 187 153 192 102 50 153 133 17 10 175 184 56 180 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0603-0703
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	0704-
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0603-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0603-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0603-0607
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0608-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0603-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0603-0603
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0603-
36	BRACKET; CLIP (B)	1-47475-427-1	01	1	0603-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0603-
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0603-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0603-
56	BRACKET; FLEX HOSE	1-47471-200-0	01	1	0603-0609
56	BRACKET; FLEX HOSE	8-98055-226-0	01	1	0610-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0603-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0603-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0603-0805
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0603-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0603-0603
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0711
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0603-0603
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0603-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0603-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1587 SERVICED BY L=1700	1-47426-391-0	01	1	0603-
167	BRACKET; UNION	1-71117-183-3	01	1	0603-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0603-0603
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
180	PLUG; PIPE	9-09204-510-0	01	1	0603-0804
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0603-0804
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	0603-0606
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	0607-
186	HOLDER; CLIP DRIVER ISRINGHAUSEN SEAT TYPE 6500(NKG),DRIVER ISRINGHAUSEN SEAT(SJA)	8-94107-710-0	02	1	0603-
187	SEAL; BRKT	1-71117-222-0	01	1	0603-
192	PLATE	1-71117-221-0	01	1	0603-
