1-50 — EXHAUST PIPE AND SILENCER
(#32138) — 68 parça
◀
[150A] FRONT EXH PIPE (15 parça)

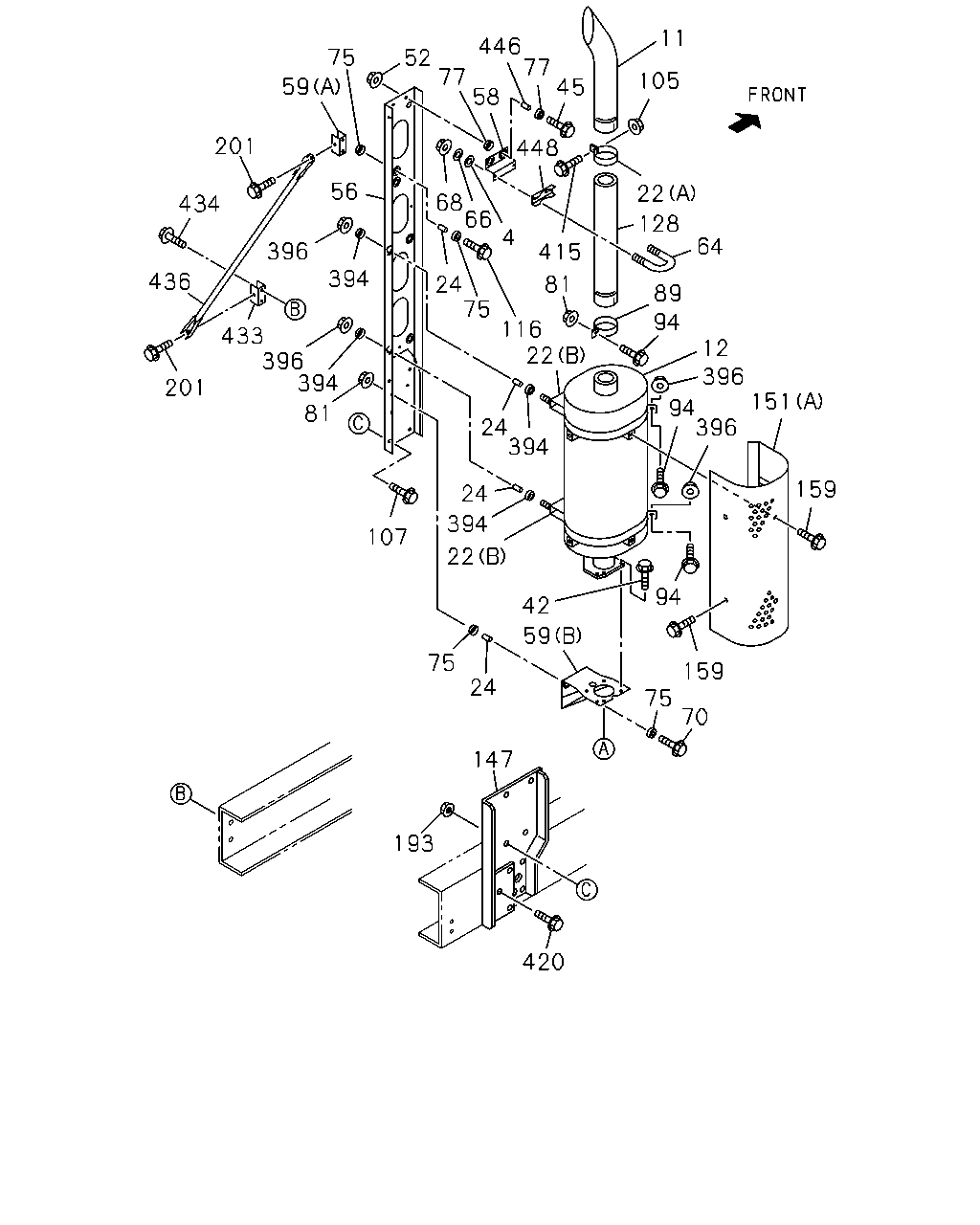

[150A] REAR EXH PIPE AND SILENCER (53 parça)
▶
1
368
354
26
475
476
34
36
368
354
16
475
476
476
475
151
20
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
8-98038-593-1
01
1
0603-
16
FLANGE; EXH PIPE
1-22115-148-1
01
1
0603-
20
BOLT; FLANGE,EXH PIPE
M10X51.4
1-09009-167-0
02
1
0603-
26
STUD; EXH MANIF
M12X140 L=160
1-09302-163-0
04
1
0603-
34
WASHER; EXH PIPE
ID=13 OD=26
1-09556-020-0
04
1
0603-
36
NUT; EXH PIPE
M12
1-09400-131-0
04
1
0603-
41
NUT; EXH PIPE TO EXH SILENCER
M12
0-91110-512-0
04
1
0603-
151
PROTECTOR; HEAT,EXH PIPE
(B)
1-22119-636-0
01
1
0603-
151
PROTECTOR; HEAT,EXH PIPE
(A)
1-22159-334-0
01
1
0603-
354
CLAMP; HEAT PROTECTOR
1-22119-445-0
02
1
0603-
368
BOLT; CLAMP
M8X30 FLANGE
0-28650-830-0
04
1
0603-
475
BEARING; SEAL,VIBNON,EXH PIPE
(B) OD=112
1-22119-294-1
01
1
0603-
475
BEARING; SEAL,VIBNON,EXH PIPE
(A) OD=122
1-22119-297-1
02
1
0603-
476
SPRING; VIBNON,EXH PIPE
(A)
1-09583-298-0
04
1
0603-
476
SPRING; VIBNON,EXH PIPE
(B)
8-94141-851-0
02
1
0603-
11
446
77
45
75
52
77
58
105
59
201
448
68
56
22
434
128
4
64
396
415
394
436
81
24
75
89
94
116
22
433
396
394
12
396
151
201
94
396
81
24
394
24
159
394
107
22
94
42
59
75
159
24
75
70
147
193
420
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
WASHER; PL,U BOLT
ID=8.4 OD=22
9-09160-708-0
02
1
0603-0605
4
WASHER; PL,U BOLT
ID=8.4 OD=22
0-91610-708-0
02
1
0606-
11
PIPE; EXH,RR
1-22123-979-1
01
1
0603-
12
SILENCER ASM; EXH
1-22140-925-2
01
1
0603-
22
CLAMP; EXH PIPE
(A)
1-22133-266-1
01
1
0603-
22
CLAMP; EXH PIPE
(B)
1-22133-270-0
02
1
0603-
24
COLLAR; DIST,CLAMP
L=25
1-14234-083-0
10
1
0603-
42
BOLT; EXH PIPE TO EXH SILENCER
M12X35 FLANGE
1-09000-653-0
04
1
0603-
45
BOLT; BRKT
M10X50 FLANGE
0-28051-050-0
02
1
0603-
52
NUT; BRKT
M10 FLANGE
0-91150-210-0
02
1
0603-0603
52
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0603-
56
BRACKET; CLAMP,EXH PIPE
1-22152-396-0
01
1
0603-
58
BRACKET; EXH PIPE,RR
1-22131-799-0
01
1
0603-
59
BRACKET; EXH SILENCER,FRT
(A)
1-22119-252-1
01
1
0603-
59
BRACKET; EXH SILENCER,FRT
(B)
1-22151-768-1
01
1
0603-
64
U-BOLT; EXH PIPE,RR
1-22113-097-0
01
1
0603-
66
WASHER; LK,U BOLT
ID=8.2
9-09150-508-0
02
1
0603-0603
66
WASHER; LK,U BOLT
ID=8.2
0-91510-508-0
02
1
0604-
68
NUT; U BOLT
M8 FLANGE
0-91150-108-0
02
1
0603-0603
68
NUT; U BOLT
M8 FLANGE
0-91180-108-0
02
1
0603-
70
BOLT; BRKT
M10X60 FLANGE
0-28051-060-0
04
1
0603-
75
RUBBER; SUPPORT,BRKT
OD=40
1-22159-094-0
12
1
0603-
77
RUBBER; CUSHION,BRKT
OD=40
1-22159-094-0
04
1
0603-
81
NUT; BRKT
M10 FLANGE
0-91150-210-0
04
1
0603-0603
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
0603-
89
CLAMP; EXH SILENCER,RR
1-22133-266-1
01
1
0603-
94
BOLT; CLAMP
M10X40 FLANGE
0-28651-040-0
01
1
0603-
94
BOLT; CLAMP
M10X40 FLANGE
0-28651-040-0
02
1
0603-
105
NUT; CLAMP
M10 FLANGE
0-91150-210-0
01
1
0603-0603
105
NUT; CLAMP
M10 FLANGE
0-91150-210-0
01
1
0603-0603
105
NUT; CLAMP
M10 FLANGE
0-91180-210-0
01
1
0603-
105
NUT; CLAMP
M10 FLANGE
0-91180-210-0
01
1
0603-
107
BOLT; BRKT
M12X35 FLANGE
0-28051-235-0
04
1
0603-
116
BOLT; BRKT
M10X50 FLANGE
0-28051-050-0
02
1
0603-
128
PIPE; EXH,RR
1-22123-087-1
01
1
0603-
147
BRACKET; VERTICAL PIPE
1-22152-373-0
01
1
0603-
151
PROTECTOR; HEAT,EXH PIPE
(B)
1-22119-636-0
01
1
0603-
151
PROTECTOR; HEAT,EXH PIPE
(A)
1-22159-334-0
01
1
0603-
159
BOLT; HEAT PROTECTOR
M8X25 W/LK&PL WASHER
1-09030-027-0
06
1
0603-
193
NUT; BRKT,VERTICAL PIPE
M12 FLANGE
0-91150-212-0
03
1
0603-0603
193
NUT; BRKT,VERTICAL PIPE
M12 FLANGE
0-91180-212-0
03
1
0603-
201
BOLT; STAY
M10X25 FLANGE
0-28651-025-0
04
1
0603-
394
RUBBER; SUPPORT,CLAMP
OD=40
1-22159-094-0
08
1
0603-
396
NUT; CLAMP
M10 FLANGE
0-91150-210-0
06
1
0603-0603
396
NUT; CLAMP
M10 FLANGE
0-91180-210-0
06
1
0603-
415
BOLT; CLAMP
M10X40 FLANGE
0-28651-040-0
01
1
0603-
420
BOLT; BRKT,VERTICAL PIPE
M12X35 FLANGE
0-28651-235-0
03
1
0603-
433
BRACKET; STAY,EXH PIPE
1-22151-813-0
01
1
0603-
434
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
02
1
0603-0704
434
BOLT; BRKT
M10X30 FLANGE
0-28051-030-0
02
1
0705-
436
STAY; SUPPORT,EXH
1-22134-331-0
02
1
0603-
446
PIECE; DIST,EXH PIPE,RR
L=25
1-14234-083-0
02
1
0603-
448
PIECE; DIST,U-BOLT
1-22113-095-0
01
1
0603-
