◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11020 - CXZ AUSTRALIA ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#32133) — 115 parça

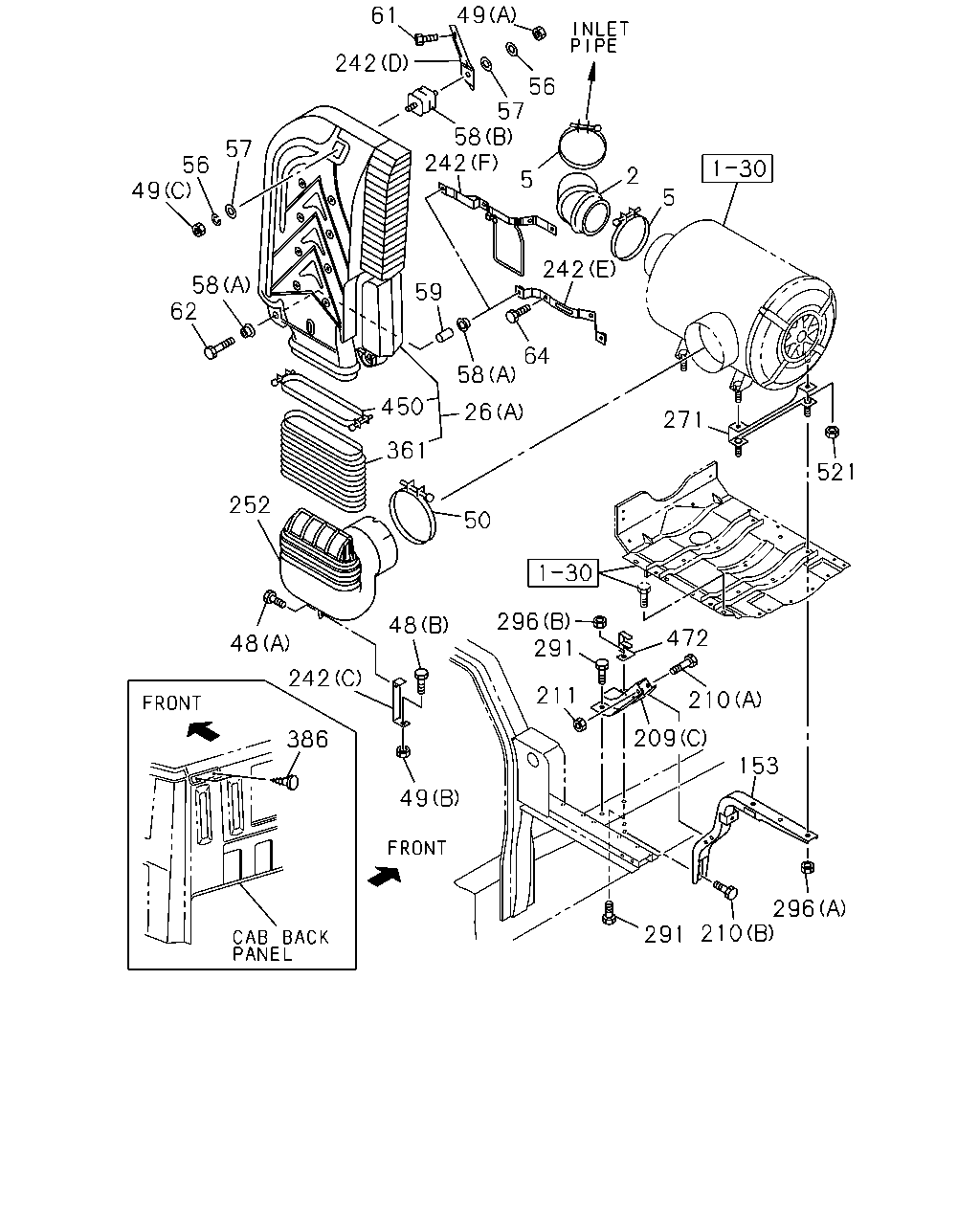

çizim 106063
49 61 242 56 57 58 242 57 56 49 2 5 5 242 58 62 59 64 58 450 26 271 361 521 252 50 296 291 48 472 48 242 211 210 209 386 153 49 296 210 291
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL 1-14231-871-0 01 1 0603-
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 0603-
26 DUCT; AIR INT
PRE CLEANER<W17> (B) 		1-14219-258-1 01 1 0603-
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (A) 		1-14230-202-2 01 1 0603-1003
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (A) 		8-98122-904-2 01 1 1004-
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X60 		1-09030-044-1 02 1 0603-
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0603-
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0603-
49 NUT; AIR DUCT
PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 04 1 0603-
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 0603-0603
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91180-210-0 01 1 0603-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M8 		0-91110-508-0 01 1 0603-0808
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-122-0 01 1 0809-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 01 1 0603-
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 0603-
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 0603-
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 0603-
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 04 1 0603-
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 02 1 0603-
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 0603-
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> (B) 		8-97080-149-0 01 1 0603-
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 0603-
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 0603-0702
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0703-0807
61 BOLT; BRKT,AIR DUCT
EXC. PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 02 1 0808-
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> M10X60 		1-09030-044-1 02 1 0603-
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 0603-0702
64 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0703-0807
64 BOLT; BRKT,AIR DUCT
EXC. PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 02 1 0808-
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 0603-
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		1-79990-045-2 01 1 0808-
209 BRACKET; ACL
PRE CLEANER<W17> (A) 		8-98115-405-1 01 1 0808-
209 BRACKET; ACL
(C) 		1-53419-276-0 01 1 0603-
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 0603-
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 0603-
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0603-0603
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (A) 		1-79990-041-0 01 1 0603-0807
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (B) 		1-79990-045-1 01 1 0603-0807
242 BRACKET; AIR DUCT
(C) 		1-23957-006-0 01 1 0603-
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (E) 		1-53419-324-0 01 1 0603-0606
242 BRACKET; AIR DUCT
FULL FLOATING CAB(W16) EXC. PRE CLEANER<W17> (F) 		8-98041-993-1 01 1 0607-
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		1-53419-325-1 01 1 0603-
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 0603-
271 SPACER; BRKT,ACL 1-53419-343-1 02 1 0603-
291 BOLT; ACL
M12X30 FLANGE 		0-28651-230-0 02 1 0603-
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 0603-0603
296 NUT; ACL
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 0603-0603
296 NUT; ACL
(B) M12 FLANGE 		0-91180-212-0 02 1 0603-
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-149-2 01 1 0603-
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 0603-
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 0603-
472 STOPPER; LINK ROD 1-33659-230-0 01 1 0603-
521 NUT; SPACER
M8 FLANGE 		0-91150-108-0 04 1 0603-0603
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 0603-

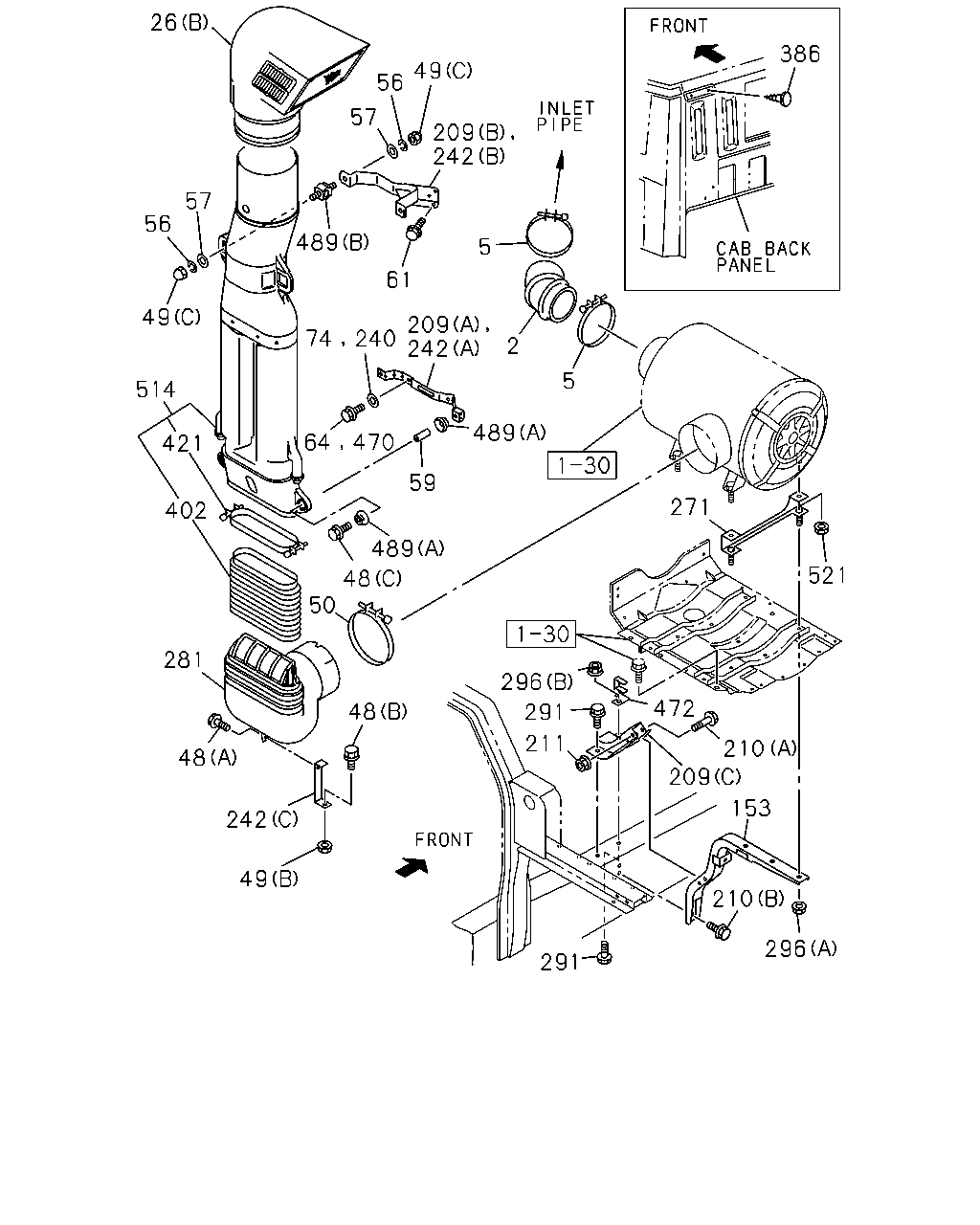

çizim 106128
26 386 49 56 57 209 242 57 56 489 5 61 49 209 242 240 2 5 514 489 470 421 59 271 402 489 521 48 50 281 296 472 48 291 211 210 48 209 153 242 49 210 296 291 74 64
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL 1-14231-871-0 01 1 0603-
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 0603-
26 DUCT; AIR INT
PRE CLEANER<W17> (B) 		1-14219-258-1 01 1 0603-
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (A) 		1-14230-202-2 01 1 0603-1003
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> (A) 		8-98122-904-2 01 1 1004-
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X60 		1-09030-044-1 02 1 0603-
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0603-
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0603-
49 NUT; AIR DUCT
PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 04 1 0603-
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91150-210-0 01 1 0603-0603
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91180-210-0 01 1 0603-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M8 		0-91110-508-0 01 1 0603-0808
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-122-0 01 1 0809-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-126-0 01 1 0603-
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 0603-
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 0603-
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 0603-
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 04 1 0603-
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 02 1 0603-
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 0603-
61 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 0603-0702
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0703-0807
61 BOLT; BRKT,AIR DUCT
EXC. PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 02 1 0808-
64 BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 02 1 0603-0702
64 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0703-0807
64 BOLT; BRKT,AIR DUCT
EXC. PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 02 1 0808-
74 WASHER; PL,ACL
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 01 1 0808-
153 BRACKET; ACL,FRT 1-53419-265-1 01 1 0603-
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		1-79990-045-2 01 1 0808-
209 BRACKET; ACL
PRE CLEANER<W17> (A) 		8-98115-405-1 01 1 0808-
209 BRACKET; ACL
(C) 		1-53419-276-0 01 1 0603-
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 0603-
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 0603-
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0603-0603
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
240 WASHER; PL,BRKT
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 01 1 0603-0807
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (A) 		1-79990-041-0 01 1 0603-0807
242 BRACKET; AIR DUCT
PRE CLEANER<W17> (B) 		1-79990-045-1 01 1 0603-0807
242 BRACKET; AIR DUCT
(C) 		1-23957-006-0 01 1 0603-
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (E) 		1-53419-324-0 01 1 0603-0606
242 BRACKET; AIR DUCT
FULL FLOATING CAB(W16) EXC. PRE CLEANER<W17> (F) 		8-98041-993-1 01 1 0607-
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		1-53419-325-1 01 1 0603-
271 SPACER; BRKT,ACL 1-53419-343-1 02 1 0603-
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-194-0 01 1 0603-
291 BOLT; ACL
M12X30 FLANGE 		0-28651-230-0 02 1 0603-
296 NUT; ACL
(A) M8 FLANGE 		0-91150-108-0 04 1 0603-0603
296 NUT; ACL
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-
296 NUT; ACL
(B) M12 FLANGE 		0-91150-212-0 02 1 0603-0603
296 NUT; ACL
(B) M12 FLANGE 		0-91180-212-0 02 1 0603-
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 0603-
402 GASKET; RUBBER
PRE CLEANER<W17> 		1-14230-149-2 01 1 0603-
421 CLAMP; AIR DUCT
PRE CLEANER<W17> 		1-14239-237-0 01 1 0603-
470 BOLT; BRKT
PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 04 1 0808-
472 STOPPER; LINK ROD 1-33659-230-0 01 1 0603-
489 RUBBER; SUPPORT
PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 0603-
489 RUBBER; SUPPORT
PRE CLEANER<W17> (B) 		8-97080-149-0 02 1 0603-
514 DUCT; PRE CLEANER
PRE CLEANER<W17> 		1-14230-170-1 01 1 0603-
521 NUT; SPACER
M8 FLANGE 		0-91150-108-0 04 1 0603-0603
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 0603-
