6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-70 - FLOOR PANEL
▶

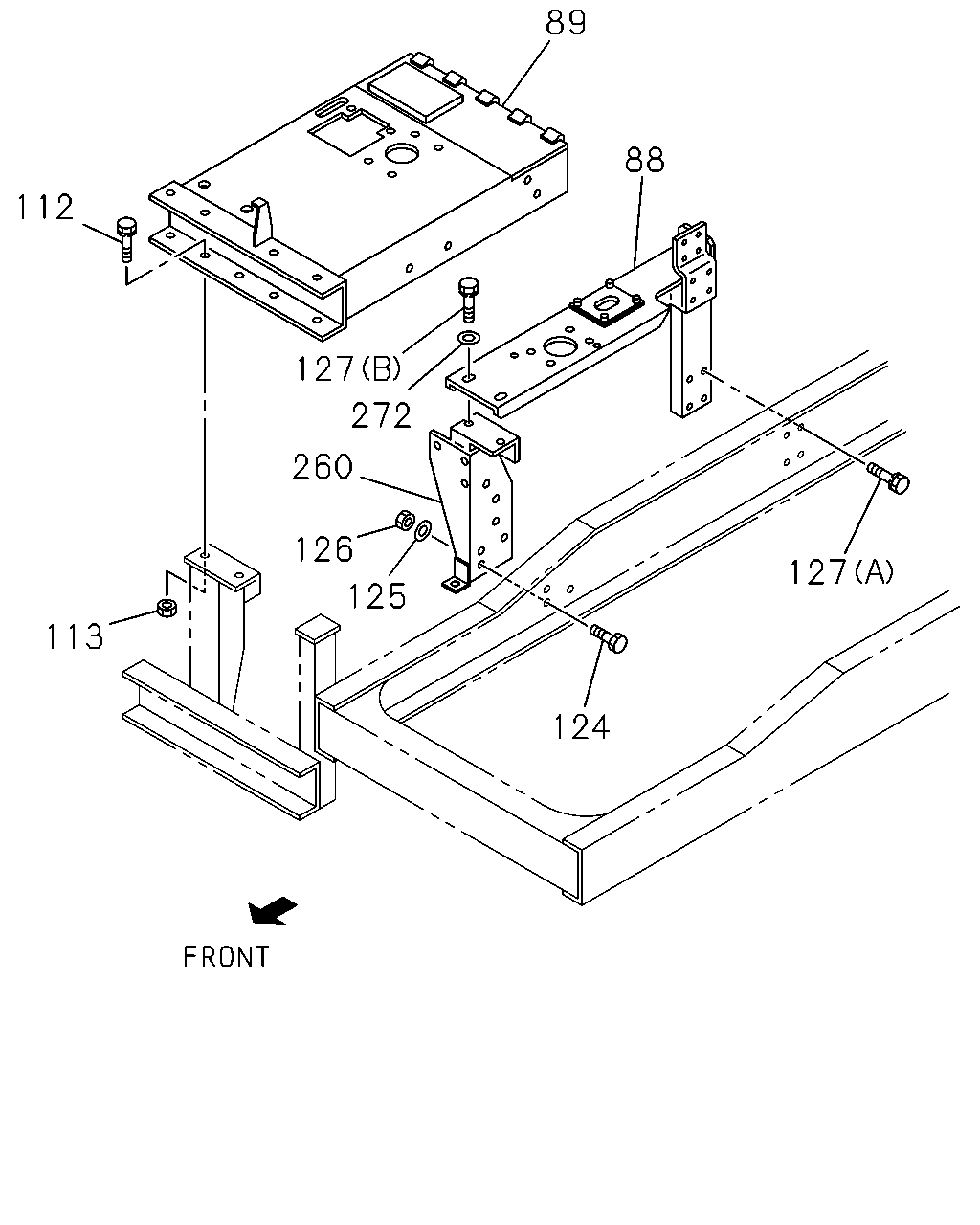

6-70 — FLOOR PANEL
(#3213) — 20 parça
89
88
112
127
272
260
126
127
125
113
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
88
BOARD ASM; FLOOR
1-62101-303-1
01
1
9104-
89
BOARD ASM; PEDAL
1-65600-416-4
01
1
9104-
112
BOLT; PEDAL BOARD
M12X30 W/LK WASHER
0-50041-230-0
01
1
9104-0107
112
BOLT; PEDAL BOARD
M12X30 W/LK WASHER
0-50041-230-0
01
1
0108-
113
NUT; PEDAL BOARD
M12
9-99110-412-0
01
1
9104-9307
113
NUT; PEDAL BOARD
M12
9-99110-512-0
01
1
9308-0107
113
NUT; PEDAL BOARD
M12
9-99110-512-0
01
1
0108-
124
BOLT; STAY TO FRAME
M12X32
9-92061-232-0
01
1
9104-
124
BOLT; STAY TO FRAME
M12X32
9-92061-232-0
03
1
9104-0107
124
BOLT; STAY TO FRAME
M12X32
9-92061-232-0
03
1
0108-
124
BOLT; STAY TO FRAME
M12X35
9-92061-235-0
04
1
9104-
125
WASHER; LK,STAY
ID=12.2
9-09150-612-0
03
1
0108-
125
WASHER; LK,STAY
ID=12.2
9-09150-612-0
07
1
9104-0107
125
WASHER; LK,STAY
ID=12.2
9-09150-612-0
04
1
0108-
126
NUT; STAY TO FRAME
M12
9-99110-512-0
03
1
9104-
127
BOLT; STAY,FLOOR BOARD
(A) M10X35 W/LK WASHER
0-50041-035-0
04
1
9104-
127
BOLT; STAY,FLOOR BOARD
(B) M12X30 W/LK WASHER
0-50041-230-0
02
1
9104-
260
STAY; PEDAL BOARD REINF
1-65900-004-2
01
1
9104-
272
WASHER; PL,STAY,FLOOR BOARD
ID=12.5 OD=26
9-09164-612-0
02
1
9104-0107
272
WASHER; PL,STAY,FLOOR BOARD
ID=12.5 OD=26
9-09164-612-0
02
1
0108-
