Isuzu WW
▶
TRUCKS
▶
CXZ
▶
11020 - CXZ AUSTRALIA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶
1-01 — ACCELERATOR PEDAL AND CONTROL
(#32129) — 57 parça
◀

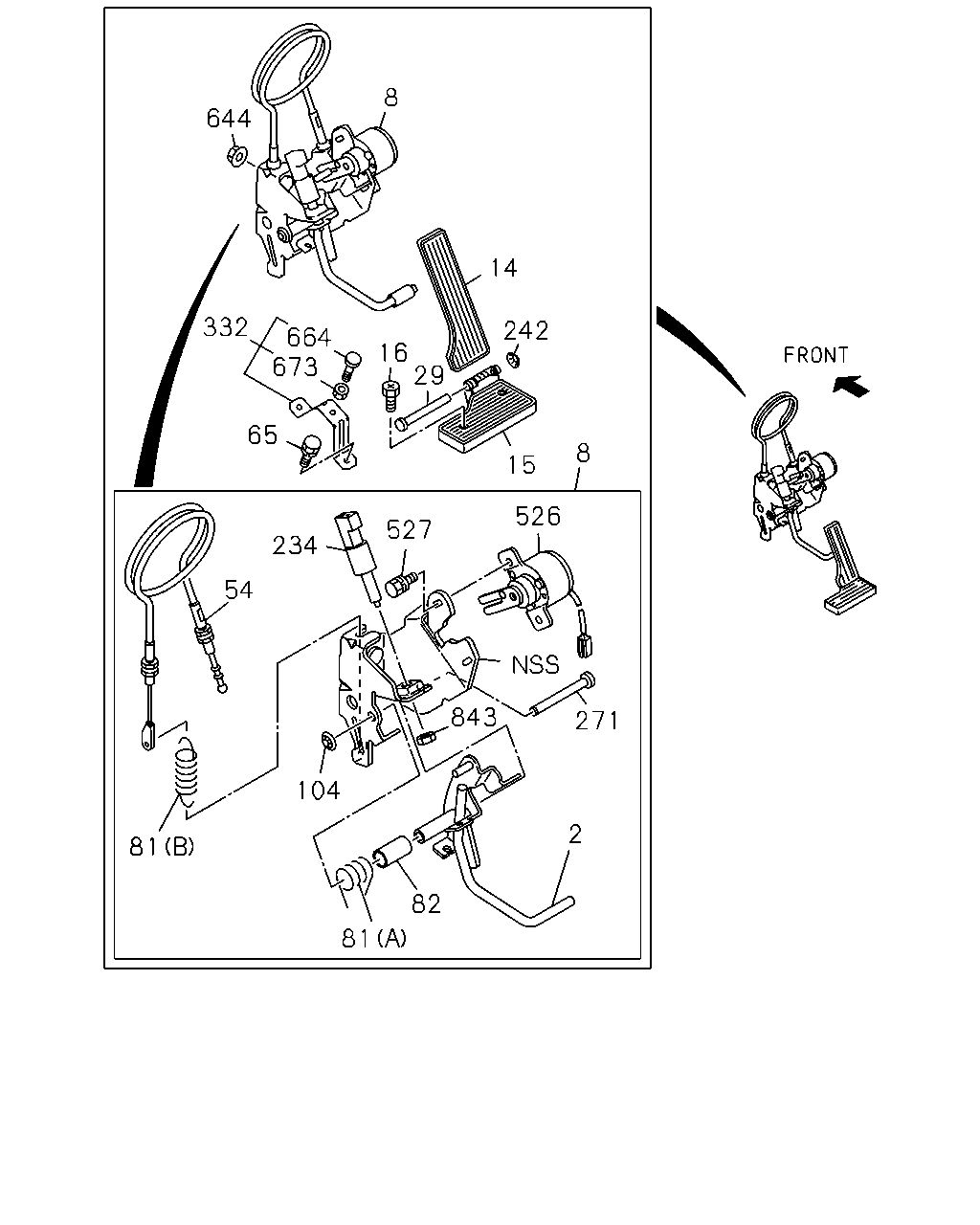

[101A] ACCEL PEDAL AND LINK (22 parça)

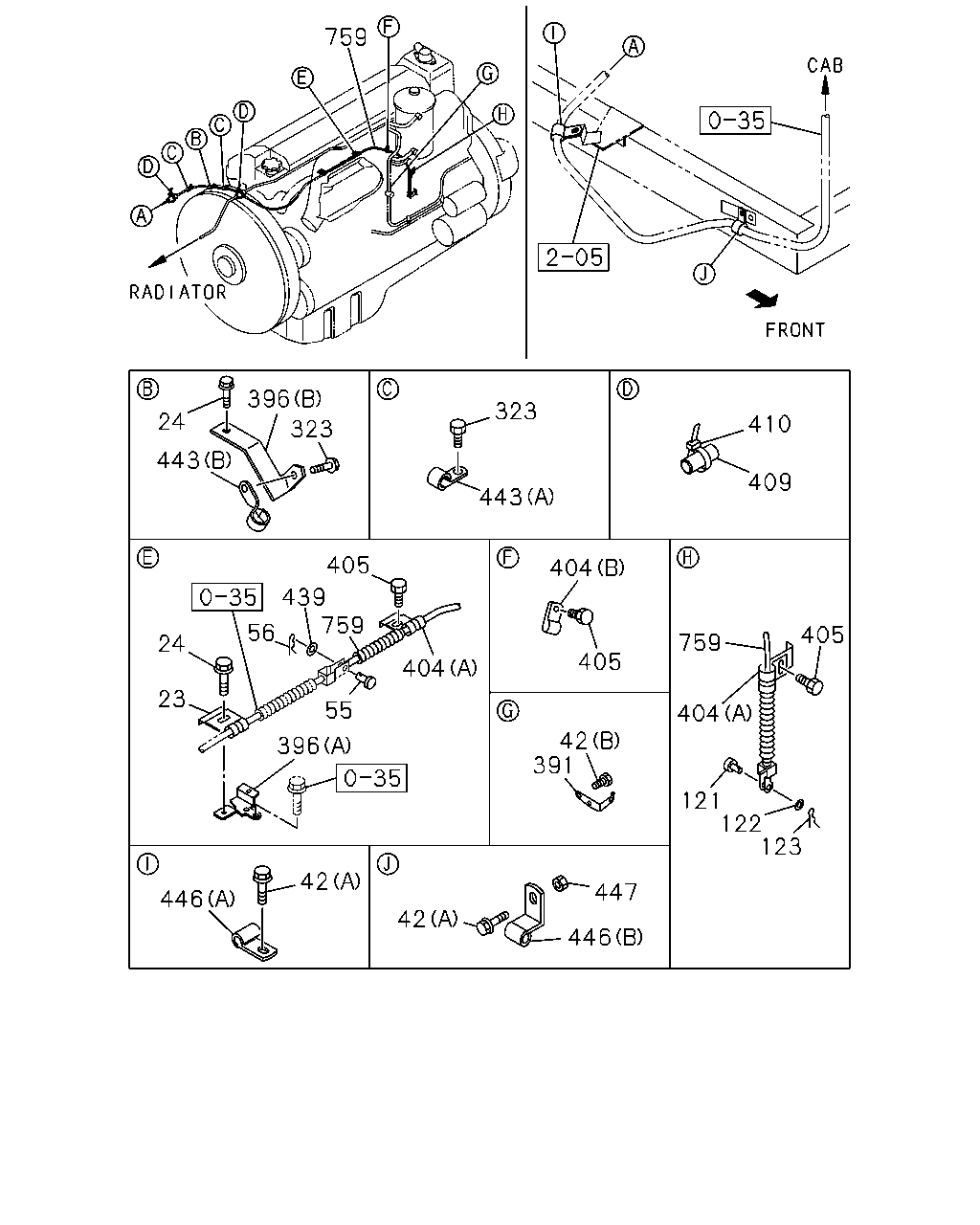

[101A] FIXING;FUEL CUT CONT WIRE (35 parça)
▶
8
644
14
332
242
664
673
16
29
65
8
15
526
527
234
54
843
271
104
2
81
82
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LEVER; ENG CONT
1-71907-550-2
01
1
0603-
8
LINK ASM; ENG CONT
1-71907-551-4
01
1
0603-
14
PAD; PEDAL,ACCEL
1-73907-563-0
01
1
0603-
15
STAND; HEEL,ACCEL PEDAL
1-73907-266-3
01
1
0603-
16
SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
0603-
29
SHAFT; ACCEL PEDAL
OD=8.0 L=74
1-71907-212-1
01
1
0603-
54
CABLE; ENG CONT
L=850
1-71907-257-0
01
1
0603-
65
BOLT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0603-
81
SPRING; RETURN,ENG CONT LEVER
(A)
8-97853-205-1
01
1
0603-
81
SPRING; RETURN,ENG CONT LEVER
(B)
8-97997-917-0
01
1
0603-
82
BUSHING; ENG CONT LVR
L=31.5
1-53459-627-0
01
1
0603-
104
NUT; ENG CONT
ID=7.9 PUSH NUT
8-94368-617-0
01
1
0603-
234
SWITCH; ACCEL
1-82380-131-2
01
1
0603-
242
NUT; ACCEL PEDAL
ID=7.9 PUSH NUT
8-97022-565-0
01
1
0603-
271
SHAFT; ENG CONT
OD=8.0 L=69
1-71907-298-0
01
1
0603-
332
BRACKET; ACCEL PEDAL STOPPER
1-73908-428-0
01
1
0603-
526
SENSOR; ACCEL
1-81534-003-2
01
1
0603-
527
BOLT; ACCEL SENSOR
M6X16 W/LK&PL WASHER
8-94139-963-0
02
1
0603-
644
NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0603-
664
BOLT; STOPPER
M8X45
0-20800-845-0
01
1
0603-
673
NUT; STOPPER
M8
0-91111-508-0
01
1
0603-
843
NUT
M12
0-91111-512-0
01
1
0603-
759
396
323
24
410
323
443
409
443
405
404
439
759
56
405
759
24
405
404
23
55
404
42
391
396
121
122
123
42
447
446
42
446
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
BRACKET; FUEL CUT CABLE
1-14319-099-0
01
1
0603-
24
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0603-
42
BOLT; BRKT,ENG CONT CABLE
(B) M6X12 FLANGE
0-28050-612-0
02
1
0603-
42
BOLT; BRKT,ENG CONT CABLE
(A) M8X20 FLANGE
0-28050-820-0
02
1
0603-
55
PIN; JAW JOINT
L=11
1-09744-102-0
01
1
0603-
56
PIN; SNAP,JAW JOINT
L=17.9
1-09747-002-0
01
1
0603-
121
PIN; JOINT,CABLE
L=11
1-09744-102-0
01
1
0603-
122
WASHER; PL,CABLE
ID=5.3
9-09160-505-0
01
1
0603-0605
122
WASHER; PL,CABLE
ID=5.3
0-91610-505-0
01
1
0606-
123
PIN; SNAP,CABLE
L=17.9
1-09747-002-0
01
1
0603-
323
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0603-
323
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
02
1
0603-
391
BRACKET; ENG CONT
1-15419-581-1
01
1
0603-
396
BRACKET; CLIP
(A)
1-14319-130-1
01
1
0603-
396
BRACKET; CLIP
(B)
1-47471-110-0
01
1
0603-
404
CLIP; CABLE
(A)
1-14319-111-0
02
1
0603-
404
CLIP; CABLE
(B) ID=11 L=20
9-09525-035-0
01
1
0603-0606
404
CLIP; CABLE
(B) ID=11 L=20
0-95235-035-0
01
1
0607-
405
BOLT; CABLE CLIP
M8X16 FLANGE
0-28050-816-0
03
1
0603-
409
SLEEVE
ID=6 OD=10 L=70
1-09376-512-0
01
1
0603-
409
SLEEVE
ID=6 L=30
5-09360-352-0
01
1
0603-
410
CLIP; BAND
L=350
1-09707-183-0
01
1
0603-
410
CLIP; BAND
L=140
5-09707-031-1
01
1
0603-
439
WASHER; PL,PIN,JAW JOINT
ID=5.3
9-09160-505-0
01
1
0603-0605
439
WASHER; PL,PIN,JAW JOINT
ID=5.3
0-91610-505-0
01
1
0606-
443
CLIP; CABLE
(A) ID=11 L=20
9-09525-035-0
02
1
0603-0606
443
CLIP; CABLE
(A) ID=11 L=20
0-95235-035-0
02
1
0607-
443
CLIP; CABLE
(B) ID=11 L=35
9-09917-036-1
01
1
0603-
446
CLIP; ENG CONT
(B) ID=11 H=20 L=20
5-09700-351-0
01
1
0603-0707
446
CLIP; ENG CONT
(B) ID=11 H=20 L=20
8-98033-780-0
01
1
0708-
446
CLIP; ENG CONT
(A) ID=11 L=20
9-09525-035-0
01
1
0603-0606
446
CLIP; ENG CONT
(A) ID=11 L=20
0-95235-035-0
01
1
0607-
447
NUT; BRKT,CONT WIRE
M8 FLANGE
0-91150-108-0
01
1
0603-0603
447
NUT; BRKT,CONT WIRE
M8 FLANGE
0-91180-108-0
01
1
0603-
759
WIRE; CONT,FUEL CUT
L=937
1-23230-201-0
01
1
0603-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
