0-41 — FUEL FILTER AND BRACKET (#32115) — 34 parça

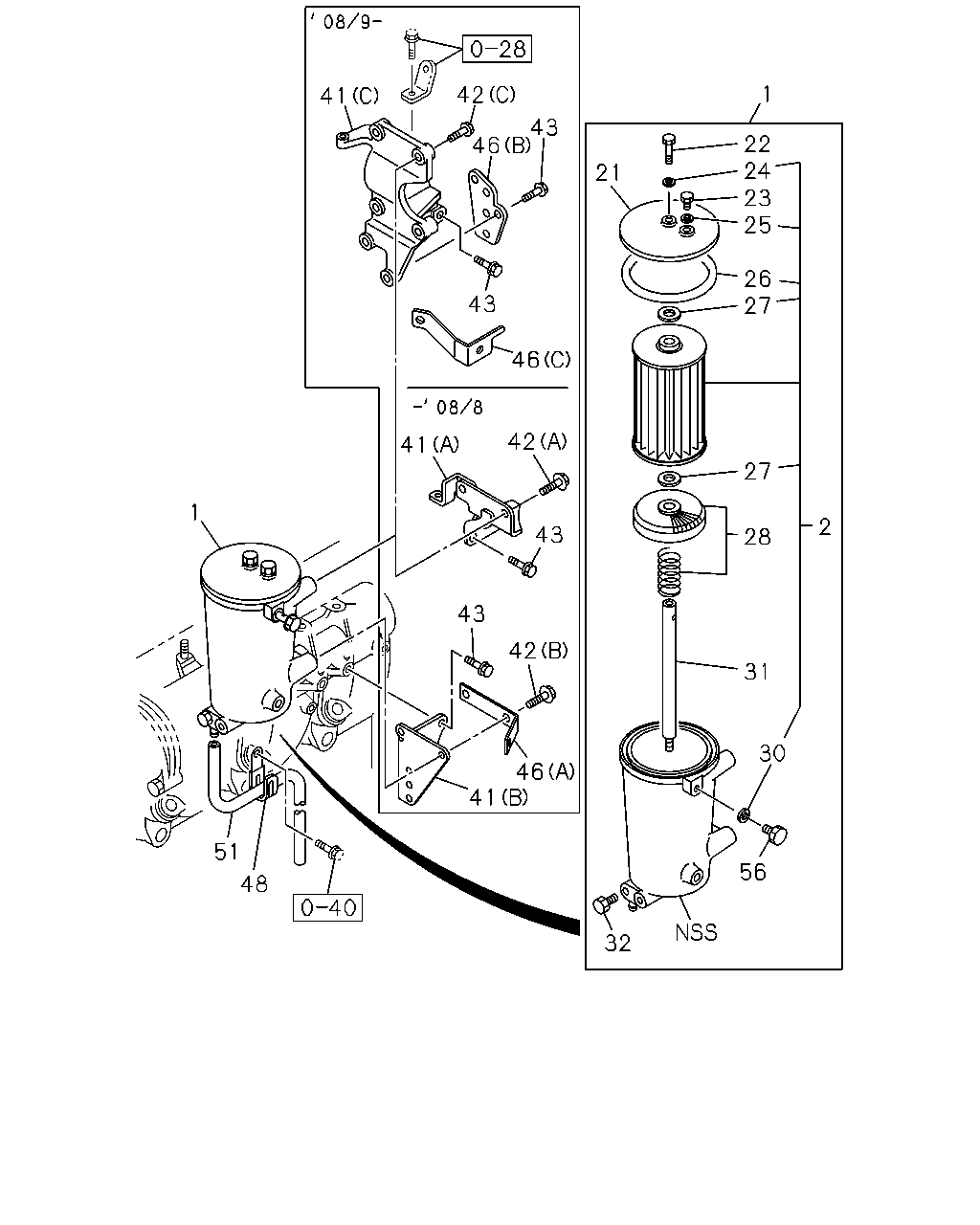

çizim 89476
1 42 41 43 46 22 24 23 25 21 26 27 43 46 42 41 27 1 2 43 28 43 42 31 30 46 41 51 56 48 32
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL 1-13200-820-2 01 1 0603-1106
1 FILTER ASM; FUEL 8-98175-168-0 01 1 1107-
2 ELEMENT KIT; FUEL FILTER 1-87810-976-0 01 1 0603-1106
2 ELEMENT KIT; FUEL FILTER 8-98174-903-0 01 1 1107-
2 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		1-87610-152-0 01 1 1107-
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 0603-
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 0603-
23 PLUG; COVER 1-13219-074-0 01 1 0603-
24 GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2 		1-09630-083-0 01 1 0603-
25 GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2 		1-09630-083-0 01 1 0603-
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 0603-
27 GASKET; ELEMENT 1-09630-007-0 02 1 0603-
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 0603-
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0603-
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 0603-
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 0603-
41 BRACKET; FUEL FILTER
(A) 		1-13219-350-2 01 1 0603-0808
41 BRACKET; FUEL FILTER
(C) 		8-97628-937-0 01 1 0809-
41 BRACKET; FUEL FILTER
(B) 		1-13219-351-2 01 1 0603-0808
42 BOLT; FUEL FILTER
(A) M10X20 FLANGE 		0-28051-020-0 02 1 0603-0808
42 BOLT; FUEL FILTER
(C) M10X40 FLANGE 		0-28051-040-0 03 1 0809-
42 BOLT; FUEL FILTER
(B) M10X25 FLANGE 		0-28051-025-0 02 1 0603-0808
42 BOLT; FUEL FILTER
(C) M10X45 FLANGE 		0-28051-045-0 01 1 0809-
43 BOLT; BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 0809-
43 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 04 1 0603-0808
43 BOLT; BRKT
M10X30 FLANGE 		0-28151-030-0 04 1 0809-
46 BRACKET
(C) 		8-97631-102-0 01 1 0809-
46 BRACKET
(A) 		1-83129-470-0 01 1 0603-0808
46 BRACKET
(B) 		8-97629-738-1 01 1 0809-
48 CLIP; VINYL PIPE
ID=21 L=47.5 		8-94178-108-0 01 1 0603-
51 PIPE; VINYL
L=800 SERVICED BY L=10000 		9-09914-909-0 01 1 0603-
56 PLUG; FUEL FILTER
M14X9 		9-99202-314-0 01 1 0603-0805
56 PLUG; FUEL FILTER
M14X9 		8-98042-944-0 01 1 0806-1106
56 PLUG; FUEL FILTER
M14X9 		9-99202-314-0 01 1 1107-
