◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 11020 - CXZ AUSTRALIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-39 - AIR COMPRESSOR; BRAKE ▶

0-39 — AIR COMPRESSOR; BRAKE (#32113) — 123 parça

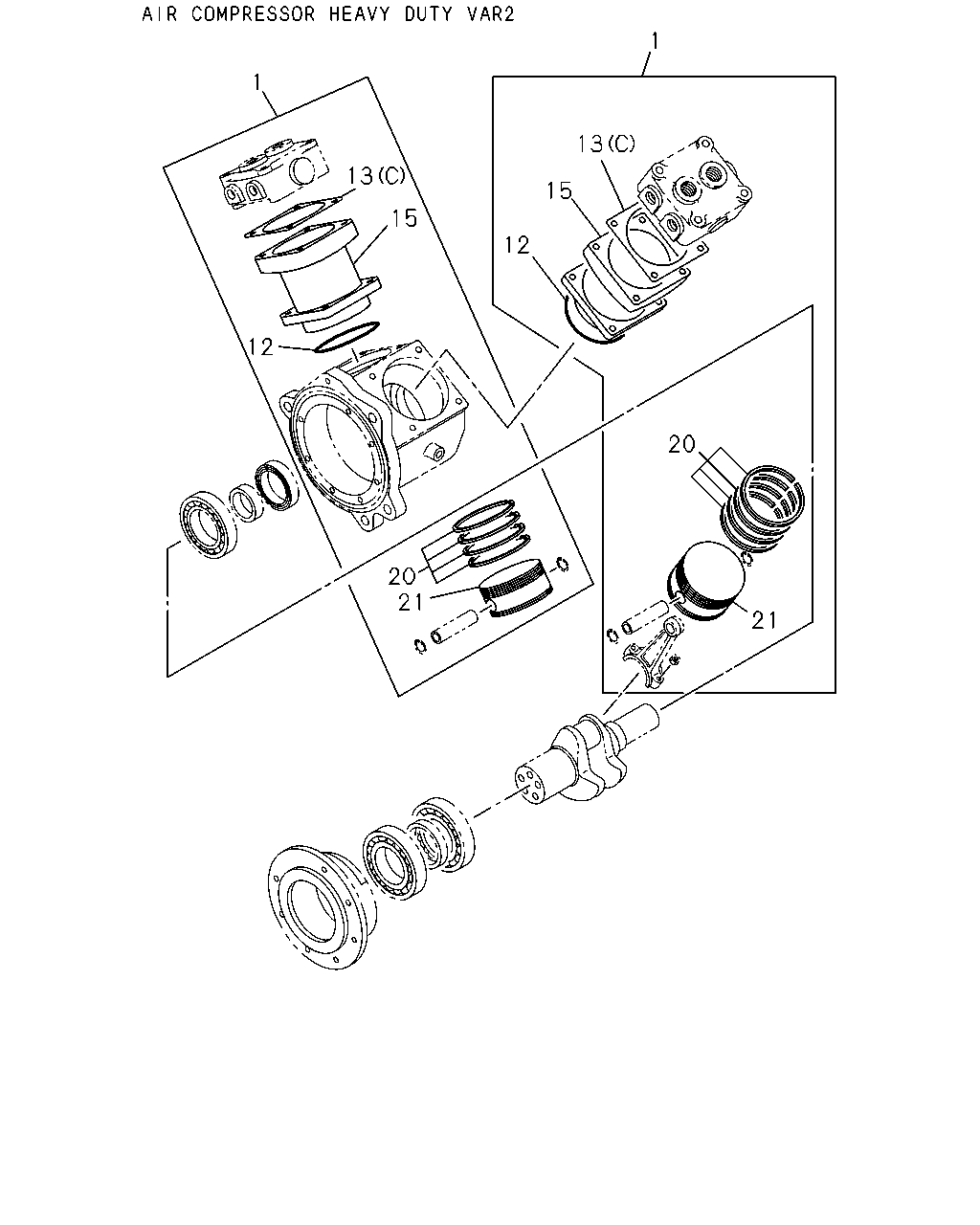

1 1 13 13 15 15 12 12 20 20 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-060-1	02	1	0603-
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09623-651-1	01	1	0603-
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19623-539-0	02	1	0603-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09623-650-1	01	1	0603-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19139-019-0	01	1	0603-1306
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-98242-649-0	01	1	1307-1402
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-98269-488-0	01	1	1403-
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19139-017-1	02	1	0603-
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-065-0	01	1	0603-
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-251-0	02	1	0603-
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-064-0	01	1	0603-
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-051-1	02	1	0603-
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-023-0	01	1	0603-
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-016-0	02	1	0603-

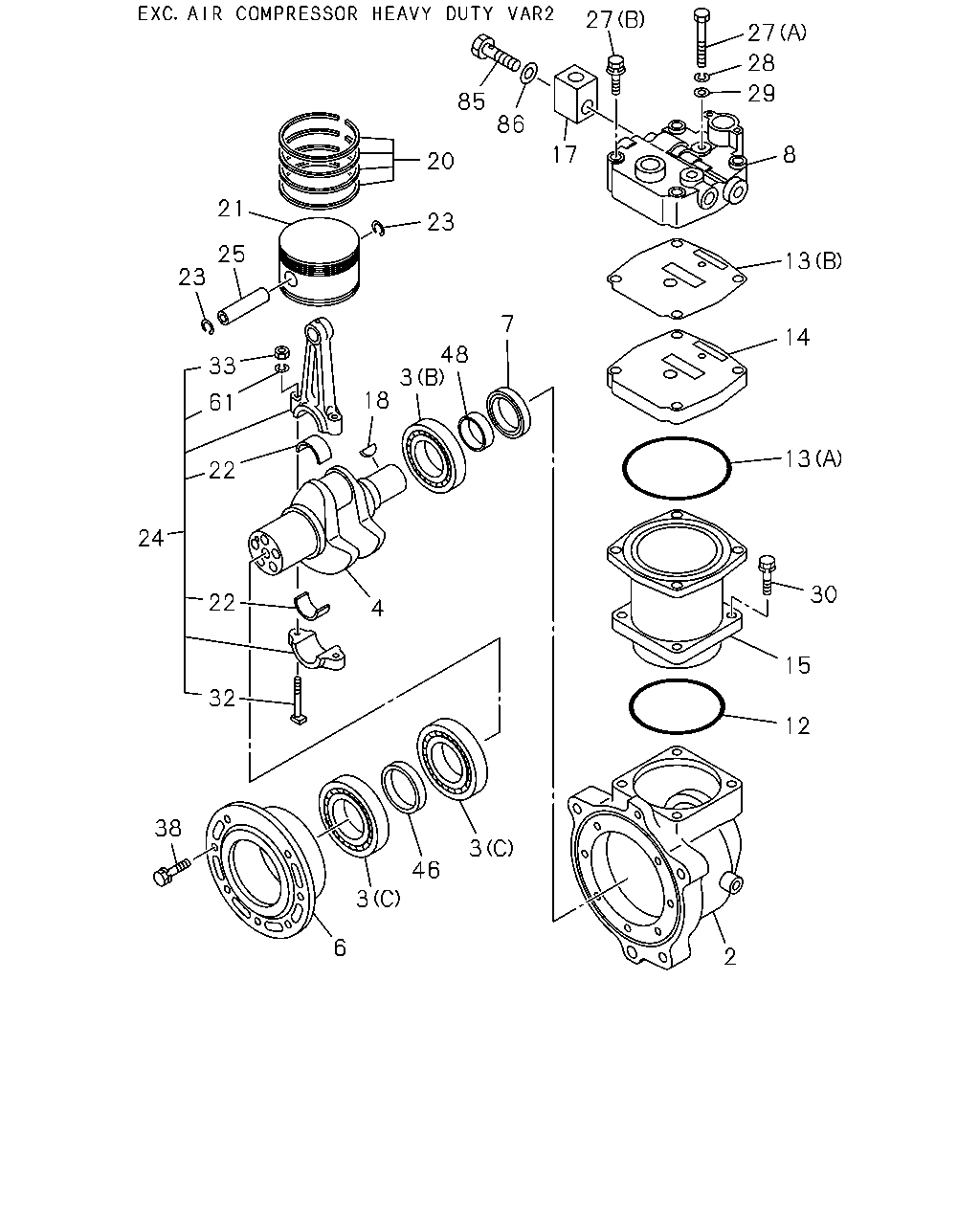

27 27 28 29 85 86 8 17 20 21 23 25 13 23 7 14 48 3 33 18 61 13 22 24 30 22 4 15 32 12 38 3 46 3 6 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-286-3	01	1	0603-
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-269-6	01	1	0603-
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-98171-672-0	01	1	0603-
3	BEARING; AIR CMPR (C)	1-09800-246-0	02	1	0603-
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09800-232-0	01	1	0603-
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-080-0	01	1	0603-
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-088-0	01	1	0603-
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-079-1	01	1	0603-
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-068-1	01	1	0603-
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-619-0	01	1	0603-
7	SEAL; OIL,BRG COVER,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-534-0	01	1	0603-
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19110-072-0	01	1	0603-1012
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-98167-016-0	01	1	1101-
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19110-016-0	02	1	0603-
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09623-651-1	01	1	0603-
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19623-539-0	02	1	0603-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09623-650-1	01	1	0603-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19139-019-0	01	1	0603-1306
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-98242-649-0	01	1	1307-1402
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-98269-488-0	01	1	1403-
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19139-017-1	02	1	0603-
14	PLATE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19110-064-1	01	1	0603-
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-065-0	01	1	0603-
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-251-0	02	1	0603-
17	ADAPTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19119-034-1	01	1	0603-
18	KEY; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-08055-622-0	01	1	0603-
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-064-0	01	1	0603-
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-051-1	02	1	0603-
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-023-0	01	1	0603-
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-016-0	02	1	0603-
22	METAL; CONNROD,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-025-0	02	1	0603-
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19169-001-0	02	1	0603-
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-19168-003-0	04	1	0603-
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-078-0	01	1	0603-
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19173-006-0	02	1	0603-
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-004-0	01	1	0603-0906
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-007-0	01	1	0907-
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-19167-003-0	02	1	0603-
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09044-071-0	01	1	0603-
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M10X80	1-19119-024-0	04	1	0603-1012
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M10X75	8-98167-018-0	04	1	1101-
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) M10X60	9-01066-060-0	07	1	0603-
28	WASHER; LK,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=8.2	9-09150-508-0	01	1	0603-
29	WASHER; PL,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=8.4	9-09160-508-0	01	1	0603-
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X30	1-19119-026-0	04	1	0603-
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X25	9-02051-025-0	08	1	0603-
32	BOLT; CONNROD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-021-0	02	1	0603-
33	NUT; CONNROD BOLT EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-026-0	02	1	0603-
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8X30	0-20800-830-0	07	1	0603-
38	BOLT; COVER FIX AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19159-016-0	07	1	0603-
46	SPACER; BRG EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-029-0	01	1	0603-
46	SPACER; BRG AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-016-0	01	1	0603-
48	SLEEVE; CR/SHF EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-027-0	01	1	0603-
48	SLEEVE; CR/SHF AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-018-0	01	1	0603-
61	WASHER; LK,CONNROD BOLT EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-022-0	02	1	0603-
85	BOLT; ADAPTER EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X39 FLANGE	1-09675-089-0	01	1	0603-
86	GASKET; ADAPTER EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1306
86	GASKET; ADAPTER EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1307-

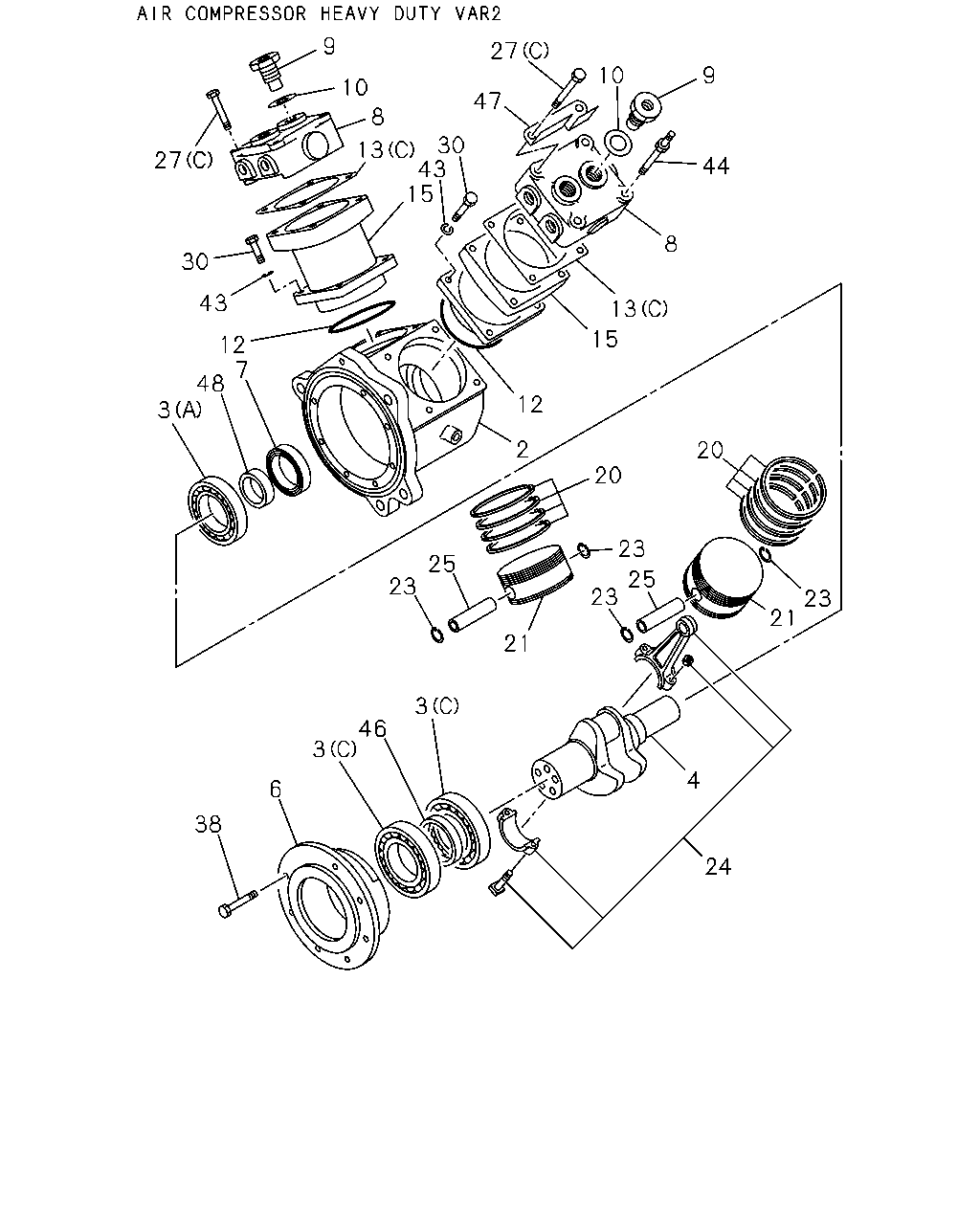

9 27 10 9 10 47 8 30 13 43 15 27 44 8 30 43 13 15 12 7 48 12 3 2 20 20 23 25 25 23 23 23 21 21 3 46 3 4 6 38 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-286-3	01	1	0603-
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-269-6	01	1	0603-
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-98171-672-0	01	1	0603-
3	BEARING; AIR CMPR (C)	1-09800-246-0	02	1	0603-
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09800-232-0	01	1	0603-
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-080-0	01	1	0603-
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-088-0	01	1	0603-
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-079-1	01	1	0603-
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19156-068-1	01	1	0603-
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-619-0	01	1	0603-
7	SEAL; OIL,BRG COVER,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09625-534-0	01	1	0603-
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19110-072-0	01	1	0603-1012
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-98167-016-0	01	1	1101-
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19110-016-0	02	1	0603-
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19120-021-1	02	1	0603-
10	SHIM; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-19139-021-0	02	1	0603-
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-09623-651-1	01	1	0603-
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19623-539-0	02	1	0603-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09623-650-1	01	1	0603-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19139-019-0	01	1	0603-1306
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-98242-649-0	01	1	1307-1402
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	8-98269-488-0	01	1	1403-
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19139-017-1	02	1	0603-
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-065-0	01	1	0603-
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19151-251-0	02	1	0603-
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-064-0	01	1	0603-
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19163-051-1	02	1	0603-
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-023-0	01	1	0603-
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19161-016-0	02	1	0603-
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19169-001-0	02	1	0603-
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-19168-003-0	04	1	0603-
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19171-078-0	01	1	0603-
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19173-006-0	02	1	0603-
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-004-0	01	1	0603-0906
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19167-007-0	01	1	0907-
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-19167-003-0	02	1	0603-
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09044-071-0	01	1	0603-
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M10X80	1-19119-024-0	04	1	0603-1012
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M10X75	8-98167-018-0	04	1	1101-
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) M10X60	9-01066-060-0	07	1	0603-
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X30	1-19119-026-0	04	1	0603-
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M10X25	9-02051-025-0	08	1	0603-
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8X30	0-20800-830-0	07	1	0603-
38	BOLT; COVER FIX AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19159-016-0	07	1	0603-
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=10.2	9-09150-610-0	08	1	0603-
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19119-019-1	01	1	0603-
46	SPACER; BRG EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-029-0	01	1	0603-
46	SPACER; BRG AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-016-0	01	1	0603-
47	BRACKET; PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19119-028-0	02	1	0603-
48	SLEEVE; CR/SHF EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-027-0	01	1	0603-
48	SLEEVE; CR/SHF AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19179-018-0	01	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
