0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#32112) — 140 parça

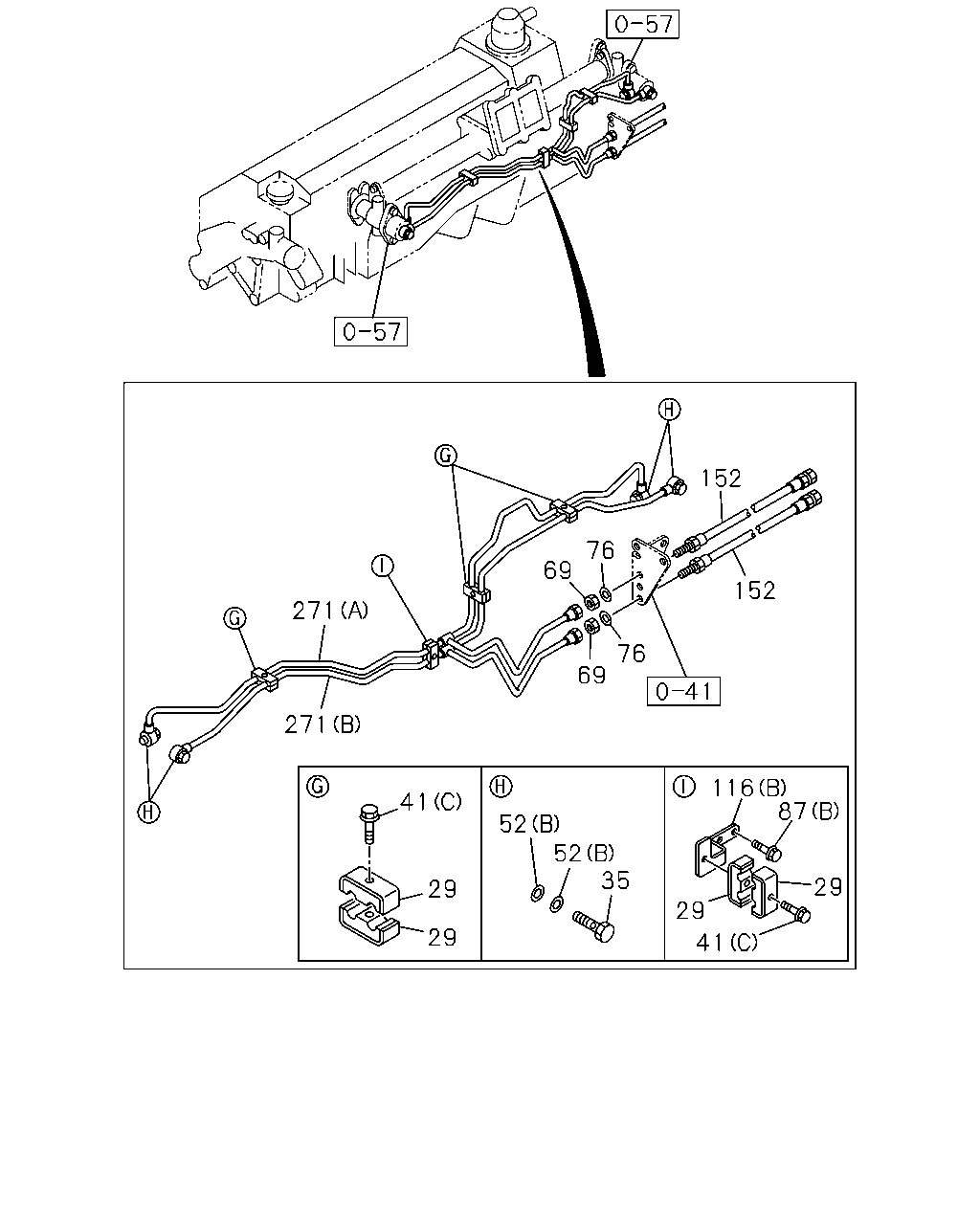

152 76 69 152 271 76 69 271 116 87 41 52 52 35 29 29 29 29 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	CLIP; AIR PIPE	1-09701-132-1	08	1	0603-1210
29	CLIP; AIR PIPE	1-09701-240-0	08	1	1211-
35	BOLT; EYE,AIR PIPE M10X21 FLANGE	8-94396-711-0	04	1	0603-
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) M8X45 FLANGE	0-28050-845-0	02	1	0603-
41	BOLT; CLIP (C) M6X30 FLANGE	0-28050-630-0	04	1	0603-
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M8X40 FLANGE	0-28050-840-0	02	1	0603-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2(E6A). (A) ID=24.5 OD=32	9-09571-424-0	02	1	0603-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5 OD=32	9-09571-424-0	02	1	0603-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	08	1	0603-
69	NUT; FLEX HOSE M12	9-09840-280-0	02	1	0603-
76	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	0603-0603
76	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	02	1	0604-
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0603-
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0603-
116	BRACKET; AIR PIPE (A)	1-19199-308-0	01	1	0603-
116	BRACKET; AIR PIPE (B)	1-19199-339-2	01	1	0603-
152	HOSE; FLEX L=280	1-09363-610-0	02	1	0603-
271	PIPE; AIR,EGR CONT (A)	1-19193-236-0	01	1	0603-
271	PIPE; AIR,EGR CONT (B)	1-19193-237-0	01	1	0603-

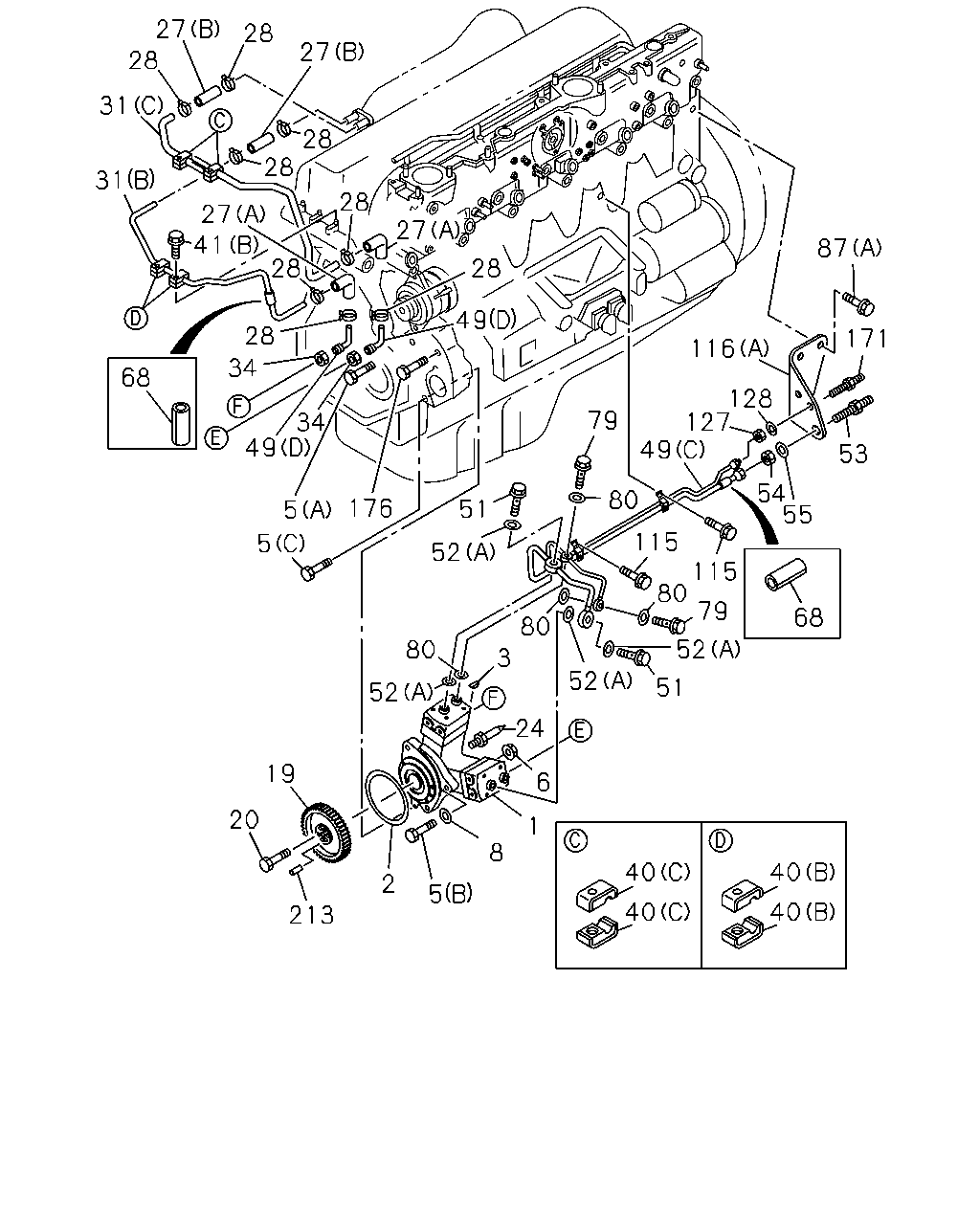

27 28 28 27 31 28 28 31 28 27 41 27 87 28 28 49 28 171 116 34 68 128 127 49 34 49 79 53 54 55 80 176 51 5 115 5 52 115 80 79 80 3 68 52 80 52 51 52 24 19 6 20 1 8 40 40 2 5 40 40 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-328-9	01	1	0603-1306
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-98242-646-1	01	1	1307-
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-300-5	01	1	0603-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0603-
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-08055-622-0	01	1	0603-
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	0-16956-400-0	01	1	0603-
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0603-
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0603-
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0603-
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0603-
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0603-
19	GEAR; INJ PUMP Z=54	1-12524-164-1	01	1	0603-
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0603-
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0603-
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) L=55	1-09360-784-0	02	1	0603-
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	0-02117-080-0	02	1	0603-
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09360-916-0	02	1	0603-
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=28.5	1-09707-150-0	04	1	0603-
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=22.7	8-94466-382-0	08	1	0603-
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19193-279-0	01	1	0603-
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19193-278-0	01	1	0603-
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19193-455-0	01	1	0603-
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	9-09840-254-0	02	1	0603-
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09701-281-1	04	1	0603-
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-09701-210-0	04	1	0603-
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) ID=17 L=17	1-09701-284-0	04	1	0603-
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) M8X45 FLANGE	0-28050-845-0	02	1	0603-
41	BOLT; CLIP (C) M6X30 FLANGE	0-28050-630-0	04	1	0603-
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M8X40 FLANGE	0-28050-840-0	02	1	0603-
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19193-122-1	01	1	0603-0608
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-97613-246-0	01	1	0609-
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19193-126-2	01	1	0603-
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19193-132-0	01	1	0603-
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (D)	9-19119-032-0	02	1	0603-
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M24X39	1-09675-175-2	01	1	0603-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0603-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2(E6A). (A) ID=24.5 OD=32	9-09571-424-0	02	1	0603-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5 OD=32	9-09571-424-0	02	1	0603-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	08	1	0603-
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0603-
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0603-
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0603-0603
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0604-
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0603-
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X27 FLANGE	1-09675-086-0	01	1	0603-
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0603-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0603-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0603-
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0603-
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0603-
115	BOLT; AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	0603-
116	BRACKET; AIR PIPE (A)	1-19199-308-0	01	1	0603-
116	BRACKET; AIR PIPE (B)	1-19199-339-2	01	1	0603-
127	NUT; UNION M12	9-09840-280-0	01	1	0603-
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0603-0603
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-
171	UNION M12 L=62.5	9-09223-206-1	01	1	0603-0607
171	UNION M12 L=62.5	0-92113-206-0	01	1	0608-
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0603-
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0603-

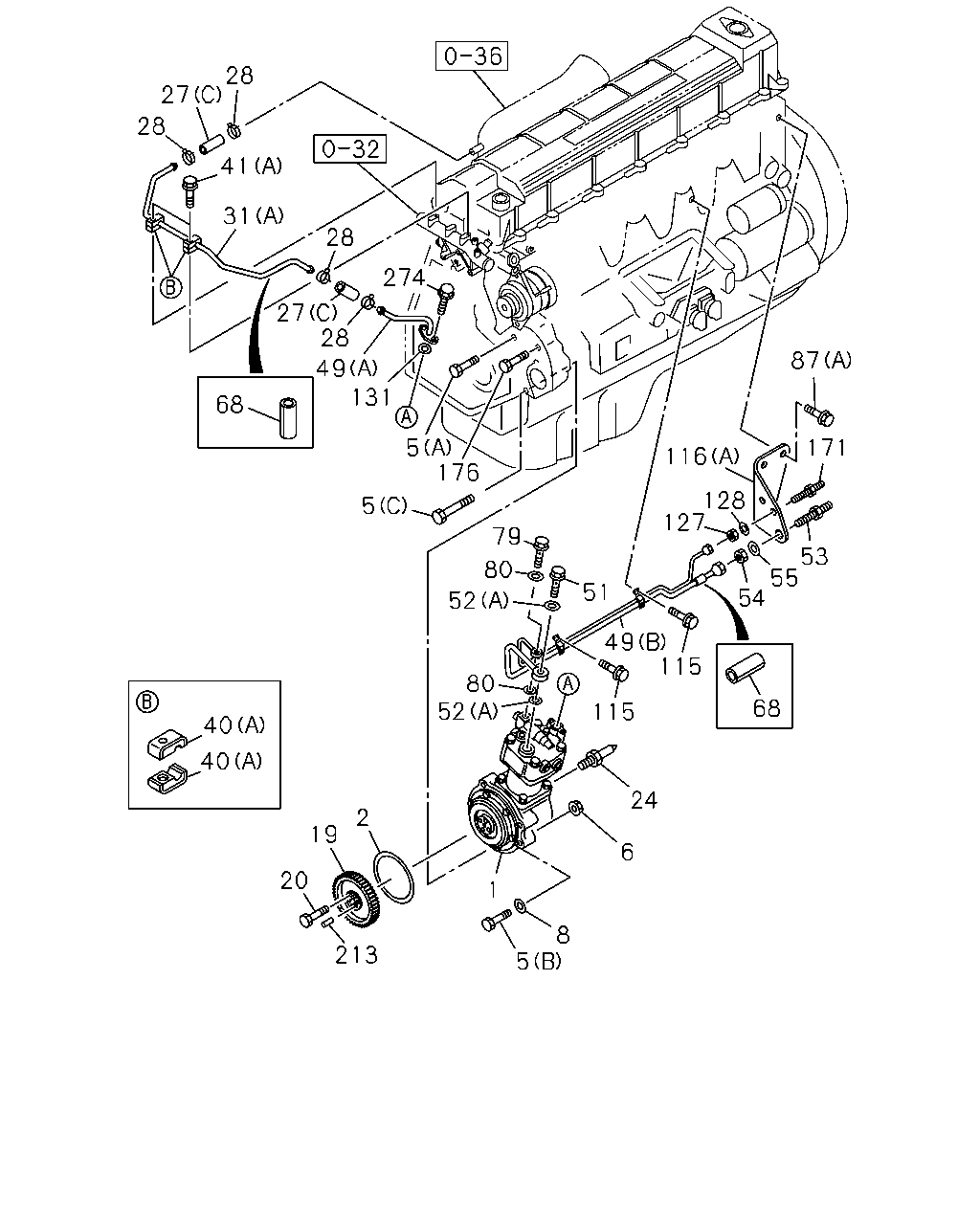

28 27 28 41 31 28 274 27 28 87 49 131 68 171 5 176 116 128 127 5 79 53 55 54 80 51 52 49 115 80 52 68 115 40 40 24 2 19 6 20 1 8 5 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-328-9	01	1	0603-1306
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	8-98242-646-1	01	1	1307-
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)	1-19100-300-5	01	1	0603-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0603-
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	0-16956-400-0	01	1	0603-
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0603-
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0603-
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0603-
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0603-
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0603-
19	GEAR; INJ PUMP Z=54	1-12524-164-1	01	1	0603-
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0603-
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0603-
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) L=55	1-09360-784-0	02	1	0603-
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	0-02117-080-0	02	1	0603-
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09360-916-0	02	1	0603-
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=28.5	1-09707-150-0	04	1	0603-
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=22.7	8-94466-382-0	08	1	0603-
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19193-279-0	01	1	0603-
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19193-278-0	01	1	0603-
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19193-455-0	01	1	0603-
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-09701-281-1	04	1	0603-
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-09701-210-0	04	1	0603-
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) ID=17 L=17	1-09701-284-0	04	1	0603-
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A) M8X45 FLANGE	0-28050-845-0	02	1	0603-
41	BOLT; CLIP (C) M6X30 FLANGE	0-28050-630-0	04	1	0603-
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) M8X40 FLANGE	0-28050-840-0	02	1	0603-
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	1-19193-122-1	01	1	0603-0608
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)	8-97613-246-0	01	1	0609-
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)	1-19193-126-2	01	1	0603-
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)	1-19193-132-0	01	1	0603-
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (D)	9-19119-032-0	02	1	0603-
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M24X39	1-09675-175-2	01	1	0603-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0603-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2(E6A). (A) ID=24.5 OD=32	9-09571-424-0	02	1	0603-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=24.5 OD=32	9-09571-424-0	02	1	0603-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	08	1	0603-
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0603-
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0603-
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0603-0603
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0604-
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0603-
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X27 FLANGE	1-09675-086-0	01	1	0603-
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0603-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0603-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0603-
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0603-
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0603-
115	BOLT; AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	0603-
116	BRACKET; AIR PIPE (A)	1-19199-308-0	01	1	0603-
116	BRACKET; AIR PIPE (B)	1-19199-339-2	01	1	0603-
127	NUT; UNION M12	9-09840-280-0	01	1	0603-
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0603-0603
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=26.8	1-09623-415-0	01	1	0603-0608
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=24.5	8-94399-398-0	01	1	0609-
171	UNION M12 L=62.5	9-09223-206-1	01	1	0603-0607
171	UNION M12 L=62.5	0-92113-206-0	01	1	0608-
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0603-
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0603-
274	BOLT; PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M8X20 FLANGE	0-28050-820-0	02	1	0603-
