Isuzu WW
▶
TRUCKS
▶
CXZ
▶
11020 - CXZ AUSTRALIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#32107) — 110 parça
◀

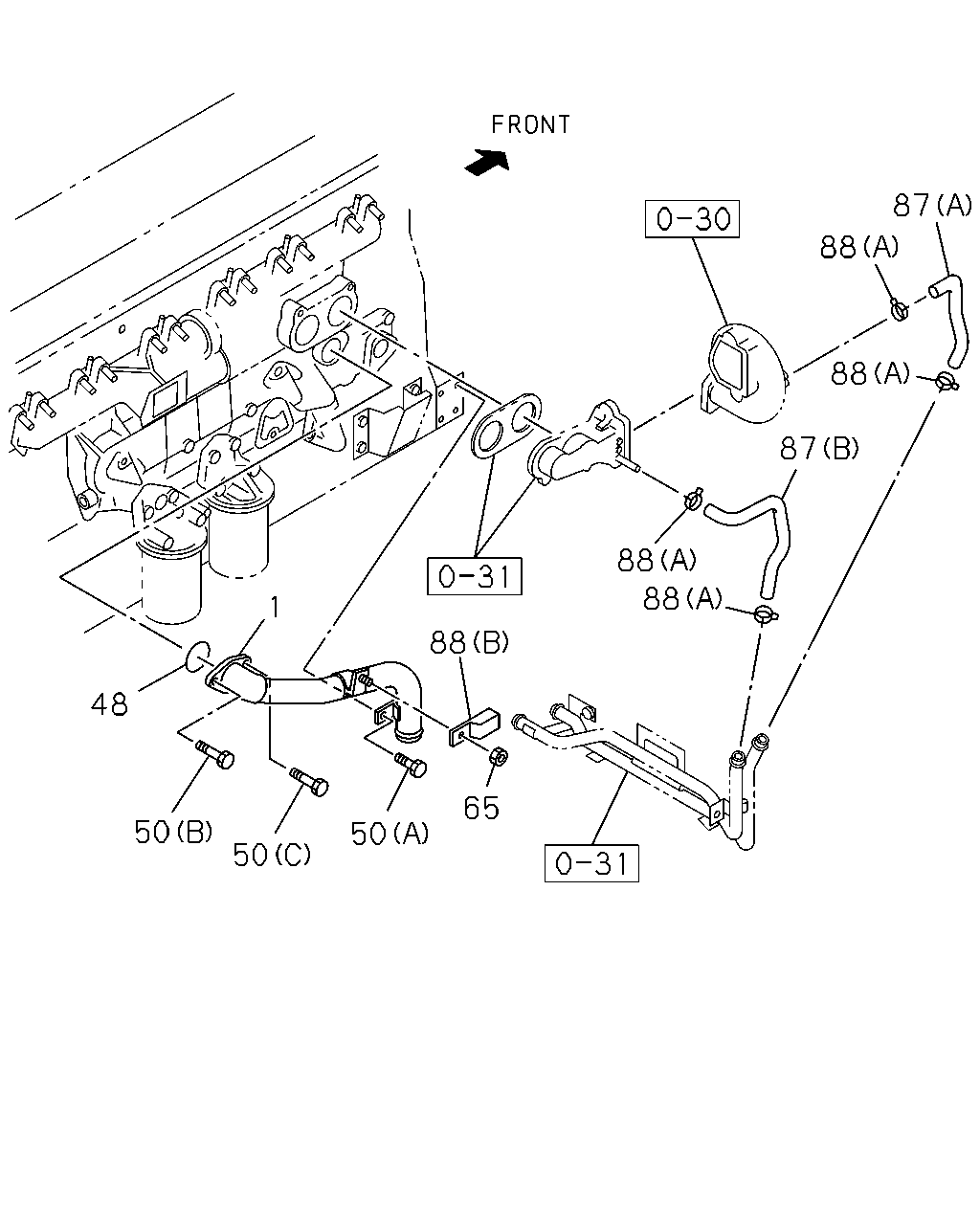

[032A] WATER INL PIPE AND HOSE;FIXING (12 parça)

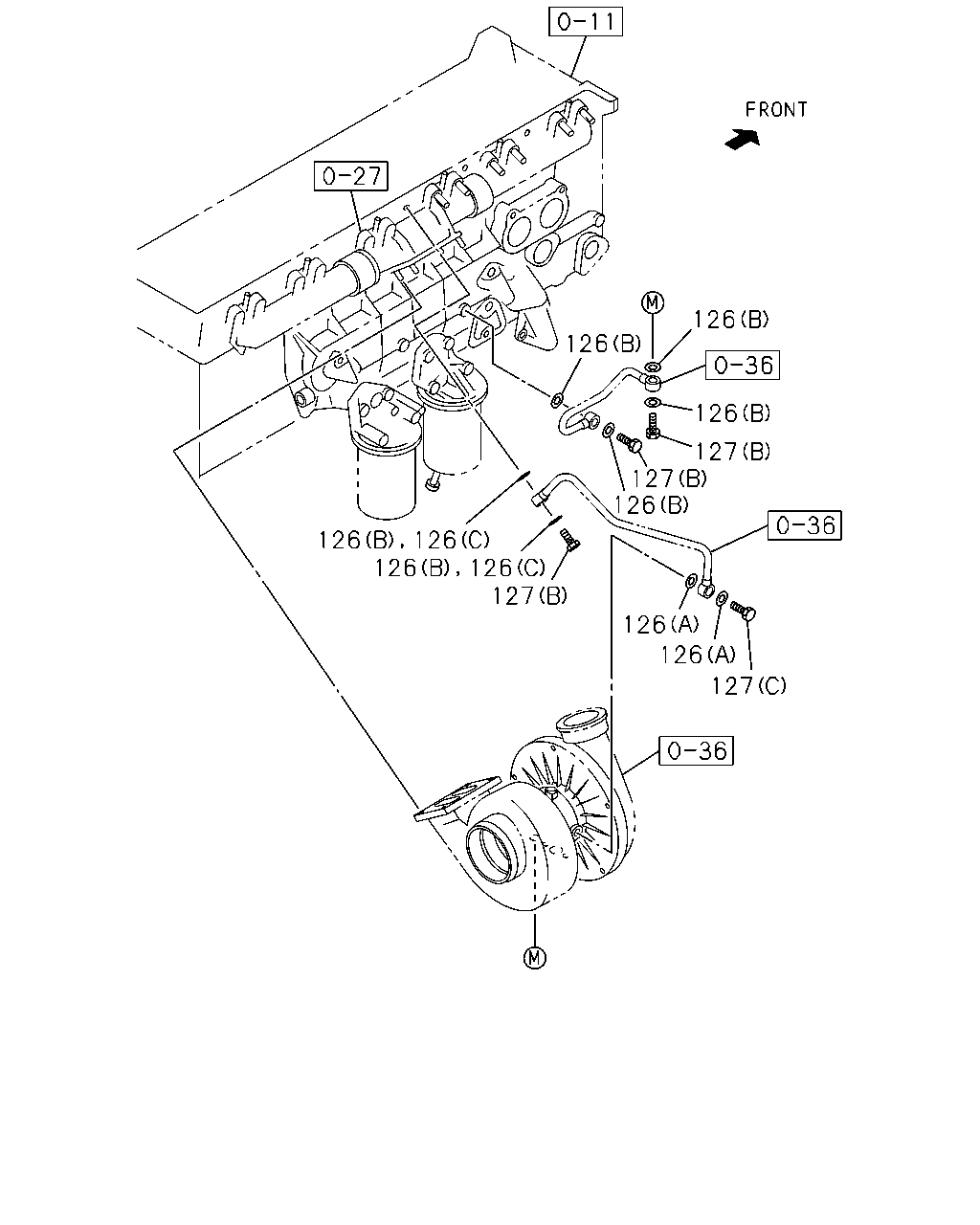

[032A] PIPE;TURBOCHARGER SIDE (10 parça)

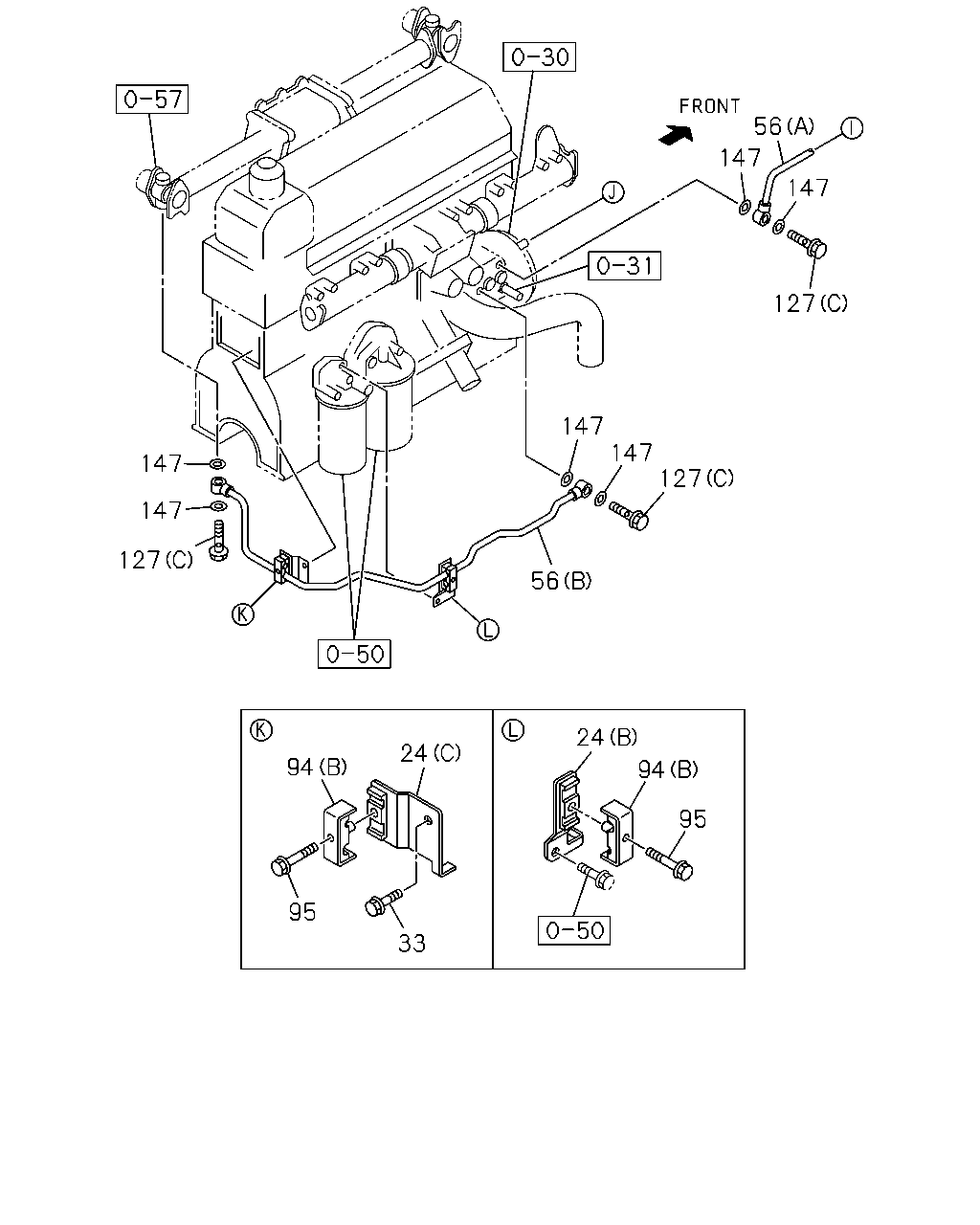

[032A] PIPE;THERMOSTAT SIDE (25 parça)

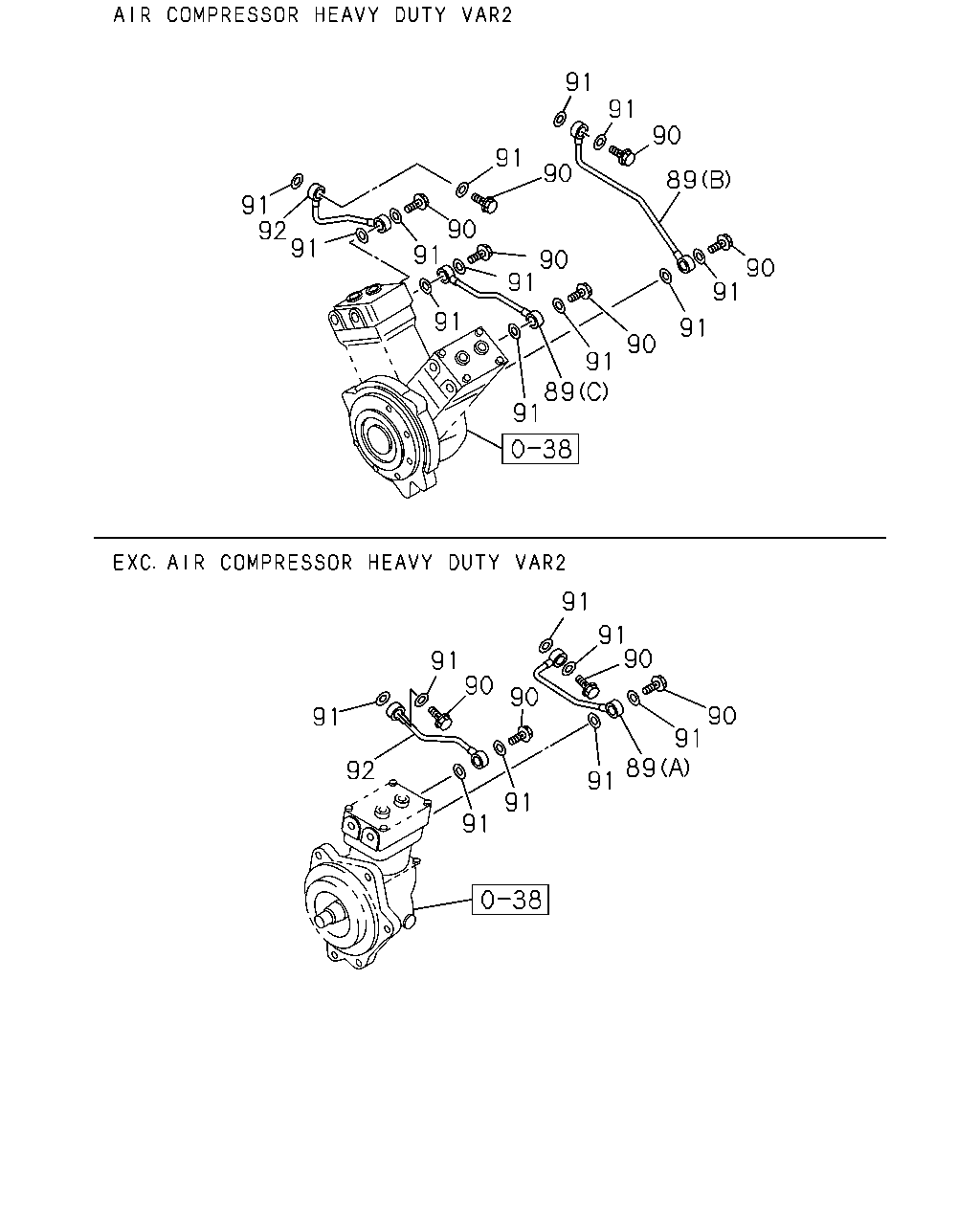

[032A] PIPE;AIR COMPRESSOR FIXING (11 parça)

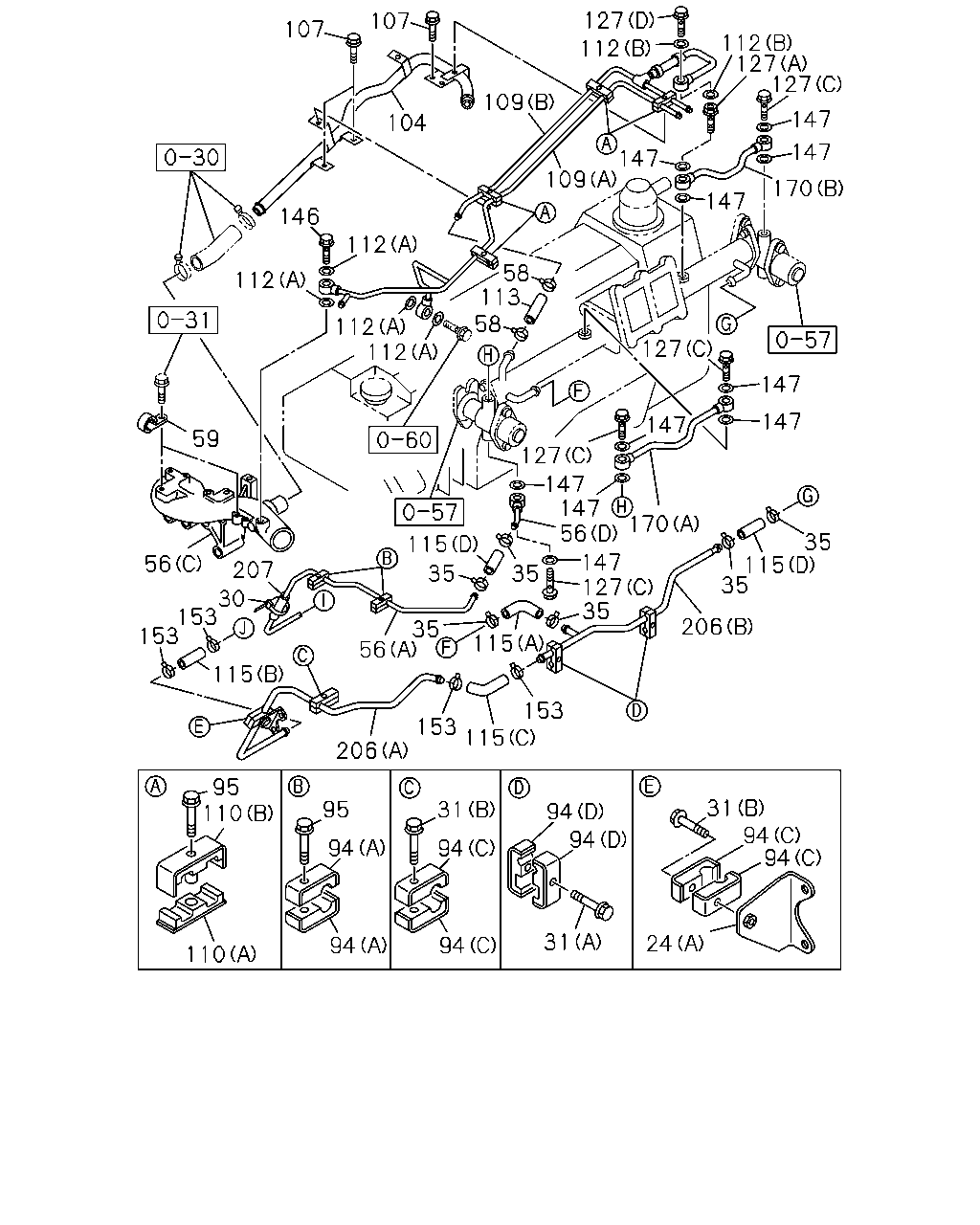

[032A] PIPE;EGR COOLER SIDE (52 parça)
▶
87
88
88
87
88
88
1
88
48
65
50
50
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; WATER PUMP,INL
8-97606-255-2
01
1
0603-
48
GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-406-0
01
1
0603-
50
BOLT; WATER PIPE INL
(B) M10X30 FLANGE
0-28151-030-0
01
1
0603-
50
BOLT; WATER PIPE INL
(C) M10X80 FLANGE
0-28151-080-0
01
1
0603-
50
BOLT; WATER PIPE INL
(A) M14X25 FLANGE
0-28951-425-0
01
1
0603-
65
NUT
M10 FLANGE
0-91180-110-0
02
1
0603-
65
NUT
M10 FLANGE
0-91150-110-0
02
1
0603-
87
HOSE; RUBBER,HTR
(A)
1-83565-572-0
01
1
0603-
87
HOSE; RUBBER,HTR
(B)
1-83565-577-0
01
1
0603-
88
CLIP; HOSE,HTR
(A) ID=20
1-09707-084-1
04
1
0603-
88
CLIP; HOSE,HTR
(B)
9-09915-663-0
01
1
0603-1206
88
CLIP; HOSE,HTR
(B)
8-98166-024-0
01
1
1207-
126
126
126
127
127
126
126
126
126
126
127
126
126
127
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2
1-09630-085-0
02
1
0704-1312
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=16.2
1-09630-086-0
02
1
0603-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=25
1-09630-141-0
06
1
0603-0703
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=25
1-09630-141-0
04
1
0704-
127
BOLT; EYE
(D) M10X21 FLANGE
1-09675-077-0
01
1
0603-0805
127
BOLT; EYE
(D) M10X21 FLANGE
8-97372-238-0
01
1
0806-
127
BOLT; EYE
(C) M16X30 FLANGE
1-09675-095-1
08
1
0603-
127
BOLT; EYE
(B) M14X27 EYE-BOLT
1-09675-193-0
03
1
0603-
127
BOLT; EYE
(A) M16X30 FLANGE
1-09675-230-0
01
1
0603-
56
147
147
127
147
147
127
147
147
127
56
24
24
94
94
95
95
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BRACKET; WATER PIPE
(B)
1-13729-023-0
01
1
0603-
24
BRACKET; WATER PIPE
(C)
1-13729-024-0
01
1
0603-
24
BRACKET; WATER PIPE
(A)
1-13729-060-0
01
1
0603-
33
BOLT; BRKT
M14X20 FLANGE
0-28951-420-0
01
1
0603-
56
PIPE; WATER OUTLET
(B)
1-13721-747-0
01
1
0603-
56
PIPE; WATER OUTLET
(C)
1-13721-831-3
01
1
0603-0606
56
PIPE; WATER OUTLET
(C)
8-98039-673-0
01
1
0607-
56
PIPE; WATER OUTLET
(D)
1-13721-855-0
01
1
0603-
56
PIPE; WATER OUTLET
(A)
1-13721-958-0
01
1
0603-
94
CLIP; WATER PIPE
(D)
1-09701-210-0
04
1
0603-
94
CLIP; WATER PIPE
(A)
1-09701-282-0
04
1
0603-
94
CLIP; WATER PIPE
(C) ID=17 L=17
1-09701-284-0
04
1
0603-
94
CLIP; WATER PIPE
(B)
8-94393-037-0
02
1
0603-
95
BOLT; CLIP
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M6X40 FLANGE
0-28050-640-0
02
1
0603-0707
95
BOLT; CLIP
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M6X40 FLANGE
0-28050-640-0
02
1
0708-
95
BOLT; CLIP
M6X40 FLANGE
0-28050-640-0
02
1
0708-
95
BOLT; CLIP
M6X40 FLANGE
0-28050-640-0
06
1
0603-0707
95
BOLT; CLIP
M6X35 FLANGE
0-28050-635-0
04
1
0708-
95
BOLT; CLIP
M6X70 FLANGE
0-28050-670-0
02
1
0603-
127
BOLT; EYE
(D) M10X21 FLANGE
1-09675-077-0
01
1
0603-0805
127
BOLT; EYE
(D) M10X21 FLANGE
8-97372-238-0
01
1
0806-
127
BOLT; EYE
(C) M16X30 FLANGE
1-09675-095-1
08
1
0603-
127
BOLT; EYE
(B) M14X27 EYE-BOLT
1-09675-193-0
03
1
0603-
127
BOLT; EYE
(A) M16X30 FLANGE
1-09675-230-0
01
1
0603-
147
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2
1-09630-086-0
16
1
0603-
91
91
90
91
90
89
91
92
91
90
91
90
91
90
91
91
91
90
91
89
91
91
91
90
91
90
90
90
91
89
91
92
91
91
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
89
PIPE; WATER,AIR CMPR,IN
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (A)
1-13721-794-0
01
1
0603-
89
PIPE; WATER,AIR CMPR,IN
AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B)
1-13711-687-0
01
1
0603-
89
PIPE; WATER,AIR CMPR,IN
AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C)
1-13711-689-0
01
1
0603-
90
BOLT; EYE,WATER PIPE,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X27 EYE-BOLT
1-09675-193-0
02
1
0603-
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
02
1
0603-
90
BOLT; EYE,WATER PIPE,AIR CMPR
AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M14X27 EYE-BOLT
1-09675-193-0
04
1
0603-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
04
1
0603-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
04
1
0603-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) ID=14.2 OD=25
1-09630-141-0
08
1
0603-
92
PIPE; WATER,AIR CMPR,OUT
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)
1-13722-003-0
01
1
0603-
92
PIPE; WATER,AIR CMPR,OUT
AIR COMPRESSOR HEAVY DUTY VAR2(E6A)
1-13711-691-0
01
1
0603-
127
112
107
107
112
127
127
109
147
104
147
147
109
170
147
146
112
58
113
112
58
112
112
127
147
147
147
59
127
147
147
56
35
170
35
115
35
115
147
127
35
56
207
35
30
153
153
206
35
115
56
115
153
115
153
206
95
110
31
94
94
95
31
94
94
94
94
31
24
94
94
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BRACKET; WATER PIPE
(B)
1-13729-023-0
01
1
0603-
24
BRACKET; WATER PIPE
(C)
1-13729-024-0
01
1
0603-
24
BRACKET; WATER PIPE
(A)
1-13729-060-0
01
1
0603-
30
CLIP; HARNESS
L=140
5-09707-031-1
02
1
0603-1205
30
CLIP; HARNESS
L=140
8-98216-431-0
02
1
1206-
31
BOLT; CLIP
(A) M6X40 FLANGE
0-28050-640-0
02
1
0603-
31
BOLT; CLIP
(B) M8X40 FLANGE
0-28050-840-0
02
1
0603-
35
CLIP; RUBBER HOSE
1-09707-143-0
06
1
0603-
56
PIPE; WATER OUTLET
(B)
1-13721-747-0
01
1
0603-
56
PIPE; WATER OUTLET
(C)
1-13721-831-3
01
1
0603-0606
56
PIPE; WATER OUTLET
(C)
8-98039-673-0
01
1
0607-
56
PIPE; WATER OUTLET
(D)
1-13721-855-0
01
1
0603-
56
PIPE; WATER OUTLET
(A)
1-13721-958-0
01
1
0603-
58
CLIP; RUBBER HOSE
ID=14
1-09704-102-0
02
1
0603-
59
CLIP; HARNESS,WATER OUTLET PIPE
ID=11 L=24
9-09525-045-0
02
1
0603-0606
59
CLIP; HARNESS,WATER OUTLET PIPE
ID=11 L=24
0-95235-045-0
02
1
0607-
94
CLIP; WATER PIPE
(D)
1-09701-210-0
04
1
0603-
94
CLIP; WATER PIPE
(A)
1-09701-282-0
04
1
0603-
94
CLIP; WATER PIPE
(C) ID=17 L=17
1-09701-284-0
04
1
0603-
94
CLIP; WATER PIPE
(B)
8-94393-037-0
02
1
0603-
95
BOLT; CLIP
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M6X40 FLANGE
0-28050-640-0
02
1
0603-0707
95
BOLT; CLIP
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) M6X40 FLANGE
0-28050-640-0
02
1
0708-
95
BOLT; CLIP
M6X40 FLANGE
0-28050-640-0
02
1
0708-
95
BOLT; CLIP
M6X40 FLANGE
0-28050-640-0
06
1
0603-0707
95
BOLT; CLIP
M6X35 FLANGE
0-28050-635-0
04
1
0708-
95
BOLT; CLIP
M6X70 FLANGE
0-28050-670-0
02
1
0603-
104
PIPE; WATER CHARGE
1-13721-847-2
01
1
0603-
107
BOLT; WATER PIPE
M10X20 FLANGE
0-28151-020-0
04
1
0603-
109
PIPE; AIR,LEAK,THERMOSTAT HSG
(A)
1-13721-833-1
01
1
0603-
109
PIPE; AIR,LEAK,THERMOSTAT HSG
(B)
1-13721-834-2
01
1
0603-
110
CLIP; AIR PIPE
(A) ID=9 & 9 L=25
1-09701-180-0
04
1
0603-
110
CLIP; AIR PIPE
(B) ID=9 & 9 L=25
8-94393-280-3
04
1
0603-
112
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2
1-09630-083-0
02
1
0603-
112
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25
1-09630-141-0
04
1
0603-
113
HOSE; RUBBER,AIR LEAK
L=70 SERVICED BY L=3000
0-03559-300-0
01
1
0603-
115
HOSE; RUBBER
(B) L=55 SERVICED BY L=3000
0-03566-300-0
01
1
0603-
115
HOSE; RUBBER
(C)
1-09361-081-1
01
1
0603-
115
HOSE; RUBBER
(A)
1-13729-039-0
01
1
0603-
115
HOSE; RUBBER
(D) L=60
8-97079-996-0
02
1
0603-
127
BOLT; EYE
(D) M10X21 FLANGE
1-09675-077-0
01
1
0603-0805
127
BOLT; EYE
(D) M10X21 FLANGE
8-97372-238-0
01
1
0806-
127
BOLT; EYE
(C) M16X30 FLANGE
1-09675-095-1
08
1
0603-
127
BOLT; EYE
(B) M14X27 EYE-BOLT
1-09675-193-0
03
1
0603-
127
BOLT; EYE
(A) M16X30 FLANGE
1-09675-230-0
01
1
0603-
146
BOLT; EYE
M14X27 EYE-BOLT
1-09675-193-0
01
1
0603-
147
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2
1-09630-086-0
16
1
0603-
153
CLIP; RUBBER HOSE
ID=20
1-09707-084-1
04
1
0603-
170
PIPE; WATER,INL
(A)
1-13721-744-0
01
1
0603-
170
PIPE; WATER,INL
(B)
1-13721-745-0
01
1
0603-
206
PIPE; WATER,EGR COOLER
(B)
1-13721-853-0
01
1
0603-
206
PIPE; WATER,EGR COOLER
(A)
1-13721-899-0
01
1
0603-
207
COUPLING; RUBBER
ID=14 OD=18 L=60
1-09337-030-0
02
1
0603-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
