5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

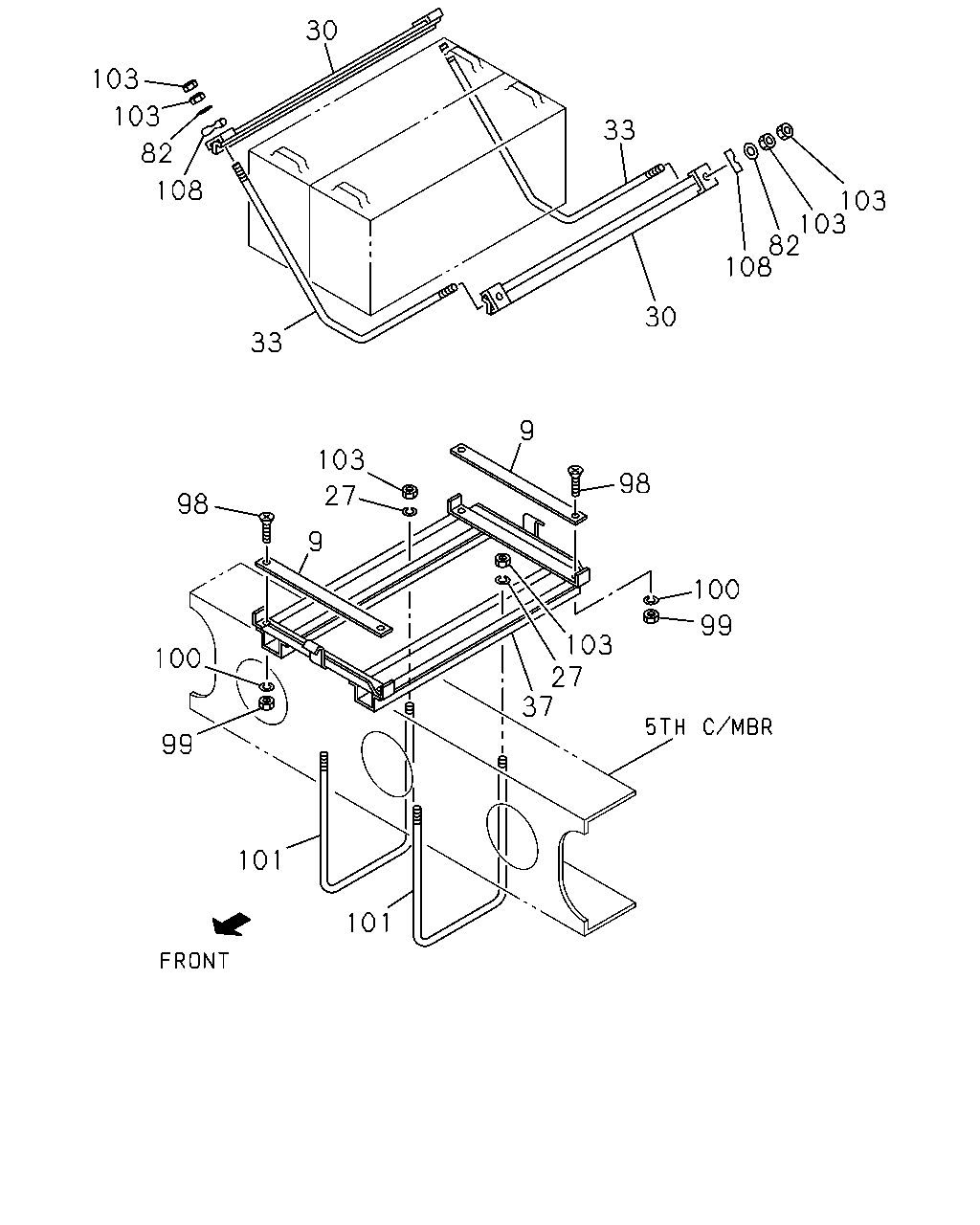

5-20 — BATTERY CARRIER
(#3210) — 19 parça
30
103
103
33
82
108
103
103
82
108
30
33
9
103
98
27
98
9
100
99
103
27
37
100
99
101
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
SEAT; BATTERY
9-53613-094-0
02
1
9104-
27
WASHER; LK,BRKT
ID=10.2
9-09150-510-0
04
1
9104-0107
27
WASHER; LK,BRKT
ID=10.2
9-09150-510-0
04
1
0108-
30
PLATE; BATTERY
9-53616-119-0
02
1
9104-
33
BOLT; PLATE TO BRKT
9-53616-079-1
02
1
9104-
37
BRACKET; BATTERY
9-53610-112-0
01
1
9104-
82
WASHER; PL CENTER PEACE
ID=10.5
9-09164-510-0
04
1
9104-0107
82
WASHER; PL CENTER PEACE
ID=10.5
9-09164-510-0
04
1
0108-
98
SCREW; SEAT
M6X25 CK-HEAD
9-03090-625-0
04
1
9104-0107
98
SCREW; SEAT
M6X25 CK-HEAD
9-03090-625-0
04
1
0108-
99
NUT; SEAT
M6
9-09110-406-0
04
1
9104-0107
99
NUT; SEAT
M6
9-09110-406-0
04
1
0108-
100
WASHER; LK SEAT
ID=6.1
9-09150-506-0
04
1
9104-0107
100
WASHER; LK SEAT
ID=6.1
9-09150-506-0
04
1
0108-
101
BOLT; CLIP BATTERY BRKT
1-53616-075-3
02
1
9104-
103
NUT; BATTERY BRKT
M10
9-09110-510-0
12
1
9104-0107
103
NUT; BATTERY BRKT
M10
9-09110-510-0
12
1
0108-
108
PEACE; CENTER
9-53619-037-0
04
1
9104-0107
108
PEACE; CENTER
9-53619-037-0
04
1
0108-
