4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#32093) — 284 parça

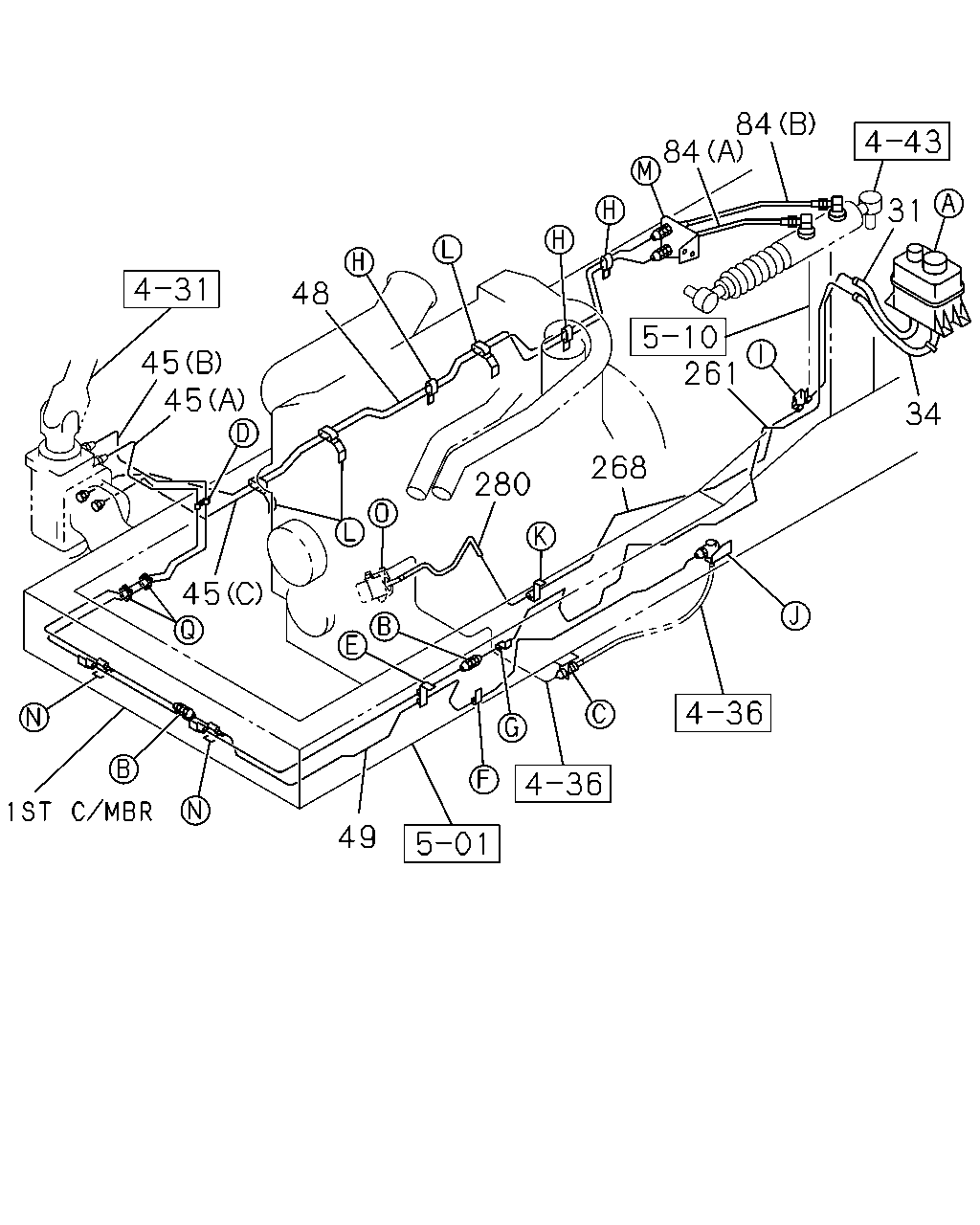

45 48 45 45 280 268 261 84 84 31 34 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21117-509-1	01	1	0512-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0507-0511
31	HOSE; P/S OIL TANK,INL 6WF1 TC-C(1B8)	1-21114-284-0	01	1	0512-
34	HOSE; P/S OIL TANK,OUTLET 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21117-510-1	01	1	0512-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0507-0511
34	HOSE; P/S OIL TANK,OUTLET 6WF1 TC-C(1B8)	1-21114-283-0	01	1	0512-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1403	1-21117-738-0	01	1	0507-0611
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1475	1-21117-916-0	01	1	0612-1309
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1475	8-98257-624-0	01	1	1310-
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1474	1-21117-739-0	01	1	0507-0611
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1404	1-21117-917-0	01	1	0612-1309
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1404	8-98257-625-0	01	1	1310-
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2539	1-21117-744-0	01	1	0507-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2519	1-21117-745-0	01	1	0507-
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-C(72L),6WG1 TC-S(97L) L=2147	1-21117-763-0	01	1	0512-
49	PIPE; OIL,FLEX HOSE TO UNION L=2048	1-21117-741-0	01	1	0507-0511
49	PIPE; OIL,FLEX HOSE TO UNION 6WF1 TC-C(1B8) L=2048	1-21117-741-0	01	1	0512-
84	HOSE; FLEX,P/S (A) L=430	0-09538-430-0	01	1	0507-0606
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	0607-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0507-
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=3362	1-21117-802-0	01	1	0512-
261	PIPE; OIL,UNION TO HOSE L=3322	1-21117-801-0	01	1	0507-0511
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) L=3322	1-21117-801-0	01	1	0512-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=1367	1-21117-813-0	01	1	0512-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1287	1-21116-852-0	01	1	0507-0511
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) L=1287	1-21116-852-0	01	1	0512-
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	0604-0604
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0507-0603
280	HOSE; P/S OIL PUMP,INL 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21117-301-0	01	1	0604-0604
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0605-

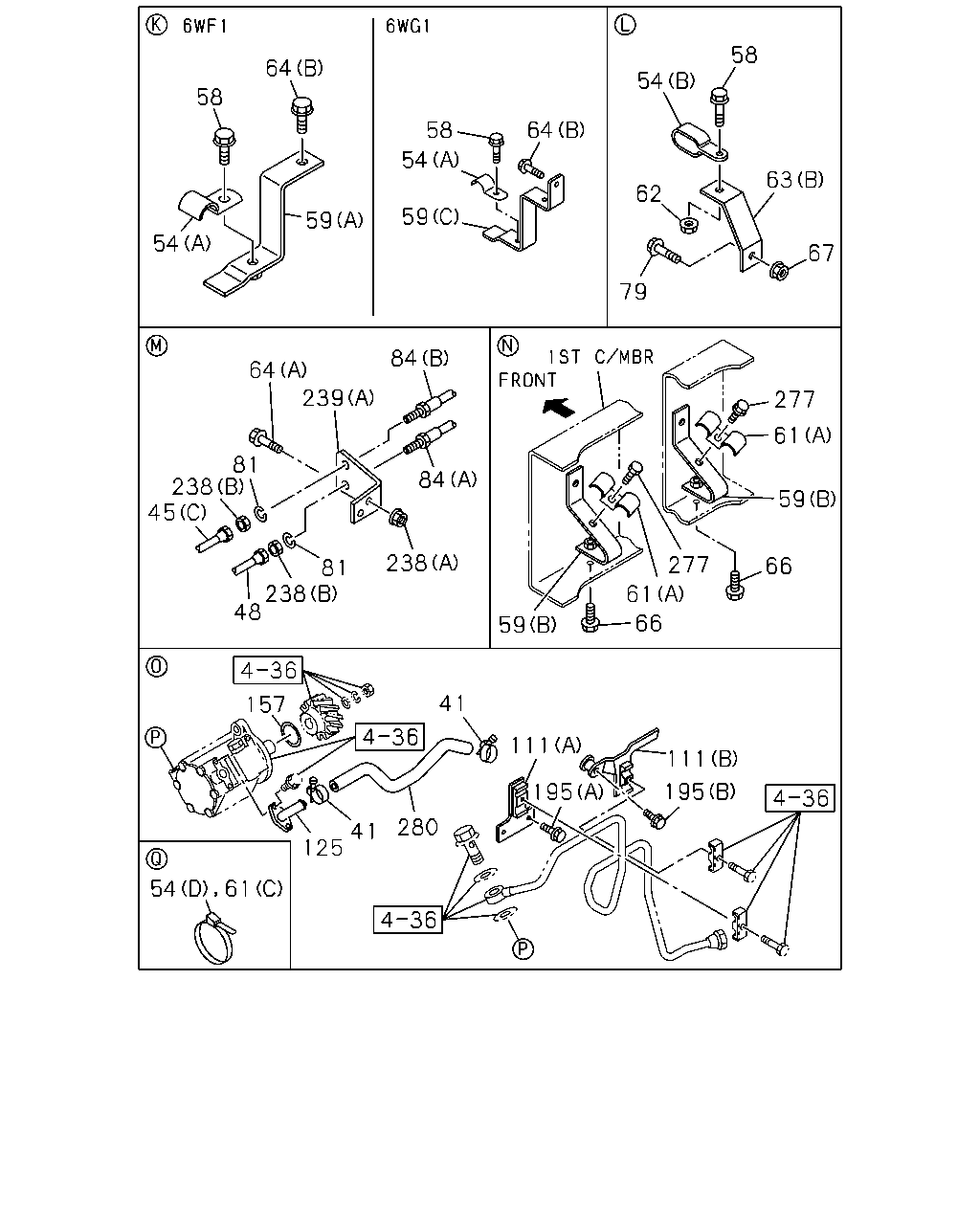

277 59 66 61 67 63 58 54 62 79 277 61 59 66 239 84 84 238 81 238 48 45 238 81 64 54 59 58 54 64 59 58 64 280 111 195 41 111 195 41 125 61 54 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0507-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1403	1-21117-738-0	01	1	0507-0611
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1475	1-21117-916-0	01	1	0612-1309
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1475	8-98257-624-0	01	1	1310-
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1474	1-21117-739-0	01	1	0507-0611
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1404	1-21117-917-0	01	1	0612-1309
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1404	8-98257-625-0	01	1	1310-
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2539	1-21117-744-0	01	1	0507-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2519	1-21117-745-0	01	1	0507-
54	CLIP; OIL PIPE (D) L=350	1-09707-183-0	01	1	1310-
54	CLIP; OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=23.6 L=35	1-09700-634-0	01	1	0512-
54	CLIP; OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=26 L=27	1-09701-006-0	01	1	0512-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0507-0511
54	CLIP; OIL PIPE 6WF1 TC-C(1B8) (A) ID=23.6 L=35	1-09700-634-0	02	1	0512-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	9-09535-236-0	04	1	0507-0606
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	04	1	0607-
58	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M10X20 FLANGE	0-28681-020-0	03	1	0512-0512
58	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M10X20 FLANGE	0-28651-020-0	03	1	0601-
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0507-0512
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-
58	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	01	1	0507-0512
58	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	01	1	0601-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0507-0511
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0512-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0507-0511
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-
58	BOLT; CLIP M10X20 FLANGE	0-28681-020-0	02	1	0507-0511
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28681-020-0	02	1	0512-0512
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28651-020-0	02	1	0601-
59	BRACKET; CLIP,OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-47471-183-0	01	1	0512-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	0507-0511
59	BRACKET; CLIP,OIL PIPE 6WF1 TC-C(1B8) (A)	1-47477-145-0	01	1	0512-
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	0507-
61	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0507-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	9-09535-535-0	01	1	0507-0606
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0607-
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	03	1	0507-0602
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0603-
63	BRACKET; CLIP,P/S (A) L=115 B=25	1-47476-758-0	01	1	0507-
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	0507-
64	BOLT; CLIP BRKT (B) M8X20 FLANGE	0-28680-820-0	01	1	0507-0512
64	BOLT; CLIP BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0507-0512
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28680-820-0	02	1	0507-0512
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0507-0511
67	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0512-0602
67	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	04	1	0512-0602
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
67	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	04	1	0603-
79	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	03	1	0507-0512
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0601-
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0507-0512
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	02	1	0507-0603
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	02	1	0604-
84	HOSE; FLEX,P/S (A) L=430	0-09538-430-0	01	1	0507-0606
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	0607-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0507-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0507-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0507-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0507-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0507-
195	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X25 FLANGE	0-28680-825-0	08	1	0512-0512
195	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X25 FLANGE	0-28650-825-0	08	1	0601-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0507-0512
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0601-
238	NUT; FLEX HOSE (A) M8 FLANGE	0-91150-108-0	02	1	0507-0602
238	NUT; FLEX HOSE (A) M8 FLANGE	0-91180-108-0	02	1	0603-
238	NUT; FLEX HOSE (B) M20	9-99111-420-0	02	1	0507-0512
238	NUT; FLEX HOSE (B) M20	0-91111-520-0	02	1	0601-
239	BRACKET; FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-47471-227-0	01	1	0512-
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	0507-
239	BRACKET; FLEX HOSE (B)	1-47479-664-0	01	1	0507-0511
239	BRACKET; FLEX HOSE 6WF1 TC-C(1B8) (B)	1-47479-664-0	01	1	0512-
277	BOLT; HOSE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
277	BOLT; HOSE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE	0-28650-820-0	01	1	0601-
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	03	1	0507-0512
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0601-
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	0507-0511
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28681-025-0	01	1	0512-0512
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28651-025-0	01	1	0601-
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	0604-0604
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0507-0603
280	HOSE; P/S OIL PUMP,INL 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21117-301-0	01	1	0604-0604
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0605-

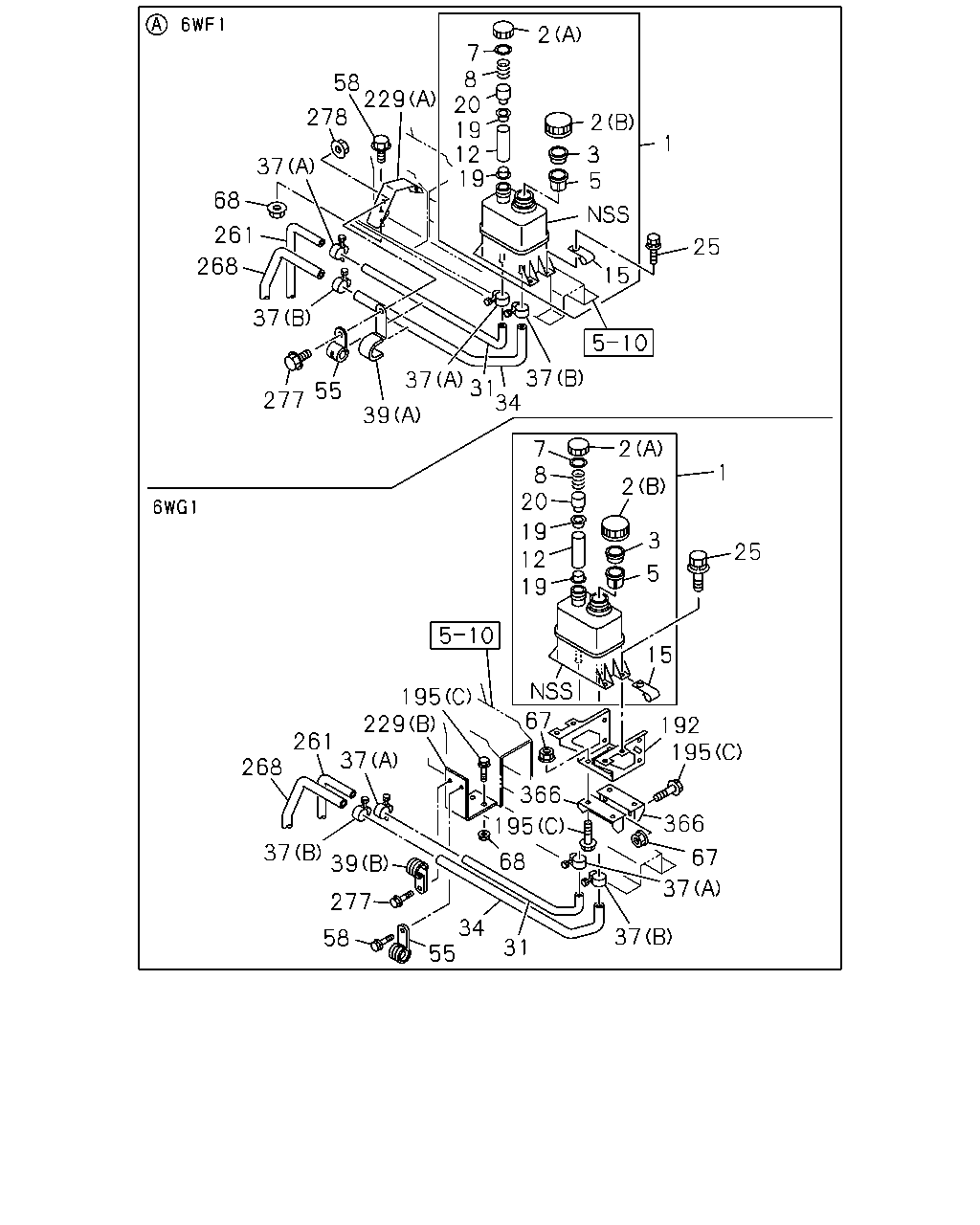

2 7 8 20 19 12 19 58 229 278 2 1 3 5 37 68 261 25 268 15 37 37 31 34 37 55 277 39 2 7 8 20 1 2 19 12 19 3 25 5 15 195 229 67 192 195 261 37 268 366 195 366 37 39 67 68 37 277 34 55 37 58 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0507-0508
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0507-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0507-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0507-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0507-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0507-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0507-0508
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0507-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0507-0508
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0507-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0507-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0507-0512
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-
31	HOSE; P/S OIL TANK,INL 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21117-509-1	01	1	0512-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0507-0511
31	HOSE; P/S OIL TANK,INL 6WF1 TC-C(1B8)	1-21114-284-0	01	1	0512-
34	HOSE; P/S OIL TANK,OUTLET 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21117-510-1	01	1	0512-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0507-0511
34	HOSE; P/S OIL TANK,OUTLET 6WF1 TC-C(1B8)	1-21114-283-0	01	1	0512-
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	0507-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	0507-
39	CLIP; FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=37 L=35	1-09701-109-0	01	1	0512-
39	CLIP; FLEX HOSE (A) ID=32 L=75	1-09700-702-0	01	1	0507-0511
39	CLIP; FLEX HOSE 6WF1 TC-C(1B8) (A) ID=32 L=75	1-09700-702-0	01	1	0512-
55	CLIP; P/S RUBBER HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=28 L=32	1-09701-107-1	01	1	0512-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0507-0511
55	CLIP; P/S RUBBER HOSE 6WF1 TC-C(1B8) ID=28 L=30	1-09700-607-1	01	1	0512-
58	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M10X20 FLANGE	0-28681-020-0	03	1	0512-0512
58	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M10X20 FLANGE	0-28651-020-0	03	1	0601-
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0507-0512
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-
58	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	01	1	0507-0512
58	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	01	1	0601-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0507-0511
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0512-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0507-0511
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-
58	BOLT; CLIP M10X20 FLANGE	0-28681-020-0	02	1	0507-0511
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28681-020-0	02	1	0512-0512
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28651-020-0	02	1	0601-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0507-0511
67	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0512-0602
67	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	04	1	0512-0602
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
67	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	04	1	0603-
68	NUT; CLIP,OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) M10 FLANGE	0-91150-210-0	02	1	0512-0602
68	NUT; CLIP,OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) M10 FLANGE	0-91180-210-0	02	1	0603-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0507-0511
68	NUT; CLIP,OIL PIPE 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	01	1	0512-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
192	BRACKET; P/S OIL TANK 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21489-200-1	01	1	0512-
195	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X25 FLANGE	0-28680-825-0	08	1	0512-0512
195	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X25 FLANGE	0-28650-825-0	08	1	0601-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0507-0512
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0601-
229	BRACKET; HOSE,POWER STRG 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-21464-780-0	01	1	0512-
229	BRACKET; HOSE,POWER STRG (A)	1-21464-407-1	01	1	0507-0511
229	BRACKET; HOSE,POWER STRG 6WF1 TC-C(1B8) (A)	1-21464-407-1	01	1	0512-
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=3362	1-21117-802-0	01	1	0512-
261	PIPE; OIL,UNION TO HOSE L=3322	1-21117-801-0	01	1	0507-0511
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) L=3322	1-21117-801-0	01	1	0512-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=1367	1-21117-813-0	01	1	0512-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1287	1-21116-852-0	01	1	0507-0511
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) L=1287	1-21116-852-0	01	1	0512-
277	BOLT; HOSE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
277	BOLT; HOSE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE	0-28650-820-0	01	1	0601-
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	03	1	0507-0512
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0601-
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	0507-0511
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28681-025-0	01	1	0512-0512
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28651-025-0	01	1	0601-
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	0507-0511
278	NUT; HOSE CLIP 6WF1 TC-C(1B8) M10 FLANGE	0-91150-210-0	01	1	0512-0602
278	NUT; HOSE CLIP M10 FLANGE	0-91180-210-0	01	1	0603-
366	SPACER; BRKT TO MEMBER 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21489-196-1	02	1	0512-

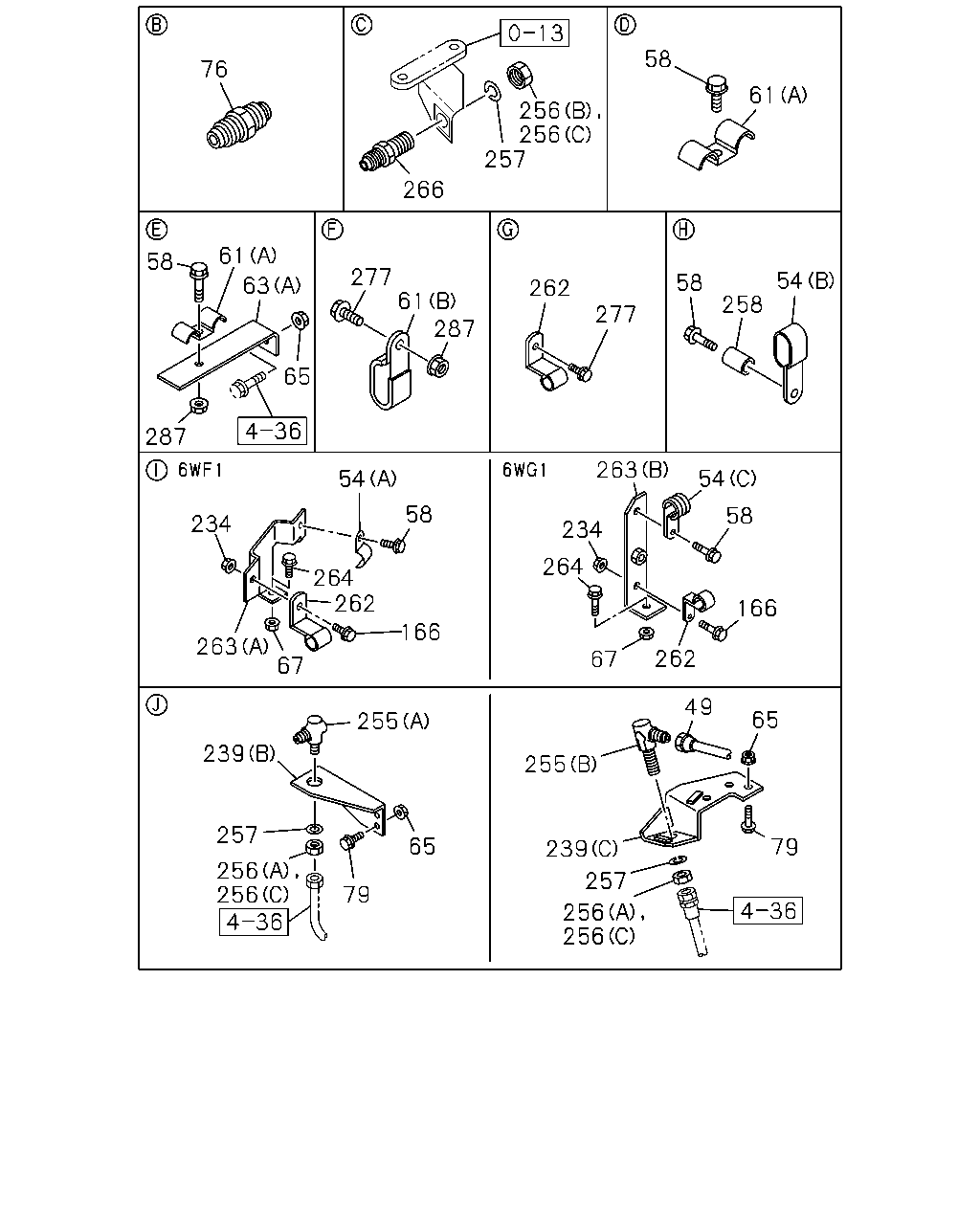

58 76 61 256 256 257 266 61 58 277 61 287 54 58 63 262 258 277 65 287 263 54 54 58 58 234 234 264 264 262 166 166 263 67 262 67 49 65 255 239 255 257 65 79 239 256 256 257 79 256 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-C(72L),6WG1 TC-S(97L) L=2147	1-21117-763-0	01	1	0512-
49	PIPE; OIL,FLEX HOSE TO UNION L=2048	1-21117-741-0	01	1	0507-0511
49	PIPE; OIL,FLEX HOSE TO UNION 6WF1 TC-C(1B8) L=2048	1-21117-741-0	01	1	0512-
54	CLIP; OIL PIPE (D) L=350	1-09707-183-0	01	1	1310-
54	CLIP; OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=23.6 L=35	1-09700-634-0	01	1	0512-
54	CLIP; OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=26 L=27	1-09701-006-0	01	1	0512-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0507-0511
54	CLIP; OIL PIPE 6WF1 TC-C(1B8) (A) ID=23.6 L=35	1-09700-634-0	02	1	0512-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	9-09535-236-0	04	1	0507-0606
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	04	1	0607-
58	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M10X20 FLANGE	0-28681-020-0	03	1	0512-0512
58	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M10X20 FLANGE	0-28651-020-0	03	1	0601-
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0507-0512
58	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-
58	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	01	1	0507-0512
58	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	01	1	0601-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0507-0511
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0512-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0507-0511
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-
58	BOLT; CLIP M10X20 FLANGE	0-28681-020-0	02	1	0507-0511
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28681-020-0	02	1	0512-0512
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X20 FLANGE	0-28651-020-0	02	1	0601-
61	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0507-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	9-09535-535-0	01	1	0507-0606
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0607-
63	BRACKET; CLIP,P/S (A) L=115 B=25	1-47476-758-0	01	1	0507-
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	0507-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0507-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0507-0511
67	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0512-0602
67	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	04	1	0512-0602
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
67	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	04	1	0603-
76	UNION; OIL PIPE M22	9-09233-015-1	02	1	0507-0607
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	0608-
79	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	03	1	0507-0512
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0601-
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0507-0512
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0507-0512
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	01	1	0507-0602
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0603-
239	BRACKET; FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-47471-227-0	01	1	0512-
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	0507-
239	BRACKET; FLEX HOSE (B)	1-47479-664-0	01	1	0507-0511
239	BRACKET; FLEX HOSE 6WF1 TC-C(1B8) (B)	1-47479-664-0	01	1	0512-
255	UNION; FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M22 & M22 ELBOW	1-09654-163-1	01	1	0512-
255	UNION; FLEX HOSE (A) M22 & M22 ELBOW	1-09650-375-1	01	1	0507-0511
255	UNION; FLEX HOSE 6WF1 TC-C(1B8) (A) M22 & M22 ELBOW	1-09650-375-1	01	1	0512-
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0507-0512
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0507-0512
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0507-0603
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0507-0603
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
258	TUBE; DISTANCE,BRKT L=22	9-22159-024-0	01	1	0507-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	02	1	0507-
263	BRACKET; P/S PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-47471-191-1	01	1	0512-
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	0507-0511
263	BRACKET; P/S PIPE 6WF1 TC-C(1B8) (A)	1-47476-483-2	01	1	0512-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0507-0512
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0507-
277	BOLT; HOSE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
277	BOLT; HOSE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE	0-28650-820-0	01	1	0601-
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	03	1	0507-0512
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0601-
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	0507-0511
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28681-025-0	01	1	0512-0512
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28651-025-0	01	1	0601-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0507-0602
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
