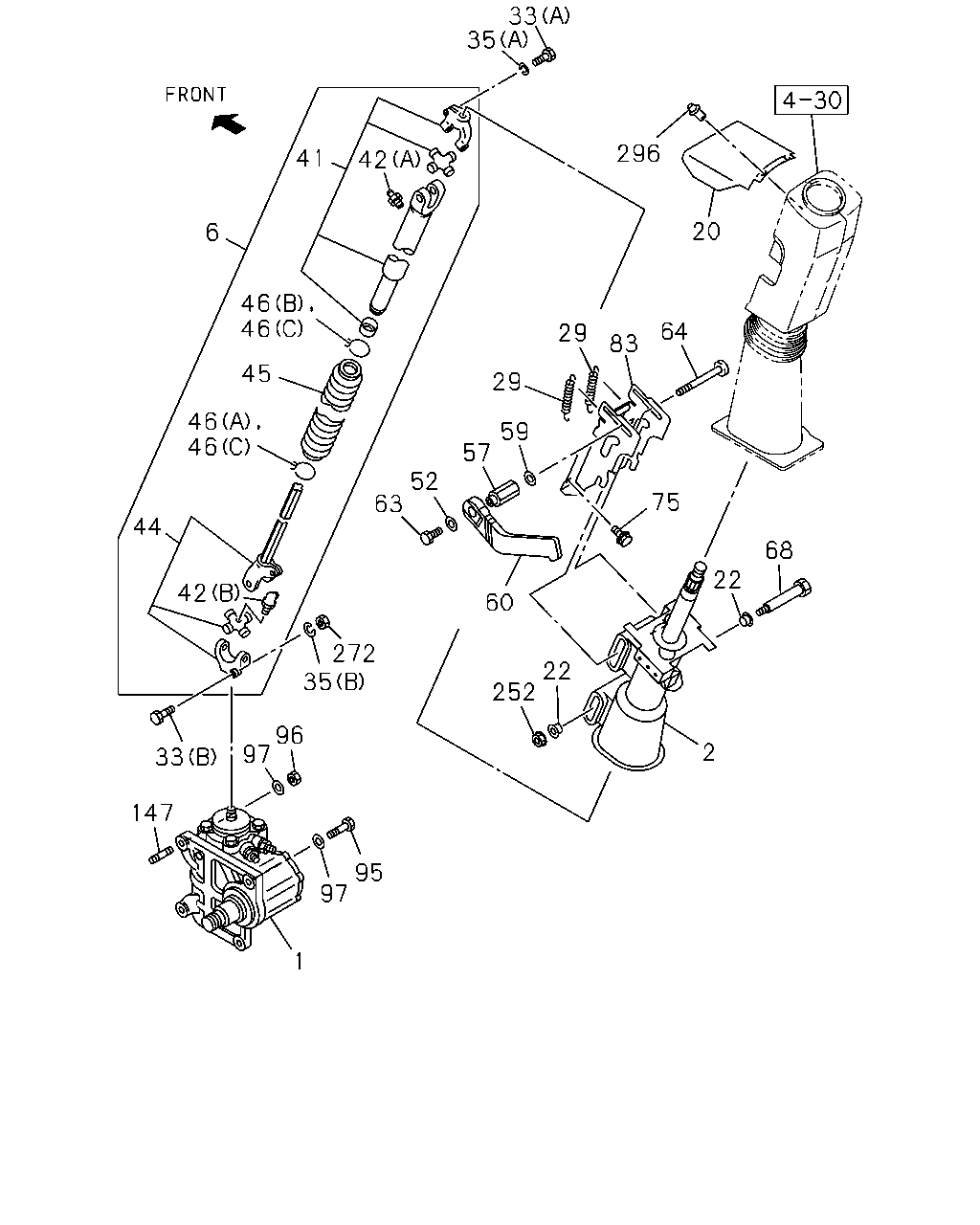

4-31 — STEERING COLUMN AND SHAFT
(#32091) — 47 parça
33
35
296
41
42
20
6
46
46
64
29
83
45
29
46
46
59
57
52
63
75
44
68
42
22
60
272
35
22
252
96
97
2
33
147
95
97
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-910-0
01
1
0507-0703
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-922-2
01
1
0704-
2
SHAFT ASM; STRG
1-44130-783-0
01
1
0507-
6
SHAFT; STRG LWR
1-44135-354-0
01
1
0507-0511
6
SHAFT; STRG LWR
1-44135-385-0
01
1
0512-
20
COVER; STRG SHAFT
1-72438-121-3
01
1
0507-
22
BUSHING; STRG COLUMN
1-44227-165-0
02
1
0507-
29
SPRING; COLUMN
1-44227-136-0
02
1
0507-0511
29
SPRING; COLUMN
1-44227-136-0
01
1
0512-
33
BOLT; STRG SHAFT TO UNIT
(A)
1-44139-141-0
01
1
0507-
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-489-0
01
1
0507-0707
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-786-0
01
1
0708-
35
WASHER; LK,STRG SHAFT
(A)
1-44139-142-0
01
1
0507-
35
WASHER; LK,STRG SHAFT
(B) ID=10.2
9-09150-810-0
01
1
0507-0603
35
WASHER; LK,STRG SHAFT
(B) ID=10.2
0-91510-810-0
01
1
0604-
41
YOKE; SLEEVE,STRG
1-44135-359-0
01
1
0507-
42
NIPPLE; GREASE,SLEEVE YOKE
(A) M6 STRAIGHT
9-09031-006-0
01
1
0507-0607
42
NIPPLE; GREASE,SLEEVE YOKE
(A) M6 STRAIGHT
0-90301-406-0
01
1
0608-
42
NIPPLE; GREASE,SLEEVE YOKE
(B) PT1/8 ELBOW
9-09031-210-0
01
1
0507-0512
42
NIPPLE; GREASE,SLEEVE YOKE
(B) PT1/8 ELBOW
0-90301-610-0
01
1
0601-
44
SHAFT; SPLINE,STRG
1-44135-316-0
01
1
0507-
45
BOOT; STRG SHAFT
1-44139-138-0
01
1
0507-
46
CLIP; BOOT
(A) LOWER
1-44139-139-0
01
1
0507-0511
46
CLIP; BOOT
(C)
8-98019-551-0
02
1
0512-
46
CLIP; BOOT
(B) UPPER
1-44139-140-0
01
1
0507-0511
52
WASHER; PL,ADJ LEVER
1-44227-154-0
01
1
0507-
57
NUT; ADJ BOLT
1-44227-159-0
01
1
0507-
59
COLLAR; DIST,ADJ BOLT
1-44227-127-0
01
1
0507-
60
LEVER; ADJ,STRG COLUMN
1-44227-160-0
01
1
0507-
63
BOLT; ADJ LEVER,TILT STRG
1-44227-126-0
01
1
0507-
64
BOLT; ADJ,PROTECTOR
1-44227-156-0
01
1
0507-
68
PIN; TILT CENTER
1-44227-164-0
01
1
0507-0511
68
PIN; TILT CENTER
8-97163-920-1
01
1
0512-
75
BOLT; STRG COLUMN
M8X20 FLANGE
0-28680-820-0
04
1
0507-0512
75
BOLT; STRG COLUMN
M8X20 FLANGE
0-28650-820-0
04
1
0601-
83
BRACKET; TILT STRG UPR
1-44227-157-0
01
1
0507-0511
83
BRACKET; TILT STRG UPR
1-44227-166-0
01
1
0512-
95
BOLT; STRG UNIT
M18X60
9-91066-860-0
03
1
0507-0805
95
BOLT; STRG UNIT
M18X60
8-98036-497-0
03
1
0806-
96
NUT; STRG UNIT
M18
9-99110-518-0
01
1
0507-0512
96
NUT; STRG UNIT
M18
0-91110-518-0
01
1
0601-
97
WASHER; PL,STRG UNIT
ID=18
9-09851-862-0
04
1
0507-
147
STUD; STRG UNIT
M18X49 L=76
1-09300-107-0
01
1
0507-
252
NUT; TILT CENTER BOLT
1-44227-135-0
01
1
0507-
272
NUT; SHAFT TO YOKE
M10
9-09110-510-0
01
1
0507-0512
272
NUT; SHAFT TO YOKE
M10
0-91110-510-0
01
1
0601-
296
CLIP; COVER
D6X12.5
8-94146-425-0
02
1
0507-
