5-01 — FRAME AND OTHER PARTS (#3209) — 159 parça

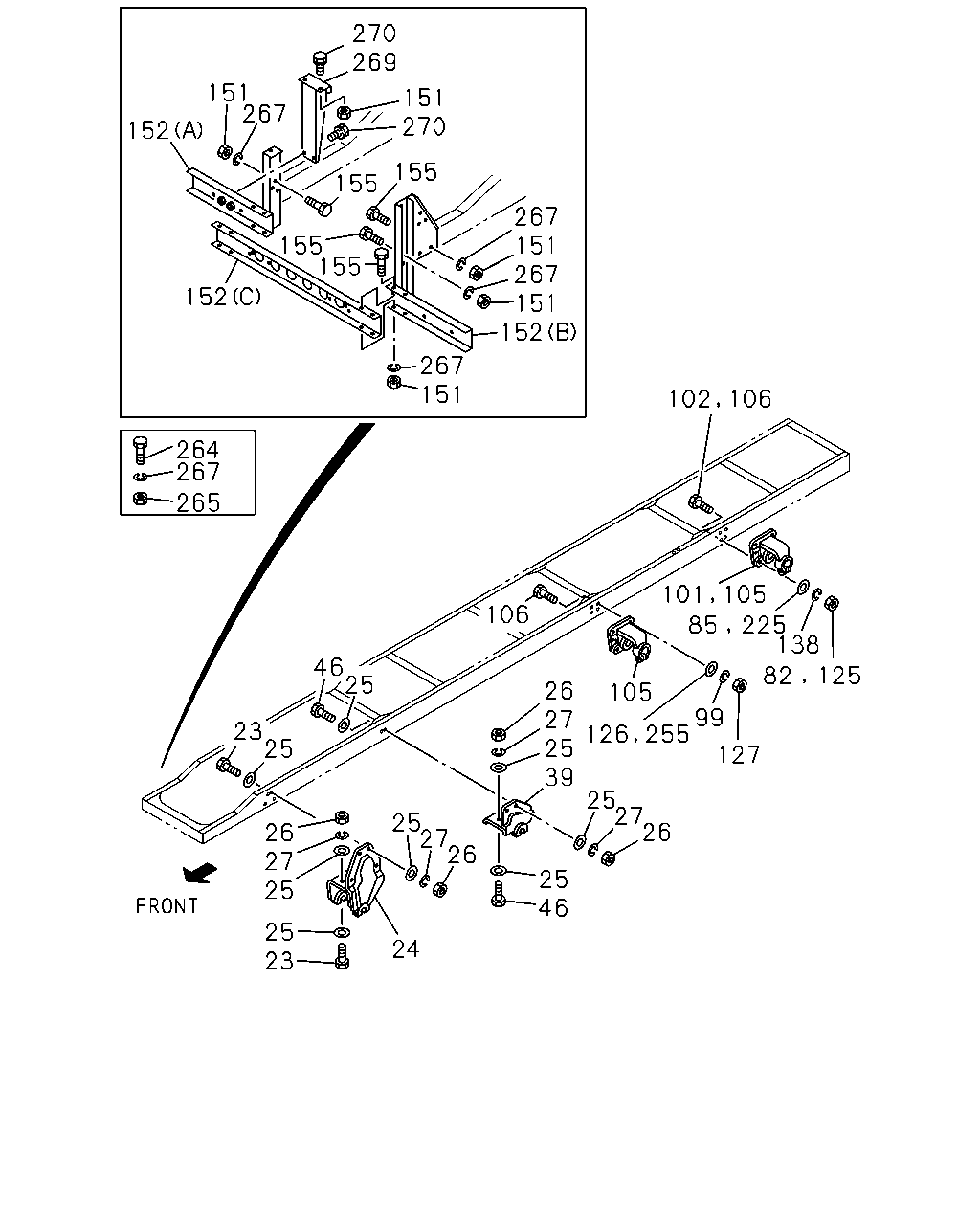

270 269 151 267 151 270 152 155 155 267 151 267 151 152 155 155 152 267 151 102 106 264 267 265 105 101 106 138 46 25 82 125 26 27 25 39 105 99 23 25 127 25 27 26 25 27 26 26 27 25 25 46 25 23 24 85 225 255 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	BOLT; BRKT,SPR KD FRAME<R32> M14X55	9-91061-455-0	12	1	0108-0109
23	BOLT; BRKT,SPR KD FRAME<R32> M14X55	9-91066-455-0	12	1	0110-
23	BOLT; BRKT,SPR KD FRAME<R32> M14X50	9-91066-450-0	16	1	0108-
23	BOLT; BRKT,SPR M14X50	9-91066-450-0	08	1	9104-0107
23	BOLT; BRKT,SPR M14X50	9-91066-450-0	08	1	0108-
23	BOLT; BRKT,SPR M16X50	9-92061-650-0	04	1	9104-0107
23	BOLT; BRKT,SPR M16X50	9-92061-650-0	04	1	0108-
23	BOLT; BRKT,SPR KD FRAME<R32> M16X50	9-92061-650-0	04	1	0108-
24	BRACKET; FRT SPR,FRT KD FRAME<R32>	1-53351-178-0	01	1	9201-
24	BRACKET; FRT SPR,FRT KD FRAME<R32>	1-53351-179-0	01	1	9201-
24	BRACKET; FRT SPR,FRT	1-53351-178-0	01	1	9104-0107
24	BRACKET; FRT SPR,FRT	1-53351-178-0	01	1	0108-
24	BRACKET; FRT SPR,FRT	1-53351-179-0	01	1	9104-0107
24	BRACKET; FRT SPR,FRT	1-53351-179-0	01	1	0108-
25	WASHER; PL,BRKT ID=16.2	1-09503-223-0	08	1	9104-0107
25	WASHER; PL,BRKT ID=16.2	1-09503-223-0	08	1	0108-
25	WASHER; PL,BRKT ID=15	9-09651-069-0	32	1	9104-0107
25	WASHER; PL,BRKT ID=15	9-09651-069-0	32	1	0108-
25	WASHER; PL,BRKT KD FRAME<R32> ID=16.2	1-09503-223-0	08	1	0108-
25	WASHER; PL,BRKT KD FRAME<R32> ID=15	9-09651-069-0	16	1	0108-
26	NUT; BRKT,SPR KD FRAME<R32> M14	9-99110-514-0	40	1	9201-
26	NUT; BRKT,SPR M14	9-99110-514-0	16	1	9104-0107
26	NUT; BRKT,SPR M14	9-99110-514-0	16	1	0108-
26	NUT; BRKT,SPR M16	9-99110-516-0	04	1	9104-0107
26	NUT; BRKT,SPR M16	9-99110-516-0	04	1	0108-
26	NUT; BRKT,SPR KD FRAME<R32> M16	9-99110-516-0	04	1	0108-
27	WASHER; LK,BRKT,FRT SPR ID=14.2	9-09150-614-0	16	1	9104-9112
39	BRACKET; FRT SPR,RR	1-53352-071-5	01	1	9104-9407
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	9408-0107
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	0108-
39	BRACKET; FRT SPR,RR	1-53352-072-5	01	1	9104-9407
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	9408-0107
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	0108-
39	BRACKET; FRT SPR,RR KD FRAME<R32>	1-53352-152-0	01	1	0108-
39	BRACKET; FRT SPR,RR KD FRAME<R32>	1-53352-153-0	01	1	0108-
46	BOLT; BRKT FIX M14X50	9-91066-450-0	08	1	9104-0107
46	BOLT; BRKT FIX M14X50	9-91066-450-0	08	1	0108-
82	NUT; BRKT M14	9-99110-514-0	12	1	9104-9112
85	WASHER; PL,BRKT ID=15	9-09651-069-0	12	1	9104-9112
90	WASHER; PL KD FRAME<R32> ID=15	9-09651-069-0	64	1	9201-
99	WASHER; LK,BRKT ID=14.2	9-09150-614-0	12	1	9104-9112
101	BRACKET; RR SPR,FRT	9-53354-087-2	01	1	9104-9112
101	BRACKET; RR SPR,FRT	9-53354-088-2	01	1	9104-9112
101	BRACKET; RR SPR,FRT KD FRAME<R32>	9-53354-087-2	01	1	0108-
101	BRACKET; RR SPR,FRT KD FRAME<R32>	9-53354-088-2	01	1	0108-
102	BOLT; BRKT,RR SPR M14X55	9-91061-455-0	12	1	9104-9112
105	BRACKET; RR SPR,RR	9-53354-087-2	01	1	9104-9112
105	BRACKET; RR SPR,RR	9-53354-087-2	02	1	9201-0107
105	BRACKET; RR SPR,RR	9-53354-087-2	02	1	0108-
105	BRACKET; RR SPR,RR	9-53354-088-2	01	1	9104-9112
105	BRACKET; RR SPR,RR	9-53354-088-2	02	1	9201-0107
105	BRACKET; RR SPR,RR	9-53354-088-2	02	1	0108-
105	BRACKET; RR SPR,RR KD FRAME<R32>	9-53354-087-2	01	1	0108-
105	BRACKET; RR SPR,RR KD FRAME<R32>	9-53354-088-2	01	1	0108-
106	BOLT; BRKT M14X55	9-91061-455-0	12	1	9104-9112
106	BOLT; BRKT M14X55	9-91061-455-0	12	1	9201-0107
106	BOLT; BRKT M14X55	9-91061-455-0	24	1	0108-
106	BOLT; BRKT KD FRAME<R32> M14X55	9-91061-455-0	12	1	0108-0109
106	BOLT; BRKT KD FRAME<R32> M14X55	9-91066-455-0	12	1	0110-
126	WASHER; PL,BRKT ID=15	9-09651-069-0	12	1	9104-9112
127	NUT; BRKT M14	9-99110-514-0	12	1	9104-9112
127	NUT; BRKT M14	9-99110-514-0	12	1	9201-0107
127	NUT; BRKT M14	9-99110-514-0	24	1	0108-
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	12	1	9104-9112
151	NUT; OUTRIGGER M12	9-99110-412-0	02	1	9104-9307
151	NUT; OUTRIGGER M14	9-99110-514-0	03	1	9104-
151	NUT; OUTRIGGER M12	9-99110-512-0	14	1	9104-9307
151	NUT; OUTRIGGER M12	9-99110-512-0	16	1	9308-0107
151	NUT; OUTRIGGER M12	9-99110-512-0	16	1	0108-
152	OUTRIGGER (C) CENTER	1-53456-160-3	01	1	9104-0107
152	OUTRIGGER	1-53456-160-3	01	1	0108-
152	OUTRIGGER (B)	1-53456-189-0	01	1	9104-0107
152	OUTRIGGER	1-53456-189-0	01	1	0108-
152	OUTRIGGER (A)	1-53456-190-1	01	1	9104-0107
152	OUTRIGGER	1-53456-190-1	01	1	0108-
155	BOLT; OUTRIGGER M12X32	9-92061-232-0	08	1	9104-0107
155	BOLT; OUTRIGGER M12X32	9-92061-232-0	08	1	0108-
155	BOLT; OUTRIGGER M12X35	9-92061-235-0	06	1	9104-0107
155	BOLT; OUTRIGGER M12X35	9-92061-235-0	06	1	0108-
155	BOLT; OUTRIGGER M14X35	9-92061-435-0	03	1	9104-
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	9201-
264	BOLT; FRT C/MBR M16X35	0-20801-635-0	02	1	9104-0107
264	BOLT; FRT C/MBR M16X35	0-20801-635-0	02	1	0108-
265	NUT; FRT C/MBR M16	9-99110-416-0	02	1	9104-0107
265	NUT; FRT C/MBR M16	9-99110-416-0	02	1	0108-
267	WASHER; LK,OUTRIGGER ID=16.2	9-09150-516-0	02	1	9104-0107
267	WASHER; LK,OUTRIGGER ID=16.2	9-09150-516-0	02	1	0108-
267	WASHER; LK,OUTRIGGER ID=12.2	9-09150-612-0	14	1	9104-0107
267	WASHER; LK,OUTRIGGER ID=12.2	9-09150-612-0	14	1	0108-
267	WASHER; LK,OUTRIGGER ID=14.2	9-09150-614-0	03	1	9104-
269	STAY; OUTRIGGER TO PEDAL BOARD	1-53459-706-1	01	1	9104-0107
269	STAY; OUTRIGGER TO PEDAL BOARD	1-53459-706-1	01	1	0108-
270	BOLT; STAY,OUTRIGGER M12X32	0-50141-232-0	06	1	9104-0107
270	BOLT; STAY,OUTRIGGER M12X32	0-50141-232-0	06	1	0108-

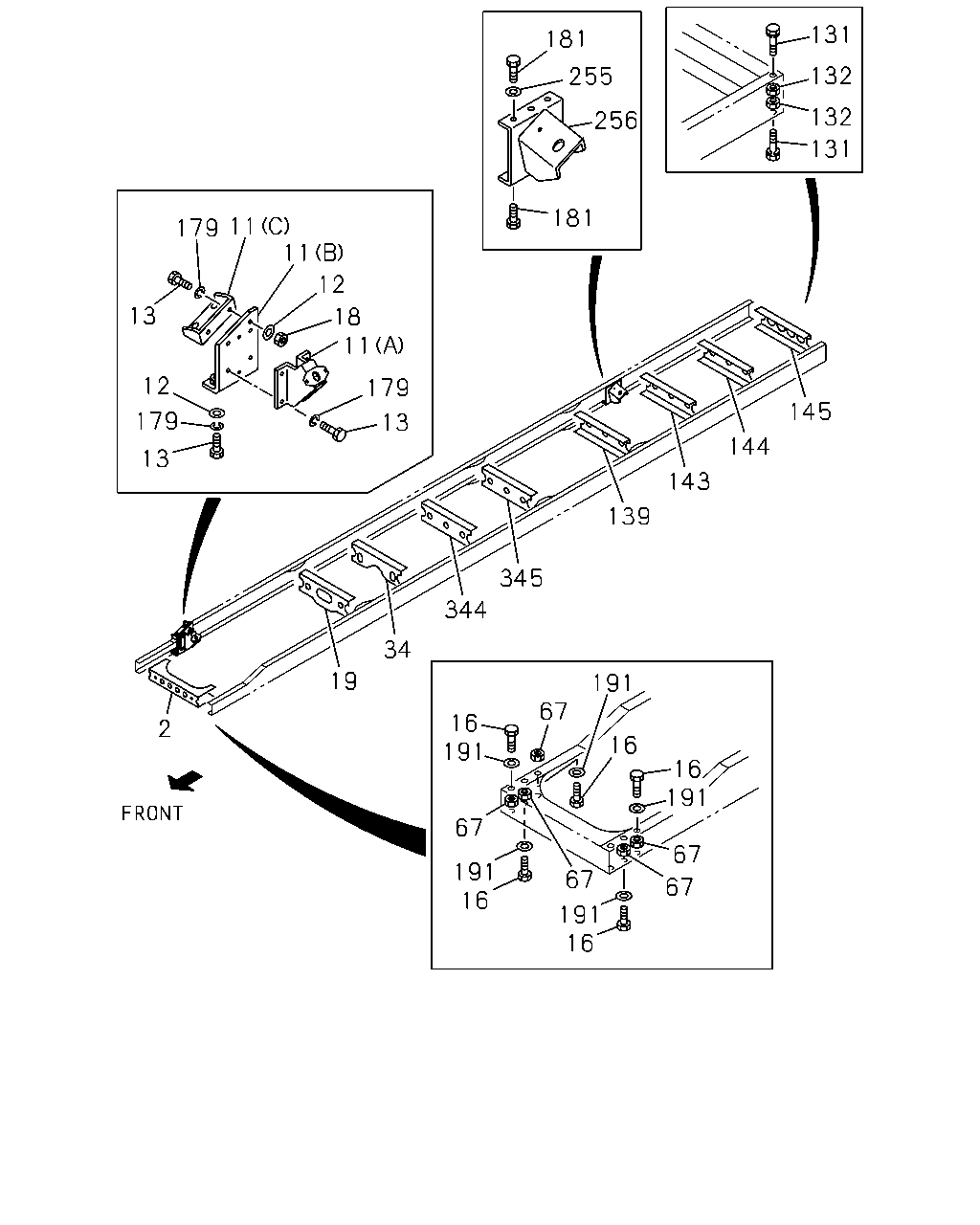

131 181 132 255 132 256 131 181 11 11 179 12 13 18 11 12 179 145 179 13 144 13 143 139 345 344 34 19 191 67 16 191 2 16 16 191 67 67 191 16 67 67 191 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST	1-53181-058-1	01	1	9104-
2	MEMBER; CROSS,1ST KD FRAME<R32>	1-53181-058-1	01	1	0108-
11	BRACKET; ENG MTG (A) SUSP	1-53219-260-0	02	1	9104-
11	BRACKET; ENG MTG (B) CUSHION	1-53219-261-0	01	1	9104-0107
11	BRACKET; ENG MTG	1-53219-261-0	01	1	0108-
11	BRACKET; ENG MTG (B) CUSHION	1-53219-262-0	01	1	9104-0107
11	BRACKET; ENG MTG	1-53219-262-0	01	1	0108-
11	BRACKET; ENG MTG (C) CUSHION	1-53221-157-0	02	1	9104-
11	BRACKET; ENG MTG KD FRAME<R32>	1-53219-260-0	02	1	0108-
11	BRACKET; ENG MTG KD FRAME<R32>	1-53219-261-0	01	1	0108-
11	BRACKET; ENG MTG KD FRAME<R32>	1-53219-262-0	01	1	0108-
11	BRACKET; ENG MTG KD FRAME<R32>	1-53221-157-0	02	1	0108-
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	02	1	9104-
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	04	1	9104-
12	WASHER; PL,BRKT,ENG MTG KD FRAME<R32> ID=12.5	1-09503-171-0	02	1	0108-
12	WASHER; PL,BRKT,ENG MTG KD FRAME<R32> ID=15	9-09651-069-0	04	1	0108-
13	BOLT; BRKT,ENG MTG M12X40	9-92061-240-0	04	1	9104-9309
13	BOLT; BRKT,ENG MTG M14X35	9-92061-435-0	08	1	9104-
13	BOLT; BRKT,ENG MTG M12X35	9-92061-235-0	06	1	9104-9309
13	BOLT; BRKT,ENG MTG M12X35	9-92061-235-0	10	1	9310-
13	BOLT; BRKT,ENG MTG KD FRAME<R32> M14X35	9-92061-435-0	08	1	0108-
13	BOLT; BRKT,ENG MTG KD FRAME<R32> M12X35	9-92061-235-0	10	1	0108-
16	BOLT; 1ST C/MBR TO S/MBR M14X28	9-92061-428-0	09	1	9104-
16	BOLT; 1ST C/MBR TO S/MBR KD FRAME<R32> M14X28	9-92061-428-0	09	1	0108-
18	NUT; BRKT,ENG MTG M12	9-99110-512-0	04	1	9104-
18	NUT; BRKT,ENG MTG KD FRAME<R32> M12	9-99110-512-0	04	1	0108-
19	MEMBER; CROSS,2ND	1-53171-984-0	01	1	9104-
19	MEMBER; CROSS,2ND KD FRAME<R32>	1-53171-984-0	01	1	0108-
34	MEMBER; CROSS,3RD	1-53181-055-4	01	1	9104-
34	MEMBER; CROSS,3RD KD FRAME<R32>	1-53181-055-4	01	1	0108-
67	NUT; C/MBR M14	9-99110-514-0	08	1	9104-
67	NUT; C/MBR KD FRAME<R32> M14	9-99110-514-0	08	1	0108-
90	WASHER; PL KD FRAME<R32> ID=15	9-09651-069-0	64	1	9201-
131	BOLT; END C/MBR M12X25 W/LK WASHER	0-50041-225-0	04	1	9104-
131	BOLT; END C/MBR KD FRAME<R32> M12X25 W/LK WASHER	0-50041-225-0	04	1	0108-
132	NUT; END C/MBR M12	9-99110-412-0	04	1	9104-
132	NUT; END C/MBR KD FRAME<R32> M12	9-99110-412-0	04	1	0108-
139	MEMBER; CROSS,6TH	1-53171-983-2	01	1	9104-
139	MEMBER; CROSS,6TH KD FRAME<R32>	1-53171-983-2	01	1	0108-
143	MEMBER; CROSS,7TH	1-53171-983-2	01	1	9104-
143	MEMBER; CROSS,7TH KD FRAME<R32>	1-53171-983-2	01	1	0108-
144	MEMBER; CROSS,8TH	1-53171-957-2	01	1	9104-
144	MEMBER; CROSS,8TH KD FRAME<R32>	1-53171-957-2	01	1	0108-
145	MEMBER; CROSS,9TH	1-53171-958-0	01	1	9104-
145	MEMBER; CROSS,9TH KD FRAME<R32>	1-53171-958-0	01	1	0108-
179	WASHER; LK ID=12.2	9-09150-612-0	10	1	9104-
179	WASHER; LK ID=14.2	9-09150-614-0	08	1	9104-
179	WASHER; LK KD FRAME<R32> ID=12.2	9-09150-612-0	10	1	0108-
179	WASHER; LK KD FRAME<R32> ID=14.2	9-09150-614-0	08	1	0108-
181	BOLT; S/ABS BRKT TO FRAME M12X35 W/LK WASHER	0-50041-235-0	12	1	9104-
181	BOLT; S/ABS BRKT TO FRAME KD FRAME<R32> M12X35 W/LK WASHER	0-50041-235-0	12	1	0108-
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	09	1	9104-
191	WASHER; PL,1ST C/MBR TO S/MBR KD FRAME<R32> ID=15	9-09651-069-0	09	1	0108-
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	9201-
256	BRACKET; S/ABS	1-53369-171-0	01	1	9104-0107
256	BRACKET; S/ABS	1-53369-171-0	01	1	0108-
256	BRACKET; S/ABS	1-53369-172-0	01	1	9104-0107
256	BRACKET; S/ABS	1-53369-172-0	01	1	0108-
256	BRACKET; S/ABS KD FRAME<R32>	1-53369-171-0	01	1	0108-
256	BRACKET; S/ABS KD FRAME<R32>	1-53369-172-0	01	1	0108-
256	BRACKET; S/ABS KD FRAME<R32>	1-51681-426-0	02	1	0108-
344	MEMBER; CROSS,4TH	1-53171-957-2	01	1	9104-
344	MEMBER; CROSS,4TH KD FRAME<R32>	1-53171-957-2	01	1	0108-
345	MEMBER; CROSS,5TH	1-53171-957-2	01	1	9104-
345	MEMBER; CROSS,5TH KD FRAME<R32>	1-53171-957-2	01	1	0108-
