4-01 — PROPELLER SHAFT (#32084) — 93 parça

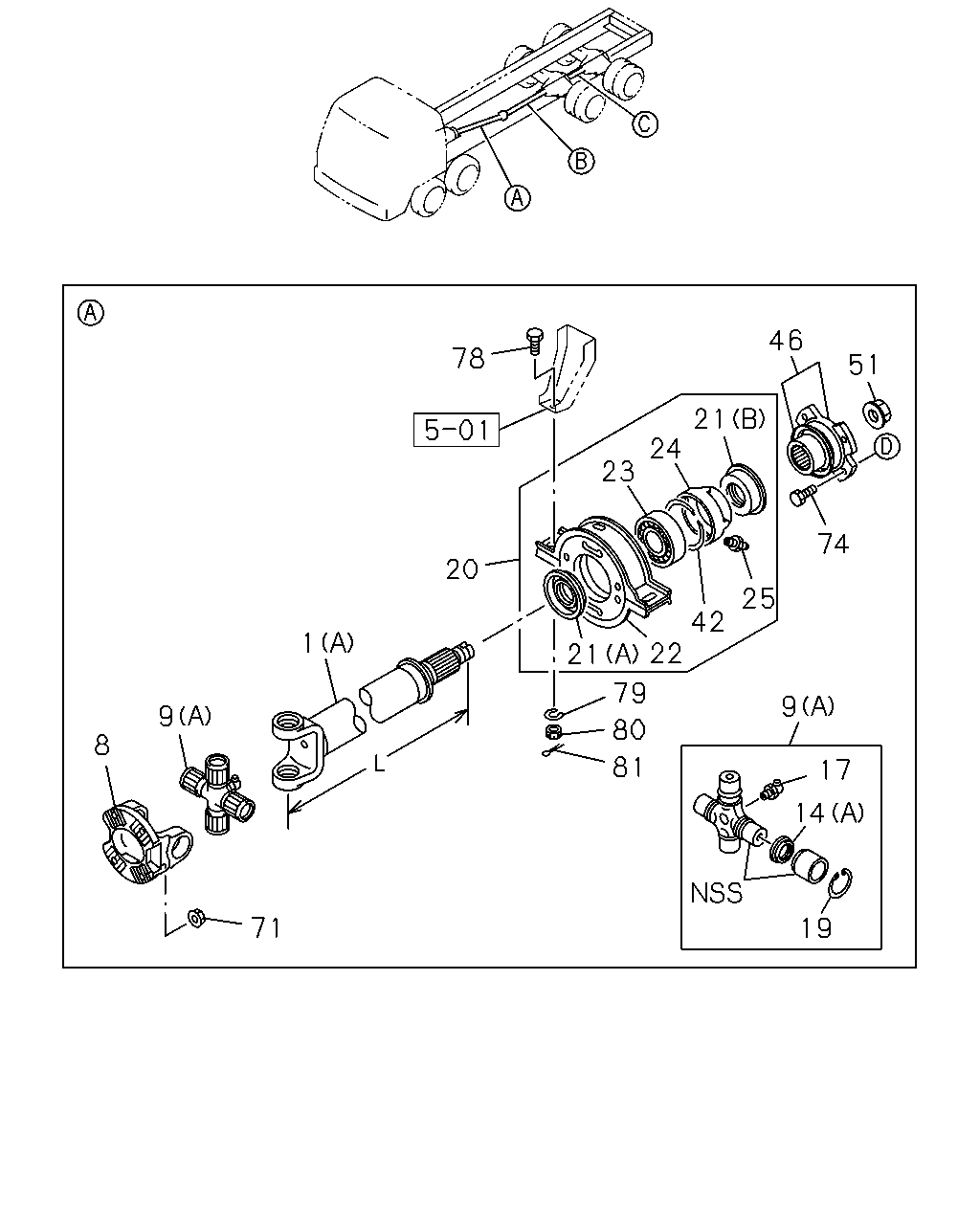

çizim 88808
46 78 51 21 24 23 74 20 25 42 1 21 79 9 9 80 8 81 17 14 71 19 22
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(B) END L=1280 		1-37125-341-0 01 1 0507-
1 SHAFT; PROP
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) END L=1685 		1-37125-401-0 01 1 0512-
1 SHAFT; PROP
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 1ST L=799 		1-37153-640-0 01 1 0512-
1 SHAFT; PROP
(A) 1ST L=1229 		1-37153-664-0 01 1 0507-0511
1 SHAFT; PROP
6WF1 TC-C(1B8) (A) 1ST L=1229 		1-37153-664-0 01 1 0512-
8 YOKE; FLANGE,PROP SHAFT
END 		1-37211-084-0 02 1 0507-
8 YOKE; FLANGE,PROP SHAFT
1ST 		1-37211-084-0 01 1 0507-
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-112-0 02 1 0507-
9 JOURNAL ASM; PROP SHAFT
(B) REAR 		1-37300-100-1 01 1 0507-
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-112-0 01 1 0507-
14 COVER; DUST,SPIDER
(A) END 		1-37249-133-0 08 1 0507-
14 COVER; DUST,SPIDER
(A) 1ST 		1-37249-133-0 04 1 0507-
14 COVER; DUST,SPIDER
(B) REAR 		1-37319-004-0 08 1 0507-
17 NIPPLE; GREASE,PROP SHAFT
1ST PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0507-0512
17 NIPPLE; GREASE,PROP SHAFT
1ST PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601-
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0507-0512
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0507-0512
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601-
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
END T=2.2 		1-09587-103-1 08 1 0507-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
END T=2.17 		1-09587-107-0 08 1 0507-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
1ST T=2.2 		1-09587-103-1 04 1 0507-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
1ST T=2.17 		1-09587-107-0 04 1 0507-
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 0507-
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 0507-
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 0507-
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 0507-
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 0507-
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 0507-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0507-
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 0507-
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 0507-
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 0507-
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0507-0805
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806-
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 0507-
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0507-
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0507-
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0507-0605
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205-
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0507-0606
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0607-

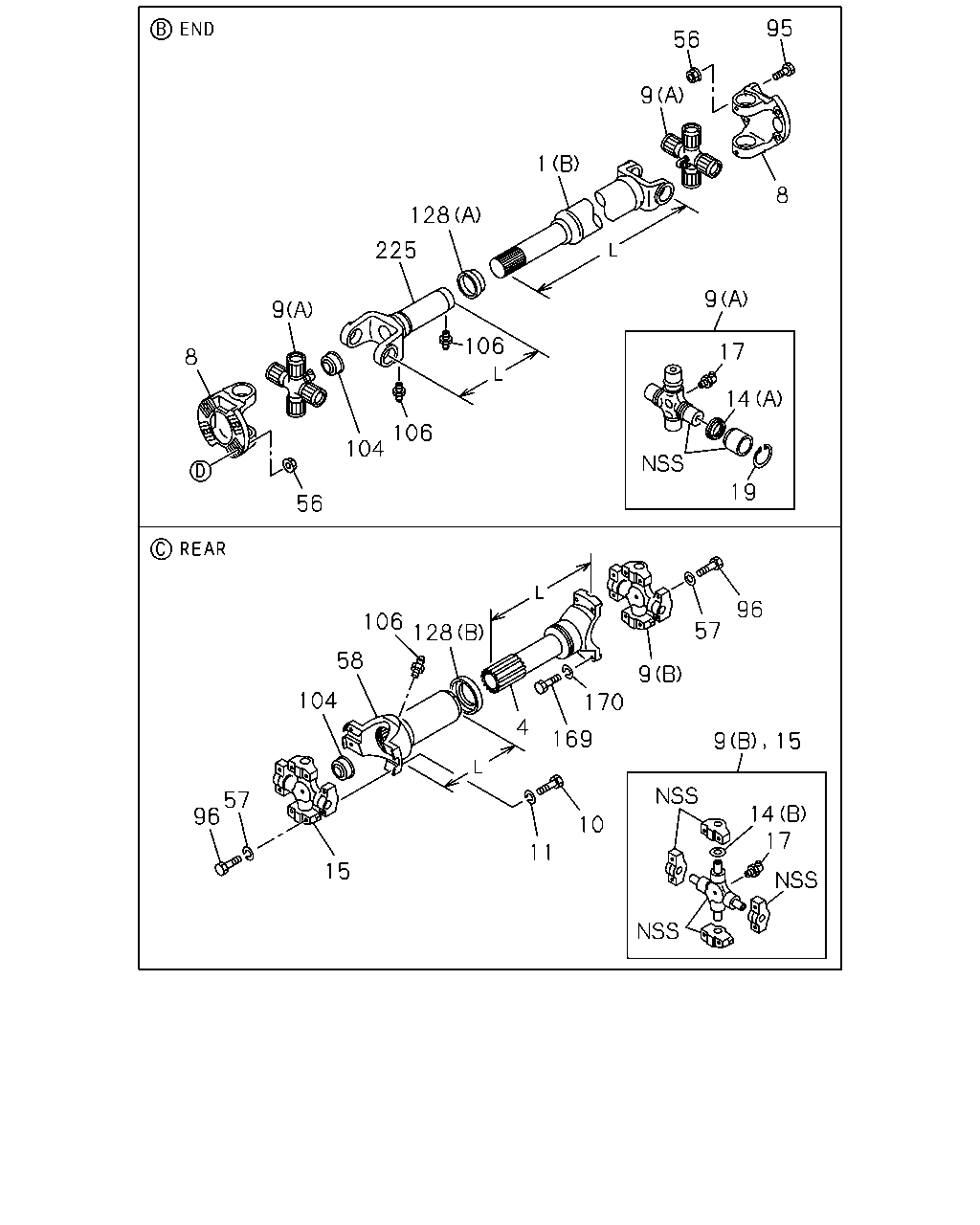

çizim 104394
95 56 9 1 8 128 225 9 106 17 8 14 106 104 19 56 96 106 57 128 58 9 104 170 4 169 9 15 57 96 14 17 10 11 15 9
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(B) END L=1280 		1-37125-341-0 01 1 0507-
1 SHAFT; PROP
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) END L=1685 		1-37125-401-0 01 1 0512-
1 SHAFT; PROP
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 1ST L=799 		1-37153-640-0 01 1 0512-
1 SHAFT; PROP
(A) 1ST L=1229 		1-37153-664-0 01 1 0507-0511
1 SHAFT; PROP
6WF1 TC-C(1B8) (A) 1ST L=1229 		1-37153-664-0 01 1 0512-
4 SHAFT; PROP
REAR L=406 		1-37171-157-2 01 1 0507-
8 YOKE; FLANGE,PROP SHAFT
END 		1-37211-084-0 02 1 0507-
8 YOKE; FLANGE,PROP SHAFT
1ST 		1-37211-084-0 01 1 0507-
9 JOURNAL ASM; PROP SHAFT
(A) END 		1-37300-112-0 02 1 0507-
9 JOURNAL ASM; PROP SHAFT
(B) REAR 		1-37300-100-1 01 1 0507-
9 JOURNAL ASM; PROP SHAFT
(A) 1ST 		1-37300-112-0 01 1 0507-
10 BOLT; UJT
M12X45 		9-91066-245-0 04 1 0507-0805
10 BOLT; UJT
M12X45 		8-98036-382-0 04 1 0806-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		9-09150-612-0 04 1 0507-0603
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 0604-
14 COVER; DUST,SPIDER
(A) END 		1-37249-133-0 08 1 0507-
14 COVER; DUST,SPIDER
(A) 1ST 		1-37249-133-0 04 1 0507-
14 COVER; DUST,SPIDER
(B) REAR 		1-37319-004-0 08 1 0507-
15 UNIVERSAL CENTER
REAR 		1-37300-100-1 01 1 0507-
17 NIPPLE; GREASE,PROP SHAFT
1ST PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 01 1 0507-0512
17 NIPPLE; GREASE,PROP SHAFT
1ST PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0601-
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0507-0512
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0507-0512
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601-
17 NIPPLE; GREASE,PROP SHAFT
END AND REAR PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
END T=2.2 		1-09587-103-1 08 1 0507-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
END T=2.17 		1-09587-107-0 08 1 0507-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
1ST T=2.2 		1-09587-103-1 04 1 0507-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
1ST T=2.17 		1-09587-107-0 04 1 0507-
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 08 1 0507-0805
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 08 1 0806-
57 WASHER; LK,YOKE
ID=12.2 		9-09150-612-0 08 1 0507-0603
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 0604-
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 0507-
95 BOLT; YOKE,FINAL
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50 		1-09000-645-0 04 1 0507-
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 0507-0805
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 0806-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0507-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0507-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
REAR PT1/8 STRAIGHT 		9-09031-010-0 01 1 0507-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
REAR PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
END PT1/8 STRAIGHT 		9-09031-010-0 02 1 0507-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
END PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601-
128 SEAL; SLEEVE
(A) END 		1-37247-020-0 01 1 0507-
128 SEAL; SLEEVE
(B) REAR 		8-97603-618-0 01 1 0507-
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 0507-0805
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 0806-
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		9-09150-612-0 04 1 0507-0603
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 0604-
225 YOKE; SLEEVE,PROP SHAFT
L=339 		1-37241-140-0 01 1 0507-
