3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#32082) — 26 parça
◀

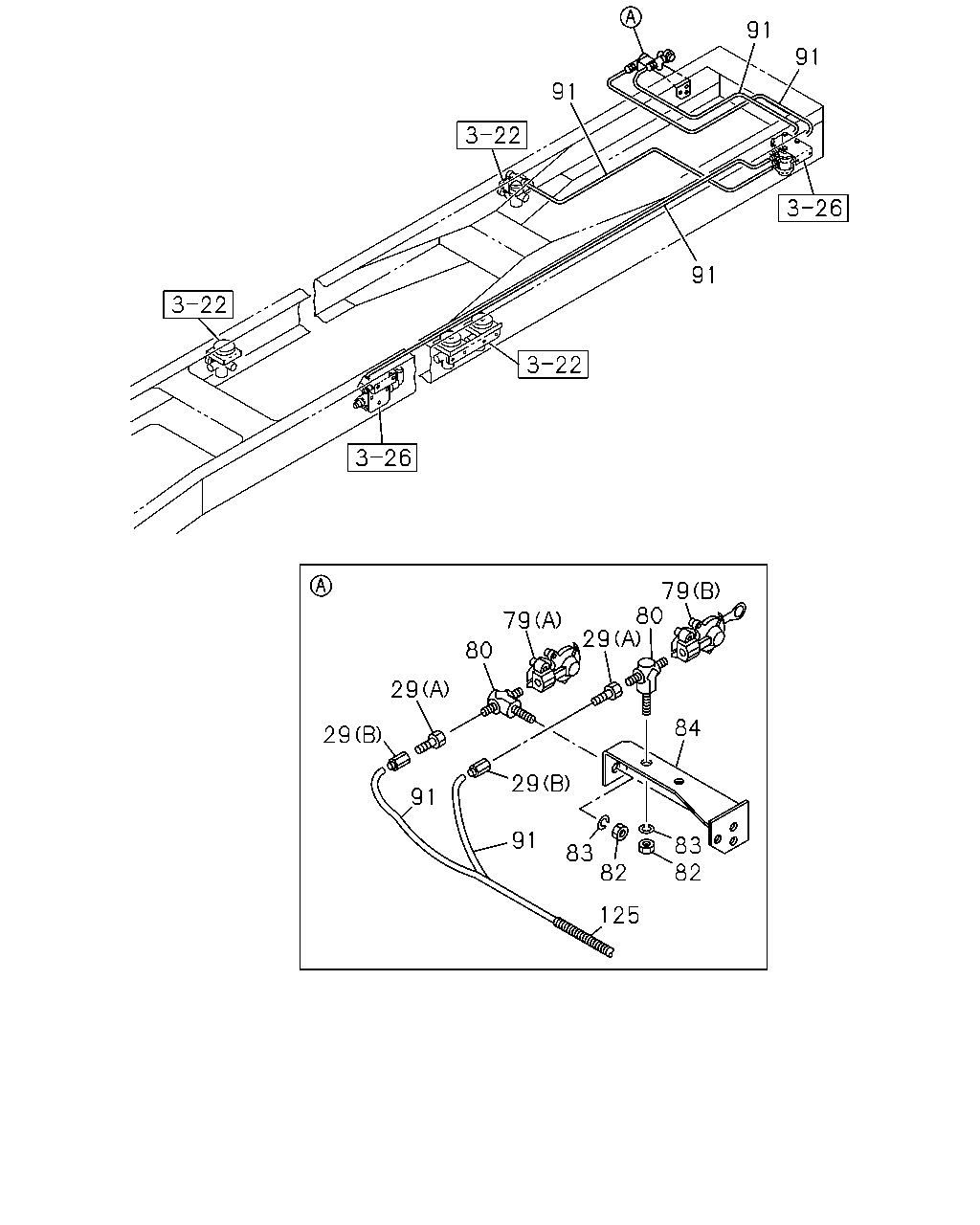

[380A] FRAME SIDE (15 parça)
[380A] CAB SIDE (11 parça)
▶
91
91
91
91
79
80
79
29
80
29
84
29
29
91
91
83
82
83
82
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
CONNECTOR; COCK
(A)
1-09650-222-1
02
1
0507-
29
CONNECTOR; COCK
(B) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0507-
79
COUPLING; AIR,TRAILER
(A) RED
1-47478-466-1
01
1
0507-
79
COUPLING; AIR,TRAILER
(B) YELLOW
1-47478-467-1
01
1
0507-
80
NIPPLE; AIR COUPLING
1-09656-377-1
02
1
0507-
82
NUT; LK,CONNECTOR
M16
9-99111-416-0
02
1
0507-0512
82
NUT; LK,CONNECTOR
M16
0-91111-516-0
02
1
0601-
83
WASHER; LK,CONNECTOR
ID=16.2
9-09150-516-0
02
1
0507-0603
83
WASHER; LK,CONNECTOR
ID=16.2
0-91510-516-0
02
1
0604-
84
BRACKET; COUPLER
1-47465-883-1
01
1
0507-
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0507-
91
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0507-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0507-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0507-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0507-
106
105
106
107
104
47
99
140
118
140
126
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
PIPE; AIR,UNION TO UNION
L=1910 SERVICED BY L=1950
1-47428-854-0
01
1
0507-
99
PIPE; AIR,JOINT TO JOINT
1-49122-057-1
01
1
0507-
104
PIPE; AIR,JOINT TO PARKING BRK VLV
1-49121-477-0
01
1
0507-
105
PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000
9-09914-701-0
01
1
0507-
106
CLIP; PIPE
ID=14
8-94238-572-0
02
1
0507-
107
PIPE; AIR,JOINT TO PARKING BRK VLV
1-47495-160-0
01
1
0507-
118
JOINT; AIR PIPE
1-47470-608-1
01
1
0507-
126
CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0507-
126
CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0507-
140
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0507-0904
140
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
