◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11006 - CYJ NEW ZEALAND ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#32081) — 381 parça

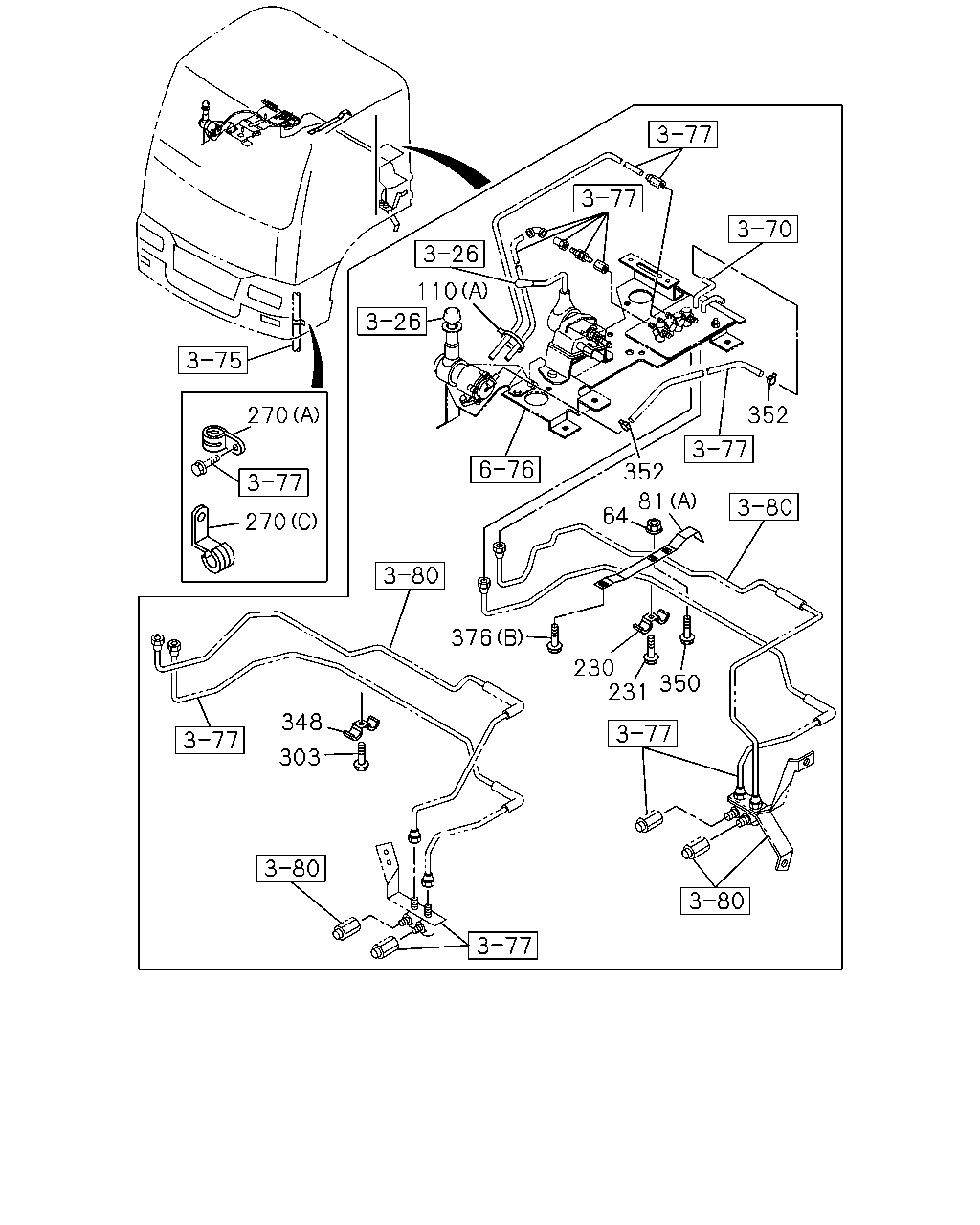

çizim 88592
110 352 270 352 81 64 270 376 230 231 350 348 303
BalonParca AdiParca NoAdetTipApplied Date
64 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0507-0602
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
81 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) 		1-47471-322-0 02 1 0512-
81 BRACKET; CLIP
(F) W/STUD M8X20 		1-47471-209-0 02 1 0507-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0507-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 02 1 0507-
81 BRACKET; CLIP
6WF1 TC-C(1B8) (D) L=130 		1-47478-959-0 02 1 0507-
81 BRACKET; CLIP
(C) 		1-47479-381-2 03 1 0507-
81 BRACKET; CLIP
(E) L=30 		1-47479-481-0 01 1 0507-
110 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 01 1 0507-
110 CLIP; BAND,NYLON TUBE
(A) L=140 		5-09707-031-1 02 1 0507-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0507-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0507-
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0507-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0507-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0507-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0507-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 0507-
350 BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0507-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0507-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0507-

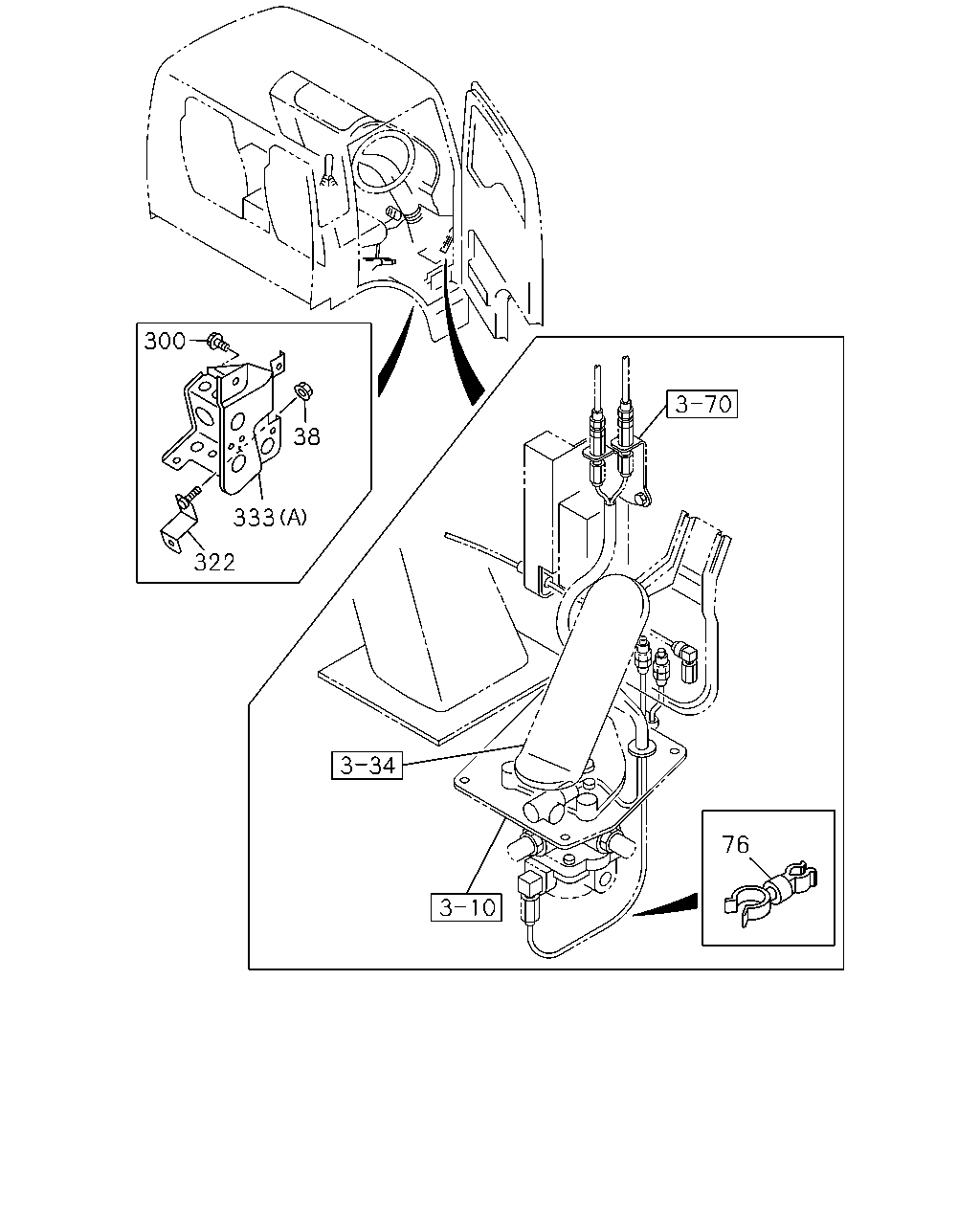

çizim 88593
300 38 333 322 76
BalonParca AdiParca NoAdetTipApplied Date
38 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0507-0602
38 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-0702
76 CLIP; NYLON TUBE
ID=6 & 8.3 		8-94167-742-0 02 1 0507-0706
76 CLIP; NYLON TUBE
6WF1 TC-C(1B8) ID=6 & 8.3 		8-94167-742-0 02 1 0507-0706
76 CLIP; NYLON TUBE
ID=6 & 8.3 		8-94167-742-0 02 1 0707-
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0507-0904
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
322 BRACKET; CLIP 1-79996-659-1 01 1 0507-0702
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 0507-
333 BRACKET; BRK AIR PIPE
(A) 		1-79997-339-6 01 1 0507-0702
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0703-0801
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802-

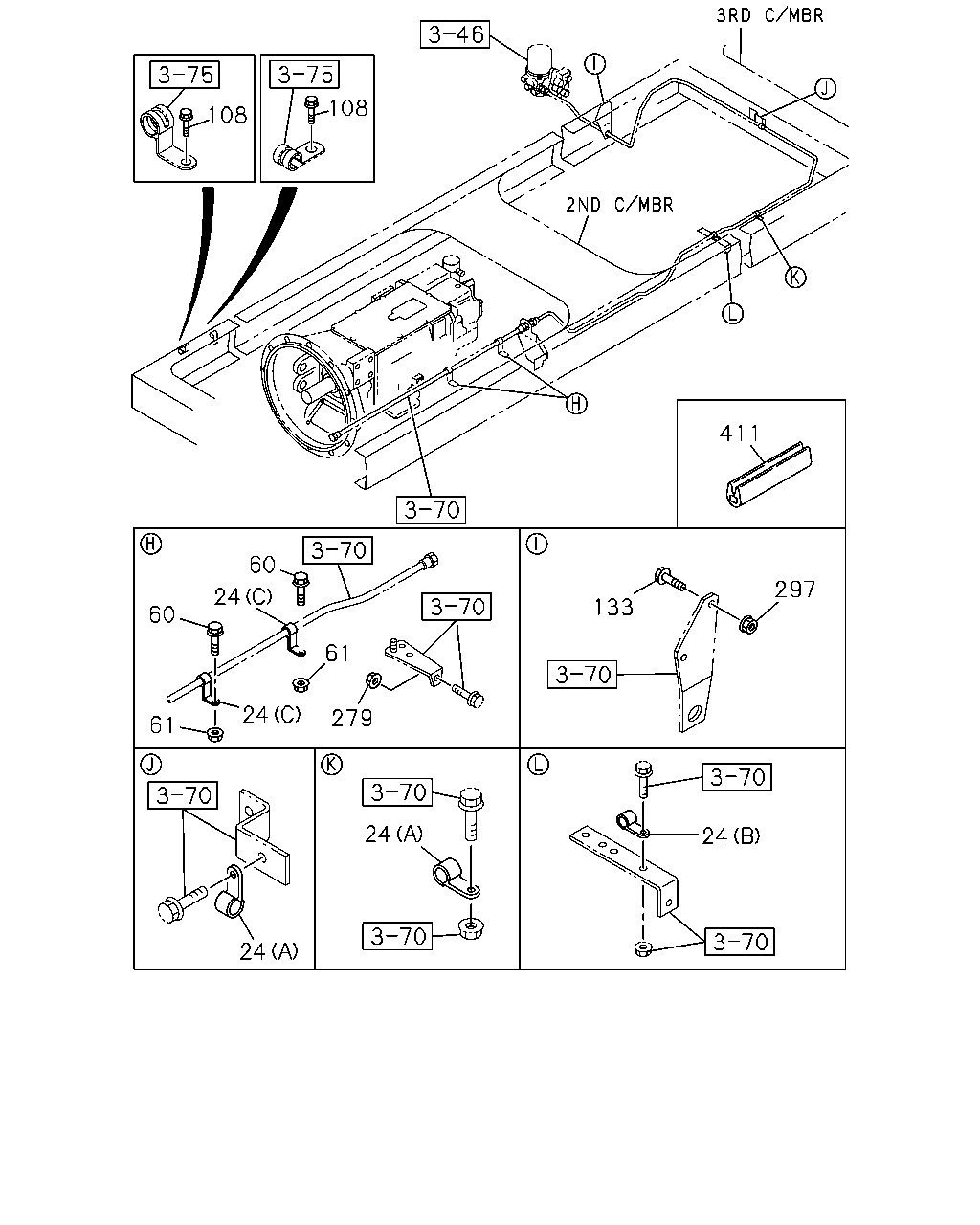

çizim 88594
3 108 108 411 60 297 24 133 60 61 24 279 61 24 24 24
BalonParca AdiParca NoAdetTipApplied Date
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0507-0511
3 NUT; CLIP,AIR PIPE
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
24 CLIP; PIPE
(C) ID=25 H=30 L=35 		1-09700-875-0 02 1 0507-
24 CLIP; PIPE
(B) ID=19 L=20 		9-09525-836-0 01 1 0507-0606
24 CLIP; PIPE
(B) ID=19 L=20 		0-95235-836-0 01 1 0607-
24 CLIP; PIPE
(A) ID=19 H=25 L=25 		9-09917-035-0 02 1 0507-0511
24 CLIP; PIPE
6WF1 TC-C(1B8) (A) ID=19 H=25 L=25 		9-09917-035-0 02 1 0512-
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28680-830-0 02 1 0507-0512
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 02 1 0507-0602
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 02 1 0507-0602
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 0603-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 0603-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 10 1 0507-0512
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 10 1 0601-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE 		0-28680-825-0 07 1 0512-0512
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE 		0-28650-825-0 07 1 0601-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 06 1 0507-0511
133 BOLT; BRKT
6WF1 TC-C(1B8) M8X25 FLANGE 		0-28680-825-0 06 1 0512-0512
133 BOLT; BRKT
6WF1 TC-C(1B8) M8X25 FLANGE 		0-28650-825-0 06 1 0601-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 08 1 0507-0512
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 08 1 0601-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0507-0512
133 BOLT; BRKT
6WF1 TC-C(1B8) M8X30 FLANGE 		0-28680-830-0 02 1 0507-0512
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
133 BOLT; BRKT
6WF1 TC-C(1B8) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
133 BOLT; BRKT
M6X10 FLANGE 		0-28080-610-0 01 1 0507-0512
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0601-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0601-
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0507-0602
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 10 1 0507-0602
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 10 1 0603-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 24 1 0507-0511
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0512-0602
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0507-0511
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 24 1 0512-0602
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 24 1 0603-
411 SLEEVE; RUBBER
L=60 		8-97865-346-0 01 1 0607-

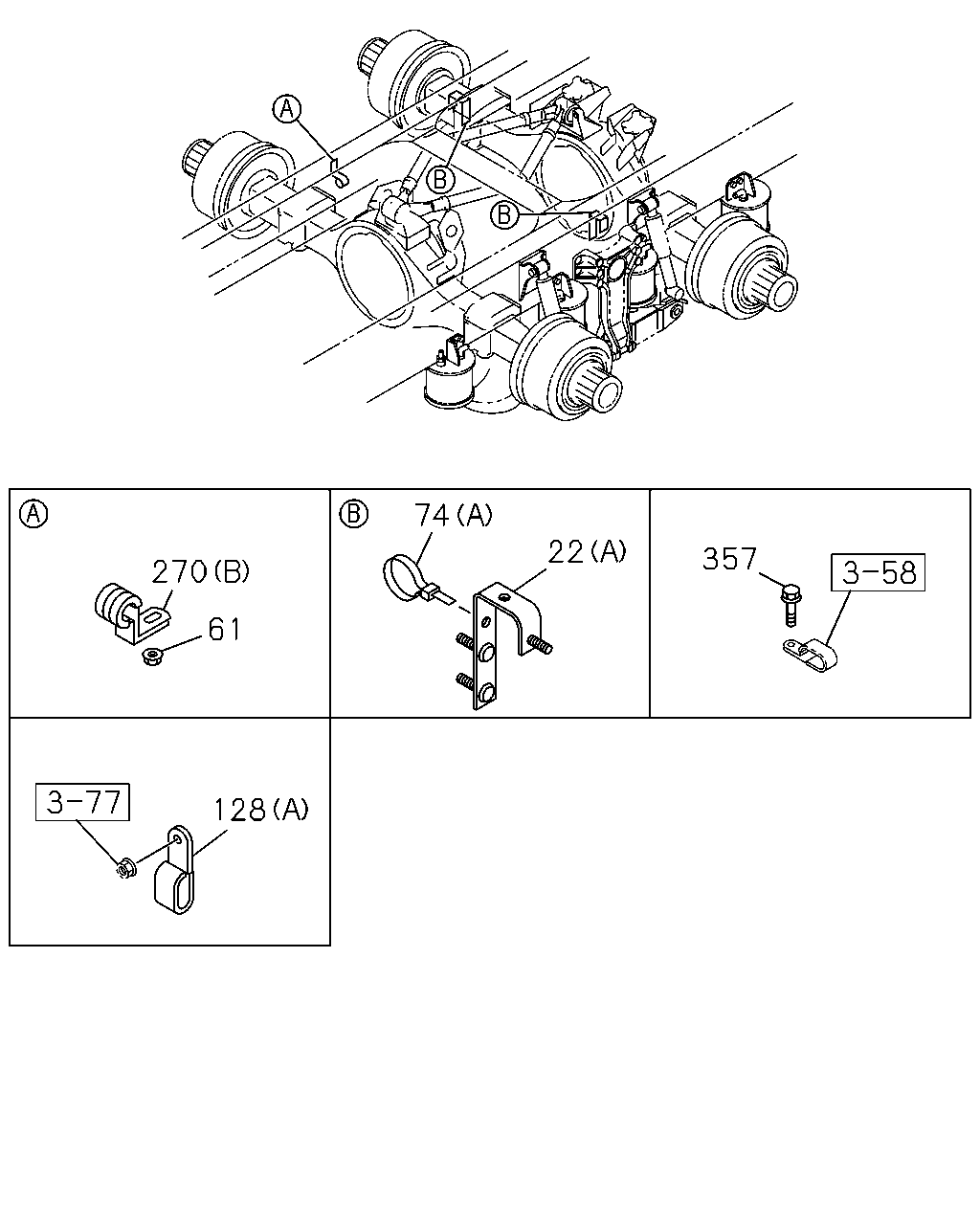

çizim 88885
74 22 357 270 61 128
BalonParca AdiParca NoAdetTipApplied Date
22 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) 		1-47479-381-2 09 1 0512-
22 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) 		1-47479-598-0 03 1 0512-
22 BRACKET; CLIP
(J) L=115 H=30 		1-47477-715-3 01 1 0507-
22 BRACKET; CLIP
(H) 		1-47479-381-2 10 1 0507-0511
22 BRACKET; CLIP
6WF1 TC-C(1B8) (H) 		1-47479-381-2 10 1 0512-
22 BRACKET; CLIP
(F) 		1-47479-598-0 02 1 0507-0511
22 BRACKET; CLIP
6WF1 TC-C(1B8) (F) 		1-47479-598-0 02 1 0512-
22 BRACKET; CLIP
(G) L=100 H=30 		1-47477-645-2 01 1 0507-
22 BRACKET; CLIP
(A) 		1-47479-329-0 02 1 0507-
22 BRACKET; CLIP
(I) 		1-47479-693-0 03 1 0507-
22 BRACKET; CLIP
(E) 		1-47479-746-1 01 1 0507-
22 BRACKET; CLIP
(D) 		1-47479-754-0 01 1 0507-
22 BRACKET; CLIP
(B) 		1-47479-836-0 01 1 0507-
22 BRACKET; CLIP
(C) 		1-47479-838-0 01 1 0507-
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 02 1 0507-0602
61 NUT; CLIP FIX
M8 FLANGE 		0-91150-108-0 02 1 0507-0602
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 0603-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 0603-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 38 1 0507-0510
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 39 1 0511-0511
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 40 1 0511-
74 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 03 1 0507-
74 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 03 1 0507-
74 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 0507-
128 CLIP; NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 01 1 0507-
128 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 36 1 0507-0510
128 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 37 1 0511-
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0507-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0507-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0507-
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28080-810-0 02 1 0507-0512
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 0601-

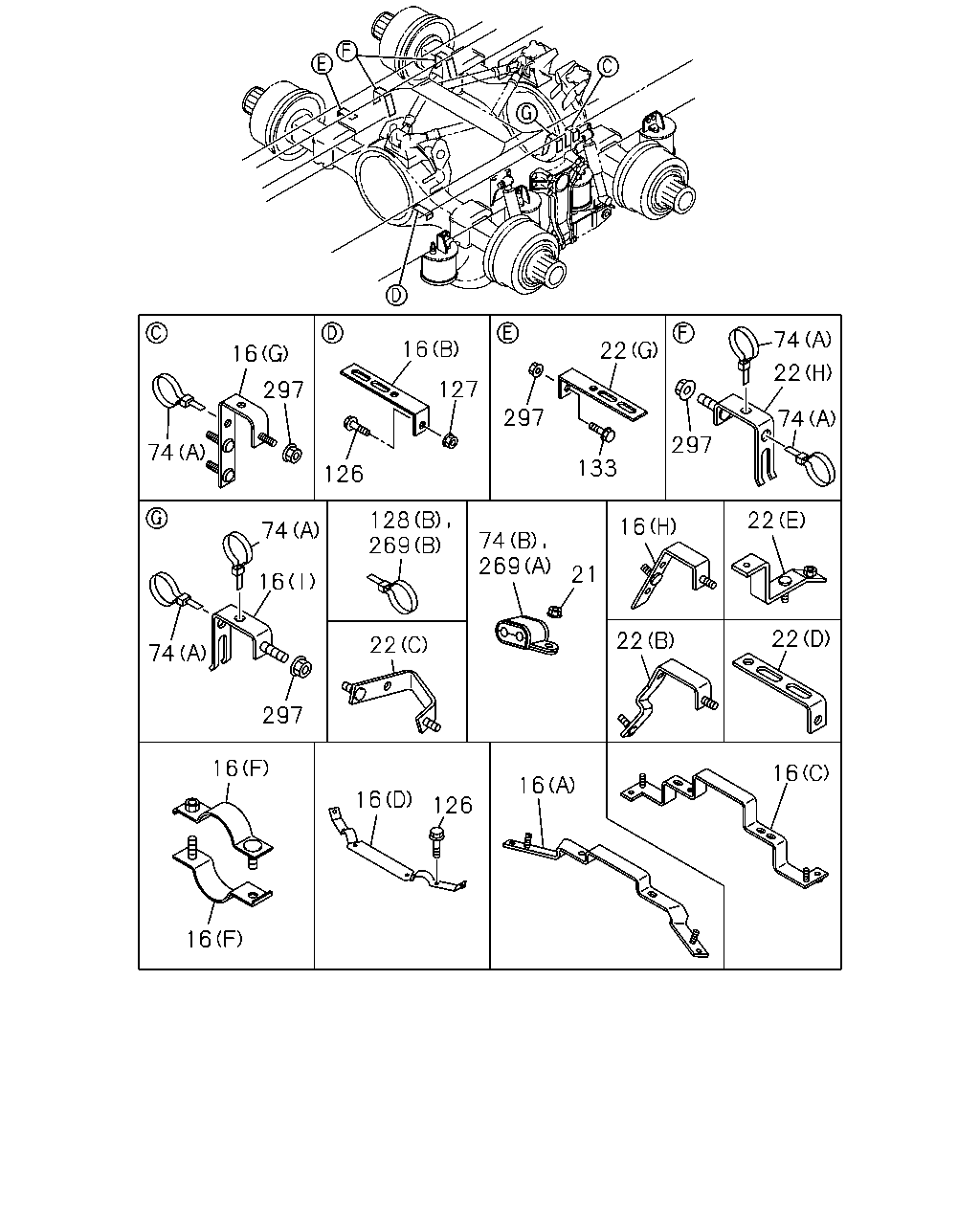

çizim 90267
74 16 22 16 22 127 297 74 297 297 74 133 126 128 269 22 16 74 74 269 21 16 22 22 22 74 297 16 16 16 16 126 16
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(J) L=100 		1-47477-620-1 01 1 0507-
16 BRACKET; PIPE CLIP
(B) L=100 H=30 		1-47477-645-2 01 1 0507-
16 BRACKET; PIPE CLIP
(K) L=65 		1-47477-713-0 01 1 0507-
16 BRACKET; PIPE CLIP
(G) 		1-47479-329-0 02 1 0507-
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 14 1 0507-0510
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 15 1 0511-
16 BRACKET; PIPE CLIP
(E) L=30 		1-47479-481-0 01 1 0507-
16 BRACKET; PIPE CLIP
(M) 		1-47479-693-0 03 1 0507-
16 BRACKET; PIPE CLIP
(L) 		1-47479-800-0 01 1 0507-
16 BRACKET; PIPE CLIP
(H) 		1-47479-837-0 01 1 0507-
16 BRACKET; PIPE CLIP
(F) 		1-47479-845-0 02 1 0507-
16 BRACKET; PIPE CLIP
(D) 		1-47479-846-0 01 1 0507-
16 BRACKET; PIPE CLIP
(A) 		1-47479-896-0 01 1 0507-
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 01 1 0507-
21 NUT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
21 NUT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 01 1 0603-
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 0507-0602
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603-
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0507-0602
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0603-
22 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) 		1-47479-381-2 09 1 0512-
22 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) 		1-47479-598-0 03 1 0512-
22 BRACKET; CLIP
(J) L=115 H=30 		1-47477-715-3 01 1 0507-
22 BRACKET; CLIP
(H) 		1-47479-381-2 10 1 0507-0511
22 BRACKET; CLIP
6WF1 TC-C(1B8) (H) 		1-47479-381-2 10 1 0512-
22 BRACKET; CLIP
(F) 		1-47479-598-0 02 1 0507-0511
22 BRACKET; CLIP
6WF1 TC-C(1B8) (F) 		1-47479-598-0 02 1 0512-
22 BRACKET; CLIP
(G) L=100 H=30 		1-47477-645-2 01 1 0507-
22 BRACKET; CLIP
(A) 		1-47479-329-0 02 1 0507-
22 BRACKET; CLIP
(I) 		1-47479-693-0 03 1 0507-
22 BRACKET; CLIP
(E) 		1-47479-746-1 01 1 0507-
22 BRACKET; CLIP
(D) 		1-47479-754-0 01 1 0507-
22 BRACKET; CLIP
(B) 		1-47479-836-0 01 1 0507-
22 BRACKET; CLIP
(C) 		1-47479-838-0 01 1 0507-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 38 1 0507-0510
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 39 1 0511-0511
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 40 1 0511-
74 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 03 1 0507-
74 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 03 1 0507-
74 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 0507-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28080-812-0 04 1 0507-0512
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 0601-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 05 1 0507-0512
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0601-
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0507-0512
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 27 1 0507-0510
127 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 28 1 0511-0602
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 28 1 0603-
128 CLIP; NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 01 1 0507-
128 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 36 1 0507-0510
128 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 37 1 0511-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE 		0-28680-825-0 07 1 0512-0512
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE 		0-28650-825-0 07 1 0601-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 06 1 0507-0511
133 BOLT; BRKT
6WF1 TC-C(1B8) M8X25 FLANGE 		0-28680-825-0 06 1 0512-0512
133 BOLT; BRKT
6WF1 TC-C(1B8) M8X25 FLANGE 		0-28650-825-0 06 1 0601-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 08 1 0507-0512
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 08 1 0601-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0507-0512
133 BOLT; BRKT
6WF1 TC-C(1B8) M8X30 FLANGE 		0-28680-830-0 02 1 0507-0512
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
133 BOLT; BRKT
6WF1 TC-C(1B8) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
133 BOLT; BRKT
M6X10 FLANGE 		0-28080-610-0 01 1 0507-0512
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0601-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0601-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 03 1 0507-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 04 1 0507-
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 0507-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 24 1 0507-0511
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0512-0602
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0507-0511
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 24 1 0512-0602
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 24 1 0603-

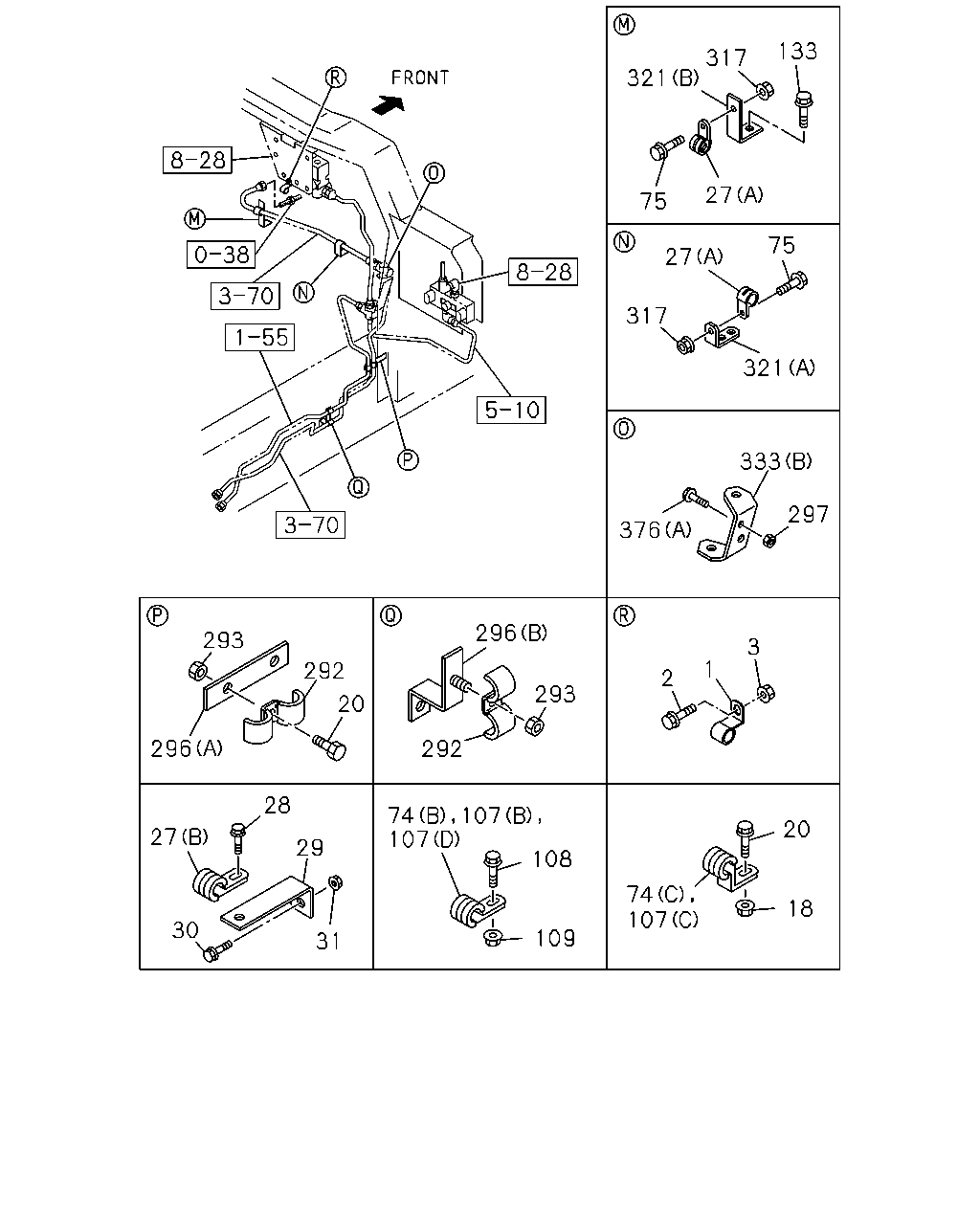

çizim 104389
133 317 321 27 75 75 27 317 321 333 297 376 296 293 3 1 292 2 293 20 296 292 28 74 107 107 20 27 29 108 74 107 18 30 109 31
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 0507-0511
1 CLIP; AIR PIPE
6WF1 TC-C(1B8) ID=6 H=20 L=20 		1-09700-603-0 01 1 0512-
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 01 1 0507-0512
2 BOLT; CLIP FIX
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28680-820-0 01 1 0507-0512
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
2 BOLT; CLIP FIX
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0507-0511
3 NUT; CLIP,AIR PIPE
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
18 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0507-0602
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603-
20 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
20 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 04 1 0507-0512
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 04 1 0601-
20 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0507-0512
20 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
27 CLIP; FLEX HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=26 L=27 		1-09701-006-0 01 1 0512-
27 CLIP; FLEX HOSE
(A) ID=15 L=28 		1-09701-216-0 02 1 0507-
28 BOLT; CLIP,FLEX HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512
28 BOLT; CLIP,FLEX HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
29 BRACKET; CLIP,AIR PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) L=145 B=25 		1-47479-123-0 01 1 0512-
30 BOLT; CLIP BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X30 FLANGE 		0-28680-830-0 01 1 0512-0512
30 BOLT; CLIP BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
31 NUT; CLIP BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 01 1 0512-0602
31 NUT; CLIP BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 01 1 0603-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 38 1 0507-0510
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 39 1 0511-0511
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 40 1 0511-
74 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 03 1 0507-
74 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 03 1 0507-
74 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 0507-
75 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 0507-0510
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 17 1 0511-
107 CLIP; NYLON TUBE
(B) ID=24 L=27 		1-09700-809-0 01 1 0507-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 0507-
107 CLIP; NYLON TUBE
(D) ID=25 L=50 		1-09701-019-0 01 1 0507-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 10 1 0507-0512
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 10 1 0601-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 05 1 0507-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE 		0-28680-825-0 07 1 0512-0512
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE 		0-28650-825-0 07 1 0601-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 06 1 0507-0511
133 BOLT; BRKT
6WF1 TC-C(1B8) M8X25 FLANGE 		0-28680-825-0 06 1 0512-0512
133 BOLT; BRKT
6WF1 TC-C(1B8) M8X25 FLANGE 		0-28650-825-0 06 1 0601-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 08 1 0507-0512
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 08 1 0601-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0507-0512
133 BOLT; BRKT
6WF1 TC-C(1B8) M8X30 FLANGE 		0-28680-830-0 02 1 0507-0512
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
133 BOLT; BRKT
6WF1 TC-C(1B8) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
133 BOLT; BRKT
M6X10 FLANGE 		0-28080-610-0 01 1 0507-0512
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0601-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0601-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0507-
293 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0507-0602
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
296 BRACKET; CLIP
(A) 		1-47475-648-0 01 1 0507-
296 BRACKET; CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 0507-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 24 1 0507-0511
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0512-0602
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0507-0511
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 24 1 0512-0602
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 24 1 0603-
317 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0507-0602
317 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
321 BRACKET; CLIP
(A) 		1-47477-337-1 01 1 0507-
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 0507-
321 BRACKET; CLIP
(C) L=59 B=20 		1-47479-048-0 01 1 0507-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 0507-
333 BRACKET; BRK AIR PIPE
(A) 		1-79997-339-6 01 1 0507-0702
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0703-0801
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0507-

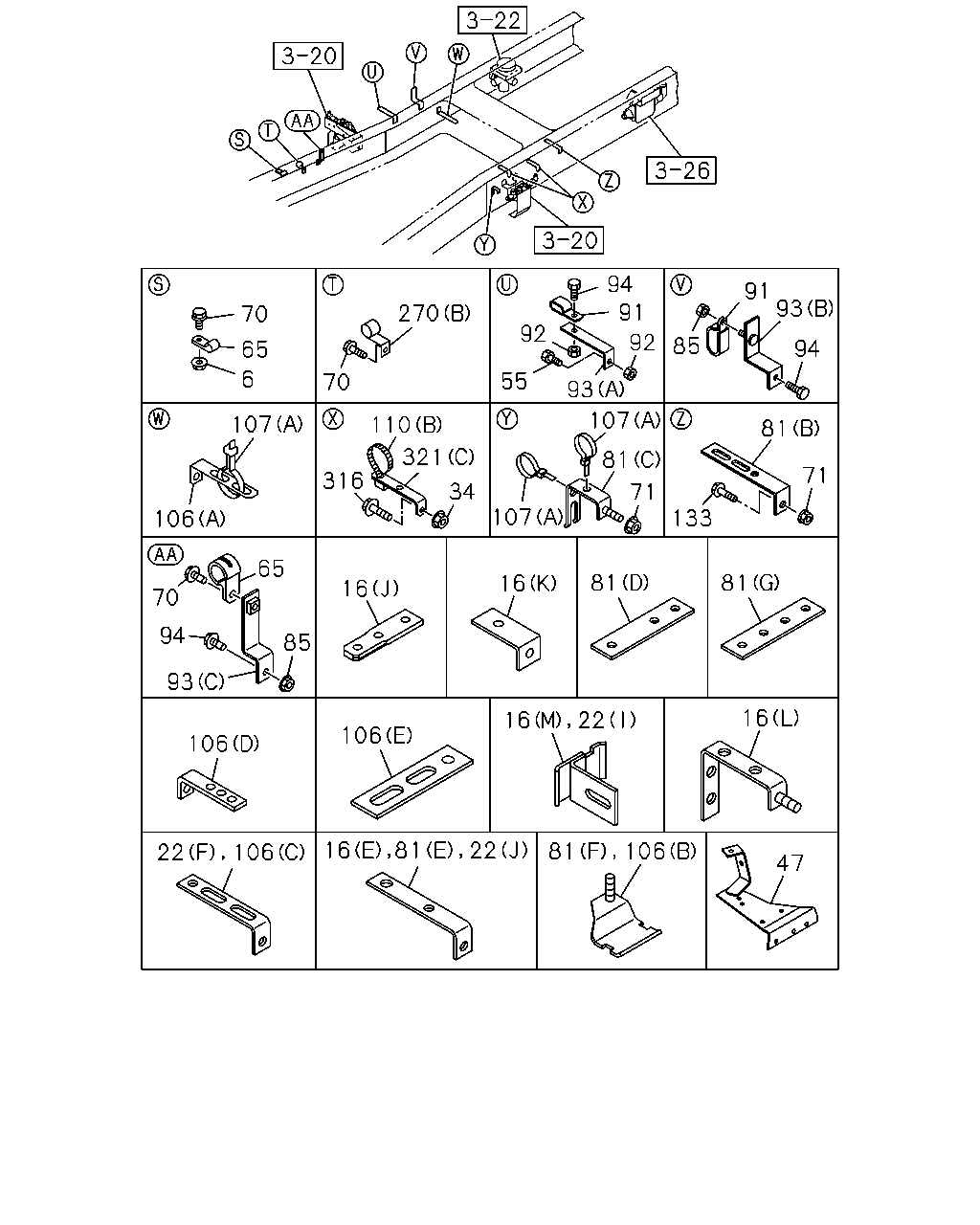

çizim 104496
94 91 91 93 270 70 92 92 85 94 65 6 55 70 93 107 107 110 81 321 81 71 316 34 71 107 133 106 65 81 81 16 16 70 94 85 93 16 106 106 81 106 22 106 47 16 22 22 81 16
BalonParca AdiParca NoAdetTipApplied Date
6 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0507-0602
6 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
16 BRACKET; PIPE CLIP
(J) L=100 		1-47477-620-1 01 1 0507-
16 BRACKET; PIPE CLIP
(B) L=100 H=30 		1-47477-645-2 01 1 0507-
16 BRACKET; PIPE CLIP
(K) L=65 		1-47477-713-0 01 1 0507-
16 BRACKET; PIPE CLIP
(G) 		1-47479-329-0 02 1 0507-
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 14 1 0507-0510
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 15 1 0511-
16 BRACKET; PIPE CLIP
(E) L=30 		1-47479-481-0 01 1 0507-
16 BRACKET; PIPE CLIP
(M) 		1-47479-693-0 03 1 0507-
16 BRACKET; PIPE CLIP
(L) 		1-47479-800-0 01 1 0507-
16 BRACKET; PIPE CLIP
(H) 		1-47479-837-0 01 1 0507-
16 BRACKET; PIPE CLIP
(F) 		1-47479-845-0 02 1 0507-
16 BRACKET; PIPE CLIP
(D) 		1-47479-846-0 01 1 0507-
16 BRACKET; PIPE CLIP
(A) 		1-47479-896-0 01 1 0507-
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 01 1 0507-
22 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) 		1-47479-381-2 09 1 0512-
22 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) 		1-47479-598-0 03 1 0512-
22 BRACKET; CLIP
(J) L=115 H=30 		1-47477-715-3 01 1 0507-
22 BRACKET; CLIP
(H) 		1-47479-381-2 10 1 0507-0511
22 BRACKET; CLIP
6WF1 TC-C(1B8) (H) 		1-47479-381-2 10 1 0512-
22 BRACKET; CLIP
(F) 		1-47479-598-0 02 1 0507-0511
22 BRACKET; CLIP
6WF1 TC-C(1B8) (F) 		1-47479-598-0 02 1 0512-
22 BRACKET; CLIP
(G) L=100 H=30 		1-47477-645-2 01 1 0507-
22 BRACKET; CLIP
(A) 		1-47479-329-0 02 1 0507-
22 BRACKET; CLIP
(I) 		1-47479-693-0 03 1 0507-
22 BRACKET; CLIP
(E) 		1-47479-746-1 01 1 0507-
22 BRACKET; CLIP
(D) 		1-47479-754-0 01 1 0507-
22 BRACKET; CLIP
(B) 		1-47479-836-0 01 1 0507-
22 BRACKET; CLIP
(C) 		1-47479-838-0 01 1 0507-
34 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0507-0602
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
47 BRACKET; PIPE CLIP 1-47479-325-0 01 1 0507-
55 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512
55 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
65 CLIP; AIR PIPE
ID=13 L=20 		9-09525-235-0 02 1 0507-0606
65 CLIP; AIR PIPE
ID=13 L=20 		0-95235-235-0 02 1 0607-
70 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 0507-0512
70 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
70 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512
70 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
71 NUT; BRKT
M8 FLANGE 		0-91150-108-0 10 1 0507-0602
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 10 1 0603-
81 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) 		1-47471-322-0 02 1 0512-
81 BRACKET; CLIP
(F) W/STUD M8X20 		1-47471-209-0 02 1 0507-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0507-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 02 1 0507-
81 BRACKET; CLIP
6WF1 TC-C(1B8) (D) L=130 		1-47478-959-0 02 1 0507-
81 BRACKET; CLIP
(C) 		1-47479-381-2 03 1 0507-
81 BRACKET; CLIP
(E) L=30 		1-47479-481-0 01 1 0507-
85 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 04 1 0507-0602
85 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
91 CLIP; AIR PIPE
ID=13X2 L=20 		9-09535-236-0 02 1 0507-0606
91 CLIP; AIR PIPE
ID=13X2 L=20 		0-95325-236-0 02 1 0607-
92 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0507-0602
92 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
93 BRACKET; PIPE CLIP
(C) L=80 H=20 		1-82699-304-0 01 1 0507-
93 BRACKET; PIPE CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 0507-
93 BRACKET; PIPE CLIP
(A) L=175 H=30 		1-47479-386-1 01 1 0507-
94 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 03 1 0507-0512
94 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0601-
106 BRACKET; TUBE CLIP
(B) W/STUD M8X20 		1-47471-209-0 02 1 0507-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0507-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 03 1 0507-
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 03 1 0507-
106 BRACKET; TUBE CLIP
(D) L=120 H=35 		1-82699-970-0 01 1 0507-0905
106 BRACKET; TUBE CLIP
(D) 		1-82698-358-0 01 1 0906-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 15 1 0507-0510
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 17 1 0511-
107 CLIP; NYLON TUBE
(B) ID=24 L=27 		1-09700-809-0 01 1 0507-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 0507-
107 CLIP; NYLON TUBE
(D) ID=25 L=50 		1-09701-019-0 01 1 0507-
110 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 01 1 0507-
110 CLIP; BAND,NYLON TUBE
(A) L=140 		5-09707-031-1 02 1 0507-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE 		0-28680-825-0 07 1 0512-0512
133 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE 		0-28650-825-0 07 1 0601-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 06 1 0507-0511
133 BOLT; BRKT
6WF1 TC-C(1B8) M8X25 FLANGE 		0-28680-825-0 06 1 0512-0512
133 BOLT; BRKT
6WF1 TC-C(1B8) M8X25 FLANGE 		0-28650-825-0 06 1 0601-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 08 1 0507-0512
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 08 1 0601-
133 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0507-0512
133 BOLT; BRKT
6WF1 TC-C(1B8) M8X30 FLANGE 		0-28680-830-0 02 1 0507-0512
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
133 BOLT; BRKT
6WF1 TC-C(1B8) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
133 BOLT; BRKT
M6X10 FLANGE 		0-28080-610-0 01 1 0507-0512
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0601-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0601-
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0507-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0507-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0507-
316 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512
316 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
321 BRACKET; CLIP
(A) 		1-47477-337-1 01 1 0507-
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 0507-
321 BRACKET; CLIP
(C) L=59 B=20 		1-47479-048-0 01 1 0507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
