Isuzu WW
▶
BUSES
▶
MT
▶
10662 - MT(THAI)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

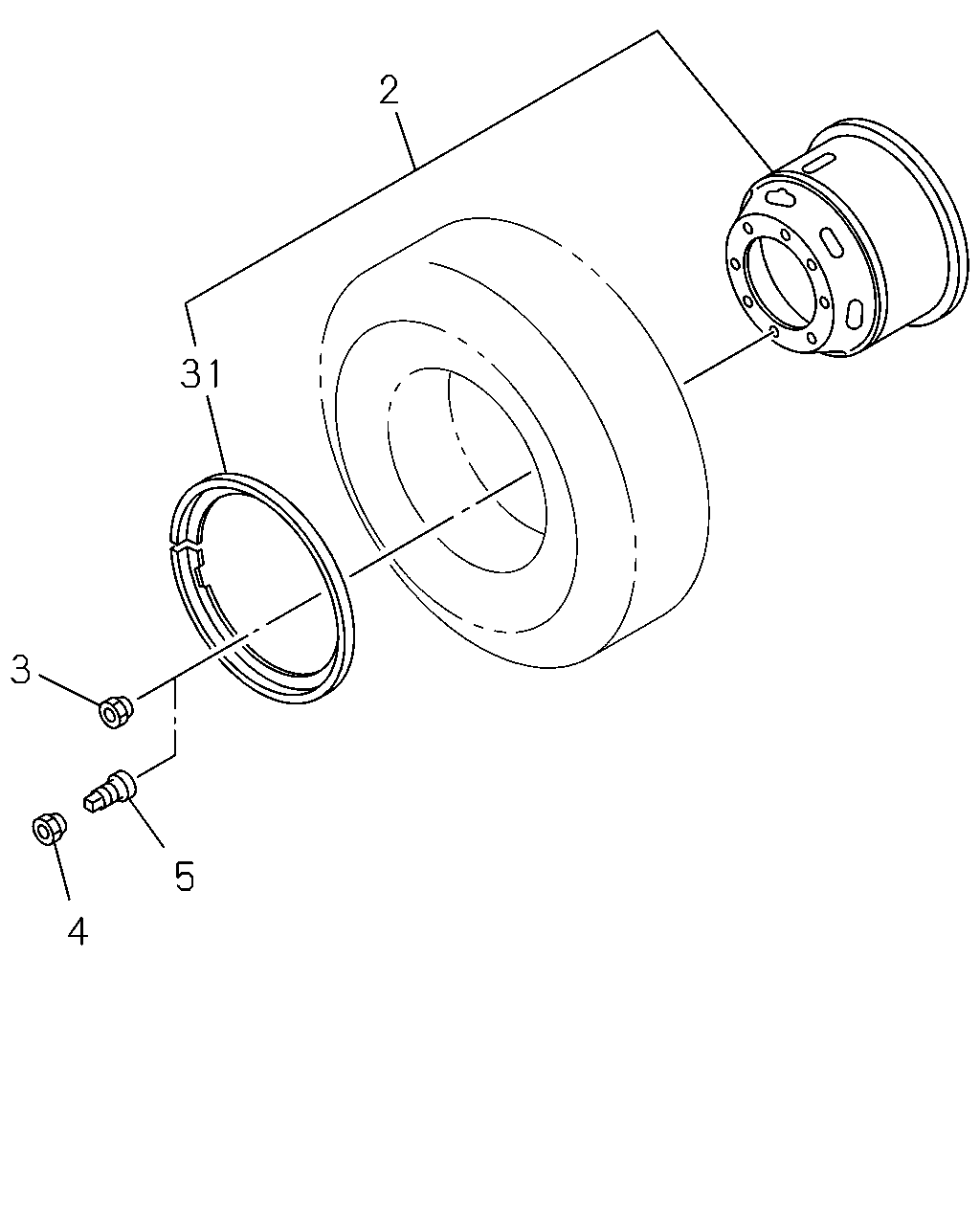

4-80 — ROAD WHEEL
(#3208) — 18 parça
2
31
3
5
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
SPARE
1-42350-131-3
01
1
9104-9402
2
WHEEL; DISC
SPARE
1-42350-478-0
01
1
9403-
2
WHEEL; DISC
1-42350-131-3
06
1
9104-9402
2
WHEEL; DISC
1-42350-478-0
06
1
9403-
3
NUT; WHEEL,FRT AXLE
M20 RH THREAD
1-42333-021-0
08
1
9104-0107
3
NUT; WHEEL,FRT AXLE
M20 RH THREAD
1-42333-021-0
08
1
0108-
3
NUT; WHEEL,FRT AXLE
M20 LH THREAD
1-42334-021-0
08
1
9104-0107
3
NUT; WHEEL,FRT AXLE
M20 LH THREAD
1-42334-021-0
08
1
0108-
4
NUT; WHEEL,RR AXLE
M30
1-42333-023-0
08
1
9104-0107
4
NUT; WHEEL,RR AXLE
M30
1-42333-023-0
08
1
0108-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
1-42334-023-0
08
1
9104-0107
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
1-42334-023-0
08
1
0108-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
1-42335-005-0
08
1
9104-0107
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
1-42335-005-0
08
1
0108-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
1-42336-005-0
08
1
9104-0107
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
1-42336-005-0
08
1
0108-
31
RING; SIDE,DISC WHEEL
SPARE
1-42355-003-1
01
1
9104-
31
RING; SIDE,DISC WHEEL
1-42355-003-1
06
1
9104-
