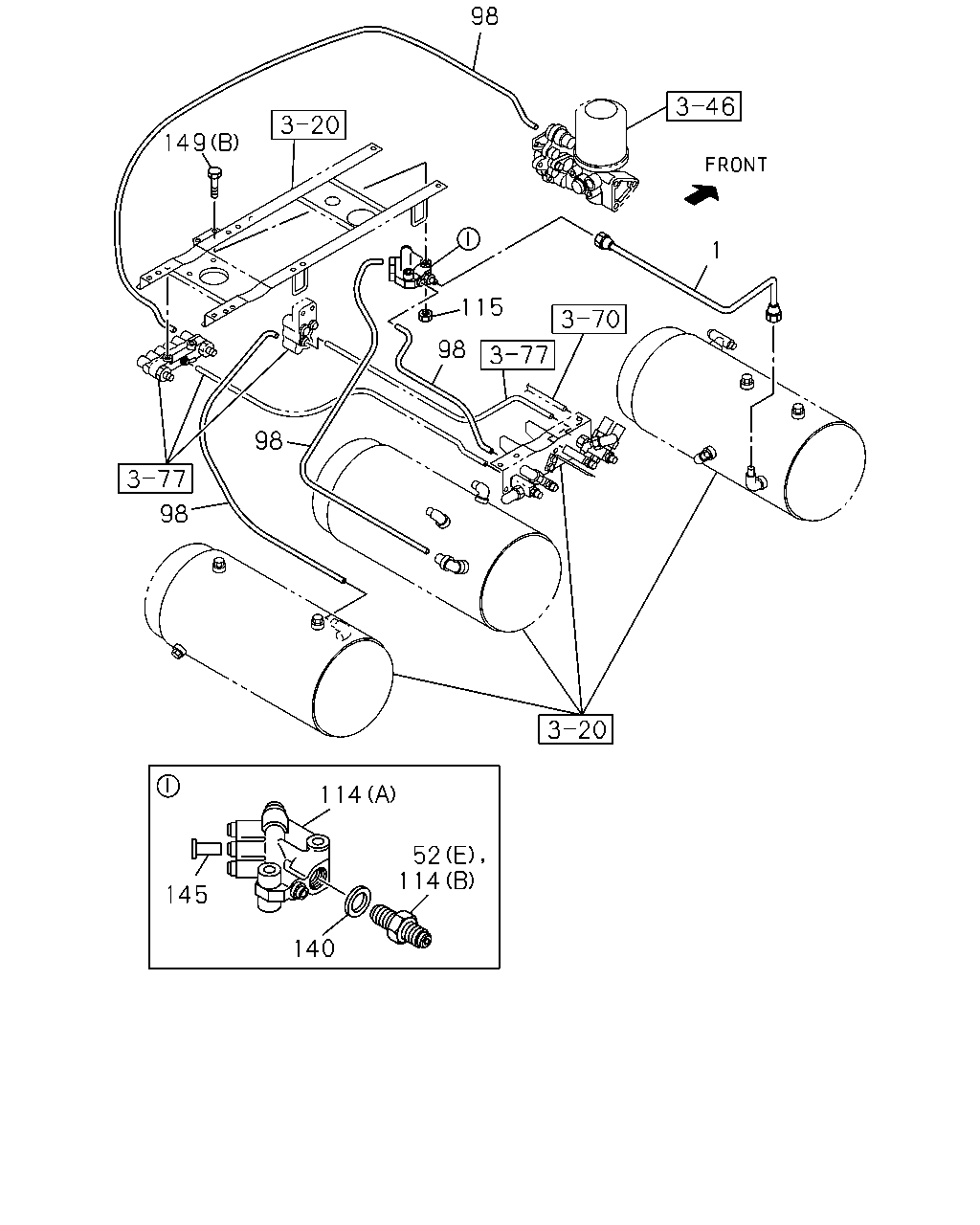

3-75 — BRAKE PIPING; AIR,FRONT (#32079) — 115 parça

98 149 1 115 98 98 98 114 52 114 145 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION	1-49123-983-0	01	1	0507-
52	CONNECTOR; NYLON TUBE (E)	1-09654-416-1	01	1	0507-0610
52	CONNECTOR; NYLON TUBE (E)	8-97618-539-0	01	1	0611-0803
52	CONNECTOR; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0507-
52	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0507-
52	CONNECTOR; NYLON TUBE (C)	1-09661-128-0	01	1	0507-
52	CONNECTOR; NYLON TUBE (D) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	0507-
98	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0507-
114	UNION; NYLON TUBE (B) DIN12 M22 STRAIGHT	8-98107-103-0	01	1	0804-
114	UNION; NYLON TUBE (B) DIN12 M22 STRAIGHT	8-98107-103-0	01	1	0804-
114	UNION; NYLON TUBE (A)	1-09661-611-0	01	1	0507-
115	NUT; TUBE UNION M8 FLANGE	0-91150-108-0	02	1	0507-0602
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	02	1	0603-
140	GASKET; CONNECTOR	9-09572-022-0	01	1	0507-0803
145	PLUG OD=12	1-09661-617-0	01	1	0507-
149	BOLT; UNION (A) M8X16 FLANGE	0-28080-816-0	04	1	0507-0512
149	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-
149	BOLT; UNION (B) M8X45 FLANGE	0-28080-845-0	02	1	0507-0512
149	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	0601-

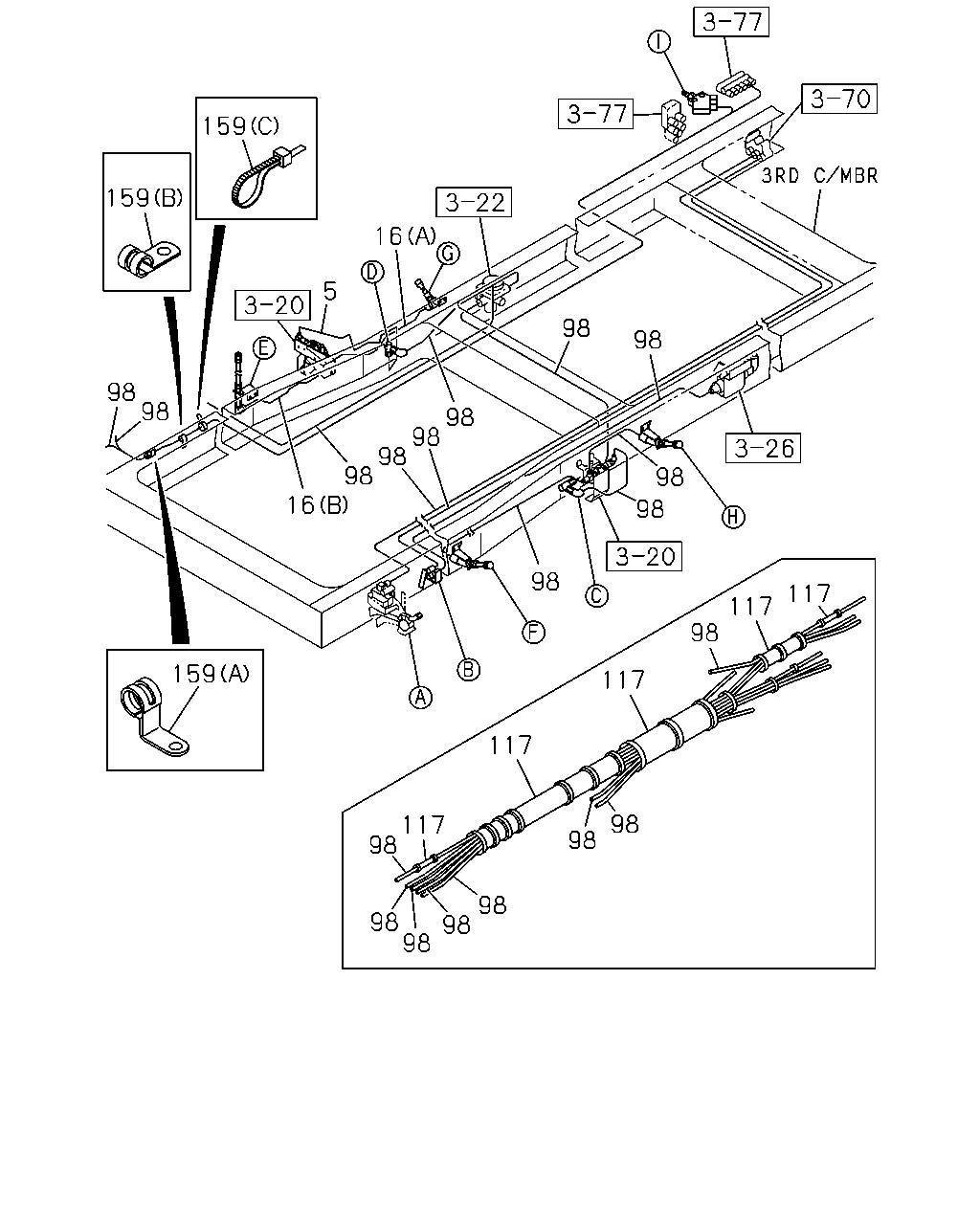

159 159 16 5 98 98 98 98 98 98 98 98 16 98 98 98 117 117 98 159 117 117 98 117 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PIPE; AIR,UNION TO UNION	1-49124-159-0	01	1	0507-
16	PIPE; AIR,UNION TO MODULATOR (A) L=1571 SERVICED BY L=1600	1-49115-490-0	01	1	0507-0510
16	PIPE; AIR,UNION TO MODULATOR (A) L=1590 SERVICED BY L=1600	1-49115-467-0	01	1	0511-
16	PIPE; AIR,UNION TO MODULATOR (B) L=1205 SERVICED BY L=1300	1-49115-465-0	01	1	0507-
98	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0507-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0507-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0507-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0507-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	0507-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0507-
159	CLIP; NYLON TUBE (A) ID=28 H=45 L=30	1-09700-948-0	02	1	0507-
159	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	03	1	0507-
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	13	1	0507-

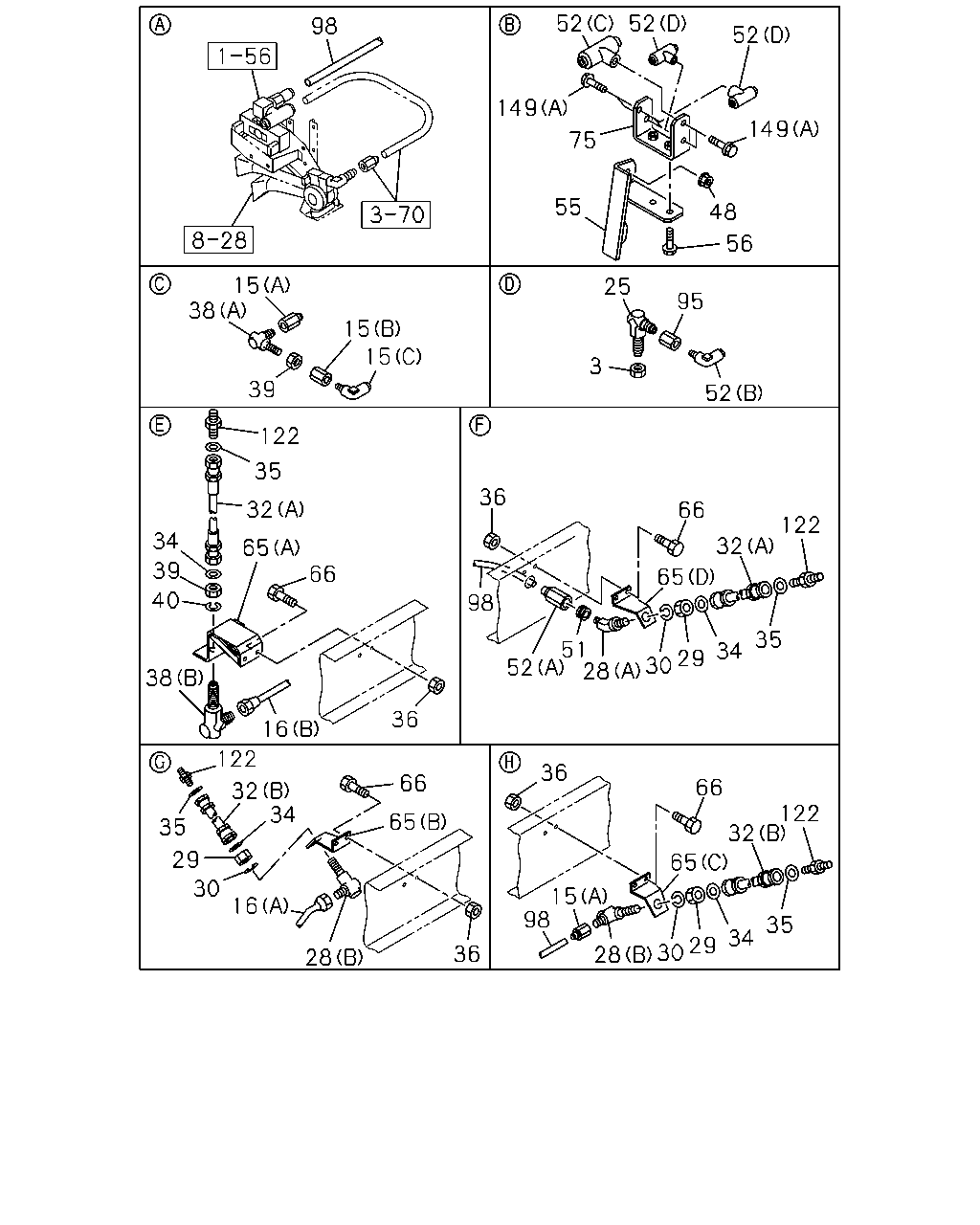

52 52 98 52 149 149 75 55 48 56 15 38 25 95 15 15 3 39 52 122 35 36 32 66 122 34 32 65 39 66 65 40 98 35 51 28 34 29 30 52 38 36 16 122 36 66 66 32 34 122 32 65 35 29 65 1 98 30 1 35 34 29 36 28 28 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION	1-49123-983-0	01	1	0507-
3	NUT; PIPE UNION M20	9-99111-420-0	01	1	0507-0512
3	NUT; PIPE UNION M20	0-91111-520-0	01	1	0601-
15	CONNECTOR; AIR PIPE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0507-
15	CONNECTOR; AIR PIPE (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0507-
15	CONNECTOR; AIR PIPE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0507-
16	PIPE; AIR,UNION TO MODULATOR (A) L=1571 SERVICED BY L=1600	1-49115-490-0	01	1	0507-0510
16	PIPE; AIR,UNION TO MODULATOR (A) L=1590 SERVICED BY L=1600	1-49115-467-0	01	1	0511-
16	PIPE; AIR,UNION TO MODULATOR (B) L=1205 SERVICED BY L=1300	1-49115-465-0	01	1	0507-
25	UNION; AIR PIPE M20	9-09235-212-1	01	1	0507-0607
25	UNION; AIR PIPE M20	0-92135-212-0	01	1	0608-
28	NIPPLE; AIR PIPE (B) M20 & M20 ELBOW	1-09654-128-1	02	1	0507-
28	NIPPLE; AIR PIPE (A) M20	1-09654-199-2	01	1	0507-
29	NUT; NIPPLE M20	9-99111-420-0	03	1	0507-0512
29	NUT; NIPPLE M20	0-91111-520-0	03	1	0601-
30	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	03	1	0507-0603
30	WASHER; LK,NIPPLE ID=20.2	0-91510-520-0	03	1	0604-
32	HOSE; FLEX,FRT (B) L=430	0-07847-430-1	02	1	0507-0605
32	HOSE; FLEX,FRT (B) L=430	0-57847-430-1	02	1	0606-
32	HOSE; FLEX,FRT (A) L=500	0-07847-500-1	02	1	0507-0605
32	HOSE; FLEX,FRT (A) L=500	0-57847-500-1	02	1	0606-
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0507-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0507-
36	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	08	1	0507-0602
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	08	1	0603-
38	UNION; AIR PIPE (B) M20 & M20 ELBOW	1-09654-128-1	01	1	0507-
38	UNION; AIR PIPE (A) M20	9-09235-212-1	01	1	0507-0607
38	UNION; AIR PIPE (A) M20	0-92135-212-0	01	1	0608-
39	NUT; PIPE UNION M20	9-99111-420-0	02	1	0507-0512
39	NUT; PIPE UNION M20	0-91111-520-0	02	1	0601-
40	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	0507-0603
40	WASHER; LK,PIPE UNION ID=20.2	0-91510-520-0	01	1	0604-
48	NUT; UNION BRKT M12 FLANGE	0-91150-212-0	02	1	0507-0602
48	NUT; UNION BRKT M12 FLANGE	0-91180-212-0	02	1	0603-
51	GROMMET; NYLON TUBE ID=24 OD=30 T=17	9-09956-092-1	01	1	0507-
52	CONNECTOR; NYLON TUBE (E)	1-09654-416-1	01	1	0507-0610
52	CONNECTOR; NYLON TUBE (E)	8-97618-539-0	01	1	0611-0803
52	CONNECTOR; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0507-
52	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0507-
52	CONNECTOR; NYLON TUBE (C)	1-09661-128-0	01	1	0507-
52	CONNECTOR; NYLON TUBE (D) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	0507-
55	BRACKET; TUBE UNION	1-47478-381-1	01	1	0507-
56	BOLT; UNION BRKT M8X16 FLANGE	0-28080-816-0	02	1	0507-0512
56	BOLT; UNION BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-
65	BRACKET; FLEX HOSE (A)	1-47471-247-1	01	1	0507-
65	BRACKET; FLEX HOSE (D)	1-47477-369-1	01	1	0507-
65	BRACKET; FLEX HOSE (B)	1-47479-605-0	01	1	0507-
65	BRACKET; FLEX HOSE (C)	1-47479-676-0	01	1	0507-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28680-830-0	08	1	0507-0512
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	08	1	0601-
75	BRACKET; UNION	1-47478-382-0	01	1	0507-
95	ADAPTER; BRKT M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0507-
98	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0507-
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0507-
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-1	02	1	0507-
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-1	02	1	0507-
149	BOLT; UNION (A) M8X16 FLANGE	0-28080-816-0	04	1	0507-0512
149	BOLT; UNION (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-
149	BOLT; UNION (B) M8X45 FLANGE	0-28080-845-0	02	1	0507-0512
149	BOLT; UNION (B) M8X45 FLANGE	0-28050-845-0	02	1	0601-
