Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#32078) — 329 parça

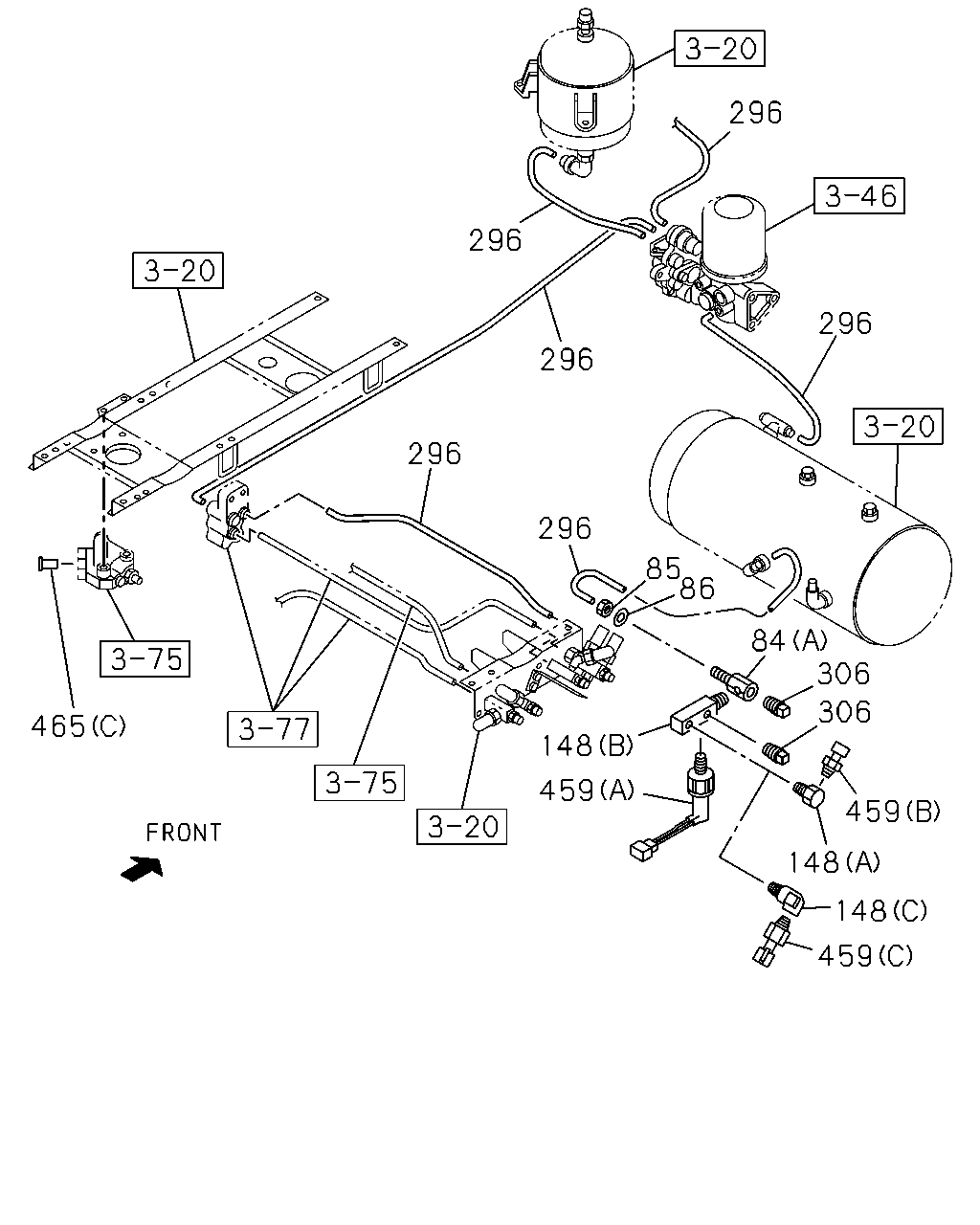

296 296 296 296 296 296 85 86 84 306 306 465 148 459 459 148 148 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
84	UNION; NYLON TUBE (A)	1-09661-092-0	01	1	0507-
84	UNION; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0507-
85	NUT; UNION M18	9-99110-518-0	01	1	0507-0512
85	NUT; UNION M18	0-91110-518-0	01	1	0601-
86	WASHER; LK,TUBE UNION ID=18.2	9-09150-518-0	01	1	0507-0603
86	WASHER; LK,TUBE UNION ID=18.2	0-91510-518-0	01	1	0604-
148	CONNECTOR; UNION (A)	1-09660-012-0	01	1	0507-0511
148	CONNECTOR; UNION (C) PT1/4 2WAY	1-09660-693-0	01	1	0512-
148	CONNECTOR; UNION (B) PT1/4 4WAY	1-09660-358-0	01	1	0507-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-1	01	1	0507-0511
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6	1-09366-256-1	01	1	0512-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0507-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0507-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0507-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0507-
306	PLUG; NYLON TUBE PT1/4	9-99204-513-0	02	1	0507-
459	SWITCH; PRESS (A)	1-48340-065-0	01	1	0507-
459	SWITCH; PRESS (B)	1-80220-015-0	01	1	0507-0511
459	SWITCH; PRESS (C) THREAD R1/4	1-80220-023-1	01	1	0512-
465	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	0507-
465	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	0507-
465	PLUG (C) OD=12	1-09661-617-0	01	1	0507-
465	PLUG EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), BRAKESYSTEM RETARDER HEAVY DUTY<TCC> (B) OD=8	1-09661-616-0	01	1	0507-

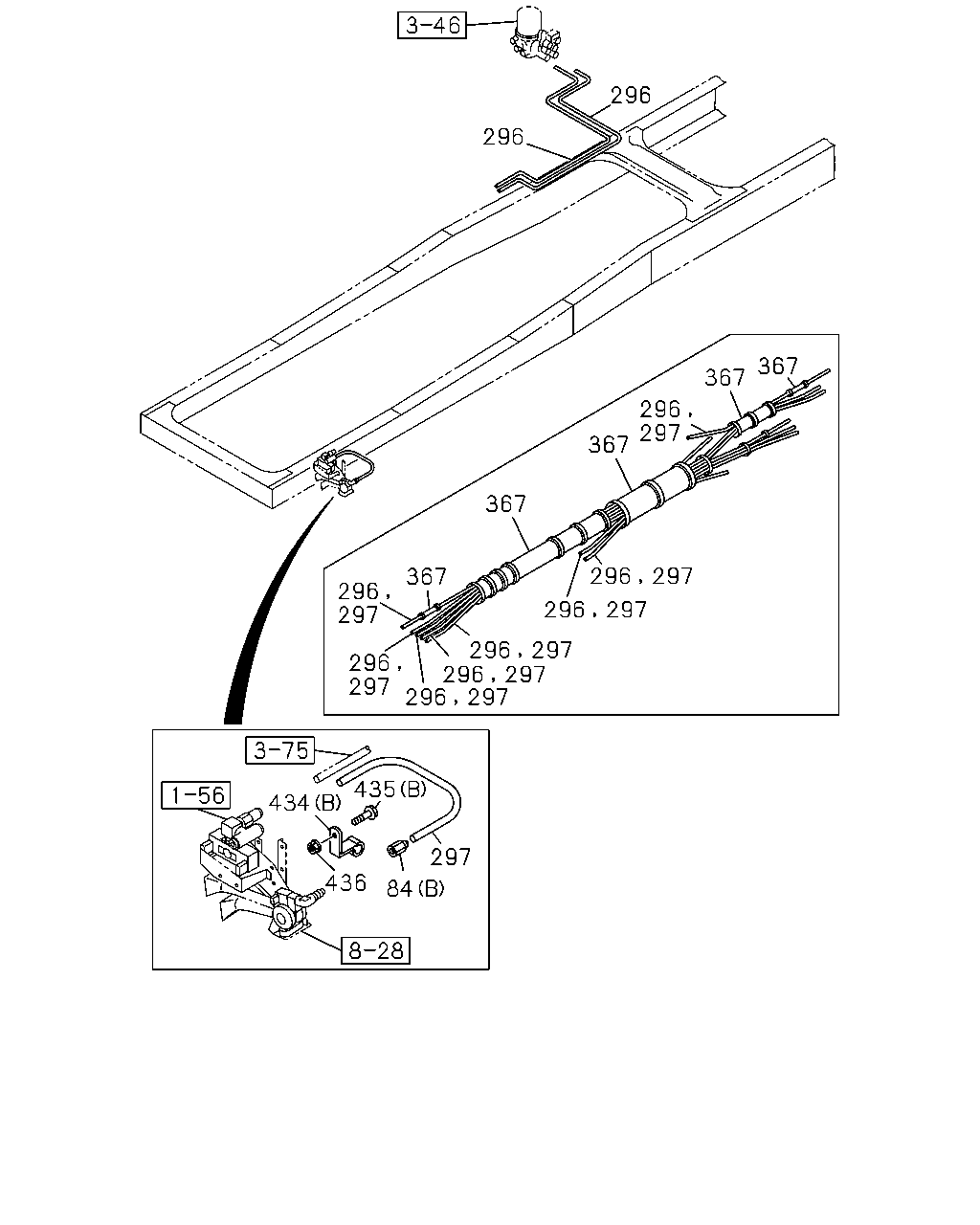

296 296 367 367 296 297 367 367 296 297 296 297 435 434 297 436 84 367 296 297 297 296 296 297 296 297 297 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
84	UNION; NYLON TUBE (A)	1-09661-092-0	01	1	0507-
84	UNION; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0507-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-1	01	1	0507-0511
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6	1-09366-256-1	01	1	0512-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0507-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0507-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0507-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0507-
297	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0507-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0507-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0507-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0507-
434	CLIP (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0507-
434	CLIP (A) ID=17	8-94449-734-1	01	1	0507-0511
434	CLIP 6WF1 TC-C(1B8) (A) ID=17	8-94449-734-1	01	1	0512-
435	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	0507-0511
435	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
435	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
435	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
435	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
435	BOLT; CLIP (C) M8X20 FLANGE	0-28680-820-0	02	1	0507-0511
435	BOLT; CLIP 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
435	BOLT; CLIP 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-
435	BOLT; CLIP (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0507-0511
435	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0512-0904
435	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
436	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0507-0511
436	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0512-0602
436	NUT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	01	1	0512-0602
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
436	NUT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	01	1	0603-
436	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0507-0511
436	NUT; CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	02	1	0512-0602
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-

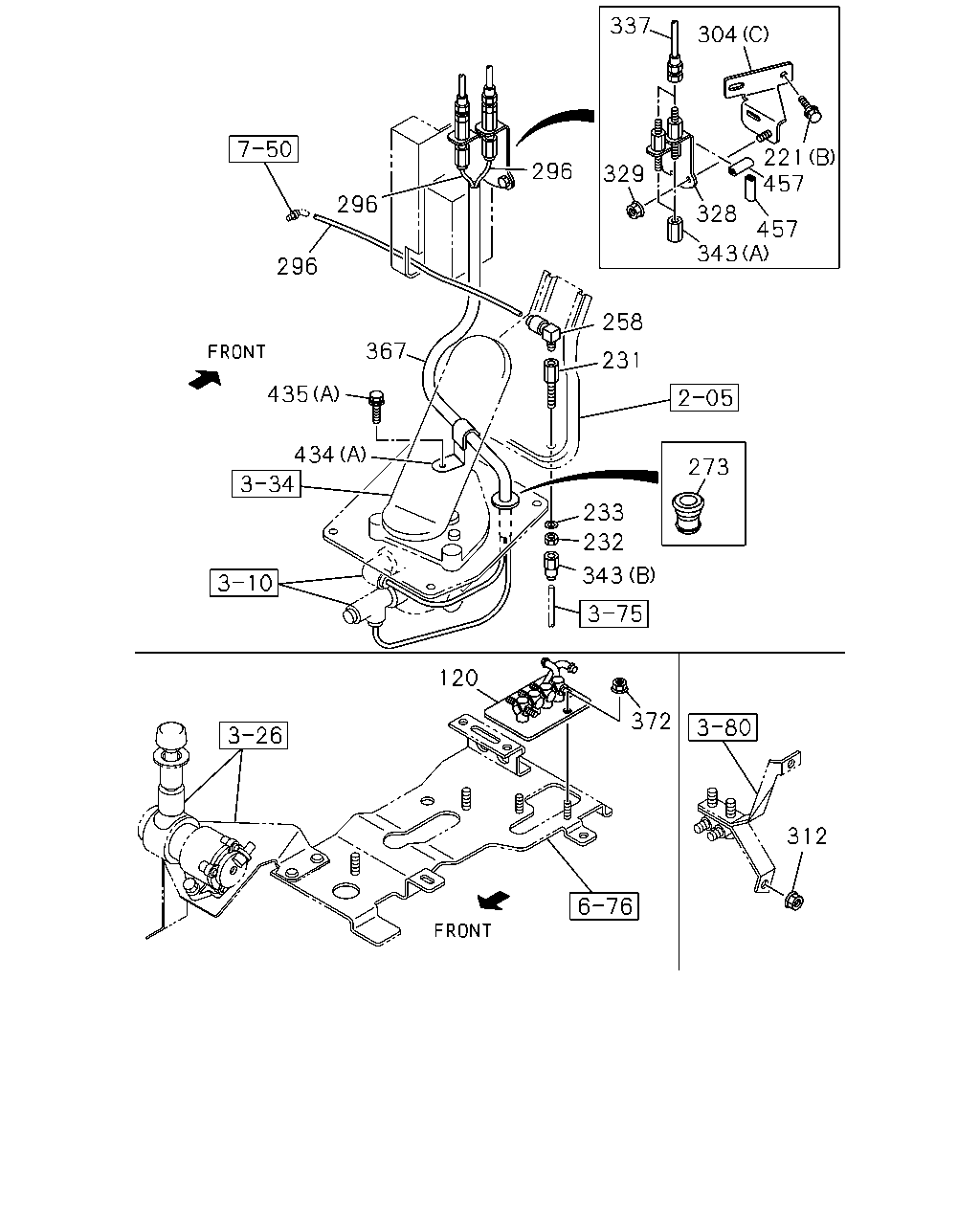

337 304 221 457 296 329 296 328 457 343 296 258 367 231 435 434 273 233 232 343 120 372 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
120	CONNECTOR; AIR PIPE	1-47470-604-0	01	1	0507-
221	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
221	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0507-0511
221	BOLT; BRKT 6WF1 TC-C(1B8) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-
231	UNION; AIR PIPE	1-09656-713-2	01	1	0507-0511
231	UNION; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09656-713-2	01	1	0512-
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	01	1	0507-0511
232	NUT; UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8	1-09400-029-0	01	1	0512-
233	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	01	1	0507-0511
233	WASHER; LK,UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0512-0603
233	WASHER; LK,UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	0-91510-510-0	01	1	0604-
258	CONNECTOR; NYLON TUBE TRI LC6X4-R1/8	1-09660-760-1	01	1	0507-0511
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) TRI LC6X4-R1/8	1-09660-760-1	01	1	0512-
273	GROMMET 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=28 OD=35 T=17	9-09956-256-2	01	1	0512-
273	GROMMET	1-09332-135-0	01	1	0507-0511
273	GROMMET 6WF1 TC-C(1B8)	1-09332-135-0	01	1	0512-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-1	01	1	0507-0511
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6	1-09366-256-1	01	1	0512-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0507-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0507-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0507-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0507-
304	BRACKET; UNION (B)	1-47471-276-0	01	1	0507-
304	BRACKET; UNION (A)	1-47479-603-0	01	1	0507-
304	BRACKET; UNION (C)	1-71117-247-0	01	1	0507-0511
304	BRACKET; UNION 6WF1 TC-C(1B8) (C)	1-71117-247-0	01	1	0512-
312	NUT; UNION M8	9-09110-408-0	01	1	0507-0512
312	NUT; UNION M8	0-91110-508-0	01	1	0601-
328	UNION; AIR PIPE	1-47470-442-0	01	1	0507-0511
328	UNION; AIR PIPE 6WF1 TC-C(1B8)	1-47470-442-0	01	1	0512-
329	NUT; UNION,AIR PIPE M6 FLANGE	0-91150-106-0	01	1	0507-0511
329	NUT; UNION,AIR PIPE 6WF1 TC-C(1B8) M6 FLANGE	0-91150-106-0	01	1	0512-0602
329	NUT; UNION,AIR PIPE M6 FLANGE	0-91180-106-0	01	1	0603-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=440	0-07210-440-0	02	1	0507-0511
337	HOSE; FLEX,UNION TO AIR PRESS GAGE 6WF1 TC-C(1B8) L=440	0-07210-440-0	02	1	0512-0605
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=440	0-57210-440-0	02	1	0606-
343	UNION; NYLON TUBE (A)	1-09660-796-1	02	1	0507-0511
343	UNION; NYLON TUBE 6WF1 TC-C(1B8) (A)	1-09660-796-1	02	1	0512-
343	UNION; NYLON TUBE (B)	1-09661-382-0	01	1	0507-0511
343	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-09661-382-0	01	1	0512-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0507-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0507-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0507-
372	NUT M8 FLANGE	0-91150-108-0	02	1	0507-0602
372	NUT M8 FLANGE	0-91180-108-0	02	1	0603-
434	CLIP (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0507-
434	CLIP (A) ID=17	8-94449-734-1	01	1	0507-0511
434	CLIP 6WF1 TC-C(1B8) (A) ID=17	8-94449-734-1	01	1	0512-
435	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	0507-0511
435	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
435	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
435	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
435	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
435	BOLT; CLIP (C) M8X20 FLANGE	0-28680-820-0	02	1	0507-0511
435	BOLT; CLIP 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
435	BOLT; CLIP 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-
435	BOLT; CLIP (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0507-0511
435	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0512-0904
435	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
457	FINISHER; UNION L=50	8-94270-377-1	01	1	0507-0511
457	FINISHER; UNION 6WF1 TC-C(1B8) L=50	8-94270-377-1	01	1	0512-
457	FINISHER; UNION L=50	8-94270-377-1	01	1	0507-0511
457	FINISHER; UNION 6WF1 TC-C(1B8) L=50	8-94270-377-1	01	1	0512-

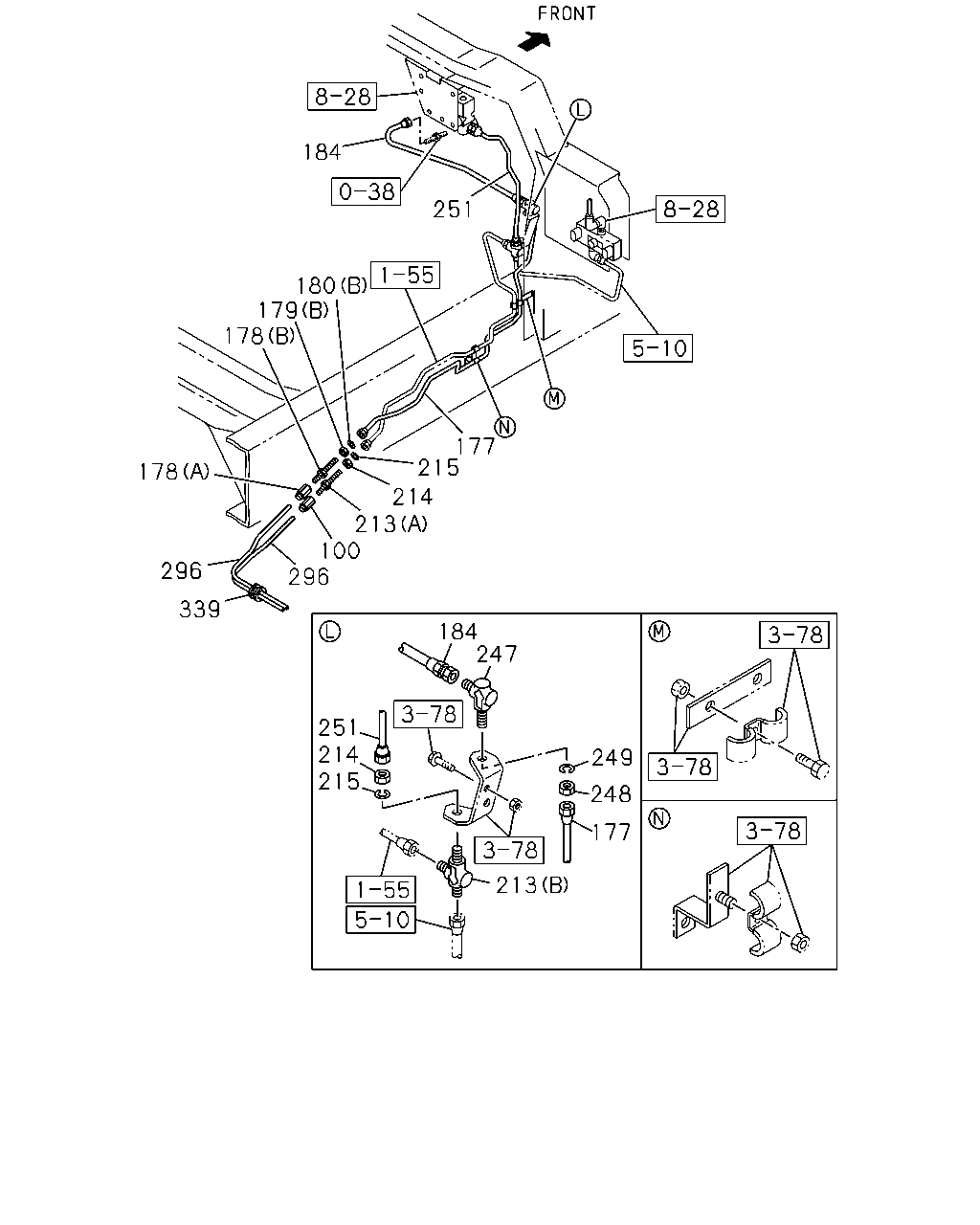

184 251 180 179 178 177 215 178 214 213 100 296 296 339 184 247 251 214 215 249 248 177 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	CONNECTOR; AIR PIPE DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0507-
177	PIPE; AIR,UNION TO UNION L=1031 SERVICED BY L=1100	1-47428-815-0	01	1	0507-
178	UNION; AIR PIPE (A) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0507-
178	UNION; AIR PIPE (B) M12 L=66.5	9-09223-306-1	01	1	0507-0607
178	UNION; AIR PIPE (B) M12 L=66.5	0-92113-306-0	01	1	0608-
179	NUT; UNION (A) M22	9-09111-422-0	02	1	0507-0512
179	NUT; UNION (A) M22	0-91111-522-0	02	1	0601-
179	NUT; UNION (B) M12	9-09840-280-0	01	1	0507-
180	WASHER; LK,UNION (B) ID=12.2	9-09150-512-0	01	1	0507-0603
180	WASHER; LK,UNION (B) ID=12.2	0-91510-512-0	01	1	0604-
180	WASHER; LK,UNION (A) ID=22.5	9-09150-522-0	02	1	0507-0603
180	WASHER; LK,UNION (A) ID=22.5	0-91510-522-0	02	1	0604-
184	HOSE; FLEX,AIR GOV L=780	1-09363-620-0	01	1	0507-
213	UNION; AIR PIPE (A) M12 L=66.5	9-09223-306-1	01	1	0507-0607
213	UNION; AIR PIPE (A) M12 L=66.5	0-92113-306-0	01	1	0608-
213	UNION; AIR PIPE (B) M12 3WAY	9-09228-906-1	01	1	0507-0607
213	UNION; AIR PIPE (B) M12 3WAY	0-92138-906-0	01	1	0608-
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	02	1	0507-
215	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	02	1	0507-0603
215	WASHER; LK,UNION,AIR PIPE ID=12.2	0-91510-512-0	02	1	0604-
247	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	0507-0607
247	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0608-
248	NUT; PIPE UNION M12	9-09840-280-0	01	1	0507-
249	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	0507-0603
249	WASHER; LK,PIPE UNION ID=12.2	0-91510-512-0	01	1	0604-
251	PIPE; AIR,UNION TO MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) L=375	1-49124-511-0	01	1	0512-
251	PIPE; AIR,UNION TO MAG VLV	1-49121-779-0	01	1	0507-0511
251	PIPE; AIR,UNION TO MAG VLV 6WF1 TC-C(1B8)	1-49121-779-0	01	1	0512-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-1	01	1	0507-0511
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6	1-09366-256-1	01	1	0512-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0507-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0507-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0507-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0507-
339	GROMMET; AIR PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0507-

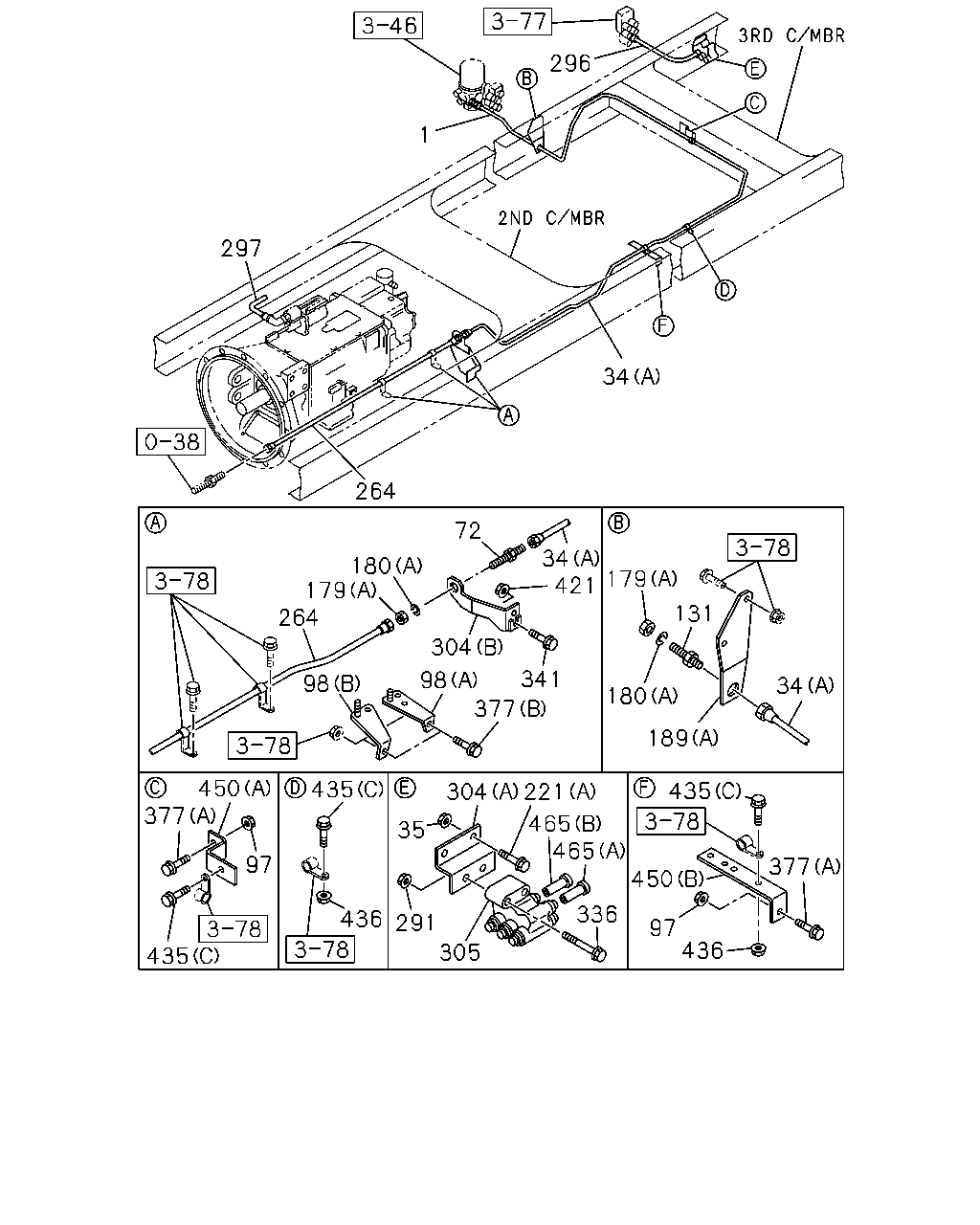

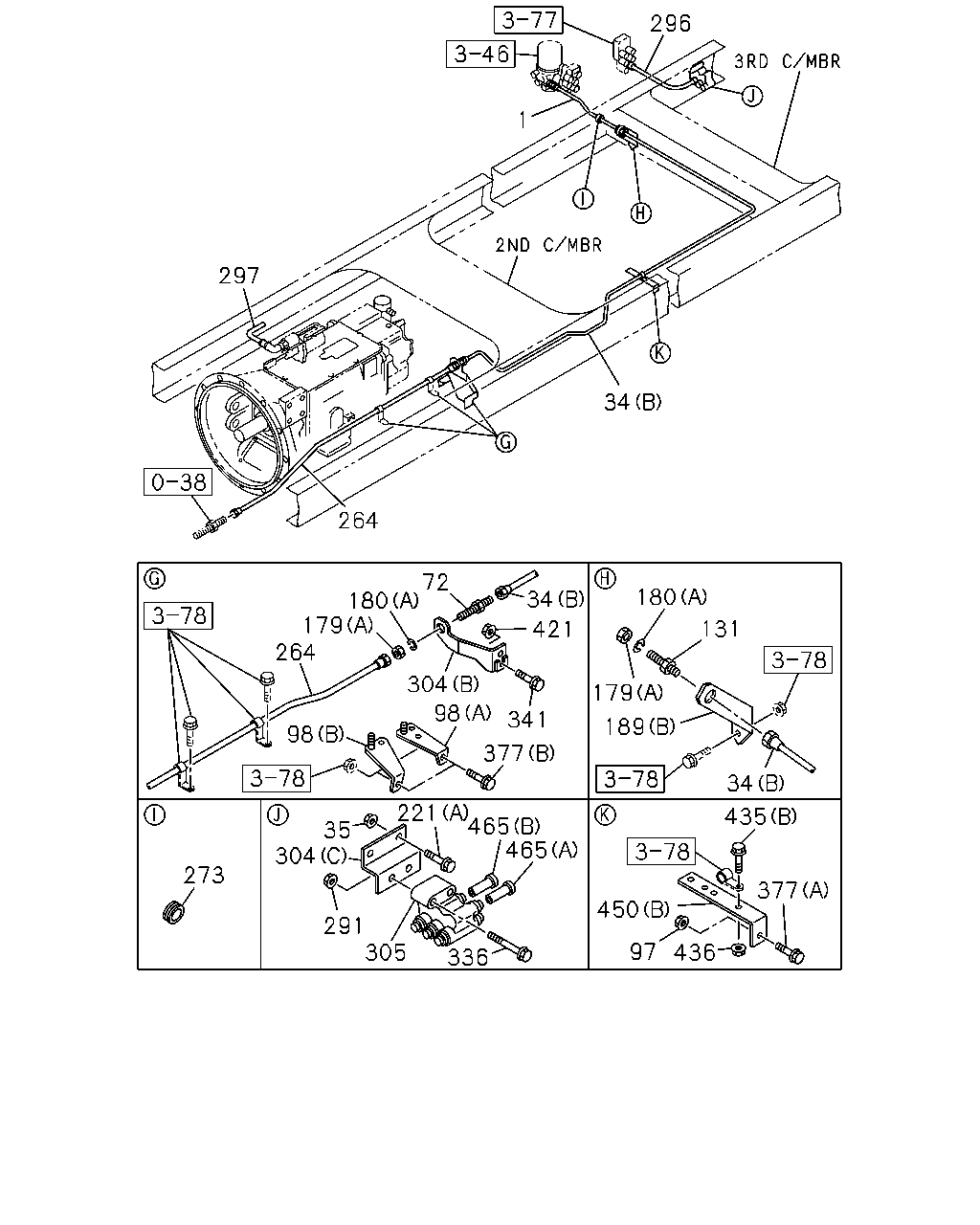

296 1 297 34 264 72 180 34 180 179 264 131 421 304 179 98 98 341 189 377 34 221 465 465 435 35 304 273 377 450 291 305 97 436 336

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 6WG1 TC-C(72L),6WG1 TC-S(97L) L=880	1-09363-920-0	01	1	0512-
1	HOSE; FLEX,AIR TANK	1-09363-911-0	01	1	0507-0511
1	HOSE; FLEX,AIR TANK 6WF1 TC-C(1B8)	1-09363-911-0	01	1	0512-
34	PIPE; AIR 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) L=1408	1-49124-905-0	01	1	0512-
34	PIPE; AIR (A) L=2302	1-49124-844-0	01	1	0507-0511
34	PIPE; AIR 6WF1 TC-C(1B8) (A) L=2302	1-49124-844-0	01	1	0512-
35	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0507-0602
35	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
72	UNION; AIR PIPE M22 & M30 STRAIGHT	1-09664-237-1	01	1	0507-
97	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	01	1	0512-0602
97	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	01	1	0603-
97	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0507-0511
97	NUT; BRKT 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	02	1	0512-0602
97	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
98	BRACKET; AIR PIPE (B)	1-47479-639-0	01	1	0507-
98	BRACKET; AIR PIPE (A)	1-47479-723-0	01	1	0507-
131	UNION; AIR PIPE M22 & M30 STRAIGHT	1-09664-237-1	01	1	0507-
179	NUT; UNION (A) M22	9-09111-422-0	02	1	0507-0512
179	NUT; UNION (A) M22	0-91111-522-0	02	1	0601-
179	NUT; UNION (B) M12	9-09840-280-0	01	1	0507-
180	WASHER; LK,UNION (B) ID=12.2	9-09150-512-0	01	1	0507-0603
180	WASHER; LK,UNION (B) ID=12.2	0-91510-512-0	01	1	0604-
180	WASHER; LK,UNION (A) ID=22.5	9-09150-522-0	02	1	0507-0603
180	WASHER; LK,UNION (A) ID=22.5	0-91510-522-0	02	1	0604-
189	BRACKET; FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-47479-905-0	01	1	0512-
189	BRACKET; FLEX HOSE (A)	1-47479-581-0	01	1	0507-0511
189	BRACKET; FLEX HOSE 6WF1 TC-C(1B8) (A)	1-47479-581-0	01	1	0512-
221	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
221	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0507-0511
221	BOLT; BRKT 6WF1 TC-C(1B8) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-
264	HOSE; FLEX L=1000	1-09363-794-0	01	1	0507-
273	GROMMET 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=28 OD=35 T=17	9-09956-256-2	01	1	0512-
273	GROMMET	1-09332-135-0	01	1	0507-0511
273	GROMMET 6WF1 TC-C(1B8)	1-09332-135-0	01	1	0512-
291	NUT; UNION M8 FLANGE	0-91150-108-0	02	1	0507-0602
291	NUT; UNION M8 FLANGE	0-91180-108-0	02	1	0603-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-1	01	1	0507-0511
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6	1-09366-256-1	01	1	0512-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0507-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0507-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0507-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0507-
297	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0507-
304	BRACKET; UNION (B)	1-47471-276-0	01	1	0507-
304	BRACKET; UNION (A)	1-47479-603-0	01	1	0507-
304	BRACKET; UNION (C)	1-71117-247-0	01	1	0507-0511
304	BRACKET; UNION 6WF1 TC-C(1B8) (C)	1-71117-247-0	01	1	0512-
305	UNION ASM; NYLON TUBE	1-09661-613-1	01	1	0507-
336	BOLT; PIPE UNION M8X70 FLANGE	0-28080-870-0	02	1	0507-0512
336	BOLT; PIPE UNION M8X70 FLANGE	0-28050-870-0	02	1	0601-
341	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0507-0512
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-
377	BOLT; BRKT FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512
377	BOLT; BRKT FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
377	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0511
377	BOLT; BRKT FIX 6WF1 TC-C(1B8) (A) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512
377	BOLT; BRKT FIX 6WF1 TC-C(1B8) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
377	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28680-830-0	02	1	0507-0512
377	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
421	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0507-0602
421	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
435	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	0507-0511
435	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
435	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
435	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
435	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
435	BOLT; CLIP (C) M8X20 FLANGE	0-28680-820-0	02	1	0507-0511
435	BOLT; CLIP 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
435	BOLT; CLIP 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-
435	BOLT; CLIP (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0507-0511
435	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0512-0904
435	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
436	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0507-0511
436	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0512-0602
436	NUT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	01	1	0512-0602
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
436	NUT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	01	1	0603-
436	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0507-0511
436	NUT; CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	02	1	0512-0602
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
450	BRACKET; CLIP (A)	1-47475-881-0	01	1	0507-0511
450	BRACKET; CLIP 6WF1 TC-C(1B8) (A)	1-47475-881-0	01	1	0512-
450	BRACKET; CLIP (B)	1-82698-358-0	01	1	0507-
465	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	0507-
465	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	0507-
465	PLUG (C) OD=12	1-09661-617-0	01	1	0507-
465	PLUG EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), BRAKESYSTEM RETARDER HEAVY DUTY<TCC> (B) OD=8	1-09661-616-0	01	1	0507-

296 1 297 34 264 72 34 179 421 180 179 264 131 304 341 98 98 34 180 377 189 450 377 435 435 304 221 465 465 35 97 377 450 336 436 291 97 436 435 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 6WG1 TC-C(72L),6WG1 TC-S(97L) L=880	1-09363-920-0	01	1	0512-
1	HOSE; FLEX,AIR TANK	1-09363-911-0	01	1	0507-0511
1	HOSE; FLEX,AIR TANK 6WF1 TC-C(1B8)	1-09363-911-0	01	1	0512-
34	PIPE; AIR 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) L=1408	1-49124-905-0	01	1	0512-
34	PIPE; AIR (A) L=2302	1-49124-844-0	01	1	0507-0511
34	PIPE; AIR 6WF1 TC-C(1B8) (A) L=2302	1-49124-844-0	01	1	0512-
35	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0507-0602
35	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
72	UNION; AIR PIPE M22 & M30 STRAIGHT	1-09664-237-1	01	1	0507-
97	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	01	1	0512-0602
97	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	01	1	0603-
97	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0507-0511
97	NUT; BRKT 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	02	1	0512-0602
97	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
98	BRACKET; AIR PIPE (B)	1-47479-639-0	01	1	0507-
98	BRACKET; AIR PIPE (A)	1-47479-723-0	01	1	0507-
131	UNION; AIR PIPE M22 & M30 STRAIGHT	1-09664-237-1	01	1	0507-
179	NUT; UNION (A) M22	9-09111-422-0	02	1	0507-0512
179	NUT; UNION (A) M22	0-91111-522-0	02	1	0601-
179	NUT; UNION (B) M12	9-09840-280-0	01	1	0507-
180	WASHER; LK,UNION (B) ID=12.2	9-09150-512-0	01	1	0507-0603
180	WASHER; LK,UNION (B) ID=12.2	0-91510-512-0	01	1	0604-
180	WASHER; LK,UNION (A) ID=22.5	9-09150-522-0	02	1	0507-0603
180	WASHER; LK,UNION (A) ID=22.5	0-91510-522-0	02	1	0604-
189	BRACKET; FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-47479-905-0	01	1	0512-
189	BRACKET; FLEX HOSE (A)	1-47479-581-0	01	1	0507-0511
189	BRACKET; FLEX HOSE 6WF1 TC-C(1B8) (A)	1-47479-581-0	01	1	0512-
221	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
221	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
221	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0507-0511
221	BOLT; BRKT 6WF1 TC-C(1B8) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-
264	HOSE; FLEX L=1000	1-09363-794-0	01	1	0507-
291	NUT; UNION M8 FLANGE	0-91150-108-0	02	1	0507-0602
291	NUT; UNION M8 FLANGE	0-91180-108-0	02	1	0603-
296	TUBE; NYLON L=1200 OD=6	1-09366-256-1	01	1	0507-0511
296	TUBE; NYLON SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6	1-09366-256-1	01	1	0512-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0507-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0507-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0507-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0507-
297	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0507-
304	BRACKET; UNION (B)	1-47471-276-0	01	1	0507-
304	BRACKET; UNION (A)	1-47479-603-0	01	1	0507-
304	BRACKET; UNION (C)	1-71117-247-0	01	1	0507-0511
304	BRACKET; UNION 6WF1 TC-C(1B8) (C)	1-71117-247-0	01	1	0512-
305	UNION ASM; NYLON TUBE	1-09661-613-1	01	1	0507-
336	BOLT; PIPE UNION M8X70 FLANGE	0-28080-870-0	02	1	0507-0512
336	BOLT; PIPE UNION M8X70 FLANGE	0-28050-870-0	02	1	0601-
341	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0507-0512
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-
377	BOLT; BRKT FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512
377	BOLT; BRKT FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
377	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0511
377	BOLT; BRKT FIX 6WF1 TC-C(1B8) (A) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512
377	BOLT; BRKT FIX 6WF1 TC-C(1B8) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
377	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28680-830-0	02	1	0507-0512
377	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
421	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0507-0602
421	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
435	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	0507-0511
435	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
435	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
435	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
435	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
435	BOLT; CLIP (C) M8X20 FLANGE	0-28680-820-0	02	1	0507-0511
435	BOLT; CLIP 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
435	BOLT; CLIP 6WF1 TC-C(1B8) (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-
435	BOLT; CLIP (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0507-0511
435	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0512-0904
435	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
436	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0507-0511
436	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0512-0602
436	NUT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91150-108-0	01	1	0512-0602
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
436	NUT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	01	1	0603-
436	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0507-0511
436	NUT; CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	02	1	0512-0602
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
450	BRACKET; CLIP (A)	1-47475-881-0	01	1	0507-0511
450	BRACKET; CLIP 6WF1 TC-C(1B8) (A)	1-47475-881-0	01	1	0512-
450	BRACKET; CLIP (B)	1-82698-358-0	01	1	0507-
465	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	0507-
465	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	0507-
465	PLUG (C) OD=12	1-09661-617-0	01	1	0507-
465	PLUG EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), BRAKESYSTEM RETARDER HEAVY DUTY<TCC> (B) OD=8	1-09661-616-0	01	1	0507-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
