Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11006 - CYJ NEW ZEALAND
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#32077) — 17 parça
◀

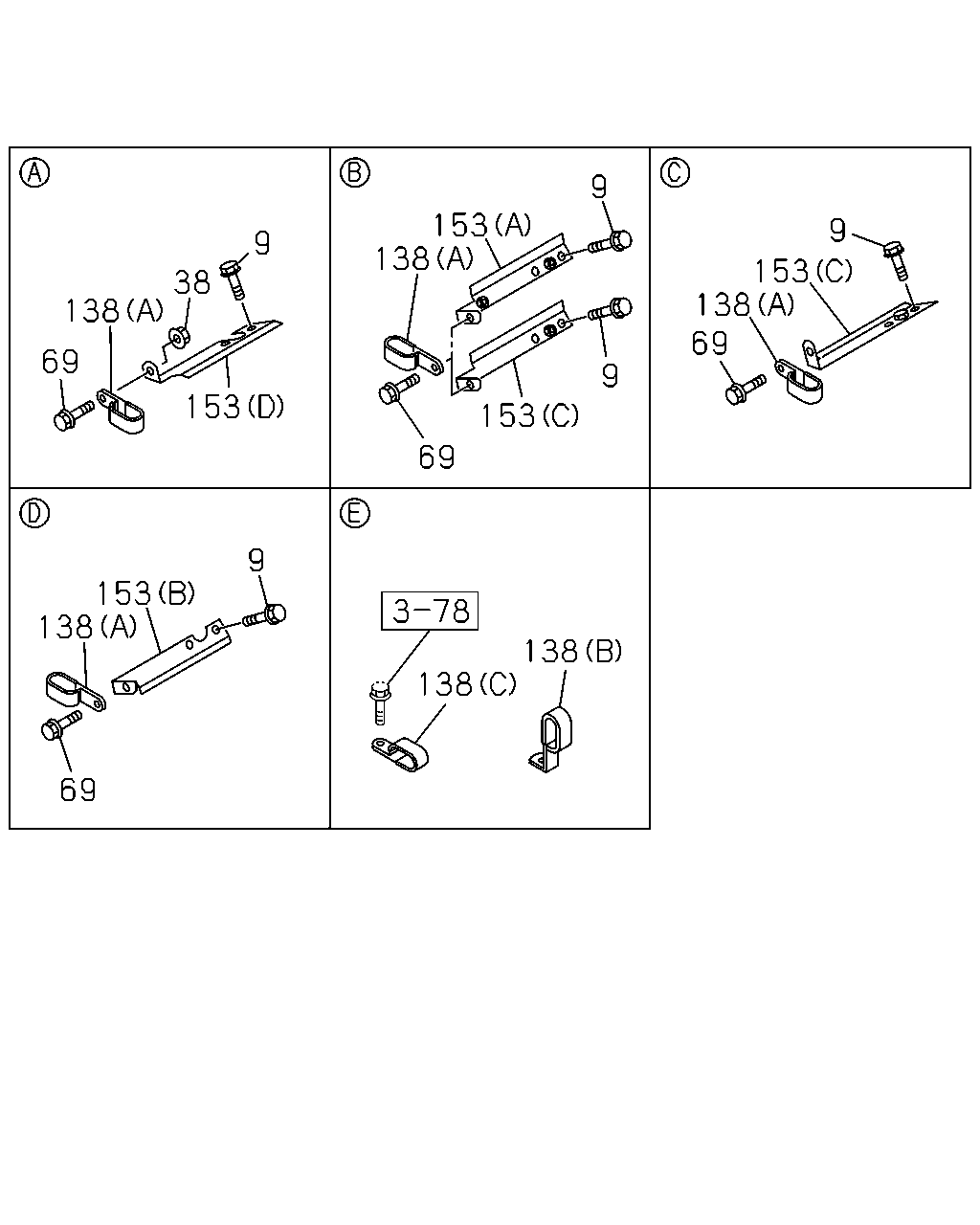

[358A] NO.2 (16 parça)
[358A] NO.1 (1 parça)
▶
9
153
138
9
9
153
138
69
38
138
69
9
153
153
69
9
153
138
138
138
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
08
1
0507-0512
9
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
08
1
0601-
38
NUT; CLIP FIX
M8 FLANGE
0-91150-108-0
01
1
0507-0602
38
NUT; CLIP FIX
M8 FLANGE
0-91180-108-0
01
1
0603-
69
BOLT; CLIP
M8X20 FLANGE
0-28080-820-0
05
1
0507-0512
69
BOLT; CLIP
M8X20 FLANGE
0-28050-820-0
05
1
0601-
138
CLIP; TUBE
(C) ID=11X2 L=20
9-09535-035-0
01
1
0509-0606
138
CLIP; TUBE
(C) ID=11X2 L=20
0-95325-035-0
01
1
0607-
138
CLIP; TUBE
(B) ID=11X2 H=35 L=20
1-09700-847-0
02
1
0507-0508
138
CLIP; TUBE
(B) ID=11X2 H=35 L=20
1-09700-847-0
01
1
0509-
138
CLIP; TUBE
(A) ID=35 L=33
1-09700-945-0
05
1
0507-
153
BRACKET; NYLON TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)
1-42129-494-0
01
1
0507-
153
BRACKET; NYLON TUBE
(B)
1-42129-489-1
01
1
0507-
153
BRACKET; NYLON TUBE
(D)
1-42129-499-0
01
1
0507-
153
BRACKET; NYLON TUBE
(C)
1-42129-488-1
01
1
0507-
153
BRACKET; NYLON TUBE
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)
1-42129-488-1
01
1
0507-
53
53
53
53
53
53
53
53
53
53
53
53
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
CLIP; UNION
L=250
1-09707-126-0
12
1
0507-
