4-65 — REAR LEAF SPRING (#3207) — 19 parça

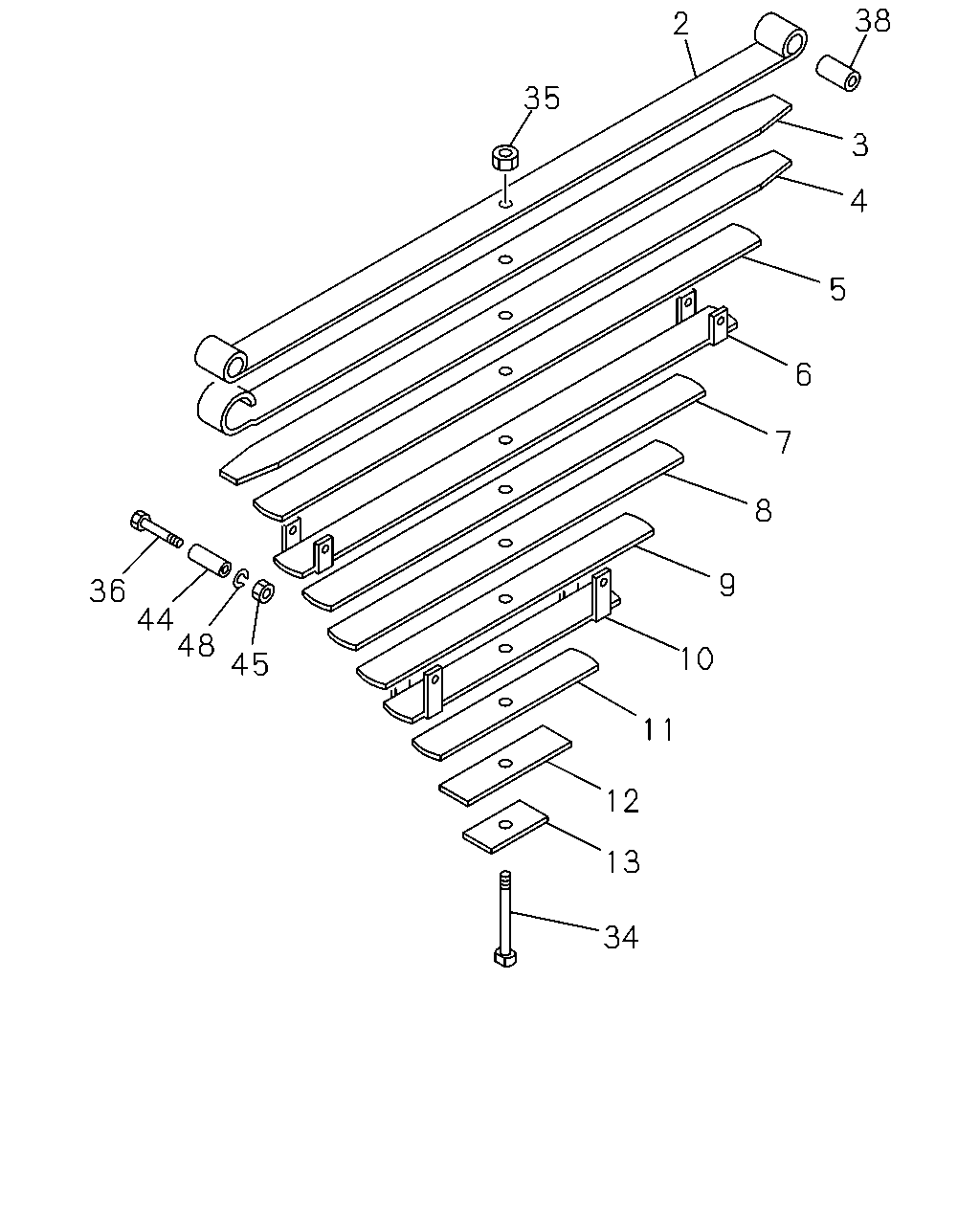

çizim 36770
38 2 35 3 4 5 6 7 8 9 36 44 48 10 45 11 12 13 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 1-51310-967-0 		1-51311-967-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 1-51310-967-0 		1-51312-967-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 1-51310-967-0 		1-51313-967-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 1-51310-967-0 		1-51314-967-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 1-51310-967-0 		1-51315-967-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 1-51310-967-0 		1-51316-967-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 1-51310-967-0 		1-51317-967-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: A = 1-51310-967-0 		1-51318-967-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
ASM PART: A = 1-51310-967-0 		1-51319-967-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
ASM PART: A = 1-51310-967-0 		1-51321-967-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
ASM PART: A = 1-51310-967-0 		1-51322-967-0 01 1 -
13 SPRING; LEAF,NO 12,RR MAIN
ASM PART: A = 1-51310-967-0 		1-51323-967-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: A = 1-51310-967-0 		1-51356-317-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 1-51310-967-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 1-51310-967-0 		1-09000-433-0 04 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51310-967-0 		1-51351-024-1 02 1 -
44 PIPE; CLIP,LEAF SPR,RR MAIN
ASM PART: A = 1-51310-967-0 		1-51353-011-0 04 1 -
45 NUT; CLIP,LEAF SPR,RR MAIN
M10 ASM PART: A = 1-51310-967-0 		9-09110-010-0 04 1 -
48 WASHER; CLIP,LEAF SPR
ID=10.2 ASM PART: A = 1-51310-967-0 		9-09150-510-0 04 1 -
