3-20 — AIR TANK (#32069) — 216 parça

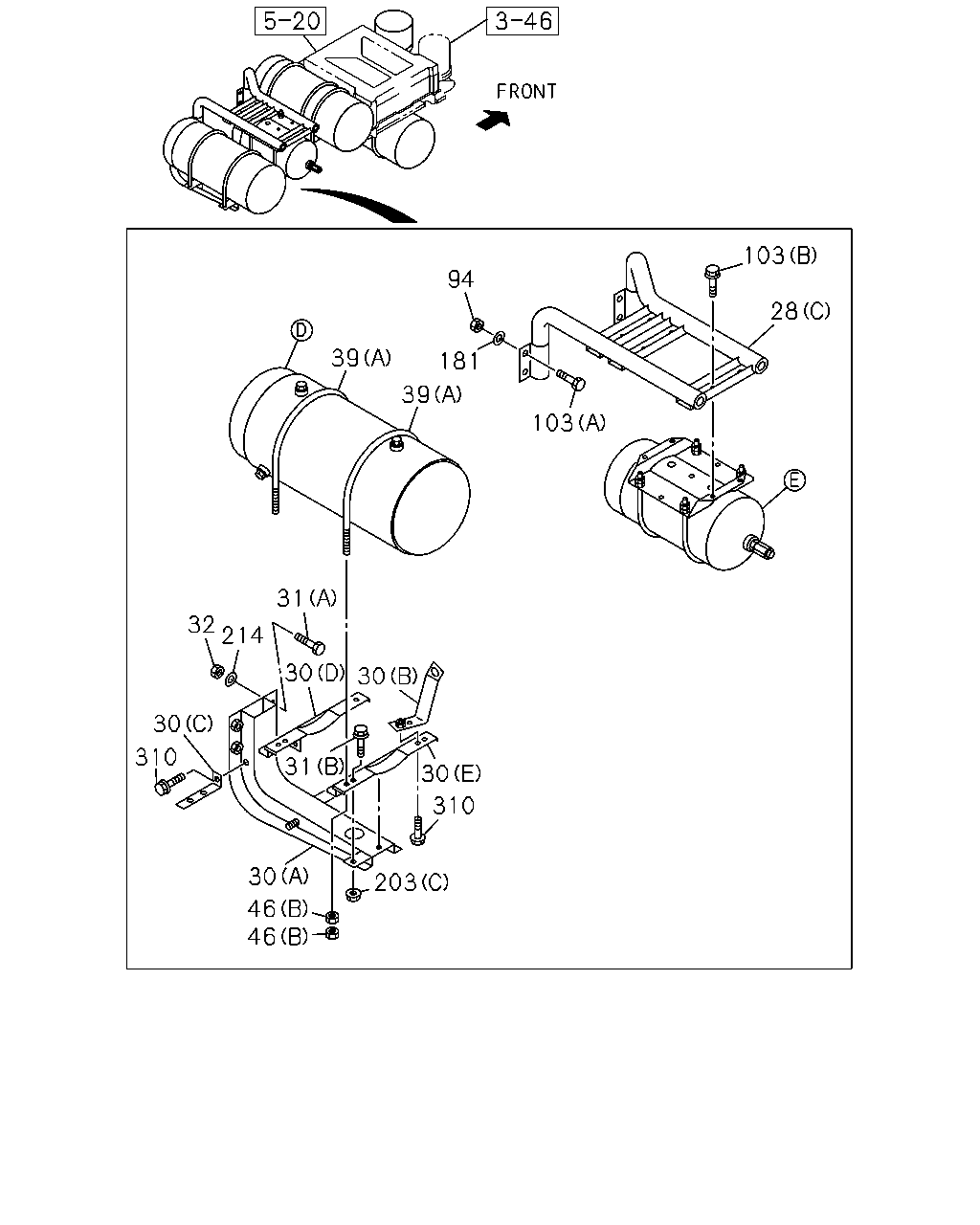

çizim 88844
103 94 28 39 181 39 103 31 32 214 30 30 30 31 310 30 310 30 203 46 46
BalonParca AdiParca NoAdetTipApplied Date
28 BRACKET; AIR TANK
(A) 		1-47479-675-1 01 1 0507-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 0507-0511
28 BRACKET; AIR TANK
6WF1 TC-C(1B8) (B) 		1-48317-473-2 01 1 0512-
28 BRACKET; AIR TANK
(C) 		1-48317-985-1 01 1 0507-0511
28 BRACKET; AIR TANK
6WF1 TC-C(1B8) (C) 		1-48317-985-1 01 1 0512-
30 BRACKET; AIR TANK,SUB
(B) 		1-48316-014-1 01 1 0507-
30 BRACKET; AIR TANK,SUB
(A) 		1-48316-024-3 01 1 0507-
30 BRACKET; AIR TANK,SUB
(D) 		1-48316-026-0 01 1 0507-
30 BRACKET; AIR TANK,SUB
(E) 		1-48317-994-2 01 1 0507-
30 BRACKET; AIR TANK,SUB
(C) 		1-82699-208-1 01 1 0507-0905
30 BRACKET; AIR TANK,SUB
(C) 		1-82698-358-0 01 1 0906-
31 BOLT; BRKT TO FRAME
(A) M14X50 		0-20801-450-0 04 1 0507-0512
31 BOLT; BRKT TO FRAME
(A) M14X50 		0-20851-450-0 04 1 0601-
31 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512
31 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
31 BOLT; BRKT TO FRAME
(B) M12X25 FLANGE 		0-28681-225-0 04 1 0507-0512
31 BOLT; BRKT TO FRAME
(B) M12X25 FLANGE 		0-28651-225-0 04 1 0601-
32 NUT; BRKT TO FRAME
M14 		9-99110-514-0 04 1 0507-0512
32 NUT; BRKT TO FRAME
M14 		0-91110-514-0 04 1 0601-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 06 1 0507-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0507-0511
39 U-BOLT; AIR TANK
6WF1 TC-C(1B8) (B) L=210 		1-48317-458-1 02 1 0512-
46 NUT; U-BOLT
(A) M8 		9-09110-408-0 08 1 0507-0511
46 NUT; U-BOLT
6WF1 TC-C(1B8) (A) M8 		9-09110-408-0 08 1 0512-0512
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 0601-
46 NUT; U-BOLT
(B) M8 		9-09110-408-0 24 1 0507-0512
46 NUT; U-BOLT
(B) M8 		0-91110-508-0 24 1 0601-
94 NUT; BRKT FIX
M14 		0-91110-514-0 04 1 0811-
103 BOLT; BRKT
(A) M14X35 		0-28081-435-0 04 1 0507-0511
103 BOLT; BRKT
6WF1 TC-C(1B8) (A) M14X35 		0-28081-435-0 04 1 0512-0810
103 BOLT; BRKT
(A) M14X35 		0-20851-435-0 04 1 0811-
103 BOLT; BRKT
(C) M8X30 FLANGE 		0-28680-830-0 02 1 0507-0512
103 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 04 1 0507-0511
103 BOLT; BRKT
6WF1 TC-C(1B8) (B) M10X30 FLANGE 		0-28681-030-0 04 1 0512-0512
103 BOLT; BRKT
6WF1 TC-C(1B8) (B) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
181 WASHER; LK,AIR TANK
ID=14.2 		9-09150-514-0 04 1 0507-0511
181 WASHER; LK,AIR TANK
6WF1 TC-C(1B8) ID=14.2 		9-09150-514-0 04 1 0512-0603
181 WASHER; LK,AIR TANK
6WF1 TC-C(1B8) ID=14.2 		0-91510-514-0 04 1 0604-
203 NUT
(C) M12 FLANGE 		0-91150-212-0 01 1 0507-0602
203 NUT
(C) M12 FLANGE 		0-91180-212-0 01 1 0603-
203 NUT
(B) M16 		9-99110-516-0 01 1 0507-0512
203 NUT
(B) M16 		0-91110-516-0 01 1 0601-
203 NUT
(A) M18 		9-99110-518-0 03 1 0507-0512
203 NUT
(A) M18 		0-91110-518-0 03 1 0601-
214 WASHER; LK,BRKT TO FRAME
ID=14.2 		9-09150-514-0 04 1 0507-0603
214 WASHER; LK,BRKT TO FRAME
ID=14.2 		0-91510-514-0 04 1 0604-
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0608-
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 07 1 0507-0512
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 07 1 0601-
310 BOLT; CLIP,AIR PIPE
M8X30 FLANGE 		0-28680-830-0 01 1 0507-0512
310 BOLT; CLIP,AIR PIPE
M8X30 FLANGE 		0-28650-830-0 01 1 0601-

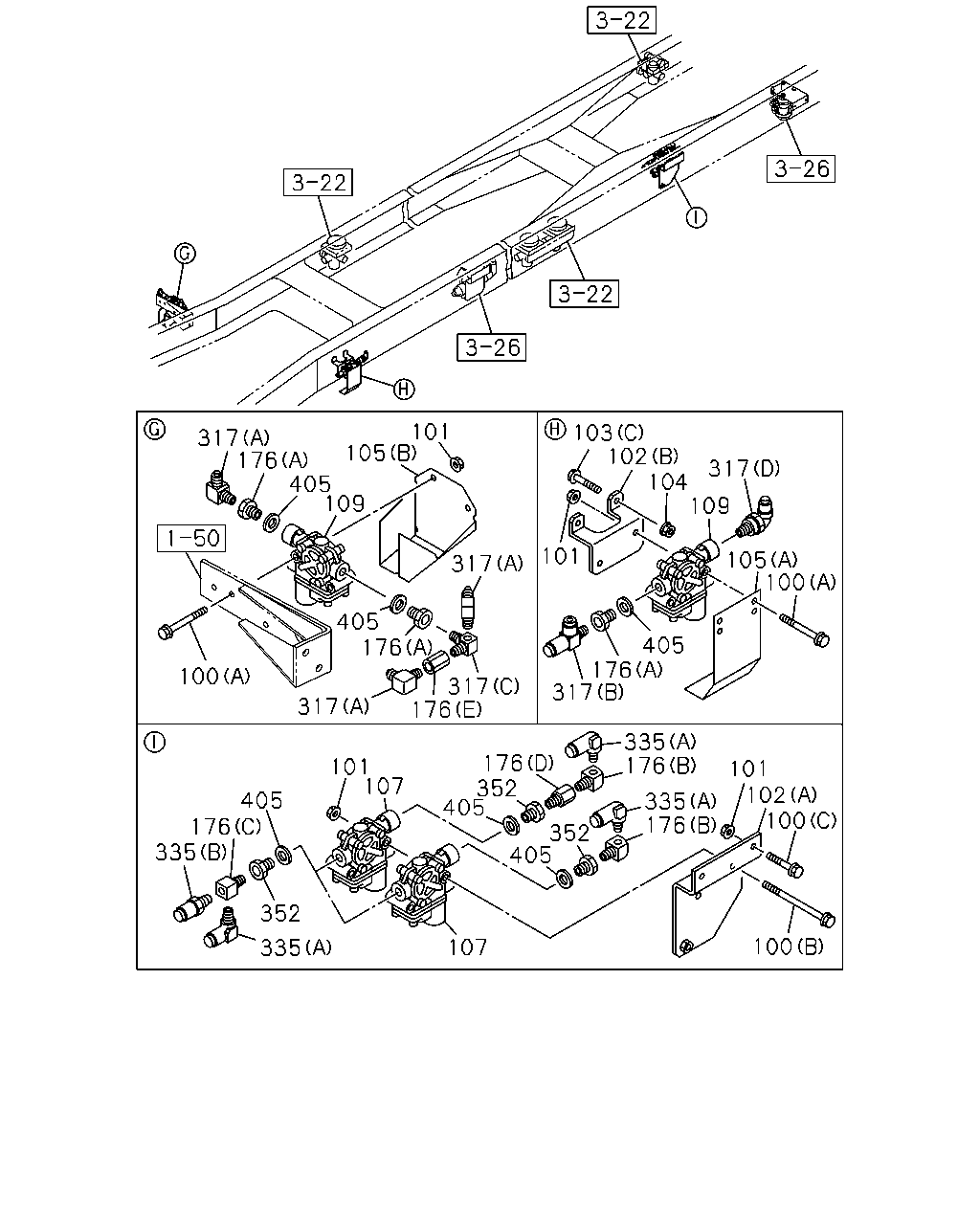

çizim 104120
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 0507-0512
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 0601-
çizim 104210
101 105 103 102 104 109 317 176 405 109 317 101 105 100 317 405 176 405 176 317 100 317 176 317 335 176 176 352 405 101 107 101 102 100 405 176 335 335 176 352 405 352 100 107 335
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28080-880-0 04 1 0507-0512
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 04 1 0601-
100 BOLT; MODULATOR
(B) M8X140 FLANGE 		0-28085-814-0 02 1 0507-0512
100 BOLT; MODULATOR
(B) M8X140 FLANGE 		0-28055-814-0 02 1 0601-
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 02 1 0507-0602
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 0603-
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 06 1 0507-0602
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 06 1 0603-
102 BRACKET; MODULATOR
(A) 		1-47479-591-1 01 1 0507-
102 BRACKET; MODULATOR
(B) 		1-47479-635-0 01 1 0507-
103 BOLT; BRKT
(A) M14X35 		0-28081-435-0 04 1 0507-0511
103 BOLT; BRKT
6WF1 TC-C(1B8) (A) M14X35 		0-28081-435-0 04 1 0512-0810
103 BOLT; BRKT
(A) M14X35 		0-20851-435-0 04 1 0811-
103 BOLT; BRKT
(C) M8X30 FLANGE 		0-28680-830-0 02 1 0507-0512
103 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 04 1 0507-0511
103 BOLT; BRKT
6WF1 TC-C(1B8) (B) M10X30 FLANGE 		0-28681-030-0 04 1 0512-0512
103 BOLT; BRKT
6WF1 TC-C(1B8) (B) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0507-0602
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0507-0602
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
105 COVER; MODULATOR
(A) 		1-47479-434-1 01 1 0507-
105 COVER; MODULATOR
(B) 		1-47479-611-1 01 1 0507-
107 MODULATOR; RR 1-48240-115-0 02 1 0507-
109 MODULATOR; FRT 1-48240-115-0 02 1 0507-
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 0507-
176 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 0507-
176 ADAPTER
(E) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0507-
176 ADAPTER
(C) PT3/8 3WAY 		1-09661-300-0 02 1 0507-
176 ADAPTER
(D) PT3/8 		1-48319-058-0 01 1 0507-
317 CONNECTOR; MODULATOR
(A) M20 & PT3/8 ELBOW 		1-09650-439-0 03 1 0507-0607
317 CONNECTOR; MODULATOR
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 03 1 0608-
317 CONNECTOR; MODULATOR
(C) 		1-09656-722-0 01 1 0507-
317 CONNECTOR; MODULATOR
(B) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 0507-
317 CONNECTOR; MODULATOR
(D) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0507-
335 CONNECTOR; MODULATOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0507-
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0507-
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0507-
405 GASKET
ID=22.5 		9-09571-422-0 03 1 0507-
405 GASKET
ID=22.5 		9-09571-422-0 04 1 0507-

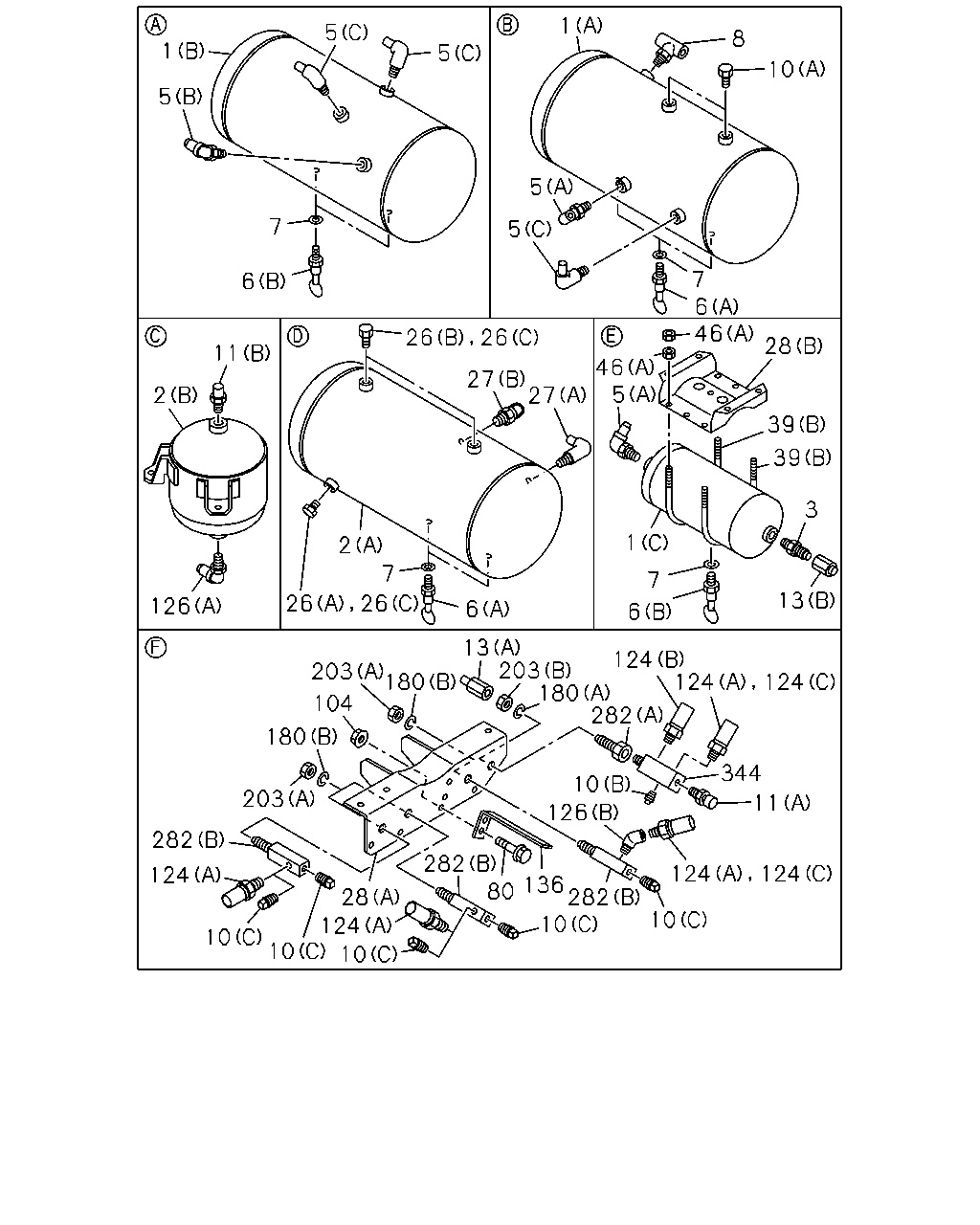

çizim 104213
1 5 8 1 5 10 5 5 7 5 7 6 46 6 28 11 46 5 27 27 2 39 39 3 1 2 7 7 13 26 26 126 6 6 13 203 180 282 124 124 203 180 124 104 180 344 10 126 203 11 282 136 282 10 282 80 124 124 124 28 10 124 10 10 10 26 26
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(C) 		1-48371-165-3 01 1 0507-0511
1 TANK ASM; AIR
6WF1 TC-C(1B8) (C) 		1-48371-165-3 01 1 0512-
1 TANK ASM; AIR
(A) 		1-48371-226-3 01 1 0507-
1 TANK ASM; AIR
(B) 		1-48371-227-4 01 1 0507-
2 TANK; AIR
(B) 		1-48371-166-3 01 1 0507-
2 TANK; AIR
(A) 		1-48371-427-0 01 1 0507-
3 VALVE; CHECK,AIR TANK 1-48410-182-3 01 1 0507-0511
3 VALVE; CHECK,AIR TANK
6WF1 TC-C(1B8) 		1-48410-182-3 01 1 0512-
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0507-
5 UNION; AIR TANK
(C) 		1-09661-550-0 01 1 0507-
5 UNION; AIR TANK
(C) 		1-09661-550-0 02 1 0507-
5 UNION; AIR TANK
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0507-
5 UNION; AIR TANK
6WF1 TC-C(1B8) (A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0507-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-015-0 01 1 0507-0511
6 COCK; DRAIN,AIR TANK
6WF1 TC-C(1B8) (B) 		1-48312-015-0 01 1 0512-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-015-0 02 1 0507-
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 02 1 0507-
6 COCK; DRAIN,AIR TANK
(A) W/COVER 		1-48312-004-2 02 1 0507-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0507-0511
7 GASKET; DRAIN COCK
6WF1 TC-C(1B8) ID=14 		1-09630-145-0 01 1 0512-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0507-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0507-
8 CONNECTOR; AIR TANK 1-09661-568-0 01 1 0507-
10 PLUG; AIR TANK
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) PT1/4 		9-99204-513-0 05 1 0512-
10 PLUG; AIR TANK
(A) 		1-09661-569-0 02 1 0507-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0507-
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 03 1 0507-0511
10 PLUG; AIR TANK
6WF1 TC-C(1B8) (C) PT1/4 		9-99204-513-0 03 1 0512-
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-2 01 1 0507-
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-2 01 1 0507-
13 ADAPTER; NYLON TUBE
(A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0507-
13 ADAPTER; NYLON TUBE
(B) DIN8 & M20 STRAIGHT 		1-09661-381-0 01 1 0507-0511
13 ADAPTER; NYLON TUBE
6WF1 TC-C(1B8) (B) DIN8 & M20 STRAIGHT 		1-09661-381-0 01 1 0512-
26 PLUG; SUB AIR TANK
(A) M22 		1-09661-502-0 01 1 0507-0510
26 PLUG; SUB AIR TANK
(C) M22 		1-09661-502-0 03 1 0511-
26 PLUG; SUB AIR TANK
(B) 		1-09661-569-0 02 1 0507-0510
27 UNION; ELBOW,AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0507-
27 UNION; ELBOW,AIR TANK
(A) 		1-09661-550-0 01 1 0507-
28 BRACKET; AIR TANK
(A) 		1-47479-675-1 01 1 0507-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 0507-0511
28 BRACKET; AIR TANK
6WF1 TC-C(1B8) (B) 		1-48317-473-2 01 1 0512-
28 BRACKET; AIR TANK
(C) 		1-48317-985-1 01 1 0507-0511
28 BRACKET; AIR TANK
6WF1 TC-C(1B8) (C) 		1-48317-985-1 01 1 0512-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 06 1 0507-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0507-0511
39 U-BOLT; AIR TANK
6WF1 TC-C(1B8) (B) L=210 		1-48317-458-1 02 1 0512-
46 NUT; U-BOLT
(A) M8 		9-09110-408-0 08 1 0507-0511
46 NUT; U-BOLT
6WF1 TC-C(1B8) (A) M8 		9-09110-408-0 08 1 0512-0512
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 0601-
46 NUT; U-BOLT
(B) M8 		9-09110-408-0 24 1 0507-0512
46 NUT; U-BOLT
(B) M8 		0-91110-508-0 24 1 0601-
80 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 0507-0512
80 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0507-0602
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0507-0602
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
124 SWITCH; AIR PRESSURE
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-48340-065-0 02 1 0512-
124 SWITCH; AIR PRESSURE
(A) 		1-48340-065-0 04 1 0507-0511
124 SWITCH; AIR PRESSURE
6WF1 TC-C(1B8) (A) 		1-48340-065-0 04 1 0512-
124 SWITCH; AIR PRESSURE
(B) 		1-48340-066-0 01 1 0507-
126 CONNECTOR; ELBOW
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0507-
126 CONNECTOR; ELBOW
(B) R1/4 & RC1/4 		1-09664-211-0 01 1 0507-
136 BRACKET; CLIP 1-47479-674-0 01 1 0507-
180 WASHER; LK
(A) ID=16.2 		9-09150-516-0 01 1 0507-0603
180 WASHER; LK
(A) ID=16.2 		0-91510-516-0 01 1 0604-
180 WASHER; LK
(B) ID=18.2 		9-09150-518-0 03 1 0507-0603
180 WASHER; LK
(B) ID=18.2 		0-91510-518-0 03 1 0604-
203 NUT
(C) M12 FLANGE 		0-91150-212-0 01 1 0507-0602
203 NUT
(C) M12 FLANGE 		0-91180-212-0 01 1 0603-
203 NUT
(B) M16 		9-99110-516-0 01 1 0507-0512
203 NUT
(B) M16 		0-91110-516-0 01 1 0601-
203 NUT
(A) M18 		9-99110-518-0 03 1 0507-0512
203 NUT
(A) M18 		0-91110-518-0 03 1 0601-
282 UNION; 2 WAY
(A) 		1-09650-222-1 01 1 0507-
282 UNION; 2 WAY
(B) 		1-09661-593-0 03 1 0507-
344 CONNECTOR; 4WAY 1-09660-521-2 01 1 0507-

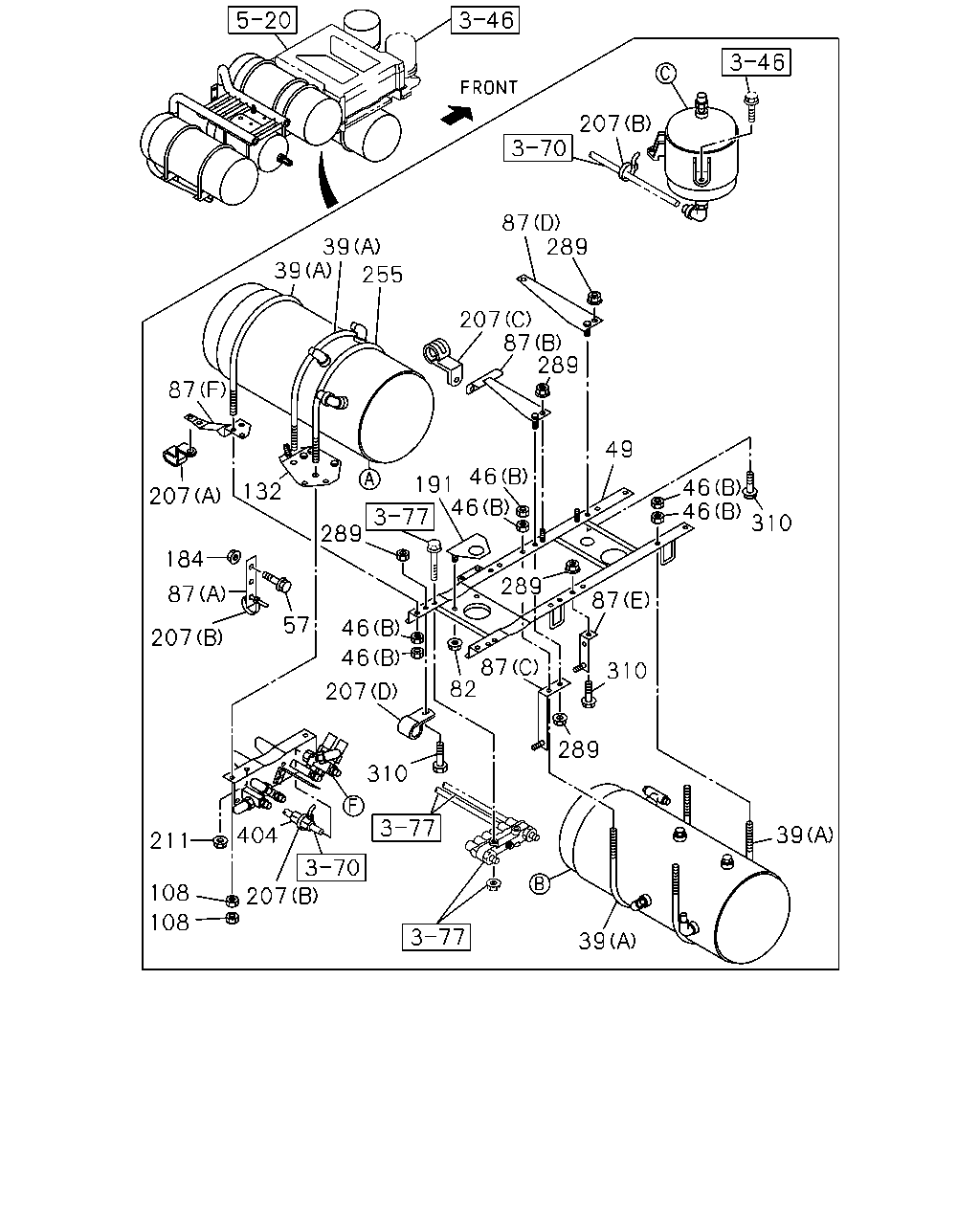

çizim 104214
207 87 289 39 255 39 207 87 289 87 49 46 191 46 46 46 132 207 310 289 289 87 184 87 46 57 87 82 207 46 310 207 289 310 404 39 211 207 108 108 39
BalonParca AdiParca NoAdetTipApplied Date
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 06 1 0507-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0507-0511
39 U-BOLT; AIR TANK
6WF1 TC-C(1B8) (B) L=210 		1-48317-458-1 02 1 0512-
46 NUT; U-BOLT
(A) M8 		9-09110-408-0 08 1 0507-0511
46 NUT; U-BOLT
6WF1 TC-C(1B8) (A) M8 		9-09110-408-0 08 1 0512-0512
46 NUT; U-BOLT
(A) M8 		0-91110-508-0 08 1 0601-
46 NUT; U-BOLT
(B) M8 		9-09110-408-0 24 1 0507-0512
46 NUT; U-BOLT
(B) M8 		0-91110-508-0 24 1 0601-
49 BRACKET; AIR TANK 1-48316-046-1 01 1 0507-
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28681-025-0 04 1 0507-0512
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 0601-
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91150-108-0 02 1 0507-0602
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
87 BRACKET; AIR PIPE JOINT
(A) L=125 		1-47477-975-1 01 1 0507-
87 BRACKET; AIR PIPE JOINT
(C) 		1-47479-470-2 01 1 0507-
87 BRACKET; AIR PIPE JOINT
(E) 		1-47479-541-1 01 1 0507-
87 BRACKET; AIR PIPE JOINT
(F) 		1-47479-663-1 01 1 0507-
87 BRACKET; AIR PIPE JOINT
(D) 		1-47479-708-0 01 1 0507-
87 BRACKET; AIR PIPE JOINT
(B) 		1-47479-709-1 01 1 0507-
108 NUT; CONNECTOR
M8 		9-09110-408-0 04 1 0507-0512
108 NUT; CONNECTOR
M8 		0-91110-508-0 04 1 0601-
132 BRACKET; STRING GUIDE 1-47479-531-0 01 1 0507-
184 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0507-0602
184 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603-
191 BRACKET; STOPPER,AIR TANK 1-48316-023-1 01 1 0507-
207 CLIP; AIR PIPE
(D) ID=18 L=54 		1-09701-068-0 01 1 0608-
207 CLIP; AIR PIPE
(A) ID=18 L=25 H=50 		1-09701-096-0 01 1 0507-
207 CLIP; AIR PIPE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 0507-
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 19 1 0507-0606
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 21 1 0607-
211 NUT; STRING GUIDE
M8 FLANGE 		0-91150-108-0 03 1 0507-0602
211 NUT; STRING GUIDE
M8 FLANGE 		0-91180-108-0 03 1 0603-
255 BOLT; CONN
L=303 		1-48317-087-2 01 1 0507-
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 10 1 0507-0602
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 10 1 0603-0607
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 11 1 0608-
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0608-
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 07 1 0507-0512
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 07 1 0601-
310 BOLT; CLIP,AIR PIPE
M8X30 FLANGE 		0-28680-830-0 01 1 0507-0512
310 BOLT; CLIP,AIR PIPE
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
404 SLEEVE; RUBBER
ID=15 OD=19 L=50 		1-09337-014-0 06 1 0507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
