2-38 — SHIFT CONTROL (#32060) — 34 parça

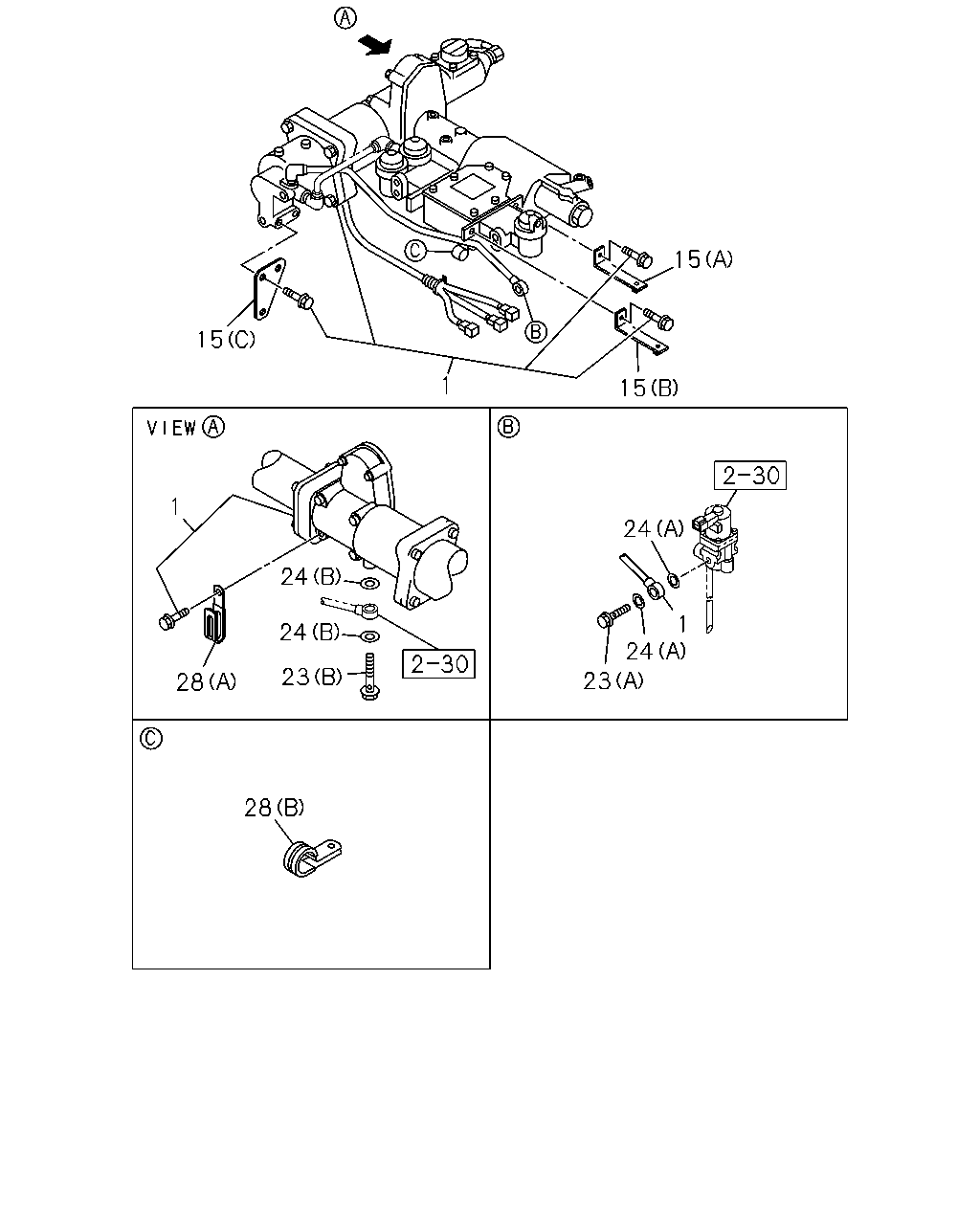

çizim 88802
15 15 1 15 1 24 24 1 24 24 23 23 28 28
BalonParca AdiParca NoAdetTipApplied Date
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-33730-296-0 01 1 0512-0604
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98047-359-0 01 1 0605-0606
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98055-135-0 01 1 0607-0701
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98070-040-1 01 1 0702-0905
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98147-541-0 01 1 0906-1007
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98163-036-0 01 1 1008-1106
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98186-516-0 01 1 1107-1310
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98254-320-0 01 1 1311-1506
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98302-718-0 01 1 1507-
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WF1 TC-C(1B8) 		1-33730-241-9 01 1 0507-0612
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WF1 TC-C(1B8) 		1-33730-297-1 01 1 0701-
15 BRACKET; ACTUATOR
6WF1 TC-C(1B8) (A) 		1-82569-316-0 01 1 0507-
15 BRACKET; ACTUATOR
6WF1 TC-C(1B8) (B) 		1-82569-317-0 01 1 0507-
15 BRACKET; ACTUATOR
6WF1 TC-C(1B8) (C) 		1-82569-320-1 01 1 0507-
23 BOLT; EYE
6WF1 TC-C(1B8) (A) M14X27 FLANGE 		1-09675-086-0 01 1 0507-
23 BOLT; EYE
6WF1 TC-C(1B8) (B) M12X27 FLANGE 		1-09675-160-0 01 1 0507-0805
23 BOLT; EYE
6WF1 TC-C(1B8) (B) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 0806-
24 GASKET
6WF1 TC-C(1B8) (B) ID=12.2 		1-09630-084-0 02 1 0507-1312
24 GASKET
6WF1 TC-C(1B8) (B) ID=12.2 		8-98251-344-0 02 1 1401-
24 GASKET
6WF1 TC-C(1B8) (A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0507-1312
24 GASKET
6WF1 TC-C(1B8) (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
28 CLIP
6WF1 TC-C(1B8) (B) ID=31 L=35 		1-09700-329-1 01 1 0507-
28 CLIP
6WF1 TC-C(1B8) (A) L=36 		8-94224-891-1 01 1 0507-

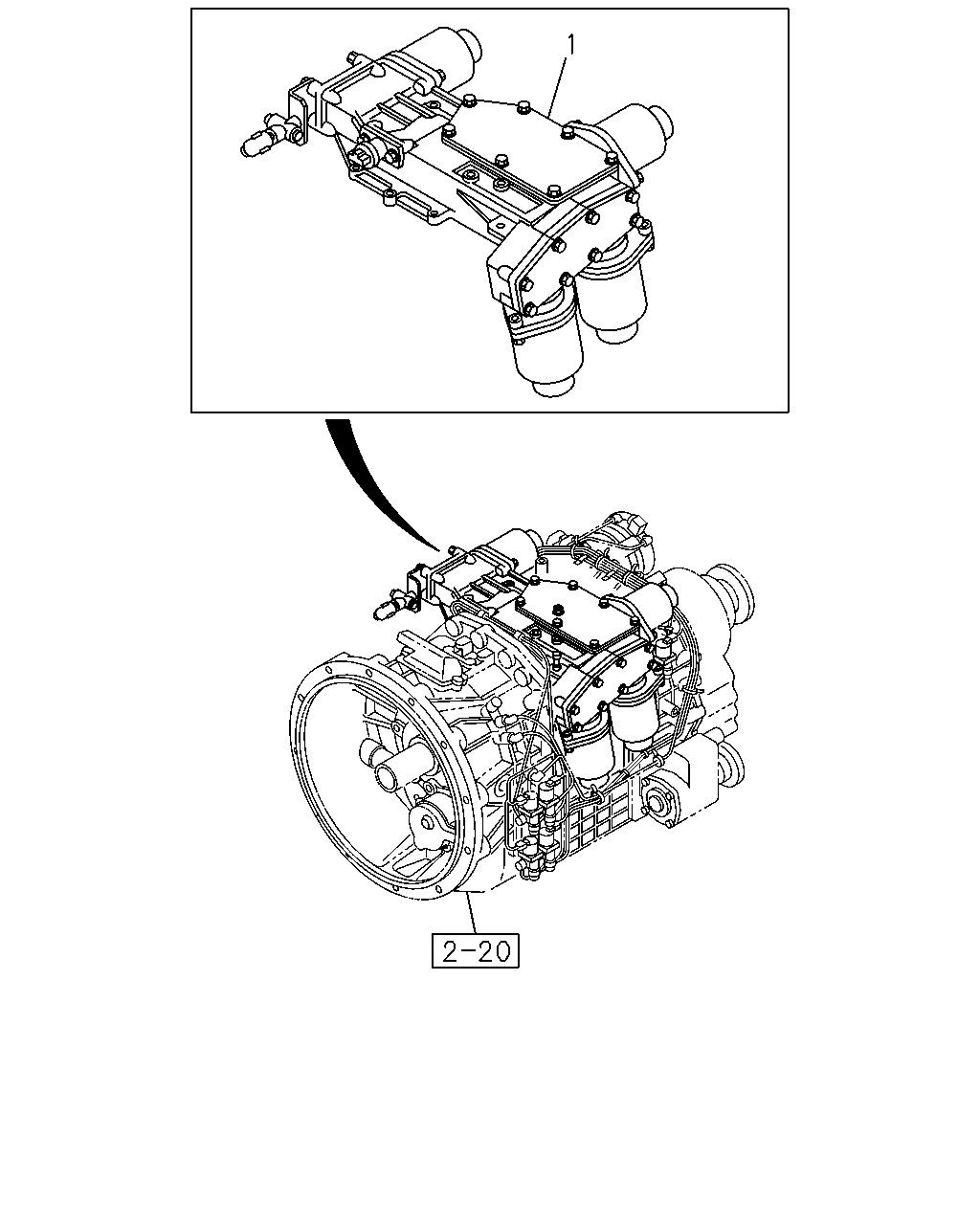

çizim 105083
1
BalonParca AdiParca NoAdetTipApplied Date
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-33730-296-0 01 1 0512-0604
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98047-359-0 01 1 0605-0606
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98055-135-0 01 1 0607-0701
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98070-040-1 01 1 0702-0905
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98147-541-0 01 1 0906-1007
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98163-036-0 01 1 1008-1106
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98186-516-0 01 1 1107-1310
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98254-320-0 01 1 1311-1506
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98302-718-0 01 1 1507-
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WF1 TC-C(1B8) 		1-33730-241-9 01 1 0507-0612
1 ACTUATOR ASM; GEAR SHIFT
SEE FIG-NO 2-31 FOR COMPONENT. 6WF1 TC-C(1B8) 		1-33730-297-1 01 1 0701-
