Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11006 - CYJ NEW ZEALAND
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#32059) — 12 parça
◀

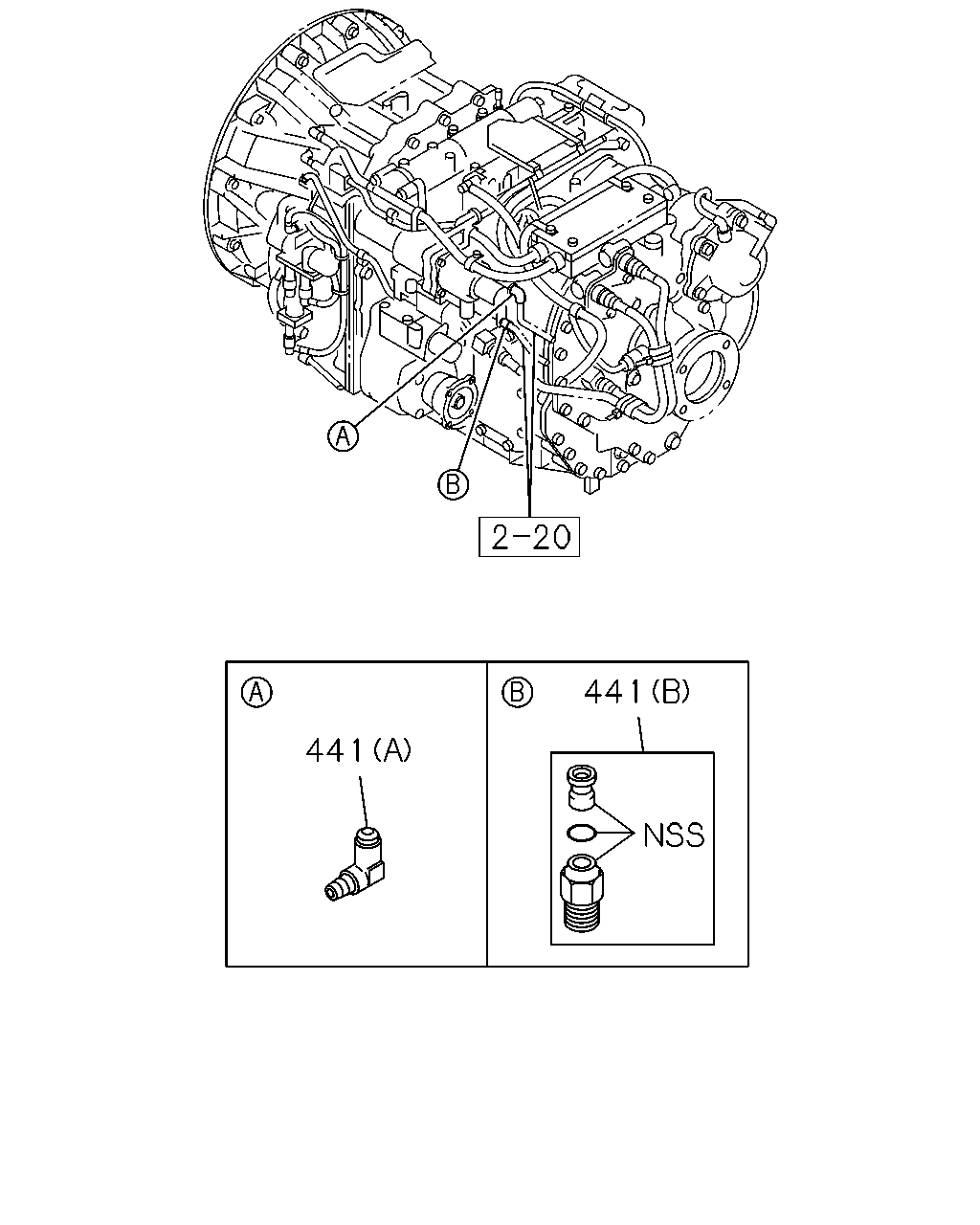

[236A] CONNECTOR FIXING (4 parça)
[236A] CLIP FIXING (8 parça)
▶
441
441
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
441
CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0507-0511
441
CONNECTOR; NYLON TUBE
6WF1 TC-C(1B8) (A) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0512-
441
CONNECTOR; NYLON TUBE
(B) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0507-0511
441
CONNECTOR; NYLON TUBE
6WF1 TC-C(1B8) (B) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0512-
303
325
300
325
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
300
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0610-
303
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0610-
325
CLIP; NYLON TUBE
ID=16 H=45 L=20
1-09701-161-0
01
1
0610-
325
CLIP; NYLON TUBE
6WG1 TC-C(72L),6WG1 TC-S(97L) L=350
1-09707-183-0
02
1
0512-0606
325
CLIP; NYLON TUBE
6WG1 TC-C(72L),6WG1 TC-S(97L) L=350
1-09707-183-0
01
1
0607-
325
CLIP; NYLON TUBE
L=350
1-09707-183-0
06
1
0507-0511
325
CLIP; NYLON TUBE
6WF1 TC-C(1B8) L=350
1-09707-183-0
06
1
0512-0606
325
CLIP; NYLON TUBE
L=350
1-09707-183-0
05
1
0607-
