Sayfa 2-35 - Isuzu EPC

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#32058) — 270 parça

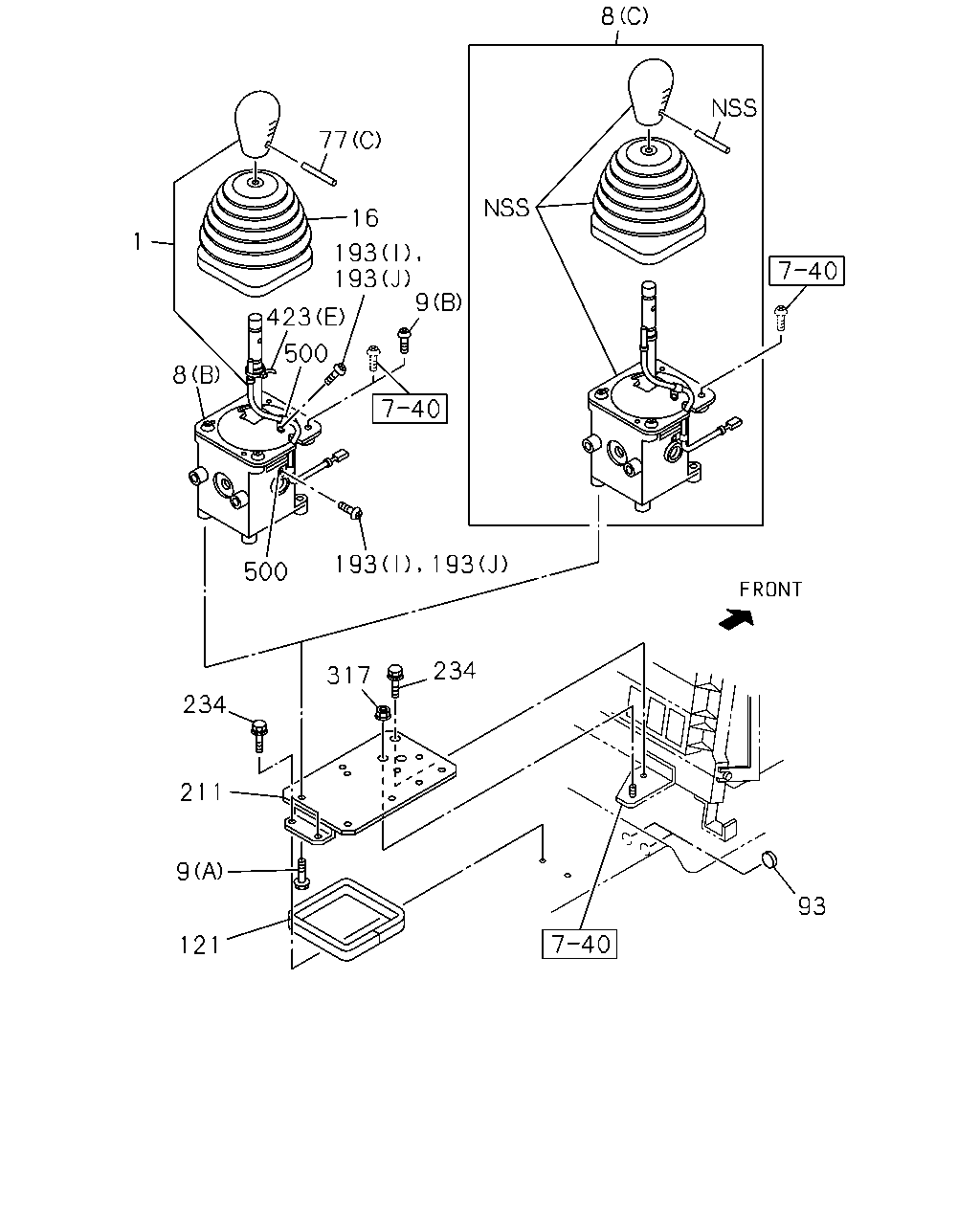

8 77 16 1 193 193 9 423 500 8 193 193 500 234 317 234 211 9 93 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER	1-33611-124-0	01	1	0507-0911
1	KNOB; CHANGE LEVER	8-98152-481-0	01	1	0912-
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-33620-114-2	01	1	0512-1010
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	8-98181-427-0	01	1	1011-
8	LEVER; CHANGE (A)	1-33620-064-1	01	1	0507-0511
8	LEVER; CHANGE 6WF1 TC-C(1B8) (A)	1-33620-064-1	01	1	0512-
9	BOLT; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-33619-798-0	08	1	0512-1010
9	BOLT; CHANGE LEVER (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0507-
9	BOLT; CHANGE LEVER (B) M4X8 W/PL WASHER	9-03900-408-0	04	1	0507-0604
16	BOOT; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-33614-145-0	01	1	0512-1010
16	BOOT; CHANGE LEVER	1-33614-133-0	01	1	0507-0511
16	BOOT; CHANGE LEVER 6WF1 TC-C(1B8)	1-33614-133-0	01	1	0512-
77	PIN; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-33619-780-0	01	1	0512-1010
77	PIN; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (D)	1-33619-795-0	01	1	0512-1010
77	PIN; CHANGE LEVER (B)	1-33619-687-0	01	1	0507-0511
77	PIN; CHANGE LEVER 6WF1 TC-C(1B8) (B)	1-33619-687-0	01	1	0512-
77	PIN; CHANGE LEVER (A)	1-33738-057-0	01	1	0507-0511
77	PIN; CHANGE LEVER 6WF1 TC-C(1B8) (A)	1-33738-057-0	01	1	0512-
93	SEAL; HOLE COVER,GEAR CONT OD=25 BLACK	1-76798-019-0	04	1	0507-
121	SEAL; CHANGE LEVER	1-79997-354-0	01	1	0507-
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (J) M5X12 W/LK WASHER	0-36220-512-0	02	1	0912-1010
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (H) M4X8 W/LK WASHER	9-03910-408-0	04	1	0512-1010
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (I) M5X12 W/LK WASHER	9-03910-512-0	06	1	0512-0911
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (K) M5X12 W/LK WASHER	9-03910-512-0	04	1	0912-1010
193	SCREW; CHANGE LEVER (G)	1-33619-501-0	09	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (G)	1-33619-501-0	09	1	0512-
193	SCREW; CHANGE LEVER (C)	1-33619-684-0	06	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (C)	1-33619-684-0	06	1	0512-
193	SCREW; CHANGE LEVER (E)	1-33619-690-0	02	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (E)	1-33619-690-0	02	1	0512-
193	SCREW; CHANGE LEVER (D)	1-33619-695-0	03	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (D)	1-33619-695-0	03	1	0512-
193	SCREW; CHANGE LEVER (A)	1-33739-168-0	02	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (A)	1-33739-168-0	02	1	0512-
193	SCREW; CHANGE LEVER (B)	1-33739-302-0	02	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (B)	1-33739-302-0	02	1	0512-
193	SCREW; CHANGE LEVER (F)	9-88510-210-0	04	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (F)	9-88510-210-0	04	1	0512-
211	BRACKET; CHANGE LEVER	1-79907-115-1	01	1	0507-
234	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0507-0904
234	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
317	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0507-0602
317	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
423	CLIP; BAND 6WG1 TC-C(72L),6WG1 TC-S(97L) (E)	1-33619-781-0	01	1	0512-0911
423	CLIP; BAND 6WG1 TC-C(72L),6WG1 TC-S(97L) (E)	8-97138-392-0	01	1	0912-1010
423	CLIP; BAND (D) L=60	1-09700-304-0	01	1	0507-0511
423	CLIP; BAND 6WF1 TC-C(1B8) (D) L=60	1-09700-304-0	01	1	0512-
423	CLIP; BAND (A)	1-47829-050-0	01	1	0507-0511
423	CLIP; BAND 6WF1 TC-C(1B8) (A)	1-47829-050-0	01	1	0512-
423	CLIP; BAND (B) ID=9 L=16	9-09524-822-0	02	1	0507-0511
423	CLIP; BAND 6WF1 TC-C(1B8) (B) ID=9 L=16	9-09524-822-0	02	1	0512-
423	CLIP; BAND (C) ID=13 L=20	9-09525-232-0	01	1	0507-0511
423	CLIP; BAND 6WF1 TC-C(1B8) (C) ID=13 L=20	9-09525-232-0	01	1	0512-
500	CLIP; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=9 L=16	9-09524-822-0	02	1	0512-1010
500	CLIP; HARNESS	1-47829-050-0	01	1	0507-0511
500	CLIP; HARNESS 6WF1 TC-C(1B8)	1-47829-050-0	01	1	0512-

1 77 16 423 193 497 423 193 9 193 497 423 497 423 8 423 193 234 317 234 211 9 93 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER	1-33611-124-0	01	1	0507-0911
1	KNOB; CHANGE LEVER	8-98152-481-0	01	1	0912-
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-33620-114-2	01	1	0512-1010
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	8-98181-427-0	01	1	1011-
8	LEVER; CHANGE (A)	1-33620-064-1	01	1	0507-0511
8	LEVER; CHANGE 6WF1 TC-C(1B8) (A)	1-33620-064-1	01	1	0512-
9	BOLT; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-33619-798-0	08	1	0512-1010
9	BOLT; CHANGE LEVER (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0507-
9	BOLT; CHANGE LEVER (B) M4X8 W/PL WASHER	9-03900-408-0	04	1	0507-0604
16	BOOT; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-33614-145-0	01	1	0512-1010
16	BOOT; CHANGE LEVER	1-33614-133-0	01	1	0507-0511
16	BOOT; CHANGE LEVER 6WF1 TC-C(1B8)	1-33614-133-0	01	1	0512-
77	PIN; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-33619-780-0	01	1	0512-1010
77	PIN; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (D)	1-33619-795-0	01	1	0512-1010
77	PIN; CHANGE LEVER (B)	1-33619-687-0	01	1	0507-0511
77	PIN; CHANGE LEVER 6WF1 TC-C(1B8) (B)	1-33619-687-0	01	1	0512-
77	PIN; CHANGE LEVER (A)	1-33738-057-0	01	1	0507-0511
77	PIN; CHANGE LEVER 6WF1 TC-C(1B8) (A)	1-33738-057-0	01	1	0512-
93	SEAL; HOLE COVER,GEAR CONT OD=25 BLACK	1-76798-019-0	04	1	0507-
121	SEAL; CHANGE LEVER	1-79997-354-0	01	1	0507-
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (J) M5X12 W/LK WASHER	0-36220-512-0	02	1	0912-1010
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (H) M4X8 W/LK WASHER	9-03910-408-0	04	1	0512-1010
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (I) M5X12 W/LK WASHER	9-03910-512-0	06	1	0512-0911
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (K) M5X12 W/LK WASHER	9-03910-512-0	04	1	0912-1010
193	SCREW; CHANGE LEVER (G)	1-33619-501-0	09	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (G)	1-33619-501-0	09	1	0512-
193	SCREW; CHANGE LEVER (C)	1-33619-684-0	06	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (C)	1-33619-684-0	06	1	0512-
193	SCREW; CHANGE LEVER (E)	1-33619-690-0	02	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (E)	1-33619-690-0	02	1	0512-
193	SCREW; CHANGE LEVER (D)	1-33619-695-0	03	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (D)	1-33619-695-0	03	1	0512-
193	SCREW; CHANGE LEVER (A)	1-33739-168-0	02	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (A)	1-33739-168-0	02	1	0512-
193	SCREW; CHANGE LEVER (B)	1-33739-302-0	02	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (B)	1-33739-302-0	02	1	0512-
193	SCREW; CHANGE LEVER (F)	9-88510-210-0	04	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (F)	9-88510-210-0	04	1	0512-
211	BRACKET; CHANGE LEVER	1-79907-115-1	01	1	0507-
234	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0507-0904
234	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
317	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0507-0602
317	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
423	CLIP; BAND 6WG1 TC-C(72L),6WG1 TC-S(97L) (E)	1-33619-781-0	01	1	0512-0911
423	CLIP; BAND 6WG1 TC-C(72L),6WG1 TC-S(97L) (E)	8-97138-392-0	01	1	0912-1010
423	CLIP; BAND (D) L=60	1-09700-304-0	01	1	0507-0511
423	CLIP; BAND 6WF1 TC-C(1B8) (D) L=60	1-09700-304-0	01	1	0512-
423	CLIP; BAND (A)	1-47829-050-0	01	1	0507-0511
423	CLIP; BAND 6WF1 TC-C(1B8) (A)	1-47829-050-0	01	1	0512-
423	CLIP; BAND (B) ID=9 L=16	9-09524-822-0	02	1	0507-0511
423	CLIP; BAND 6WF1 TC-C(1B8) (B) ID=9 L=16	9-09524-822-0	02	1	0512-
423	CLIP; BAND (C) ID=13 L=20	9-09525-232-0	01	1	0507-0511
423	CLIP; BAND 6WF1 TC-C(1B8) (C) ID=13 L=20	9-09525-232-0	01	1	0512-
497	WASHER; CHANGE LEVER (D)	1-33619-715-0	01	1	0507-0511
497	WASHER; CHANGE LEVER 6WF1 TC-C(1B8) (D)	1-33619-715-0	01	1	0512-
497	WASHER; CHANGE LEVER (B)	1-33619-759-0	01	1	0507-0511
497	WASHER; CHANGE LEVER 6WF1 TC-C(1B8) (B)	1-33619-759-0	01	1	0512-
497	WASHER; CHANGE LEVER (C) ID=6.4	9-09160-506-0	01	1	0507-0511
497	WASHER; CHANGE LEVER 6WF1 TC-C(1B8) (C) ID=6.4	9-09160-506-0	01	1	0512-
497	WASHER; CHANGE LEVER (A) ID=5.3 OD=12	9-09164-605-0	02	1	0507-0511
497	WASHER; CHANGE LEVER 6WF1 TC-C(1B8) (A) ID=5.3 OD=12	9-09164-605-0	02	1	0512-

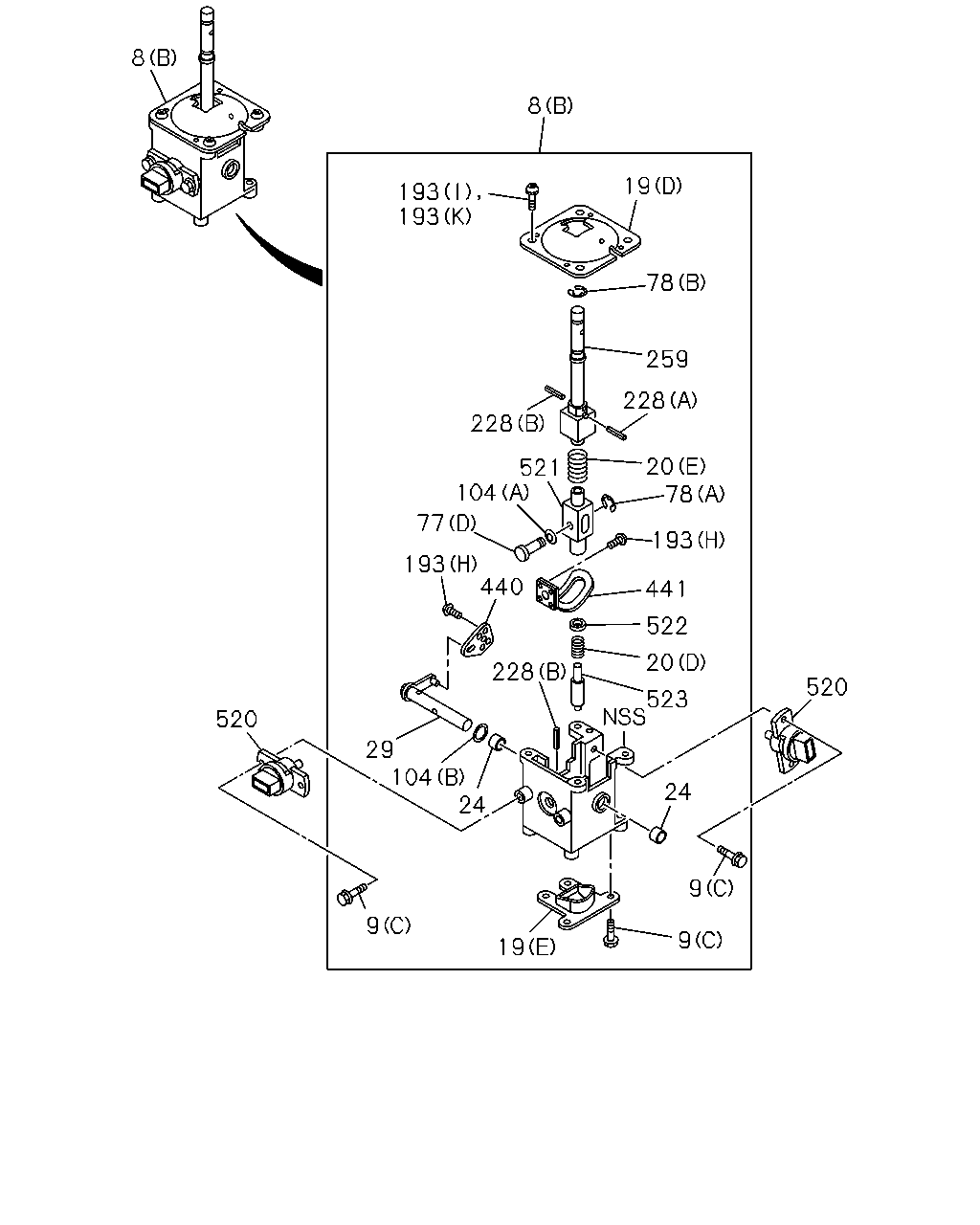

8 8 19 193 193 78 259 228 228 20 78 521 104 77 193 193 440 441 522 20 228 520 523 520 29 104 24 24 9 9 9 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-33620-114-2	01	1	0512-1010
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	8-98181-427-0	01	1	1011-
8	LEVER; CHANGE (A)	1-33620-064-1	01	1	0507-0511
8	LEVER; CHANGE 6WF1 TC-C(1B8) (A)	1-33620-064-1	01	1	0512-
9	BOLT; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-33619-798-0	08	1	0512-1010
9	BOLT; CHANGE LEVER (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0507-
9	BOLT; CHANGE LEVER (B) M4X8 W/PL WASHER	9-03900-408-0	04	1	0507-0604
19	COVER; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (D)	1-33619-790-0	01	1	0512-1010
19	COVER; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (E)	1-33619-791-0	01	1	0512-1010
19	COVER; CHANGE LEVER (C)	1-33619-754-0	01	1	0507-0511
19	COVER; CHANGE LEVER 6WF1 TC-C(1B8) (C)	1-33619-754-0	01	1	0512-
19	COVER; CHANGE LEVER (A)	1-33619-757-0	01	1	0507-0511
19	COVER; CHANGE LEVER 6WF1 TC-C(1B8) (A)	1-33619-757-0	01	1	0512-
19	COVER; CHANGE LEVER (B)	1-33619-758-0	01	1	0507-0511
19	COVER; CHANGE LEVER 6WF1 TC-C(1B8) (B)	1-33619-758-0	01	1	0512-
20	SPRING; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (D)	1-33619-786-0	01	1	0512-1010
20	SPRING; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (E)	1-33619-787-0	01	1	0512-1010
20	SPRING; CHANGE LEVER (A)	1-33619-712-0	01	1	0507-0511
20	SPRING; CHANGE LEVER 6WF1 TC-C(1B8) (A)	1-33619-712-0	01	1	0512-
20	SPRING; CHANGE LEVER (B)	1-33619-719-0	01	1	0507-0511
20	SPRING; CHANGE LEVER 6WF1 TC-C(1B8) (B)	1-33619-719-0	01	1	0512-
20	SPRING; CHANGE LEVER (C)	1-33619-760-0	01	1	0507-0511
20	SPRING; CHANGE LEVER 6WF1 TC-C(1B8) (C)	1-33619-760-0	01	1	0512-
24	BUSHING; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-33619-797-0	02	1	0512-1010
29	SHAFT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-33619-792-0	01	1	0512-1010
29	SHAFT	1-33619-756-0	01	1	0507-0511
29	SHAFT 6WF1 TC-C(1B8)	1-33619-756-0	01	1	0512-
77	PIN; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-33619-780-0	01	1	0512-1010
77	PIN; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (D)	1-33619-795-0	01	1	0512-1010
77	PIN; CHANGE LEVER (B)	1-33619-687-0	01	1	0507-0511
77	PIN; CHANGE LEVER 6WF1 TC-C(1B8) (B)	1-33619-687-0	01	1	0512-
77	PIN; CHANGE LEVER (A)	1-33738-057-0	01	1	0507-0511
77	PIN; CHANGE LEVER 6WF1 TC-C(1B8) (A)	1-33738-057-0	01	1	0512-
78	RING; SNAP,CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=4	9-09185-404-0	01	1	0512-1010
78	RING; SNAP,CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=9	9-09185-409-0	01	1	0512-1010
104	WASHER; WAVED 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	1-33619-788-0	01	1	0512-1010
104	WASHER; WAVED 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-33619-789-0	01	1	0512-1010
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (J) M5X12 W/LK WASHER	0-36220-512-0	02	1	0912-1010
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (H) M4X8 W/LK WASHER	9-03910-408-0	04	1	0512-1010
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (I) M5X12 W/LK WASHER	9-03910-512-0	06	1	0512-0911
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (K) M5X12 W/LK WASHER	9-03910-512-0	04	1	0912-1010
193	SCREW; CHANGE LEVER (G)	1-33619-501-0	09	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (G)	1-33619-501-0	09	1	0512-
193	SCREW; CHANGE LEVER (C)	1-33619-684-0	06	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (C)	1-33619-684-0	06	1	0512-
193	SCREW; CHANGE LEVER (E)	1-33619-690-0	02	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (E)	1-33619-690-0	02	1	0512-
193	SCREW; CHANGE LEVER (D)	1-33619-695-0	03	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (D)	1-33619-695-0	03	1	0512-
193	SCREW; CHANGE LEVER (A)	1-33739-168-0	02	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (A)	1-33739-168-0	02	1	0512-
193	SCREW; CHANGE LEVER (B)	1-33739-302-0	02	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (B)	1-33739-302-0	02	1	0512-
193	SCREW; CHANGE LEVER (F)	9-88510-210-0	04	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (F)	9-88510-210-0	04	1	0512-
228	PIN; SPR,CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	1-33619-505-0	01	1	0512-1010
228	PIN; SPR,CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-33619-796-0	02	1	0512-1010
259	LEVER; CHANGE,UPR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-33619-782-0	01	1	0512-1010
440	LEVER; SHIFT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-33619-794-0	01	1	0512-1010
441	LEVER; SELECT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-33619-793-0	01	1	0512-1010
520	SENSOR; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-81541-113-0	02	1	0512-1010
521	LEVER; CHANGE,LOW 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-33619-783-0	01	1	0512-1010
522	GUIDE; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-33619-784-0	01	1	0512-1010
523	PLUNGER; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-33619-785-0	01	1	0512-1010

449 500 504

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
449	SWITCH; CHANGE LEVER	1-33619-657-1	01	1	0507-0511
449	SWITCH; CHANGE LEVER 6WF1 TC-C(1B8)	1-33619-657-1	01	1	0512-
500	CLIP; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=9 L=16	9-09524-822-0	02	1	0512-1010
500	CLIP; HARNESS	1-47829-050-0	01	1	0507-0511
500	CLIP; HARNESS 6WF1 TC-C(1B8)	1-47829-050-0	01	1	0512-
504	GROMMET; CHANGE LEVER	1-33619-681-0	01	1	0507-0511
504	GROMMET; CHANGE LEVER 6WF1 TC-C(1B8)	1-33619-681-0	01	1	0512-

8 126 8 508 193 20 19 193 506 394 193 193 77 20 394 497 394 509 497 20 510 281 193 193 19 29 508 505 193 500 19 504 428 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-33620-114-2	01	1	0512-1010
8	LEVER; CHANGE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	8-98181-427-0	01	1	1011-
8	LEVER; CHANGE (A)	1-33620-064-1	01	1	0507-0511
8	LEVER; CHANGE 6WF1 TC-C(1B8) (A)	1-33620-064-1	01	1	0512-
19	COVER; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (D)	1-33619-790-0	01	1	0512-1010
19	COVER; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (E)	1-33619-791-0	01	1	0512-1010
19	COVER; CHANGE LEVER (C)	1-33619-754-0	01	1	0507-0511
19	COVER; CHANGE LEVER 6WF1 TC-C(1B8) (C)	1-33619-754-0	01	1	0512-
19	COVER; CHANGE LEVER (A)	1-33619-757-0	01	1	0507-0511
19	COVER; CHANGE LEVER 6WF1 TC-C(1B8) (A)	1-33619-757-0	01	1	0512-
19	COVER; CHANGE LEVER (B)	1-33619-758-0	01	1	0507-0511
19	COVER; CHANGE LEVER 6WF1 TC-C(1B8) (B)	1-33619-758-0	01	1	0512-
20	SPRING; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (D)	1-33619-786-0	01	1	0512-1010
20	SPRING; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (E)	1-33619-787-0	01	1	0512-1010
20	SPRING; CHANGE LEVER (A)	1-33619-712-0	01	1	0507-0511
20	SPRING; CHANGE LEVER 6WF1 TC-C(1B8) (A)	1-33619-712-0	01	1	0512-
20	SPRING; CHANGE LEVER (B)	1-33619-719-0	01	1	0507-0511
20	SPRING; CHANGE LEVER 6WF1 TC-C(1B8) (B)	1-33619-719-0	01	1	0512-
20	SPRING; CHANGE LEVER (C)	1-33619-760-0	01	1	0507-0511
20	SPRING; CHANGE LEVER 6WF1 TC-C(1B8) (C)	1-33619-760-0	01	1	0512-
29	SHAFT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-33619-792-0	01	1	0512-1010
29	SHAFT	1-33619-756-0	01	1	0507-0511
29	SHAFT 6WF1 TC-C(1B8)	1-33619-756-0	01	1	0512-
77	PIN; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-33619-780-0	01	1	0512-1010
77	PIN; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (D)	1-33619-795-0	01	1	0512-1010
77	PIN; CHANGE LEVER (B)	1-33619-687-0	01	1	0507-0511
77	PIN; CHANGE LEVER 6WF1 TC-C(1B8) (B)	1-33619-687-0	01	1	0512-
77	PIN; CHANGE LEVER (A)	1-33738-057-0	01	1	0507-0511
77	PIN; CHANGE LEVER 6WF1 TC-C(1B8) (A)	1-33738-057-0	01	1	0512-
126	BOSS; CHANGE LEVER	1-33619-761-0	01	1	0507-0511
126	BOSS; CHANGE LEVER 6WF1 TC-C(1B8)	1-33619-761-0	01	1	0512-
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (J) M5X12 W/LK WASHER	0-36220-512-0	02	1	0912-1010
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (H) M4X8 W/LK WASHER	9-03910-408-0	04	1	0512-1010
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (I) M5X12 W/LK WASHER	9-03910-512-0	06	1	0512-0911
193	SCREW; CHANGE LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (K) M5X12 W/LK WASHER	9-03910-512-0	04	1	0912-1010
193	SCREW; CHANGE LEVER (G)	1-33619-501-0	09	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (G)	1-33619-501-0	09	1	0512-
193	SCREW; CHANGE LEVER (C)	1-33619-684-0	06	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (C)	1-33619-684-0	06	1	0512-
193	SCREW; CHANGE LEVER (E)	1-33619-690-0	02	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (E)	1-33619-690-0	02	1	0512-
193	SCREW; CHANGE LEVER (D)	1-33619-695-0	03	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (D)	1-33619-695-0	03	1	0512-
193	SCREW; CHANGE LEVER (A)	1-33739-168-0	02	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (A)	1-33739-168-0	02	1	0512-
193	SCREW; CHANGE LEVER (B)	1-33739-302-0	02	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (B)	1-33739-302-0	02	1	0512-
193	SCREW; CHANGE LEVER (F)	9-88510-210-0	04	1	0507-0511
193	SCREW; CHANGE LEVER 6WF1 TC-C(1B8) (F)	9-88510-210-0	04	1	0512-
281	ARM; SELECT,CHANGE LEVER	1-33619-755-0	01	1	0507-0511
281	ARM; SELECT,CHANGE LEVER 6WF1 TC-C(1B8)	1-33619-755-0	01	1	0512-
394	PIN; SPLIT,CHANGE LEVER (A)	1-33619-683-0	02	1	0507-0511
394	PIN; SPLIT,CHANGE LEVER 6WF1 TC-C(1B8) (A)	1-33619-683-0	02	1	0512-
394	PIN; SPLIT,CHANGE LEVER (B)	1-33619-714-0	01	1	0507-0511
394	PIN; SPLIT,CHANGE LEVER 6WF1 TC-C(1B8) (B)	1-33619-714-0	01	1	0512-
428	BLOCK; ACTION	1-33619-658-0	01	1	0507-0511
428	BLOCK; ACTION 6WF1 TC-C(1B8)	1-33619-658-0	01	1	0512-
497	WASHER; CHANGE LEVER (D)	1-33619-715-0	01	1	0507-0511
497	WASHER; CHANGE LEVER 6WF1 TC-C(1B8) (D)	1-33619-715-0	01	1	0512-
497	WASHER; CHANGE LEVER (B)	1-33619-759-0	01	1	0507-0511
497	WASHER; CHANGE LEVER 6WF1 TC-C(1B8) (B)	1-33619-759-0	01	1	0512-
497	WASHER; CHANGE LEVER (C) ID=6.4	9-09160-506-0	01	1	0507-0511
497	WASHER; CHANGE LEVER 6WF1 TC-C(1B8) (C) ID=6.4	9-09160-506-0	01	1	0512-
497	WASHER; CHANGE LEVER (A) ID=5.3 OD=12	9-09164-605-0	02	1	0507-0511
497	WASHER; CHANGE LEVER 6WF1 TC-C(1B8) (A) ID=5.3 OD=12	9-09164-605-0	02	1	0512-
500	CLIP; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=9 L=16	9-09524-822-0	02	1	0512-1010
500	CLIP; HARNESS	1-47829-050-0	01	1	0507-0511
500	CLIP; HARNESS 6WF1 TC-C(1B8)	1-47829-050-0	01	1	0512-
504	GROMMET; CHANGE LEVER	1-33619-681-0	01	1	0507-0511
504	GROMMET; CHANGE LEVER 6WF1 TC-C(1B8)	1-33619-681-0	01	1	0512-
505	COLLAR; CHANGE LEVER	1-33619-711-0	01	1	0507-0511
505	COLLAR; CHANGE LEVER 6WF1 TC-C(1B8)	1-33619-711-0	01	1	0512-
506	CASE; CHANGE LEVER	1-33619-713-0	01	1	0507-0511
506	CASE; CHANGE LEVER 6WF1 TC-C(1B8)	1-33619-713-0	01	1	0512-
508	RING; RETAINING (A)	1-33619-710-0	01	1	0507-0511
508	RING; RETAINING 6WF1 TC-C(1B8) (A)	1-33619-710-0	01	1	0512-
508	RING; RETAINING (B)	8-94415-036-0	01	1	0507-0511
508	RING; RETAINING 6WF1 TC-C(1B8) (B)	8-94415-036-0	01	1	0512-
509	ROD; CHANGE LEVER	1-33619-762-0	01	1	0507-0511
509	ROD; CHANGE LEVER 6WF1 TC-C(1B8)	1-33619-762-0	01	1	0512-
510	BALL; CHANGE LEVER	1-33619-703-0	01	1	0507-0511
510	BALL; CHANGE LEVER 6WF1 TC-C(1B8)	1-33619-703-0	01	1	0512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
