Sayfa 2-31 - Isuzu EPC

2-31 — AIR CONTROL TRANSMISSION (A.C.T.) (#32057) — 620 parça

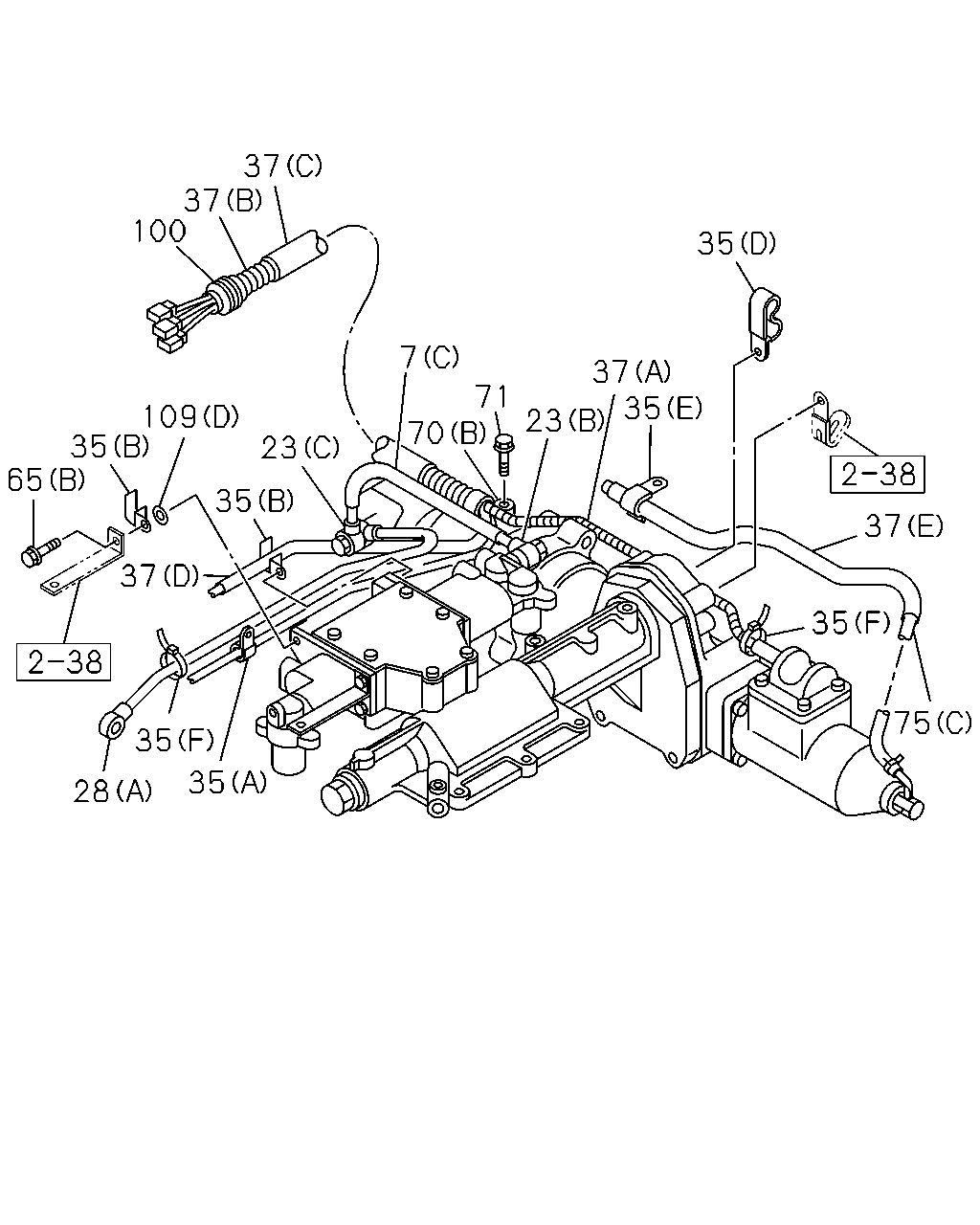

37 37 100 35 7 37 35 71 70 109 35 65 23 23 35 37 37 35 75 35 35 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	TUBE; SHIFT UNIT (B) ASM PART: C = 1-33730-297-1	1-33730-281-0	02	1	0811-
7	TUBE; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-079-0	02	1	-
7	TUBE; SHIFT UNIT (B) ASM PART: C = 1-33730-297-1	1-33738-096-0	02	1	-0810
7	TUBE; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9	1-33738-096-0	02	1	-
7	TUBE; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-127-0	01	1	-
23	CONNECTOR; SHIFT UNIT (D), DIN12 & R3/8 ELBOW ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09660-959-0	01	1	-
23	CONNECTOR; SHIFT UNIT (E), DIN8 & RC3/8 3WAY ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09661-129-0	01	1	-
23	CONNECTOR; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-001-0	01	1	-
23	CONNECTOR; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-126-0	02	1	-
23	CONNECTOR; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-135-0	01	1	-
28	PIPE; SHIFT UNIT (B) ASM PART: B = 1-33730-296-0	1-33149-022-0	02	1	-
28	PIPE; SHIFT UNIT (B) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0	1-33149-022-0	01	1	-
28	PIPE; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-134-0	01	1	-
28	PIPE; SHIFT UNIT (C) ASM PART: B = 1-33730-296-0	8-97305-517-0	01	1	-
28	PIPE; SHIFT UNIT (C) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-97358-318-0	03	1	-
28	PIPE; SHIFT UNIT (C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0	8-97358-318-0	02	1	-
35	CLAMP; HOSE (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-021-0	01	1	-
35	CLAMP; HOSE (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-022-0	03	1	-
35	CLAMP; HOSE (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-650-0	01	1	-
35	CLAMP; HOSE (D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-701-0	02	1	-
35	CLAMP; HOSE (E) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-702-0	01	1	-
35	CLAMP; HOSE (F) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-47829-050-0	30	1	-
37	PROTECTOR; HARNESS (A), ID=7 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-048-0	01	1	-
37	PROTECTOR; HARNESS (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-125-0	01	1	-
37	PROTECTOR; HARNESS (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-128-0	01	1	-
37	PROTECTOR; HARNESS (D) ASM PART: C = 1-33730-297-1	1-33738-129-0	01	1	-0810
37	PROTECTOR; HARNESS (D) ASM PART: A = 1-33730-241-9	1-33738-129-0	01	1	-
37	PROTECTOR; HARNESS (E) ASM PART: C = 1-33730-297-1	1-33738-131-0	02	1	0811-
37	PROTECTOR; HARNESS (E) ASM PART: C = 1-33730-297-1	1-33738-131-0	01	1	-0810
37	PROTECTOR; HARNESS (E) ASM PART: A = 1-33730-241-9	1-33738-131-0	01	1	-
65	BOLT; CASE,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-22199-155-0	03	1	-
65	BOLT; CASE,GEAR SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-020-0	02	1	-
65	BOLT; CASE,GEAR SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-319-0	01	1	-
70	CLIP; SHIFT UNIT (B), ID=31 L=35 ASM PART: A = 1-33730-241-9	1-09700-329-1	01	1	-
70	CLIP; SHIFT UNIT (A), ID=7.8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0	8-94246-958-0	03	1	-
70	CLIP; SHIFT UNIT (A), ID=7.8 ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-94246-958-0	01	1	-
71	SCREW; CLIP ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-764-0	01	1	-
75	HOSE; SHIFT UNIT (A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0	1-33149-020-0	01	1	-
75	HOSE; SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0	1-33149-021-0	02	1	-
75	HOSE; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-002-0	01	1	-
75	HOSE; SHIFT UNIT (B) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98067-939-0	02	1	-
75	HOSE; SHIFT UNIT (A) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98070-399-0	01	1	-
100	GROMMET; HOSE ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-82699-219-0	01	1	-
109	WASHER; PL (C), ID=12.5 OD=26 ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-91610-612-0	01	1	-
109	WASHER; PL (A), ID=10.5 OD=22 ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-91614-610-0	01	1	-
109	WASHER; PL (B), OD=40 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09532-008-0	01	1	-
109	WASHER; PL (C), ID=12.5 OD=26 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0	9-09160-612-0	01	1	-
109	WASHER; PL (D), ID=8.4 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	9-09164-508-0	02	1	-
109	WASHER; PL (A), ID=10.5 OD=22 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0	9-09164-610-0	01	1	-

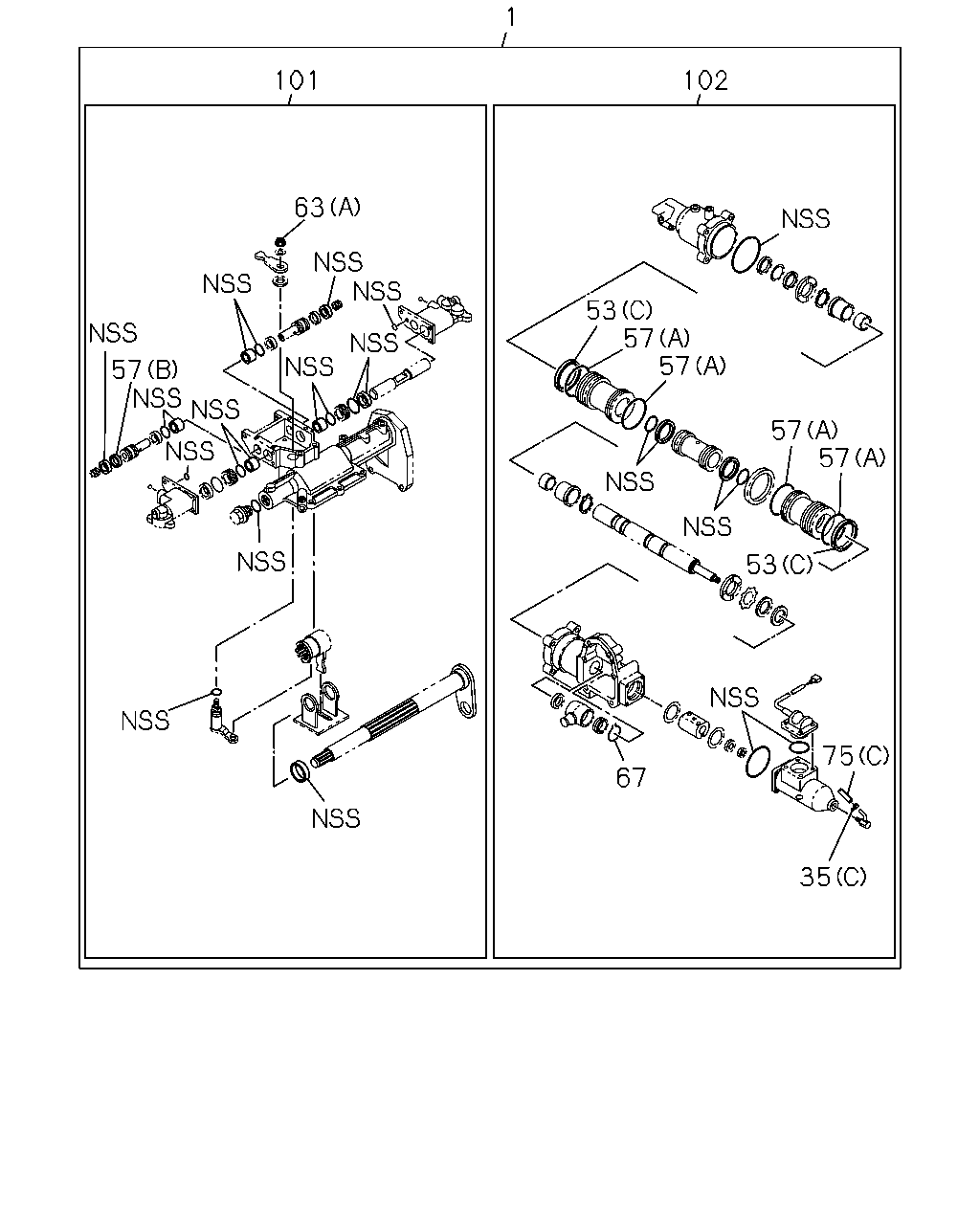

1 101 102 63 53 57 57 57 57 57 53 75 67 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; SHIFT UNIT ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-059-0	01	1	-
35	CLAMP; HOSE (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-021-0	01	1	-
35	CLAMP; HOSE (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-022-0	03	1	-
35	CLAMP; HOSE (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-650-0	01	1	-
35	CLAMP; HOSE (D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-701-0	02	1	-
35	CLAMP; HOSE (E) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-702-0	01	1	-
35	CLAMP; HOSE (F) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-47829-050-0	30	1	-
53	GASKET (A), ID=26.8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09623-058-0	02	1	-
53	GASKET (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-641-0	02	1	-
53	GASKET (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	9-09561-360-0	04	1	-
57	RING; WEAR,GEAR SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-019-0	02	1	-
57	RING; WEAR,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-316-0	04	1	-
63	NUT; LEVER,GEAR SHIFT UNIT (B), M10 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0	0-91150-110-0	01	1	-
63	NUT; LEVER,GEAR SHIFT UNIT (B), M10 FLANGE ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-91180-110-0	01	1	-
63	NUT; LEVER,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-985-1	01	1	-
67	CLAMP; ROD ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-190-0	01	1	-
75	HOSE; SHIFT UNIT (A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0	1-33149-020-0	01	1	-
75	HOSE; SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0	1-33149-021-0	02	1	-
75	HOSE; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-002-0	01	1	-
75	HOSE; SHIFT UNIT (B) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98067-939-0	02	1	-
75	HOSE; SHIFT UNIT (A) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98070-399-0	01	1	-
101	REPAIR KIT; CASE ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-060-0	01	1	-
102	REPAIR KIT; SHIFT CYL ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-062-0	01	1	-

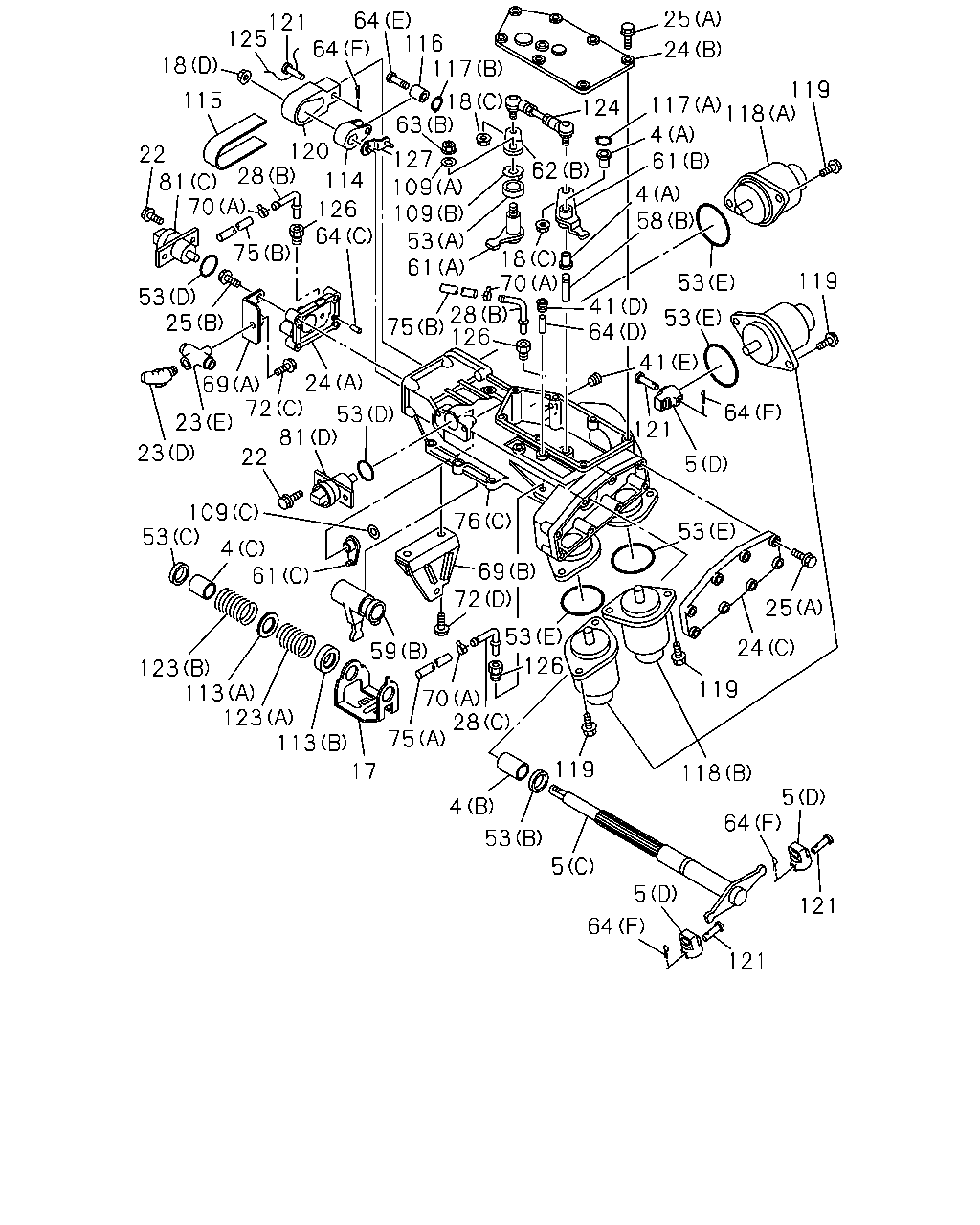

25 64 116 117 64 125 121 24 18 76 115 18 63 124 119 117 4 62 118 120 114 127 22 81 109 109 128 61 61 70 75 28 4 58 64 18 53 119 70 41 64 53 25 75 28 126 69 24 72 41 53 81 53 23 23 22 109 128 53 4 61 69 72 53 25 59 24 126 123 113 123 113 119 70 28 119 75 17 118 4 128 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BUSHING; SHIFT UNIT (A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09330-144-0	02	1	-
4	BUSHING; SHIFT UNIT (C), ID=20 OD=23 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33549-016-0	01	1	-
4	BUSHING; SHIFT UNIT (B), ID=28 OD=32 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33549-104-0	01	1	-
5	ROD; SHIFT UNIT (C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1	1-33522-195-0	03	1	-
5	ROD; SHIFT UNIT (D) ASM PART: B = 1-33730-296-0	1-33522-199-0	01	1	-
5	ROD; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33734-011-0	01	1	-
5	ROD; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33734-020-0	01	1	-
5	ROD; SHIFT UNIT (D) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98046-922-0	01	1	-
17	YOKE; SHIFT UNIT ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33529-126-0	01	1	-
17	YOKE; SHIFT UNIT ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-825-0	01	1	-
18	NUT; ROD (C), M6 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0	0-91150-106-0	02	1	-
18	NUT; ROD (D), M10 FLANGE ASM PART: B = 1-33730-296-0	0-91150-110-0	01	1	-
18	NUT; ROD (C), M6 FLANGE ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0	0-91180-106-0	02	1	-
18	NUT; ROD (D), M10 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-91180-110-0	01	1	-
18	NUT; ROD (C), M8 FLANGE ASM PART: K = 8-98302-718-0	1-09440-062-1	02	1	-
18	NUT; ROD (A), M12 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-712-0	01	1	-
18	NUT; ROD (B), M12 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	9-99111-412-0	01	1	-
22	BOLT; SW M6X12 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-28050-612-0	04	1	-
23	CONNECTOR; SHIFT UNIT (D), DIN12 & R3/8 ELBOW ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09660-959-0	01	1	-
23	CONNECTOR; SHIFT UNIT (E), DIN8 & RC3/8 3WAY ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09661-129-0	01	1	-
23	CONNECTOR; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-001-0	01	1	-
23	CONNECTOR; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-126-0	02	1	-
23	CONNECTOR; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-135-0	01	1	-
24	COVER; SHIFT UNIT (D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-987-0	01	1	-
24	COVER; SHIFT UNIT (C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-34141-023-1	01	1	-
24	COVER; SHIFT UNIT (A) ASM PART: B = 1-33730-296-0	1-34141-024-1	01	1	-
24	COVER; SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-34141-028-0	01	1	-
24	COVER; SHIFT UNIT (A) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0	8-98045-686-0	01	1	-
24	COVER; SHIFT UNIT (A) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98047-742-0	01	1	-
25	BOLT; COVER (A), M8X16 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-28050-816-0	15	1	-
25	BOLT; COVER (A), M8X16 FLANGE ASM PART: B = 1-33730-296-0	0-28080-816-0	15	1	-
25	BOLT; COVER (B), M6X25 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-28650-625-0	04	1	-
25	BOLT; COVER (B), M6X25 FLANGE ASM PART: B = 1-33730-296-0	0-28680-625-0	04	1	-
28	PIPE; SHIFT UNIT (B) ASM PART: B = 1-33730-296-0	1-33149-022-0	02	1	-
28	PIPE; SHIFT UNIT (B) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0	1-33149-022-0	01	1	-
28	PIPE; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-134-0	01	1	-
28	PIPE; SHIFT UNIT (C) ASM PART: B = 1-33730-296-0	8-97305-517-0	01	1	-
28	PIPE; SHIFT UNIT (C) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-97358-318-0	03	1	-
28	PIPE; SHIFT UNIT (C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0	8-97358-318-0	02	1	-
41	PLUG; SHIFT UNIT (D), PT3/8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09605-056-0	01	1	-
41	PLUG; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-044-0	01	1	-
41	PLUG; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-674-0	02	1	-
41	PLUG; SHIFT UNIT (E) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-94403-163-0	02	1	-
41	PLUG; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	8-97014-820-0	06	1	-
53	GASKET (A), ID=26.8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09623-058-0	02	1	-
53	GASKET (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-641-0	02	1	-
53	GASKET (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	9-09561-360-0	04	1	-
58	SHAFT; GEAR SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33659-240-0	01	1	-
58	SHAFT; GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33734-021-0	01	1	-
59	LEVER; INNER,GEAR SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33521-188-0	01	1	-
59	LEVER; INNER,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33735-004-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33522-194-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0	1-33659-251-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0	1-33671-943-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33735-020-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (C) ASM PART: I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98186-070-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (B) ASM PART: K = 8-98302-718-0	8-98302-746-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0	1-33671-942-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33735-015-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT (B) ASM PART: K = 8-98302-718-0	8-98302-744-0	01	1	-
63	NUT; LEVER,GEAR SHIFT UNIT (B), M10 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0	0-91150-110-0	01	1	-
63	NUT; LEVER,GEAR SHIFT UNIT (B), M10 FLANGE ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-91180-110-0	01	1	-
63	NUT; LEVER,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-985-1	01	1	-
64	PIN; GEAR SHIFT UNIT (F) ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-82353-827-0	01	1	-
64	PIN; GEAR SHIFT UNIT (F) ASM PART: D = 8-98047-359-0, F = 8-98070-040-1	0-82353-827-0	04	1	-
64	PIN; GEAR SHIFT UNIT (E) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-31424-011-0	01	1	-
64	PIN; GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-673-0	01	1	-
64	PIN; GEAR SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-762-0	02	1	-
64	PIN; GEAR SHIFT UNIT (E), OD=6 L=40 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98036-471-1	01	1	-
64	PIN; GEAR SHIFT UNIT (C), OD=3 L=6.36 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98046-977-0	02	1	-
64	PIN; GEAR SHIFT UNIT (C), OD=5 L=10 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	9-08150-510-0	02	1	-
64	PIN; GEAR SHIFT UNIT (D), OD=6 L=40 ASM PART: B = 1-33730-296-0	9-08150-640-0	01	1	-
64	PIN; GEAR SHIFT UNIT (F) ASM PART: B = 1-33730-296-0, E = 8-98055-135-0	9-08230-827-0	04	1	-
69	BRACKET; SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-82569-396-2	01	1	-
69	BRACKET; SHIFT UNIT (A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-82698-527-0	01	1	-
70	CLIP; SHIFT UNIT (B), ID=31 L=35 ASM PART: A = 1-33730-241-9	1-09700-329-1	01	1	-
70	CLIP; SHIFT UNIT (A), ID=7.8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0	8-94246-958-0	03	1	-
70	CLIP; SHIFT UNIT (A), ID=7.8 ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-94246-958-0	01	1	-
72	BOLT; BRKT (C), M8X16 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-28050-816-0	01	1	-
72	BOLT; BRKT (C), M8X16 FLANGE ASM PART: B = 1-33730-296-0	0-28080-816-0	01	1	-
72	BOLT; BRKT (D), M12X30 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-28151-230-0	02	1	-
72	BOLT; BRKT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-090-0	02	1	-
72	BOLT; BRKT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-699-0	02	1	-
75	HOSE; SHIFT UNIT (A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0	1-33149-020-0	01	1	-
75	HOSE; SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0	1-33149-021-0	02	1	-
75	HOSE; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-002-0	01	1	-
75	HOSE; SHIFT UNIT (B) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98067-939-0	02	1	-
75	HOSE; SHIFT UNIT (A) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98070-399-0	01	1	-
76	CASE; SHIFT UNIT (C) ASM PART: B = 1-33730-296-0	1-33541-541-0	01	1	-
76	CASE; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33731-024-1	01	1	-
76	CASE; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-039-0	01	1	-
76	CASE; SHIFT UNIT (C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1	8-98044-034-1	01	1	-
76	CASE; SHIFT UNIT (D) ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0	8-98147-533-0	01	1	-
76	CASE; SHIFT UNIT (D) ASM PART: K = 8-98302-718-0	8-98302-738-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: C = 1-33730-297-1	1-33738-113-0	01	1	-0810
81	SENSOR; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9	1-33738-113-0	01	1	-
81	SENSOR; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-137-0	01	1	-
81	SENSOR; SHIFT UNIT (C) ASM PART: B = 1-33730-296-0	8-97324-826-0	01	1	-
81	SENSOR; SHIFT UNIT (D) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0	8-97324-827-0	01	1	-
81	SENSOR; SHIFT UNIT (C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0	8-98046-920-0	01	1	-
81	SENSOR; SHIFT UNIT (C) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0	8-98061-816-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: C = 1-33730-297-1	8-98135-828-0	01	1	0811-
81	SENSOR; SHIFT UNIT (C) ASM PART: J = 8-98254-320-0, K = 8-98302-718-0	8-98282-847-0	01	1	-
81	SENSOR; SHIFT UNIT (D) ASM PART: J = 8-98254-320-0, K = 8-98302-718-0	8-98282-848-0	01	1	-
109	WASHER; PL (C), ID=12.5 OD=26 ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-91610-612-0	01	1	-
109	WASHER; PL (A), ID=10.5 OD=22 ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-91614-610-0	01	1	-
109	WASHER; PL (B), OD=40 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09532-008-0	01	1	-
109	WASHER; PL (C), ID=12.5 OD=26 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0	9-09160-612-0	01	1	-
109	WASHER; PL (D), ID=8.4 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	9-09164-508-0	02	1	-
109	WASHER; PL (A), ID=10.5 OD=22 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0	9-09164-610-0	01	1	-
113	SEAT; SPRING (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33537-024-0	01	1	-
113	SEAT; SPRING (A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33549-404-0	01	1	-
114	CAM; GEAR SHIFT UNIT ASM PART: B = 1-33730-296-0	1-33529-123-1	01	1	-
114	CAM; GEAR SHIFT UNIT ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98046-921-0	01	1	-
115	GUIDE; PLATE,CAM ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33549-401-0	01	1	-
116	ROLLER; SHAFT ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33529-121-0	01	1	-
117	RING; SNAP (B), ID=4 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-91805-504-0	01	1	-
117	RING; SNAP (A), ID=10 ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-91805-510-0	01	1	-
117	RING; SNAP (B), ID=4 ASM PART: B = 1-33730-296-0	9-09185-404-0	01	1	-
117	RING; SNAP (A), ID=10 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0	9-09185-410-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (A) ASM PART: B = 1-33730-296-0	1-82564-379-2	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0	1-82564-380-3	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (A) ASM PART: D = 8-98047-359-0	1-82564-445-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (A) ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0	8-98050-197-1	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: E = 8-98055-135-0, F = 8-98070-040-1	8-98052-618-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: G = 8-98147-541-0	8-98148-111-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (A) ASM PART: H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98162-694-1	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: H = 8-98163-036-0, I = 8-98186-516-0	8-98162-741-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: J = 8-98254-320-0, K = 8-98302-718-0	8-98254-315-0	01	1	-
119	BOLT; SOLENOID M10X25 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-28751-025-0	08	1	-
119	BOLT; SOLENOID M10X25 FLANGE ASM PART: B = 1-33730-296-0	0-28781-025-0	08	1	-
120	PLATE; CAM ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33529-125-0	01	1	-
121	PIN; SPRIT L=27.7 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1	1-09747-005-0	04	1	-
121	PIN; SPRIT L=27.7 ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09747-005-0	01	1	-
123	SPRING; SELECT (A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09580-593-0	01	1	-
123	SPRING; SELECT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09580-594-0	01	1	-
124	ROD ASM; LINK ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0	1-33671-944-1	01	1	-
124	ROD ASM; LINK ASM PART: K = 8-98302-718-0	8-98302-741-0	01	1	-
125	WIRE L=200 ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	9-08351-020-0	01	1	-
125	WIRE L=200 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1	9-08351-020-0	04	1	-
126	PLUG; BREATHER ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33149-023-0	02	1	-
126	PLUG; BREATHER ASM PART: B = 1-33730-296-0	1-33149-023-0	03	1	-
127	PLATE; PIN,CAM TO SHIFT SENSOR ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98046-924-0	01	1	-
128	SEAL; OIL,SHIFT UNIT (A), OD=30 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09625-386-0	01	1	-
128	SEAL; OIL,SHIFT UNIT (C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09625-612-1	01	1	-
128	SEAL; OIL,SHIFT UNIT (B), OD=41 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09625-647-0	01	1	-

111 7 42 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	TUBE; SHIFT UNIT (B) ASM PART: C = 1-33730-297-1	1-33730-281-0	02	1	0811-
7	TUBE; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-079-0	02	1	-
7	TUBE; SHIFT UNIT (B) ASM PART: C = 1-33730-297-1	1-33738-096-0	02	1	-0810
7	TUBE; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9	1-33738-096-0	02	1	-
7	TUBE; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-127-0	01	1	-
35	CLAMP; HOSE (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-021-0	01	1	-
35	CLAMP; HOSE (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-022-0	03	1	-
35	CLAMP; HOSE (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-650-0	01	1	-
35	CLAMP; HOSE (D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-701-0	02	1	-
35	CLAMP; HOSE (E) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-702-0	01	1	-
35	CLAMP; HOSE (F) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-47829-050-0	30	1	-
42	VALVE; MAGNETIC (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-160-1	01	1	-
42	VALVE; MAGNETIC (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-161-1	01	1	-

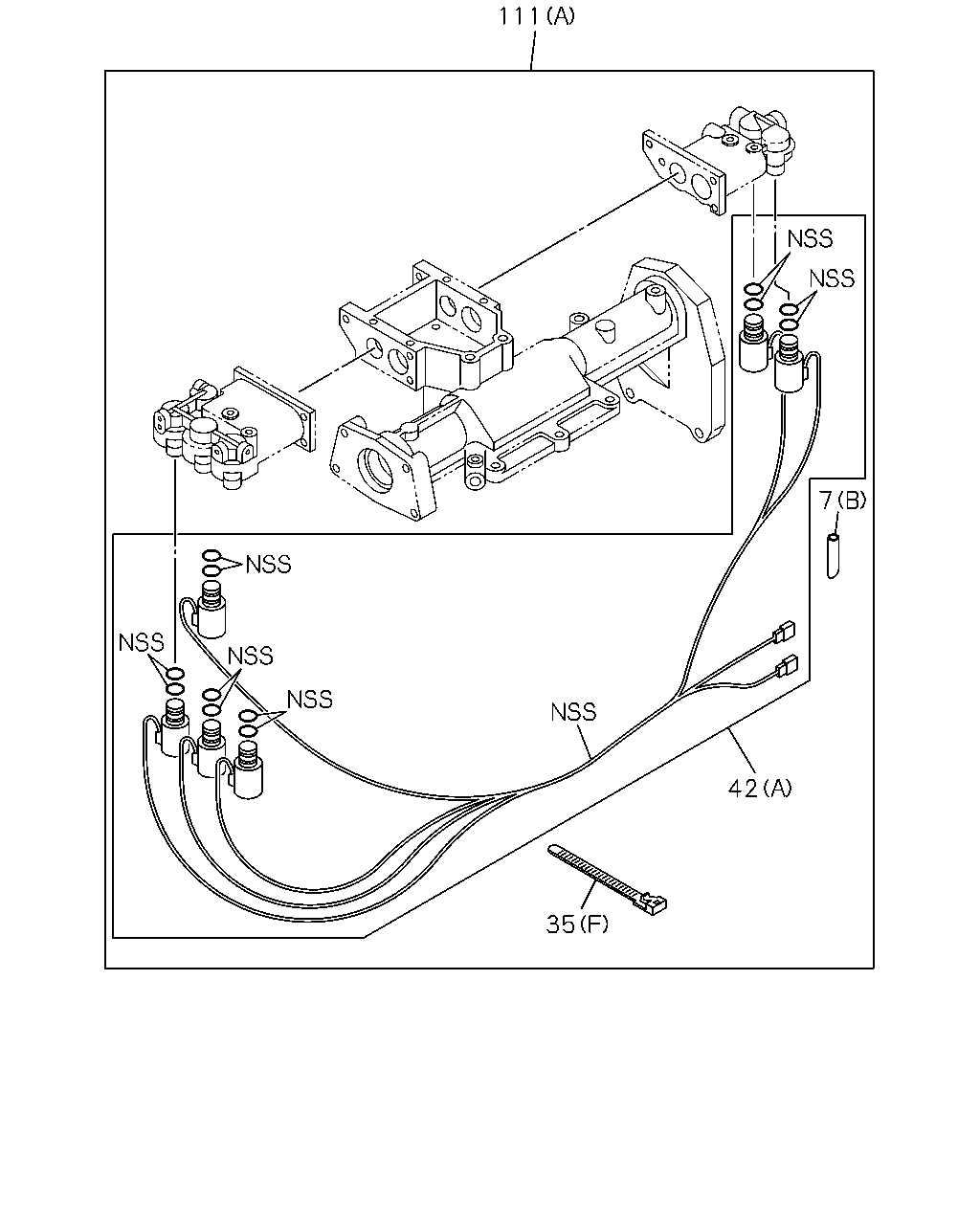

111	REPAIR KIT; SELECT,SOLENOID (C) SIDE BLOW ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-144-1	AR	1	-
111	REPAIR KIT; SELECT,SOLENOID (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-146-1	AR	1	-
111	REPAIR KIT; SELECT,SOLENOID (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-158-1	01	1	-

110 111 35 111 35 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	TUBE; SHIFT UNIT (B) ASM PART: C = 1-33730-297-1	1-33730-281-0	02	1	0811-
7	TUBE; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-079-0	02	1	-
7	TUBE; SHIFT UNIT (B) ASM PART: C = 1-33730-297-1	1-33738-096-0	02	1	-0810
7	TUBE; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9	1-33738-096-0	02	1	-
7	TUBE; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-127-0	01	1	-
35	CLAMP; HOSE (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-021-0	01	1	-
35	CLAMP; HOSE (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-022-0	03	1	-
35	CLAMP; HOSE (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-650-0	01	1	-
35	CLAMP; HOSE (D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-701-0	02	1	-
35	CLAMP; HOSE (E) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-702-0	01	1	-
35	CLAMP; HOSE (F) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-47829-050-0	30	1	-

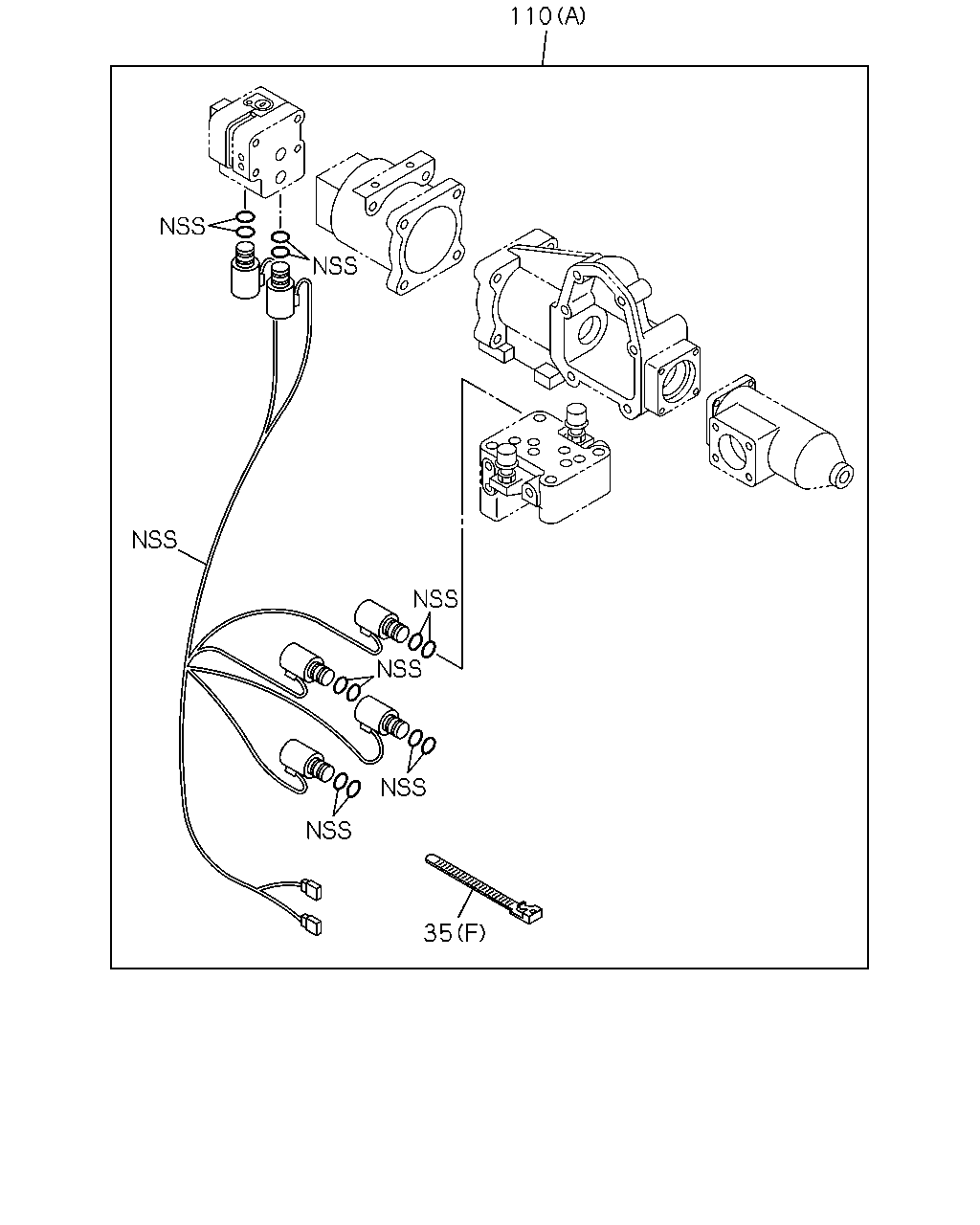

110	REPAIR KIT; SHIFT,SOLENOID (B) UPPER BLOW ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-145-1	AR	1	-
110	REPAIR KIT; SHIFT,SOLENOID (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-159-1	01	1	-
111	REPAIR KIT; SELECT,SOLENOID (C) SIDE BLOW ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-144-1	AR	1	-
111	REPAIR KIT; SELECT,SOLENOID (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-146-1	AR	1	-
111	REPAIR KIT; SELECT,SOLENOID (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-158-1	01	1	-

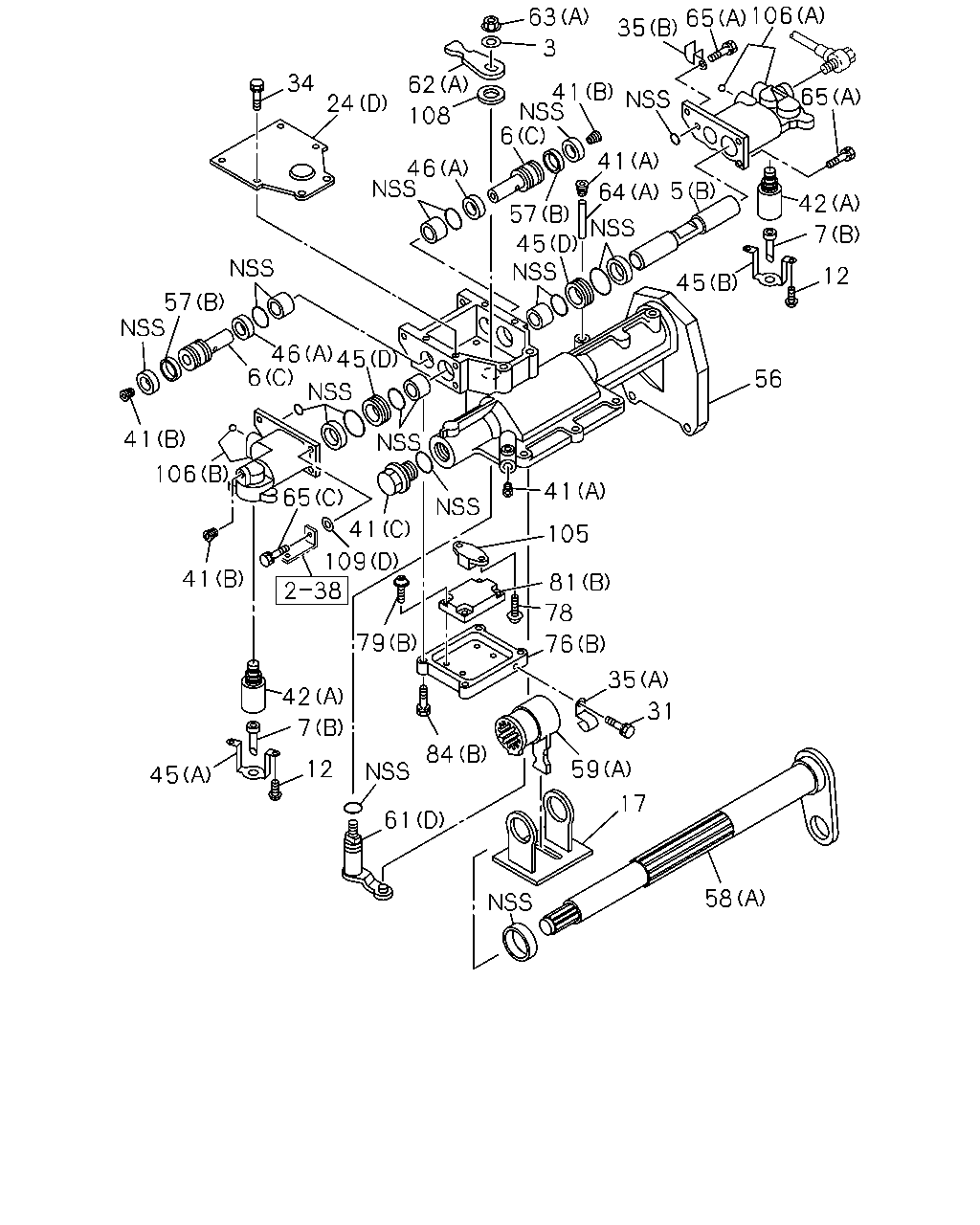

106 63 65 35 3 34 62 41 6 65 24 108 41 46 5 64 42 57 45 7 12 45 57 45 46 6 56 41 106 41 65 41 105 109 41 81 78 79 76 35 42 31 7 84 12 59 45 17 61 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	PLATE; OIL SEAL ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-984-0	01	1	-
5	ROD; SHIFT UNIT (C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1	1-33522-195-0	03	1	-
5	ROD; SHIFT UNIT (D) ASM PART: B = 1-33730-296-0	1-33522-199-0	01	1	-
5	ROD; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33734-011-0	01	1	-
5	ROD; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33734-020-0	01	1	-
5	ROD; SHIFT UNIT (D) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98046-922-0	01	1	-
6	PISTON; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-078-0	01	1	-
6	PISTON; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-081-0	02	1	-
6	PISTON; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-990-0	02	1	-
7	TUBE; SHIFT UNIT (B) ASM PART: C = 1-33730-297-1	1-33730-281-0	02	1	0811-
7	TUBE; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-079-0	02	1	-
7	TUBE; SHIFT UNIT (B) ASM PART: C = 1-33730-297-1	1-33738-096-0	02	1	-0810
7	TUBE; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9	1-33738-096-0	02	1	-
7	TUBE; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-127-0	01	1	-
12	CAP; SHIFT CYL ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-716-0	06	1	-
17	YOKE; SHIFT UNIT ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33529-126-0	01	1	-
17	YOKE; SHIFT UNIT ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-825-0	01	1	-
24	COVER; SHIFT UNIT (D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-987-0	01	1	-
24	COVER; SHIFT UNIT (C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-34141-023-1	01	1	-
24	COVER; SHIFT UNIT (A) ASM PART: B = 1-33730-296-0	1-34141-024-1	01	1	-
24	COVER; SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-34141-028-0	01	1	-
24	COVER; SHIFT UNIT (A) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0	8-98045-686-0	01	1	-
24	COVER; SHIFT UNIT (A) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98047-742-0	01	1	-
31	SCREW; CLAMP ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-996-0	01	1	-
34	SCREW; COVER ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-716-0	06	1	-
35	CLAMP; HOSE (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-021-0	01	1	-
35	CLAMP; HOSE (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-022-0	03	1	-
35	CLAMP; HOSE (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-650-0	01	1	-
35	CLAMP; HOSE (D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-701-0	02	1	-
35	CLAMP; HOSE (E) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-702-0	01	1	-
35	CLAMP; HOSE (F) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-47829-050-0	30	1	-
41	PLUG; SHIFT UNIT (D), PT3/8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09605-056-0	01	1	-
41	PLUG; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-044-0	01	1	-
41	PLUG; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-674-0	02	1	-
41	PLUG; SHIFT UNIT (E) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-94403-163-0	02	1	-
41	PLUG; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	8-97014-820-0	06	1	-
42	VALVE; MAGNETIC (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-160-1	01	1	-
42	VALVE; MAGNETIC (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-161-1	01	1	-
45	RETAINER; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-033-0	02	1	-
45	RETAINER; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-034-0	01	1	-
45	RETAINER; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-377-0	02	1	-
45	RETAINER; SHIFT UNIT (D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-991-0	02	1	-
46	STOPPER; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-038-0	02	1	-
46	STOPPER; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-077-0	02	1	-
46	STOPPER; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-149-0	01	1	-
56	CASE ASM; GEAR SHIFT UNIT ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33731-119-0	01	1	-
57	RING; WEAR,GEAR SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-019-0	02	1	-
57	RING; WEAR,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-316-0	04	1	-
58	SHAFT; GEAR SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33659-240-0	01	1	-
58	SHAFT; GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33734-021-0	01	1	-
59	LEVER; INNER,GEAR SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33521-188-0	01	1	-
59	LEVER; INNER,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33735-004-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33522-194-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0	1-33659-251-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0	1-33671-943-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33735-020-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (C) ASM PART: I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98186-070-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (B) ASM PART: K = 8-98302-718-0	8-98302-746-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0	1-33671-942-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33735-015-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT (B) ASM PART: K = 8-98302-718-0	8-98302-744-0	01	1	-
63	NUT; LEVER,GEAR SHIFT UNIT (B), M10 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0	0-91150-110-0	01	1	-
63	NUT; LEVER,GEAR SHIFT UNIT (B), M10 FLANGE ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-91180-110-0	01	1	-
63	NUT; LEVER,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-985-1	01	1	-
64	PIN; GEAR SHIFT UNIT (F) ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-82353-827-0	01	1	-
64	PIN; GEAR SHIFT UNIT (F) ASM PART: D = 8-98047-359-0, F = 8-98070-040-1	0-82353-827-0	04	1	-
64	PIN; GEAR SHIFT UNIT (E) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-31424-011-0	01	1	-
64	PIN; GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-673-0	01	1	-
64	PIN; GEAR SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-762-0	02	1	-
64	PIN; GEAR SHIFT UNIT (E), OD=6 L=40 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98036-471-1	01	1	-
64	PIN; GEAR SHIFT UNIT (C), OD=3 L=6.36 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98046-977-0	02	1	-
64	PIN; GEAR SHIFT UNIT (C), OD=5 L=10 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	9-08150-510-0	02	1	-
64	PIN; GEAR SHIFT UNIT (D), OD=6 L=40 ASM PART: B = 1-33730-296-0	9-08150-640-0	01	1	-
64	PIN; GEAR SHIFT UNIT (F) ASM PART: B = 1-33730-296-0, E = 8-98055-135-0	9-08230-827-0	04	1	-
65	BOLT; CASE,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-22199-155-0	03	1	-
65	BOLT; CASE,GEAR SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-020-0	02	1	-
65	BOLT; CASE,GEAR SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-319-0	01	1	-
76	CASE; SHIFT UNIT (C) ASM PART: B = 1-33730-296-0	1-33541-541-0	01	1	-
76	CASE; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33731-024-1	01	1	-
76	CASE; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-039-0	01	1	-
76	CASE; SHIFT UNIT (C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1	8-98044-034-1	01	1	-
76	CASE; SHIFT UNIT (D) ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0	8-98147-533-0	01	1	-
76	CASE; SHIFT UNIT (D) ASM PART: K = 8-98302-718-0	8-98302-738-0	01	1	-
78	SCREW; PIN ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-523-0	02	1	-
79	SCREW; SENSOR (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-130-0	04	1	-
79	SCREW; SENSOR (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-994-0	04	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: C = 1-33730-297-1	1-33738-113-0	01	1	-0810
81	SENSOR; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9	1-33738-113-0	01	1	-
81	SENSOR; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-137-0	01	1	-
81	SENSOR; SHIFT UNIT (C) ASM PART: B = 1-33730-296-0	8-97324-826-0	01	1	-
81	SENSOR; SHIFT UNIT (D) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0	8-97324-827-0	01	1	-
81	SENSOR; SHIFT UNIT (C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0	8-98046-920-0	01	1	-
81	SENSOR; SHIFT UNIT (C) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0	8-98061-816-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: C = 1-33730-297-1	8-98135-828-0	01	1	0811-
81	SENSOR; SHIFT UNIT (C) ASM PART: J = 8-98254-320-0, K = 8-98302-718-0	8-98282-847-0	01	1	-
81	SENSOR; SHIFT UNIT (D) ASM PART: J = 8-98254-320-0, K = 8-98302-718-0	8-98282-848-0	01	1	-
84	SCREW; CASE (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-779-0	04	1	-
84	SCREW; CASE (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-995-0	04	1	-
105	HOLDER; SHIFT UNIT ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-988-0	01	1	-
106	BODY ASM; GEAR SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33731-072-0	01	1	-
106	BODY ASM; GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33731-122-0	01	1	-
108	BEARING; GEAR SHIFT UNIT ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-986-0	01	1	-
109	WASHER; PL (C), ID=12.5 OD=26 ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-91610-612-0	01	1	-
109	WASHER; PL (A), ID=10.5 OD=22 ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-91614-610-0	01	1	-
109	WASHER; PL (B), OD=40 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09532-008-0	01	1	-
109	WASHER; PL (C), ID=12.5 OD=26 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0	9-09160-612-0	01	1	-
109	WASHER; PL (D), ID=8.4 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	9-09164-508-0	02	1	-
109	WASHER; PL (A), ID=10.5 OD=22 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0	9-09164-610-0	01	1	-

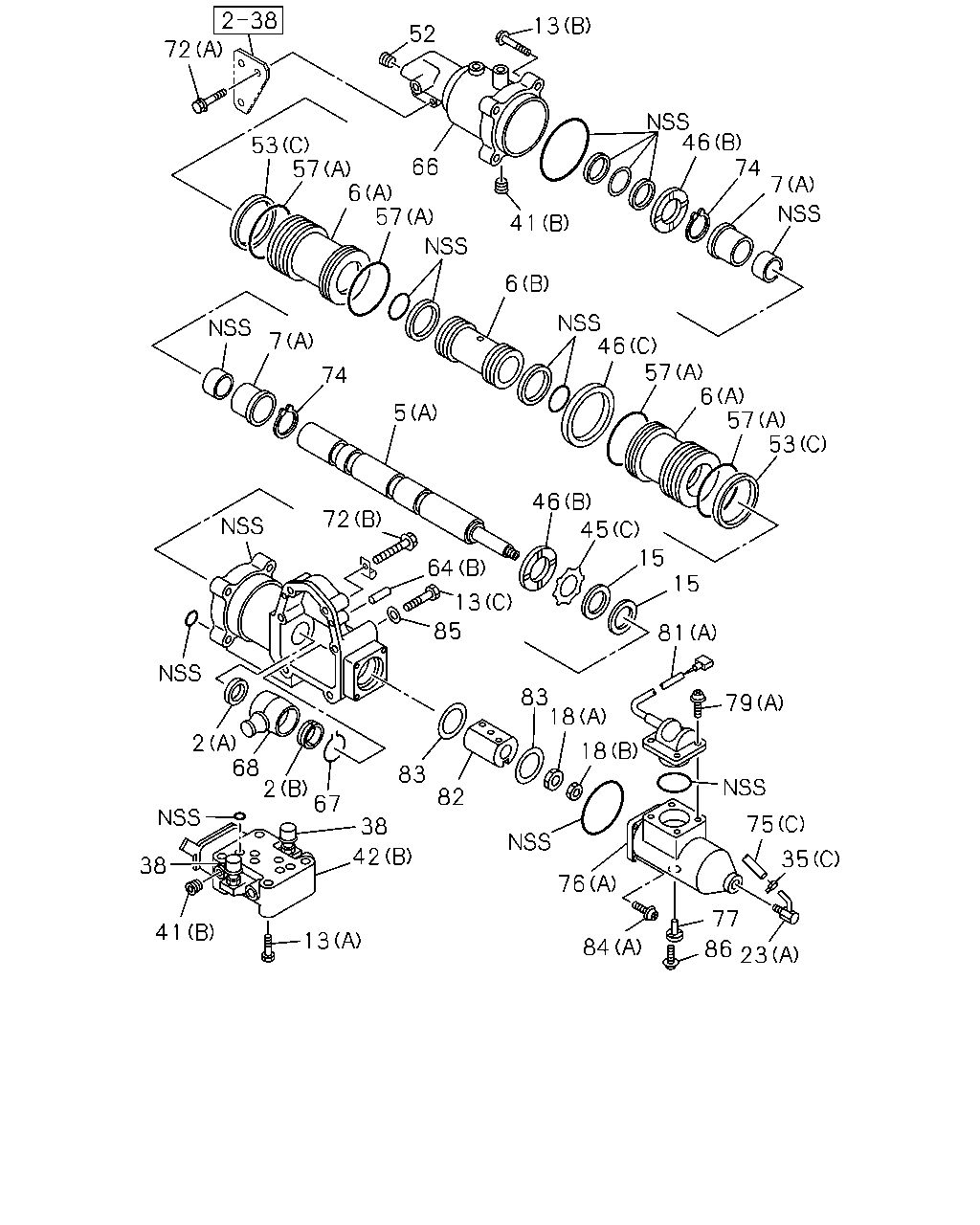

2 38 13 52 72 46 74 7 53 57 66 6 57 41 6 46 57 7 6 57 53 74 5 46 45 72 15 64 15 13 85 81 83 18 79 2 68 2 67 18 83 82 75 38 42 35 38 76 77 41 13 84 86 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	RING; STOPPER (A), BLACK ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-091-0	06	1	-
2	RING; STOPPER (B), BLACK ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-092-0	02	1	-
2	RING; STOPPER (A), GOLD ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-681-0	02	1	-
2	RING; STOPPER (A), LIGHT GRAY ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-682-0	02	1	-
2	RING; STOPPER (B), ORANGE ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-684-0	02	1	-
2	RING; STOPPER (B), LIGHT GRAY ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-685-0	02	1	-
5	ROD; SHIFT UNIT (C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1	1-33522-195-0	03	1	-
5	ROD; SHIFT UNIT (D) ASM PART: B = 1-33730-296-0	1-33522-199-0	01	1	-
5	ROD; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33734-011-0	01	1	-
5	ROD; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33734-020-0	01	1	-
5	ROD; SHIFT UNIT (D) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98046-922-0	01	1	-
6	PISTON; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-078-0	01	1	-
6	PISTON; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-081-0	02	1	-
6	PISTON; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-990-0	02	1	-
7	TUBE; SHIFT UNIT (B) ASM PART: C = 1-33730-297-1	1-33730-281-0	02	1	0811-
7	TUBE; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-079-0	02	1	-
7	TUBE; SHIFT UNIT (B) ASM PART: C = 1-33730-297-1	1-33738-096-0	02	1	-0810
7	TUBE; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9	1-33738-096-0	02	1	-
7	TUBE; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-127-0	01	1	-
13	BOLT; CYL (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-083-0	04	1	-
13	BOLT; CYL (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-133-0	04	1	-
13	BOLT; CYL (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-47819-125-0	04	1	-
15	PLATE; ROD ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-687-0	02	1	-
18	NUT; ROD (C), M6 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0	0-91150-106-0	02	1	-
18	NUT; ROD (D), M10 FLANGE ASM PART: B = 1-33730-296-0	0-91150-110-0	01	1	-
18	NUT; ROD (C), M6 FLANGE ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0	0-91180-106-0	02	1	-
18	NUT; ROD (D), M10 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-91180-110-0	01	1	-
18	NUT; ROD (C), M8 FLANGE ASM PART: K = 8-98302-718-0	1-09440-062-1	02	1	-
18	NUT; ROD (A), M12 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-712-0	01	1	-
18	NUT; ROD (B), M12 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	9-99111-412-0	01	1	-
23	CONNECTOR; SHIFT UNIT (D), DIN12 & R3/8 ELBOW ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09660-959-0	01	1	-
23	CONNECTOR; SHIFT UNIT (E), DIN8 & RC3/8 3WAY ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09661-129-0	01	1	-
23	CONNECTOR; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-001-0	01	1	-
23	CONNECTOR; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-126-0	02	1	-
23	CONNECTOR; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-135-0	01	1	-
35	CLAMP; HOSE (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-021-0	01	1	-
35	CLAMP; HOSE (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-022-0	03	1	-
35	CLAMP; HOSE (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-650-0	01	1	-
35	CLAMP; HOSE (D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-701-0	02	1	-
35	CLAMP; HOSE (E) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-702-0	01	1	-
35	CLAMP; HOSE (F) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-47829-050-0	30	1	-
38	COVER; EXH ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-31829-564-0	02	1	-
41	PLUG; SHIFT UNIT (D), PT3/8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09605-056-0	01	1	-
41	PLUG; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-044-0	01	1	-
41	PLUG; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-674-0	02	1	-
41	PLUG; SHIFT UNIT (E) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-94403-163-0	02	1	-
41	PLUG; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	8-97014-820-0	06	1	-
42	VALVE; MAGNETIC (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-160-1	01	1	-
42	VALVE; MAGNETIC (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-161-1	01	1	-
45	RETAINER; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-033-0	02	1	-
45	RETAINER; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-034-0	01	1	-
45	RETAINER; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-377-0	02	1	-
45	RETAINER; SHIFT UNIT (D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-991-0	02	1	-
46	STOPPER; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-038-0	02	1	-
46	STOPPER; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-077-0	02	1	-
46	STOPPER; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-149-0	01	1	-
52	FILTER ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-014-0	02	1	-
53	GASKET (A), ID=26.8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09623-058-0	02	1	-
53	GASKET (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-641-0	02	1	-
53	GASKET (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	9-09561-360-0	04	1	-
57	RING; WEAR,GEAR SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-019-0	02	1	-
57	RING; WEAR,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-316-0	04	1	-
64	PIN; GEAR SHIFT UNIT (F) ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-82353-827-0	01	1	-
64	PIN; GEAR SHIFT UNIT (F) ASM PART: D = 8-98047-359-0, F = 8-98070-040-1	0-82353-827-0	04	1	-
64	PIN; GEAR SHIFT UNIT (E) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-31424-011-0	01	1	-
64	PIN; GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-673-0	01	1	-
64	PIN; GEAR SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-762-0	02	1	-
64	PIN; GEAR SHIFT UNIT (E), OD=6 L=40 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98036-471-1	01	1	-
64	PIN; GEAR SHIFT UNIT (C), OD=3 L=6.36 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98046-977-0	02	1	-
64	PIN; GEAR SHIFT UNIT (C), OD=5 L=10 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	9-08150-510-0	02	1	-
64	PIN; GEAR SHIFT UNIT (D), OD=6 L=40 ASM PART: B = 1-33730-296-0	9-08150-640-0	01	1	-
64	PIN; GEAR SHIFT UNIT (F) ASM PART: B = 1-33730-296-0, E = 8-98055-135-0	9-08230-827-0	04	1	-
66	CYLINDER ASM; GEAR SHIFT UNIT ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33731-123-0	01	1	-
67	CLAMP; ROD ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-190-0	01	1	-
68	STRIKER; ROD ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-082-0	01	1	-
72	BOLT; BRKT (C), M8X16 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-28050-816-0	01	1	-
72	BOLT; BRKT (C), M8X16 FLANGE ASM PART: B = 1-33730-296-0	0-28080-816-0	01	1	-
72	BOLT; BRKT (D), M12X30 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-28151-230-0	02	1	-
72	BOLT; BRKT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-090-0	02	1	-
72	BOLT; BRKT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-699-0	02	1	-
74	RING; RETAINING ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-080-0	02	1	-
75	HOSE; SHIFT UNIT (A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0	1-33149-020-0	01	1	-
75	HOSE; SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0	1-33149-021-0	02	1	-
75	HOSE; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-002-0	01	1	-
75	HOSE; SHIFT UNIT (B) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98067-939-0	02	1	-
75	HOSE; SHIFT UNIT (A) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98070-399-0	01	1	-
76	CASE; SHIFT UNIT (C) ASM PART: B = 1-33730-296-0	1-33541-541-0	01	1	-
76	CASE; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33731-024-1	01	1	-
76	CASE; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-039-0	01	1	-
76	CASE; SHIFT UNIT (C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1	8-98044-034-1	01	1	-
76	CASE; SHIFT UNIT (D) ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0	8-98147-533-0	01	1	-
76	CASE; SHIFT UNIT (D) ASM PART: K = 8-98302-718-0	8-98302-738-0	01	1	-
77	PIN; SHIFT UNIT ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-707-0	01	1	-
79	SCREW; SENSOR (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-130-0	04	1	-
79	SCREW; SENSOR (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-994-0	04	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: C = 1-33730-297-1	1-33738-113-0	01	1	-0810
81	SENSOR; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9	1-33738-113-0	01	1	-
81	SENSOR; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-137-0	01	1	-
81	SENSOR; SHIFT UNIT (C) ASM PART: B = 1-33730-296-0	8-97324-826-0	01	1	-
81	SENSOR; SHIFT UNIT (D) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0	8-97324-827-0	01	1	-
81	SENSOR; SHIFT UNIT (C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0	8-98046-920-0	01	1	-
81	SENSOR; SHIFT UNIT (C) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0	8-98061-816-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: C = 1-33730-297-1	8-98135-828-0	01	1	0811-
81	SENSOR; SHIFT UNIT (C) ASM PART: J = 8-98254-320-0, K = 8-98302-718-0	8-98282-847-0	01	1	-
81	SENSOR; SHIFT UNIT (D) ASM PART: J = 8-98254-320-0, K = 8-98302-718-0	8-98282-848-0	01	1	-
82	HOLDER; ROD ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-935-0	01	1	-
83	SHIM; HOLDER ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-450-0	04	1	-
84	SCREW; CASE (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-779-0	04	1	-
84	SCREW; CASE (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-995-0	04	1	-
85	WASHER; CYL ID=10.2 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	9-09150-510-0	04	1	-
86	SCREW; HOLDER ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-523-0	02	1	-

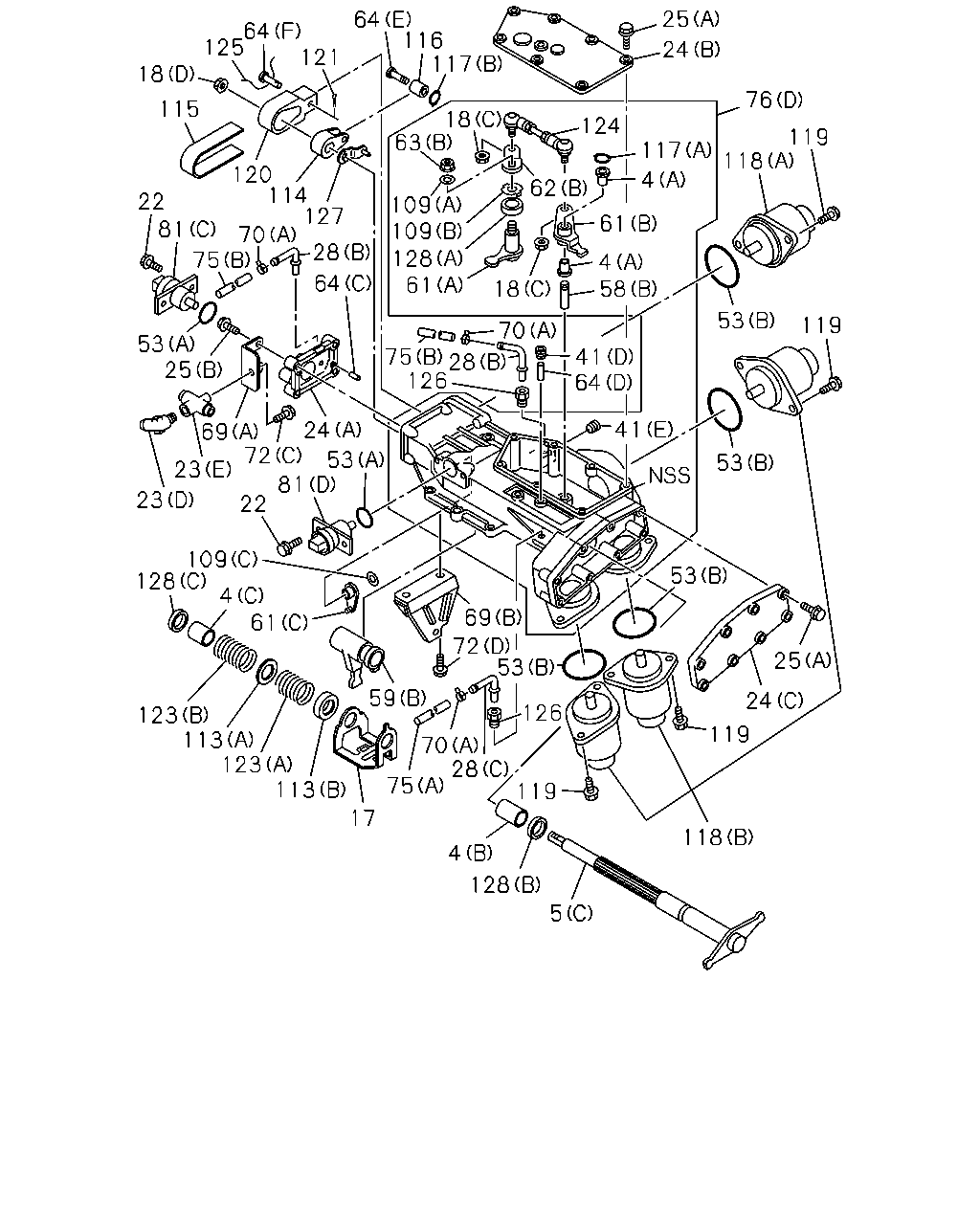

25 64 116 117 121 125 64 24 18 119 115 18 63 117 118 124 61 62 120 28 22 81 70 127 109 109 53 61 114 4 58 126 64 75 18 70 41 64 119 53 53 25 28 75 126 53 41 69 24 72 64 53 81 23 121 23 22 5 109 53 76 53 4 61 69 72 25 53 126 24 59 123 113 123 113 119 70 28 75 119 17 118 5 64 4 53 5 5 121 64 121 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BUSHING; SHIFT UNIT (A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09330-144-0	02	1	-
4	BUSHING; SHIFT UNIT (C), ID=20 OD=23 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33549-016-0	01	1	-
4	BUSHING; SHIFT UNIT (B), ID=28 OD=32 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33549-104-0	01	1	-
5	ROD; SHIFT UNIT (C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1	1-33522-195-0	03	1	-
5	ROD; SHIFT UNIT (D) ASM PART: B = 1-33730-296-0	1-33522-199-0	01	1	-
5	ROD; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33734-011-0	01	1	-
5	ROD; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33734-020-0	01	1	-
5	ROD; SHIFT UNIT (D) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98046-922-0	01	1	-
17	YOKE; SHIFT UNIT ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33529-126-0	01	1	-
17	YOKE; SHIFT UNIT ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-825-0	01	1	-
18	NUT; ROD (C), M6 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0	0-91150-106-0	02	1	-
18	NUT; ROD (D), M10 FLANGE ASM PART: B = 1-33730-296-0	0-91150-110-0	01	1	-
18	NUT; ROD (C), M6 FLANGE ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0	0-91180-106-0	02	1	-
18	NUT; ROD (D), M10 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-91180-110-0	01	1	-
18	NUT; ROD (C), M8 FLANGE ASM PART: K = 8-98302-718-0	1-09440-062-1	02	1	-
18	NUT; ROD (A), M12 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-712-0	01	1	-
18	NUT; ROD (B), M12 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	9-99111-412-0	01	1	-
22	BOLT; SW M6X12 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-28050-612-0	04	1	-
23	CONNECTOR; SHIFT UNIT (D), DIN12 & R3/8 ELBOW ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09660-959-0	01	1	-
23	CONNECTOR; SHIFT UNIT (E), DIN8 & RC3/8 3WAY ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09661-129-0	01	1	-
23	CONNECTOR; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-001-0	01	1	-
23	CONNECTOR; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-126-0	02	1	-
23	CONNECTOR; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-135-0	01	1	-
24	COVER; SHIFT UNIT (D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-987-0	01	1	-
24	COVER; SHIFT UNIT (C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-34141-023-1	01	1	-
24	COVER; SHIFT UNIT (A) ASM PART: B = 1-33730-296-0	1-34141-024-1	01	1	-
24	COVER; SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-34141-028-0	01	1	-
24	COVER; SHIFT UNIT (A) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0	8-98045-686-0	01	1	-
24	COVER; SHIFT UNIT (A) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98047-742-0	01	1	-
25	BOLT; COVER (A), M8X16 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-28050-816-0	15	1	-
25	BOLT; COVER (A), M8X16 FLANGE ASM PART: B = 1-33730-296-0	0-28080-816-0	15	1	-
25	BOLT; COVER (B), M6X25 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-28650-625-0	04	1	-
25	BOLT; COVER (B), M6X25 FLANGE ASM PART: B = 1-33730-296-0	0-28680-625-0	04	1	-
28	PIPE; SHIFT UNIT (B) ASM PART: B = 1-33730-296-0	1-33149-022-0	02	1	-
28	PIPE; SHIFT UNIT (B) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0	1-33149-022-0	01	1	-
28	PIPE; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-134-0	01	1	-
28	PIPE; SHIFT UNIT (C) ASM PART: B = 1-33730-296-0	8-97305-517-0	01	1	-
28	PIPE; SHIFT UNIT (C) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-97358-318-0	03	1	-
28	PIPE; SHIFT UNIT (C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0	8-97358-318-0	02	1	-
41	PLUG; SHIFT UNIT (D), PT3/8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09605-056-0	01	1	-
41	PLUG; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-044-0	01	1	-
41	PLUG; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-674-0	02	1	-
41	PLUG; SHIFT UNIT (E) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-94403-163-0	02	1	-
41	PLUG; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	8-97014-820-0	06	1	-
53	GASKET (A), ID=26.8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09623-058-0	02	1	-
53	GASKET (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-641-0	02	1	-
53	GASKET (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	9-09561-360-0	04	1	-
58	SHAFT; GEAR SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33659-240-0	01	1	-
58	SHAFT; GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33734-021-0	01	1	-
59	LEVER; INNER,GEAR SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33521-188-0	01	1	-
59	LEVER; INNER,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33735-004-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33522-194-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (C) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0	1-33659-251-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0	1-33671-943-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33735-020-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (C) ASM PART: I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98186-070-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (B) ASM PART: K = 8-98302-718-0	8-98302-746-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0	1-33671-942-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33735-015-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT (B) ASM PART: K = 8-98302-718-0	8-98302-744-0	01	1	-
63	NUT; LEVER,GEAR SHIFT UNIT (B), M10 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0	0-91150-110-0	01	1	-
63	NUT; LEVER,GEAR SHIFT UNIT (B), M10 FLANGE ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-91180-110-0	01	1	-
63	NUT; LEVER,GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-985-1	01	1	-
64	PIN; GEAR SHIFT UNIT (F) ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-82353-827-0	01	1	-
64	PIN; GEAR SHIFT UNIT (F) ASM PART: D = 8-98047-359-0, F = 8-98070-040-1	0-82353-827-0	04	1	-
64	PIN; GEAR SHIFT UNIT (E) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-31424-011-0	01	1	-
64	PIN; GEAR SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-673-0	01	1	-
64	PIN; GEAR SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-762-0	02	1	-
64	PIN; GEAR SHIFT UNIT (E), OD=6 L=40 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98036-471-1	01	1	-
64	PIN; GEAR SHIFT UNIT (C), OD=3 L=6.36 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98046-977-0	02	1	-
64	PIN; GEAR SHIFT UNIT (C), OD=5 L=10 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	9-08150-510-0	02	1	-
64	PIN; GEAR SHIFT UNIT (D), OD=6 L=40 ASM PART: B = 1-33730-296-0	9-08150-640-0	01	1	-
64	PIN; GEAR SHIFT UNIT (F) ASM PART: B = 1-33730-296-0, E = 8-98055-135-0	9-08230-827-0	04	1	-
69	BRACKET; SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-82569-396-2	01	1	-
69	BRACKET; SHIFT UNIT (A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-82698-527-0	01	1	-
70	CLIP; SHIFT UNIT (B), ID=31 L=35 ASM PART: A = 1-33730-241-9	1-09700-329-1	01	1	-
70	CLIP; SHIFT UNIT (A), ID=7.8 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0	8-94246-958-0	03	1	-
70	CLIP; SHIFT UNIT (A), ID=7.8 ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-94246-958-0	01	1	-
72	BOLT; BRKT (C), M8X16 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-28050-816-0	01	1	-
72	BOLT; BRKT (C), M8X16 FLANGE ASM PART: B = 1-33730-296-0	0-28080-816-0	01	1	-
72	BOLT; BRKT (D), M12X30 FLANGE ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-28151-230-0	02	1	-
72	BOLT; BRKT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-090-0	02	1	-
72	BOLT; BRKT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-699-0	02	1	-
75	HOSE; SHIFT UNIT (A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0	1-33149-020-0	01	1	-
75	HOSE; SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0	1-33149-021-0	02	1	-
75	HOSE; SHIFT UNIT (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-002-0	01	1	-
75	HOSE; SHIFT UNIT (B) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98067-939-0	02	1	-
75	HOSE; SHIFT UNIT (A) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98070-399-0	01	1	-
76	CASE; SHIFT UNIT (C) ASM PART: B = 1-33730-296-0	1-33541-541-0	01	1	-
76	CASE; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33731-024-1	01	1	-
76	CASE; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-039-0	01	1	-
76	CASE; SHIFT UNIT (C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1	8-98044-034-1	01	1	-
76	CASE; SHIFT UNIT (D) ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0	8-98147-533-0	01	1	-
76	CASE; SHIFT UNIT (D) ASM PART: K = 8-98302-718-0	8-98302-738-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: C = 1-33730-297-1	1-33738-113-0	01	1	-0810
81	SENSOR; SHIFT UNIT (A) ASM PART: A = 1-33730-241-9	1-33738-113-0	01	1	-
81	SENSOR; SHIFT UNIT (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-137-0	01	1	-
81	SENSOR; SHIFT UNIT (C) ASM PART: B = 1-33730-296-0	8-97324-826-0	01	1	-
81	SENSOR; SHIFT UNIT (D) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0	8-97324-827-0	01	1	-
81	SENSOR; SHIFT UNIT (C) ASM PART: D = 8-98047-359-0, E = 8-98055-135-0	8-98046-920-0	01	1	-
81	SENSOR; SHIFT UNIT (C) ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0	8-98061-816-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: C = 1-33730-297-1	8-98135-828-0	01	1	0811-
81	SENSOR; SHIFT UNIT (C) ASM PART: J = 8-98254-320-0, K = 8-98302-718-0	8-98282-847-0	01	1	-
81	SENSOR; SHIFT UNIT (D) ASM PART: J = 8-98254-320-0, K = 8-98302-718-0	8-98282-848-0	01	1	-
109	WASHER; PL (C), ID=12.5 OD=26 ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-91610-612-0	01	1	-
109	WASHER; PL (A), ID=10.5 OD=22 ASM PART: F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-91614-610-0	01	1	-
109	WASHER; PL (B), OD=40 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09532-008-0	01	1	-
109	WASHER; PL (C), ID=12.5 OD=26 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0	9-09160-612-0	01	1	-
109	WASHER; PL (D), ID=8.4 ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	9-09164-508-0	02	1	-
109	WASHER; PL (A), ID=10.5 OD=22 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0	9-09164-610-0	01	1	-
113	SEAT; SPRING (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33537-024-0	01	1	-
113	SEAT; SPRING (A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33549-404-0	01	1	-
114	CAM; GEAR SHIFT UNIT ASM PART: B = 1-33730-296-0	1-33529-123-1	01	1	-
114	CAM; GEAR SHIFT UNIT ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98046-921-0	01	1	-
115	GUIDE; PLATE,CAM ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33549-401-0	01	1	-
116	ROLLER; SHAFT ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33529-121-0	01	1	-
117	RING; SNAP (B), ID=4 ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-91805-504-0	01	1	-
117	RING; SNAP (A), ID=10 ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-91805-510-0	01	1	-
117	RING; SNAP (B), ID=4 ASM PART: B = 1-33730-296-0	9-09185-404-0	01	1	-
117	RING; SNAP (A), ID=10 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0	9-09185-410-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (A) ASM PART: B = 1-33730-296-0	1-82564-379-2	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0	1-82564-380-3	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (A) ASM PART: D = 8-98047-359-0	1-82564-445-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (A) ASM PART: E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0	8-98050-197-1	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: E = 8-98055-135-0, F = 8-98070-040-1	8-98052-618-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: G = 8-98147-541-0	8-98148-111-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (A) ASM PART: H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98162-694-1	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: H = 8-98163-036-0, I = 8-98186-516-0	8-98162-741-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: J = 8-98254-320-0, K = 8-98302-718-0	8-98254-315-0	01	1	-
119	BOLT; SOLENOID M10X25 FLANGE ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	0-28751-025-0	08	1	-
119	BOLT; SOLENOID M10X25 FLANGE ASM PART: B = 1-33730-296-0	0-28781-025-0	08	1	-
120	PLATE; CAM ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33529-125-0	01	1	-
121	PIN; SPRIT L=27.7 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1	1-09747-005-0	04	1	-
121	PIN; SPRIT L=27.7 ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09747-005-0	01	1	-
123	SPRING; SELECT (A) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09580-593-0	01	1	-
123	SPRING; SELECT (B) ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-09580-594-0	01	1	-
124	ROD ASM; LINK ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0	1-33671-944-1	01	1	-
124	ROD ASM; LINK ASM PART: K = 8-98302-718-0	8-98302-741-0	01	1	-
125	WIRE L=200 ASM PART: G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	9-08351-020-0	01	1	-
125	WIRE L=200 ASM PART: B = 1-33730-296-0, D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1	9-08351-020-0	04	1	-
126	PLUG; BREATHER ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	1-33149-023-0	02	1	-
126	PLUG; BREATHER ASM PART: B = 1-33730-296-0	1-33149-023-0	03	1	-
127	PLATE; PIN,CAM TO SHIFT SENSOR ASM PART: D = 8-98047-359-0, E = 8-98055-135-0, F = 8-98070-040-1, G = 8-98147-541-0, H = 8-98163-036-0, I = 8-98186-516-0, J = 8-98254-320-0, K = 8-98302-718-0	8-98046-924-0	01	1	-

110 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	CLAMP; HOSE (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-021-0	01	1	-
35	CLAMP; HOSE (B) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-022-0	03	1	-
35	CLAMP; HOSE (C) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-650-0	01	1	-
35	CLAMP; HOSE (D) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-701-0	02	1	-
35	CLAMP; HOSE (E) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33739-702-0	01	1	-
35	CLAMP; HOSE (F) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-47829-050-0	30	1	-
110	REPAIR KIT; SHIFT,SOLENOID (B) UPPER BLOW ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-145-1	AR	1	-
110	REPAIR KIT; SHIFT,SOLENOID (A) ASM PART: A = 1-33730-241-9, C = 1-33730-297-1	1-33738-159-1	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
