◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11006 - CYJ NEW ZEALAND ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#32056) — 620 parça
çizim 88613
381 444 512 285 222 512 339 339 339 341 341 341 158 513 578 427
BalonParca AdiParca NoAdetTipApplied Date
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) ID=19 L=25 		1-09700-515-1 01 1 0512-
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) ID=28 L=30 		1-09700-607-1 01 1 0512-
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) L=36 		8-94224-891-1 02 1 0512-
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=19 L=60 		9-09525-896-0 02 1 0512-0606
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=19 L=60 		0-95235-896-0 02 1 0607-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=150 		1-82569-328-0 10 1 0507-0511
158 CLIP; HARNESS
(C) L=150 		1-82569-328-0 10 1 0512-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (A) L=36 		8-94224-891-1 01 1 0507-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (D) ID=19 L=20 		9-09525-836-0 01 1 0507-0606
158 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 01 1 0607-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (B) ID=19 L=60 		9-09525-896-0 01 1 0507-0606
158 CLIP; HARNESS
(B) ID=19 L=60 		0-95235-896-0 01 1 0607-
222 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82698-591-0 01 1 0512-
285 BREATHER; AIR,QUAD BOX
6WF1 TC-C(1B8) 		1-33149-008-0 01 1 0507-0511
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0512-
339 NUT; QUAD BOX
6WF1 TC-C(1B8) M10 FLANGE 		0-91150-210-0 05 1 0507-0511
339 NUT; QUAD BOX
M10 FLANGE 		0-91150-210-0 05 1 0512-0602
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 05 1 0603-
341 STUD; QUAD BOX
6WG1 TC-C(72L),6WG1 TC-S(97L) M10X81.5 L=96.5 		8-98019-465-0 01 1 0512-
341 STUD; QUAD BOX
6WG1 TC-C(72L),6WG1 TC-S(97L) M10X35 L=50 		9-04411-035-0 04 1 0512-0604
341 STUD; QUAD BOX
6WG1 TC-C(72L),6WG1 TC-S(97L) M10X35 L=50 		0-44011-035-0 04 1 0605-
341 STUD; QUAD BOX
6WF1 TC-C(1B8) M10X35 L=50 		9-04411-035-0 05 1 0507-0604
341 STUD; QUAD BOX
M10X35 L=50 		0-44011-035-0 05 1 0605-
381 BOLT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28080-820-0 05 1 0512-0512
381 BOLT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28050-820-0 05 1 0601-
381 BOLT
6WF1 TC-C(1B8) (F) M6X50 FLANGE 		0-28080-650-0 02 1 0507-0511
381 BOLT
(F) M6X50 FLANGE 		0-28080-650-0 02 1 0512-0512
381 BOLT
(F) M6X50 FLANGE 		0-28050-650-0 02 1 0601-
381 BOLT
6WF1 TC-C(1B8) (G) M8X16 FLANGE 		0-28080-816-0 02 1 0507-0511
381 BOLT
(G) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512
381 BOLT
(G) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
381 BOLT
6WF1 TC-C(1B8) (C) M8X20 FLANGE 		0-28080-820-0 04 1 0507-0512
381 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 04 1 0601-
381 BOLT
6WF1 TC-C(1B8) (E) M10X25 FLANGE 		0-28781-025-0 11 1 0507-0511
381 BOLT
(E) M10X25 FLANGE 		0-28781-025-0 11 1 0512-0512
381 BOLT
(E) M10X25 FLANGE 		0-28751-025-0 11 1 0601-
381 BOLT
6WF1 TC-C(1B8) (D) M10X30 FLANGE 		0-28781-030-0 01 1 0507-0512
381 BOLT
(D) M10X30 FLANGE 		0-28751-030-0 01 1 0601-
381 BOLT
6WF1 TC-C(1B8) (A) M10X35 FLANGE 		0-28781-035-0 01 1 0507-0511
381 BOLT
(A) M10X35 FLANGE 		0-28781-035-0 01 1 0512-0512
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 0601-
381 BOLT
6WF1 TC-C(1B8) (B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 0507-0511
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 0512-
427 CONNECTOR; NYLON TUBE
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 0512-
427 CONNECTOR; NYLON TUBE
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 0512-
427 CONNECTOR; NYLON TUBE
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 2WAY 		1-09661-518-0 01 1 0512-
427 CONNECTOR; NYLON TUBE
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-09661-770-0 02 1 0512-
427 CONNECTOR; NYLON TUBE
6WF1 TC-C(1B8) (C) DIN6 & R1/4 ELBOW 		1-09660-707-1 03 1 0507-
444 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M10X25 FLANGE 		0-28781-025-0 04 1 0512-0512
444 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M10X25 FLANGE 		0-28751-025-0 04 1 0601-
512 CLIP; PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) ID=13X2 L=25 		9-09916-814-0 04 1 0512-
513 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=250 		5-09707-030-1 08 1 0512-0512
513 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=250 		5-09707-030-1 10 1 0512-
513 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) L=140 		5-09707-031-1 02 1 0512-
513 CLIP; BAND
6WF1 TC-C(1B8) (A) L=250 		5-09707-030-1 02 1 0507-
513 CLIP; BAND
6WF1 TC-C(1B8) (B) L=140 		5-09707-031-1 10 1 0507-
578 CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-09661-134-0 01 1 0512-
578 CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 0512-
578 CONNECTOR
6WF1 TC-C(1B8) (A) DIN6 & R1/4 ELBOW 		1-09660-707-1 02 1 0507-0511
578 CONNECTOR
(A) DIN6 & R1/4 ELBOW 		1-09660-707-1 02 1 0512-

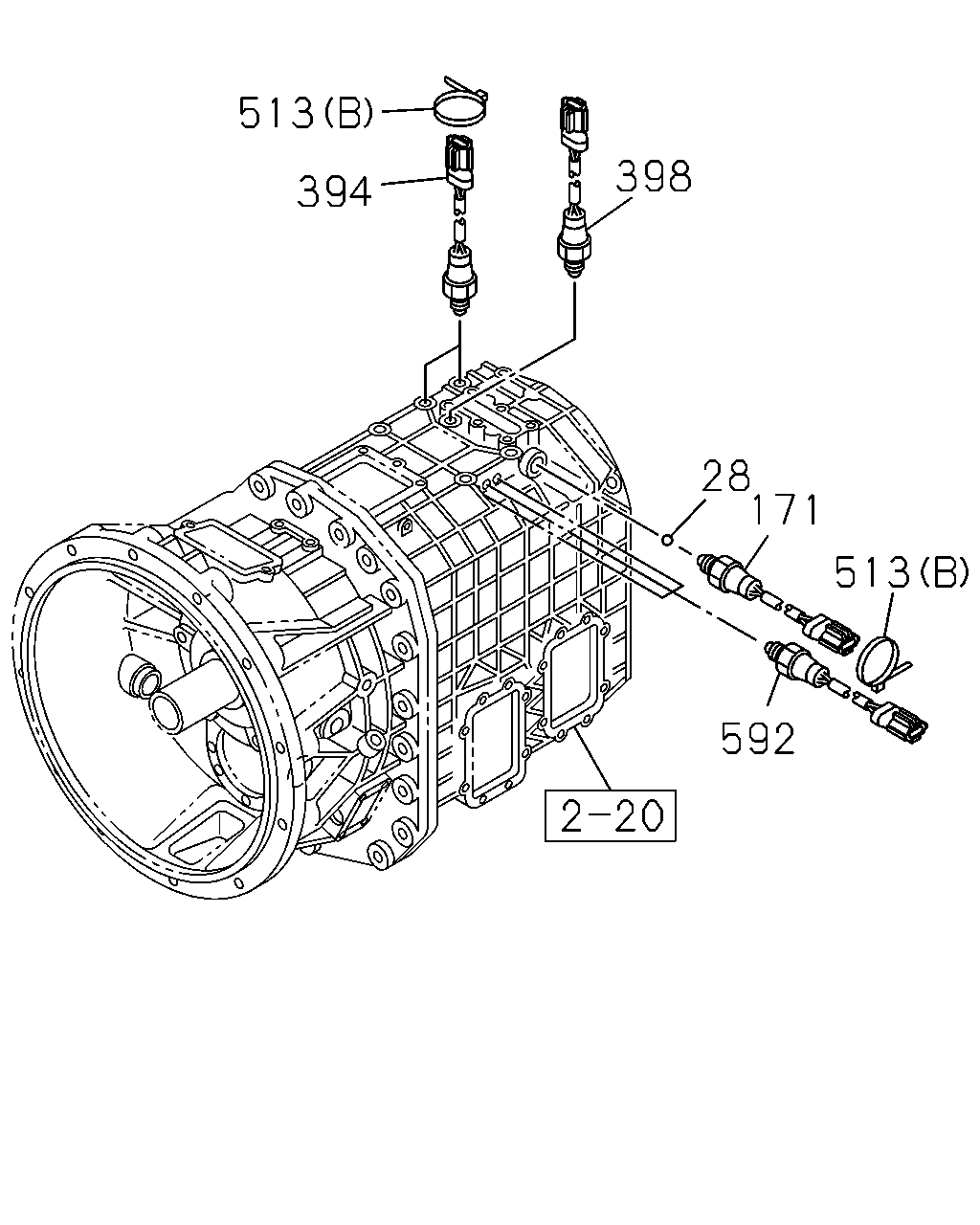

çizim 88648
513 398 394 28 171 513 592
BalonParca AdiParca NoAdetTipApplied Date
28 BALL; INTER LK
6WF1 TC-C(1B8) 		9-00097-501-0 02 1 0507-0511
28 BALL; INTER LK 9-00097-501-0 02 1 0512-
171 SWITCH; NEUTRAL
6WF1 TC-C(1B8) 		1-82440-101-1 01 1 0507-0511
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0512-0702
171 SWITCH; NEUTRAL 8-98072-777-0 01 1 0703-0801
171 SWITCH; NEUTRAL 8-98108-345-0 01 1 0802-1005
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1006-1109
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110-
394 SWITCH; RANGE CHANGE
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82440-124-0 02 1 0512-0602
394 SWITCH; RANGE CHANGE
6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98042-854-0 02 1 0603-1209
394 SWITCH; RANGE CHANGE
6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98228-481-0 02 1 1210-
394 SWITCH; RANGE CHANGE
6WF1 TC-C(1B8) 		1-82440-083-3 02 1 0507-0602
394 SWITCH; RANGE CHANGE
6WF1 TC-C(1B8) 		8-98042-853-0 02 1 0603-1209
394 SWITCH; RANGE CHANGE
6WF1 TC-C(1B8) 		8-98228-867-0 02 1 1210-
398 SWITCH; REV LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82440-124-0 01 1 0512-0602
398 SWITCH; REV LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98042-854-0 01 1 0603-1209
398 SWITCH; REV LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98228-483-0 01 1 1210-
398 SWITCH; REV LAMP
6WF1 TC-C(1B8) 		1-82440-083-3 01 1 0507-0602
398 SWITCH; REV LAMP
6WF1 TC-C(1B8) 		8-98042-853-0 01 1 0603-1209
398 SWITCH; REV LAMP
6WF1 TC-C(1B8) 		8-98228-482-0 01 1 1210-
513 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=250 		5-09707-030-1 08 1 0512-0512
513 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=250 		5-09707-030-1 10 1 0512-
513 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) L=140 		5-09707-031-1 02 1 0512-
513 CLIP; BAND
6WF1 TC-C(1B8) (A) L=250 		5-09707-030-1 02 1 0507-
513 CLIP; BAND
6WF1 TC-C(1B8) (B) L=140 		5-09707-031-1 10 1 0507-
592 SWITCH; POSITION
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82440-124-0 03 1 0512-0602
592 SWITCH; POSITION
6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98042-854-0 03 1 0603-1209
592 SWITCH; POSITION
6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98228-481-0 03 1 1210-
592 SWITCH; POSITION
6WF1 TC-C(1B8) 		1-82440-083-3 03 1 0507-0602
592 SWITCH; POSITION
6WF1 TC-C(1B8) 		8-98042-853-0 03 1 0603-1209
592 SWITCH; POSITION
6WF1 TC-C(1B8) 		8-98228-867-0 03 1 1210-

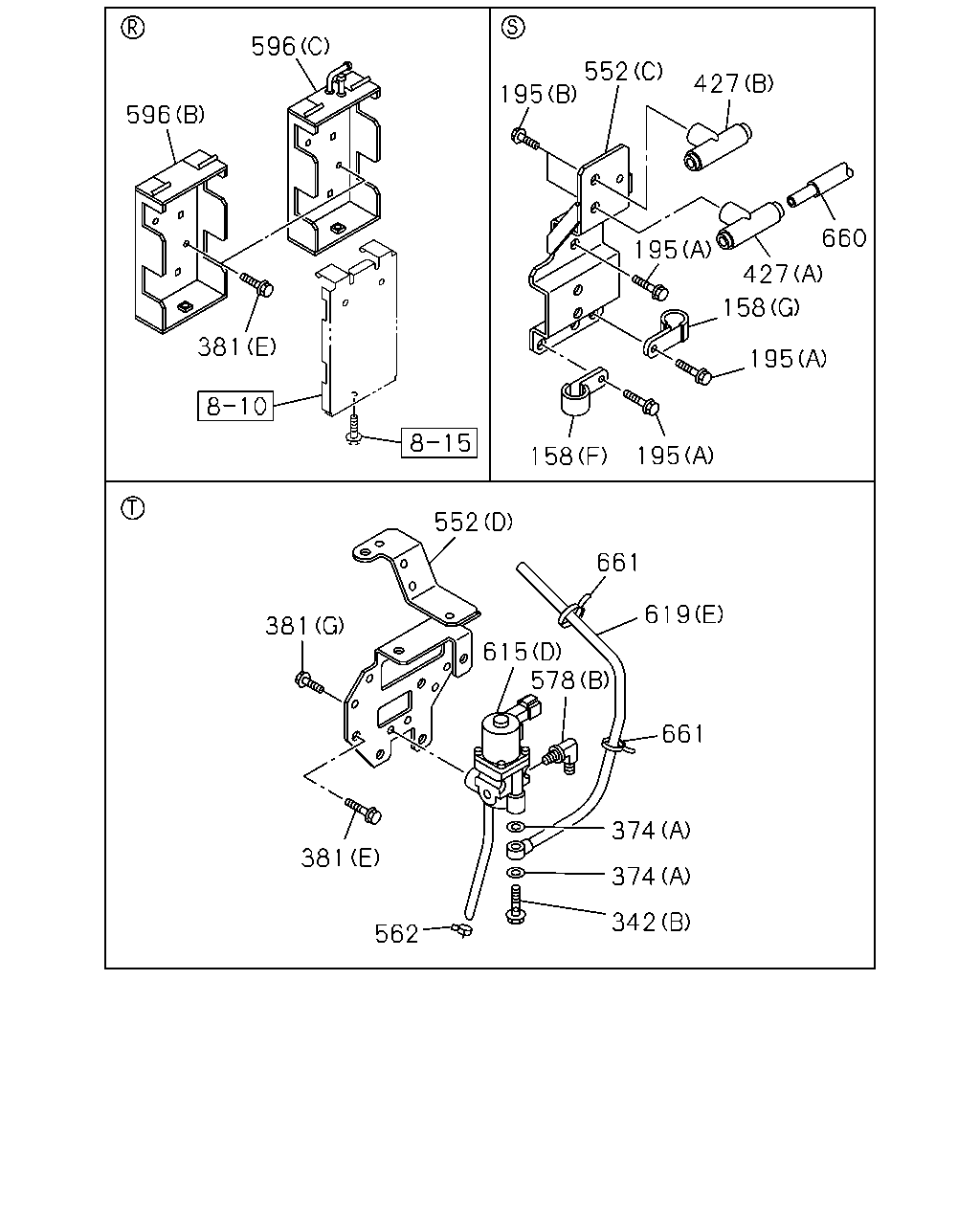

çizim 88954
596 552 195 427 596 660 195 427 158 381 195 195 158 552 661 619 381 615 578 661 374 381 374 342 562
BalonParca AdiParca NoAdetTipApplied Date
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) ID=19 L=25 		1-09700-515-1 01 1 0512-
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) ID=28 L=30 		1-09700-607-1 01 1 0512-
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) L=36 		8-94224-891-1 02 1 0512-
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=19 L=60 		9-09525-896-0 02 1 0512-0606
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=19 L=60 		0-95235-896-0 02 1 0607-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=150 		1-82569-328-0 10 1 0507-0511
158 CLIP; HARNESS
(C) L=150 		1-82569-328-0 10 1 0512-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (A) L=36 		8-94224-891-1 01 1 0507-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (D) ID=19 L=20 		9-09525-836-0 01 1 0507-0606
158 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 01 1 0607-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (B) ID=19 L=60 		9-09525-896-0 01 1 0507-0606
158 CLIP; HARNESS
(B) ID=19 L=60 		0-95235-896-0 01 1 0607-
195 BOLT
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512
195 BOLT
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
195 BOLT
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M10X25 FLANGE 		0-28781-025-0 03 1 0512-0512
195 BOLT
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M10X25 FLANGE 		0-28751-025-0 03 1 0601-
342 BOLT
6WF1 TC-C(1B8) (A) M12X41 		1-09675-140-0 01 1 0507-0511
342 BOLT
(A) M12X41 		1-09675-140-0 01 1 0512-
342 BOLT
6WF1 TC-C(1B8) (B) M12X27 FLANGE 		1-09675-160-0 06 1 0507-0511
342 BOLT
(B) M12X27 FLANGE 		1-09675-160-0 06 1 0512-0805
342 BOLT
(B) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 06 1 0806-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8) (A) ID=12.2 		1-09630-084-0 15 1 0507-0511
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		1-09630-084-0 15 1 0512-1312
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		8-98251-344-0 15 1 1401-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8) (B) ID=16.8 		9-09565-117-0 02 1 0507-0511
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) ID=16.8 		9-09565-117-0 02 1 0512-
381 BOLT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28080-820-0 05 1 0512-0512
381 BOLT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28050-820-0 05 1 0601-
381 BOLT
6WF1 TC-C(1B8) (F) M6X50 FLANGE 		0-28080-650-0 02 1 0507-0511
381 BOLT
(F) M6X50 FLANGE 		0-28080-650-0 02 1 0512-0512
381 BOLT
(F) M6X50 FLANGE 		0-28050-650-0 02 1 0601-
381 BOLT
6WF1 TC-C(1B8) (G) M8X16 FLANGE 		0-28080-816-0 02 1 0507-0511
381 BOLT
(G) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512
381 BOLT
(G) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
381 BOLT
6WF1 TC-C(1B8) (C) M8X20 FLANGE 		0-28080-820-0 04 1 0507-0512
381 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 04 1 0601-
381 BOLT
6WF1 TC-C(1B8) (E) M10X25 FLANGE 		0-28781-025-0 11 1 0507-0511
381 BOLT
(E) M10X25 FLANGE 		0-28781-025-0 11 1 0512-0512
381 BOLT
(E) M10X25 FLANGE 		0-28751-025-0 11 1 0601-
381 BOLT
6WF1 TC-C(1B8) (D) M10X30 FLANGE 		0-28781-030-0 01 1 0507-0512
381 BOLT
(D) M10X30 FLANGE 		0-28751-030-0 01 1 0601-
381 BOLT
6WF1 TC-C(1B8) (A) M10X35 FLANGE 		0-28781-035-0 01 1 0507-0511
381 BOLT
(A) M10X35 FLANGE 		0-28781-035-0 01 1 0512-0512
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 0601-
381 BOLT
6WF1 TC-C(1B8) (B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 0507-0511
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 0512-
427 CONNECTOR; NYLON TUBE
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 0512-
427 CONNECTOR; NYLON TUBE
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 0512-
427 CONNECTOR; NYLON TUBE
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 2WAY 		1-09661-518-0 01 1 0512-
427 CONNECTOR; NYLON TUBE
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-09661-770-0 02 1 0512-
427 CONNECTOR; NYLON TUBE
6WF1 TC-C(1B8) (C) DIN6 & R1/4 ELBOW 		1-09660-707-1 03 1 0507-
552 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) 		1-47471-393-0 01 1 0512-
552 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-82569-397-1 01 1 0512-
552 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-82698-607-0 01 1 0512-
552 BRACKET
6WF1 TC-C(1B8) (A) 		1-82569-303-2 01 1 0507-
552 BRACKET
6WF1 TC-C(1B8) (B) 		1-82569-304-0 01 1 0507-
562 CLAMP; LOCKING
6WF1 TC-C(1B8) ID=7.8 		8-94246-958-0 05 1 0507-0511
562 CLAMP; LOCKING
ID=7.8 		8-94246-958-0 05 1 0512-
578 CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-09661-134-0 01 1 0512-
578 CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 0512-
578 CONNECTOR
6WF1 TC-C(1B8) (A) DIN6 & R1/4 ELBOW 		1-09660-707-1 02 1 0507-0511
578 CONNECTOR
(A) DIN6 & R1/4 ELBOW 		1-09660-707-1 02 1 0512-
596 BOX; CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-82569-414-0 01 1 0512-0606
596 BOX; CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-82569-434-0 01 1 0607-0701
596 BOX; CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		8-98067-899-0 01 1 0702-1003
596 BOX; CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		8-98160-716-1 01 1 1004-
596 BOX; CONNECTOR
6WF1 TC-C(1B8) (A) 		1-82569-315-1 01 1 0507-
615 VALVE; MAGNETIC
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) M12 		1-82560-342-0 02 1 0512-
615 VALVE; MAGNETIC
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-82560-344-0 01 1 0512-
615 VALVE; MAGNETIC
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) M12 & PT3/8 		1-82560-451-0 02 1 0512-
615 VALVE; MAGNETIC
6WF1 TC-C(1B8) (A) M12 		1-82560-342-0 01 1 0507-
615 VALVE; MAGNETIC
6WF1 TC-C(1B8) (C) 		1-82560-343-0 01 1 0507-
615 VALVE; MAGNETIC
6WF1 TC-C(1B8) (B) 		1-82560-344-0 02 1 0507-
619 TUBE; NYLON
6WF1 TC-C(1B8) (A) L=440 		8-98081-863-0 01 1 1004-
619 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) L=690 		1-09377-332-0 01 1 0512-
619 TUBE; NYLON
6WF1 TC-C(1B8) (B) L=430 		1-09376-828-1 01 1 0507-0511
619 TUBE; NYLON
(B) L=430 		1-09376-828-1 01 1 0512-1003
619 TUBE; NYLON
(B) L=480 		8-98081-861-0 01 1 1004-
619 TUBE; NYLON
6WF1 TC-C(1B8) (A) L=420 		1-09376-829-1 01 1 0507-0511
619 TUBE; NYLON
(A) L=420 		1-09376-829-1 01 1 0512-1003
619 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=420 		1-09376-829-1 01 1 1004-
619 TUBE; NYLON
6WF1 TC-C(1B8) (C) L=470 		1-09376-831-1 01 1 0507-
619 TUBE; NYLON
6WF1 TC-C(1B8) (D) L=490 		1-09376-832-1 01 1 0507-
660 PROTECTOR; NYLON TUBE
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-09377-342-0 01 1 0512-
661 CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) L=150 		1-82569-328-0 02 1 0512-

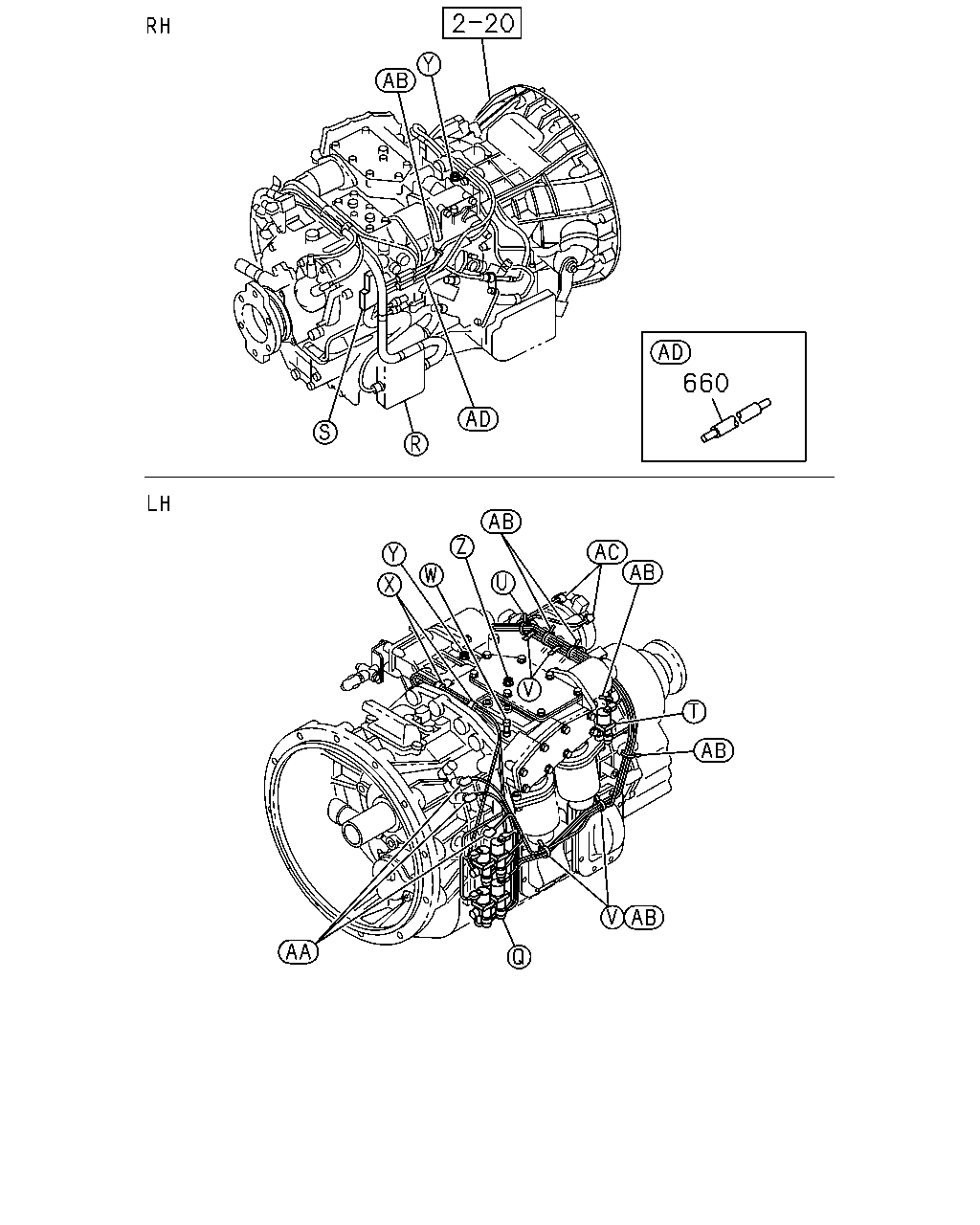

çizim 103690
660
BalonParca AdiParca NoAdetTipApplied Date
660 PROTECTOR; NYLON TUBE
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-09377-342-0 01 1 0512-

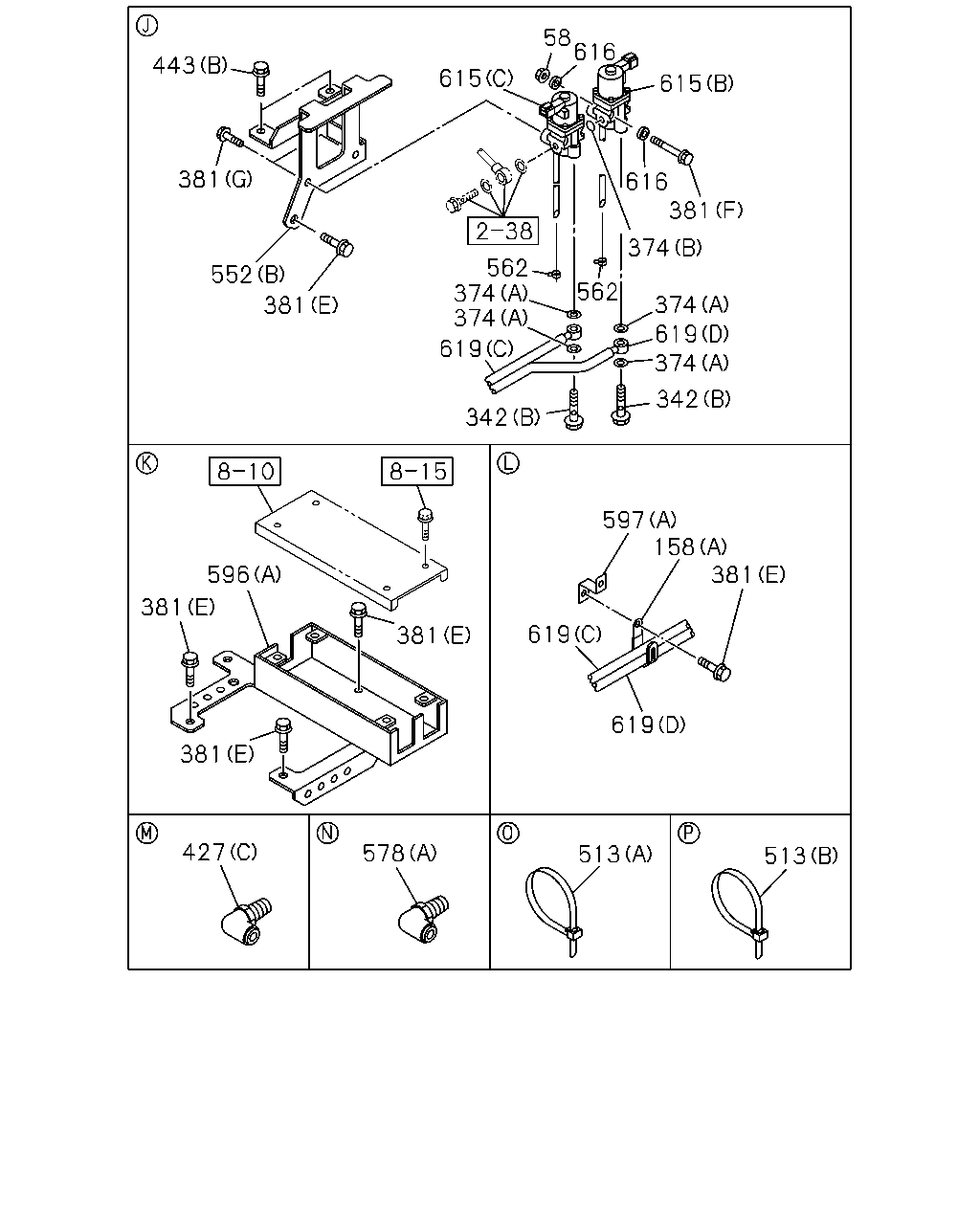

çizim 104113
58 616 443 615 615 381 616 381 374 562 374 374 552 562 374 381 619 619 374 342 342 597 158 381 596 381 619 381 619 381 427 578 513 513
BalonParca AdiParca NoAdetTipApplied Date
58 NUT
6WF1 TC-C(1B8) M6 FLANGE 		0-91150-106-0 02 1 0507-0511
58 NUT
M6 FLANGE 		0-91150-106-0 02 1 0512-0602
58 NUT
M6 FLANGE 		0-91180-106-0 02 1 0603-
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) ID=19 L=25 		1-09700-515-1 01 1 0512-
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) ID=28 L=30 		1-09700-607-1 01 1 0512-
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) L=36 		8-94224-891-1 02 1 0512-
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=19 L=60 		9-09525-896-0 02 1 0512-0606
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=19 L=60 		0-95235-896-0 02 1 0607-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=150 		1-82569-328-0 10 1 0507-0511
158 CLIP; HARNESS
(C) L=150 		1-82569-328-0 10 1 0512-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (A) L=36 		8-94224-891-1 01 1 0507-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (D) ID=19 L=20 		9-09525-836-0 01 1 0507-0606
158 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 01 1 0607-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (B) ID=19 L=60 		9-09525-896-0 01 1 0507-0606
158 CLIP; HARNESS
(B) ID=19 L=60 		0-95235-896-0 01 1 0607-
342 BOLT
6WF1 TC-C(1B8) (A) M12X41 		1-09675-140-0 01 1 0507-0511
342 BOLT
(A) M12X41 		1-09675-140-0 01 1 0512-
342 BOLT
6WF1 TC-C(1B8) (B) M12X27 FLANGE 		1-09675-160-0 06 1 0507-0511
342 BOLT
(B) M12X27 FLANGE 		1-09675-160-0 06 1 0512-0805
342 BOLT
(B) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 06 1 0806-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8) (A) ID=12.2 		1-09630-084-0 15 1 0507-0511
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		1-09630-084-0 15 1 0512-1312
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		8-98251-344-0 15 1 1401-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8) (B) ID=16.8 		9-09565-117-0 02 1 0507-0511
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) ID=16.8 		9-09565-117-0 02 1 0512-
381 BOLT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28080-820-0 05 1 0512-0512
381 BOLT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28050-820-0 05 1 0601-
381 BOLT
6WF1 TC-C(1B8) (F) M6X50 FLANGE 		0-28080-650-0 02 1 0507-0511
381 BOLT
(F) M6X50 FLANGE 		0-28080-650-0 02 1 0512-0512
381 BOLT
(F) M6X50 FLANGE 		0-28050-650-0 02 1 0601-
381 BOLT
6WF1 TC-C(1B8) (G) M8X16 FLANGE 		0-28080-816-0 02 1 0507-0511
381 BOLT
(G) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512
381 BOLT
(G) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
381 BOLT
6WF1 TC-C(1B8) (C) M8X20 FLANGE 		0-28080-820-0 04 1 0507-0512
381 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 04 1 0601-
381 BOLT
6WF1 TC-C(1B8) (E) M10X25 FLANGE 		0-28781-025-0 11 1 0507-0511
381 BOLT
(E) M10X25 FLANGE 		0-28781-025-0 11 1 0512-0512
381 BOLT
(E) M10X25 FLANGE 		0-28751-025-0 11 1 0601-
381 BOLT
6WF1 TC-C(1B8) (D) M10X30 FLANGE 		0-28781-030-0 01 1 0507-0512
381 BOLT
(D) M10X30 FLANGE 		0-28751-030-0 01 1 0601-
381 BOLT
6WF1 TC-C(1B8) (A) M10X35 FLANGE 		0-28781-035-0 01 1 0507-0511
381 BOLT
(A) M10X35 FLANGE 		0-28781-035-0 01 1 0512-0512
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 0601-
381 BOLT
6WF1 TC-C(1B8) (B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 0507-0511
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 0512-
427 CONNECTOR; NYLON TUBE
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) DIN6 & R1/4 ELBOW 		1-09660-707-1 01 1 0512-
427 CONNECTOR; NYLON TUBE
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 0512-
427 CONNECTOR; NYLON TUBE
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 2WAY 		1-09661-518-0 01 1 0512-
427 CONNECTOR; NYLON TUBE
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-09661-770-0 02 1 0512-
427 CONNECTOR; NYLON TUBE
6WF1 TC-C(1B8) (C) DIN6 & R1/4 ELBOW 		1-09660-707-1 03 1 0507-
443 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X10 FLANGE 		0-28080-810-0 01 1 0507-0512
443 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 01 1 0601-
443 BOLT; CLIP
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512
443 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
513 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=250 		5-09707-030-1 08 1 0512-0512
513 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=250 		5-09707-030-1 10 1 0512-
513 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) L=140 		5-09707-031-1 02 1 0512-
513 CLIP; BAND
6WF1 TC-C(1B8) (A) L=250 		5-09707-030-1 02 1 0507-
513 CLIP; BAND
6WF1 TC-C(1B8) (B) L=140 		5-09707-031-1 10 1 0507-
552 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) 		1-47471-393-0 01 1 0512-
552 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-82569-397-1 01 1 0512-
552 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-82698-607-0 01 1 0512-
552 BRACKET
6WF1 TC-C(1B8) (A) 		1-82569-303-2 01 1 0507-
552 BRACKET
6WF1 TC-C(1B8) (B) 		1-82569-304-0 01 1 0507-
562 CLAMP; LOCKING
6WF1 TC-C(1B8) ID=7.8 		8-94246-958-0 05 1 0507-0511
562 CLAMP; LOCKING
ID=7.8 		8-94246-958-0 05 1 0512-
578 CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-09661-134-0 01 1 0512-
578 CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 0512-
578 CONNECTOR
6WF1 TC-C(1B8) (A) DIN6 & R1/4 ELBOW 		1-09660-707-1 02 1 0507-0511
578 CONNECTOR
(A) DIN6 & R1/4 ELBOW 		1-09660-707-1 02 1 0512-
596 BOX; CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-82569-414-0 01 1 0512-0606
596 BOX; CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-82569-434-0 01 1 0607-0701
596 BOX; CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		8-98067-899-0 01 1 0702-1003
596 BOX; CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		8-98160-716-1 01 1 1004-
596 BOX; CONNECTOR
6WF1 TC-C(1B8) (A) 		1-82569-315-1 01 1 0507-
597 BRACKET; RANGE,NYLON TUBE
6WF1 TC-C(1B8) (B) L=55 		1-47476-177-0 01 1 0507-
597 BRACKET; RANGE,NYLON TUBE
6WF1 TC-C(1B8) (A) 		1-82699-425-0 01 1 0507-
615 VALVE; MAGNETIC
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) M12 		1-82560-342-0 02 1 0512-
615 VALVE; MAGNETIC
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-82560-344-0 01 1 0512-
615 VALVE; MAGNETIC
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) M12 & PT3/8 		1-82560-451-0 02 1 0512-
615 VALVE; MAGNETIC
6WF1 TC-C(1B8) (A) M12 		1-82560-342-0 01 1 0507-
615 VALVE; MAGNETIC
6WF1 TC-C(1B8) (C) 		1-82560-343-0 01 1 0507-
615 VALVE; MAGNETIC
6WF1 TC-C(1B8) (B) 		1-82560-344-0 02 1 0507-
616 COLLAR
6WF1 TC-C(1B8) 		1-82569-266-0 04 1 0507-0511
616 COLLAR 1-82569-266-0 04 1 0512-
619 TUBE; NYLON
6WF1 TC-C(1B8) (A) L=440 		8-98081-863-0 01 1 1004-
619 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) L=690 		1-09377-332-0 01 1 0512-
619 TUBE; NYLON
6WF1 TC-C(1B8) (B) L=430 		1-09376-828-1 01 1 0507-0511
619 TUBE; NYLON
(B) L=430 		1-09376-828-1 01 1 0512-1003
619 TUBE; NYLON
(B) L=480 		8-98081-861-0 01 1 1004-
619 TUBE; NYLON
6WF1 TC-C(1B8) (A) L=420 		1-09376-829-1 01 1 0507-0511
619 TUBE; NYLON
(A) L=420 		1-09376-829-1 01 1 0512-1003
619 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=420 		1-09376-829-1 01 1 1004-
619 TUBE; NYLON
6WF1 TC-C(1B8) (C) L=470 		1-09376-831-1 01 1 0507-
619 TUBE; NYLON
6WF1 TC-C(1B8) (D) L=490 		1-09376-832-1 01 1 0507-

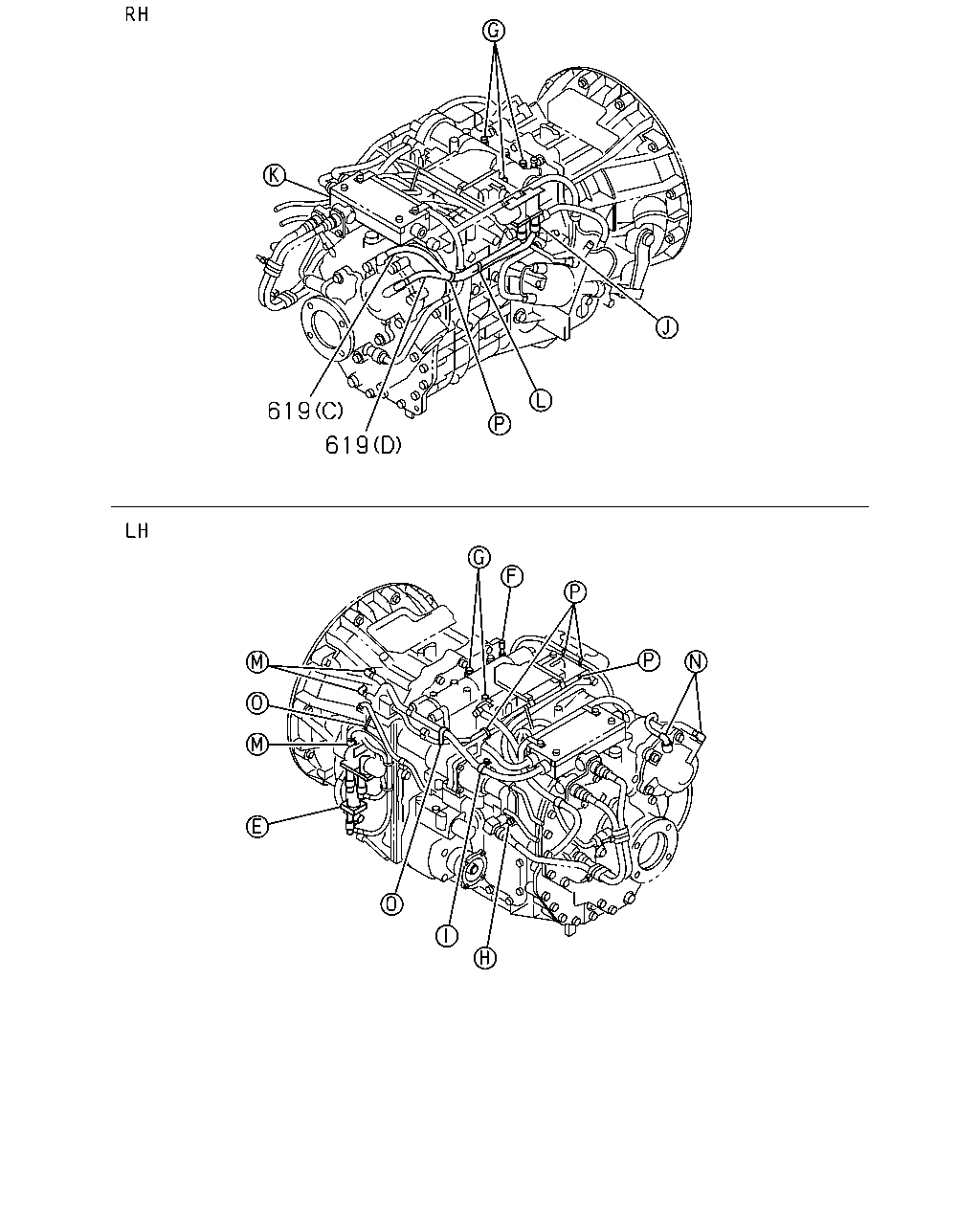

çizim 104115
619 619
BalonParca AdiParca NoAdetTipApplied Date
619 TUBE; NYLON
6WF1 TC-C(1B8) (A) L=440 		8-98081-863-0 01 1 1004-
619 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) L=690 		1-09377-332-0 01 1 0512-
619 TUBE; NYLON
6WF1 TC-C(1B8) (B) L=430 		1-09376-828-1 01 1 0507-0511
619 TUBE; NYLON
(B) L=430 		1-09376-828-1 01 1 0512-1003
619 TUBE; NYLON
(B) L=480 		8-98081-861-0 01 1 1004-
619 TUBE; NYLON
6WF1 TC-C(1B8) (A) L=420 		1-09376-829-1 01 1 0507-0511
619 TUBE; NYLON
(A) L=420 		1-09376-829-1 01 1 0512-1003
619 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=420 		1-09376-829-1 01 1 1004-
619 TUBE; NYLON
6WF1 TC-C(1B8) (C) L=470 		1-09376-831-1 01 1 0507-
619 TUBE; NYLON
6WF1 TC-C(1B8) (D) L=490 		1-09376-832-1 01 1 0507-

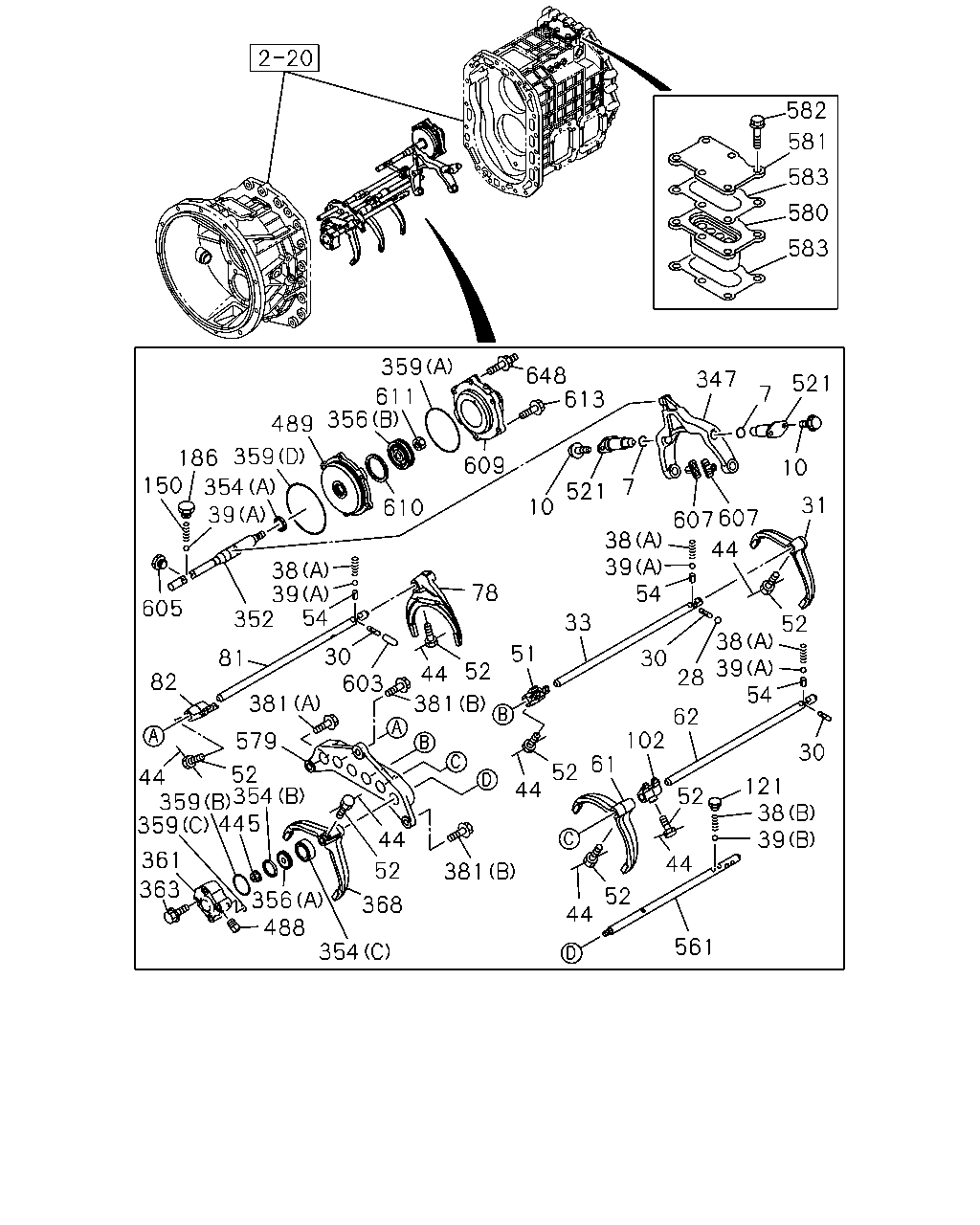

çizim 104203
582 581 583 580 583 359 648 613 347 521 7 611 356 489 359 186 150 609 10 354 39 7 521 31 10 610 38 39 54 44 38 39 78 605 33 52 38 39 54 51 30 603 81 30 52 44 28 82 381 381 62 102 579 30 61 52 44 52 354 121 38 39 44 52 44 361 44 52 381 363 488 52 368 44 561 354 356 445 359 359 352 607 607
BalonParca AdiParca NoAdetTipApplied Date
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8) ID=24.4 		1-09623-057-0 02 1 0507-0511
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 02 1 0512-
10 BOLT; SPINDLE
6WF1 TC-C(1B8) M10X30 FLANGE 		0-28781-030-0 04 1 0507-0511
10 BOLT; SPINDLE
M10X30 FLANGE 		0-28781-030-0 04 1 0512-0512
10 BOLT; SPINDLE
M10X30 FLANGE 		0-28751-030-0 04 1 0601-
28 BALL; INTER LK
6WF1 TC-C(1B8) 		9-00097-501-0 02 1 0507-0511
28 BALL; INTER LK 9-00097-501-0 02 1 0512-
30 PIN; INTER LK
6WF1 TC-C(1B8) 		9-33534-003-0 03 1 0507-0511
30 PIN; INTER LK 9-33534-003-0 03 1 0512-
31 ARM; SHIFT,LOW & 2ND
6WF1 TC-C(1B8) 		1-33511-587-0 01 1 0507-0511
31 ARM; SHIFT,LOW & 2ND 1-33511-587-0 01 1 0512-
33 ROD; SHIFT,LOW & 2ND
6WF1 TC-C(1B8) 		1-33531-458-0 01 1 0507-0511
33 ROD; SHIFT,LOW & 2ND 1-33531-458-0 01 1 0512-
38 SPRING; DETENT
6WF1 TC-C(1B8) (B) 		1-09580-374-0 01 1 0507-0511
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 0512-
38 SPRING; DETENT
6WF1 TC-C(1B8) (A) 		1-09580-379-0 03 1 0507-0511
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 0512-
39 BALL; DETENT
6WF1 TC-C(1B8) (A) 		1-09843-012-0 04 1 0507-0511
39 BALL; DETENT
(A) 		1-09843-012-0 04 1 0512-
39 BALL; DETENT
6WF1 TC-C(1B8) (B) 		9-00097-013-0 01 1 0507-0511
39 BALL; DETENT
(B) 		9-00097-013-0 01 1 0512-
44 WIRE; LK
6WF1 TC-C(1B8) L=200 		9-08351-020-0 07 1 0507-0511
44 WIRE; LK
L=200 		9-08351-020-0 07 1 0512-
51 BLOCK; SHIFT,1ST & 2ND
6WF1 TC-C(1B8) 		1-33511-590-0 01 1 0507-0511
51 BLOCK; SHIFT,1ST & 2ND 1-33511-590-0 01 1 0512-
52 BOLT; SHIFT ARM
6WF1 TC-C(1B8) M12X20 W/HOLE 		1-09052-038-0 07 1 0507-0511
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 07 1 0512-
54 PIN; SPR,SHIFT BLOCK
6WF1 TC-C(1B8) 		1-09748-014-0 03 1 0507-0511
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0512-
61 ARM; SHIFT,3RD & 4TH
6WF1 TC-C(1B8) 		1-33511-586-0 01 1 0507-0511
61 ARM; SHIFT,3RD & 4TH 1-33511-586-0 01 1 0512-
62 ROD; SHIFT,3RD & 4TH
6WF1 TC-C(1B8) 		1-33531-459-0 01 1 0507-0511
62 ROD; SHIFT,3RD & 4TH 1-33531-459-0 01 1 0512-
78 ARM; SHIFT,REV
6WF1 TC-C(1B8) 		1-33511-589-0 01 1 0507-0511
78 ARM; SHIFT,REV 1-33511-589-0 01 1 0512-
81 ROD; SHIFT,REV BLOCK
6WF1 TC-C(1B8) 		1-33531-457-0 01 1 0507-0511
81 ROD; SHIFT,REV BLOCK 1-33531-457-0 01 1 0512-
82 BLOCK; SHIFT,REV
6WF1 TC-C(1B8) 		1-33511-451-0 01 1 0507-0511
82 BLOCK; SHIFT,REV 1-33511-451-0 01 1 0512-
102 BLOCK; SHIFT,3RD & 4TH
6WF1 TC-C(1B8) 		1-33511-592-0 01 1 0507-0511
102 BLOCK; SHIFT,3RD & 4TH 1-33511-592-0 01 1 0512-0602
102 BLOCK; SHIFT,3RD & 4TH 8-98044-038-0 01 1 0603-
121 PLUG; DETENT SPR
6WF1 TC-C(1B8) M16X12 		9-99202-316-0 01 1 0507-0511
121 PLUG; DETENT SPR
M16X12 		9-99202-316-0 01 1 0512-0606
121 PLUG; DETENT SPR
M16X12 		0-92002-416-0 01 1 0607-
150 SPRING; DETENT BALL
6WF1 TC-C(1B8) 		1-09580-379-0 01 1 0507-0511
150 SPRING; DETENT BALL 1-09580-379-0 01 1 0512-
186 PLUG; SHIFTER ROD
6WF1 TC-C(1B8) M16X12 		9-99202-316-0 01 1 0507-0511
186 PLUG; SHIFTER ROD
M16X12 		9-99202-316-0 01 1 0512-0606
186 PLUG; SHIFTER ROD
M16X12 		0-92002-416-0 01 1 0607-
347 ARM; SHIFT,RANGE CHANGE
6WF1 TC-C(1B8) 		1-33511-585-0 01 1 0507-0511
347 ARM; SHIFT,RANGE CHANGE 1-33511-585-0 01 1 0512-
352 ROD; SHIFT,RANGE CHANGE
6WF1 TC-C(1B8) 		1-33531-482-0 01 1 0507-0511
352 ROD; SHIFT,RANGE CHANGE 1-33531-482-0 01 1 0512-
354 SEAL; AIR CYL
6WF1 TC-C(1B8) (A) 		1-19387-056-0 01 1 0507-0511
354 SEAL; AIR CYL
(A) 		1-19387-056-0 01 1 0512-
354 SEAL; AIR CYL
6WF1 TC-C(1B8) (B) 		1-33739-978-0 01 1 0507-0511
354 SEAL; AIR CYL
(B) 		1-33739-978-0 01 1 0512-
354 SEAL; AIR CYL
6WF1 TC-C(1B8) (C) 		1-33739-981-0 01 1 0507-0511
354 SEAL; AIR CYL
(C) 		1-33739-981-0 01 1 0512-
356 PISTON; AIR CYL
6WF1 TC-C(1B8) (A) 		1-33551-017-0 01 1 0507-0511
356 PISTON; AIR CYL
(A) 		1-33551-017-0 01 1 0512-
356 PISTON; AIR CYL
6WF1 TC-C(1B8) (B) 		1-33551-025-0 01 1 0507-0511
356 PISTON; AIR CYL
(B) 		1-33551-025-0 01 1 0512-
359 GASKET; AIR CYL
6WF1 TC-C(1B8) (A) ID=124.6 		1-09623-468-0 01 1 0507-0511
359 GASKET; AIR CYL
(A) ID=124.6 		1-09623-468-0 01 1 0512-
359 GASKET; AIR CYL
6WF1 TC-C(1B8) (B) ID=55.6 		1-09623-547-0 01 1 0507-0511
359 GASKET; AIR CYL
(B) ID=55.6 		1-09623-547-0 01 1 0512-0704
359 GASKET; AIR CYL
(B) ID=55.6 		8-98075-598-0 01 1 0705-
359 GASKET; AIR CYL
6WF1 TC-C(1B8) (C) ID=6.8 		9-09565-107-0 01 1 0507-0511
359 GASKET; AIR CYL
(C) ID=6.8 		9-09565-107-0 01 1 0512-
359 GASKET; AIR CYL
6WF1 TC-C(1B8) (D) ID=144.4 		9-09920-735-0 01 1 0507-0511
359 GASKET; AIR CYL
(D) ID=144.4 		9-09920-735-0 01 1 0512-
361 CYLINDER; AIR,SHIFT
6WF1 TC-C(1B8) 		1-33561-013-0 01 1 0507-0511
361 CYLINDER; AIR,SHIFT 1-33561-013-0 01 1 0512-0702
361 CYLINDER; AIR,SHIFT 1-33561-019-0 01 1 0703-
363 BOLT; AIR CYL
6WF1 TC-C(1B8) M10X60 FLANGE 		0-28181-060-0 04 1 0507-0511
363 BOLT; AIR CYL
M10X60 FLANGE 		0-28181-060-0 04 1 0512-0512
363 BOLT; AIR CYL
M10X60 FLANGE 		0-28151-060-0 04 1 0601-1003
363 BOLT; AIR CYL
M10X60 FLANGE 		8-98169-763-0 04 1 1004-
368 ARM; SHIFT,SPLITTER GEAR
6WF1 TC-C(1B8) 		1-33511-588-0 01 1 0507-0511
368 ARM; SHIFT,SPLITTER GEAR 1-33511-588-0 01 1 0512-
381 BOLT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28080-820-0 05 1 0512-0512
381 BOLT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28050-820-0 05 1 0601-
381 BOLT
6WF1 TC-C(1B8) (F) M6X50 FLANGE 		0-28080-650-0 02 1 0507-0511
381 BOLT
(F) M6X50 FLANGE 		0-28080-650-0 02 1 0512-0512
381 BOLT
(F) M6X50 FLANGE 		0-28050-650-0 02 1 0601-
381 BOLT
6WF1 TC-C(1B8) (G) M8X16 FLANGE 		0-28080-816-0 02 1 0507-0511
381 BOLT
(G) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512
381 BOLT
(G) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
381 BOLT
6WF1 TC-C(1B8) (C) M8X20 FLANGE 		0-28080-820-0 04 1 0507-0512
381 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 04 1 0601-
381 BOLT
6WF1 TC-C(1B8) (E) M10X25 FLANGE 		0-28781-025-0 11 1 0507-0511
381 BOLT
(E) M10X25 FLANGE 		0-28781-025-0 11 1 0512-0512
381 BOLT
(E) M10X25 FLANGE 		0-28751-025-0 11 1 0601-
381 BOLT
6WF1 TC-C(1B8) (D) M10X30 FLANGE 		0-28781-030-0 01 1 0507-0512
381 BOLT
(D) M10X30 FLANGE 		0-28751-030-0 01 1 0601-
381 BOLT
6WF1 TC-C(1B8) (A) M10X35 FLANGE 		0-28781-035-0 01 1 0507-0511
381 BOLT
(A) M10X35 FLANGE 		0-28781-035-0 01 1 0512-0512
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 0601-
381 BOLT
6WF1 TC-C(1B8) (B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 0507-0511
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 0512-
445 NUT; SHIFT CYL
6WF1 TC-C(1B8) M12 LOCK NUT FLANGE 		0-91303-612-0 01 1 0507-0511
445 NUT; SHIFT CYL
M12 LOCK NUT FLANGE 		0-91303-612-0 01 1 0512-0604
445 NUT; SHIFT CYL
M12 LOCK NUT FLANGE 		0-91380-012-0 01 1 0605-
488 PLUG; AIR CYL
6WF1 TC-C(1B8) 		9-09204-510-0 01 1 0507-0511
488 PLUG; AIR CYL 9-09204-510-0 01 1 0512-
489 COVER; AIR CYL
6WF1 TC-C(1B8) 		1-33569-052-0 01 1 0507-0511
489 COVER; AIR CYL 1-33569-052-0 01 1 0512-
521 SPINDLE; 6TH
6WF1 TC-C(1B8) 		1-33519-131-0 02 1 0507-0511
521 SPINDLE; 6TH 1-33519-131-0 02 1 0512-
561 ROD; SHIFT
6WF1 TC-C(1B8) 		1-33531-460-0 01 1 0507-0511
561 ROD; SHIFT 1-33531-460-0 01 1 0512-
579 BLOCK; SHIFT,ROD GUIDE
6WF1 TC-C(1B8) 		1-33539-066-0 01 1 0507-0511
579 BLOCK; SHIFT,ROD GUIDE 1-33539-066-2 01 1 0512-
580 BLOCK; INTERLOCK
6WF1 TC-C(1B8) 		1-33539-064-1 01 1 0507-0511
580 BLOCK; INTERLOCK 1-33539-064-1 01 1 0512-
581 COVER; BLOCK
6WF1 TC-C(1B8) 		1-33141-056-0 01 1 0507-0511
581 COVER; BLOCK 1-33141-056-0 01 1 0512-
582 BOLT; SPRING GUIDE
6WF1 TC-C(1B8) M10X35 FLANGE 		0-28181-035-0 06 1 0507-0511
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28181-035-0 06 1 0512-0512
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28151-035-0 06 1 0601-
583 GASKET; SPRING GUIDE
6WF1 TC-C(1B8) 		1-33142-047-0 02 1 0507-0511
583 GASKET; SPRING GUIDE 1-33142-047-0 02 1 0512-
603 ROD; INTER LK
6WF1 TC-C(1B8) L=49 		1-33534-005-0 01 1 0507-0511
603 ROD; INTER LK
L=49 		1-33534-005-0 01 1 0512-
605 PLUG; INTER LK
6WF1 TC-C(1B8) M18X12 		9-99202-318-0 01 1 0507-0511
605 PLUG; INTER LK
M18X12 		9-99202-318-0 01 1 0512-0606
605 PLUG; INTER LK
M18X12 		0-92002-418-0 01 1 0607-
607 PIECE; SHIFT
6WF1 TC-C(1B8) 		1-33518-010-0 02 1 0507-0511
607 PIECE; SHIFT 1-33518-010-0 02 1 0512-
609 BODY; AIR,CYL
6WF1 TC-C(1B8) 		1-33561-018-0 01 1 0507-0511
609 BODY; AIR,CYL 1-33561-018-0 01 1 0512-
610 SEAL; PISTON
6WF1 TC-C(1B8) 		1-33738-054-0 01 1 0507-0511
610 SEAL; PISTON 1-33738-054-0 01 1 0512-
611 NUT; SHAFT
6WF1 TC-C(1B8) 		8-97324-304-0 01 1 0507-0511
611 NUT; SHAFT 8-97324-304-0 01 1 0512-
613 BOLT; AIR CYL
6WG1 TC-C(72L),6WG1 TC-S(97L) M10X45 FLANGE 		0-28181-045-0 03 1 0512-0512
613 BOLT; AIR CYL
6WG1 TC-C(72L),6WG1 TC-S(97L) M10X45 FLANGE 		0-28151-045-0 03 1 0601-
613 BOLT; AIR CYL
6WF1 TC-C(1B8) M10X45 FLANGE 		0-28181-045-0 04 1 0507-0512
613 BOLT; AIR CYL
M10X45 FLANGE 		0-28151-045-0 04 1 0601-
648 STUD; AIR CYL
6WG1 TC-C(72L),6WG1 TC-S(97L) M10X20,M10X45 L=75 		1-09049-015-0 03 1 0512-0805
648 STUD; AIR CYL
6WG1 TC-C(72L),6WG1 TC-S(97L) M10X20,M10X45 L=75 		8-98010-335-0 03 1 0806-
648 STUD; AIR CYL
6WF1 TC-C(1B8) M10X20,M10X45 L=75 		1-09049-015-0 02 1 0507-0805
648 STUD; AIR CYL
6WF1 TC-C(1B8) M10X20,M10X45 L=75 		8-98010-335-0 02 1 0806-

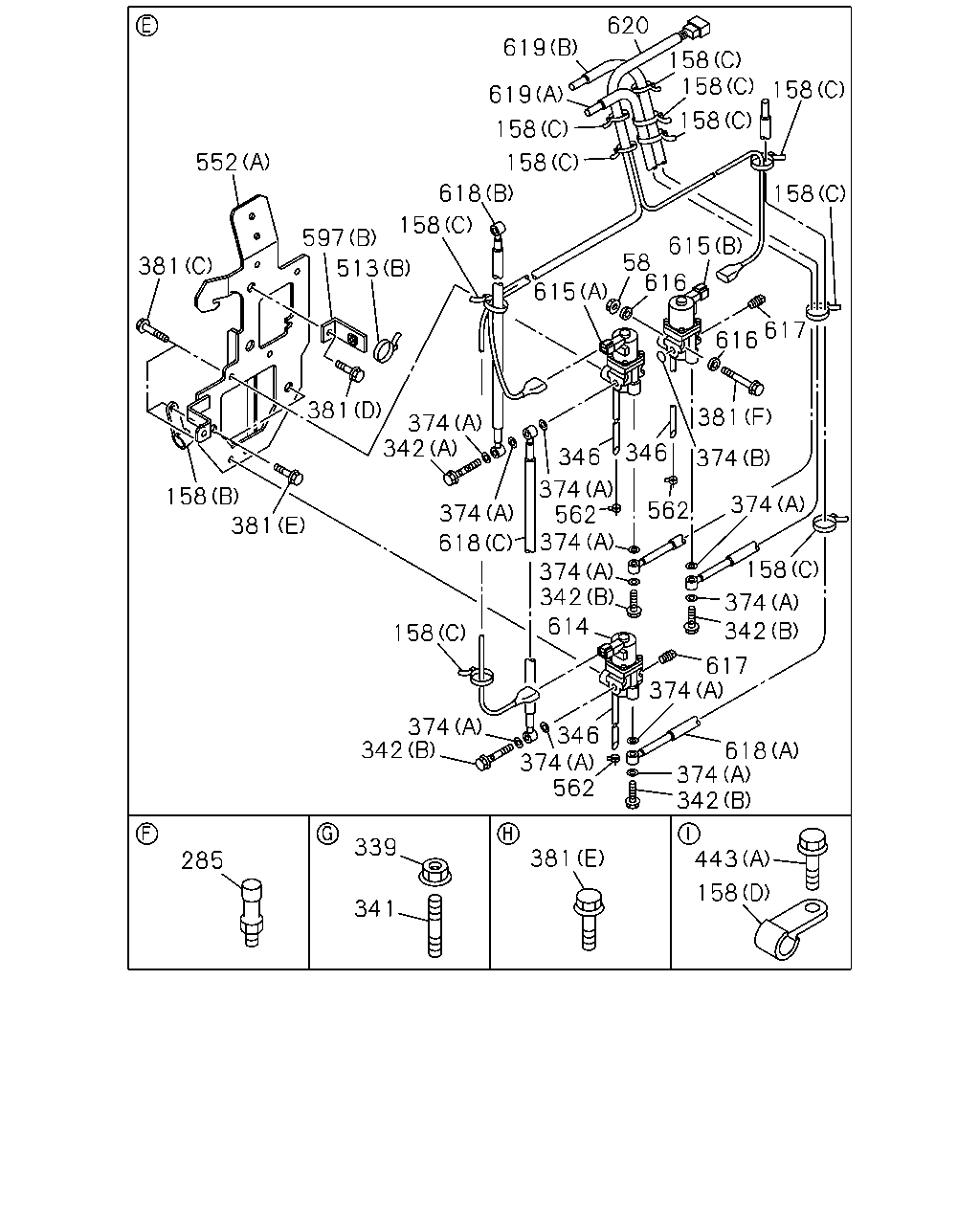

çizim 104212
620 619 158 158 158 619 158 158 552 158 618 158 158 597 615 58 616 381 513 615 617 616 381 381 374 342 346 346 374 374 562 374 158 374 562 374 381 618 158 374 342 374 342 614 158 617 374 374 342 346 374 562 618 374 342 443 339 381 285 158 341
BalonParca AdiParca NoAdetTipApplied Date
58 NUT
6WF1 TC-C(1B8) M6 FLANGE 		0-91150-106-0 02 1 0507-0511
58 NUT
M6 FLANGE 		0-91150-106-0 02 1 0512-0602
58 NUT
M6 FLANGE 		0-91180-106-0 02 1 0603-
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) ID=19 L=25 		1-09700-515-1 01 1 0512-
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) ID=28 L=30 		1-09700-607-1 01 1 0512-
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) L=36 		8-94224-891-1 02 1 0512-
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=19 L=60 		9-09525-896-0 02 1 0512-0606
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=19 L=60 		0-95235-896-0 02 1 0607-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=150 		1-82569-328-0 10 1 0507-0511
158 CLIP; HARNESS
(C) L=150 		1-82569-328-0 10 1 0512-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (A) L=36 		8-94224-891-1 01 1 0507-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (D) ID=19 L=20 		9-09525-836-0 01 1 0507-0606
158 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 01 1 0607-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (B) ID=19 L=60 		9-09525-896-0 01 1 0507-0606
158 CLIP; HARNESS
(B) ID=19 L=60 		0-95235-896-0 01 1 0607-
285 BREATHER; AIR,QUAD BOX
6WF1 TC-C(1B8) 		1-33149-008-0 01 1 0507-0511
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0512-
339 NUT; QUAD BOX
6WF1 TC-C(1B8) M10 FLANGE 		0-91150-210-0 05 1 0507-0511
339 NUT; QUAD BOX
M10 FLANGE 		0-91150-210-0 05 1 0512-0602
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 05 1 0603-
341 STUD; QUAD BOX
6WG1 TC-C(72L),6WG1 TC-S(97L) M10X81.5 L=96.5 		8-98019-465-0 01 1 0512-
341 STUD; QUAD BOX
6WG1 TC-C(72L),6WG1 TC-S(97L) M10X35 L=50 		9-04411-035-0 04 1 0512-0604
341 STUD; QUAD BOX
6WG1 TC-C(72L),6WG1 TC-S(97L) M10X35 L=50 		0-44011-035-0 04 1 0605-
341 STUD; QUAD BOX
6WF1 TC-C(1B8) M10X35 L=50 		9-04411-035-0 05 1 0507-0604
341 STUD; QUAD BOX
M10X35 L=50 		0-44011-035-0 05 1 0605-
342 BOLT
6WF1 TC-C(1B8) (A) M12X41 		1-09675-140-0 01 1 0507-0511
342 BOLT
(A) M12X41 		1-09675-140-0 01 1 0512-
342 BOLT
6WF1 TC-C(1B8) (B) M12X27 FLANGE 		1-09675-160-0 06 1 0507-0511
342 BOLT
(B) M12X27 FLANGE 		1-09675-160-0 06 1 0512-0805
342 BOLT
(B) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 06 1 0806-
346 HOSE; AIR
6WF1 TC-C(1B8) ID=6 OD=9 L=150 		1-33739-872-0 03 1 1004-
346 HOSE; AIR
6WG1 TC-C(72L),6WG1 TC-S(97L) ID=6 OD=9 L=150 		1-33739-872-0 04 1 1004-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8) (A) ID=12.2 		1-09630-084-0 15 1 0507-0511
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		1-09630-084-0 15 1 0512-1312
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		8-98251-344-0 15 1 1401-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8) (B) ID=16.8 		9-09565-117-0 02 1 0507-0511
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) ID=16.8 		9-09565-117-0 02 1 0512-
381 BOLT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28080-820-0 05 1 0512-0512
381 BOLT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28050-820-0 05 1 0601-
381 BOLT
6WF1 TC-C(1B8) (F) M6X50 FLANGE 		0-28080-650-0 02 1 0507-0511
381 BOLT
(F) M6X50 FLANGE 		0-28080-650-0 02 1 0512-0512
381 BOLT
(F) M6X50 FLANGE 		0-28050-650-0 02 1 0601-
381 BOLT
6WF1 TC-C(1B8) (G) M8X16 FLANGE 		0-28080-816-0 02 1 0507-0511
381 BOLT
(G) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512
381 BOLT
(G) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
381 BOLT
6WF1 TC-C(1B8) (C) M8X20 FLANGE 		0-28080-820-0 04 1 0507-0512
381 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 04 1 0601-
381 BOLT
6WF1 TC-C(1B8) (E) M10X25 FLANGE 		0-28781-025-0 11 1 0507-0511
381 BOLT
(E) M10X25 FLANGE 		0-28781-025-0 11 1 0512-0512
381 BOLT
(E) M10X25 FLANGE 		0-28751-025-0 11 1 0601-
381 BOLT
6WF1 TC-C(1B8) (D) M10X30 FLANGE 		0-28781-030-0 01 1 0507-0512
381 BOLT
(D) M10X30 FLANGE 		0-28751-030-0 01 1 0601-
381 BOLT
6WF1 TC-C(1B8) (A) M10X35 FLANGE 		0-28781-035-0 01 1 0507-0511
381 BOLT
(A) M10X35 FLANGE 		0-28781-035-0 01 1 0512-0512
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 0601-
381 BOLT
6WF1 TC-C(1B8) (B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 0507-0511
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 0512-
443 BOLT; CLIP
6WF1 TC-C(1B8) (A) M8X10 FLANGE 		0-28080-810-0 01 1 0507-0512
443 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 01 1 0601-
443 BOLT; CLIP
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512
443 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
513 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=250 		5-09707-030-1 08 1 0512-0512
513 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=250 		5-09707-030-1 10 1 0512-
513 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) L=140 		5-09707-031-1 02 1 0512-
513 CLIP; BAND
6WF1 TC-C(1B8) (A) L=250 		5-09707-030-1 02 1 0507-
513 CLIP; BAND
6WF1 TC-C(1B8) (B) L=140 		5-09707-031-1 10 1 0507-
552 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) 		1-47471-393-0 01 1 0512-
552 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-82569-397-1 01 1 0512-
552 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-82698-607-0 01 1 0512-
552 BRACKET
6WF1 TC-C(1B8) (A) 		1-82569-303-2 01 1 0507-
552 BRACKET
6WF1 TC-C(1B8) (B) 		1-82569-304-0 01 1 0507-
562 CLAMP; LOCKING
6WF1 TC-C(1B8) ID=7.8 		8-94246-958-0 05 1 0507-0511
562 CLAMP; LOCKING
ID=7.8 		8-94246-958-0 05 1 0512-
597 BRACKET; RANGE,NYLON TUBE
6WF1 TC-C(1B8) (B) L=55 		1-47476-177-0 01 1 0507-
597 BRACKET; RANGE,NYLON TUBE
6WF1 TC-C(1B8) (A) 		1-82699-425-0 01 1 0507-
614 VALVE ASM
6WF1 TC-C(1B8) 		1-82564-068-0 01 1 0507-
615 VALVE; MAGNETIC
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) M12 		1-82560-342-0 02 1 0512-
615 VALVE; MAGNETIC
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-82560-344-0 01 1 0512-
615 VALVE; MAGNETIC
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) M12 & PT3/8 		1-82560-451-0 02 1 0512-
615 VALVE; MAGNETIC
6WF1 TC-C(1B8) (A) M12 		1-82560-342-0 01 1 0507-
615 VALVE; MAGNETIC
6WF1 TC-C(1B8) (C) 		1-82560-343-0 01 1 0507-
615 VALVE; MAGNETIC
6WF1 TC-C(1B8) (B) 		1-82560-344-0 02 1 0507-
616 COLLAR
6WF1 TC-C(1B8) 		1-82569-266-0 04 1 0507-0511
616 COLLAR 1-82569-266-0 04 1 0512-
617 PLUG
6WF1 TC-C(1B8) PT3/8 		8-94475-259-0 02 1 0507-
618 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) L=1400 		1-09377-321-0 01 1 0512-
618 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) L=750 		1-09377-322-0 01 1 0512-
618 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) L=700 		1-09377-323-0 01 1 0512-
618 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) L=1500 		1-09377-324-0 01 1 0512-
618 TUBE; NYLON
6WF1 TC-C(1B8) (B) L=470 		1-09376-825-0 01 1 0507-
618 TUBE; NYLON
6WF1 TC-C(1B8) (C) L=140 		1-09376-826-0 01 1 0507-0511
618 TUBE; NYLON
(C) L=140 		1-09376-826-0 01 1 0512-
618 TUBE; NYLON
6WF1 TC-C(1B8) (A) L=550 		1-09376-830-1 01 1 0507-0511
618 TUBE; NYLON
(A) L=550 		1-09376-830-1 01 1 0512-
619 TUBE; NYLON
6WF1 TC-C(1B8) (A) L=440 		8-98081-863-0 01 1 1004-
619 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) L=690 		1-09377-332-0 01 1 0512-
619 TUBE; NYLON
6WF1 TC-C(1B8) (B) L=430 		1-09376-828-1 01 1 0507-0511
619 TUBE; NYLON
(B) L=430 		1-09376-828-1 01 1 0512-1003
619 TUBE; NYLON
(B) L=480 		8-98081-861-0 01 1 1004-
619 TUBE; NYLON
6WF1 TC-C(1B8) (A) L=420 		1-09376-829-1 01 1 0507-0511
619 TUBE; NYLON
(A) L=420 		1-09376-829-1 01 1 0512-1003
619 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=420 		1-09376-829-1 01 1 1004-
619 TUBE; NYLON
6WF1 TC-C(1B8) (C) L=470 		1-09376-831-1 01 1 0507-
619 TUBE; NYLON
6WF1 TC-C(1B8) (D) L=490 		1-09376-832-1 01 1 0507-
620 HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82677-897-1 01 1 0512-
620 HARNESS
6WF1 TC-C(1B8) 		1-82675-069-0 01 1 0507-

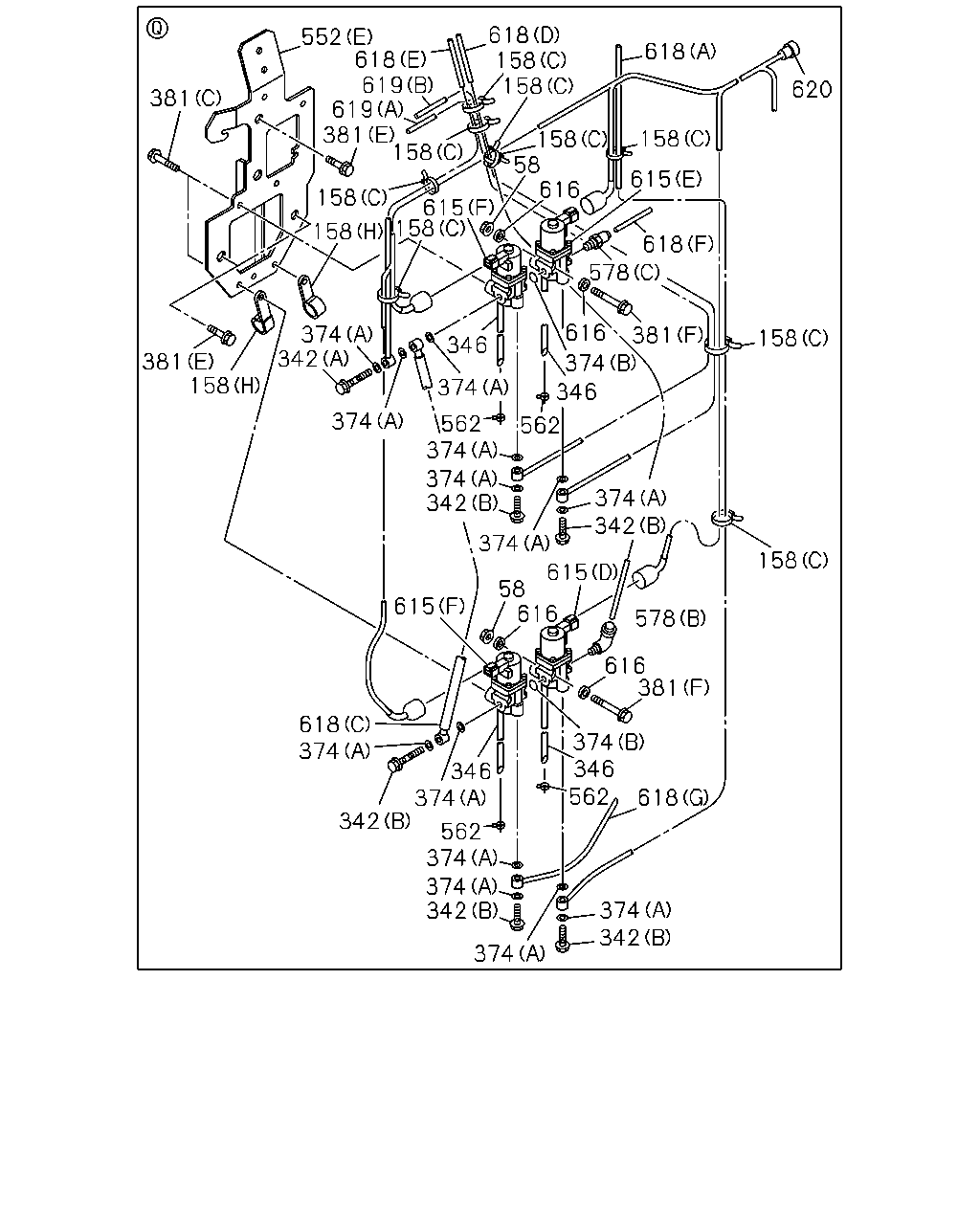

çizim 105081
618 158 158 552 618 619 619 381 158 618 620 381 158 158 58 616 615 158 615 158 158 618 578 616 374 342 381 374 158 346 381 158 374 562 374 346 374 562 374 342 374 342 374 158 615 58 616 615 578 616 381 374 346 562 618 374 346 374 342 618 562 374 374 342 374 342 374
BalonParca AdiParca NoAdetTipApplied Date
58 NUT
6WF1 TC-C(1B8) M6 FLANGE 		0-91150-106-0 02 1 0507-0511
58 NUT
M6 FLANGE 		0-91150-106-0 02 1 0512-0602
58 NUT
M6 FLANGE 		0-91180-106-0 02 1 0603-
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) ID=19 L=25 		1-09700-515-1 01 1 0512-
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) ID=28 L=30 		1-09700-607-1 01 1 0512-
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) L=36 		8-94224-891-1 02 1 0512-
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=19 L=60 		9-09525-896-0 02 1 0512-0606
158 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=19 L=60 		0-95235-896-0 02 1 0607-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=150 		1-82569-328-0 10 1 0507-0511
158 CLIP; HARNESS
(C) L=150 		1-82569-328-0 10 1 0512-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (A) L=36 		8-94224-891-1 01 1 0507-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (D) ID=19 L=20 		9-09525-836-0 01 1 0507-0606
158 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 01 1 0607-
158 CLIP; HARNESS
6WF1 TC-C(1B8) (B) ID=19 L=60 		9-09525-896-0 01 1 0507-0606
158 CLIP; HARNESS
(B) ID=19 L=60 		0-95235-896-0 01 1 0607-
342 BOLT
6WF1 TC-C(1B8) (A) M12X41 		1-09675-140-0 01 1 0507-0511
342 BOLT
(A) M12X41 		1-09675-140-0 01 1 0512-
342 BOLT
6WF1 TC-C(1B8) (B) M12X27 FLANGE 		1-09675-160-0 06 1 0507-0511
342 BOLT
(B) M12X27 FLANGE 		1-09675-160-0 06 1 0512-0805
342 BOLT
(B) M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 06 1 0806-
346 HOSE; AIR
6WF1 TC-C(1B8) ID=6 OD=9 L=150 		1-33739-872-0 03 1 1004-
346 HOSE; AIR
6WG1 TC-C(72L),6WG1 TC-S(97L) ID=6 OD=9 L=150 		1-33739-872-0 04 1 1004-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8) (A) ID=12.2 		1-09630-084-0 15 1 0507-0511
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		1-09630-084-0 15 1 0512-1312
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		8-98251-344-0 15 1 1401-
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8) (B) ID=16.8 		9-09565-117-0 02 1 0507-0511
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) ID=16.8 		9-09565-117-0 02 1 0512-
381 BOLT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28080-820-0 05 1 0512-0512
381 BOLT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28050-820-0 05 1 0601-
381 BOLT
6WF1 TC-C(1B8) (F) M6X50 FLANGE 		0-28080-650-0 02 1 0507-0511
381 BOLT
(F) M6X50 FLANGE 		0-28080-650-0 02 1 0512-0512
381 BOLT
(F) M6X50 FLANGE 		0-28050-650-0 02 1 0601-
381 BOLT
6WF1 TC-C(1B8) (G) M8X16 FLANGE 		0-28080-816-0 02 1 0507-0511
381 BOLT
(G) M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512
381 BOLT
(G) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
381 BOLT
6WF1 TC-C(1B8) (C) M8X20 FLANGE 		0-28080-820-0 04 1 0507-0512
381 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 04 1 0601-
381 BOLT
6WF1 TC-C(1B8) (E) M10X25 FLANGE 		0-28781-025-0 11 1 0507-0511
381 BOLT
(E) M10X25 FLANGE 		0-28781-025-0 11 1 0512-0512
381 BOLT
(E) M10X25 FLANGE 		0-28751-025-0 11 1 0601-
381 BOLT
6WF1 TC-C(1B8) (D) M10X30 FLANGE 		0-28781-030-0 01 1 0507-0512
381 BOLT
(D) M10X30 FLANGE 		0-28751-030-0 01 1 0601-
381 BOLT
6WF1 TC-C(1B8) (A) M10X35 FLANGE 		0-28781-035-0 01 1 0507-0511
381 BOLT
(A) M10X35 FLANGE 		0-28781-035-0 01 1 0512-0512
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 0601-
381 BOLT
6WF1 TC-C(1B8) (B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 0507-0511
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 0512-
552 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) 		1-47471-393-0 01 1 0512-
552 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-82569-397-1 01 1 0512-
552 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-82698-607-0 01 1 0512-
552 BRACKET
6WF1 TC-C(1B8) (A) 		1-82569-303-2 01 1 0507-
552 BRACKET
6WF1 TC-C(1B8) (B) 		1-82569-304-0 01 1 0507-
562 CLAMP; LOCKING
6WF1 TC-C(1B8) ID=7.8 		8-94246-958-0 05 1 0507-0511
562 CLAMP; LOCKING
ID=7.8 		8-94246-958-0 05 1 0512-
578 CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-09661-134-0 01 1 0512-
578 CONNECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 0512-
578 CONNECTOR
6WF1 TC-C(1B8) (A) DIN6 & R1/4 ELBOW 		1-09660-707-1 02 1 0507-0511
578 CONNECTOR
(A) DIN6 & R1/4 ELBOW 		1-09660-707-1 02 1 0512-
615 VALVE; MAGNETIC
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) M12 		1-82560-342-0 02 1 0512-
615 VALVE; MAGNETIC
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-82560-344-0 01 1 0512-
615 VALVE; MAGNETIC
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) M12 & PT3/8 		1-82560-451-0 02 1 0512-
615 VALVE; MAGNETIC
6WF1 TC-C(1B8) (A) M12 		1-82560-342-0 01 1 0507-
615 VALVE; MAGNETIC
6WF1 TC-C(1B8) (C) 		1-82560-343-0 01 1 0507-
615 VALVE; MAGNETIC
6WF1 TC-C(1B8) (B) 		1-82560-344-0 02 1 0507-
616 COLLAR
6WF1 TC-C(1B8) 		1-82569-266-0 04 1 0507-0511
616 COLLAR 1-82569-266-0 04 1 0512-
618 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) L=1400 		1-09377-321-0 01 1 0512-
618 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) L=750 		1-09377-322-0 01 1 0512-
618 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) L=700 		1-09377-323-0 01 1 0512-
618 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) L=1500 		1-09377-324-0 01 1 0512-
618 TUBE; NYLON
6WF1 TC-C(1B8) (B) L=470 		1-09376-825-0 01 1 0507-
618 TUBE; NYLON
6WF1 TC-C(1B8) (C) L=140 		1-09376-826-0 01 1 0507-0511
618 TUBE; NYLON
(C) L=140 		1-09376-826-0 01 1 0512-
618 TUBE; NYLON
6WF1 TC-C(1B8) (A) L=550 		1-09376-830-1 01 1 0507-0511
618 TUBE; NYLON
(A) L=550 		1-09376-830-1 01 1 0512-
619 TUBE; NYLON
6WF1 TC-C(1B8) (A) L=440 		8-98081-863-0 01 1 1004-
619 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) L=690 		1-09377-332-0 01 1 0512-
619 TUBE; NYLON
6WF1 TC-C(1B8) (B) L=430 		1-09376-828-1 01 1 0507-0511
619 TUBE; NYLON
(B) L=430 		1-09376-828-1 01 1 0512-1003
619 TUBE; NYLON
(B) L=480 		8-98081-861-0 01 1 1004-
619 TUBE; NYLON
6WF1 TC-C(1B8) (A) L=420 		1-09376-829-1 01 1 0507-0511
619 TUBE; NYLON
(A) L=420 		1-09376-829-1 01 1 0512-1003
619 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=420 		1-09376-829-1 01 1 1004-
619 TUBE; NYLON
6WF1 TC-C(1B8) (C) L=470 		1-09376-831-1 01 1 0507-
619 TUBE; NYLON
6WF1 TC-C(1B8) (D) L=490 		1-09376-832-1 01 1 0507-
620 HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-82677-897-1 01 1 0512-
620 HARNESS
6WF1 TC-C(1B8) 		1-82675-069-0 01 1 0507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
