2-25 — SPEEDOMETER DRIVEN GEAR (#32054) — 24 parça

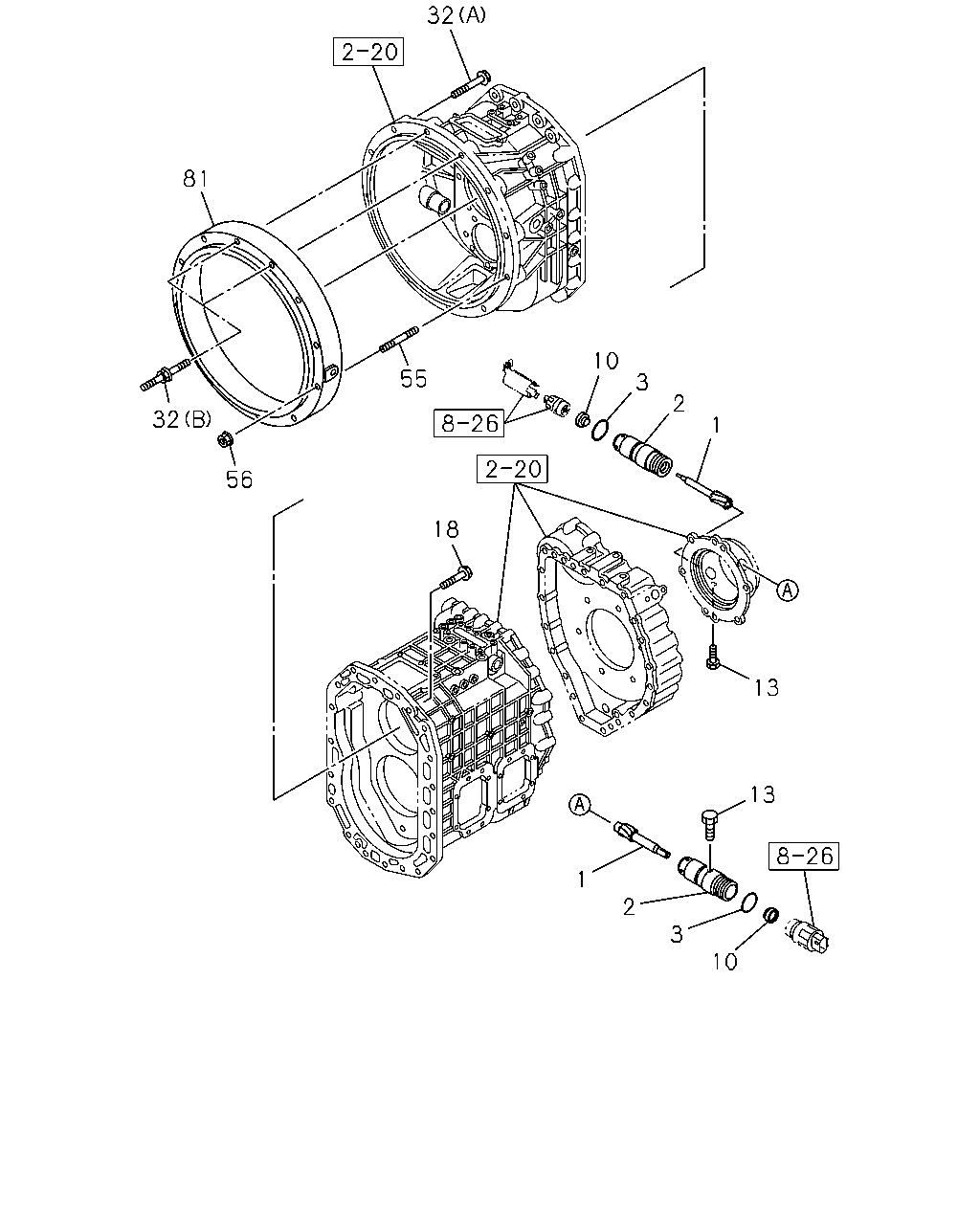

çizim 88521
32 81 10 55 3 2 32 1 56 18 13 13 1 2 3 10
BalonParca AdiParca NoAdetTipApplied Date
1 GEAR; DRIVEN,SPD
6WG1 TC-C(72L),6WG1 TC-S(97L) Z=17 		1-33372-120-4 01 1 0512-
1 GEAR; DRIVEN,SPD
6WF1 TC-C(1B8) Z=17 		1-33372-120-4 02 1 0507-
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-33373-084-0 01 1 0512-
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
6WF1 TC-C(1B8) 		1-33373-084-0 02 1 0507-
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-09623-069-0 01 1 0512-
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8) 		1-09623-069-0 02 1 0507-
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). 6WG1 TC-C(72L),6WG1 TC-S(97L) NOK 		1-09625-510-0 01 1 0512-
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8) NOK 		1-09625-510-0 02 1 0507-
13 SCREW; BUSHING,DRIVEN GEAR
6WG1 TC-C(72L),6WG1 TC-S(97L) M6X12.5 FLANGE 		1-09044-063-0 01 1 0512-0805
13 SCREW; BUSHING,DRIVEN GEAR
6WG1 TC-C(72L),6WG1 TC-S(97L) M6X12.5 FLANGE 		8-98014-141-0 01 1 0806-
13 SCREW; BUSHING,DRIVEN GEAR
6WF1 TC-C(1B8) M6X12.5 FLANGE 		1-09044-063-0 02 1 0507-0805
13 SCREW; BUSHING,DRIVEN GEAR
6WF1 TC-C(1B8) M6X12.5 FLANGE 		8-98014-141-0 02 1 0806-
18 BOLT; CLU HSG TO TRANS
6WF1 TC-C(1B8) M12X50 FLANGE 		0-28181-250-0 19 1 0507-0511
18 BOLT; CLU HSG TO TRANS
M12X50 FLANGE 		0-28181-250-0 19 1 0512-0512
18 BOLT; CLU HSG TO TRANS
M12X50 FLANGE 		0-28151-250-0 19 1 0601-
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X100 FLANGE 		0-28181-200-0 06 1 0507-0512
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X100 FLANGE 		0-28151-200-0 06 1 0601-1207
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X110 FLANGE 		0-28156-211-0 06 1 1208-
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X16,M12X100 L=129.5 		1-09049-039-1 02 1 0507-1207
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X18,M12X110 L=139.5 		1-09049-033-1 02 1 1208-
55 STUD; FLYWHEEL HSG
M12X105 L=123 		1-09302-166-0 04 1 0507-
56 NUT; CLU HSG TO FLYWHEEL HSG
M12 FLANGE 		0-91150-212-0 04 1 0507-0602
56 NUT; CLU HSG TO FLYWHEEL HSG
M12 FLANGE 		0-91180-212-0 04 1 0603-
81 SPACER 1-31119-017-0 01 1 0507-
