2-20 — MANUAL TRANSMISSION ASM AND CASE (#32053) — 298 parça

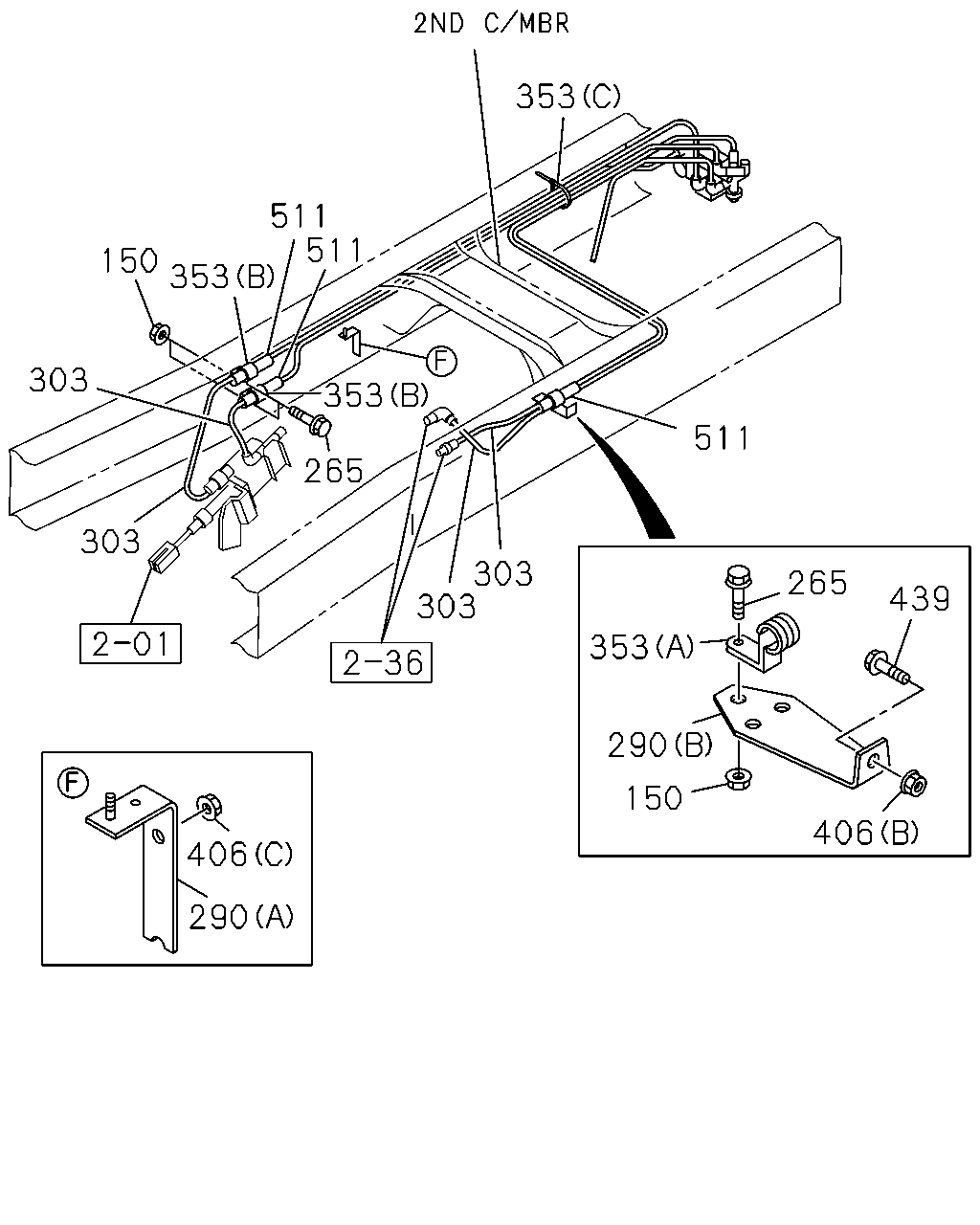

çizim 88646
353 511 511 150 353 353 303 511 265 303 303 303 265 439 353 290 150 406 406 290
BalonParca AdiParca NoAdetTipApplied Date
150 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91150-108-0 02 1 0512-0602
150 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 02 1 0603-0606
150 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 01 1 0607-
150 NUT
M8 FLANGE 		0-91150-108-0 03 1 0507-0511
150 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 03 1 0512-0602
150 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
265 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
265 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
265 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512
265 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
265 BOLT; CLIP
6WF1 TC-C(1B8) M8X16 FLANGE 		0-28080-816-0 01 1 0507-0511
265 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0512-0512
265 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-0606
265 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X16 FLANGE 		0-28050-816-0 01 1 0607-
265 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0607-
265 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 03 1 0507-0511
265 BOLT; CLIP
6WF1 TC-C(1B8) M8X30 FLANGE 		0-28680-830-0 03 1 0512-0512
265 BOLT; CLIP
6WF1 TC-C(1B8) M8X30 FLANGE 		0-28650-830-0 03 1 0601-
290 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 		8-97609-042-0 01 1 0512-
290 BRACKET; CLIP
(B) 		1-47479-779-0 01 1 0507-0705
290 BRACKET; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-47479-779-0 01 1 0706-
303 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) SERVICED BY L=4000 OD=8 		1-87411-007-0 02 1 0512-
303 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0512-
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 0507-
303 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 04 1 0507-0511
303 TUBE; NYLON
6WF1 TC-C(1B8) SERVICED BY L=4000 OD=8 		1-87411-007-0 04 1 0512-
353 CLIP; NYLON TUBE
(B) ID=16 L=50 H=25 		1-09700-838-0 02 1 0507-
353 CLIP; NYLON TUBE
(A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0507-0511
353 CLIP; NYLON TUBE
6WF1 TC-C(1B8) (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0512-
353 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 02 1 0507-
406 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M10 FLANGE 		0-91150-210-0 01 1 0512-0602
406 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M10 FLANGE 		0-91180-210-0 01 1 0603-
406 NUT; BRKT
6WF1 TC-C(1B8) (A) M10 FLANGE 		0-91150-110-0 02 1 0507-0511
406 NUT; BRKT
(A) M10 FLANGE 		0-91150-110-0 02 1 0512-0602
406 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 0603-
406 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602
406 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-0705
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-0705
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0706-
406 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8 FLANGE 		0-91180-108-0 01 1 0706-
439 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512
439 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-0705
439 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X25 FLANGE 		0-28650-825-0 01 1 0706-
511 TUBE; CORRUGATE
6WG1 TC-C(72L),6WG1 TC-S(97L) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0512-
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0507-0511
511 TUBE; CORRUGATE
6WF1 TC-C(1B8) SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0512-
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 02 1 0507-

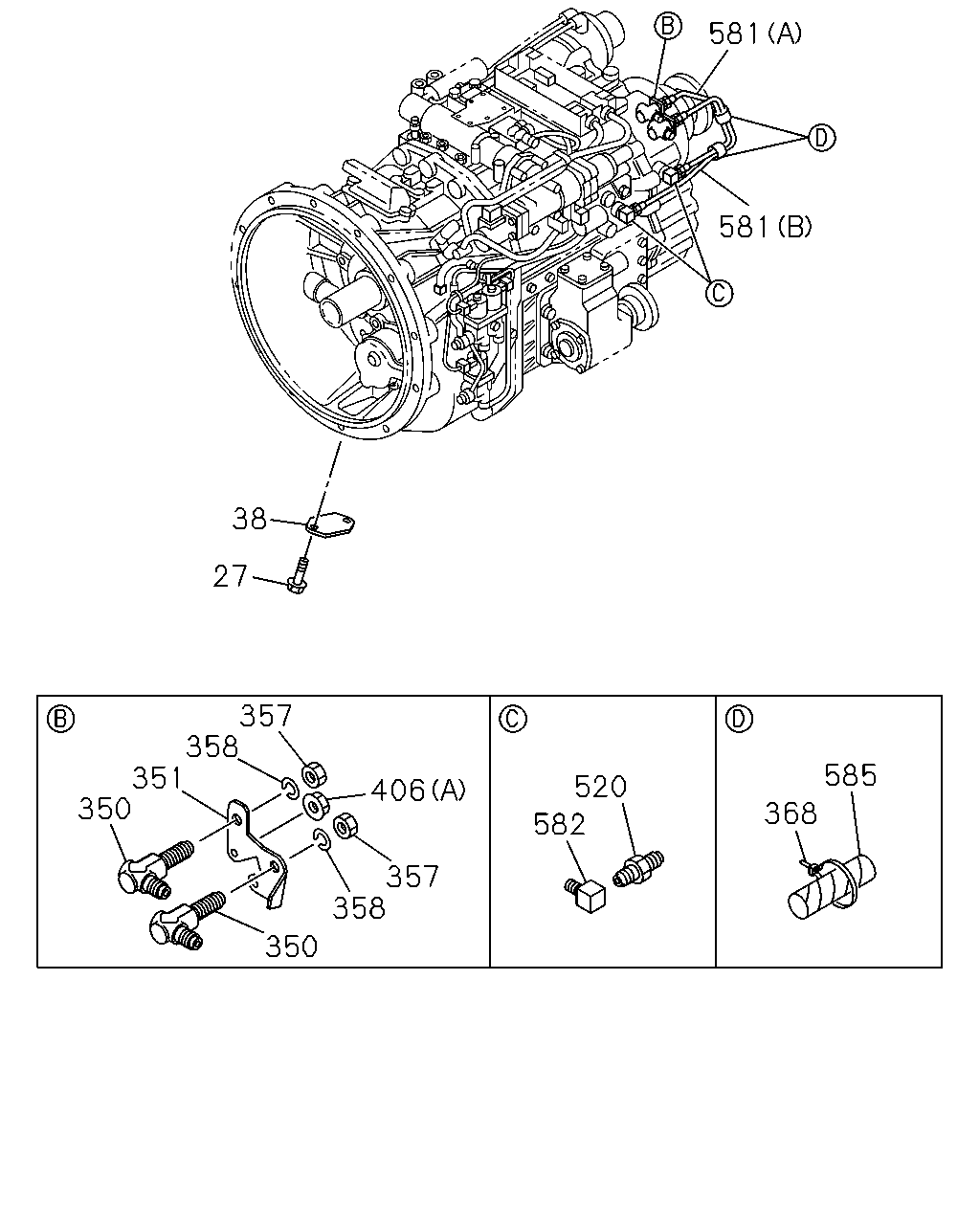

çizim 88677
581 581 38 27 357 358 351 350 585 520 406 368 582 357 358 350
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; COVER TO CLU HSG
6WF1 TC-C(1B8) M8X12 FLANGE 		0-28080-812-0 04 1 0507-0511
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28080-812-0 04 1 0512-0512
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28050-812-0 04 1 0601-
38 COVER; CHECK HOLE,LWR
6WF1 TC-C(1B8) 		1-31131-003-0 01 1 0507-0511
38 COVER; CHECK HOLE,LWR 1-31131-003-0 01 1 0512-
350 UNION; FLEX HOSE,BRKT
6WF1 TC-C(1B8) 		1-09664-257-0 02 1 0507-0511
350 UNION; FLEX HOSE,BRKT 1-09664-257-0 02 1 0512-
351 BRACKET; UNION,FLEX HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-46147-308-1 01 1 0512-
351 BRACKET; UNION,FLEX HOSE
6WF1 TC-C(1B8) 		1-46147-302-0 01 1 0507-
357 NUT; UNION,FLEX HOSE
6WF1 TC-C(1B8) M22 		9-09111-422-0 02 1 0507-0511
357 NUT; UNION,FLEX HOSE
M22 		9-09111-422-0 02 1 0512-0512
357 NUT; UNION,FLEX HOSE
M22 		0-91111-522-0 02 1 0601-
358 WASHER; LK,UNION
6WF1 TC-C(1B8) ID=22.5 		9-09150-522-0 02 1 0507-0511
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0512-0603
358 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0604-
368 CLIP; BAND,CABLE
6WF1 TC-C(1B8) L=250 		1-09707-126-0 02 1 0507-0511
368 CLIP; BAND,CABLE
L=250 		1-09707-126-0 02 1 0512-
406 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M10 FLANGE 		0-91150-210-0 01 1 0512-0602
406 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M10 FLANGE 		0-91180-210-0 01 1 0603-
406 NUT; BRKT
6WF1 TC-C(1B8) (A) M10 FLANGE 		0-91150-110-0 02 1 0507-0511
406 NUT; BRKT
(A) M10 FLANGE 		0-91150-110-0 02 1 0512-0602
406 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 0603-
406 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602
406 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-0705
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-0705
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0706-
406 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8 FLANGE 		0-91180-108-0 01 1 0706-
520 CONNECTOR
6WF1 TC-C(1B8) M20 		9-99220-610-0 02 1 0507-0511
520 CONNECTOR
M20 		9-99220-610-0 02 1 0512-0607
520 CONNECTOR
R1/4 & M20 		0-92306-010-0 02 1 0608-
581 HOSE; OIL COOLER
6WF1 TC-C(1B8) (A) L=520 		1-09365-144-0 01 1 0507-0511
581 HOSE; OIL COOLER
(A) L=520 		1-09365-144-0 01 1 0512-
581 HOSE; OIL COOLER
6WF1 TC-C(1B8) (B) L=650 		1-09365-145-0 01 1 0507-0511
581 HOSE; OIL COOLER
(B) L=650 		1-09365-145-0 01 1 0512-
582 NIPPLE; ELBOW
6WF1 TC-C(1B8) R1/4 & RC1/4 ELBOW 		1-09660-501-0 02 1 0507-0511
582 NIPPLE; ELBOW
R1/4 & RC1/4 ELBOW 		1-09660-501-0 02 1 0512-
585 BAND; FLEX HOSE
6WF1 TC-C(1B8) L=175 		1-09707-178-0 02 1 0507-0511
585 BAND; FLEX HOSE
L=175 		1-09707-178-0 02 1 0512-

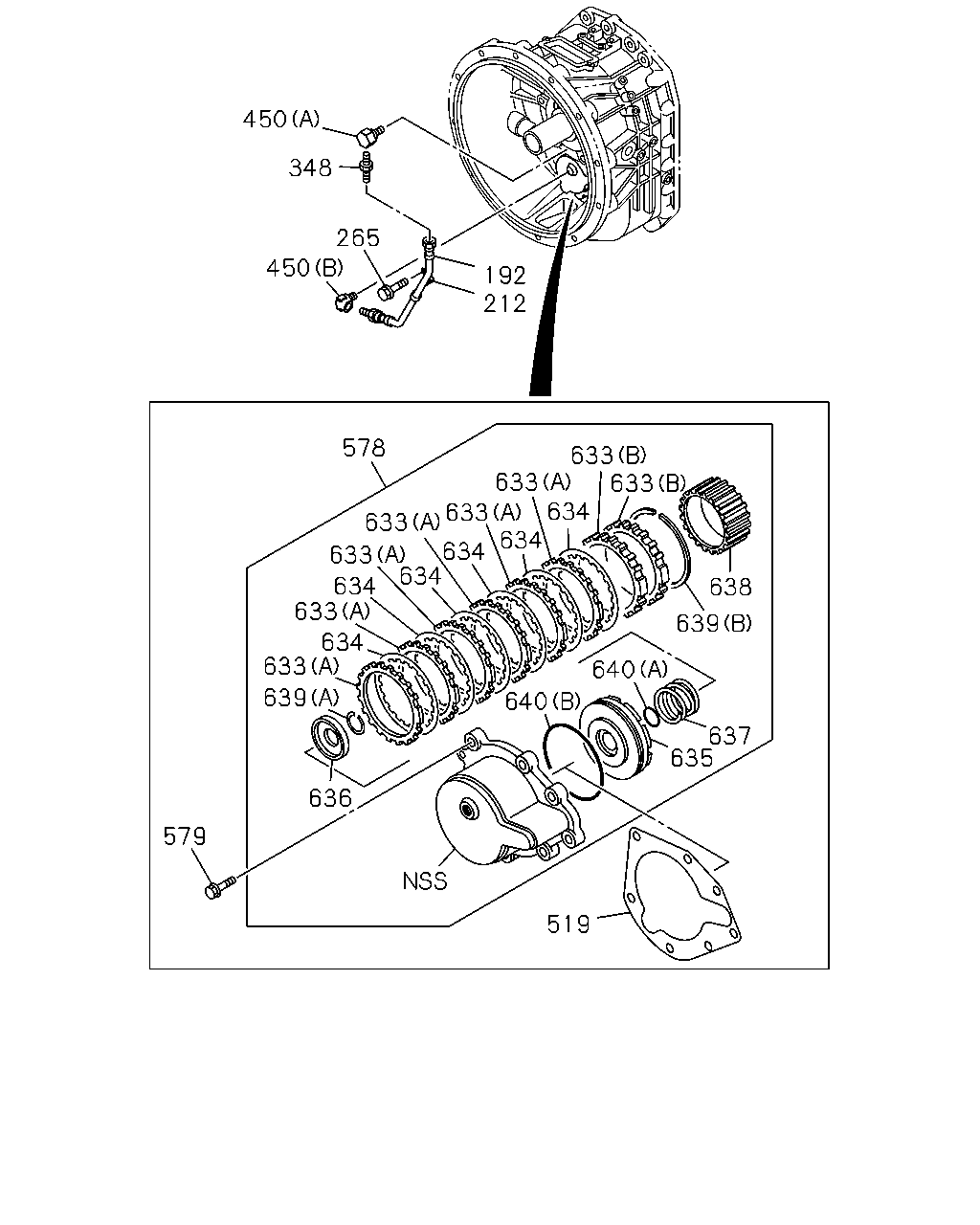

çizim 90326
450 348 265 450 192 212 578 633 633 633 634 634 634 633 633 634 633 638 639 634 633 640 639 640 637 635 636 579 519 633 634
BalonParca AdiParca NoAdetTipApplied Date
192 HOSE; FLEX,TRANS
6WF1 TC-C(1B8) L=252 		1-09365-062-0 01 1 0507-0511
192 HOSE; FLEX,TRANS
L=252 		1-09365-062-0 01 1 0512-
212 CLIP; FLEX HOSE
6WF1 TC-C(1B8) ID=9 H=20 L=25 		1-09701-073-0 01 1 0507-0511
212 CLIP; FLEX HOSE
ID=9 H=20 L=25 		1-09701-073-0 01 1 0512-
265 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512
265 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
265 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512
265 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
265 BOLT; CLIP
6WF1 TC-C(1B8) M8X16 FLANGE 		0-28080-816-0 01 1 0507-0511
265 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0512-0512
265 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-0606
265 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X16 FLANGE 		0-28050-816-0 01 1 0607-
265 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0607-
265 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 03 1 0507-0511
265 BOLT; CLIP
6WF1 TC-C(1B8) M8X30 FLANGE 		0-28680-830-0 03 1 0512-0512
265 BOLT; CLIP
6WF1 TC-C(1B8) M8X30 FLANGE 		0-28650-830-0 03 1 0601-
348 NIPPLE; GREASE,SHAFT
6WF1 TC-C(1B8) 		9-09902-299-0 01 1 0507-0511
348 NIPPLE; GREASE,SHAFT 9-09902-299-0 01 1 0512-
450 ADAPTER; OIL
6WF1 TC-C(1B8) (A) 		1-09660-012-0 01 1 0507-0511
450 ADAPTER; OIL
(A) 		1-09660-012-0 01 1 0512-
450 ADAPTER; OIL
6WF1 TC-C(1B8) (B) PT1/8 ELBOW 		8-94338-418-1 01 1 0507-0511
450 ADAPTER; OIL
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0512-
519 GASKET; SHAFT
6WF1 TC-C(1B8) 		1-34142-034-0 01 1 0507-0511
519 GASKET; SHAFT 1-34142-034-0 01 1 0512-
578 BRAKE; COUNTER SHAFT
6WF1 TC-C(1B8) 		1-33316-005-1 01 1 0507-0511
578 BRAKE; COUNTER SHAFT 1-33316-005-1 01 1 0512-
579 BOLT; COUNTER SHAFT
6WF1 TC-C(1B8) M10X30 FLANGE 		0-28181-030-0 07 1 0507-0511
579 BOLT; COUNTER SHAFT
M10X30 FLANGE 		0-28181-030-0 07 1 0512-0512
579 BOLT; COUNTER SHAFT
M10X30 FLANGE 		0-28151-030-0 07 1 0601-
633 PLATE; SEPARATE,BRAKE
6WF1 TC-C(1B8) (A) 		1-33319-208-0 06 1 0507-0511
633 PLATE; SEPARATE,BRAKE
(A) 		1-33319-208-0 06 1 0512-
633 PLATE; SEPARATE,BRAKE
6WF1 TC-C(1B8) (B) T=3.6 		1-33319-209-0 02 1 0507-0511
633 PLATE; SEPARATE,BRAKE
(B) T=3.6 		1-33319-209-0 02 1 0512-
633 PLATE; SEPARATE,BRAKE
6WF1 TC-C(1B8) (B) T=3.8 		1-33319-210-0 02 1 0507-0511
633 PLATE; SEPARATE,BRAKE
(B) T=3.8 		1-33319-210-0 02 1 0512-
633 PLATE; SEPARATE,BRAKE
6WF1 TC-C(1B8) (B) T=4.0 		1-33319-211-0 02 1 0507-0511
633 PLATE; SEPARATE,BRAKE
(B) T=4.0 		1-33319-211-0 02 1 0512-
633 PLATE; SEPARATE,BRAKE
6WF1 TC-C(1B8) (B) T=4.2 		1-33319-212-0 02 1 0507-0511
633 PLATE; SEPARATE,BRAKE
(B) T=4.2 		1-33319-212-0 02 1 0512-
634 PLATE; FRICTION,BRAKE
6WF1 TC-C(1B8) 		1-33319-207-0 06 1 0507-0511
634 PLATE; FRICTION,BRAKE 1-33319-207-0 06 1 0512-
635 PISTON; BRAKE
6WF1 TC-C(1B8) T=4.90 		1-33319-230-0 01 1 0507-0511
635 PISTON; BRAKE
T=4.90 		1-33319-230-0 01 1 0512-
636 PLATE; PRESSURE,BRAKE
6WF1 TC-C(1B8) 		1-33319-213-1 01 1 0507-0511
636 PLATE; PRESSURE,BRAKE 1-33319-213-1 01 1 0512-
637 SPRING; BRAKE
6WF1 TC-C(1B8) 		1-33319-215-0 01 1 0507-0511
637 SPRING; BRAKE 1-33319-215-0 01 1 0512-
638 HUB; BRAKE
6WF1 TC-C(1B8) 		1-33319-220-0 01 1 0507-0511
638 HUB; BRAKE 1-33319-220-0 01 1 0512-
639 RING; BRAKE
6WF1 TC-C(1B8) (A) 		1-33319-216-0 01 1 0507-0511
639 RING; BRAKE
(A) 		1-33319-216-0 01 1 0512-
639 RING; BRAKE
6WF1 TC-C(1B8) (B) 		1-33319-217-0 01 1 0507-0511
639 RING; BRAKE
(B) 		1-33319-217-0 01 1 0512-
640 GASKET; BRAKE
6WF1 TC-C(1B8) (A) 		1-33319-218-0 01 1 0507-0511
640 GASKET; BRAKE
(A) 		1-33319-218-0 01 1 0512-
640 GASKET; BRAKE
6WF1 TC-C(1B8) (B) 		1-33319-219-0 01 1 0507-0511
640 GASKET; BRAKE
(B) 		1-33319-219-0 01 1 0512-

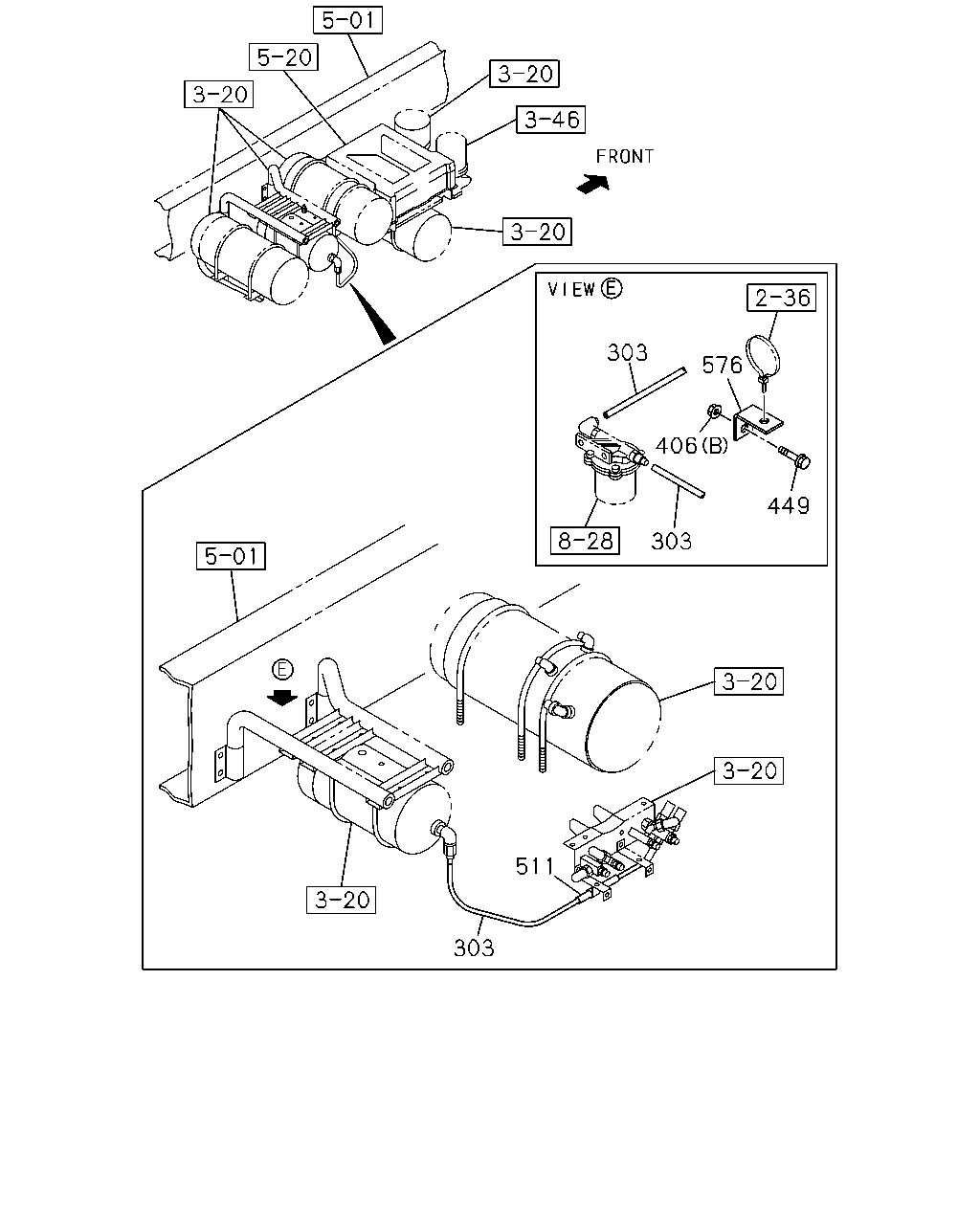

çizim 104011
303 576 406 449 303 511 303
BalonParca AdiParca NoAdetTipApplied Date
303 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) SERVICED BY L=4000 OD=8 		1-87411-007-0 02 1 0512-
303 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0512-
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 0507-
303 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 04 1 0507-0511
303 TUBE; NYLON
6WF1 TC-C(1B8) SERVICED BY L=4000 OD=8 		1-87411-007-0 04 1 0512-
406 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M10 FLANGE 		0-91150-210-0 01 1 0512-0602
406 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M10 FLANGE 		0-91180-210-0 01 1 0603-
406 NUT; BRKT
6WF1 TC-C(1B8) (A) M10 FLANGE 		0-91150-110-0 02 1 0507-0511
406 NUT; BRKT
(A) M10 FLANGE 		0-91150-110-0 02 1 0512-0602
406 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 0603-
406 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602
406 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-0705
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-0705
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0706-
406 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8 FLANGE 		0-91180-108-0 01 1 0706-
449 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0507-0512
449 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
511 TUBE; CORRUGATE
6WG1 TC-C(72L),6WG1 TC-S(97L) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0512-
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0507-0511
511 TUBE; CORRUGATE
6WF1 TC-C(1B8) SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0512-
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 02 1 0507-
576 BRACKET; NYLON TUBE 1-47477-694-0 01 1 0507-

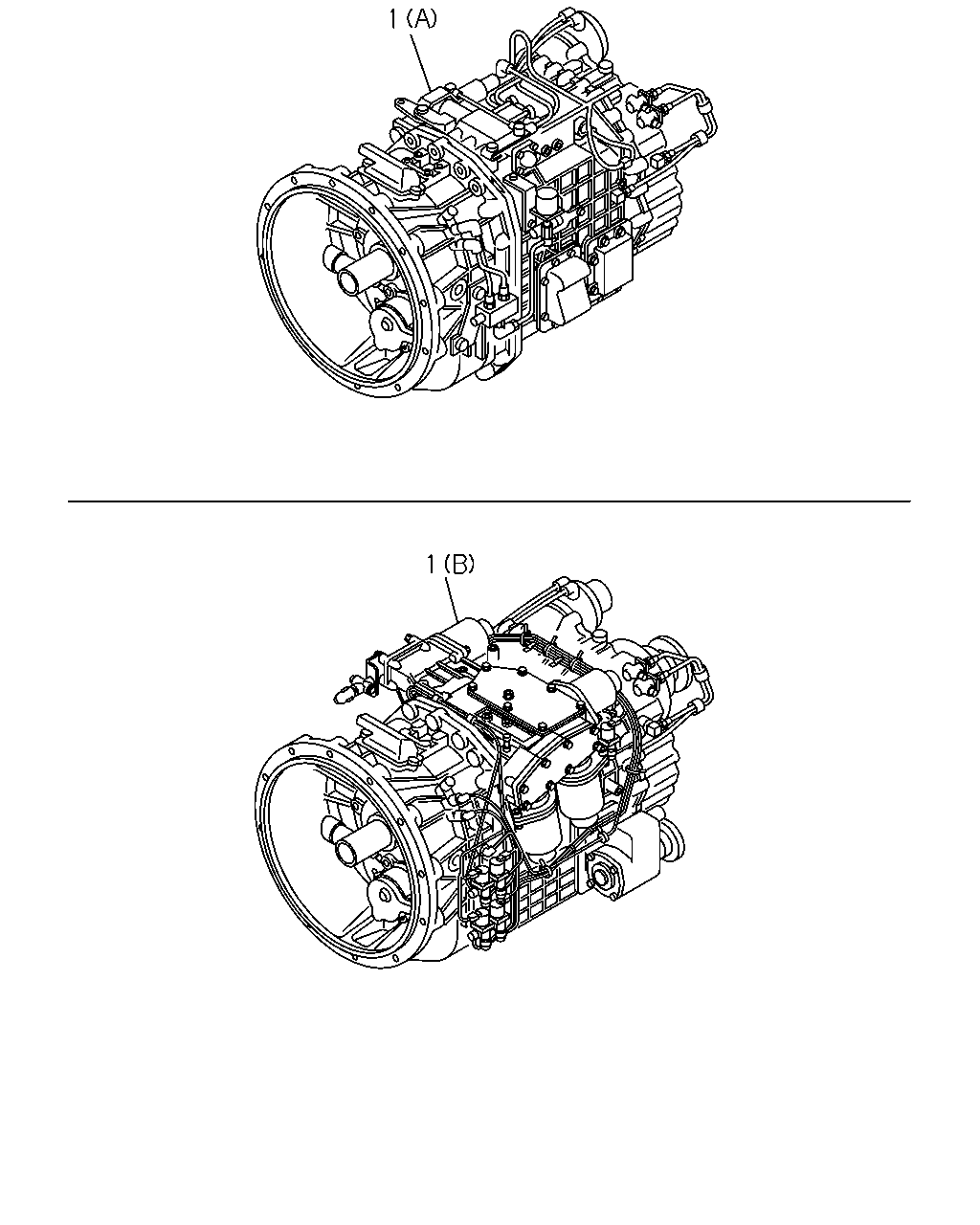

çizim 104112
1 1
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) 		1-33043-816-0 01 1 0512-0604
1 TRANSMISSION ASM; MANUAL
6WG1 TC-C(72L),6WG1 TC-S(97L) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) 		1-33044-066-0 01 1 0605-
1 TRANSMISSION ASM; MANUAL
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) 		1-33043-816-0 01 1 0512-0604
1 TRANSMISSION ASM; MANUAL
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) 		1-33044-066-0 01 1 0605-
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-33043-713-0 01 1 0507-0511
1 TRANSMISSION ASM; MANUAL
6WF1 TC-C(1B8) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-33043-713-0 01 1 0512-
1 TRANSMISSION ASM; MANUAL
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-33043-713-0 01 1 0507-0511
1 TRANSMISSION ASM; MANUAL
6WF1 TC-C(1B8) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-33043-713-0 01 1 0512-

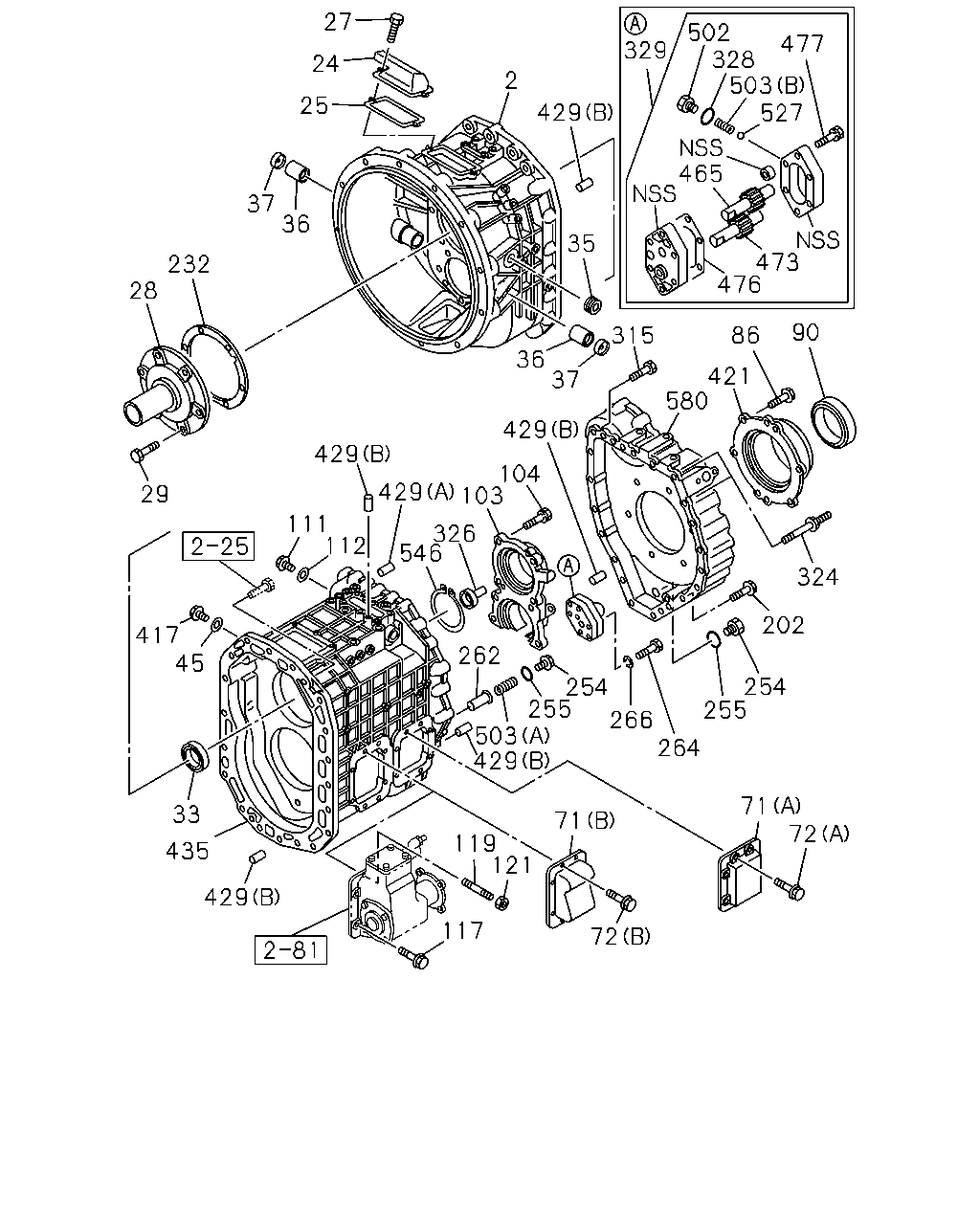

çizim 104116
27 329 502 328 503 527 477 24 2 25 429 465 37 36 473 476 35 232 28 90 86 315 36 37 421 580 429 429 104 103 429 29 111 112 326 546 324 202 417 45 262 254 255 254 255 503 429 266 264 71 72 33 71 119 121 435 429 117 72
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING; CLU
6WF1 TC-C(1B8) 		1-31111-204-5 01 1 0507-0511
2 HOUSING; CLU 1-31111-204-5 01 1 0512-0608
2 HOUSING; CLU 8-98052-280-0 01 1 0609-1003
2 HOUSING; CLU 8-98168-737-0 01 1 1004-
24 COVER; CHECK HOLE,DUST
6WF1 TC-C(1B8) 		1-31131-037-0 01 1 0507-0511
24 COVER; CHECK HOLE,DUST 1-31131-037-0 01 1 0512-
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8) 		1-31139-008-0 01 1 0507-0511
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-31139-008-0 01 1 0512-1406
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		8-98283-291-0 01 1 1407-
27 BOLT; COVER TO CLU HSG
6WF1 TC-C(1B8) M8X12 FLANGE 		0-28080-812-0 04 1 0507-0511
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28080-812-0 04 1 0512-0512
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28050-812-0 04 1 0601-
28 COVER; FRT,TRANS CASE
6WF1 TC-C(1B8) 		1-33121-153-0 01 1 0507-0511
28 COVER; FRT,TRANS CASE 1-33121-153-0 01 1 0512-
29 BOLT; FRT COVER
6WF1 TC-C(1B8) M10X40 		0-28191-040-0 06 1 0507-0511
29 BOLT; FRT COVER
M10X40 		0-28191-040-0 06 1 0512-0512
29 BOLT; FRT COVER
M10X40 FLANGE 		0-28161-040-0 06 1 0601-1211
29 BOLT; FRT COVER
M10X40 FLANGE 		8-98230-249-0 06 1 1212-
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8) 		1-09625-624-0 01 1 0507-0511
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-624-0 01 1 0512-
35 GROMMET; CLU HSG
6WF1 TC-C(1B8) 		9-09575-796-0 01 1 0507-0511
35 GROMMET; CLU HSG 9-09575-796-0 01 1 0512-
36 BEARING; NEEDLE,CLU HSG
6WF1 TC-C(1B8) 		1-09811-087-0 02 1 0507-0511
36 BEARING; NEEDLE,CLU HSG 1-09811-087-0 02 1 0512-
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8) 		1-09625-003-0 02 1 0507-0511
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-003-0 02 1 0512-
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8) ID=26.8 		1-09623-058-0 01 1 0507-0511
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 0512-
71 COVER; SIDE,TRANS CASE
6WF1 TC-C(1B8) (A) 		1-33141-066-0 01 1 0507-0511
71 COVER; SIDE,TRANS CASE
(A) 		1-33141-066-0 01 1 0512-
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) 		1-33141-057-1 01 1 0507-
72 BOLT; SIDE COVER
6WF1 TC-C(1B8) (A) M10X35 FLANGE 		0-28781-035-0 08 1 0507-0511
72 BOLT; SIDE COVER
(A) M10X35 FLANGE 		0-28781-035-0 08 1 0512-0512
72 BOLT; SIDE COVER
(A) M10X35 FLANGE 		0-28751-035-0 08 1 0601-
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M12X30 FLANGE 		1-09044-086-0 08 1 0507-
86 BOLT; RR COVER
6WF1 TC-C(1B8) M17X35 		1-09044-076-0 06 1 0507-0511
86 BOLT; RR COVER
M17X35 		1-09044-076-0 06 1 0512-
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8) 		1-09625-625-0 01 1 0507-0511
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-625-0 01 1 0512-
103 RETAINER; BRG
6WF1 TC-C(1B8) 		1-33151-062-0 01 1 0507-0511
103 RETAINER; BRG 1-33151-062-0 01 1 0512-0910
103 RETAINER; BRG 1-33151-060-1 01 1 0911-
104 BOLT; BRG RET
6WF1 TC-C(1B8) M10X38 FLANGE 		1-09049-029-1 08 1 0507-0511
104 BOLT; BRG RET
M10X38 FLANGE 		1-09049-029-1 08 1 0512-
111 PLUG; DRAIN FILLER
6WF1 TC-C(1B8) M24X17 FLANGE 		1-09604-022-0 01 1 0507-0511
111 PLUG; DRAIN FILLER
M24X17 FLANGE 		1-09604-022-0 01 1 0512-
112 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8) ID=26.8 		1-09623-058-0 01 1 0507-0511
112 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 0512-
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE 		0-28781-235-0 04 1 0507-0512
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE 		0-28751-235-0 04 1 0601-
119 STUD; PTO FIX
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48 		9-94411-230-0 04 1 0507-0604
119 STUD; PTO FIX
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48 		0-44011-230-0 04 1 0605-0609
119 STUD; PTO FIX
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48 		8-98059-951-0 04 1 0610-
121 NUT; PTO FIX
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE 		0-91150-212-0 04 1 0507-0602
121 NUT; PTO FIX
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE 		0-91180-212-0 04 1 0603-
202 BOLT; PLATE
6WF1 TC-C(1B8) M12X35 FLANGE 		0-28781-235-0 09 1 0507-0511
202 BOLT; PLATE
M12X35 FLANGE 		0-28781-235-0 09 1 0512-0512
202 BOLT; PLATE
M12X35 FLANGE 		0-28751-235-0 09 1 0601-
232 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8) 		1-33142-051-1 01 1 0507-0511
232 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33142-051-1 01 1 0512-
254 PLUG; DRAIN,OIL
6WF1 TC-C(1B8) M24X17 FLANGE 		1-09604-023-0 02 1 0507-0511
254 PLUG; DRAIN,OIL
M24X17 FLANGE 		1-09604-023-0 02 1 0512-
255 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8) ID=26.8 		1-09623-058-0 02 1 0507-0511
255 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 02 1 0512-
262 STRAINER; OIL PUMP
6WF1 TC-C(1B8) 		1-41383-003-0 01 1 0507-0511
262 STRAINER; OIL PUMP 1-41383-003-0 01 1 0512-
264 BOLT; OIL PUMP
6WF1 TC-C(1B8) M8X50 		0-10805-850-0 02 1 0507-0511
264 BOLT; OIL PUMP
M8X50 		0-10805-850-0 02 1 0512-0512
264 BOLT; OIL PUMP
M8X50 		0-10855-850-0 02 1 0601-
264 BOLT; OIL PUMP
6WF1 TC-C(1B8) M8X65 		0-10805-865-0 02 1 0507-0511
264 BOLT; OIL PUMP
M8X65 		0-10805-865-0 02 1 0512-
266 WASHER; LK
6WF1 TC-C(1B8) ID=8.2 		9-09150-508-0 04 1 0507-0511
266 WASHER; LK
ID=8.2 		9-09150-508-0 04 1 0512-0603
266 WASHER; LK
ID=8.2 		0-91510-508-0 04 1 0604-
315 BOLT; CASE
6WF1 TC-C(1B8) M12X50 FLANGE 		0-28181-250-0 11 1 0507-0511
315 BOLT; CASE
M12X50 FLANGE 		0-28181-250-0 11 1 0512-0512
315 BOLT; CASE
M12X50 FLANGE 		0-28151-250-0 11 1 0601-
315 BOLT; CASE
6WF1 TC-C(1B8) M12X110 		0-28186-211-0 05 1 0507-0511
315 BOLT; CASE
M12X110 		0-28186-211-0 05 1 0512-0512
315 BOLT; CASE
M12X110 FLANGE 		0-28156-211-0 05 1 0601-
315 BOLT; CASE
6WF1 TC-C(1B8) M12X35 FLANGE 		0-28781-235-0 02 1 0507-0511
315 BOLT; CASE
M12X35 FLANGE 		0-28781-235-0 02 1 0512-0512
315 BOLT; CASE
M12X35 FLANGE 		0-28751-235-0 02 1 0601-
324 STUD; RR COVER
6WF1 TC-C(1B8) M10X18,M12X110 L=139.5 		1-09049-033-0 02 1 0507-0511
324 STUD; RR COVER
M10X18,M12X110 L=139.5 		1-09049-033-1 02 1 0512-
326 NOZZLE; OIL,OUTLET
6WF1 TC-C(1B8) 		1-33219-272-0 01 1 0507-0511
326 NOZZLE; OIL,OUTLET 1-33219-272-0 01 1 0512-
328 GASKET; PLUG
6WF1 TC-C(1B8) 		1-34159-100-0 01 1 0507-0511
328 GASKET; PLUG 1-34159-100-0 01 1 0512-
329 PUMP ASM; OIL
6WF1 TC-C(1B8) 		1-34150-117-0 01 1 0507-0511
329 PUMP ASM; OIL 1-34150-117-0 01 1 0512-1408
329 PUMP ASM; OIL 8-98283-996-0 01 1 1409-
417 PLUG; OIL FILLER,TRANS
6WF1 TC-C(1B8) M24X17 FLANGE 		1-09604-022-0 01 1 0507-0511
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-022-0 01 1 0512-
421 COVER; RR,TRANS
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-33131-238-0 01 1 0512-
421 COVER; RR,TRANS
6WF1 TC-C(1B8) 		1-33131-234-0 01 1 0507-
429 PIN; STRAIGHT
6WF1 TC-C(1B8) (B) OD=10 L=18 		9-08151-018-0 06 1 0507-0511
429 PIN; STRAIGHT
(B) OD=10 L=18 		9-08151-018-0 06 1 0512-
429 PIN; STRAIGHT
6WF1 TC-C(1B8) (A) OD=12 L=32 		9-08161-232-0 01 1 0507-0511
429 PIN; STRAIGHT
(A) OD=12 L=32 		9-08161-232-0 01 1 0512-
435 CASE; TRANS
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-33111-349-2 01 1 0512-0609
435 CASE; TRANS
6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-98049-690-1 01 1 0610-
435 CASE; TRANS
6WF1 TC-C(1B8) 		1-33111-361-1 01 1 0507-
465 GEAR; IDLE,OIL PUMP
6WF1 TC-C(1B8) 		1-34151-013-0 01 1 0507-0511
465 GEAR; IDLE,OIL PUMP 1-34151-013-0 01 1 0512-1408
473 GEAR; OUTPUT,OIL PUMP
6WF1 TC-C(1B8) 		1-34151-012-0 01 1 0507-0511
473 GEAR; OUTPUT,OIL PUMP 1-34151-012-0 01 1 0512-1408
476 GASKET; COVER,OIL PUMP
6WF1 TC-C(1B8) 		1-34159-099-0 01 1 0507-0511
476 GASKET; COVER,OIL PUMP 1-34159-099-0 01 1 0512-
477 BOLT; OIL PUMP
6WF1 TC-C(1B8) M8X32 W/LK WASHER 		9-01900-832-0 02 1 0507-0511
477 BOLT; OIL PUMP
M8X32 W/LK WASHER 		9-01900-832-0 02 1 0512-1408
502 PLUG; OIL PUMP
6WF1 TC-C(1B8) 		1-34159-101-0 01 1 0507-0511
502 PLUG; OIL PUMP 1-34159-101-0 01 1 0512-
503 SPRING; OIL PUMP
6WF1 TC-C(1B8) (A) 		1-09580-504-0 01 1 0507-0511
503 SPRING; OIL PUMP
(A) 		1-09580-504-0 01 1 0512-
503 SPRING; OIL PUMP
6WF1 TC-C(1B8) (B) 		1-34159-102-0 01 1 0507-0511
503 SPRING; OIL PUMP
(B) 		1-34159-102-0 01 1 0512-
527 BALL; OIL PUMP
6WF1 TC-C(1B8) 		9-00097-531-0 01 1 0507-0511
527 BALL; OIL PUMP 9-00097-531-0 01 1 0512-
546 RING; SNAP,BRG
6WF1 TC-C(1B8) T=2.00 		1-09588-150-1 01 1 0507-0511
546 RING; SNAP,BRG
T=2.00 		1-09588-150-1 01 1 0512-
580 CASE; RANGE
6WF1 TC-C(1B8) 		1-33115-051-2 01 1 0507-0511
580 CASE; RANGE 1-33115-051-2 01 1 0512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
