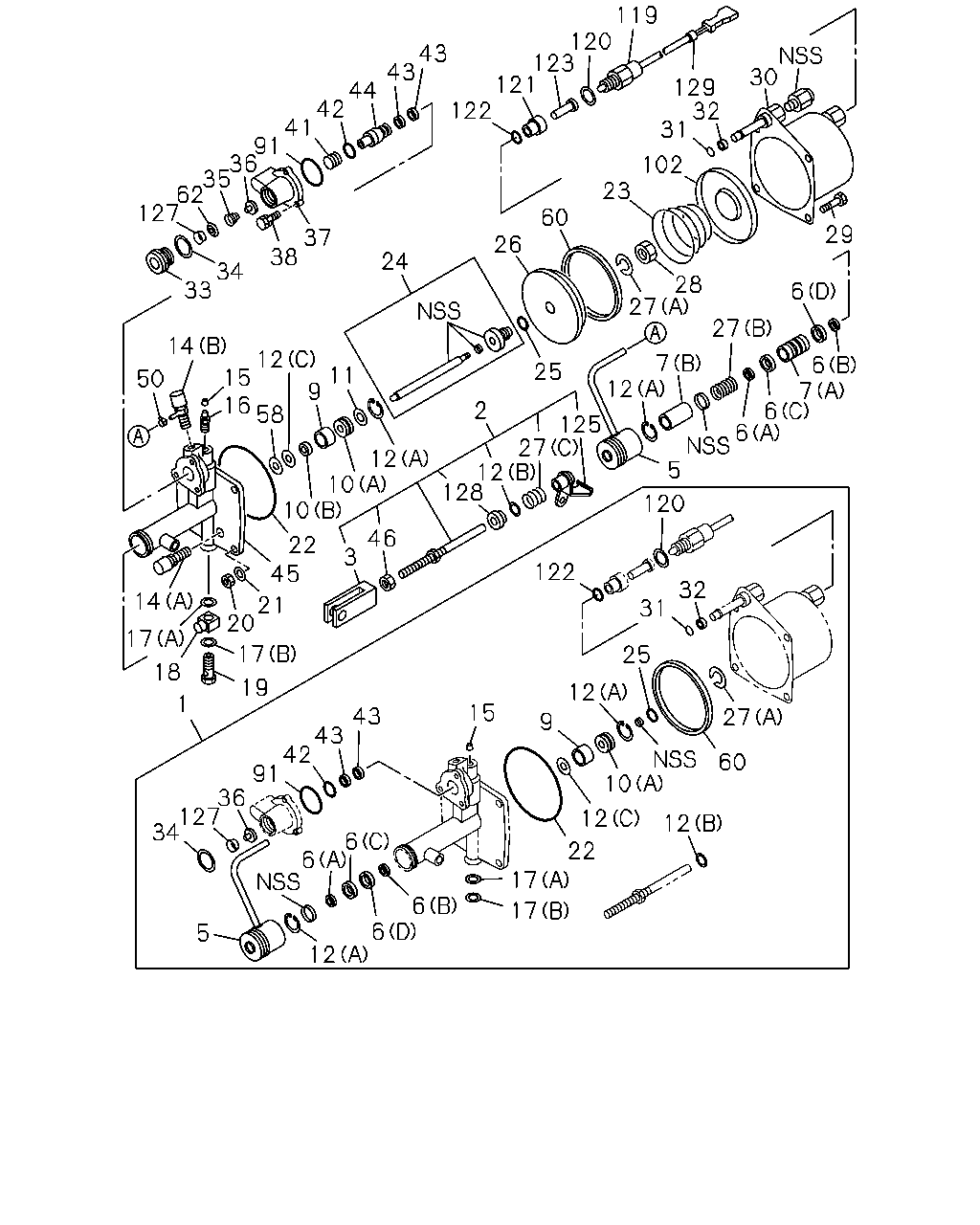

2-07 — CLUTCH BOOSTER; MINIPACK (#32050) — 157 parça

127 62 35 36 91 41 42 44 43 43 122 121 123 120 119 129 30 32 31 102 23 60 26 27 28 29 6 6 27 7 6 6 7 12 5 120 32 31 25 27 60 12 10 12 22 17 17 6 6 12 6 6 5 34 127 36 91 42 43 43 15 9 12 122 128 12 46 3 12 10 10 22 45 21 20 17 19 1 18 17 14 58 16 15 12 14 50 33 34 38 37 24 11 9 2 25 125 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-507-0	01	1	0507-0511
1	REPAIR KIT; CLU BOOSTER	1-31829-507-0	01	1	0512-1105
1	REPAIR KIT; CLU BOOSTER	1-31829-620-0	01	1	1106-
2	ROD; PUSH,CLU BOOSTER 6WF1 TC-C(1B8)	1-31824-213-0	01	1	0507-0511
2	ROD; PUSH,CLU BOOSTER	1-31824-213-0	01	1	0512-1105
2	ROD; PUSH,CLU BOOSTER	1-31824-256-0	01	1	1106-
3	CLEVIS; PUSH ROD,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-287-0	01	1	0507-0511
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-287-0	01	1	0512-1105
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-619-0	01	1	1106-
5	GUARD; PISTON,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-486-0	01	1	0507-0511
5	GUARD; PISTON,CLU BOOSTER	1-31829-486-0	01	1	0512-1105
5	GUARD; PISTON,CLU BOOSTER	1-31829-626-0	01	1	1106-
6	GASKET; PISTON CUP,CLU BOOSTER 6WF1 TC-C(1B8) (A)	1-31829-441-0	01	1	0507-0511
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-441-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER 6WF1 TC-C(1B8) (B)	1-31829-442-0	01	1	0507-0511
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-442-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER 6WF1 TC-C(1B8) (C)	1-31829-443-0	01	1	0507-0511
6	GASKET; PISTON CUP,CLU BOOSTER (C)	1-31829-443-0	01	1	0512-
6	GASKET; PISTON CUP,CLU BOOSTER 6WF1 TC-C(1B8) (D)	1-31829-444-0	01	1	0507-0511
6	GASKET; PISTON CUP,CLU BOOSTER (D)	1-31829-444-0	01	1	0512-
7	PISTON; CLU BOOSTER 6WF1 TC-C(1B8) (A)	1-31821-068-0	01	1	0507-0511
7	PISTON; CLU BOOSTER (A)	1-31821-068-0	01	1	0512-
7	PISTON; CLU BOOSTER 6WF1 TC-C(1B8) (B)	1-31821-081-0	01	1	0507-0511
7	PISTON; CLU BOOSTER (B)	1-31821-081-0	01	1	0512-
9	GASKET; PISTON CUP,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-251-0	01	1	0507-0511
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-251-0	01	1	0512-
10	RETAINER; PISTON,CLU BOOSTER 6WF1 TC-C(1B8) (A)	1-31829-285-0	01	1	0507-0511
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-285-0	01	1	0512-
10	RETAINER; PISTON,CLU BOOSTER 6WF1 TC-C(1B8) (B)	1-31829-428-0	01	1	0507-0511
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-428-0	01	1	0512-
11	WASHER; PISTON,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-105-0	01	1	0507-0511
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0512-
12	RING; RET,CLU BOOSTER 6WF1 TC-C(1B8) (C)	1-31829-446-0	01	1	0507-0511
12	RING; RET,CLU BOOSTER (C)	1-31829-446-0	01	1	0512-
12	RING; RET,CLU BOOSTER 6WF1 TC-C(1B8) (B)	1-31829-511-0	01	1	0507-0511
12	RING; RET,CLU BOOSTER (B)	1-31829-511-0	01	1	0512-1105
12	RING; RET,CLU BOOSTER (B)	1-31829-621-0	01	1	1106-
12	RING; RET,CLU BOOSTER 6WF1 TC-C(1B8) (A)	1-31829-142-0	02	1	0507-0511
12	RING; RET,CLU BOOSTER (A)	1-31829-142-0	02	1	0512-
14	COVER; EXH,CLU BOOSTER 6WF1 TC-C(1B8) (A)	1-31829-365-0	01	1	0507-0511
14	COVER; EXH,CLU BOOSTER (A)	1-31829-365-0	01	1	0512-
14	COVER; EXH,CLU BOOSTER 6WF1 TC-C(1B8) (B)	1-31829-366-0	01	1	0507-0511
14	COVER; EXH,CLU BOOSTER (B)	1-31829-366-0	01	1	0512-
15	PROTECTOR; END PLATE,CLU BOOSTER 6WF1 TC-C(1B8)	9-83335-044-0	01	1	0507-0511
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0512-
16	PLUG; END PLATE,CLU BOOSTER 6WF1 TC-C(1B8)	9-83331-704-0	01	1	0507-0511
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0512-
17	GASKET; CONN,CLU BOOSTER 6WF1 TC-C(1B8) (A)	9-09920-267-0	01	1	0507-0511
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0512-
17	GASKET; CONN,CLU BOOSTER 6WF1 TC-C(1B8) (B)	9-09920-268-0	01	1	0507-0511
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0512-
18	CONNECTOR; END PLATE,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-248-0	01	1	0507-0511
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0512-
19	BOLT; EYE,END PLATE,CLU BOOSTER 6WF1 TC-C(1B8)	9-83315-047-0	01	1	0507-0511
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0512-
20	NUT; END PLATE TO SHELL,CLU BOOSTER 6WF1 TC-C(1B8) M10	9-09111-410-0	04	1	0507-0511
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	0512-1105
20	NUT; END PLATE TO SHELL,CLU BOOSTER	1-31829-624-0	04	1	1106-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER 6WF1 TC-C(1B8) ID=10.2	9-09150-510-0	04	1	0507-0511
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	0512-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-281-0	01	1	0507-0511
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-31829-281-0	01	1	0512-
23	SPRING; SHELL,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-506-0	01	1	0507-0511
23	SPRING; SHELL,CLU BOOSTER	1-31829-506-0	01	1	0512-
24	ROD; PUSH,CLU BOOSTER 6WF1 TC-C(1B8)	1-31824-211-0	01	1	0507-0511
24	ROD; PUSH,CLU BOOSTER	1-31824-211-0	01	1	0512-
25	GASKET; PUSH ROD,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-277-0	01	1	0507-0511
25	GASKET; PUSH ROD,CLU BOOSTER	1-31829-277-0	01	1	0512-
26	PISTON; SHELL,CLU BOOSTER 6WF1 TC-C(1B8)	1-31821-080-0	01	1	0507-0511
26	PISTON; SHELL,CLU BOOSTER	1-31821-080-0	01	1	0512-
27	SPRING; CLU BOOSTER 6WF1 TC-C(1B8) (A)	1-31829-291-0	01	1	0507-0511
27	SPRING; CLU BOOSTER (A)	1-31829-291-0	01	1	0512-
27	SPRING; CLU BOOSTER 6WF1 TC-C(1B8) (B)	1-31829-505-0	01	1	0507-0511
27	SPRING; CLU BOOSTER (B)	1-31829-505-0	01	1	0512-
27	SPRING; CLU BOOSTER 6WF1 TC-C(1B8) (C)	1-31829-510-0	01	1	0507-0511
27	SPRING; CLU BOOSTER (C)	1-31829-510-0	01	1	0512-
28	NUT; PUSH ROD,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-290-0	01	1	0507-0511
28	NUT; PUSH ROD,CLU BOOSTER	1-31829-290-0	01	1	0512-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER 6WF1 TC-C(1B8)	9-02041-045-0	04	1	0507-0511
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-02041-045-0	04	1	0512-1105
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-078-0	04	1	1106-
30	SHELL; CYL,CLU BOOSTER 6WF1 TC-C(1B8)	1-31811-120-0	01	1	0507-0511
30	SHELL; CYL,CLU BOOSTER	1-31811-120-0	01	1	0512-
31	GASKET; SHELL,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-279-0	01	1	0507-0511
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	0512-
32	BUSHING; SHELL,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-280-0	01	1	0507-0511
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	0512-
33	CONNECTOR; UPR,VLV,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-448-0	01	1	0507-0511
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-448-0	01	1	0512-
34	GASKET; CONN,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-053-0	01	1	0507-0511
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0512-
35	SPRING; POPPET VLV,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-451-0	01	1	0507-0511
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-451-0	01	1	0512-
36	VALVE; POPPET,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-452-0	01	1	0507-0511
36	VALVE; POPPET,CLU BOOSTER	1-31829-452-0	01	1	0512-
37	BODY; UPR,VLV,CLU BOOSTER 6WF1 TC-C(1B8)	1-31811-085-0	01	1	0507-0511
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	0512-
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE 6WF1 TC-C(1B8)	9-83315-113-0	03	1	0507-0511
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0512-
41	SPRING; DIAPH,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-288-0	01	1	0507-0511
41	SPRING; DIAPH,CLU BOOSTER	1-31829-288-0	01	1	0512-
42	GASKET; FITTING,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-143-0	01	1	0507-0511
42	GASKET; FITTING,CLU BOOSTER	1-31829-143-0	01	1	0512-
43	GASKET; UPR VLV,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-060-0	02	1	0507-0511
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	0512-
44	PISTON; UPR VLV,CLU BOOSTER 6WF1 TC-C(1B8)	1-31821-049-0	01	1	0507-0511
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-049-0	01	1	0512-1105
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-087-0	01	1	1106-
45	PLATE; END,CLU BOOSTER 6WF1 TC-C(1B8)	1-31811-119-0	01	1	0507-0511
45	PLATE; END,CLU BOOSTER	1-31811-119-0	01	1	0512-
46	NUT; PUSH ROD,CLU BOOSTER 6WF1 TC-C(1B8) M10	9-09111-410-0	02	1	0507-0511
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0512-1105
46	NUT; PUSH ROD,CLU BOOSTER	1-31829-625-0	01	1	1106-
50	CLAMP; PISTON GUARD,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-063-0	01	1	0507-0511
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-063-0	01	1	0512-
58	WASHER; PISTON,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-294-0	01	1	0507-0511
58	WASHER; PISTON,CLU BOOSTER	1-31829-294-0	01	1	0512-
60	GASKET; SHELL,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-454-0	01	1	0507-0511
60	GASKET; SHELL,CLU BOOSTER	1-31829-454-0	01	1	0512-
62	RETAINER; POPPET 6WF1 TC-C(1B8)	1-31829-489-0	01	1	0507-0511
62	RETAINER; POPPET	1-31829-489-0	01	1	0512-
91	GASKET; CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-103-0	01	1	0507-0511
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0512-
102	PLATE; BOOSTER 6WF1 TC-C(1B8)	1-31829-508-0	01	1	0507-0511
102	PLATE; BOOSTER	1-31829-508-0	01	1	0512-
119	SWITCH; CLU BOOSTER 6WF1 TC-C(1B8)	1-31824-178-0	01	1	0507-0511
119	SWITCH; CLU BOOSTER	1-31824-178-0	01	1	0512-
120	GASKET; SWITCH 6WF1 TC-C(1B8)	1-31829-361-0	01	1	0507-0511
120	GASKET; SWITCH	1-31829-361-0	01	1	0512-
121	GUIDE; ROD 6WF1 TC-C(1B8)	1-31824-165-0	01	1	0507-0511
121	GUIDE; ROD	1-31824-165-0	01	1	0512-
122	GASKET; ROD 6WF1 TC-C(1B8)	1-31829-360-0	01	1	0507-0511
122	GASKET; ROD	1-31829-360-0	01	1	0512-
123	ROD; SWITCH 6WF1 TC-C(1B8) L=23.2	1-31824-167-0	01	1	0507-0511
123	ROD; SWITCH L=23.2	1-31824-167-0	01	1	0512-1105
123	ROD; SWITCH L=23.2	1-31824-167-0	AR	1	1106-
123	ROD; SWITCH 6WF1 TC-C(1B8) L=24.0	1-31824-168-0	01	1	0507-0511
123	ROD; SWITCH L=24.0	1-31824-168-0	01	1	0512-1105
123	ROD; SWITCH L=24.0	1-31824-168-0	AR	1	1106-
123	ROD; SWITCH 6WF1 TC-C(1B8) L=22.5	1-31824-176-0	01	1	0507-0511
123	ROD; SWITCH L=22.5	1-31824-176-0	01	1	0512-1105
123	ROD; SWITCH L=22.5	1-31824-176-0	AR	1	1106-
123	ROD; SWITCH 6WF1 TC-C(1B8) L=24.5	1-31824-189-0	01	1	0507-0511
123	ROD; SWITCH L=24.5	1-31824-189-0	01	1	0512-1105
123	ROD; SWITCH L=24.5	1-31824-189-0	AR	1	1106-
123	ROD; SWITCH 6WF1 TC-C(1B8) L=25.0	1-31824-212-0	01	1	0507-0511
123	ROD; SWITCH L=25.0	1-31824-212-0	01	1	0512-1105
123	ROD; SWITCH L=25.0	1-31824-212-0	AR	1	1106-
125	BRACKET; CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-512-0	01	1	0507-0511
125	BRACKET; CLU BOOSTER	1-31829-512-0	01	1	0512-1105
125	BRACKET; CLU BOOSTER	1-31829-622-0	01	1	1106-
127	FILTER; POPPET 6WF1 TC-C(1B8)	1-31829-488-0	01	1	0507-0511
127	FILTER; POPPET	1-31829-488-0	01	1	0512-
128	COLLAR; ROD,CLU BOOSTER 6WF1 TC-C(1B8)	1-31829-509-0	01	1	0507-0511
128	COLLAR; ROD,CLU BOOSTER	1-31829-509-0	01	1	0512-1105
129	CONNECTOR ASM; CLU BOOSTER 6WF1 TC-C(1B8)	1-09656-753-0	01	1	0507-0511
129	CONNECTOR ASM; CLU BOOSTER	1-09656-753-0	01	1	0512-
