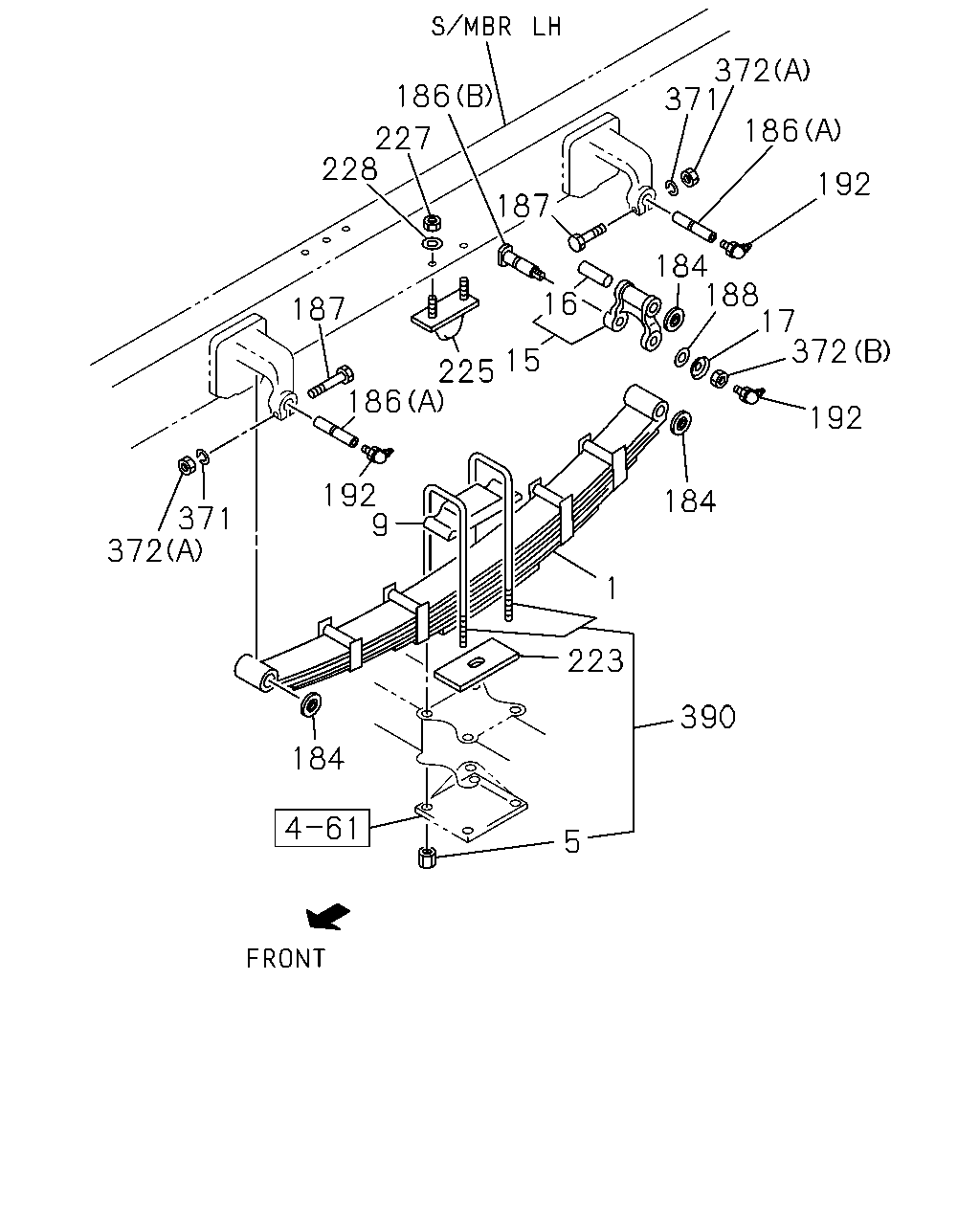

4-60 — REAR SUSPENSION
(#3205) — 26 parça
372
371
186
186
227
228
192
187
184
188
17
372
16
187
15
225
186
192
192
9
184
371
372
1
223
390
184
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 12-LEAF
1-51310-967-0
02
1
9104-
5
NUT; U-BOLT,RR SPR
M24
9-99112-824-0
08
1
9104-0107
5
NUT; U-BOLT,RR SPR
M24
9-99112-824-0
08
1
0108-
9
PAD; U BOLT,RR SPR
1-51372-030-0
02
1
9104-
15
SHACKLE; RR SPR
9-51362-085-1
02
1
9104-
16
BUSHING; SHACKLE,RR SPR
1-51351-024-1
02
1
9104-
17
WASHER; LK,SHACKLE PIN
ID=24.5 OD=52
9-51369-012-0
02
1
9104-
184
WASHER; SPRING PIN
ID=32.4
1-51169-018-0
12
1
9104-0107
184
WASHER; SPRING PIN
ID=32.4
1-51169-018-0
12
1
0108-
186
PIN; SHACKLE,RR SPR
(A)
1-51361-020-0
04
1
9104-
186
PIN; SHACKLE,RR SPR
(B)
9-51361-062-1
02
1
9104-
187
BOLT; SPR & SHACKLE
M14X80
0-10806-480-0
04
1
9104-
188
WASHER; PL,SHACKLE PIN
9-09164-624-0
02
1
9104-
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW
9-09031-210-0
06
1
9104-0107
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW
9-09031-210-0
06
1
0108-
223
SPACER; U BOLT,RR SPR
1-51377-217-0
02
1
9104-
225
RUBBER; CUSHION,RR SPR
9-53366-088-3
02
1
9104-0107
225
RUBBER; CUSHION,RR SPR
9-53366-088-3
02
1
0108-
227
NUT; CUSHION RUBBER
M10
9-09110-510-0
04
1
9104-0107
227
NUT; CUSHION RUBBER
M10
9-09110-510-0
04
1
0108-
228
WASHER; LK,CUSHION RUBBER
ID=10.2
9-09150-510-0
04
1
9104-0107
228
WASHER; LK,CUSHION RUBBER
ID=10.2
9-09150-510-0
04
1
0108-
371
WASHER; LK,SHACKLE
ID=14.2
9-09150-514-0
04
1
9104-
372
NUT; SHACKLE
(A) M14
9-99110-414-0
04
1
9104-
372
NUT; SHACKLE
(B) M24
9-99110-524-0
02
1
9104-
390
U-BOLT SET; RR SPRING
L=470
1-87870-300-0
04
1
9104-
