◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11006 - CYJ NEW ZEALAND ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#32049) — 141 parça

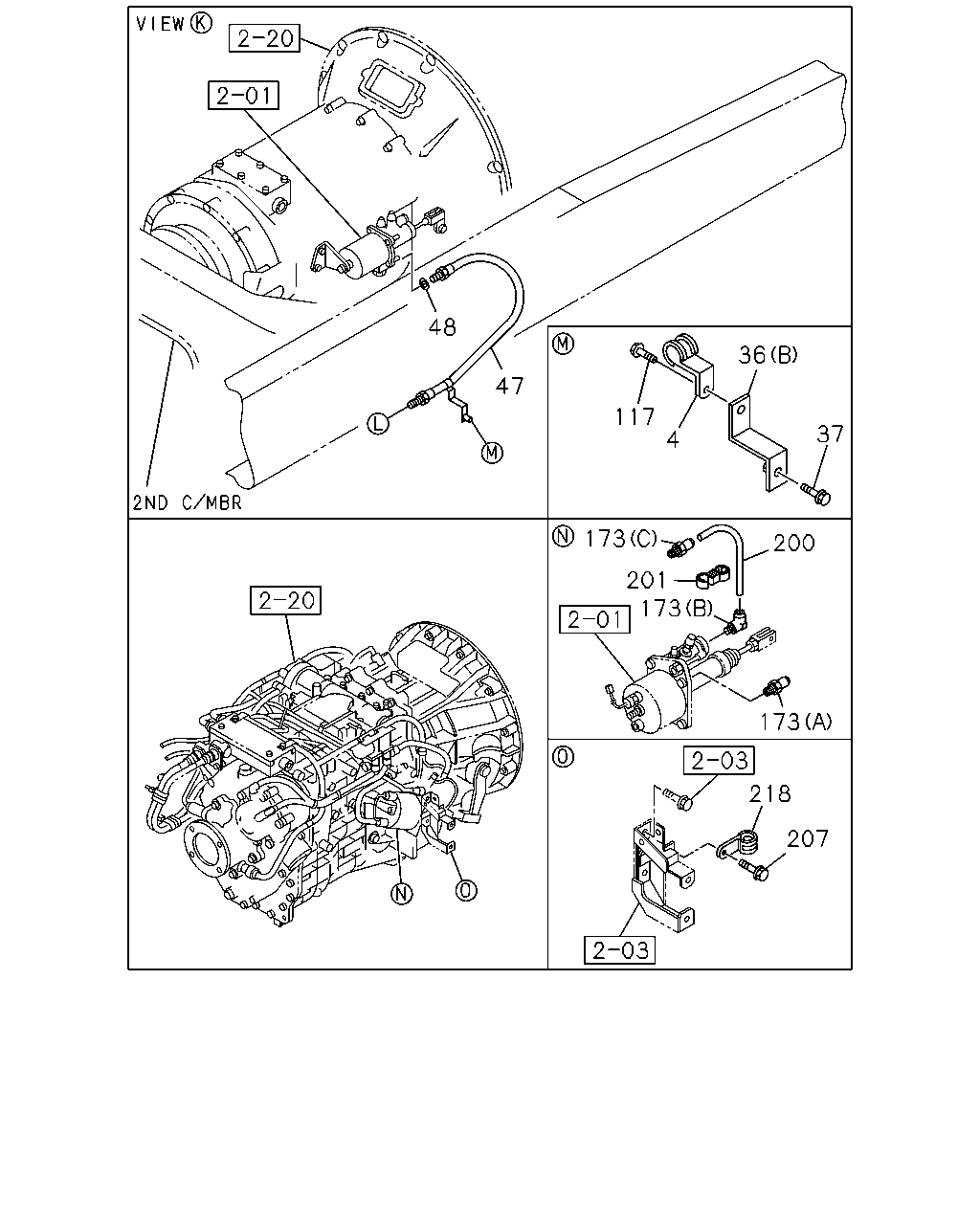

çizim 88676
48 36 47 117 37 4 173 200 201 173 173 218 207
BalonParca AdiParca NoAdetTipApplied Date
4 CLIP; FLEX HOSE,CLU CONT
ID=16 H=25 L=25 		1-09701-162-0 01 1 0507-
36 BRACKET; CLIP
(B) 		1-47475-689-0 01 1 0507-
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 0507-
36 BRACKET; CLIP
(C) L=80 H=20 		1-82699-304-0 01 1 0507-
37 BOLT; CLIP BRKT
M10X16 FLANGE 		0-28181-016-0 01 1 0507-0512
37 BOLT; CLIP BRKT
M10X16 FLANGE 		0-28151-016-0 01 1 0601-
47 HOSE; FLEX,CLU CONT
L=650 		1-09364-694-0 01 1 0507-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 0507-
117 BOLT; CLIP,FLEX HOSE
M8X16 FLANGE 		0-28080-816-0 01 1 0507-0512
117 BOLT; CLIP,FLEX HOSE
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
173 CONNECTOR
(A) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 0507-
173 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0507-
173 CONNECTOR
(C) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 0507-0511
173 CONNECTOR
6WF1 TC-C(1B8) (C) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 01 1 0512-
200 TUBE; NYLON
6WG1 TC-C(72L),6WG1 TC-S(97L) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0512-
200 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0507-0511
200 TUBE; NYLON
6WF1 TC-C(1B8) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0512-
201 CLIP; NYLON TUBE
ID=6.35 & 12 		1-09709-275-1 01 1 0507-
207 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0507-0512
207 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
218 CLIP
ID=11 L=20 		9-09525-035-0 01 1 0507-0606
218 CLIP
ID=11 L=20 		0-95235-035-0 01 1 0607-
çizim 88737
24 153 167 56 104 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,CLU CONT
L=620 		1-09364-879-1 01 1 0507-0703
1 HOSE; FLEX,CLU CONT
L=620 		8-98072-333-0 01 1 0704-
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 0507-
56 BRACKET; FLEX HOSE 1-47478-300-1 01 1 0507-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1412 SERVICED BY L=1550 		1-47428-766-0 01 1 0507-
153 PIPE ASM; CLU,UNION TO FLEX
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=537 		8-98085-164-0 01 1 0803-
153 PIPE ASM; CLU,UNION TO FLEX
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) L=2047 SERVICED BY L=2150 		1-47428-770-0 01 1 0512-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 0507-0511
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 0512-0702
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=534 		1-49166-190-0 01 1 0703-0703
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 0704-0802
153 PIPE ASM; CLU,UNION TO FLEX
6WF1 TC-C(1B8) (A) L=469 		1-49162-810-0 01 1 0803-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2057 SERVICED BY L=2150 		1-47428-770-0 01 1 0507-0511
153 PIPE ASM; CLU,UNION TO FLEX
6WF1 TC-C(1B8) (B) L=2057 SERVICED BY L=2150 		1-47428-770-0 01 1 0512-
167 BRACKET; UNION 1-71117-183-3 01 1 0507-

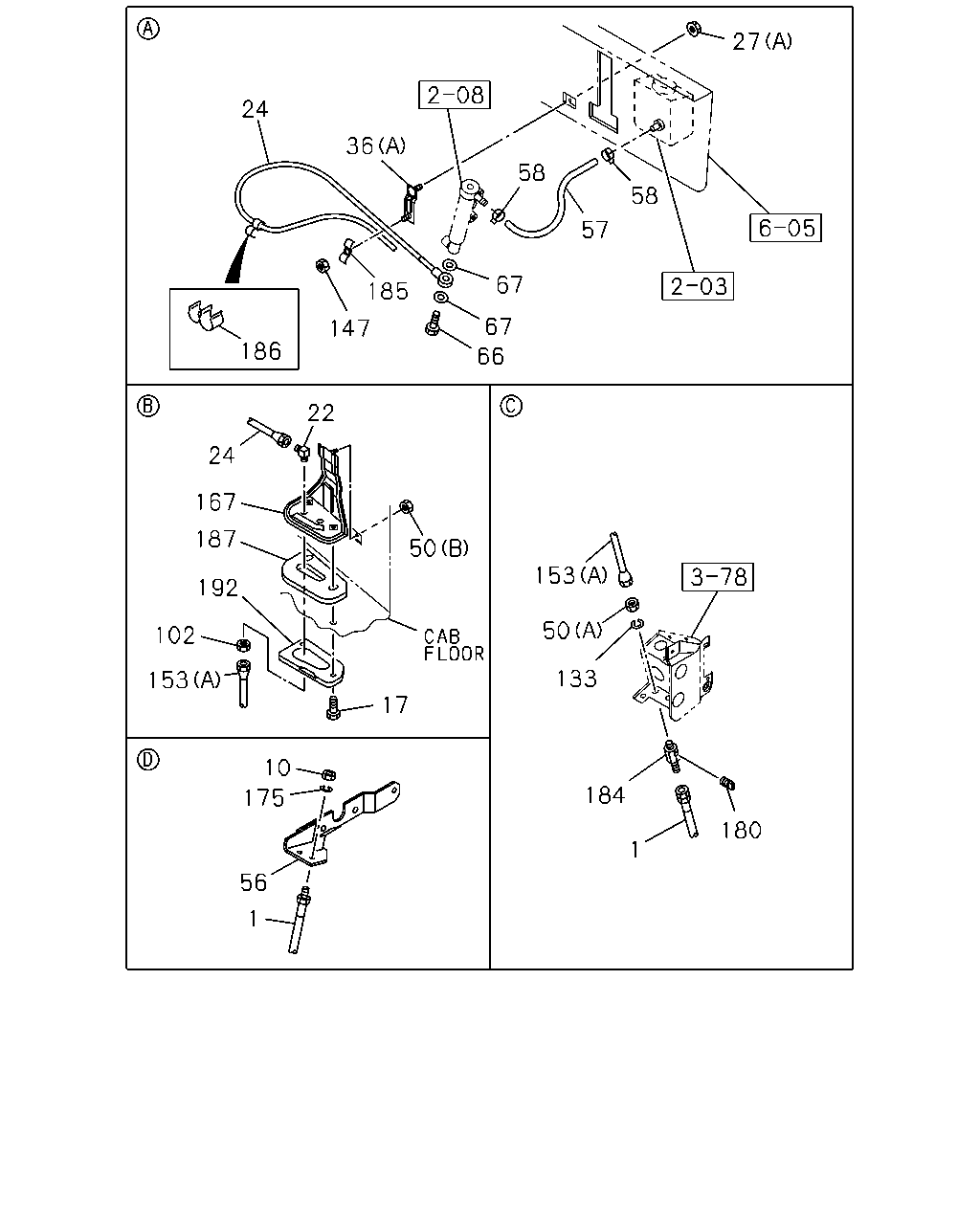

çizim 88740
27 24 36 58 58 57 67 185 67 147 186 66 22 24 167 187 50 153 192 50 102 133 153 17 10 184 175 180 1 56 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,CLU CONT
L=620 		1-09364-879-1 01 1 0507-0703
1 HOSE; FLEX,CLU CONT
L=620 		8-98072-333-0 01 1 0704-
10 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 0507-0512
10 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0601-
17 BOLT; BRKT
M8X20 W/LK&PL WASHER 		8-94279-216-0 02 1 0507-
22 UNION; CLU PIPE
M14 		9-09225-208-1 01 1 0507-0607
22 UNION; CLU PIPE
M14 ELBOW 		0-92125-208-0 01 1 0608-
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 0507-
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 0507-
36 BRACKET; CLIP
(B) 		1-47475-689-0 01 1 0507-
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 0507-
36 BRACKET; CLIP
(C) L=80 H=20 		1-82699-304-0 01 1 0507-
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0507-
50 NUT; UNION
(A) M14 		9-99111-414-0 01 1 0507-0512
50 NUT; UNION
(A) M14 		0-91111-514-0 01 1 0601-
56 BRACKET; FLEX HOSE 1-47478-300-1 01 1 0507-
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 0507-
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 0507-
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 0507-0805
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		8-98037-827-0 01 1 0806-
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0507-1312
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 0507-0512
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0601-
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 0507-0603
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 0604-
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0507-
153 PIPE ASM; CLU,UNION TO FLEX
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=537 		8-98085-164-0 01 1 0803-
153 PIPE ASM; CLU,UNION TO FLEX
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) L=2047 SERVICED BY L=2150 		1-47428-770-0 01 1 0512-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 0507-0511
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 0512-0702
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=534 		1-49166-190-0 01 1 0703-0703
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 0704-0802
153 PIPE ASM; CLU,UNION TO FLEX
6WF1 TC-C(1B8) (A) L=469 		1-49162-810-0 01 1 0803-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2057 SERVICED BY L=2150 		1-47428-770-0 01 1 0507-0511
153 PIPE ASM; CLU,UNION TO FLEX
6WF1 TC-C(1B8) (B) L=2057 SERVICED BY L=2150 		1-47428-770-0 01 1 0512-
167 BRACKET; UNION 1-71117-183-3 01 1 0507-
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 0507-0603
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604-
180 PLUG; PIPE 9-09204-510-0 01 1 0507-0804
184 UNION; FLEX HOSE
STRAIGHT 		1-09656-679-0 01 1 0507-0804
184 UNION; FLEX HOSE
STRAIGHT 		1-09654-435-0 01 1 0805-
185 CLIP; BRKT
ID=9 L=20 		9-09545-108-0 01 1 0507-0606
185 CLIP; BRKT
ID=9 L=20 		0-95405-308-0 01 1 0607-
186 HOLDER; CLIP 8-94107-710-0 02 1 0507-0511
186 HOLDER; CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94107-710-0 02 1 0512-
187 SEAL; BRKT 1-71117-222-0 01 1 0507-
192 PLATE 1-71117-221-0 01 1 0507-
çizim 88772
29 28 29 25 28 27 26 30 33 34 106 31 33 35 34 36 30 44 42 42 115 116 44 115 116 43 43
BalonParca AdiParca NoAdetTipApplied Date
25 BRACKET; OIL PIPE 1-46147-101-0 01 1 0507-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 02 1 0507-0602
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603-
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 0507-0602
27 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 0507-
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 0507-
28 CLIP; OIL PIPE
(B) ID=9 L=20 		9-09524-835-0 01 1 0507-0606
28 CLIP; OIL PIPE
(B) ID=9 L=20 		0-95234-835-0 01 1 0607-
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28680-830-0 01 1 0507-0512
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
30 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0507-0512
30 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0507-0512
30 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0601-
30 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0601-
31 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0507-0602
31 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 03 1 0507-
33 CLIP; OIL PIPE
(B) ID=9 L=20 		9-09524-835-0 01 1 0507-0606
33 CLIP; OIL PIPE
(B) ID=9 L=20 		0-95234-835-0 01 1 0607-
34 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0507-0512
34 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 03 1 0507-0512
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 0601-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 0507-0602
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0603-
36 BRACKET; CLIP
(B) 		1-47475-689-0 01 1 0507-
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 0507-
36 BRACKET; CLIP
(C) L=80 H=20 		1-82699-304-0 01 1 0507-
42 BRACKET; FLEX HOSE,CLU CONT
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-47479-650-0 01 1 0512-
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47479-626-0 01 1 0507-0511
42 BRACKET; FLEX HOSE,CLU CONT
6WF1 TC-C(1B8) (A) 		1-47479-626-0 01 1 0512-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28680-835-0 02 1 0507-0512
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 0507-0602
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0603-
106 UNION; OIL PIPE
M14 STRAIGHT 		9-09223-008-1 01 1 0507-0607
106 UNION; OIL PIPE
M14 STRAIGHT 		0-92113-008-0 01 1 0608-
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 0507-0512
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0601-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 0507-0603
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0604-

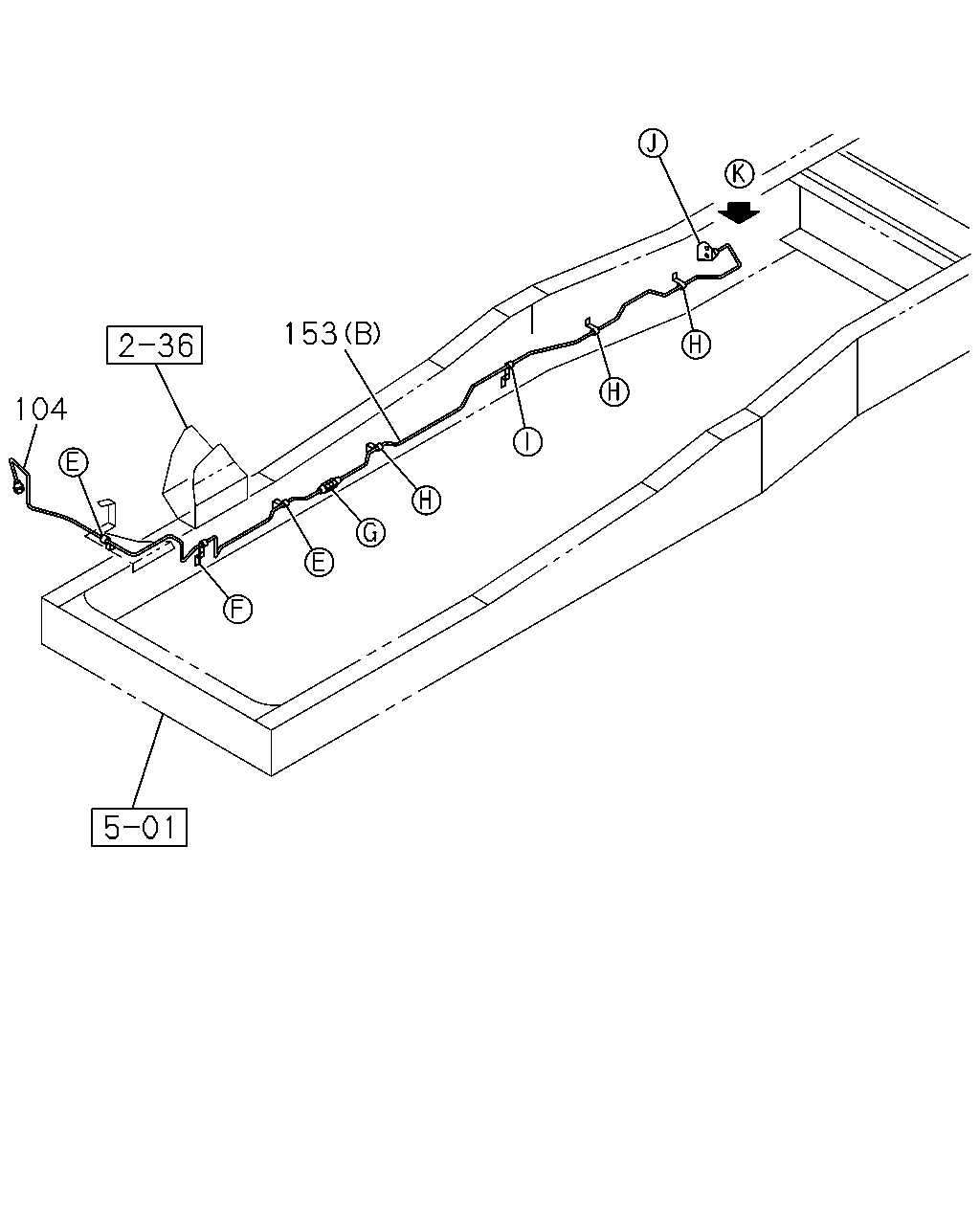

çizim 104008
153 104
BalonParca AdiParca NoAdetTipApplied Date
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1412 SERVICED BY L=1550 		1-47428-766-0 01 1 0507-
153 PIPE ASM; CLU,UNION TO FLEX
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=537 		8-98085-164-0 01 1 0803-
153 PIPE ASM; CLU,UNION TO FLEX
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) L=2047 SERVICED BY L=2150 		1-47428-770-0 01 1 0512-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 0507-0511
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 0512-0702
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=534 		1-49166-190-0 01 1 0703-0703
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=469 		1-49162-810-0 01 1 0704-0802
153 PIPE ASM; CLU,UNION TO FLEX
6WF1 TC-C(1B8) (A) L=469 		1-49162-810-0 01 1 0803-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=2057 SERVICED BY L=2150 		1-47428-770-0 01 1 0507-0511
153 PIPE ASM; CLU,UNION TO FLEX
6WF1 TC-C(1B8) (B) L=2057 SERVICED BY L=2150 		1-47428-770-0 01 1 0512-
