◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11006 - CYJ NEW ZEALAND ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#32047) — 76 parça

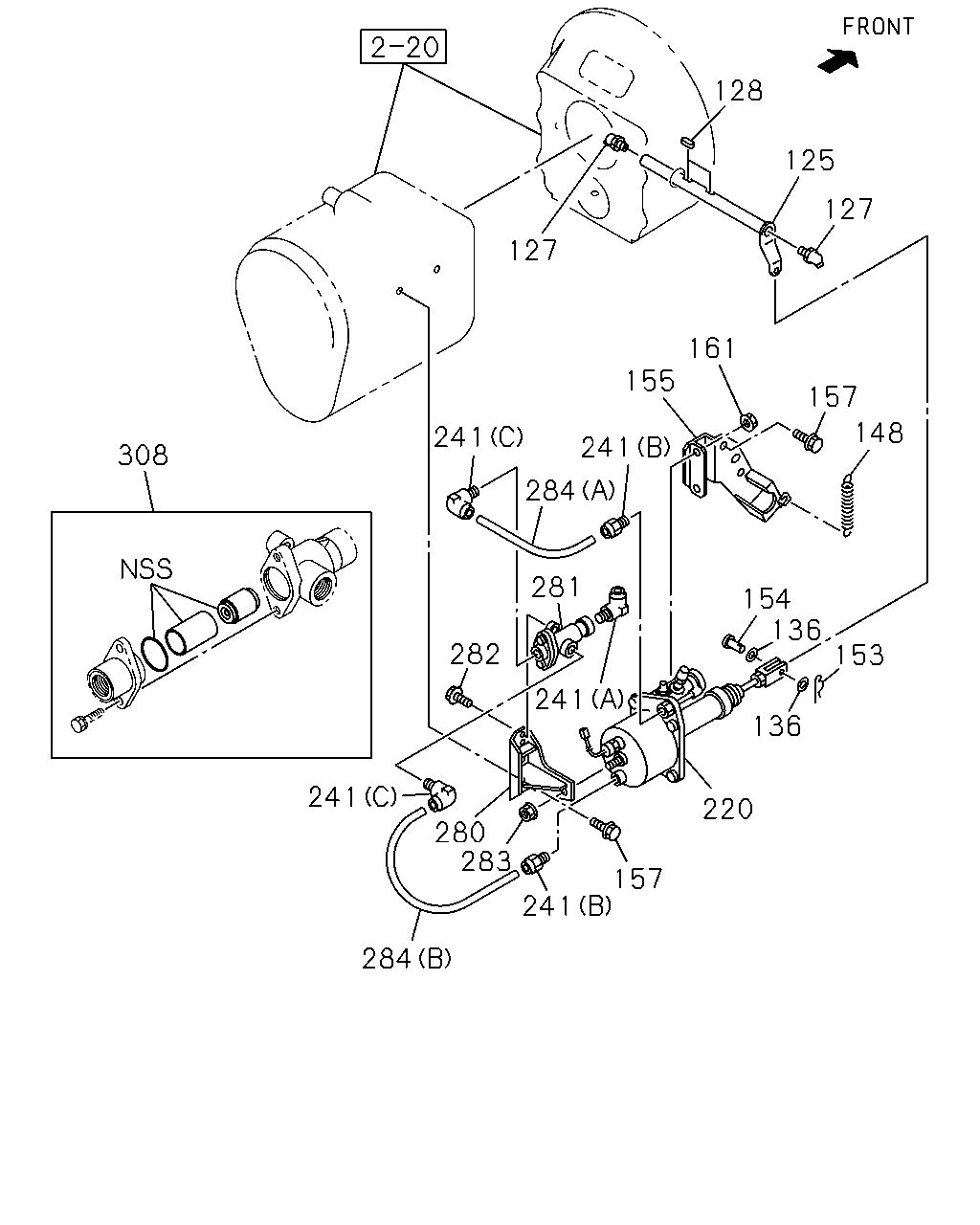

çizim 88672
128 125 127 127 161 155 157 148 241 241 308 284 281 154 136 153 282 241 136 241 220 280 283 157 241 284
BalonParca AdiParca NoAdetTipApplied Date
125 SHAFT; CLU
6WF1 TC-C(1B8) 		1-31342-312-0 01 1 0507-0511
125 SHAFT; CLU 1-31342-312-0 01 1 0512-
127 NIPPLE; GREASE,CLU SHAFT
6WF1 TC-C(1B8) PT1/8 ELBOW 		9-09031-210-0 02 1 0507-0511
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 0512-0512
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601-
128 KEY; FEATHER,CLU SHAFT
6WF1 TC-C(1B8) 		1-09735-045-0 02 1 0507-0511
128 KEY; FEATHER,CLU SHAFT 1-09735-045-0 02 1 0512-
136 WASHER; PL
6WF1 TC-C(1B8) ID=15 		9-09160-514-0 02 1 0507-0511
136 WASHER; PL
ID=15 		9-09160-514-0 02 1 0512-0605
136 WASHER; PL
ID=15 		0-91610-514-0 02 1 0606-
148 SPRING; CLU RETURN
6WF1 TC-C(1B8) L=43 		1-31349-024-0 01 1 0507-0511
148 SPRING; CLU RETURN
L=43 		1-31349-024-0 01 1 0512-
153 PIN; SPLIT,CLU SHAFT
6WF1 TC-C(1B8) 		1-09747-009-0 01 1 0507-0511
153 PIN; SPLIT,CLU SHAFT 1-09747-009-0 01 1 0512-
154 PIN; JAW JOINT
6WF1 TC-C(1B8) L=35 		1-31424-003-0 01 1 0507-0511
154 PIN; JAW JOINT
L=35 		1-31424-003-0 01 1 0512-
155 BRACKET; MINIPACK
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-31429-470-1 01 1 0512-
155 BRACKET; MINIPACK
6WF1 TC-C(1B8) 		1-31429-421-0 01 1 0507-
157 BOLT; BRKT
6WF1 TC-C(1B8) M8X16 FLANGE 		0-28080-816-0 01 1 0507-0511
157 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0512-0512
157 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
157 BOLT; BRKT
6WF1 TC-C(1B8) M10X25 FLANGE 		0-28781-025-0 02 1 0507-0511
157 BOLT; BRKT
M10X25 FLANGE 		0-28781-025-0 02 1 0512-0512
157 BOLT; BRKT
M10X25 FLANGE 		0-28751-025-0 02 1 0601-
157 BOLT; BRKT
6WF1 TC-C(1B8) M10X30 FLANGE 		0-28781-030-0 02 1 0507-0511
157 BOLT; BRKT
M10X30 FLANGE 		0-28781-030-0 02 1 0512-0512
157 BOLT; BRKT
M10X30 FLANGE 		0-28751-030-0 02 1 0601-
161 NUT; BRKT
6WF1 TC-C(1B8) M10 FLANGE 		0-91150-210-0 02 1 0507-0511
161 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0512-0602
161 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 6WF1 TC-C(1B8) 		1-31800-440-0 01 1 0507-0511
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-440-0 01 1 0512-1105
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-564-0 01 1 1106-
241 CONNECTOR
6WF1 TC-C(1B8) (A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0507-0511
241 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0512-
241 CONNECTOR
6WF1 TC-C(1B8) (B) 		1-31829-590-0 02 1 0507-0511
241 CONNECTOR
(B) 		1-31829-590-0 02 1 0512-
241 CONNECTOR
6WF1 TC-C(1B8) (C) ELBOW 		1-31829-591-0 02 1 0507-0511
241 CONNECTOR
(C) ELBOW 		1-31829-591-0 02 1 0512-
280 BRACKET; VLV,CHK
6WF1 TC-C(1B8) 		1-31429-422-1 01 1 0507-0511
280 BRACKET; VLV,CHK 1-31429-422-1 01 1 0512-
281 VALVE; CHK
6WF1 TC-C(1B8) 		1-48410-594-0 01 1 0507-0511
281 VALVE; CHK 1-48410-594-0 01 1 0512-
282 BOLT; VLV
6WF1 TC-C(1B8) M8X12 FLANGE 		0-28080-812-0 02 1 0507-0511
282 BOLT; VLV
M8X12 FLANGE 		0-28080-812-0 02 1 0512-0512
282 BOLT; VLV
M8X12 FLANGE 		0-28050-812-0 02 1 0601-
283 NUT; BRKT
6WF1 TC-C(1B8) M10 FLANGE 		0-91150-210-0 01 1 0507-0511
283 NUT; BRKT
M10 FLANGE 		0-91150-210-0 01 1 0512-0602
283 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0603-
284 TUBE; NYLON
6WF1 TC-C(1B8) (A) 		1-09376-833-1 01 1 0507-0511
284 TUBE; NYLON
(A) 		1-09376-833-1 01 1 0512-
284 TUBE; NYLON
6WF1 TC-C(1B8) (B) 		1-09376-834-1 01 1 0507-0511
284 TUBE; NYLON
(B) 		1-09376-834-1 01 1 0512-
308 REPAIR KIT; CHECK VALVE
6WF1 TC-C(1B8) 		1-31829-514-0 01 1 0507-0511
308 REPAIR KIT; CHECK VALVE 1-31829-514-0 01 1 0512-

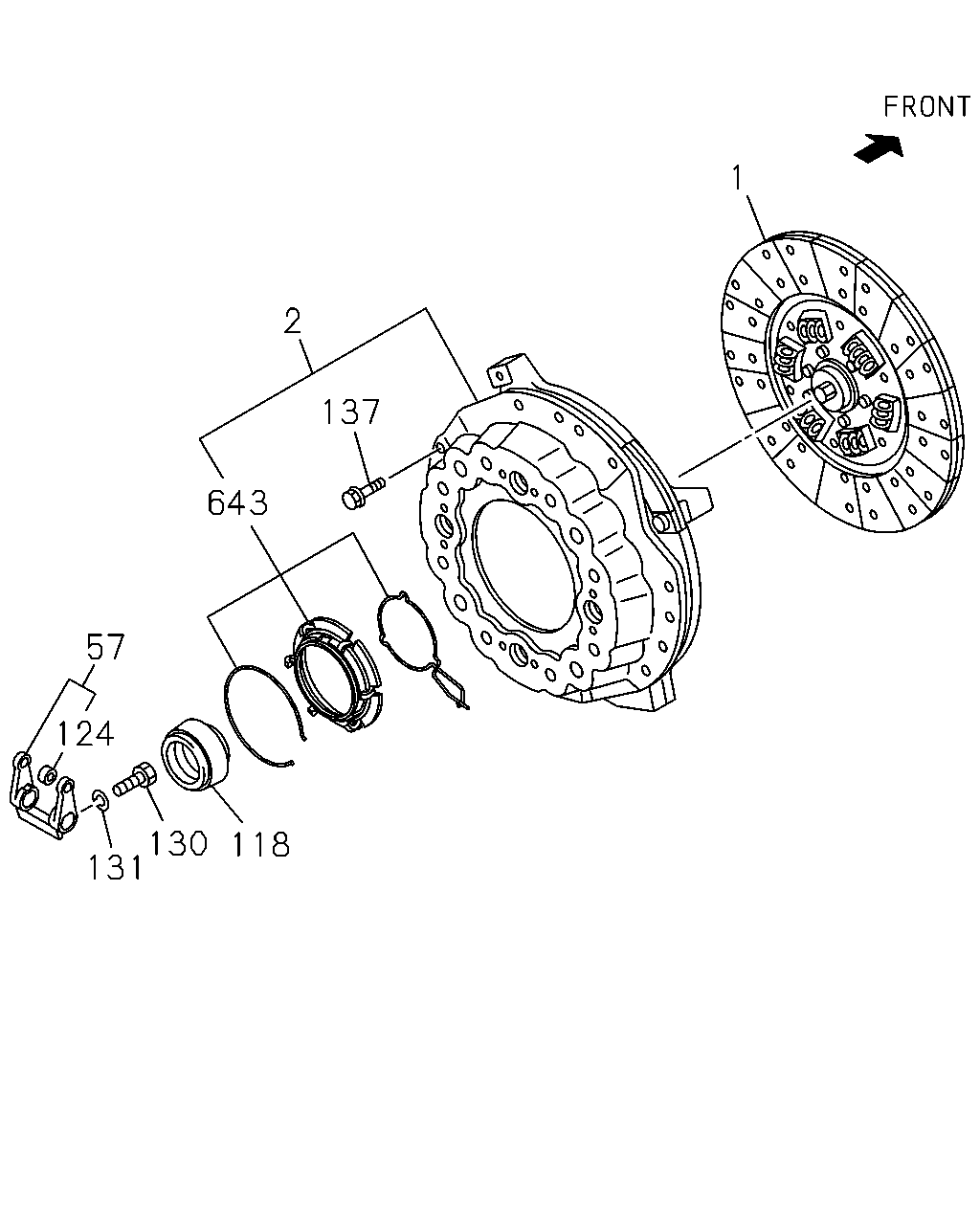

çizim 104007
137 643 118 130 131 124 57 2 1
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
15.5" 		1-31240-802-0 01 1 0507-1008
1 DISC; CLUTCH
15.5" 		1-31240-975-0 01 1 1009-
2 PLATE ASM; PRESSURE,CLU 1-31220-337-0 01 1 0507-1008
2 PLATE ASM; PRESSURE,CLU 1-31220-414-0 01 1 1009-
57 FORK; SHIFT,CLU
6WF1 TC-C(1B8) 		1-31340-066-1 01 1 0507-0511
57 FORK; SHIFT,CLU 1-31340-066-1 01 1 0512-
118 BEARING; CLU RELEASE
6WF1 TC-C(1B8) 		1-31310-006-0 01 1 0507-0511
118 BEARING; CLU RELEASE 1-31310-006-0 01 1 0512-0803
118 BEARING; CLU RELEASE 1-31310-021-0 01 1 0804-1306
118 BEARING; CLU RELEASE 1-31310-028-0 01 1 1307-
124 BEARING; CAM,SHIFT FORK
6WF1 TC-C(1B8) 		1-31349-060-1 02 1 0507-0511
124 BEARING; CAM,SHIFT FORK 1-31349-060-1 02 1 0512-
130 SCREW; SHIFT FORK
6WF1 TC-C(1B8) M8X14 		9-06120-814-0 01 1 0507-0511
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 0512-0512
130 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 0601-
131 WASHER; LK,SHIFT FORK
6WF1 TC-C(1B8) ID=8.2 		9-09150-508-0 01 1 0507-0511
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 0512-0603
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0604-
137 BOLT; CLU COVER
M10X110 FLANGE 		0-28186-011-0 12 1 0507-0512
137 BOLT; CLU COVER
M10X110 FLANGE 		0-28156-011-0 12 1 0601-
643 REPAIR KIT; CLUTCH 8-98207-785-0 01 1 0507-
