1-50 — EXHAUST PIPE AND SILENCER (#32044) — 82 parça

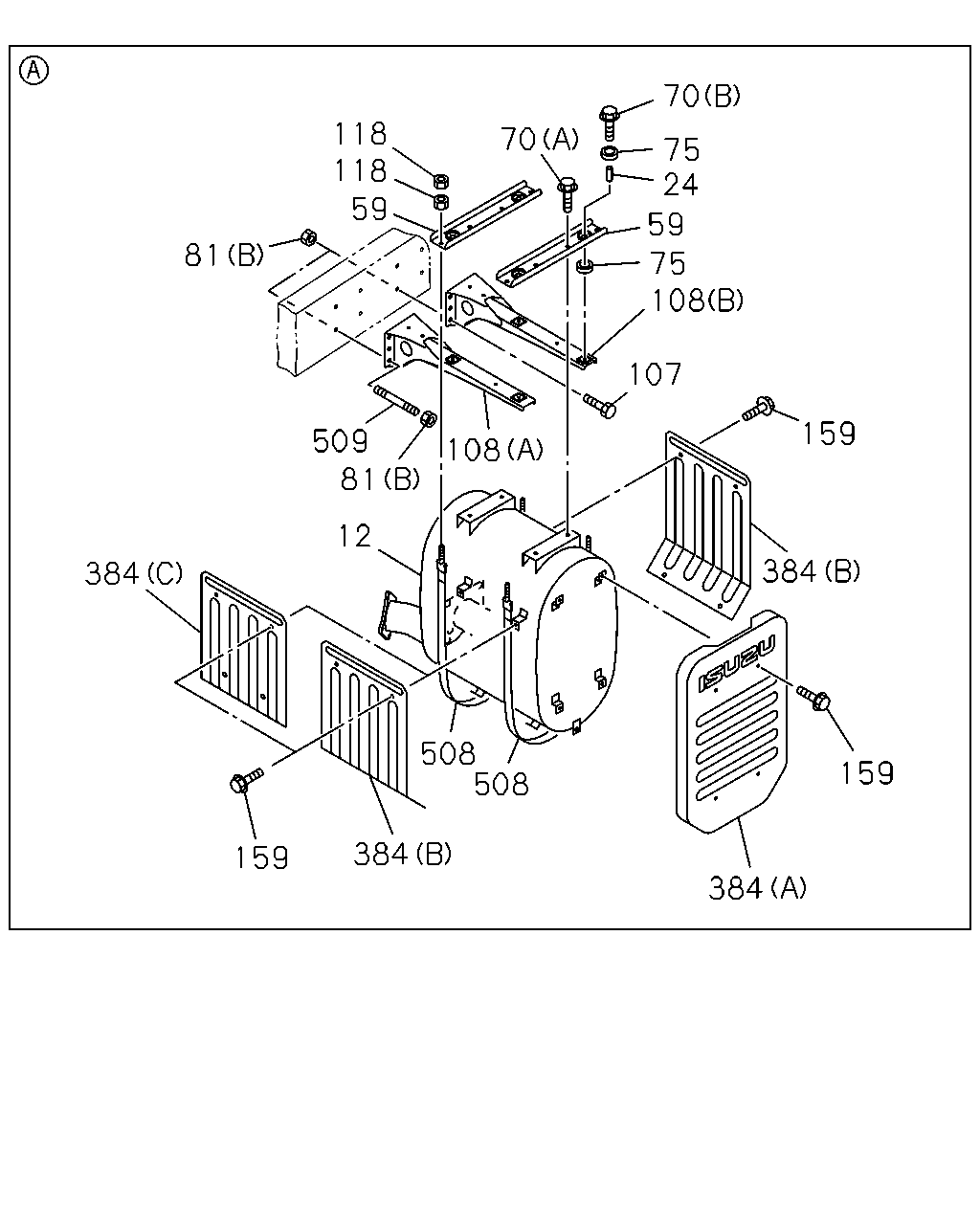

çizim 88770
70 118 118 59 70 75 24 59 81 75 108 107 108 159 509 81 12 384 384 508 508 159 384 159 384
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH
6WG1 TC-C(72L) 		1-22141-156-0 01 1 0512-
12 SILENCER ASM; EXH
6WG1 TC-S(97L) 		1-22141-157-0 01 1 0512-
12 SILENCER ASM; EXH 1-22140-968-3 01 1 0507-0511
12 SILENCER ASM; EXH
6WF1 TC-C(1B8) 		1-22140-968-3 01 1 0512-
24 COLLAR; DIST,CLAMP
L=22 		9-22159-024-0 04 1 0507-
59 BRACKET; EXH SILENCER,FRT 1-22151-710-1 02 1 0507-
70 BOLT; BRKT
(C) M10X30 FLANGE 		0-28081-030-0 02 1 0507-0512
70 BOLT; BRKT
(C) M10X30 FLANGE 		0-28051-030-0 02 1 0601-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28081-050-0 05 1 0507-0512
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 05 1 0601-
70 BOLT; BRKT
(A) M10X20 FLANGE 		0-28681-020-0 04 1 0507-0512
70 BOLT; BRKT
(A) M10X20 FLANGE 		0-28651-020-0 04 1 0601-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 08 1 0507-
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 01 1 0507-0602
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0603-
81 NUT; BRKT
(B) M12 FLANGE 		0-91150-212-0 08 1 0507-0602
81 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 08 1 0603-
107 BOLT; BRKT
M12X35 FLANGE 		0-28681-235-0 04 1 0507-0512
107 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0601-
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(A) 		1-22131-774-3 01 1 0507-
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
(B) 		1-22131-775-3 01 1 0507-
118 NUT; SILENCER MTG BRKT
M10 		9-09110-510-0 08 1 0507-0512
118 NUT; SILENCER MTG BRKT
M10 		0-91110-510-0 08 1 0601-
159 BOLT; HEAT PROTECTOR
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X22 W/LK&PL WASHER 		1-09030-042-0 12 1 0512-
159 BOLT; HEAT PROTECTOR
M8X25 W/LK&PL WASHER 		1-09030-074-0 12 1 0507-0511
159 BOLT; HEAT PROTECTOR
6WF1 TC-C(1B8) M8X25 W/LK&PL WASHER 		1-09030-074-0 12 1 0512-0805
159 BOLT; HEAT PROTECTOR
M8X25 W/LK&PL WASHER 		1-09030-093-0 12 1 0806-
384 PROTECTOR; HEAT SILENCER MTG
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-22119-341-3 01 1 0512-
384 PROTECTOR; HEAT SILENCER MTG
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-22119-527-0 01 1 0512-
384 PROTECTOR; HEAT SILENCER MTG
(B) 		1-22119-341-3 02 1 0507-0511
384 PROTECTOR; HEAT SILENCER MTG
6WF1 TC-C(1B8) (B) 		1-22119-341-3 02 1 0512-
384 PROTECTOR; HEAT SILENCER MTG
(A) 		1-22119-378-4 01 1 0507-
508 BAND; EXHAUST SILENCER 1-22159-382-0 02 1 0507-
509 STUD; BRKT
M12X40 L=56 		1-09300-123-0 04 1 0507-

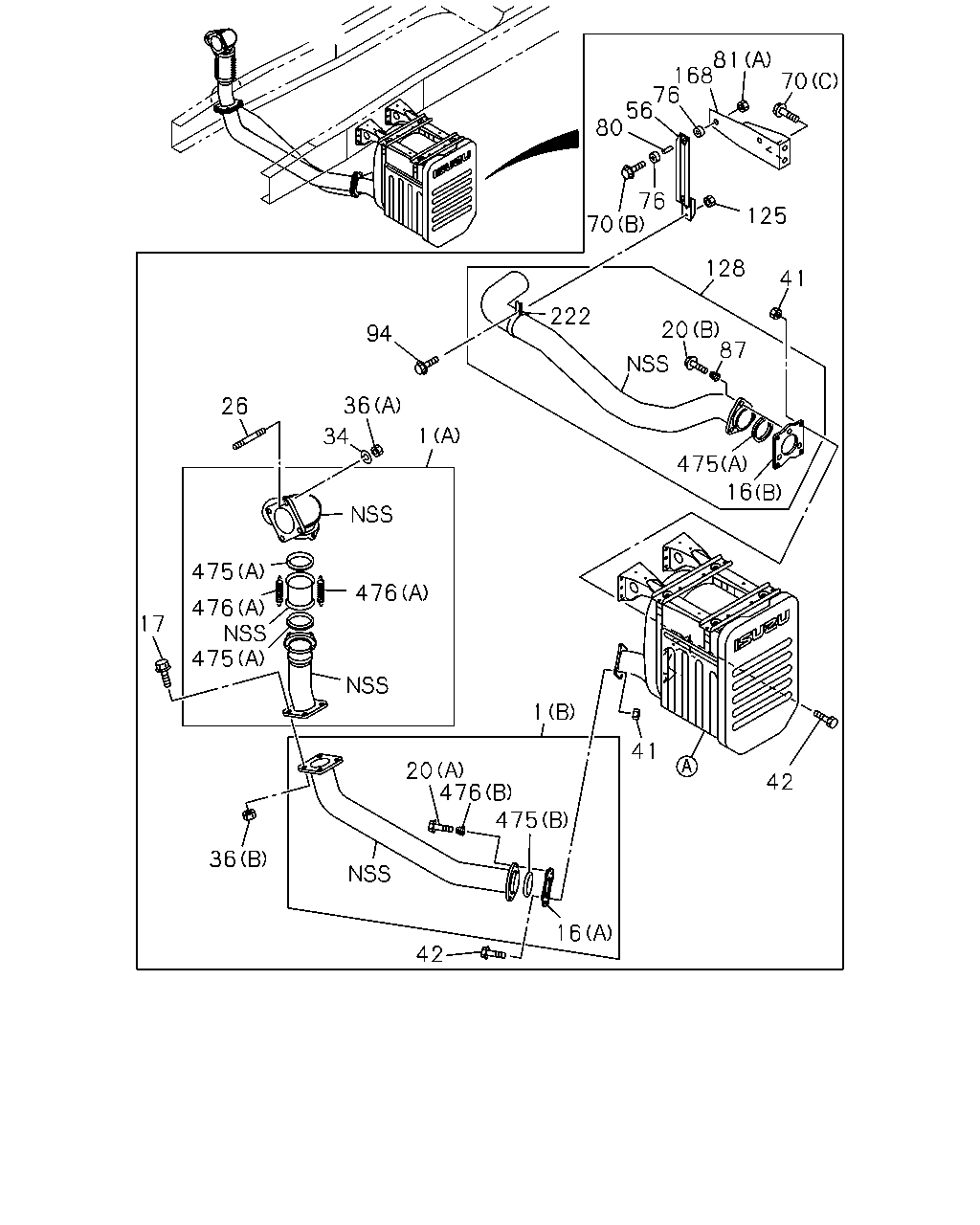

çizim 104006
81 168 76 56 80 70 76 70 125 128 41 222 20 87 94 36 26 1 34 475 475 476 476 475 17 1 41 20 476 475 42 36 16 42 16
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 		1-22123-731-2 01 1 0512-0606
1 PIPE; EXH
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 		1-22124-029-0 01 1 0607-
1 PIPE; EXH
(A) 		1-22123-646-2 01 1 0507-0511
1 PIPE; EXH
6WF1 TC-C(1B8) (A) 		1-22123-646-2 01 1 0512-0606
1 PIPE; EXH
6WF1 TC-C(1B8) (A) 		1-22124-027-0 01 1 0607-
1 PIPE; EXH
(B) 		1-22123-683-1 01 1 0507-
16 FLANGE; EXH PIPE
(B) 		1-22115-229-0 01 1 0507-
16 FLANGE; EXH PIPE
(A) 		1-22115-217-0 01 1 0507-
17 BOLT; EXH PIPE
M12X25 FLANGE 		1-09000-604-0 04 1 0507-
20 BOLT; FLANGE,EXH PIPE
(B) M10X51.4 		1-09009-167-0 03 1 0507-0701
20 BOLT; FLANGE,EXH PIPE
(B) M10X51.4 		8-94436-943-0 03 1 0702-
20 BOLT; FLANGE,EXH PIPE
(A) M10X51.4 		8-94436-943-0 02 1 0507-
26 STUD; EXH MANIF
M12X140 L=160 		1-09302-163-0 04 1 0507-
34 WASHER; EXH PIPE
ID=13 OD=26 		1-09556-020-0 04 1 0507-
36 NUT; EXH PIPE
(A) M12 		1-09400-131-0 04 1 0507-
36 NUT; EXH PIPE
(B) M12 		9-99110-512-0 04 1 0507-0512
36 NUT; EXH PIPE
(B) M12 		0-91110-512-0 04 1 0601-
41 NUT; EXH PIPE TO EXH SILENCER
M12 		9-99110-512-0 08 1 0507-0512
41 NUT; EXH PIPE TO EXH SILENCER
M12 		0-91110-512-0 08 1 0601-
42 BOLT; EXH PIPE TO EXH SILENCER
M12X25 FLANGE 		1-09000-604-0 08 1 0507-
56 BRACKET; CLAMP,EXH PIPE 1-22152-070-0 01 1 0507-
70 BOLT; BRKT
(C) M10X30 FLANGE 		0-28081-030-0 02 1 0507-0512
70 BOLT; BRKT
(C) M10X30 FLANGE 		0-28051-030-0 02 1 0601-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28081-050-0 05 1 0507-0512
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 05 1 0601-
70 BOLT; BRKT
(A) M10X20 FLANGE 		0-28681-020-0 04 1 0507-0512
70 BOLT; BRKT
(A) M10X20 FLANGE 		0-28651-020-0 04 1 0601-
76 SUPPORT; BRKT
OD=40 		1-22159-094-0 02 1 0507-
80 COLLAR; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 01 1 0507-
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 01 1 0507-0602
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0603-
81 NUT; BRKT
(B) M12 FLANGE 		0-91150-212-0 08 1 0507-0602
81 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 08 1 0603-
87 SPRING; PRE SILENCER 8-94141-851-0 03 1 0507-
94 BOLT; CLAMP
M8X40 FLANGE 		0-28680-840-0 02 1 0507-0512
94 BOLT; CLAMP
M8X40 FLANGE 		0-28650-840-0 02 1 0601-
125 NUT; CLAMP
M8 FLANGE 		0-91150-108-0 02 1 0507-0602
125 NUT; CLAMP
M8 FLANGE 		0-91180-108-0 02 1 0603-
128 PIPE; EXH,RR
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-22126-524-1 01 1 0512-
128 PIPE; EXH,RR 1-22126-414-1 01 1 0507-0511
128 PIPE; EXH,RR
6WF1 TC-C(1B8) 		1-22126-414-1 01 1 0512-
168 BRACKET; EXH PIPE,FRT 1-22131-995-1 01 1 0507-
222 CLAMP; EXH PIPE 1-22133-276-0 01 1 0507-
475 BEARING; SEAL,VIBNON,EXH PIPE
(B) OD=112 		1-22119-294-1 01 1 0507-
475 BEARING; SEAL,VIBNON,EXH PIPE
(A) OD=122 		1-22119-297-1 01 1 0507-
475 BEARING; SEAL,VIBNON,EXH PIPE
(A) OD=122 		1-22119-297-0 02 1 0507-
476 SPRING; VIBNON,EXH PIPE
(B) 		8-94141-851-0 02 1 0507-
476 SPRING; VIBNON,EXH PIPE
(A) 		1-09583-248-0 04 1 0507-
