Isuzu WW
▶
TRUCKS
▶
FRR
▶
11137 - FRR-LHD(EU)SPACE EU4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

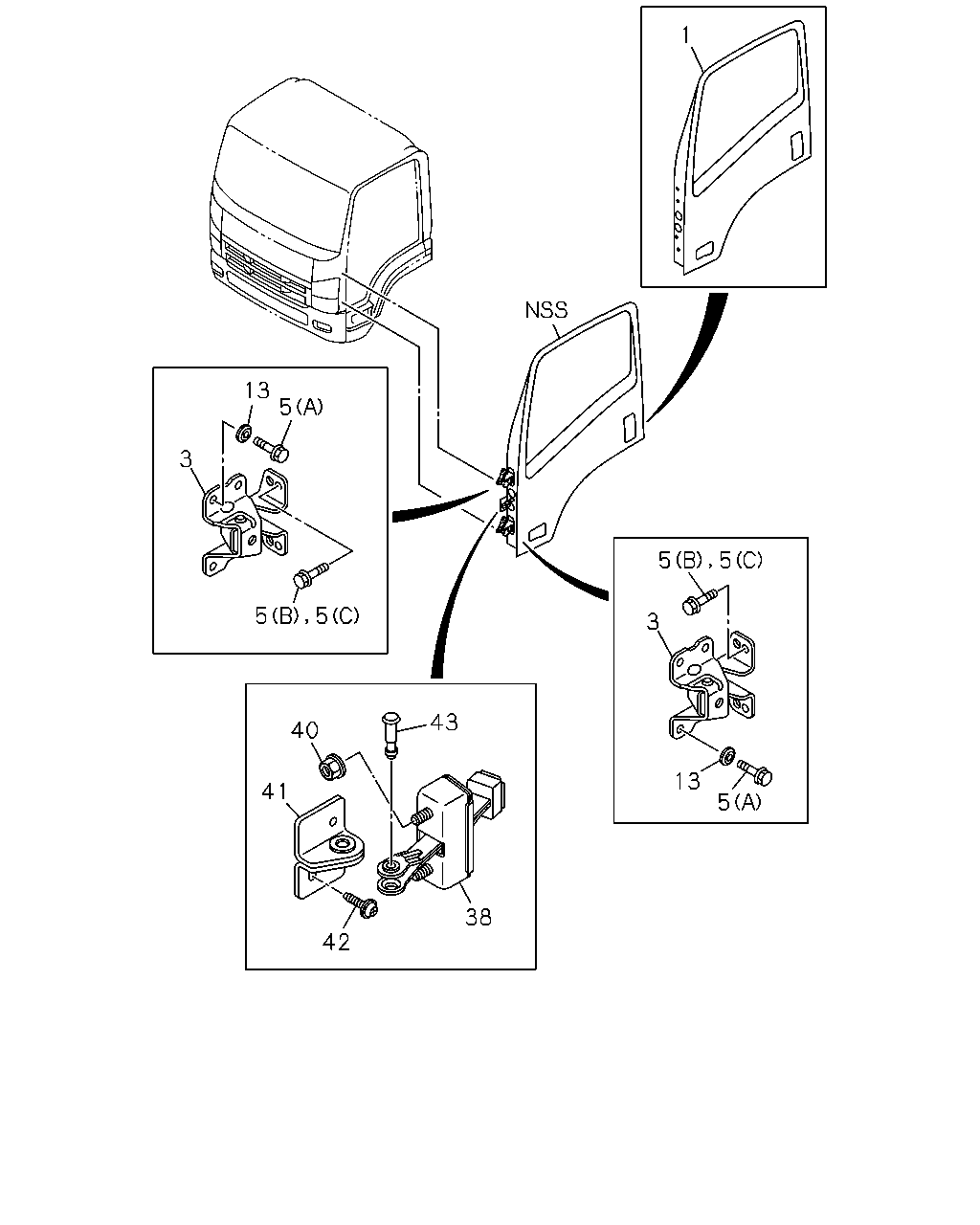

6-30 — FRONT DOOR AND HINGE
(#32041) — 23 parça
1
13
5
3
3
43
40
13
41
5
38
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
8-98060-797-1
01
1
0803-1012
1
DOOR ASM; FRT,WO/TRIM
8-98171-223-0
01
1
1101-1411
1
DOOR ASM; FRT,WO/TRIM
8-98260-597-0
01
1
1412-
1
DOOR ASM; FRT,WO/TRIM
8-98060-798-1
01
1
0803-1012
1
DOOR ASM; FRT,WO/TRIM
8-98171-231-0
01
1
1101-1411
1
DOOR ASM; FRT,WO/TRIM
8-98260-598-0
01
1
1412-
3
HINGE; DOOR FRT
8-98038-293-0
04
1
0803-1104
3
HINGE; DOOR FRT
8-98191-302-0
04
1
1105-
5
BOLT; HINGE
KD PREPARATORY PACK VAR.4<7TV> (C) M8X20 FLANGE
8-98049-756-0
08
1
0803-
5
BOLT; HINGE
(A) M8X20 FLANGE
8-98049-756-0
12
1
0803-
5
BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) M8X20 FLANGE
8-98049-756-0
12
1
0803-
5
BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE
8-98029-440-0
08
1
0803-
13
WASHER; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> ID=8.1 W/SEAL
8-97890-584-1
04
1
0803-
38
CHECKER ASM; DOOR
8-98031-730-6
02
1
0803-1508
38
CHECKER ASM; DOOR
8-98296-602-0
02
1
1509-
40
NUT; CHECKER
KD PREPARATORY PACK VAR.4<7TV> M8 W/DISHED WASHER
8-97329-625-0
04
1
1510-
40
NUT; CHECKER
M8 FLANGE
8-98029-441-0
04
1
0803-1012
40
NUT; CHECKER
M8 W/DISHED WASHER
8-97329-625-0
04
1
1101-1508
40
NUT; CHECKER
M8 W/DISHED WASHER
8-98302-918-0
04
1
1509-1509
40
NUT; CHECKER
EXC. KD PREPARATORY PACK VAR.4<7TV> M8 W/DISHED WASHER
8-98302-918-0
04
1
1510-
41
BRACKET; CHECKER
8-98029-290-3
02
1
0803-
42
BOLT; BRKT
M6X20 W/PL WASHER
8-98032-159-2
04
1
0803-
43
PIN
8-98037-152-2
02
1
0803-
